Easy-to-Install Steel Structure Plant Solutions for Modern Construction Needs

1 / 5

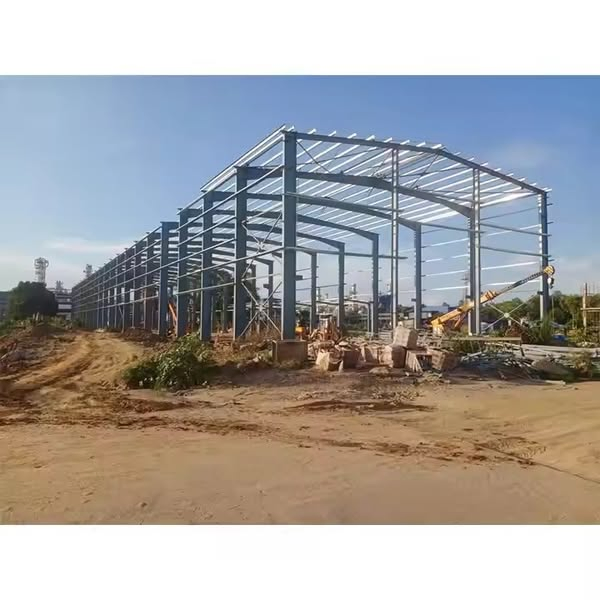

Easy-to-Install Steel Structure Plant Solutions for Modern Construction Needs

Customization:	Available
After-sales Service:	Provide Installation Method
Layers:	Multi-Layer

Send Inquiry

Product Description

📋

Basic Information

Model NO.:RG164

Certificate:ISO, CE

Material:Light Steel Frame

Steel Grade:Q235B, Q345B

Service Life:More Than 50 Years

Capacity:5000 Ton Per Month

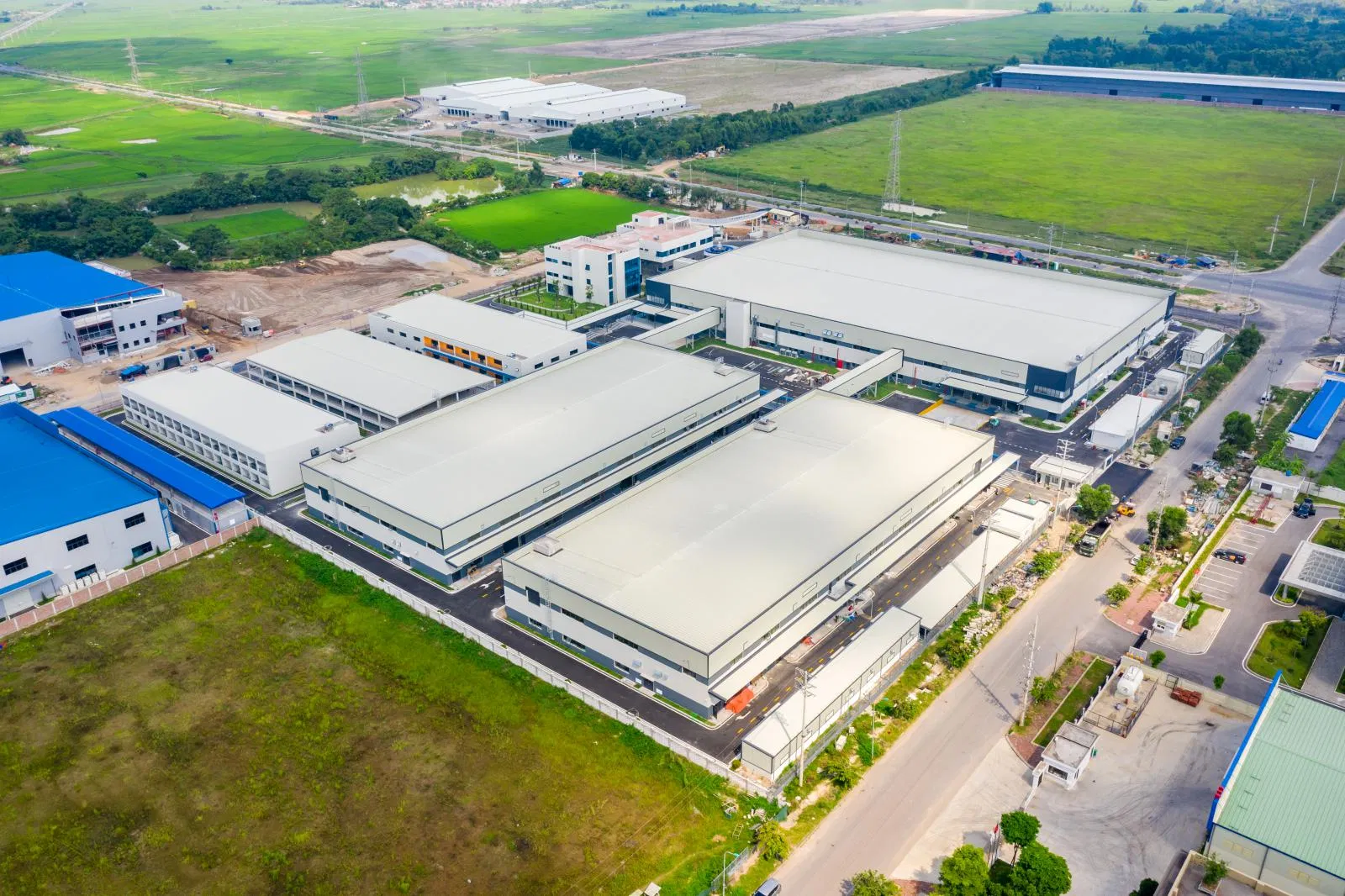

Usage: Dust-Proof Workshop, Food & Chemical Industry, Heavy Industry, Power Plant, Research Facility, Warehouse, Textile Processing.

🚀

Our Advantages

01. High Durability

Lightweight, high strength, and designed to last over 50 years with zero construction waste.

02. Certified Quality

Strict adherence to ISO 9001 quality management standards.

03. Cost-Effective

Designed to save both time and money during fabrication and erection.

04. Eco-Friendly

Fully recyclable materials and easy to relocate, reducing environmental impact.

🛠️

Product Specifications

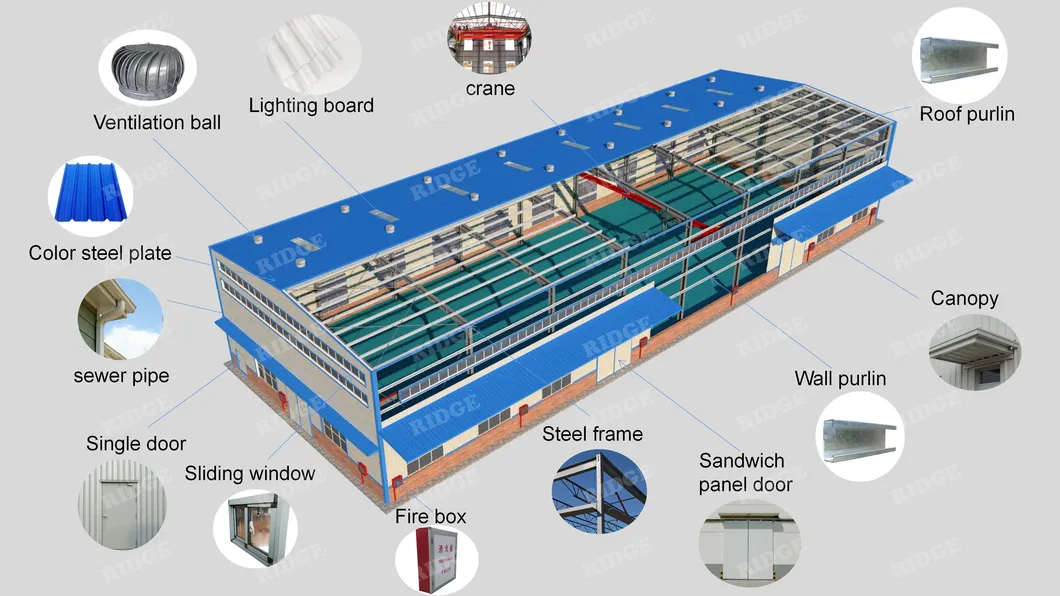

Technical Detail Specifications
Steel Frame	Material Q345 (S355JR) or Q235 (S235JR); Welded H section, painted or galvanized.
Base	Steel foundation bolts.
Bracing	X-type, V-type, or other types made from angle or round bars.
Purlins	C or Z section channels (C80~C300; Z100~Z300).
Cladding	Sandwich panels (EPS, Rock Wool, Glass Wool, PU) or single color corrugated steel sheet.
Doors & Windows	PVC or Aluminum Alloy windows; Sliding or Roller shutter doors.
Surface Process	Shot blasting Sa2.5; Two layers of anti-rust painting or galvanized finish.

🏢

Professional Service

Founded in 1998, we specialize in the design, fabrication, and erection of steel buildings. With a highly efficient workshop, an experienced design team, and a proficient erection crew, we provide customers with superior quality steel structures at competitive prices.

📝

Inquiry Requirements

To provide an accurate cost calculation, please prepare the following details:

🔹 Dimensions: Length, width, height, eave height, and roof pitch.
🔹 Doors & Windows: Specific dimensions, quantities, and positions.
🔹 Local Climate: Wind speed, snow load, and seismic activity levels.
🔹 Insulation: Preferred panel types and sandwich thickness.
🔹 Crane Systems: Lifting height and weight requirements if needed.
🔹 Drawings: Please provide existing drawings or reference pictures if available.

Frequently Asked Questions

How long is the expected service life of the steel structure?

Our steel structures are designed with high-quality materials to last more than 50 years with proper maintenance.

What materials are used for insulation in the wall and roof panels?

We offer several options including EPS, Rock Wool, Glass Wool, and PU (Polyurethane) sandwich panels with thicknesses ranging from 50mm to 200mm.

Is the steel structure customizable for specific industrial needs?

Yes, we can design the drawing according to your specific demands, including customizations for overhead cranes, mezzanine floors, and specialized ventilation systems.

What surface treatment do you apply to the steel frame?

The steel frame undergoes shot blasting to Sa2.5 grade followed by two layers of anti-rust painting or a galvanized finish for maximum corrosion resistance.

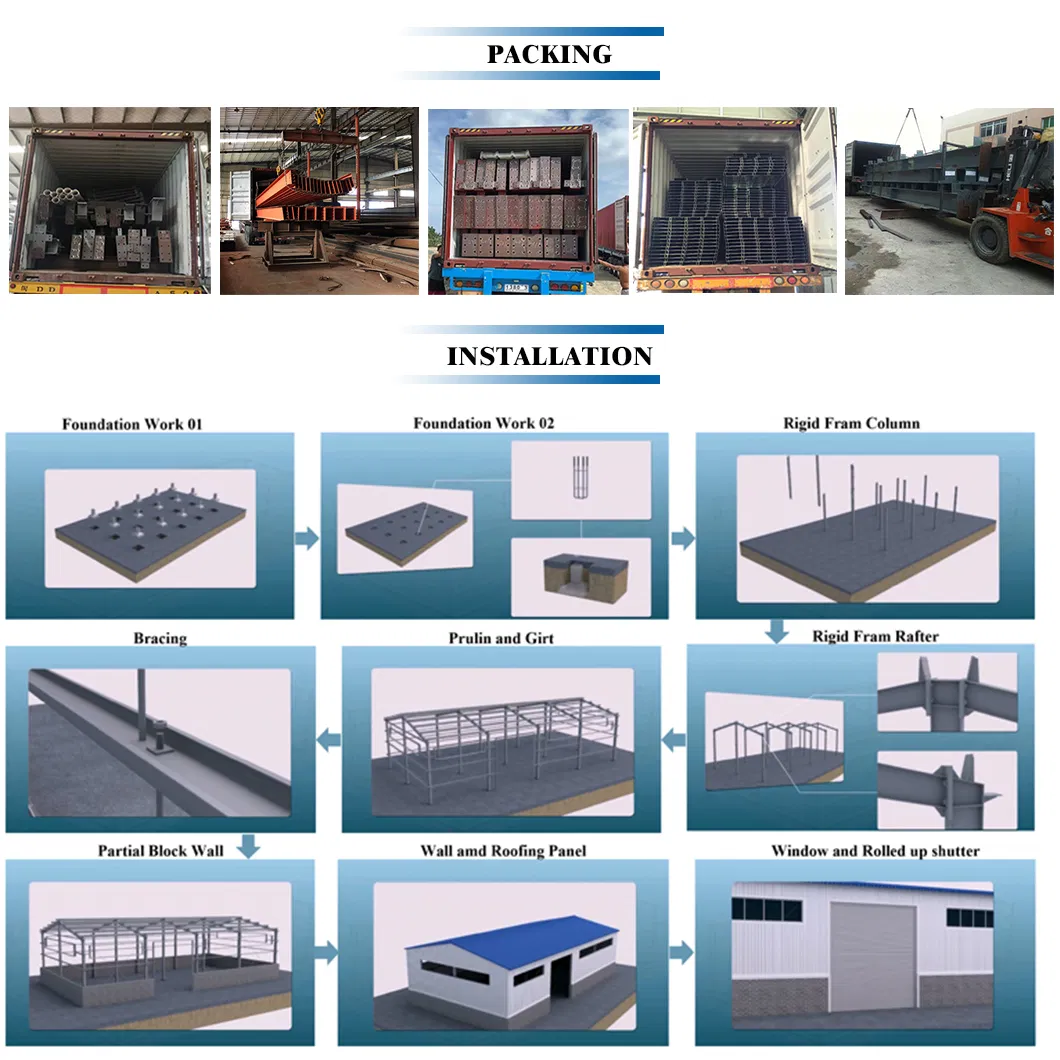

Do you provide installation assistance?

Yes, we provide engineering support and instructions to help guide the installation process on-site.

What information is needed to get a quick quote?

Please provide the building dimensions (L*W*H), your local climate conditions (wind/snow loads), and preferred door/window configurations.
