Note: With many years of experience and development, the manufacturer has obtained the full capacity to offer complete and professional Turnkey Projects for you.

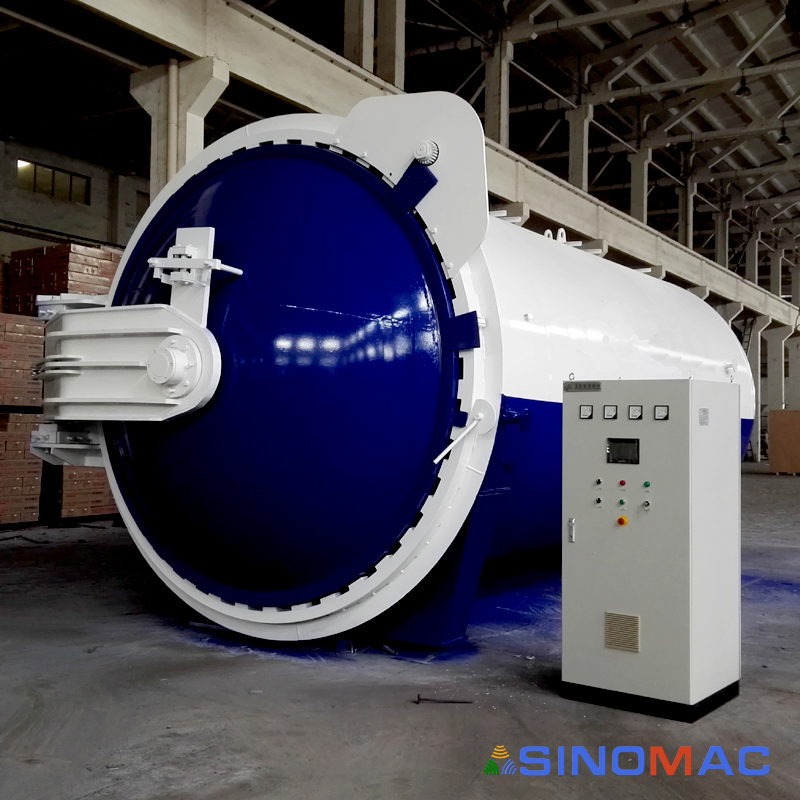

1. Usage of Glass Autoclave
Laminated safety glass is produced by sandwiching a polymer plastic film between two or more pieces of glass, followed by heating and pressurizing in an autoclave. This equipment ensures the stability and high quality of laminated products, widely used in Architecture, Automotive, and Solar fields.
2. General Features

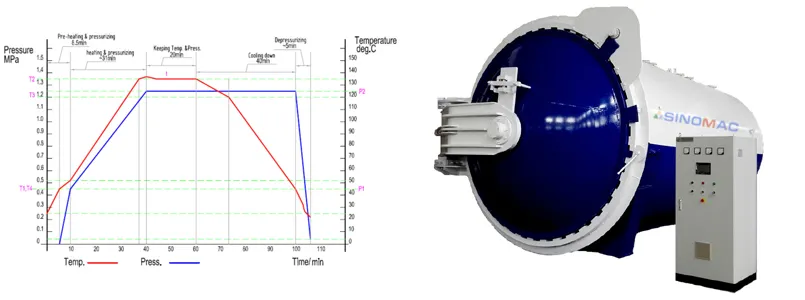

The operation process includes 6 segments: Pre-heating/pre-pressing, first temperature/pressure keeping, heating/pressurizing, second temperature/pressure keeping, cooling, and air exhaust. The process is fully automated via TPC (Thermal Processing Control) software.

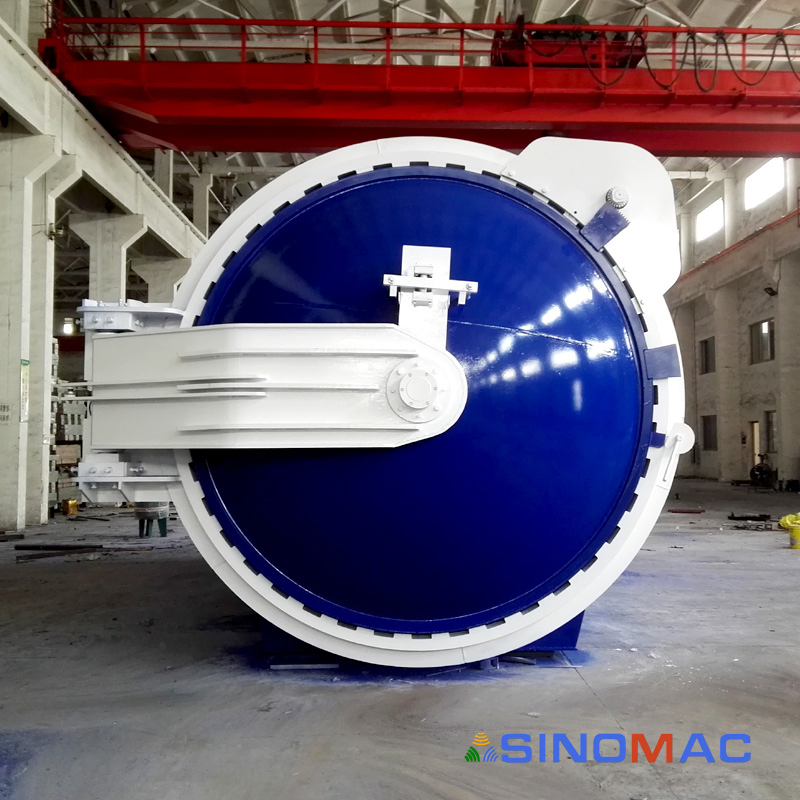

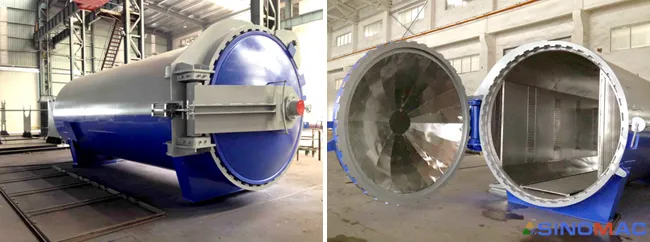

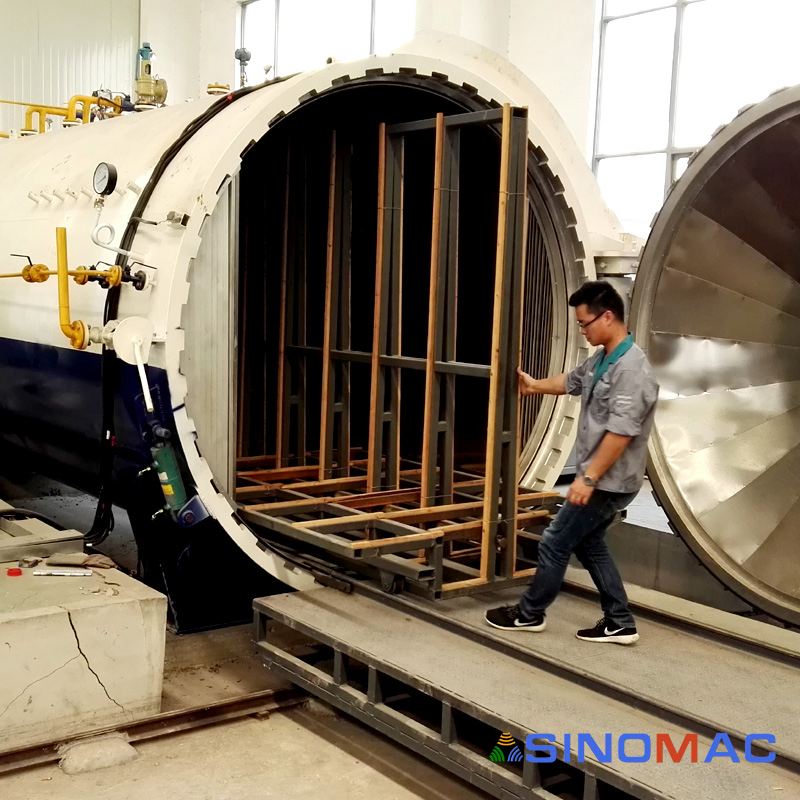

3. Quick Opening Door
Designed for maximum safety and lifespan, consisting of gear flanges, driven devices, and seal rings. Opening modes: pneumatic, hydraulic, or electric.
4. Technical Systems

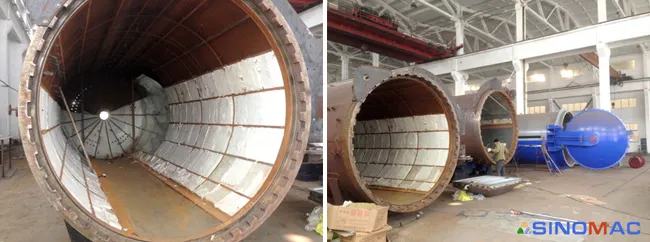

- Heating Insulation: Inner insulation with ceramic fiber and stainless steel sheet.
- Heating System: Main and auxiliary zones using Inconel tubular heaters.
- Cooling System: Aluminum finned tube exchangers for efficient maintenance.
- Vacuum System: Protects curved stratified glass to remove air bubbles.
Frequently Asked Questions
What types of glass can this autoclave process?
It is primarily used for laminated safety glass in architecture, automotive, and solar industries, supporting various polymer plastic film materials.
How does the safety interlock system work?
The system prevents the door from opening if internal pressure is higher than atmospheric pressure and includes automatic alarms for over-temperature or over-pressure conditions.
What are the available heating modes?
Customers can choose between Electric, Natural Gas, or Thermal Oil heating modes depending on their factory infrastructure.
Is the control software customizable?

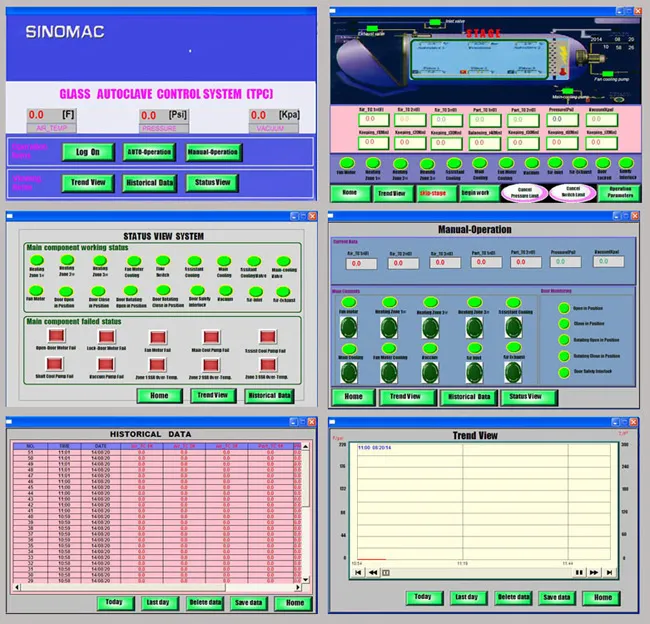

The equipment uses exclusive TPC (Thermal Processing Control) software based on PLC systems, providing full automation and high-precision monitoring.
What is the lifespan of the heating elements?
The Inconel tubular heaters are designed for efficiency and durability, with a working life of up to 15,000 hours.
Can the door opening mode be selected?
Yes, we offer three opening modes to fit your operational needs: pneumatic, hydraulic, and electric.
