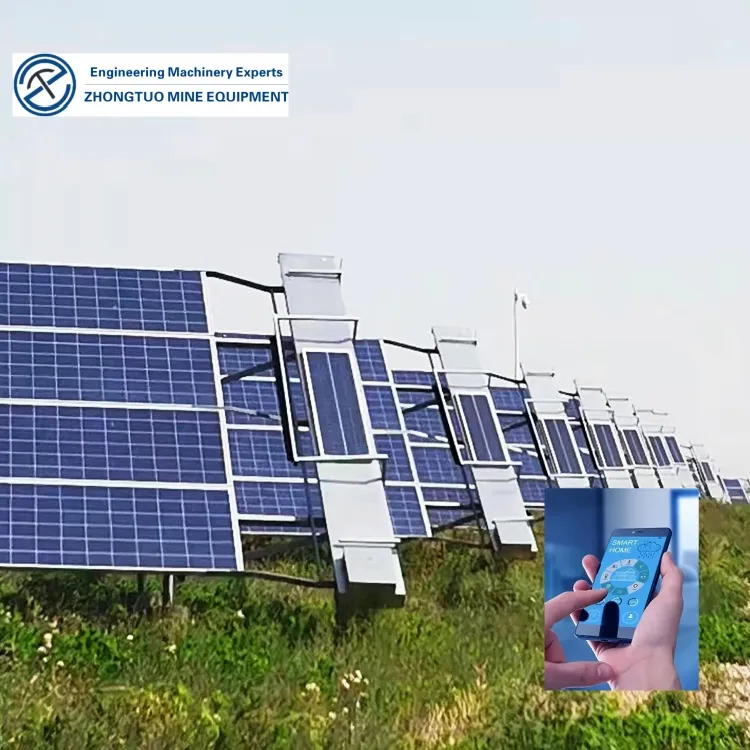

Solar Panel Cleaning Equipment Solar Panel Power Plant Use

Customization: Available
After-sales Service: Technical Support
Automation: Automatic

Product Description

Basic Information
Model NO.:ZT20
Clean Type:Clean-In-Place
Cleaning Process:Cold Water Cleaning
Control:CNC
Customized:Customized
Fuel:Electric
Principle:Physical Cleaning
Remote Control:With Remote Control
Style:Fixed Style
Control Type:Automatic System Control
Working Width:up to 10m
Battery:Solar Panel Battery
📋 Product Description

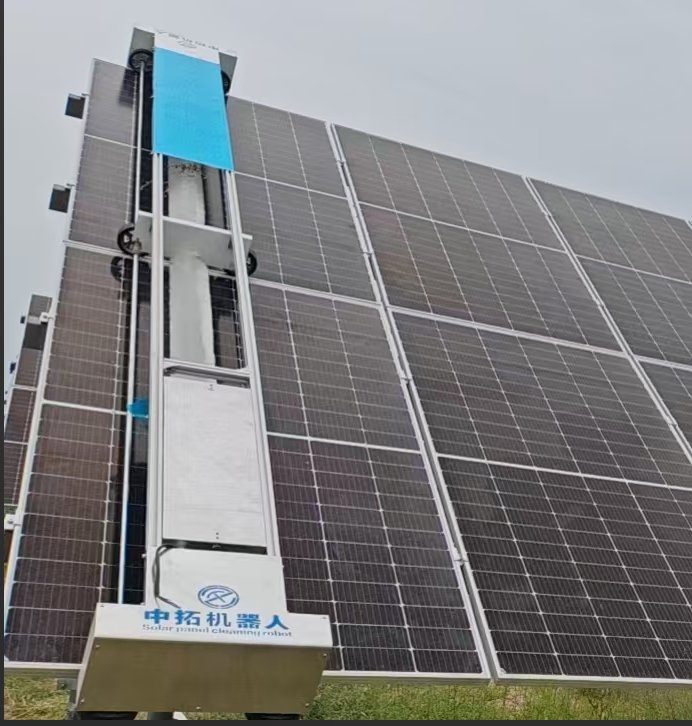

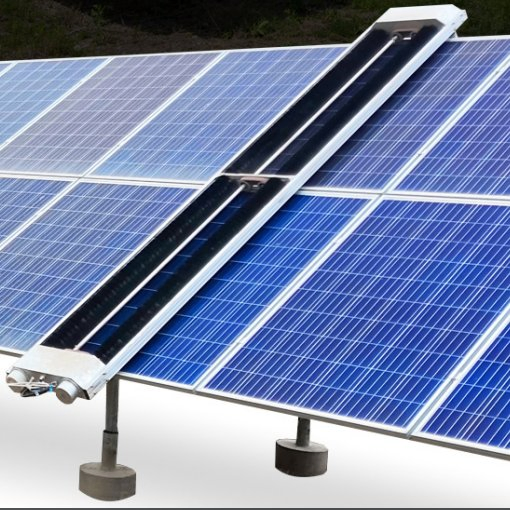

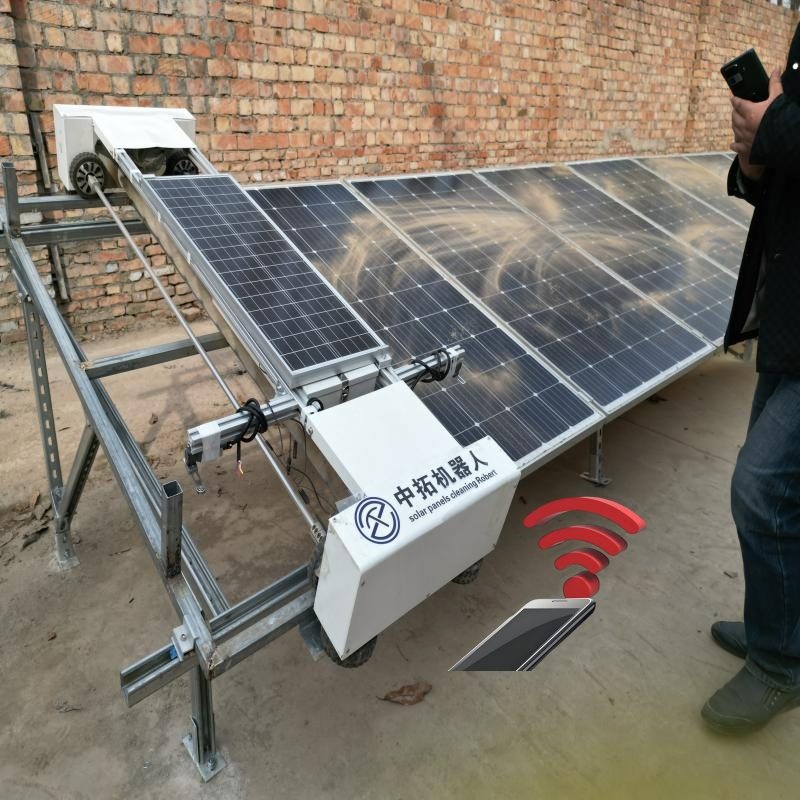

Solar Panel Cleaning Robot

This Solar Panel Cleaning Robot rapidly removes dust and dirt from the surface of solar panels through advanced wheeled mobility. The top auxiliary wheel rotates synchronously, and the brush of the cleaning part turns in the opposite direction of the walking wheel. During the rotation process, dust is first brushed off the component surface and then driven to the gaps by the impact of the brush and the rotating air flow.

Solar Panel Cleaning Equipment
Technical Parameters
Product ModelZTG-3310
Product NameRemote control crawler photovoltaic cleaning robot
Standard Width400 mm
Standard Height215 mm
Working condition>30 degree
Power ModeLithium batteries, rechargeable photovoltaic panels
Rechargeable PV Panel50W / 24V
Battery Power24V / 10A
Charging Time4-5 hours
Motor Power90 W
Cleaning Speed14m/min
Working Temp-20 ~ 80ºC
Control ModeAutomatic, manual, remote control
Network Access4G
Key Features

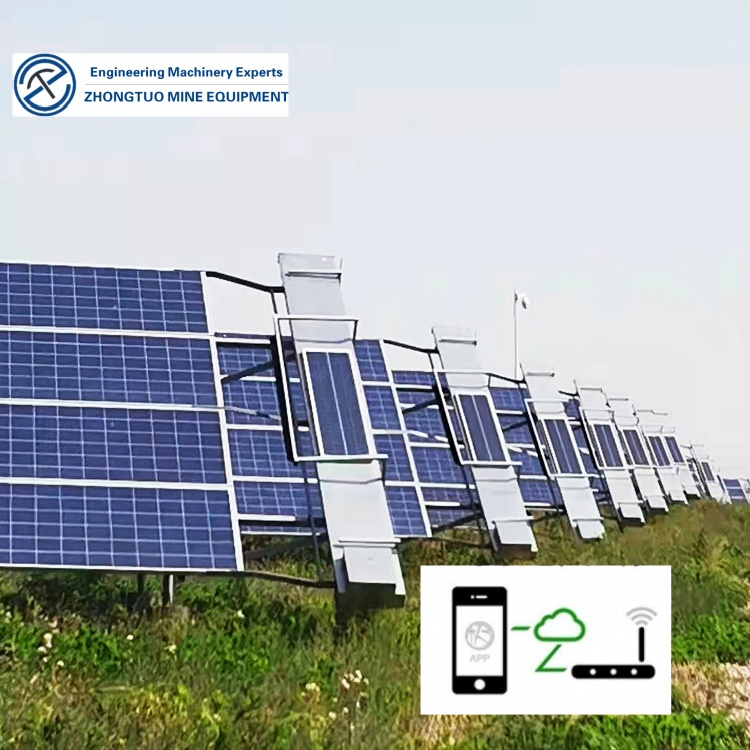

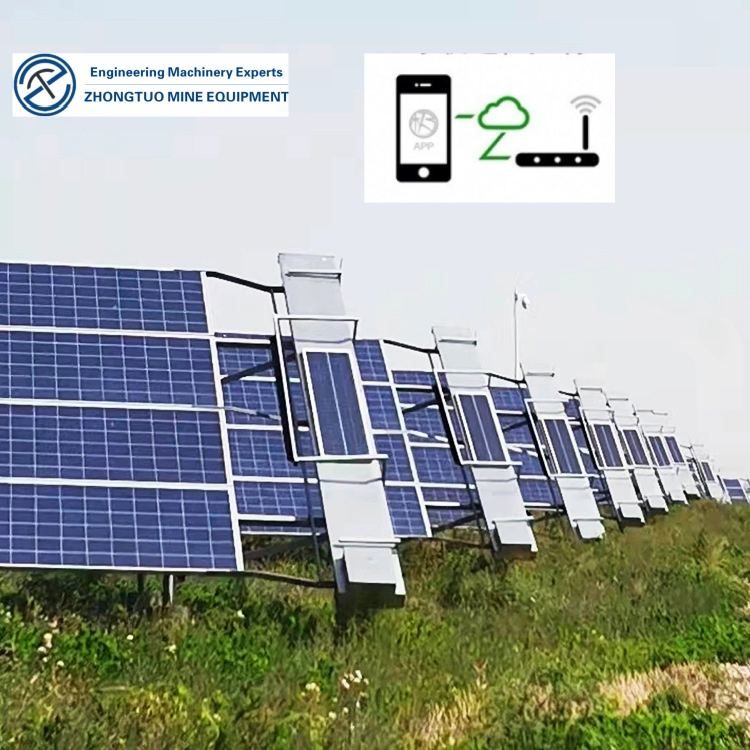

  • Operated and controlled remotely for maximum convenience.
  • Real-time fault monitoring and remote diagnosis capabilities.
  • Intelligent data collection and analysis for performance tracking.
  • Supports remote upgrades and maintenance to ensure longevity.
  • High-speed dry cleaning efficiency, leading the industry standards.

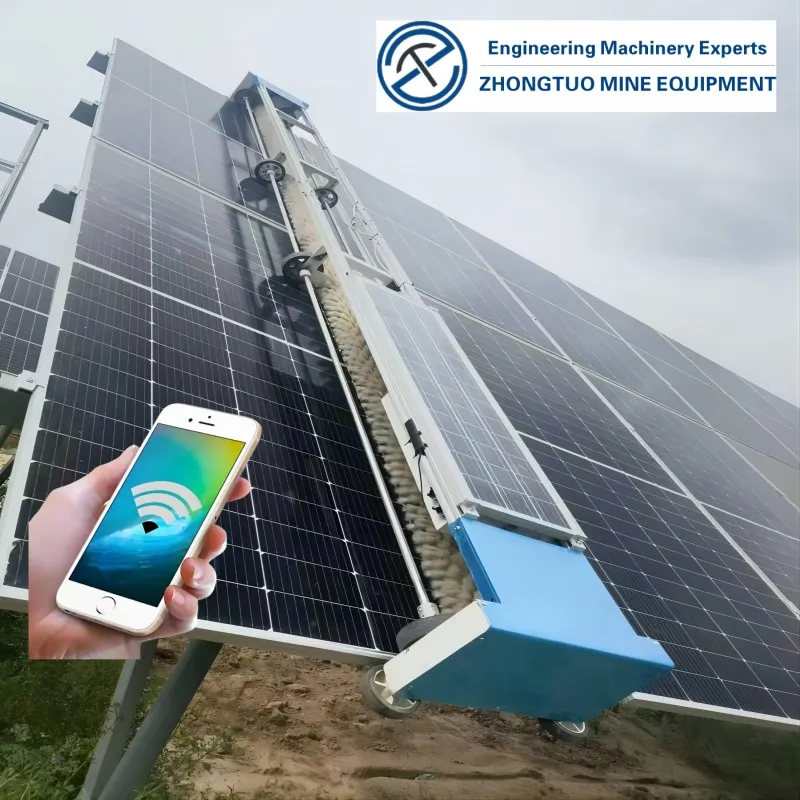

Cleaning robot features
🏭 Production & Packaging
Factory display
Certification display

Packaging Details:

  • 1. Outer packaging: Standard sea export bakelite box.
  • 2. Inner packaging: Stretch film and moisture-proof plastic film.
  • 3. Customizable based on specific client requirements.
Packaging details
Frequently Asked Questions
Q1: Will the robot hit walls or obstacles during operation? Answer: Under normal circumstances, no. Human-operated units are controlled by trained personnel, while fully automatic systems utilize induction sensors to prevent collisions.
Q2: Can the equipment work on rainy days? Answer: Fully automatic equipment can operate in the rain. However, human-operated equipment is not recommended for use during rain to ensure personnel safety from lightning and slipping hazards.
Q3: What are the advantages of the crawler track design? Answer: The crawler tracks provide higher cleaning friction, which results in a more thorough and effective cleaning effect compared to standard wheels.
Q4: How does this equipment compare to competitors? Answer: Our equipment is designed for high efficiency, durability, and reliability. Specifically, our dry cleaning efficiency and cleanliness levels are among the highest in the industry.
Q5: Can I detect if debris is on the panels via power output? Answer: Large areas of debris will show a noticeable drop in power generation. While small debris might not be immediately obvious, the monitoring system can help judge changes in overall efficiency.
Q6: What is the technical advantage for dry cleaning? Answer: It is optimized for high-speed dry cleaning, offering the highest efficiency and cleanliness standards currently available for photovoltaic maintenance.
