Smart Wireless HD Video Surveillance System with Anti-Interference Base

1 / 5

Smart Wireless HD Video Surveillance System with Anti-Interference Base

Customization:	Available
Portability:	Yes
Interface:	Wireless

Send Inquiry

Product Description

●

Basic Information

Model NO.	SW8000CBE
Product Name	Outdoor Wireless Base Station
Frequency Band	IEEE802.11A/N/AC: 4920 ~ 6100MHz
Maximum Working Rate	867Mbps
RF Power Output	2*500MW
Supporting System	LINUX
Storage Method	Hard Drive
Production Capacity	50000 Pieces/Year

●

Product Description

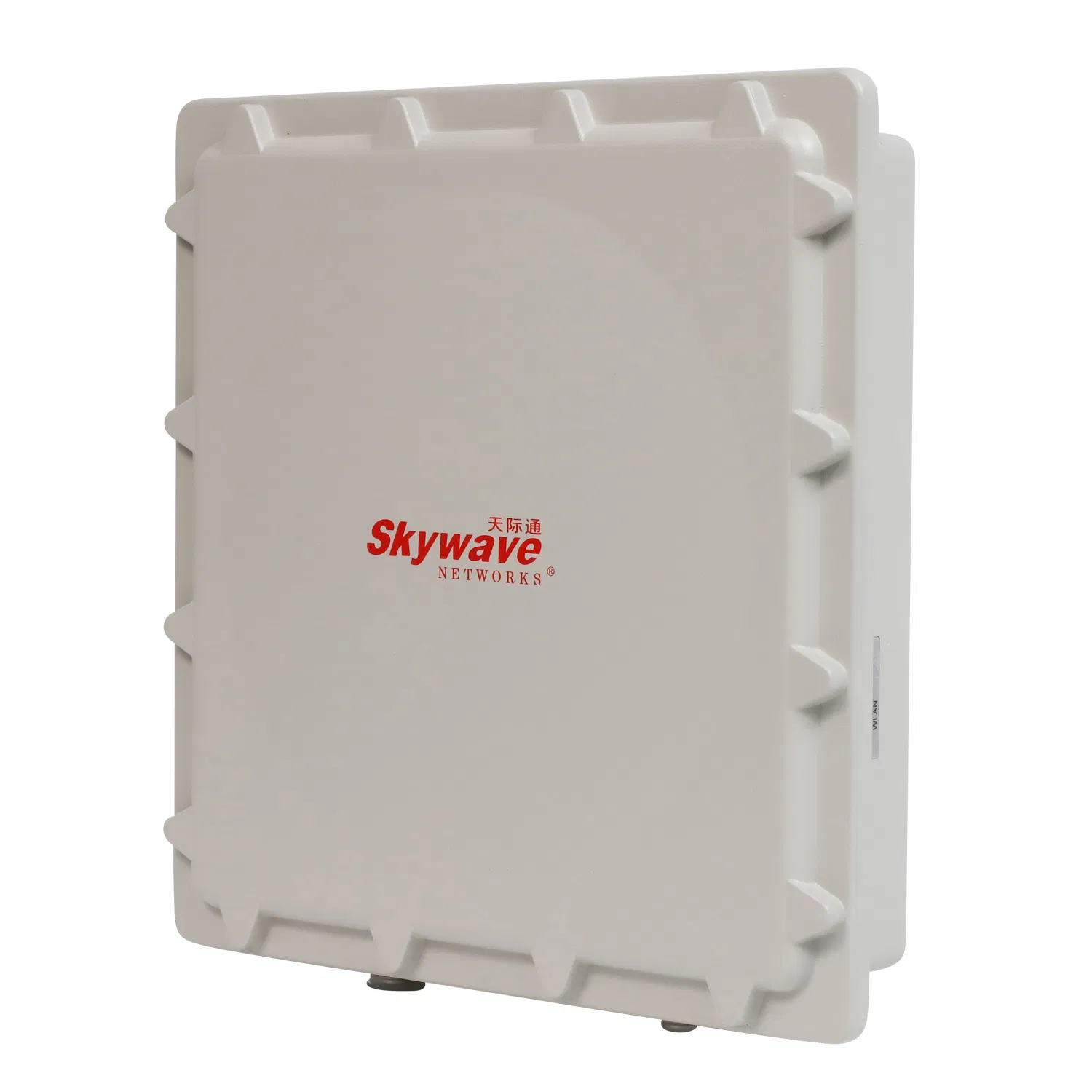

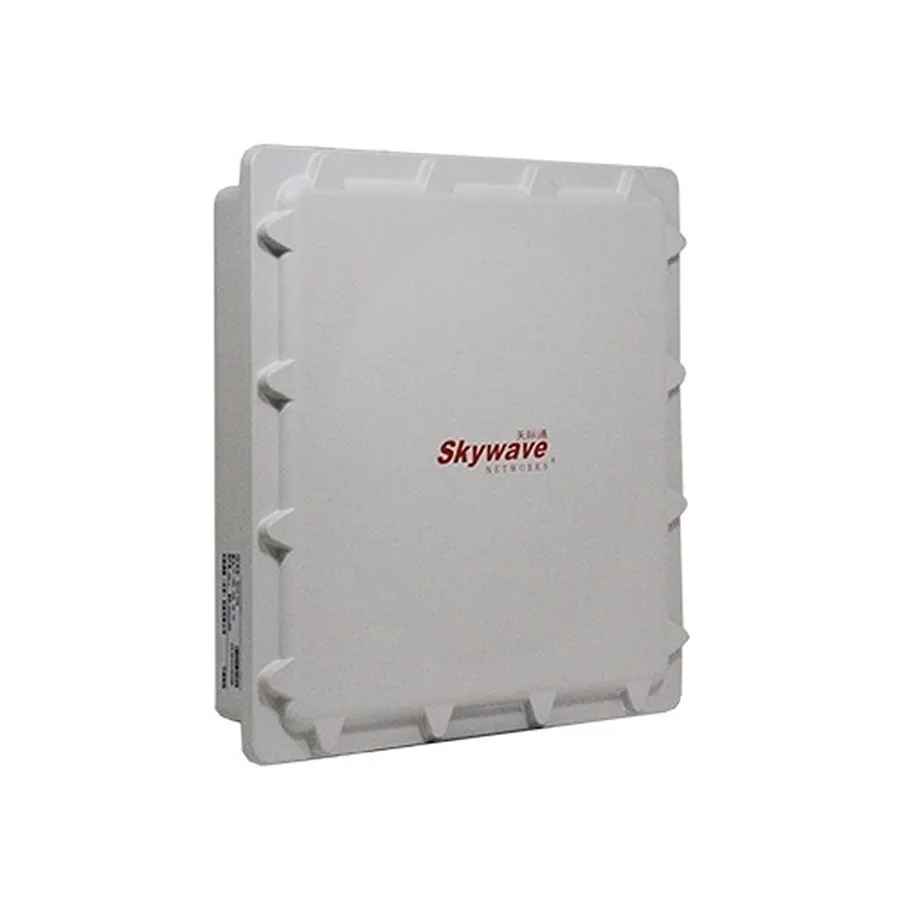

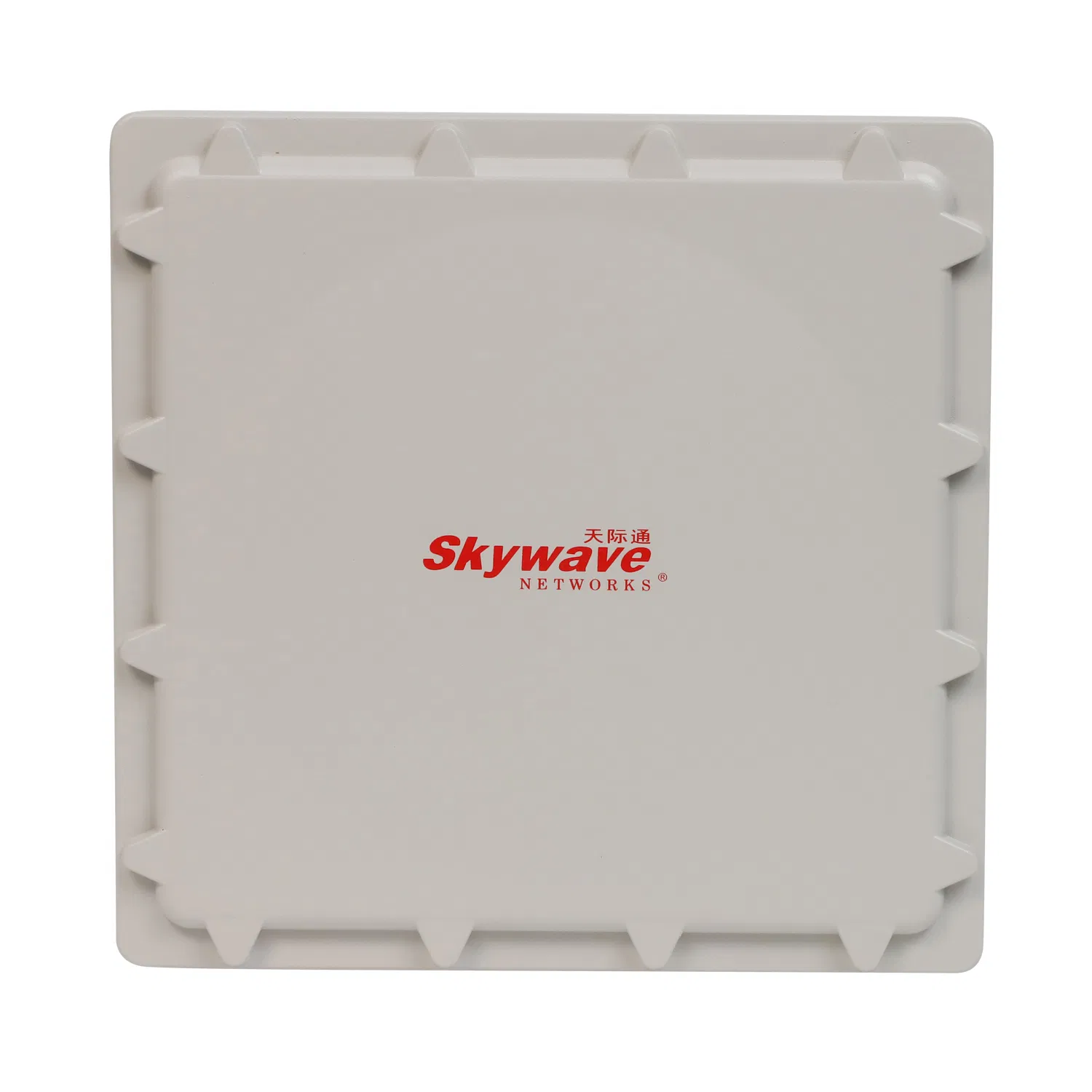

SW8000CBE is an outdoor carrier-grade split-type wireless base station operating in the 5GHz unlicensed frequency band. It is a wireless network device compliant with the IEEE802.11ac standard. The product adopts a high-performance Qualcomm Atheros high-speed network processor and is based on the MIMO (Multiple-Input Multiple-Output) technology, featuring a 2T2R architecture that supports a wireless transmission rate of up to 867Mbps.

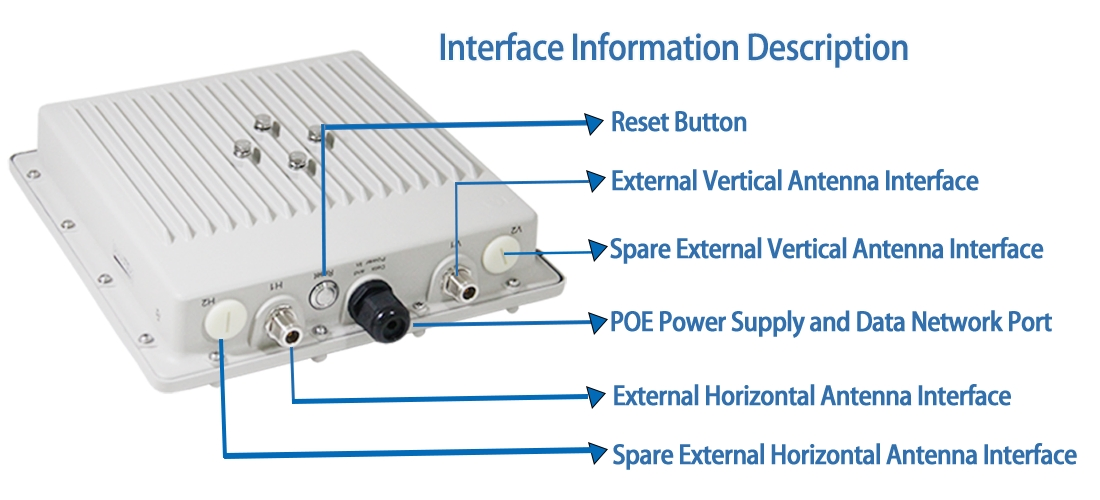

The device is equipped with 2N-type radio frequency interfaces, allowing it to connect to external antennas of different models according to on-site conditions. It is particularly suitable for long-distance backbone network transmission projects and real-time services with large data flows, such as high-definition video surveillance.

●

Detailed Photos

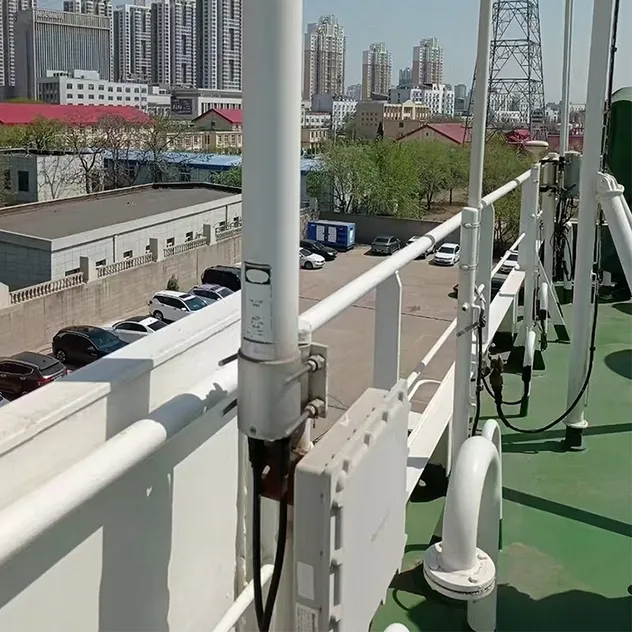

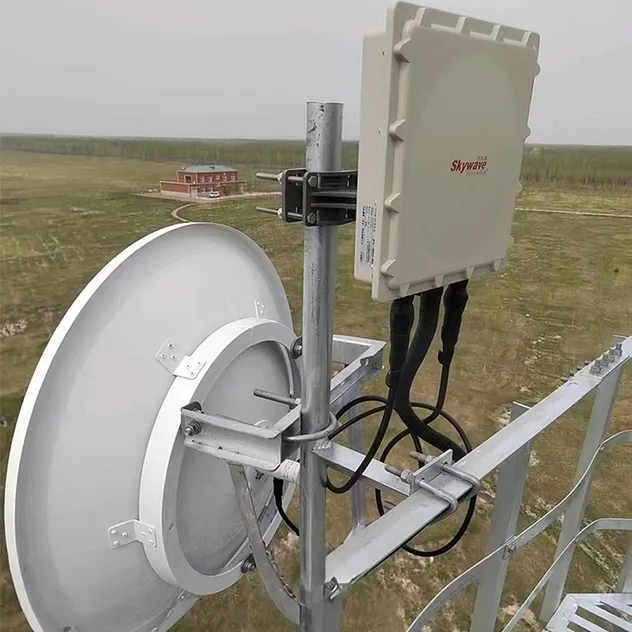

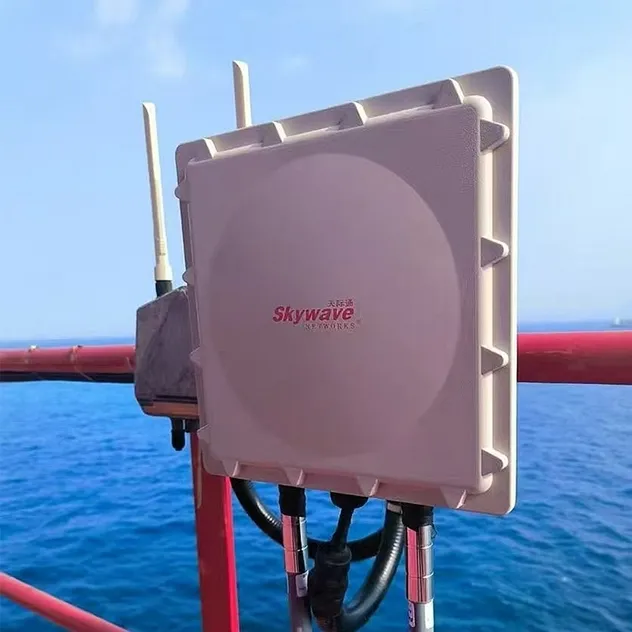

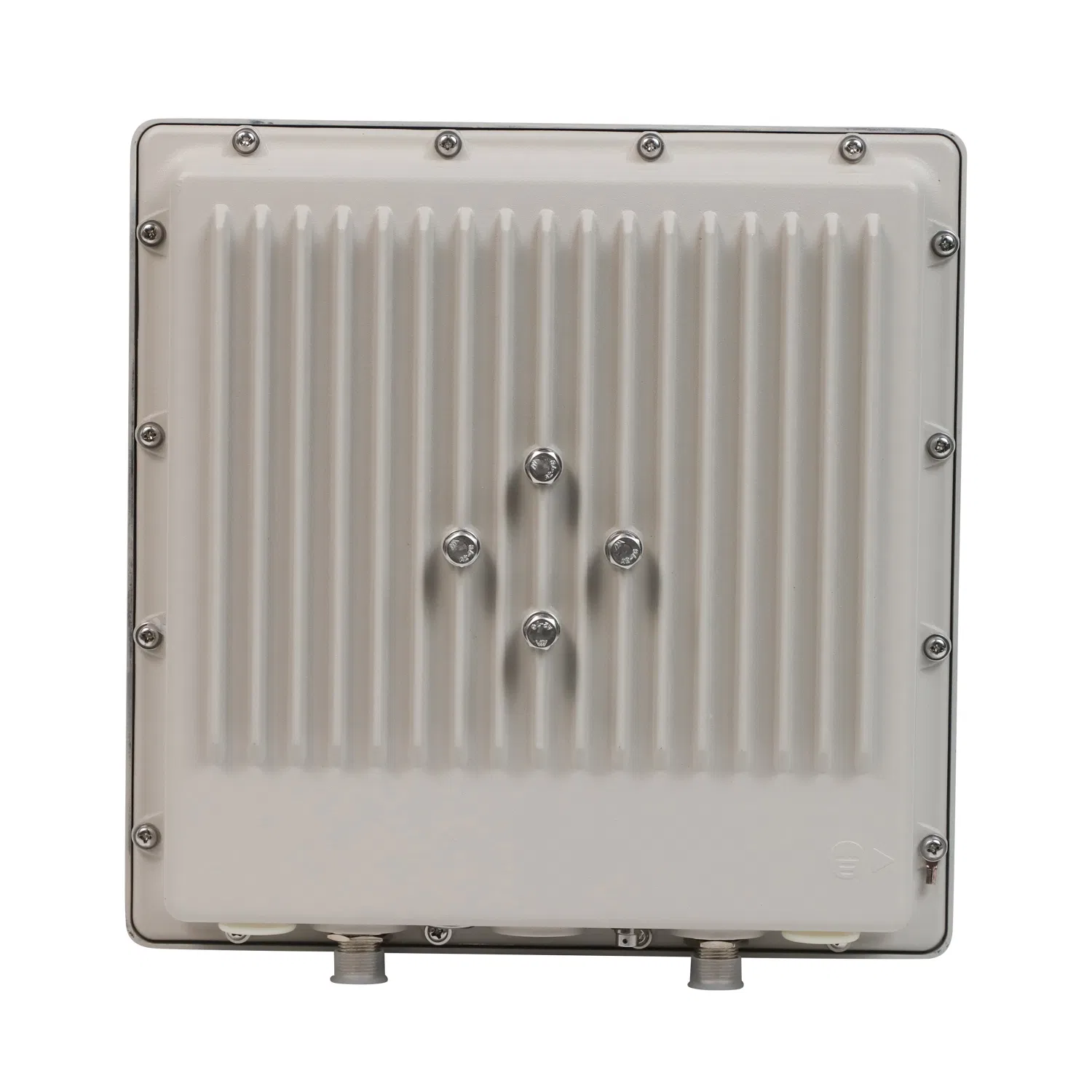

The SW8000CBE product supports point-to-point (PTP) and point-to-multipoint (PTMP) wireless applications. It features a metal-cast aluminum shell with all-weather designs for wind resistance, rainproofing, lightning protection, and heat dissipation. Based on Power over Ethernet (PoE) technology, it is easy to install and use outdoors.

●

Technical Parameters

RADIO FREQUENCY
Modulation Method	OFDM: BPSK QPSK 16-QAM 64-QAM 256-QAM; DSSS: DBPSK DQPSK CCK
Sensitivity	802.11ac: -96 dBm @ MCS0, -72 dBm @ MCS9
Channel Bandwidth	5/10/20/40/80MHz
HARDWARE SPECIFICATIONS
CPU Speed	720MHz
RAM	128MB DDR2
Network Interface	1*Gigabit PoE Ethernet Port
Antenna Interface	2 * N Seats
ENVIRONMENTAL
Protection Rating	IP68 Integrated Fully Enclosed Design
Operating Temp	-50°C ~ +80°C
Surge Protection	Common Mode: 6KV, Differential Mode: 4KV

●

Key Features

✔Stable & Reliable: MTBF of over 200,000 hours, eliminating system crashes.

✔Long Distance: Combined with high gain antennas, transmission can reach over 200km.

✔TDMA Protocol: Enhances point-to-multipoint wireless transmission efficiency.

✔BeamForming: Effectively suppresses interference and improves data rates.

✔Robust Security: Supports WEP, WPA, WPA2, AES, TKIP, and 802.1X.

✔Smart Scanning: DFS automatically selects the optimal channel.

Frequently Asked Questions

Q1: What is the maximum data transmission rate for this base station? A: The SW8000CBE supports the IEEE 802.11ac standard with a 2T2R architecture, providing a maximum wireless transmission rate of up to 867Mbps.

Q2: Is this device suitable for extreme outdoor environments? A: Yes, it features an IP68-rated fully enclosed cast aluminum shell, designed to withstand temperatures from -50°C to +80°C, along with wind, rain, and lightning protection.

Q3: How is the device powered? A: It uses standard Power over Ethernet (PoE) technology through its Gigabit adaptive Ethernet port, simplifying installation by using a single cable for both data and power.

Q4: Does it support point-to-multipoint connections? A: Yes, it supports both Point-to-Point (PTP) and Point-to-Multipoint (PTMP) applications, utilizing proprietary TDMA protocols for enhanced efficiency in multipoint setups.

Q5: Can I use this for high-definition video surveillance? A: Absolutely. With its high bandwidth, low latency, and strong anti-interference capabilities, it is specifically optimized for real-time services like HD video streaming.

Q6: What security protocols are supported? A: The device offers comprehensive data encryption including WEP, WPA, WPA2, AES, TKIP, and EAP to ensure secure wireless transmission.
