📊 Basic Specifications
Payment Method
Card Payment
Post Fixation
Embedded Type
Degree of Distortion
Flexible Barrier
After-Sales Service
Online Service
Function
Vehicle Identification
Upright Post
440*385*1070mm
Arm Speed
1.2s, 3s, 6s (Suggest 3s)
Product Name
Parking Barrier
Boom Type
Straight Boom Barrier Gate
📝 Product Description
Introducing a groundbreaking marvel in traffic control: the Automatic Traffic Barrier Arm Barrier Gate System. This beacon of cutting-edge innovation stands as a pinnacle in the domain of traffic management systems, setting new standards for efficiency and control.
Step into the future with our Standard Barrier Gate, crafted to deliver unmatched excellence. Featuring a remarkable arm length reaching up to 6 meters, this gate boasts customizable arm speeds of 1.2s, 3s, and 5s, ensuring peak performance in various settings, both indoor and outdoor. The optimal speed of a swift 3s guarantees flawless operation, adapting effortlessly to any environment.
⭐ Main Features
Delivers extraordinary level of system integration and robust functionality.
Advanced elevating overtime and motor overheating protection systems.
Hall sensing device for precise inductive limit control and non-contact operation.
Premium imported large power relay for exceptional reliability and stability.
Imported photoelectric isolated protection circuit resisting strong interferences.
Cutting-edge wireless remote control receiving module with high-security codes.
Outstanding arc extinction processing circuit prolonging control panel lifespan.
Magnetic core transformer ensuring stable performance in outdoor and moist environments.
Auxiliary 12V/100mA power supply for easy connection of detection devices.
⚙️ Technical Parameters
| Input Power | AC220/AC110 50/60HZ |
| Rated Power | 100W |
| Motor Working Temp | -30°C < C < 80°C |
| Cabinet Weight | 55KG |
| Protection Grade | IP44 |
| Rod Center Height | 830mm or 890mm |
| Remote Distance | More than 30 meters |
| Communication Interface | RS232 (Direct PC connection) |
| Input Interface | +12V level signal or pulse width > 100MS |
❓ Frequently Asked Questions
How is the quality of the barrier gate guaranteed?
We ensure quality through a strict process that includes a pre-production sample before mass production and a comprehensive final inspection before every shipment.
What specific products are available in your range?

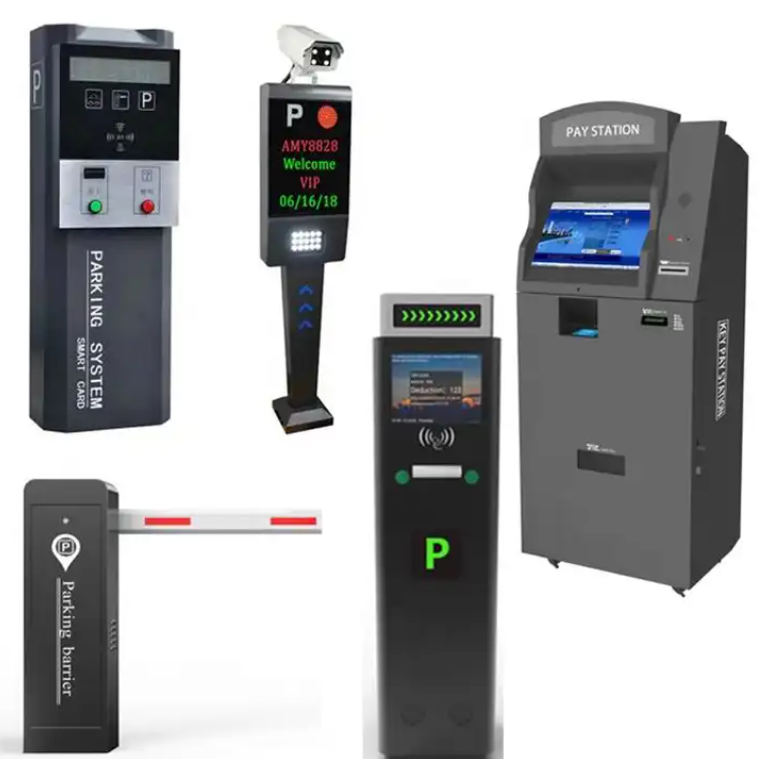

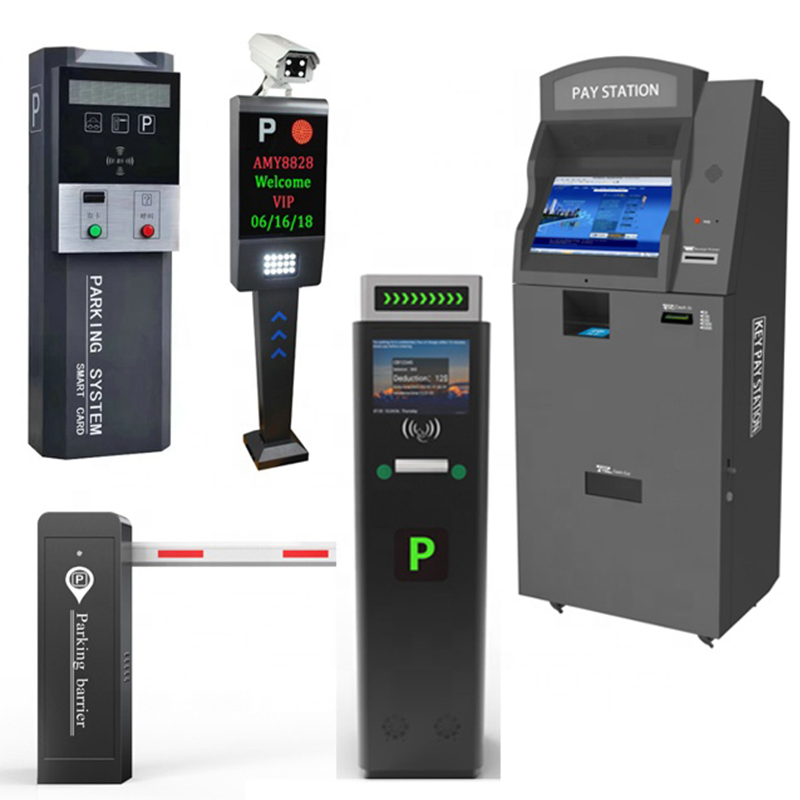

Our core product lineup includes License Plate Recognition Systems, Cantilever Sliding Gates, Folding Gates, Telescopic Gates, Boom Barriers, Bollards, and Turnstile Gates.
What are the key technical features of your traffic barriers?
Our barriers feature high system integration, overheating protection, Hall sensing for non-contact limit control, and photoelectric isolated circuits to resist signal interference.
Can the barrier gate be connected to a computer?
Yes, it features an enhancement type RS232 communication interface which allows it to be connected directly to a computer for operation and management.
What payment and delivery terms do you accept?
We accept various delivery terms including FOB, CIF, EXW, and Express Delivery. Accepted payment methods include T/T and L/C in USD or CNY.
Is the barrier suitable for extreme weather conditions?
Yes, the motor is designed to work in temperatures ranging from -30°C to 80°C, and the unit includes a magnetic core transformer for stable performance in moist outdoor environments.
