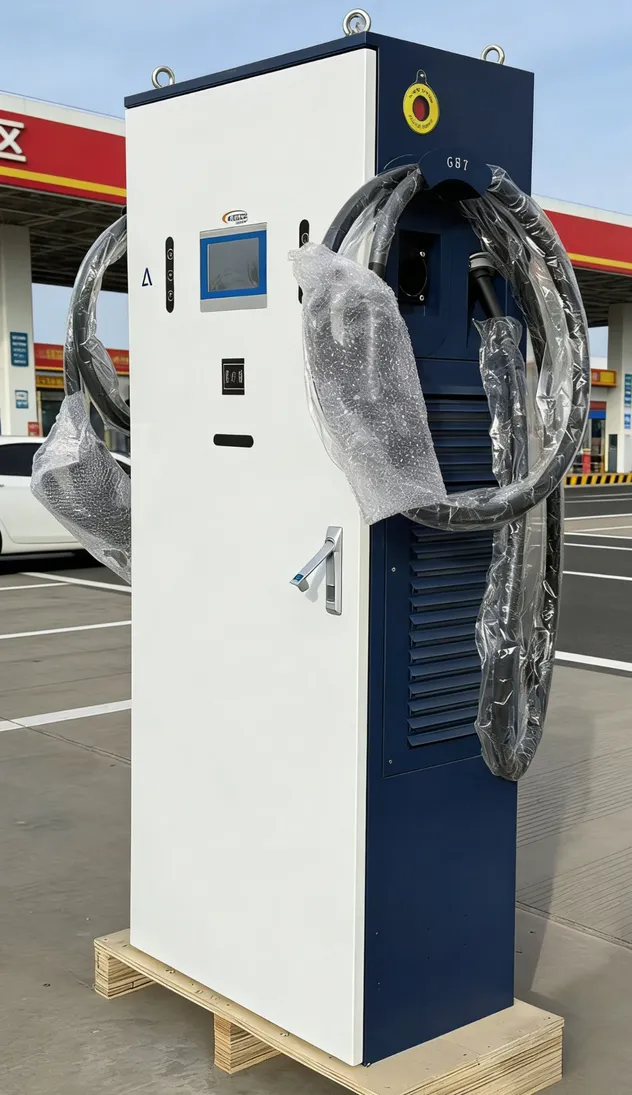

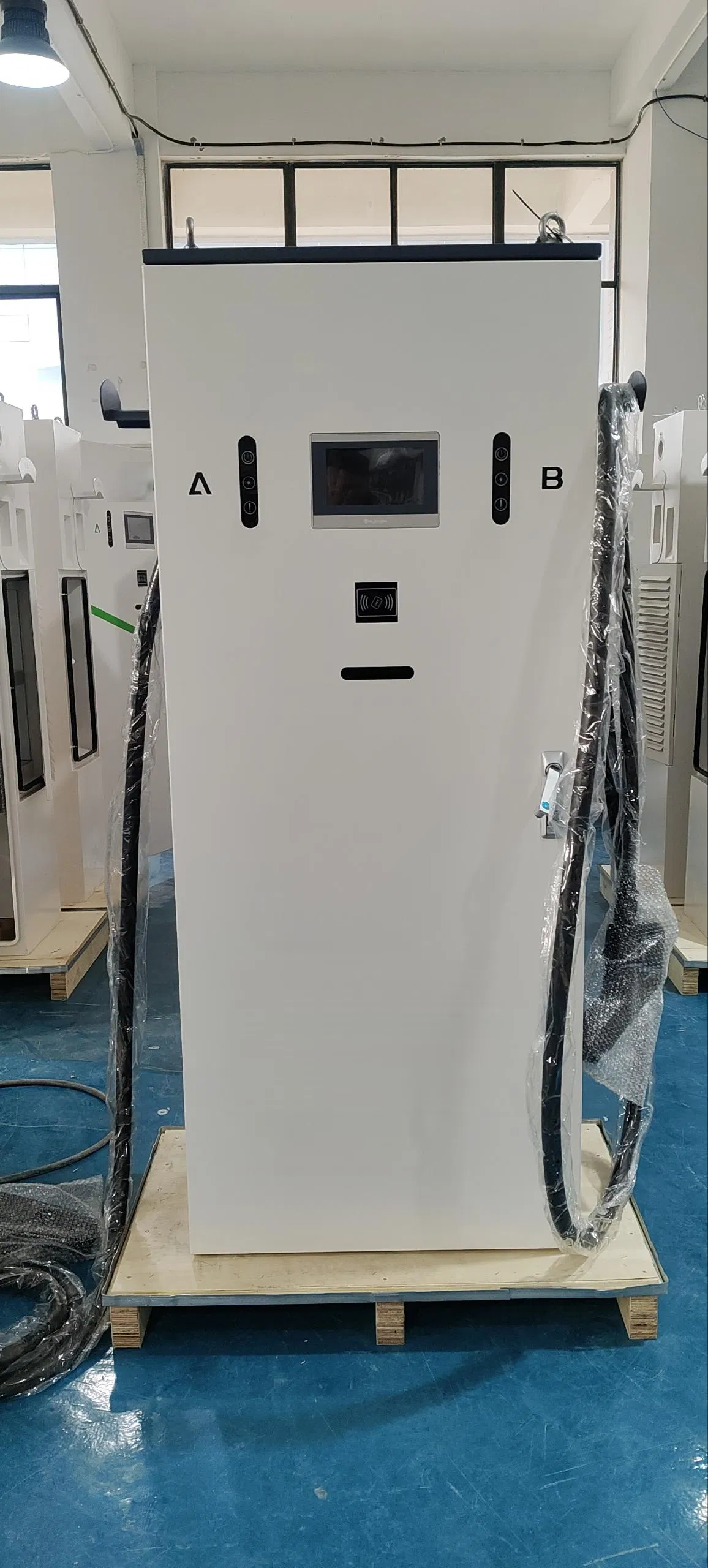

This 120kW series DC EV charger focuses on "small footprint and high adaptability" — its compact cabinet has extremely low requirements for installation sites, making it suitable for towns, narrow spaces, and batch deployment scenarios. It adopts a full front-opening door design, providing ample operating space for maintenance and enhancing post-operation convenience.
In terms of performance, it supports parallel charging and adjustable output power, with a peak efficiency of over 96%. Equipped with air-cooled heat dissipation, it operates stably in a wide temperature range of -30°C to 75°C. The 7-inch touch screen and built-in RFID reader ensure a user-friendly experience compatible with OCPP protocols and mainstream operating platforms.
| Category | Parameter | Details |
|---|---|---|
| Appearance | Dimensions (L x D x H) | 700mm x 400mm x 1700mm |
| Weight | 250kg | |
| Cable Length | 5m-7m | |
| Connectors | GBT, CCS2, CCS1, CHAdeMO, NACS | |
| Electrical | Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Output Voltage | 200 - 1000VDC | |
| Rated Power | 40-240kW | |
| Peak Efficiency | ≥96% | |
| Communication | OCPP, Ethernet, WiFi, 4G (Optional) | |
| Environment | Operating Temp | -30°C to 75°C |
| Protection | IP54 || IK10 |
