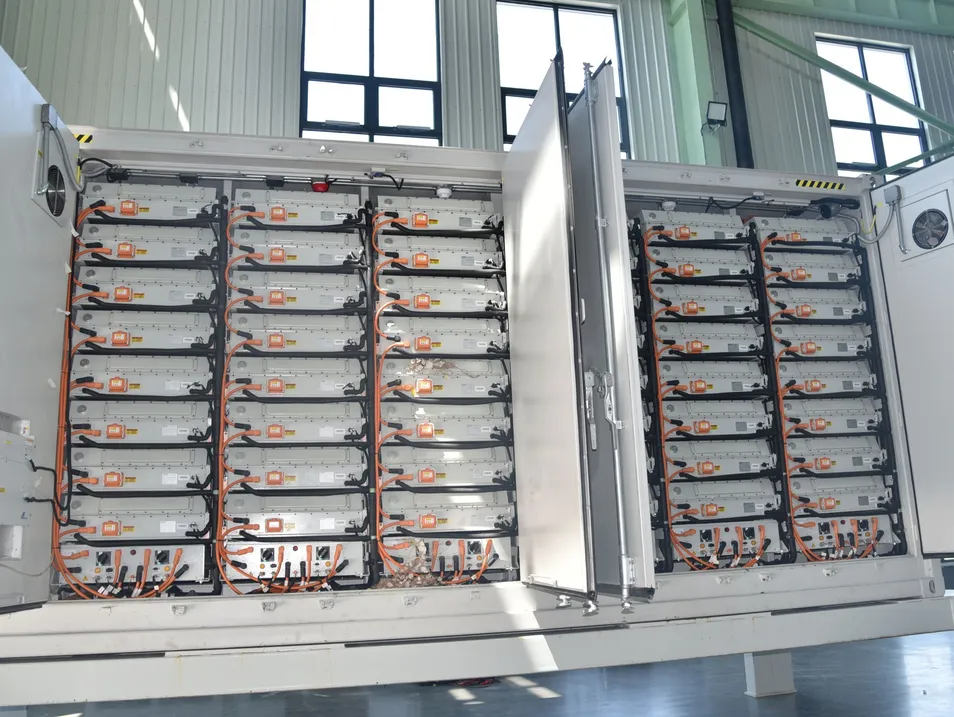

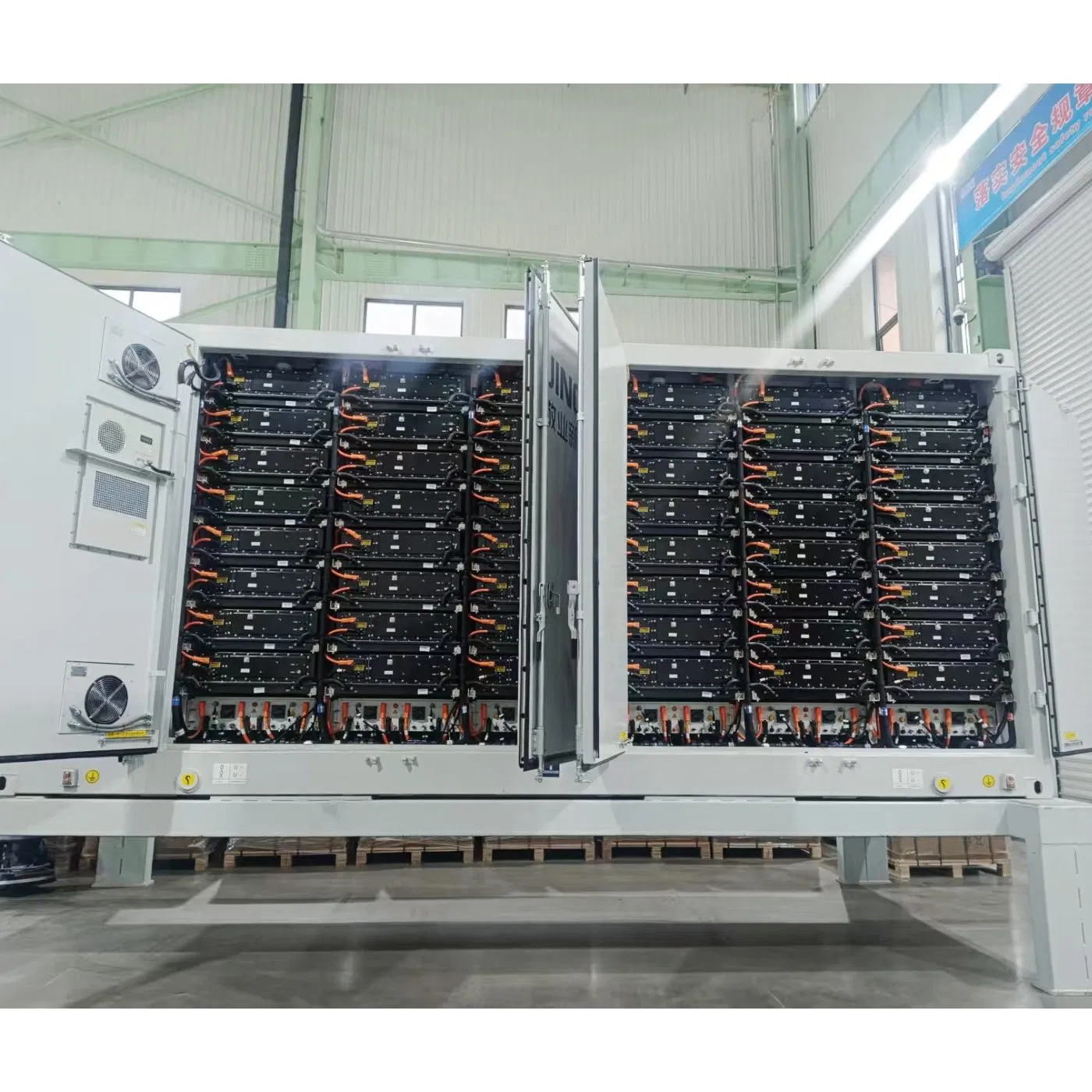

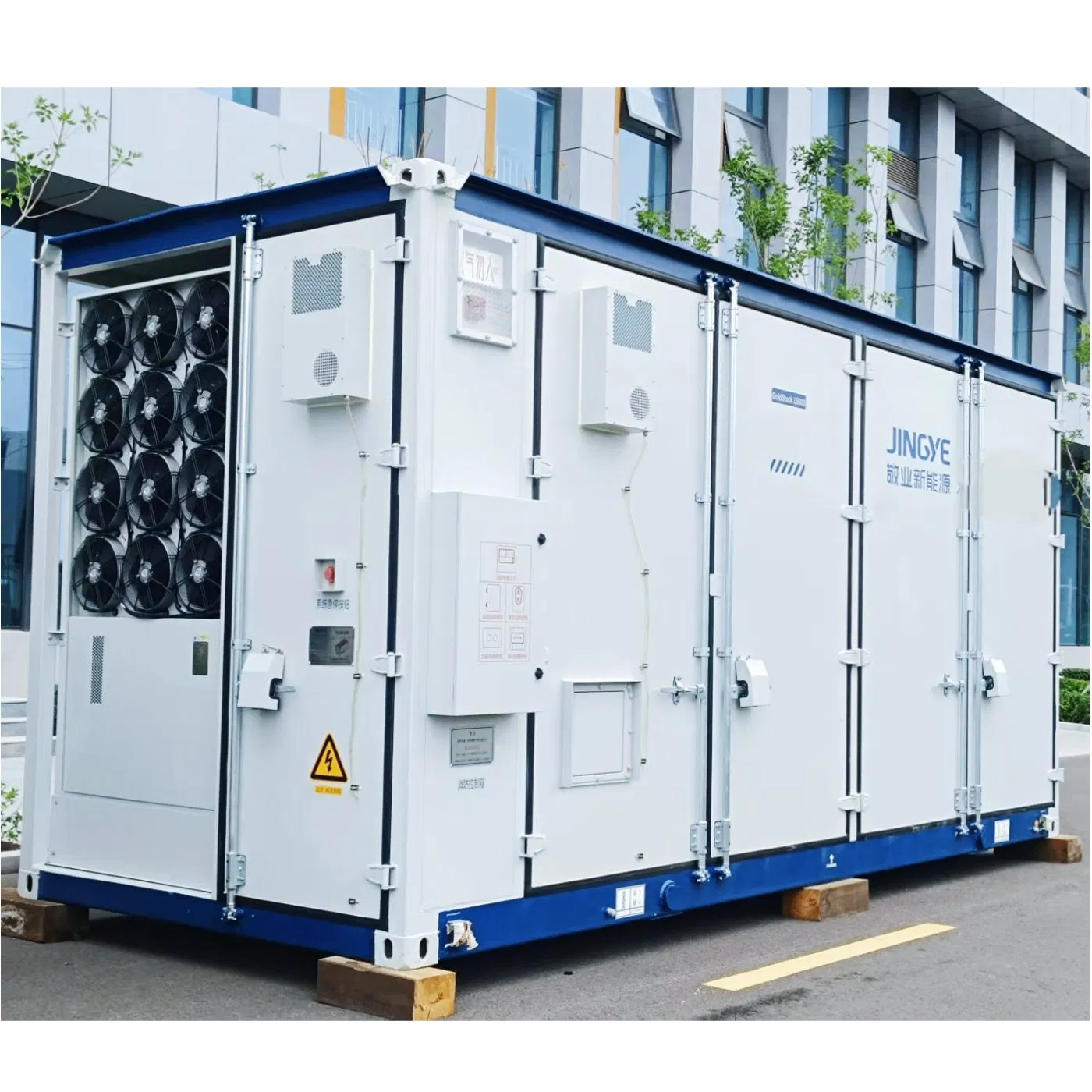

The 5015KWh Liquid Cooling energy storage system is based on domestic high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems.

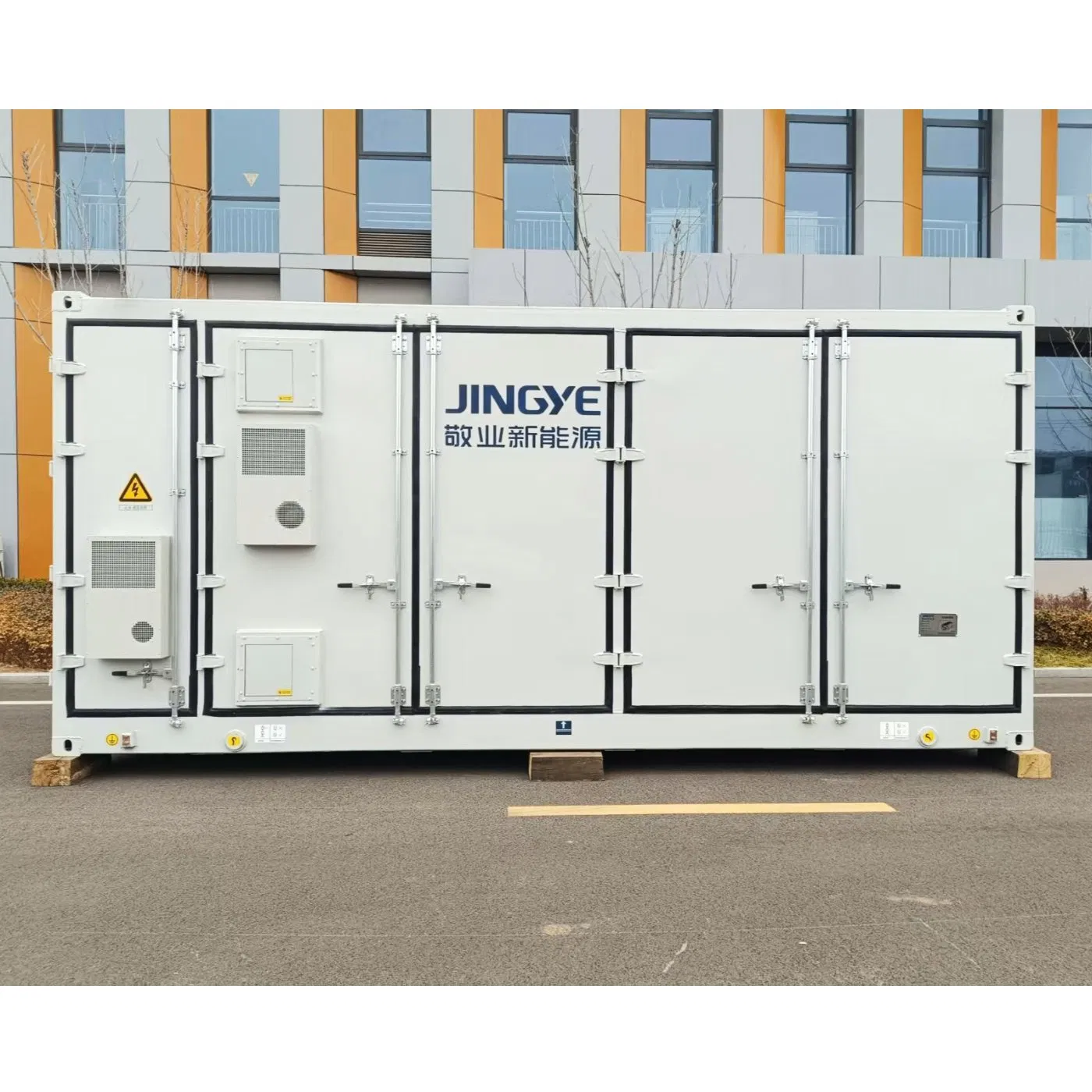

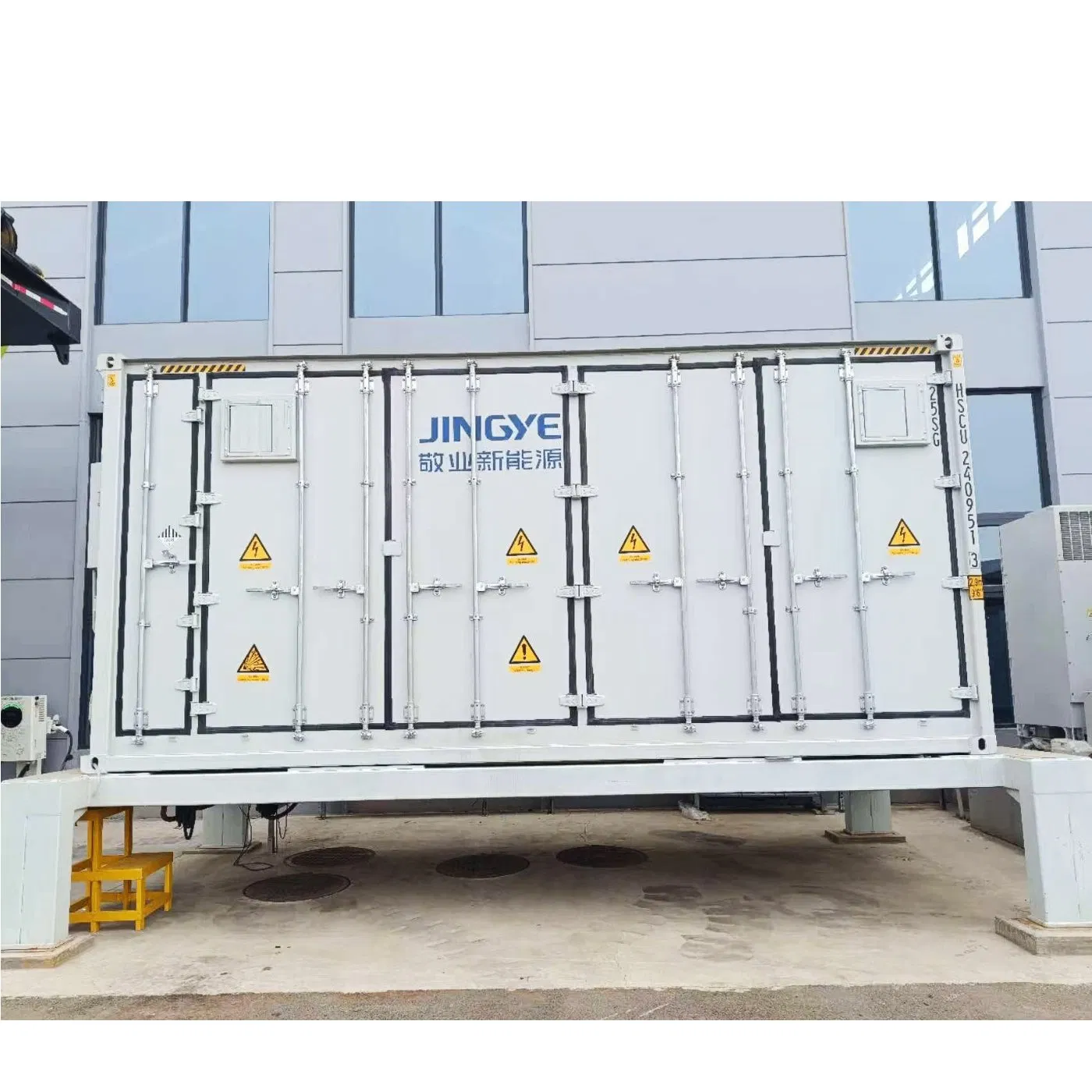

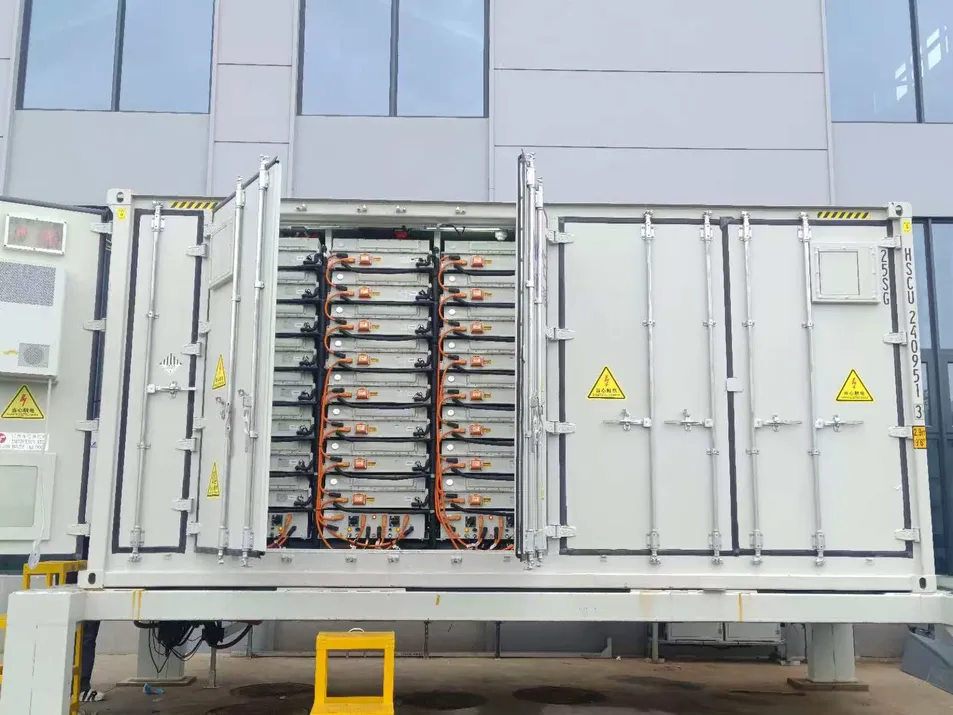

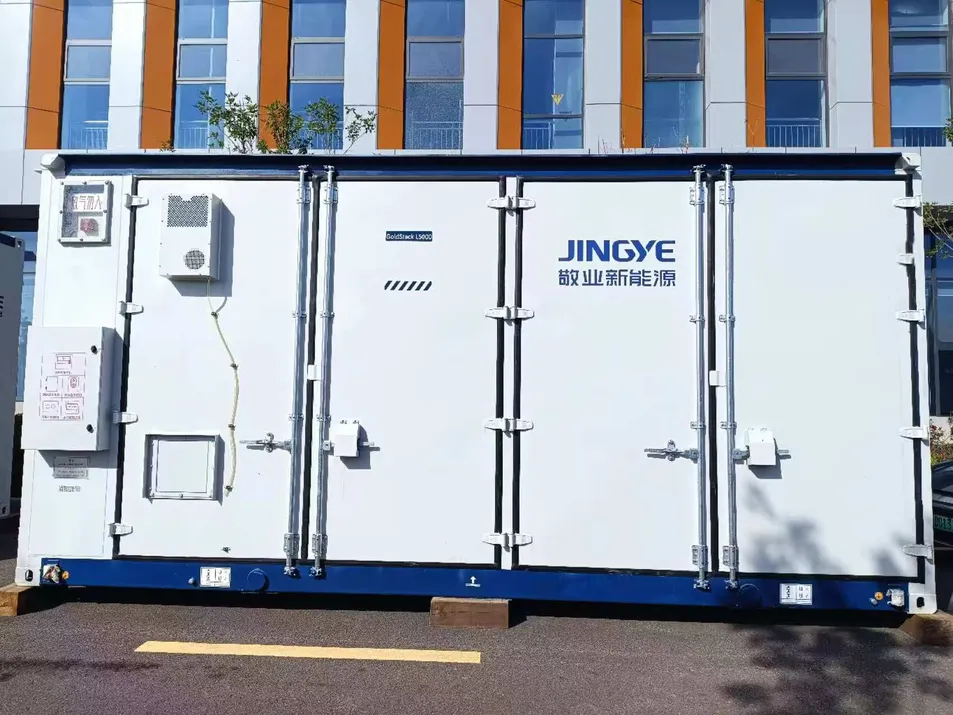

The system uses simplified integration technology, installing PACK, distribution busbars, liquid cooling units, temperature control systems, and fire protection systems within a standard 20-foot container (2438mm-2896mm-6058mm). Arranged in three compartments, it ensures safety control while being suitable for various transportation conditions and site designs.
| No. | Item | Specification |
|---|---|---|
| 1 | Configuration | 12*(1P104S*4) |
| 2 | Rated Power | 5MWh |
| 3 | Rated Voltage | 1331.2VDC |
| 4 | Voltage Range | 1164.8V - 1497.6VDC |
| 5 | Rated Charging Power | ≤ 2.5MW |
| 6 | Rated Discharge Power | ≤ 2.5MW |
| 7 | Auxiliary Power Supply | 400VAC±5% 50Hz / 220VAC |
| 8 | Storage Conditions | 5℃ < T ≤ 35℃ |
| 9 | Operating Temp | -30℃ to 60℃ (discharging) |
| 10 | Dimensions | L6058 x W2438 x H2896mm |
| 11 | Weight | About 43t |
| 12 | Refrigeration method | Liquid Cooling |
| 13 | Communication | Ethernet, CAN, ModbusRTU |

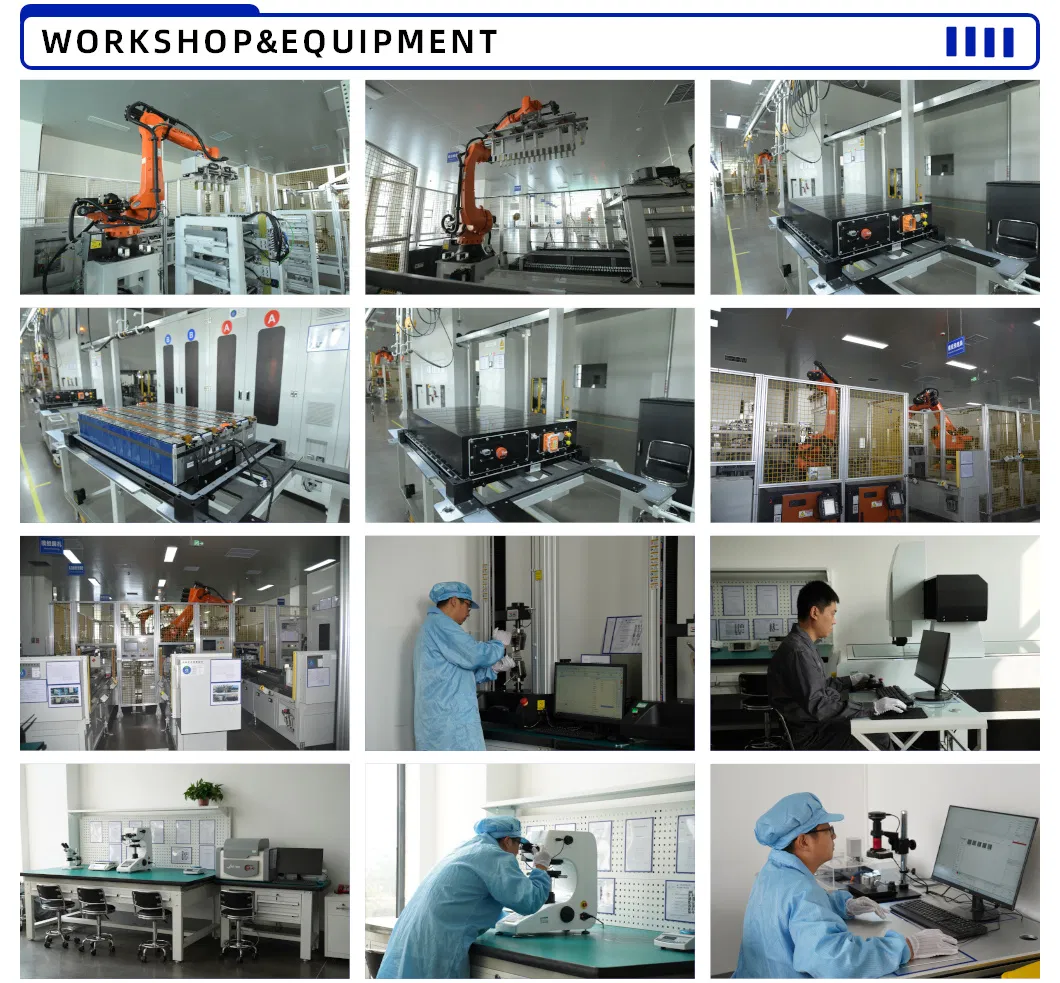

Equipped with advanced automated production lines, the facility boasts an annual production capacity of 5 GWh for energy storage systems and 2.4 million pieces of CCS busbars. These products are widely used in smart grids, industrial and commercial energy storage, and green transportation.
