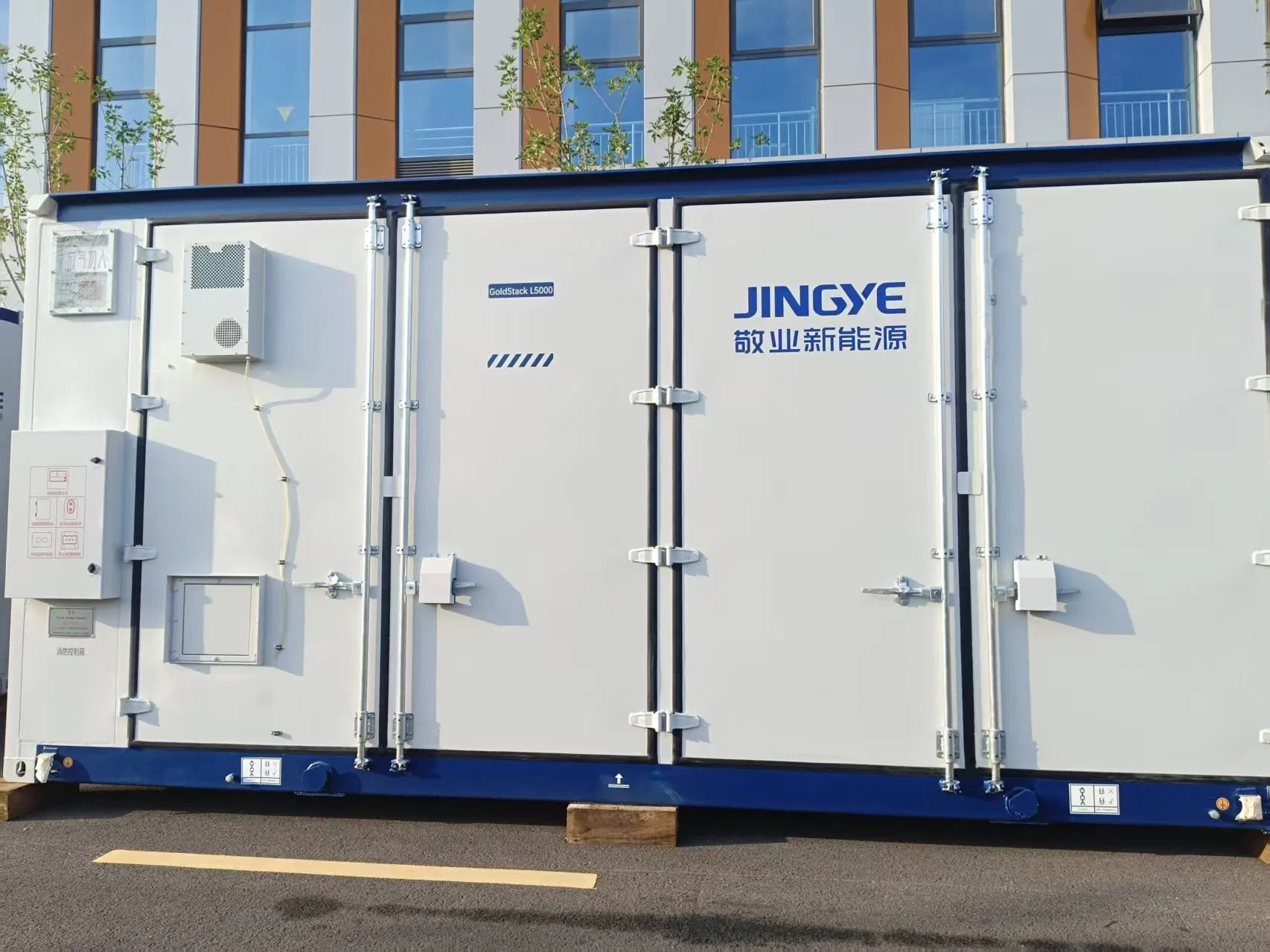

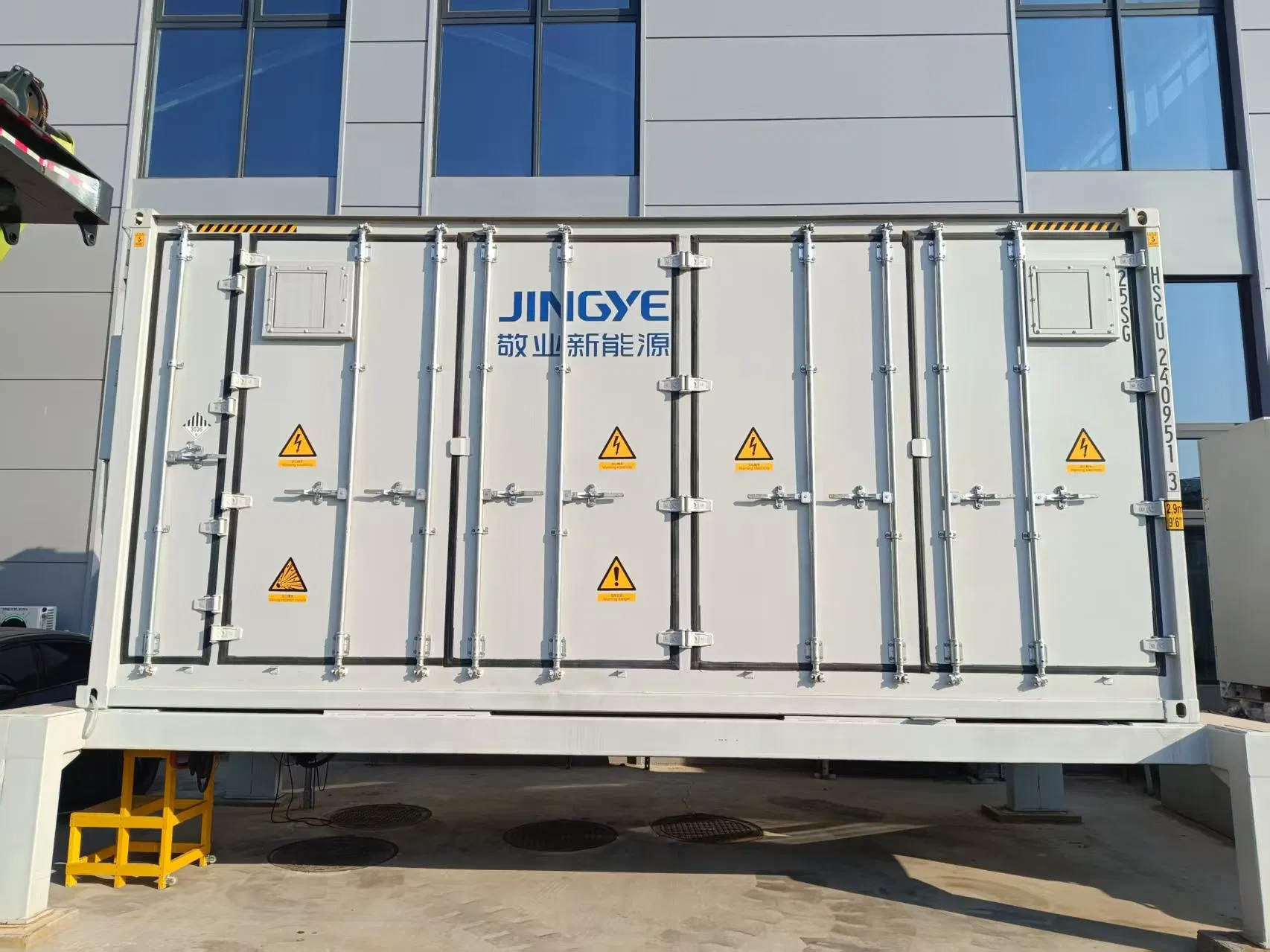

5mwh Solar Integration Energy Storage Containerized Solution

1 / 5

5mwh Solar Integration Energy Storage Containerized Solution

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Weight:	43t

Send Inquiry

Product Description

Basic Information

Model NO.

5.015MWh

Nominal Voltage

1331.2V

Warranty

3 Years

Nominal Capacity

5015kWh

Cycle Life

10 Years (2 Charges/Discharges Daily)

Configuration

12*(1p104s*4)

Rated Power

5MWh

Voltage Range

1164.8V - 1497.6V DC

IP Rating

IP54

Cooling System

Liquid Cooling

Product Description

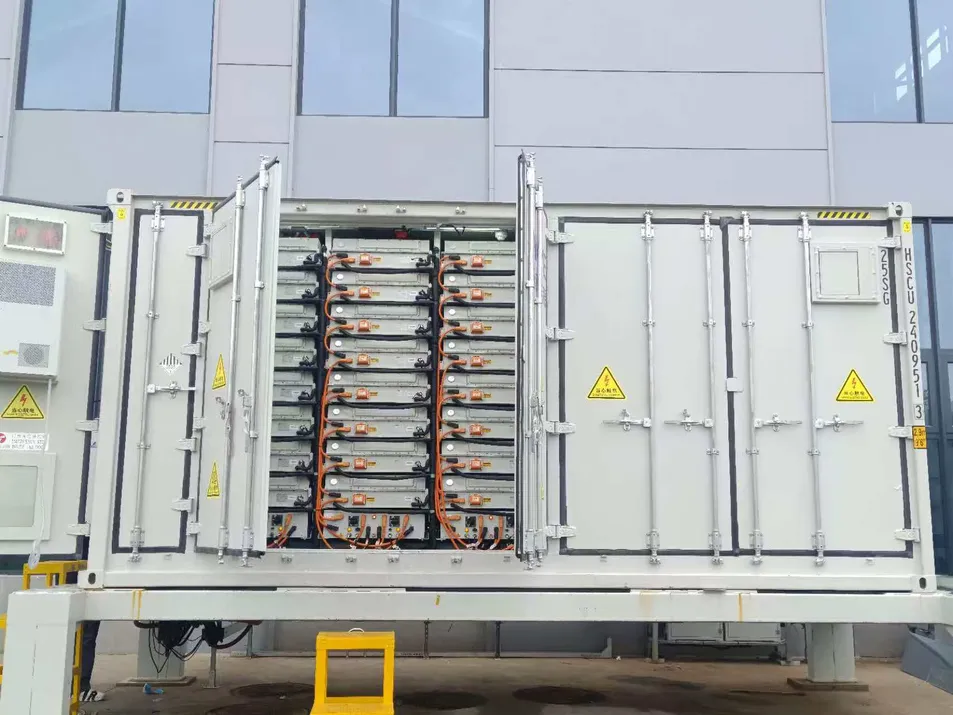

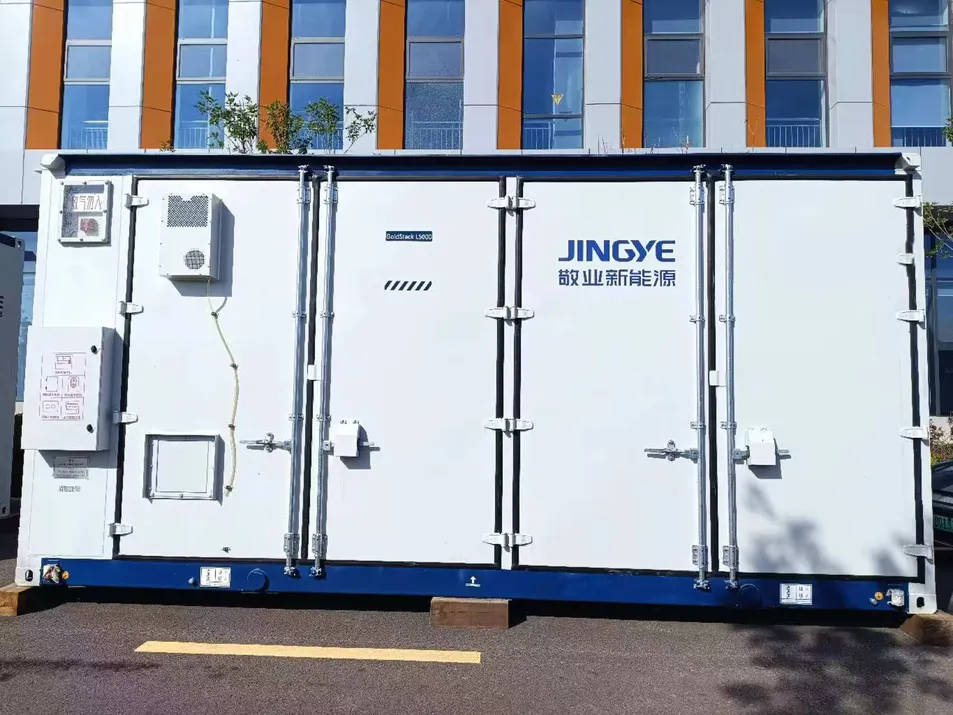

Energy Storage Container Solution

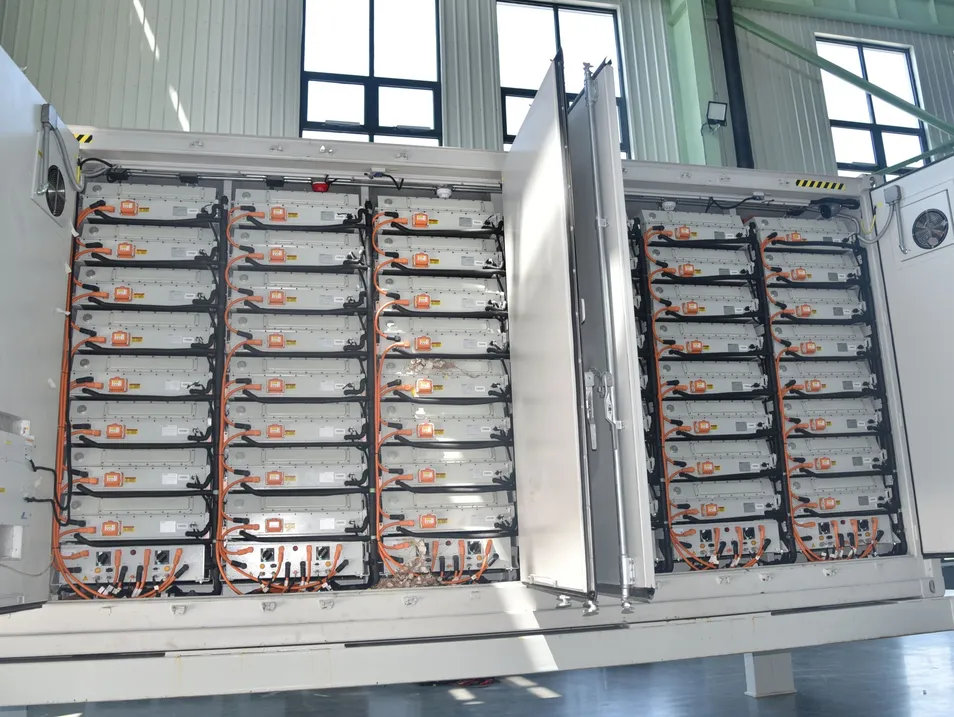

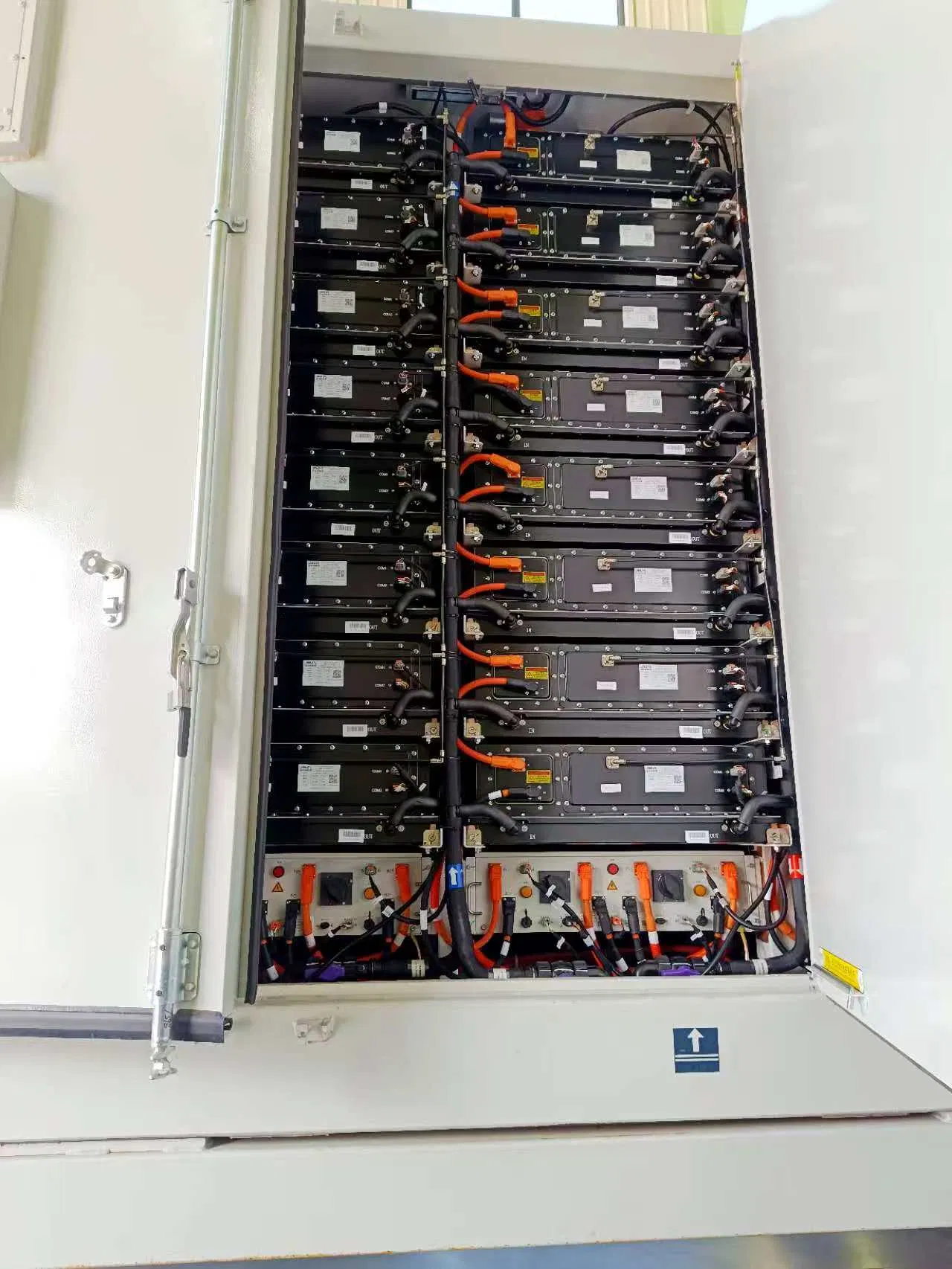

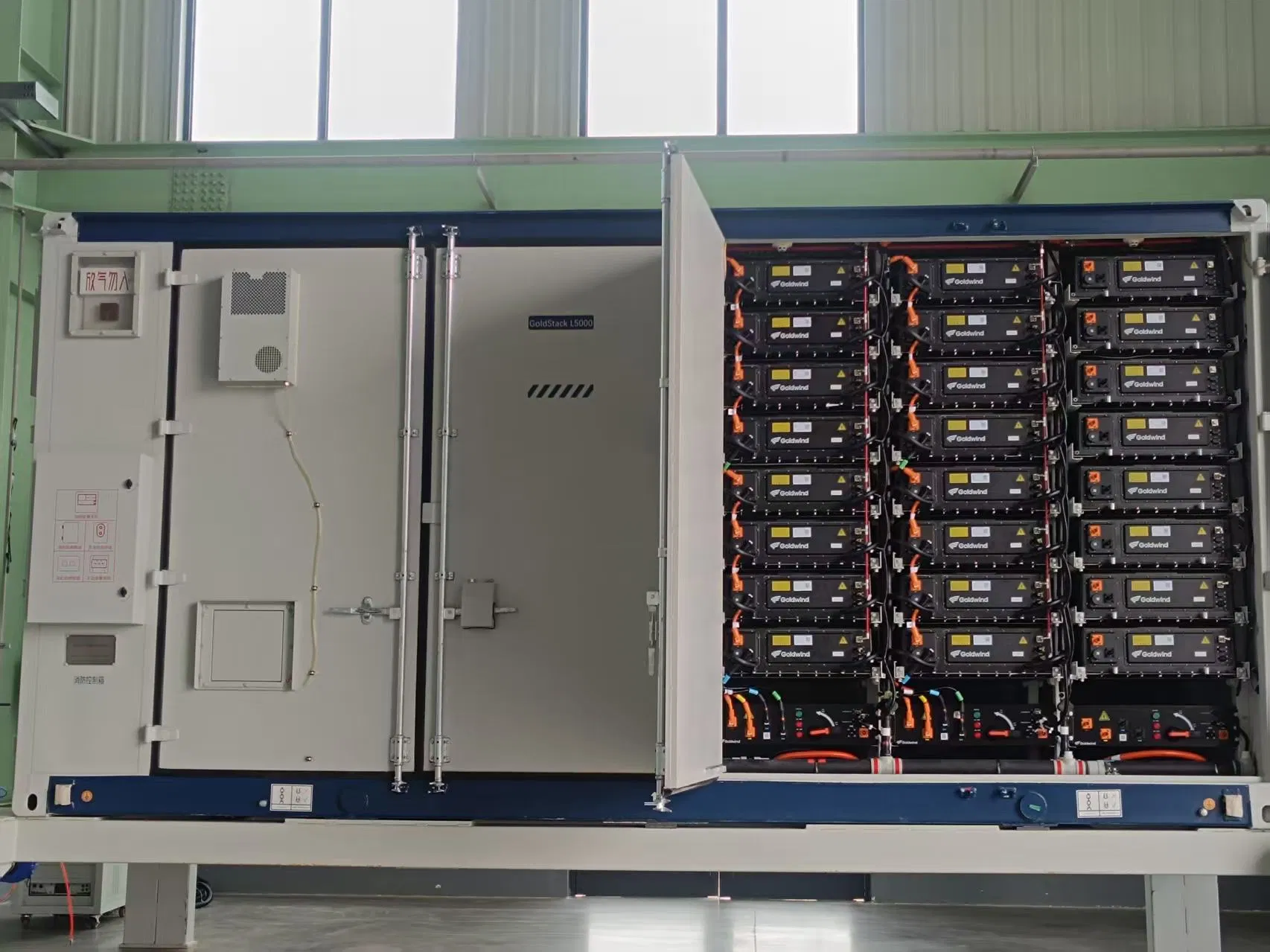

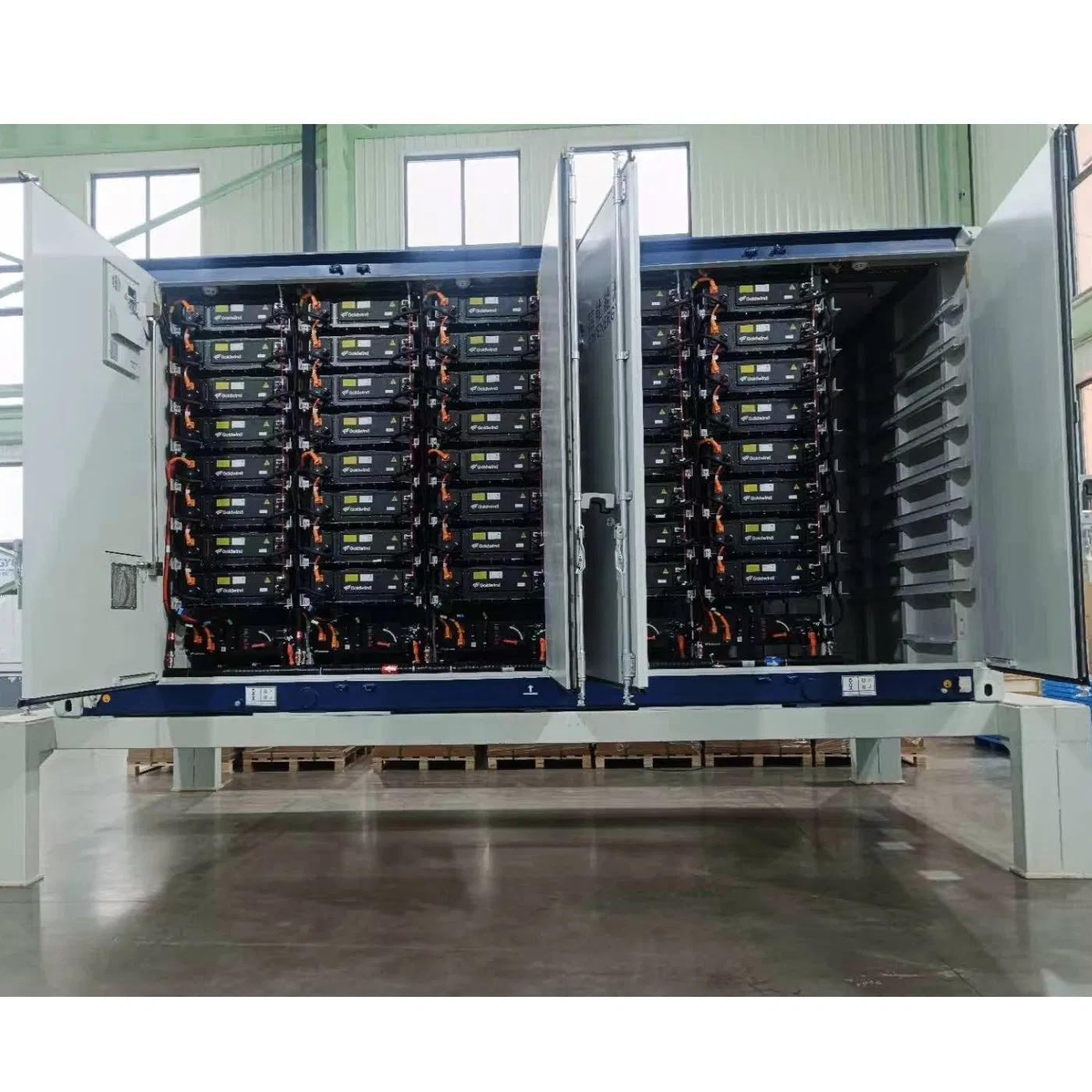

The 5015KWh Liquid Cooling energy storage system is based on high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, management systems, fire protection, and thermal control systems. This integrated solution utilizes a standard 20-foot container (6058mm x 2438mm x 2896mm), arranged in three compartments to ensure safety and efficiency across various environmental conditions.

Key Features

Battery Technology: Mature, high-efficiency lithium iron phosphate batteries with long cycle life.
Advanced Management: Intelligent BMS to ensure operational safety and battery longevity.
Thermal Management: High-precision liquid cooling maintains a temperature difference within 3℃ inside PACKs.
Safety Protection: Triple-level fire extinguishing system (PACK, cluster, compartment) with perfluorohexane or aerosol options.
Monitoring: Comprehensive smoke, humidity, temperature, and video monitoring integrated.
Modular Design: Simplified structure for easy transportation, rapid installation, and low maintenance.

Technical Specifications

No.	Item	Specification
1	Configuration	12(1P104S4)
2	Rated Power	5MWh
3	Rated Voltage	1331.2VDC
4	Voltage Range	1164.8V - 1497.6VDC
5	Charging/Discharge Power	≤ 2.5MW
6	Auxiliary Power	400VAC±5% 50Hz / 220VAC
7	Work Temperature	-30℃ to 60℃ (Discharging)
8	Dimensions	6058 x 2438 x 2896 mm
9	Weight	Approx. 43 Tons
10	Communication	Ethernet, CAN, ModbusRTU

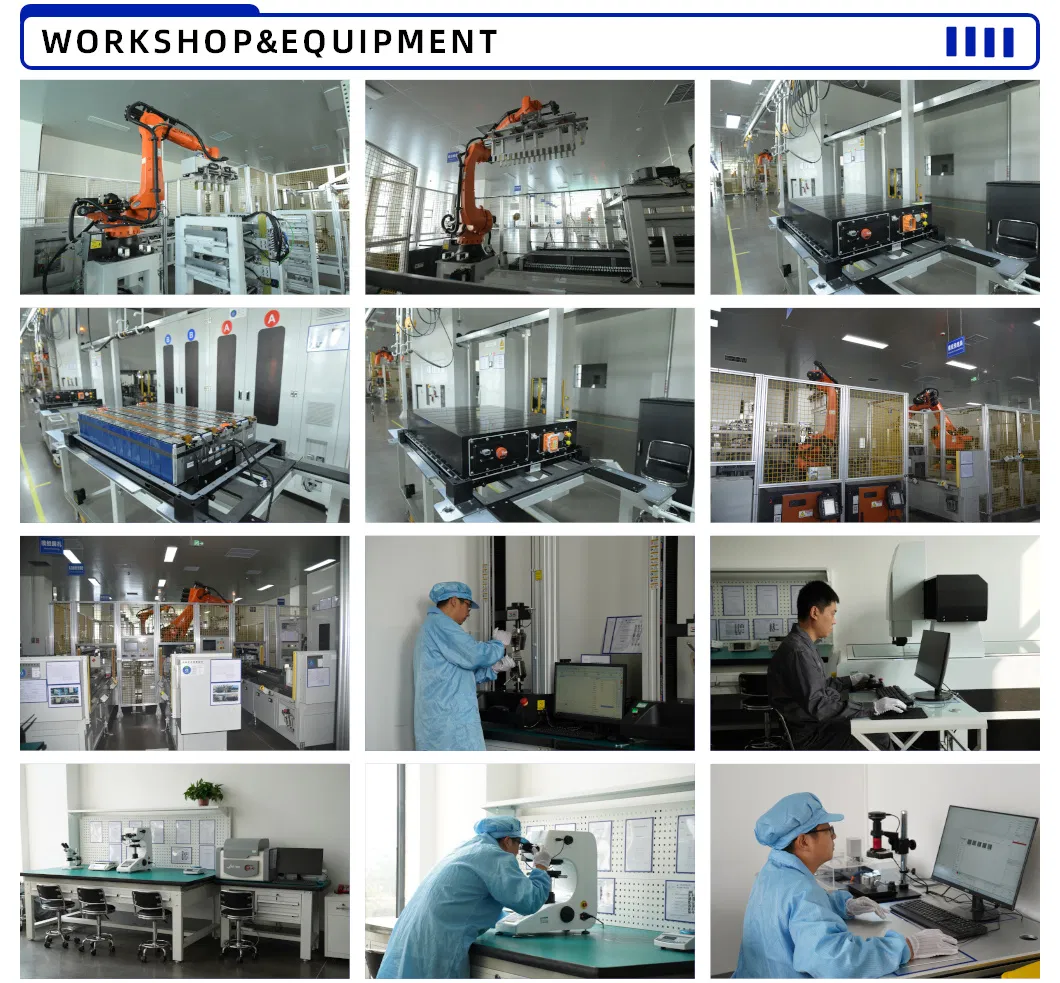

Workshop & Equipment

Equipped with highly automated production lines, the facility boasts an annual production capacity of 5 GWh for energy storage systems and 2.4 million CCS busbars. These products serve smart grids, industrial storage, and green transportation globally.

Main Product Gallery

Certifications & Exhibitions

Frequently Asked Questions

What are your primary energy storage products?

Our core offerings include 5MWh Energy Storage Containers, Commercial & Industrial Storage Cabinets, CCS Integrated Busbars, and specialized Battery Packs.

Do you provide customization services for these systems?

Yes, we offer flexible customization services to meet specific requirements across diverse process types and energy demands.

How is the production and delivery timeline managed?

With a comprehensive automated production line and a proficient technical team, we guarantee stable production and ensure on-time delivery for all projects.

Are you a manufacturer or a trading company?

We are a formal source factory with standardized production processes, allowing us to provide competitive pricing and top-tier product quality directly.

How can I obtain a detailed quotation for a project?

Please contact our staff through the online portal on our website. We will provide a comprehensive and detailed quotation promptly based on your specifications.

What safety standards do the containers follow?

Our systems feature IP54 ratings, industrial-grade thermal management, and three-level automatic fire extinguishing systems to meet rigorous safety standards.
