5mwh Integrated Containerized Lithium Battery Storage Solution

1 / 5

5mwh Integrated Containerized Lithium Battery Storage Solution

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Weight:	43t

Send Inquiry

Product Description

Basic Specifications

Model NO.

5.015MWh

Nominal Voltage

1331.2V

Warranty

3 Years

Nominal Capacity

5015kWh

Cycle Life

10 Years

Configuration

12*(1p104s*4)

Rated Power

5MWh

Voltage Range

1164.8V - 1497.6V DC

IP Rating

IP54

Cooling System

Liquid Cooling

Origin

China

Energy Storage Solution

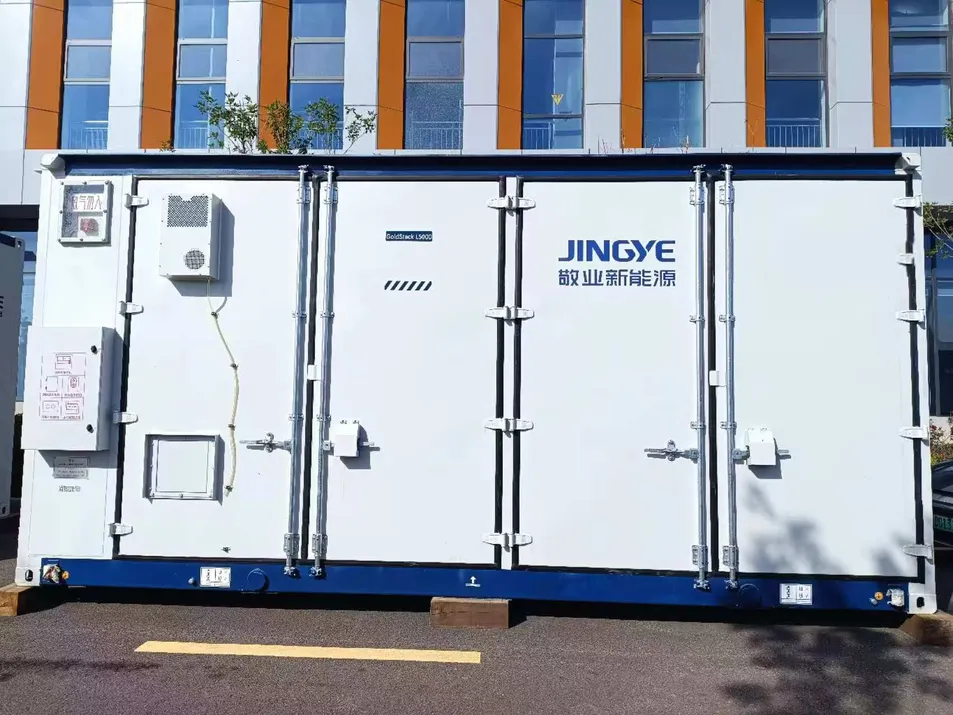

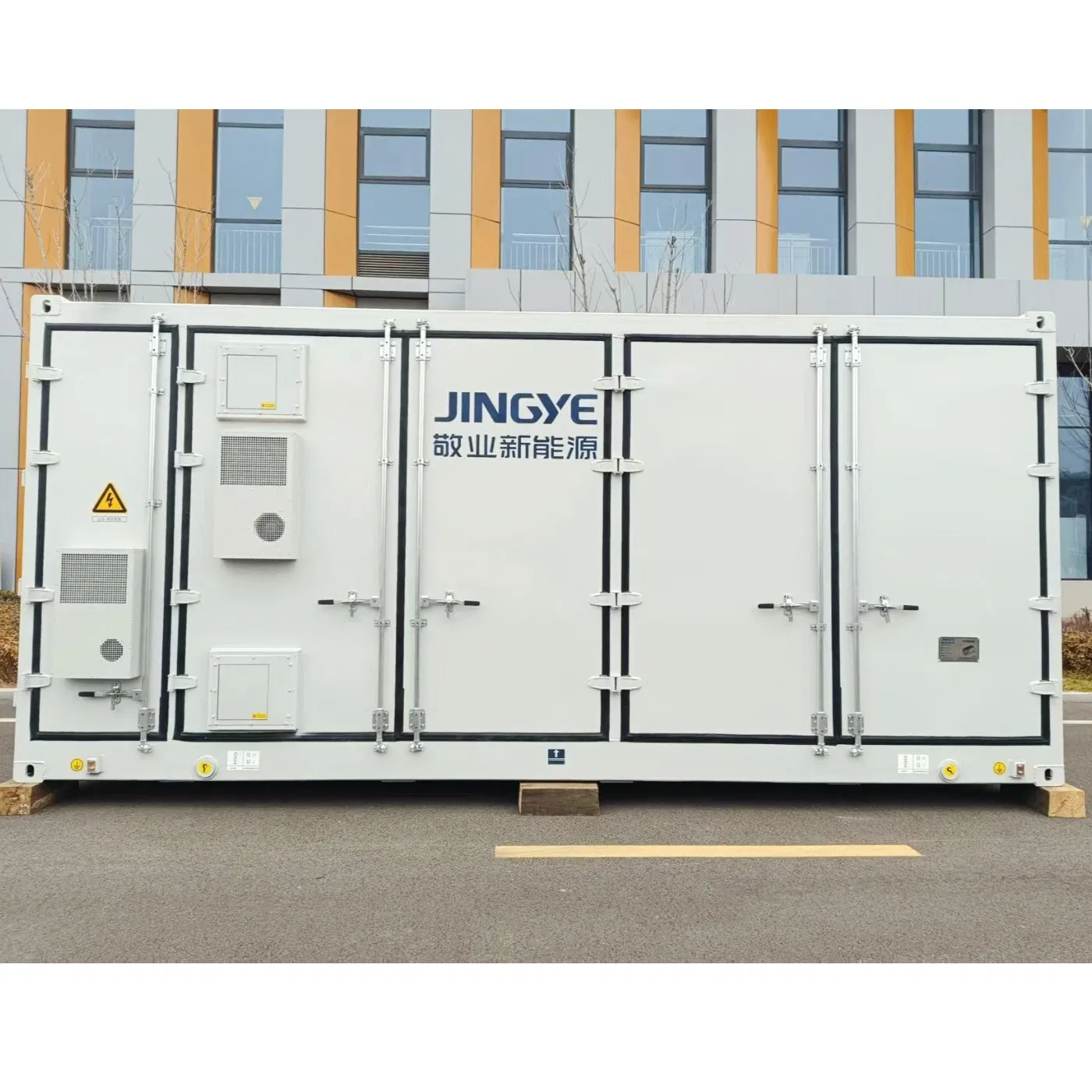

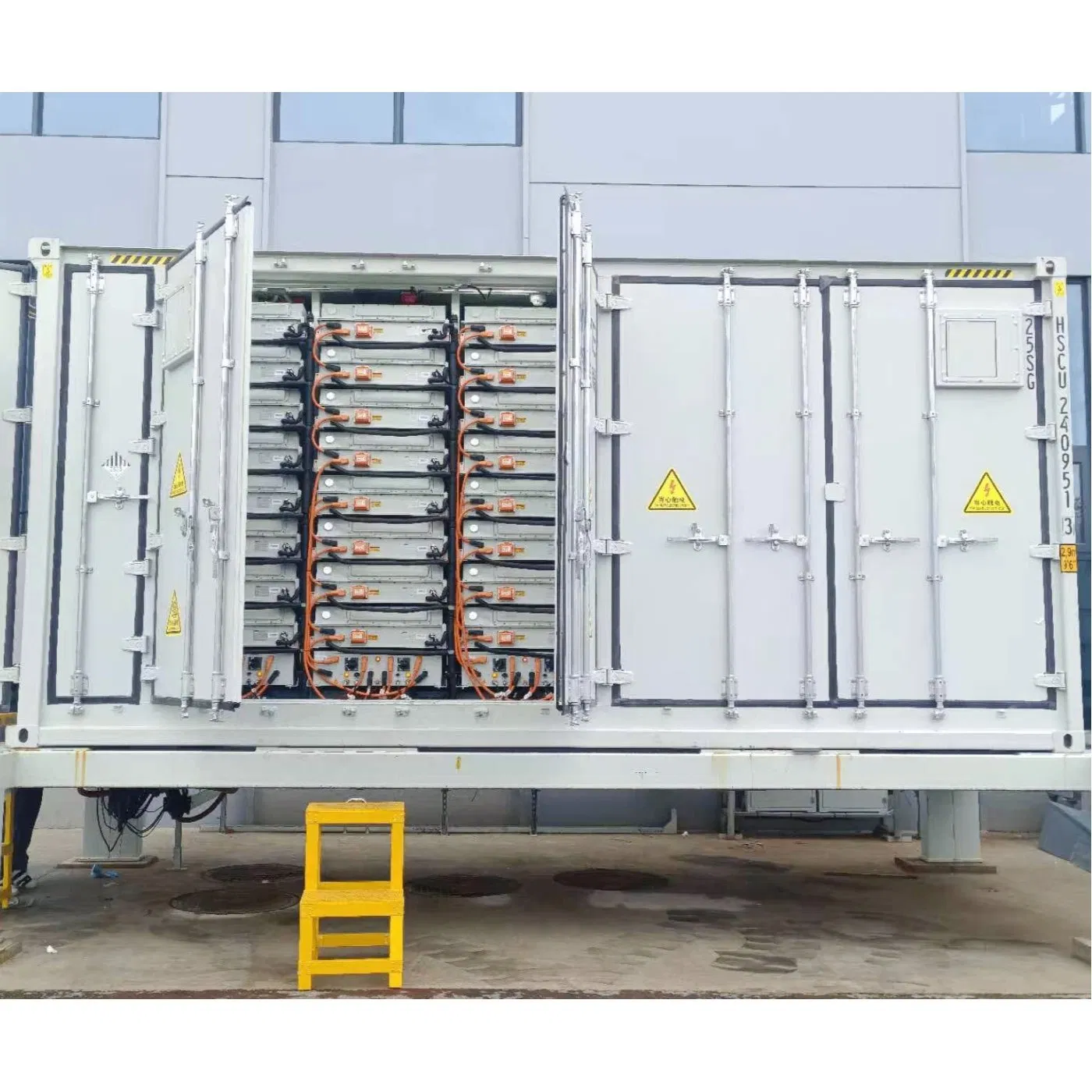

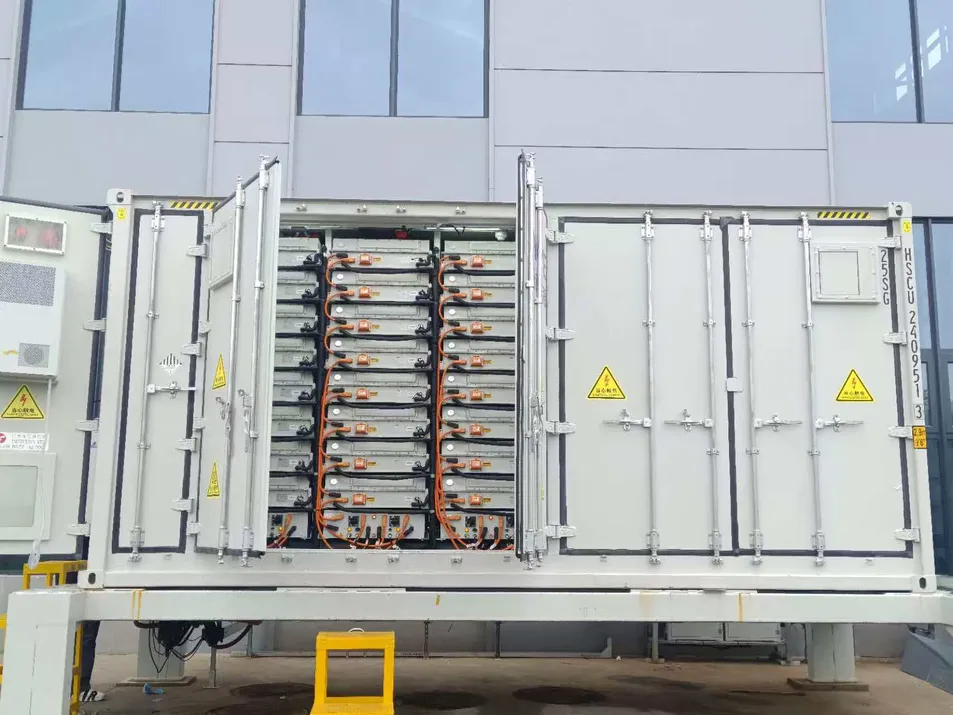

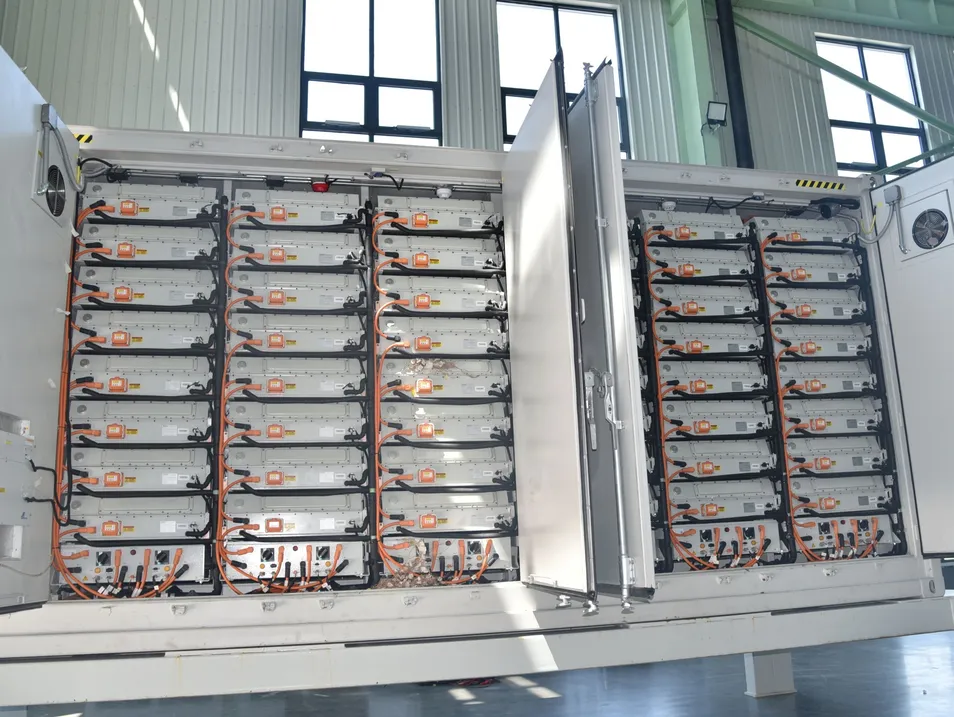

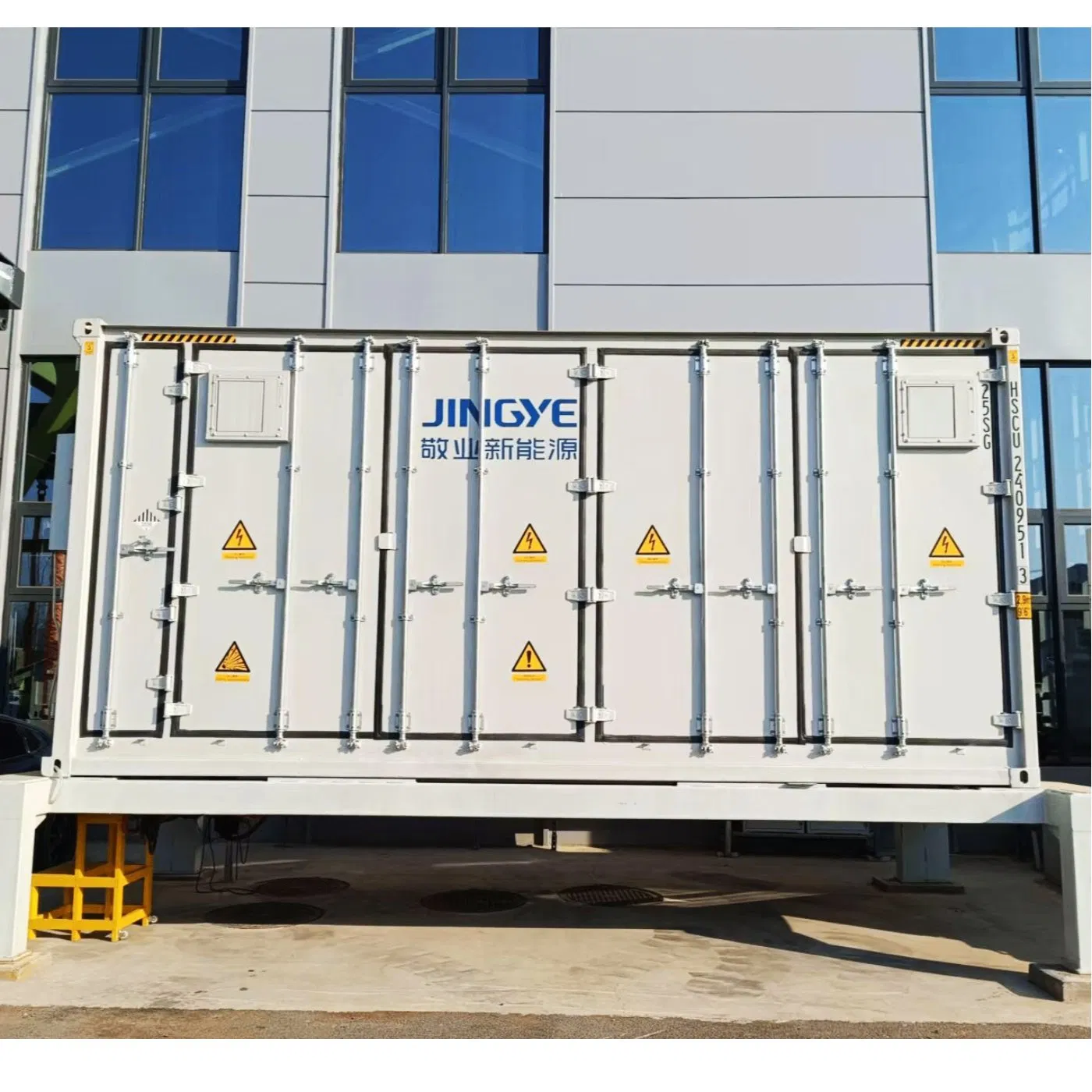

The 5015KWh Liquid Cooling Energy Storage System is engineered using high-capacity 314Ah lithium iron phosphate (LiFePO4) cells. This standard 20-foot containerized solution integrates battery clusters, advanced BMS, thermal management, and fire protection systems into a modular design suitable for diverse environmental conditions.

Product Features

Advanced Battery Tech: High-efficiency, long-life LFP batteries for maximum reliability.
Precision Thermal Management: Industrial-grade liquid cooling maintains temperature variance within 3℃ inside PACKs.
Multi-Level Safety: Triple-stage automatic alarm and extinguishing system (PACK, cluster, compartment).
Intelligent Monitoring: Real-time tracking of temperature, humidity, smoke, and access states.

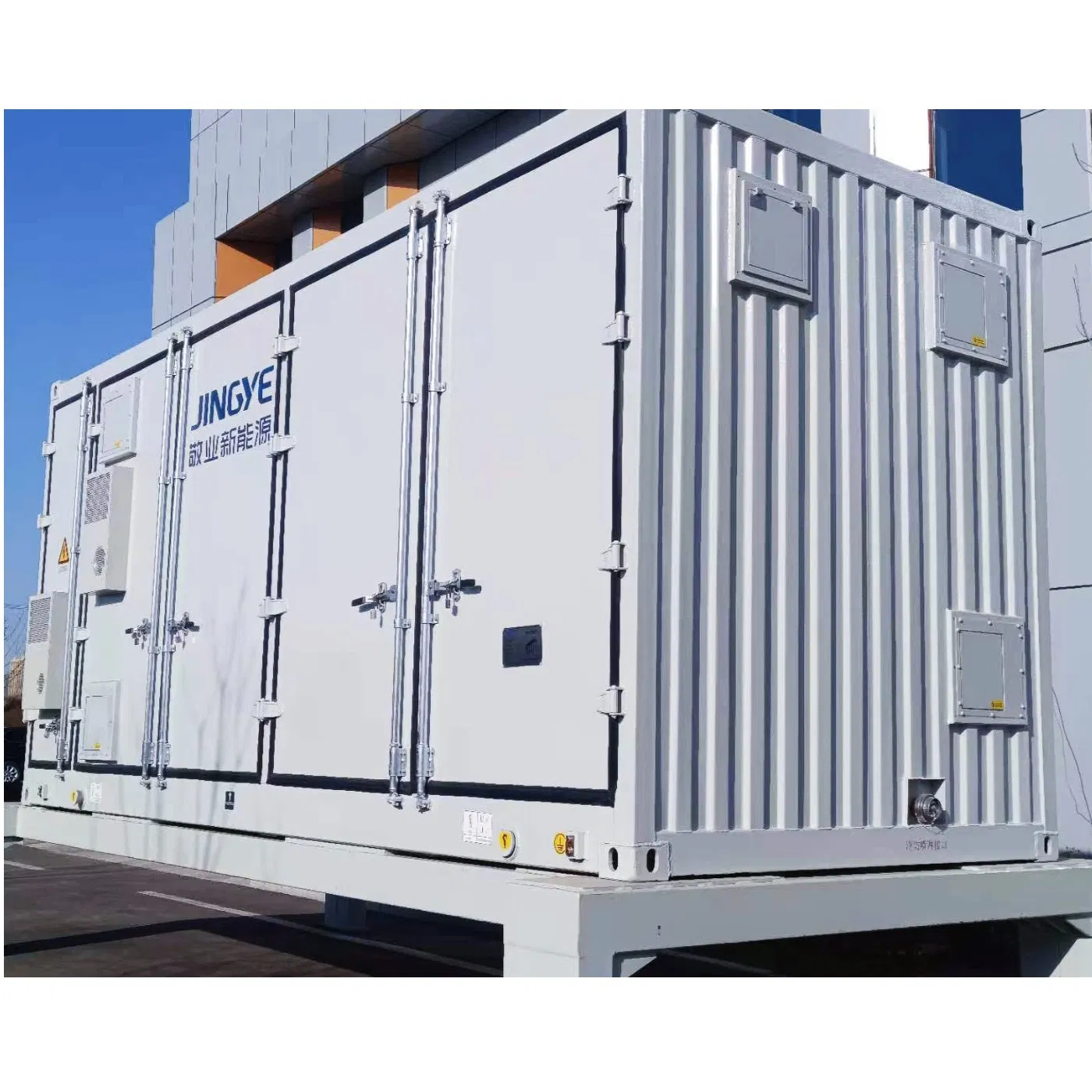

Modular Integration: Standard 20-foot container design for rapid transportation and simplified maintenance.

Technical Specifications

Item	Specification Details
Configuration	12(1P104S4)
Rated Power	5MWh
Rated Voltage	1331.2VDC
Voltage Range	1164.8V - 1497.6VDC
Charging/Discharge Power	≤ 2.5MW
Working Temperature	-30℃ to 60℃ (Discharging)
Altitude	≤ 4000m
Dimensions	L6058 x W2438 x H2896mm
Weight	Approx. 43 Tons
Communication	Ethernet, CAN, ModbusRTU

Production & Quality

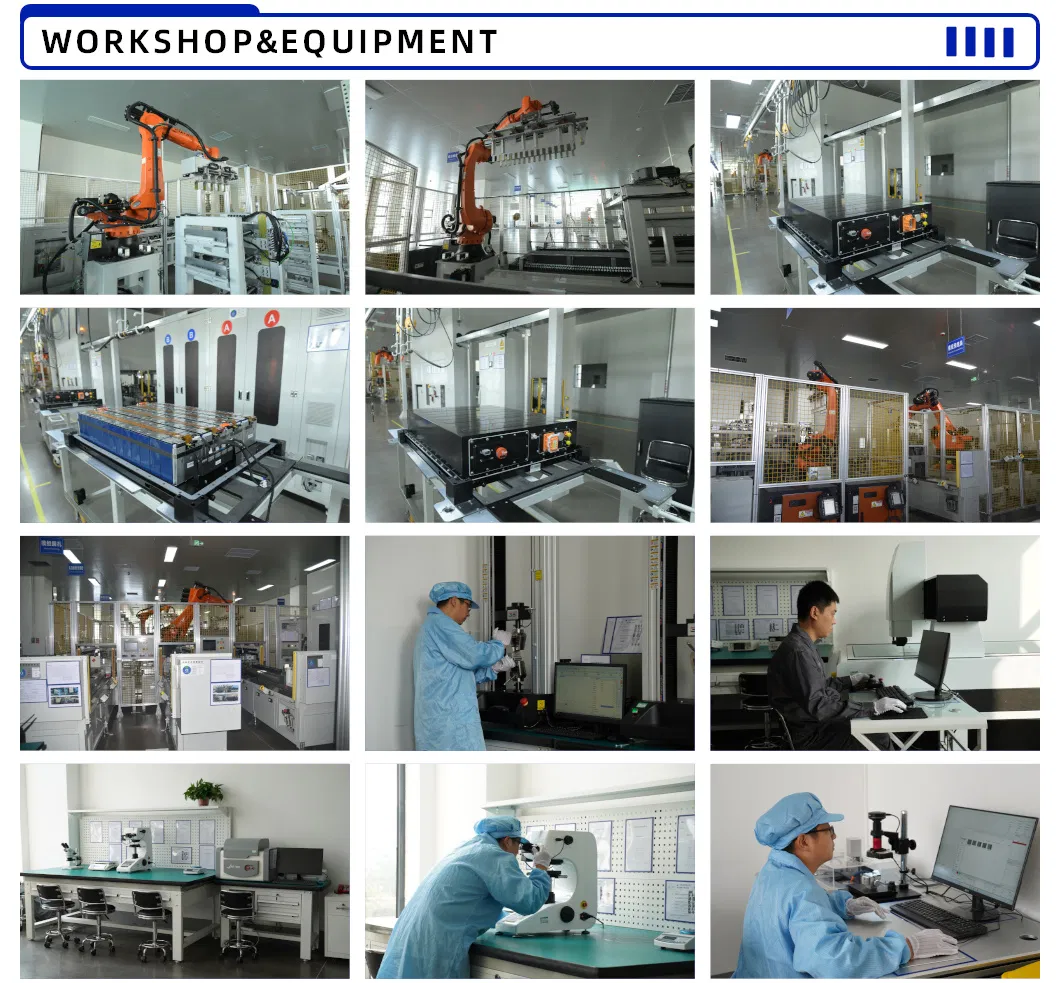

Our facilities utilize highly automated production lines with an annual capacity of 5 GWh for energy storage systems and 2.4 million units of CCS busbars. These products serve smart grids, industrial storage, and green transportation sectors worldwide.

Global Compliance & Presence

Frequently Asked Questions

Q1: What are the primary energy storage products available?

A: Our core offerings include 5MWh Energy Storage Containers, Commercial & Industrial Storage Cabinets, CCS Integrated Busbars, and specialized Battery Packs.

Q2: Are customization services supported for specific projects?

A: Yes, we provide flexible customization services tailored to diverse process types and specific regional technical requirements.

Q3: How is production stability and delivery timeline guaranteed?

A: With a comprehensive automated production line and a team of proficient technical experts, we ensure stable output and strictly adhere to on-time delivery schedules.

Q4: How can customers request detailed quotations?

A: You may contact our support staff directly through the website interface; they will provide a comprehensive quotation and technical data sheet promptly.

Q5: Is the equipment manufactured in-house?

A: Yes, we operate as a formal source factory with standardized production processes, ensuring competitive pricing and rigorous quality control.

Q6: What cooling technology is used in the 5MWh system?

A: The system utilizes advanced liquid cooling technology with a 50% ethylene glycol aqueous solution to ensure optimal thermal stability.
