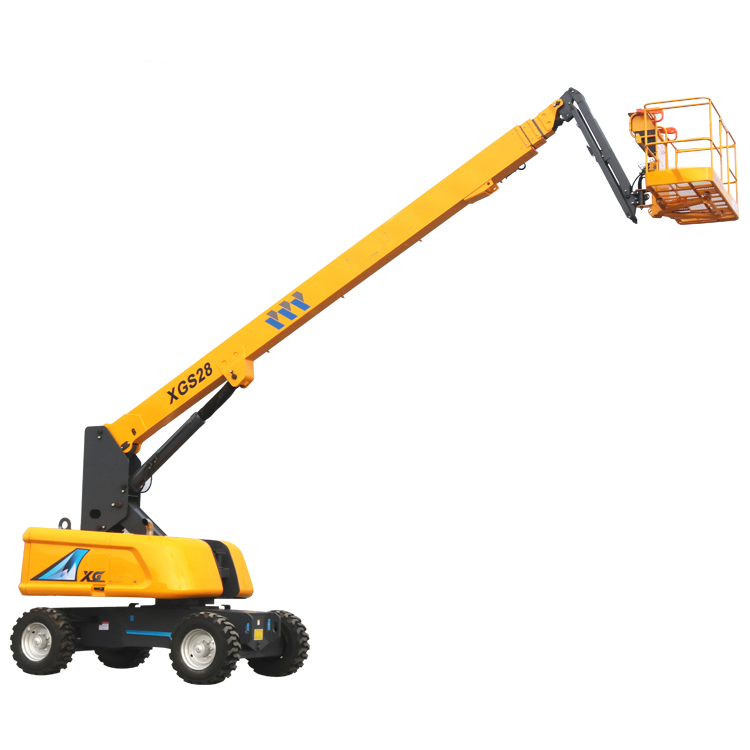

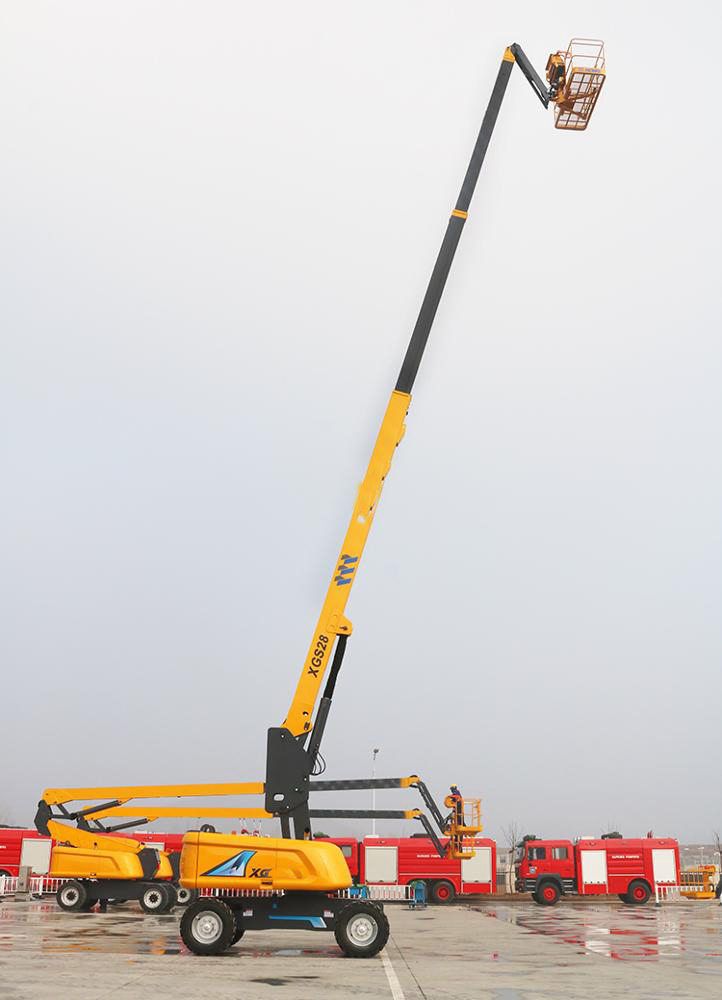

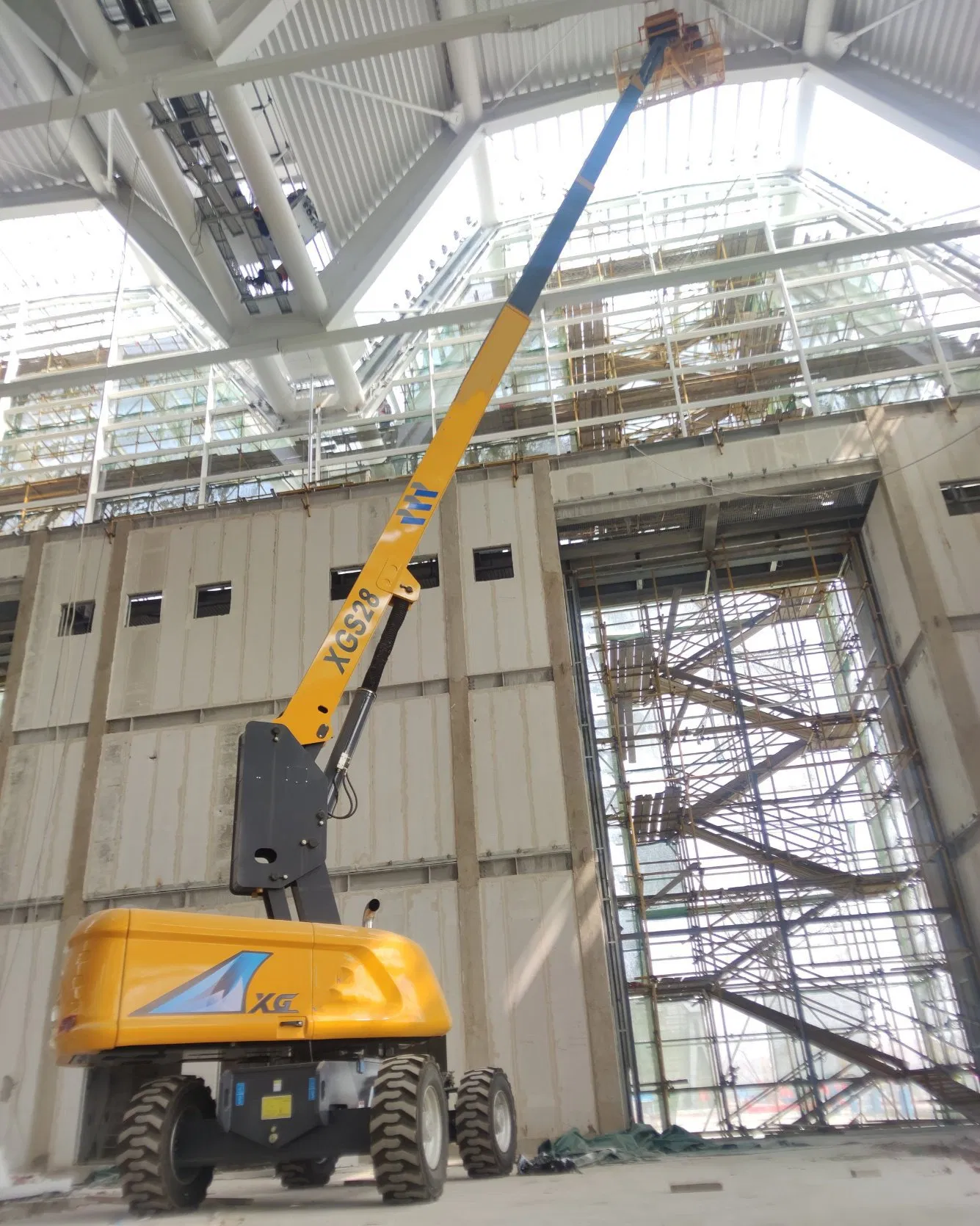

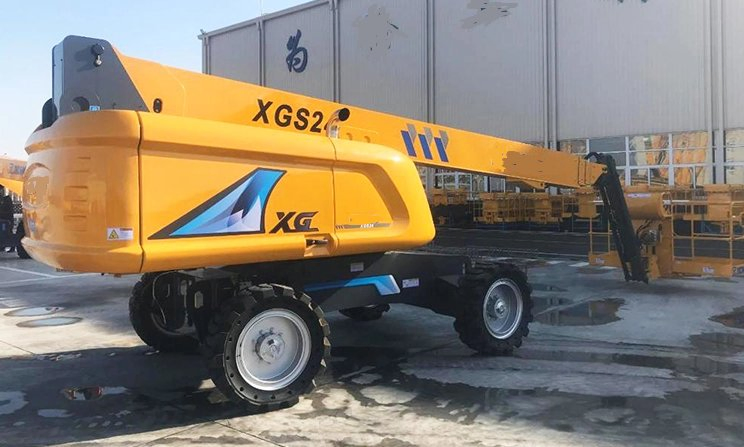

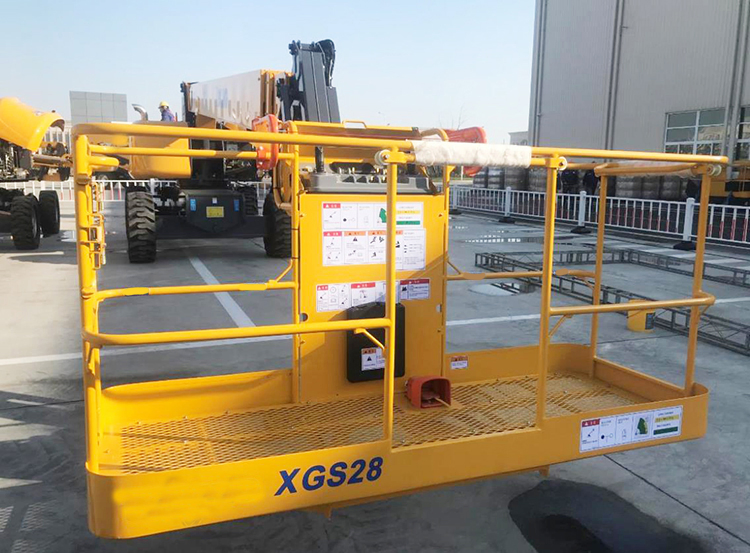

Self-Propelled Telescopic Lift Platform Mobile Elevated Work Platform 28m Payload at 340kg Xgs28
Self-Propelled Telescopic Lift Platform Mobile Elevated Work Platform 28m Payload at 340kg Xgs28
Self-Propelled Telescopic Lift Platform Mobile Elevated Work Platform 28m Payload at 340kg Xgs28
Self-Propelled Telescopic Lift Platform Mobile Elevated Work Platform 28m Payload at 340kg Xgs28
Self-Propelled Telescopic Lift Platform Mobile Elevated Work Platform 28m Payload at 340kg Xgs28
1 / 5
Self-Propelled Telescopic Lift Platform Mobile Elevated Work Platform 28m Payload at 340kg Xgs28
Self-Propelled Telescopic Lift Platform Mobile Elevated Work Platform 28m Payload at 340kg Xgs28
Self-Propelled Telescopic Lift Platform Mobile Elevated Work Platform 28m Payload at 340kg Xgs28
Self-Propelled Telescopic Lift Platform Mobile Elevated Work Platform 28m Payload at 340kg Xgs28
Self-Propelled Telescopic Lift Platform Mobile Elevated Work Platform 28m Payload at 340kg Xgs28

Self-Propelled Telescopic Lift Platform Mobile Elevated Work Platform 28m Payload at 340kg Xgs28

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.XGS28
ApplicationBuilding Crane, Construction
Lift MechanismArticulated Lift
Carrying CapacityLight Level
MovesSelf-propelled
Driven TypeHydraulic
Max. Platform Height28m
Max. Load Capacity230 Kg
EngineBritish Perkins / Germany Deutz
CertificationCE, ISO 9001
Max. Gradeability45%
Running ModeMoving
★

Product Overview

Boom Lifts 28m Mobile Telescopic Boom Lift Platform XGS28

  • Upwards, downwards and crossed multi-directional precise position and excellent extension.
  • The electrical system makes use of the distributed PLC-control technologies and proportional valve self-adaptation.
  • Full-hydraulic drive, turntable free slewing by 360°, limitless angle in full work range.
  • 4WD drive, off-road wide tires and axle-balancing device suitable for any terrain.
  • Compact design with a transportation length of only 7m when retracted.
  • Zero tail swing design facilitates entry into narrow spaces and easy storage.
📋

Technical Parameters

Item Unit Parameter
Overall lengthmm9080
Overall widthmm2490
Overall heightmm2680
Max. working heightm20.4
Max. platform heightm18.4
Max. working rangem11.9
Max. carrying weightkg230
Slewing angle of turntable°360
Max. Tail swingmm0
Dimension of platformmm1830×760×1150
Overall weightkg10600
Max. traveling speedkm/h6
Max. gradeability%45
Engine rated powerkW/rpm38/3000
📷

Product Configuration & Display

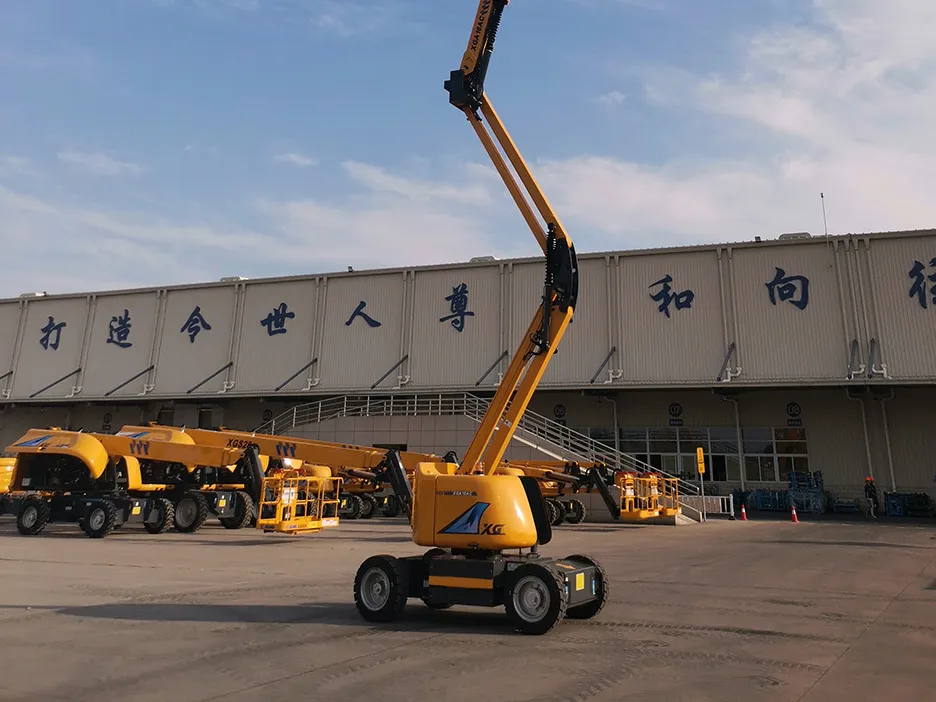

XGS28 Boom Lift 1
XGS28 Boom Lift 2

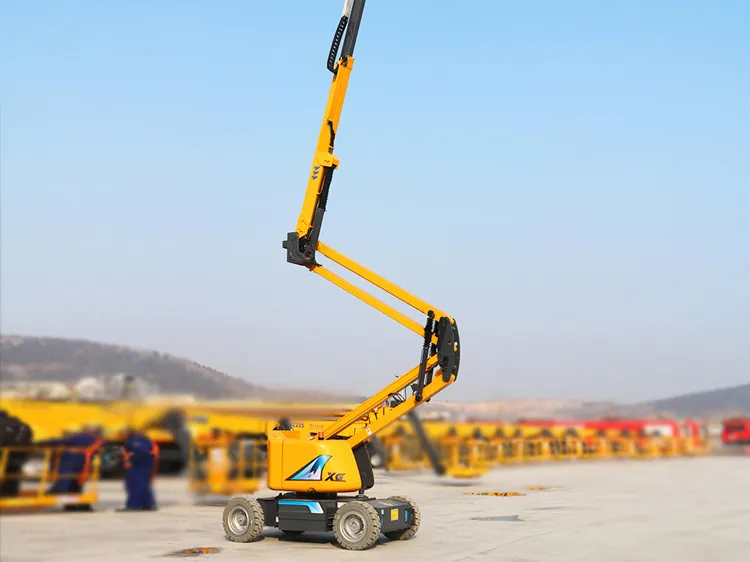

XGS28 Boom Lift 3
Working Site 1
Working Site 2
Factory Detail 1
Factory Detail 2
Factory Detail 3
Technical Layout 1
Technical Layout 2
Technical Layout 3

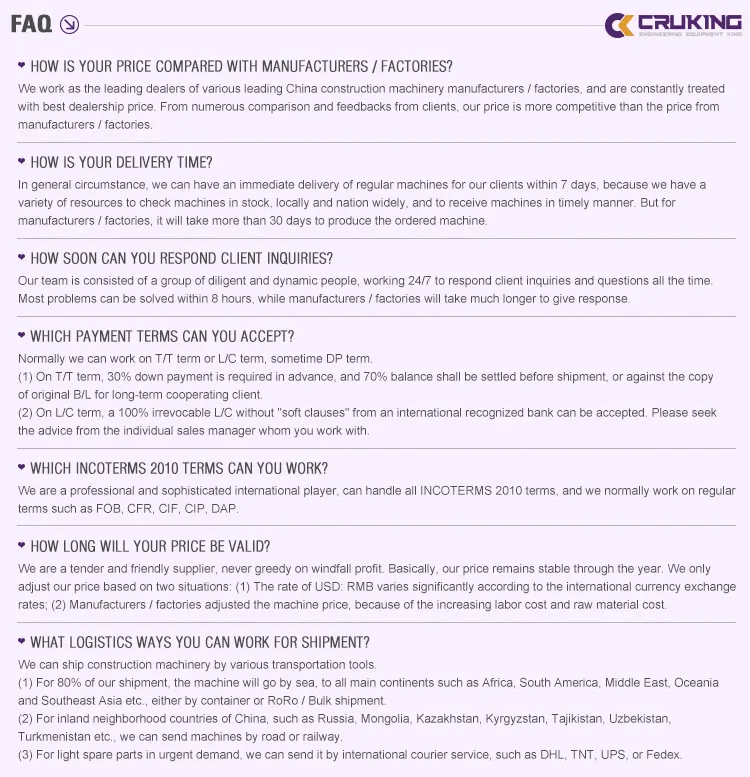

Technical Layout 4
?

Frequently Asked Questions

Q1: What is the maximum platform height of the XGS28? A: The XGS28 provides a maximum platform height of 28 meters, suitable for high-altitude construction and maintenance tasks.
Q2: Can the XGS28 operate on rough terrain? A: Yes, it features 4WD drive and a 45% gradeability, allowing it to navigate challenging outdoor terrains efficiently.
Q3: What is the carrying capacity of the platform? A: The platform has a rated load capacity of 230 kg, which is sufficient for workers and their necessary equipment.
Q4: Does the turntable support full rotation? A: Yes, the turntable supports 360° continuous rotation, providing a limitless working angle within the full range.
Q5: What engine options are available for this model? A: The XGS28 is equipped with high-performance engines from reputable manufacturers like British Perkins or Germany Deutz.
Q6: Is this machine easy to transport? A: Yes, the compact design allows the crank to be retracted, reducing the transportation length to approximately 7 meters.
