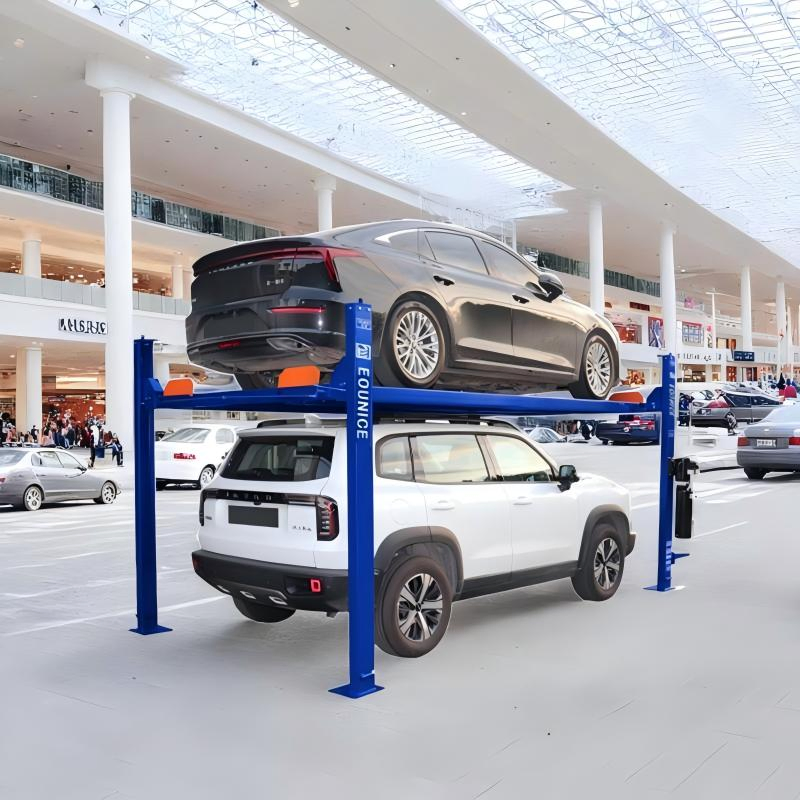

Parking Solutions for Homes How to Maximize Space with a 4-Post Car Stacker

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.ON-7436P
Capacity3600kg (8,000lbs)
TypeParking Lift
DesignFour Post
InstallationIndoor
OperationManual

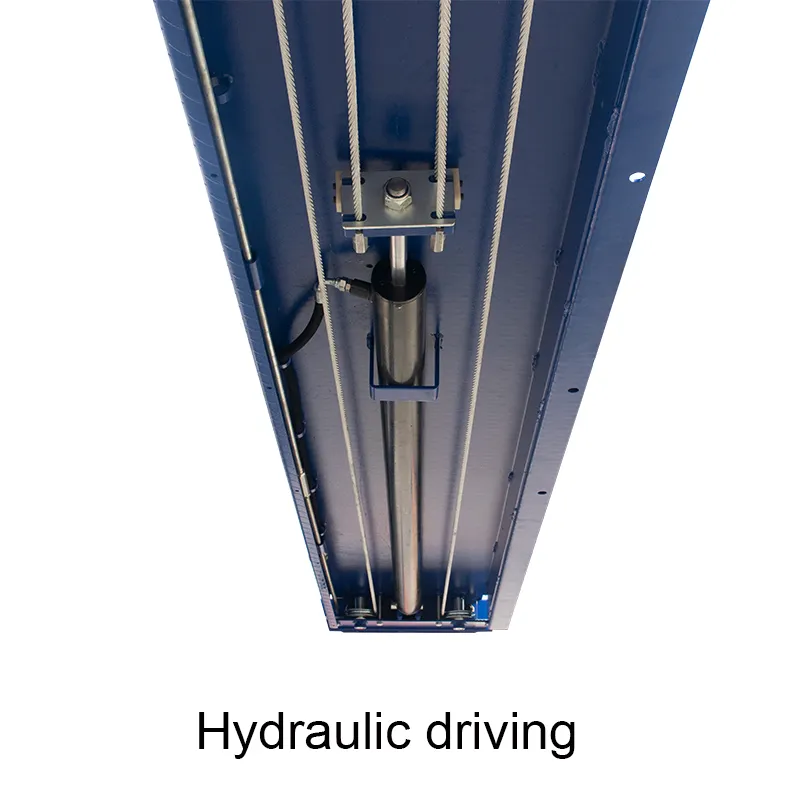

DrivingHydraulic
Voltage220V
MaterialSteel
CertificationCE, ISO

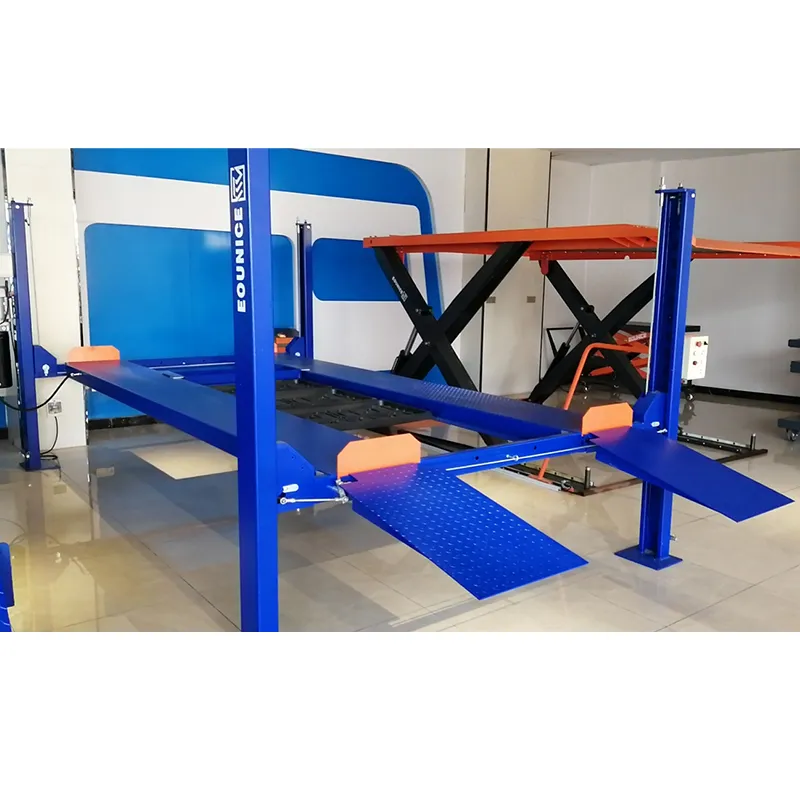

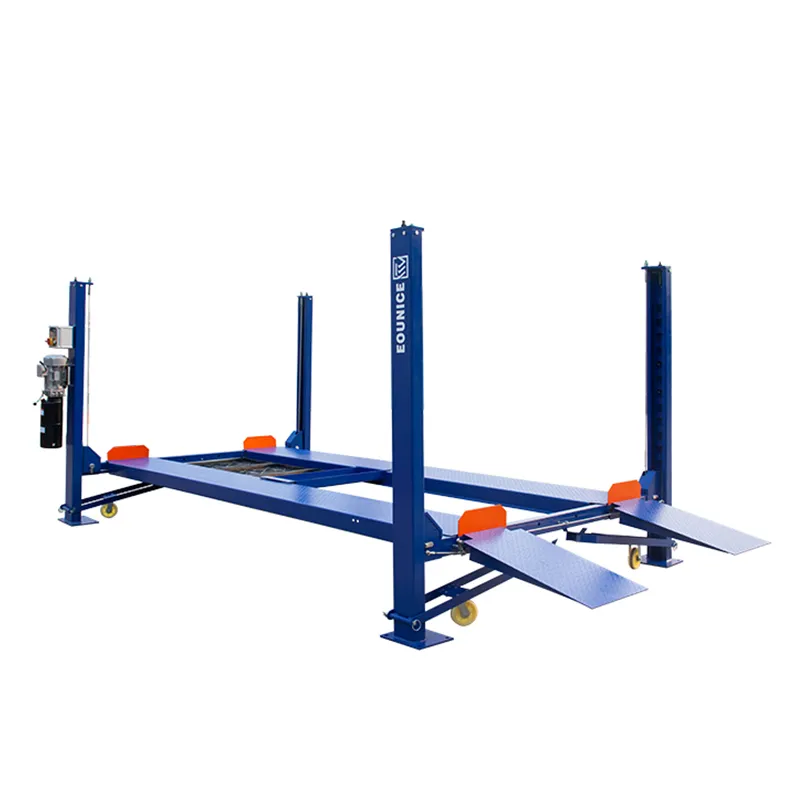

Detailed Photos

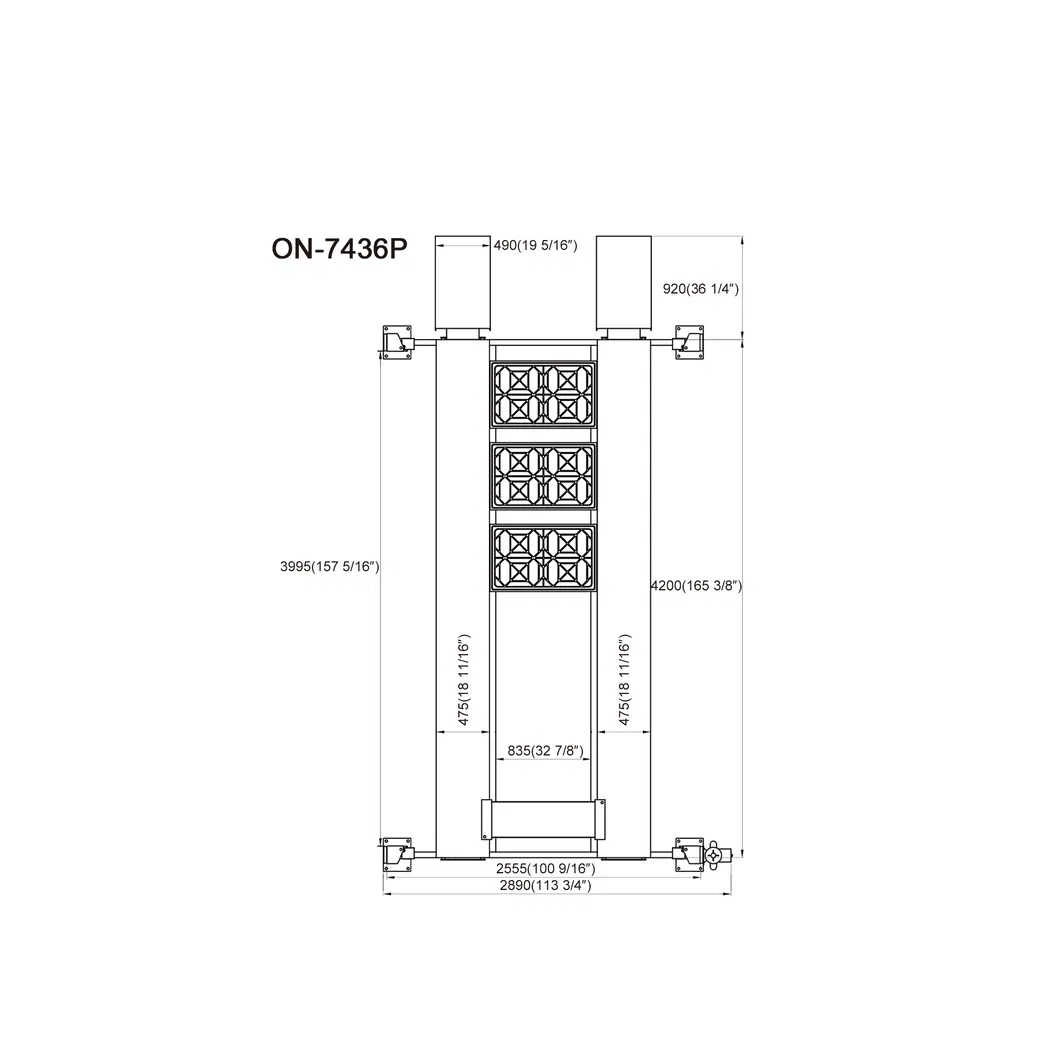

Full Product Dimension View
Technical Data
Model Lifting Capacity Lifting Time Overall Height Lifting Height Overall Length (Inc. Ramps) Overall Width Gross Weight
ON-7436P 3,600kgs (8,000LBS) ≤50S 2076mm (81 3/4") 1845mm (72 5/8") 5120mm (201 9/16") 2890mm (113 3/4") 688kgs (1,517LBS)
ON-7436PL 3,600kgs (8,000LBS) ≤50S 2330mm (91 3/4") 2100mm (82 11/16") 5540mm (218 1/8") 3140mm (123 5/8") 745kgs (1,642LBS)
Product Introduction
  • 3,600Kg (8,000LBS.) lifting capacity.

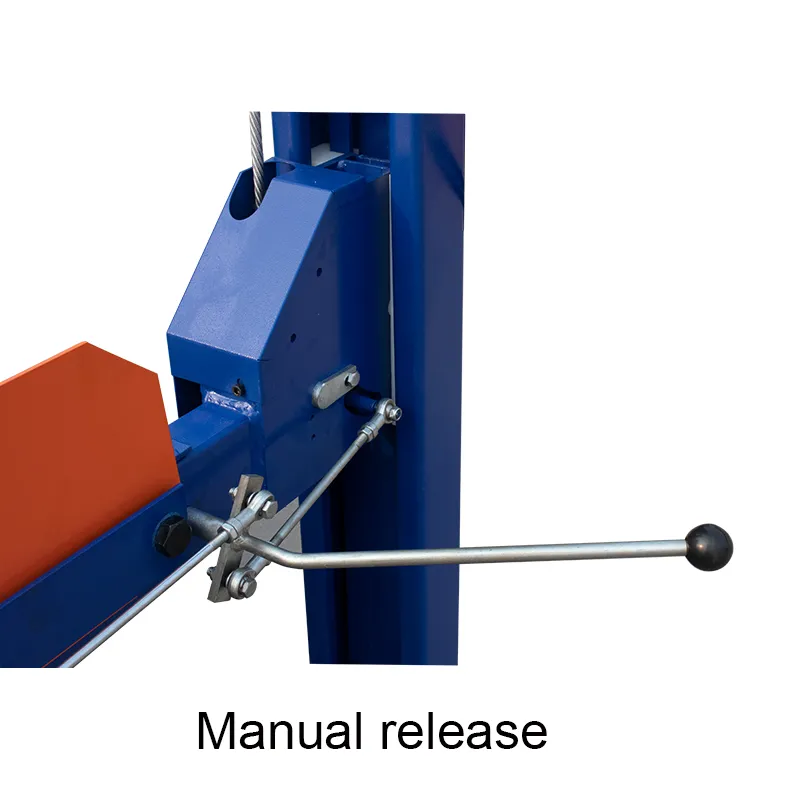

  • Single-point safety lock release by manual.
  • Mechanical locks automatically engaged into position in ascending process.
  • Out of level protection, safe and reliable.

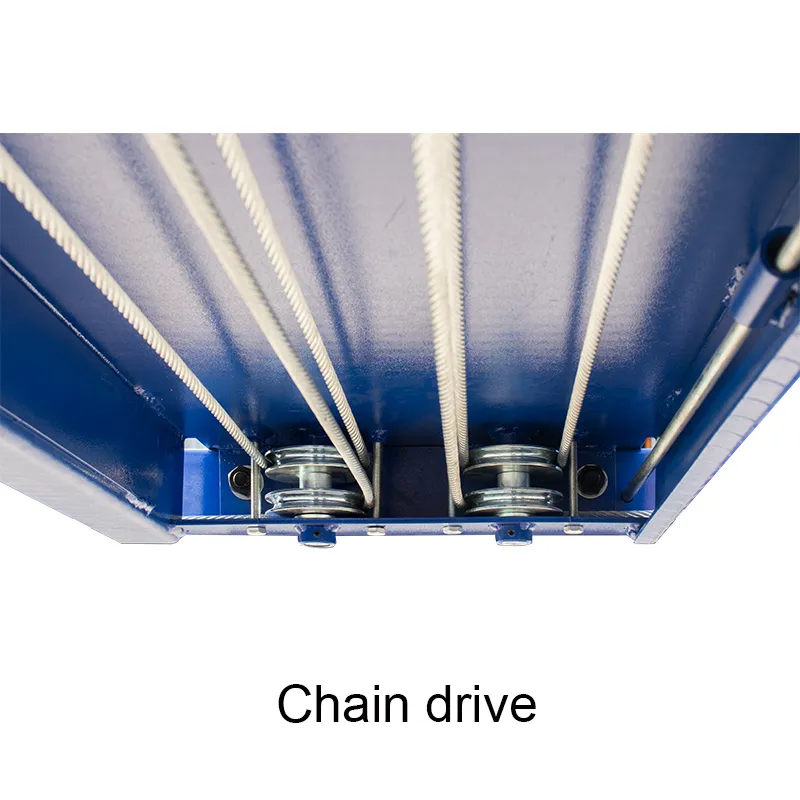

  • Self-lubricating pulleys and pre-tensioned wire rope for extended service life.
  • Skid proof diamond platform.

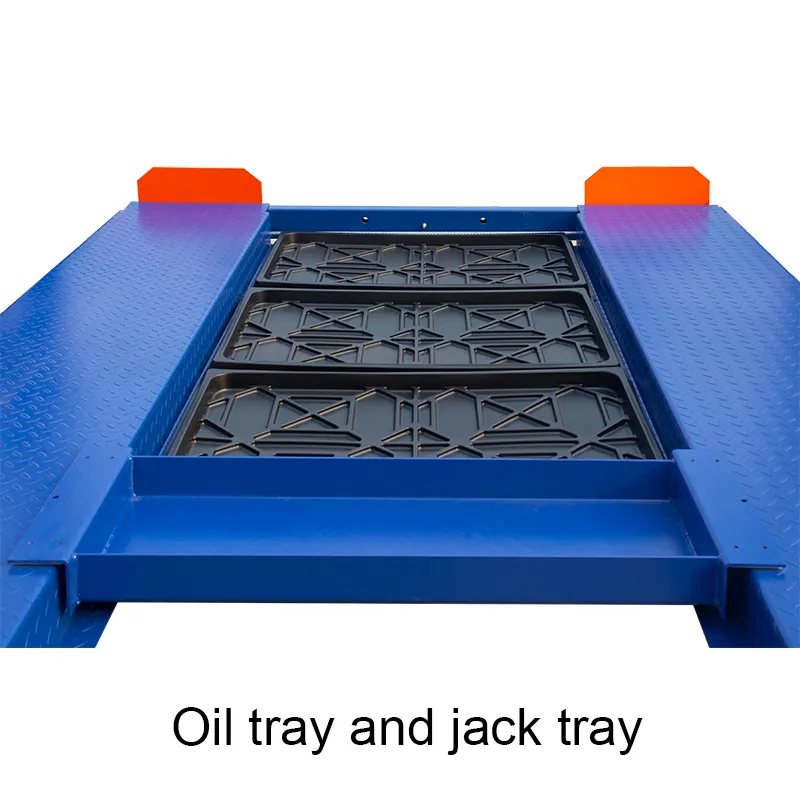

  • Standard with 3 oil trays, 1 jack tray, and 4 caster kits.
Main Features
  • 1 Minimum ground height is 125mm, effectively avoiding chassis contact for low vehicles.
  • 2 Adjustable column ends (40mm range) ensure level runways regardless of ground factors.
  • 3 Double insurance system: manual safety and cable breaking safety with pressure spring reset devices.
  • 4 Robot-welded structural parts ensure high strength, consistency, and beautiful seams.
  • 5 High-temperature cured powder coating provides strong adhesion and a bright finish.

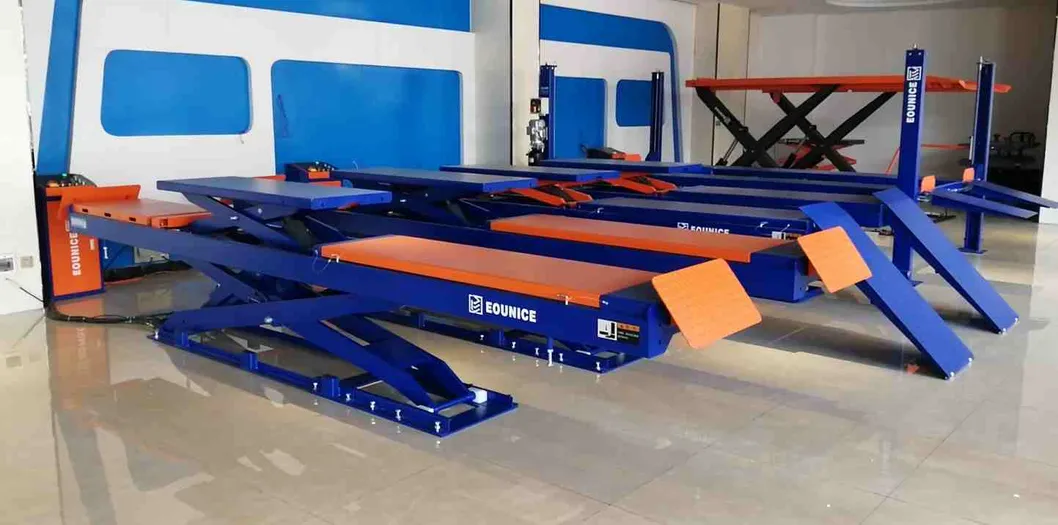

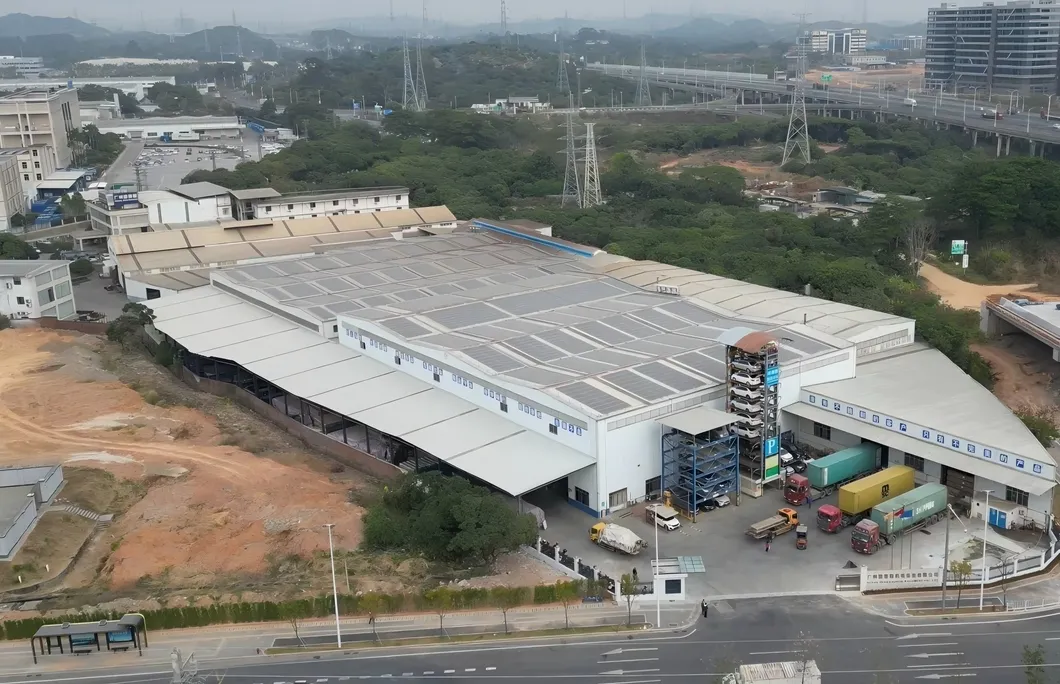

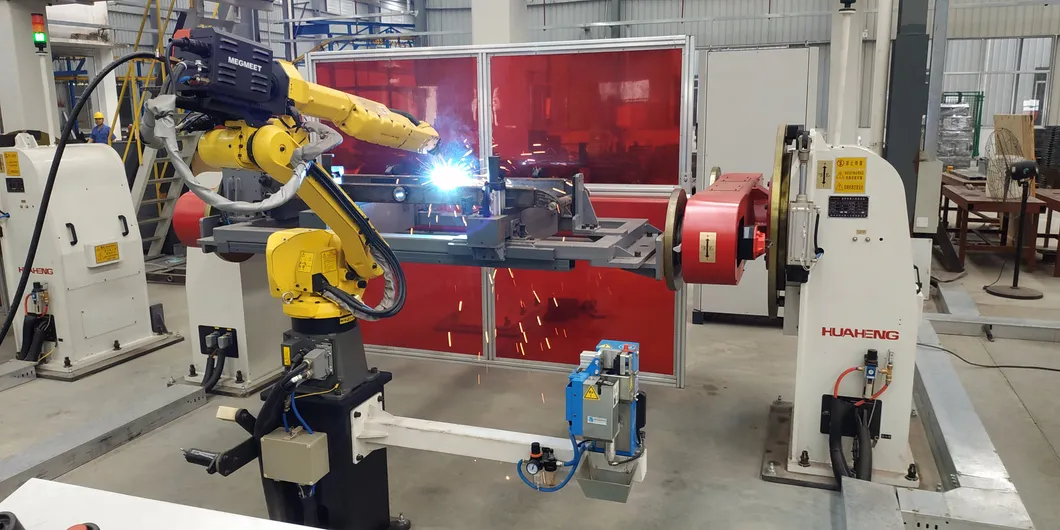

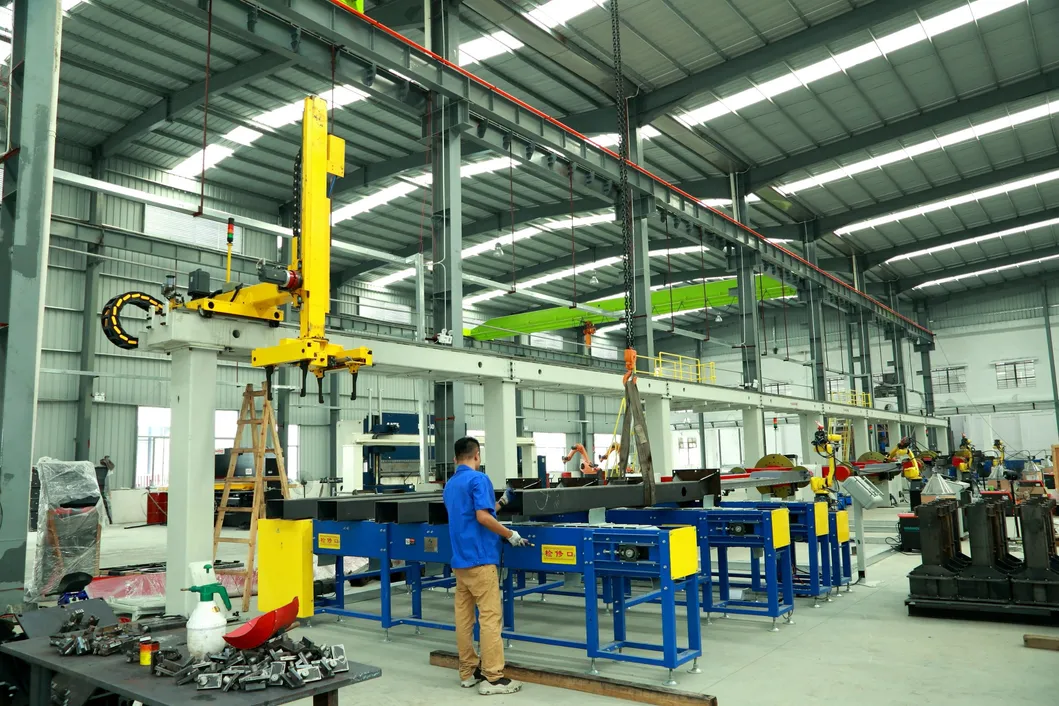

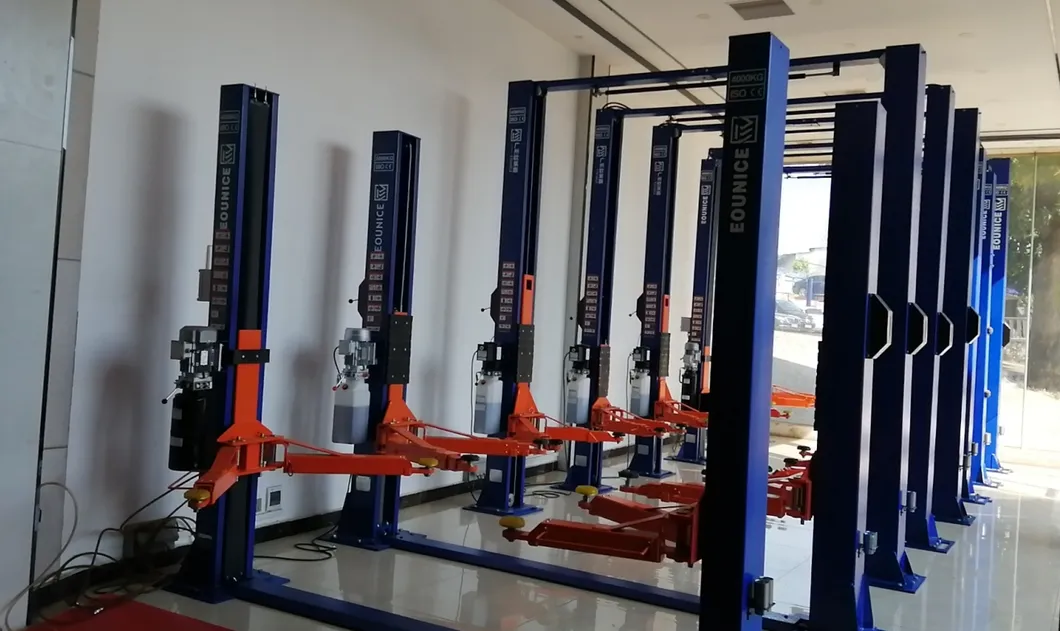

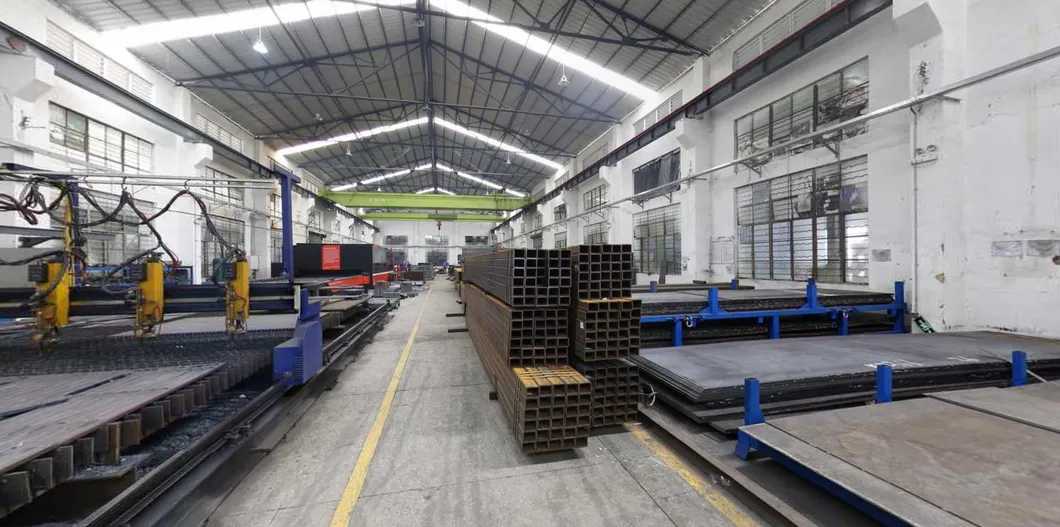

Manufacturing Facility

We are a professional manufacturer and exporter in commercial grade vehicle service lifts and stereo parking equipment. Our facility is equipped with state of art laser cutting, digital control bending, CNC equipment, and powder coating static electricity spray lines. We are committed to continuous technological innovation and strict quality control.

Certifications
Product Certifications CE ISO
After Sales Service
Warranty Term:

Our products are warranted for one year on equipment structure, to be free of defects in material and workmanship. Motors, gear boxes, power units, hydraulic cylinders, cables, chains, valves, and switches are warranted for one year under normal use.

Our Commitment:
  • OEM & ODM customized services available.
  • One-year quality warranty service with free spare parts (shipping excluded).
  • Professional technical support for a lifetime.
Frequently Asked Questions
Q1: Are you a trading company or a factory?
We are a direct manufacturer with our own professional facility, ensuring high quality control and competitive pricing.
Q2: How long is the production and delivery time?
Commonly, the lead time is within 15 days after receiving the deposit, based on standard container orders.
Q3: What are the standard colors, and can I order a custom color?
Regular colors are Blue, Red, and Yellow. Yes, we can produce machines with special colors according to your specific request.
Q4: Can I order a parking lift in a special size?
Yes, sizes can be customized as long as they are suitable for standard container dimensions for shipping.
Q5: What is the warranty period for this lift?
We provide a 1-year warranty on the equipment structure and all major assembly components like motors and hydraulic units.
Q6: What safety features are included?
The lift includes automatic mechanical safety locks, cable-break protection, and an out-of-level protection system for maximum safety.
