IP55 High-Speed Parking Barrier for Secure Access Solutions

Still deciding? Get samples of $ !
Order Sample

Product Description

Product Overview

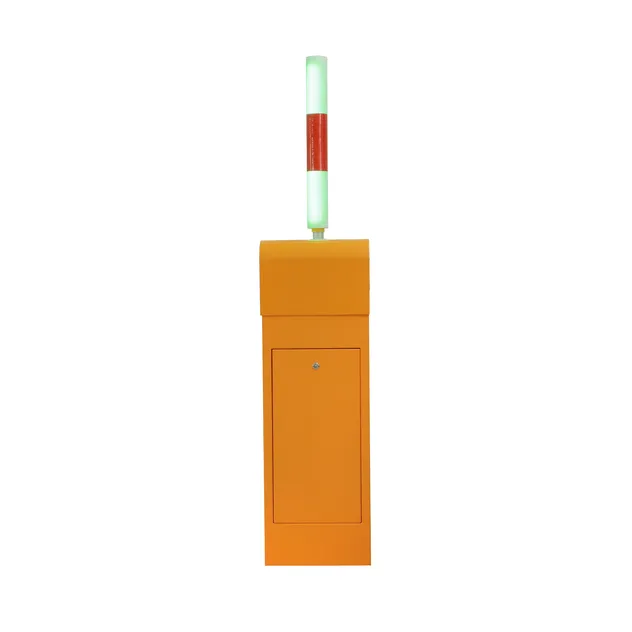

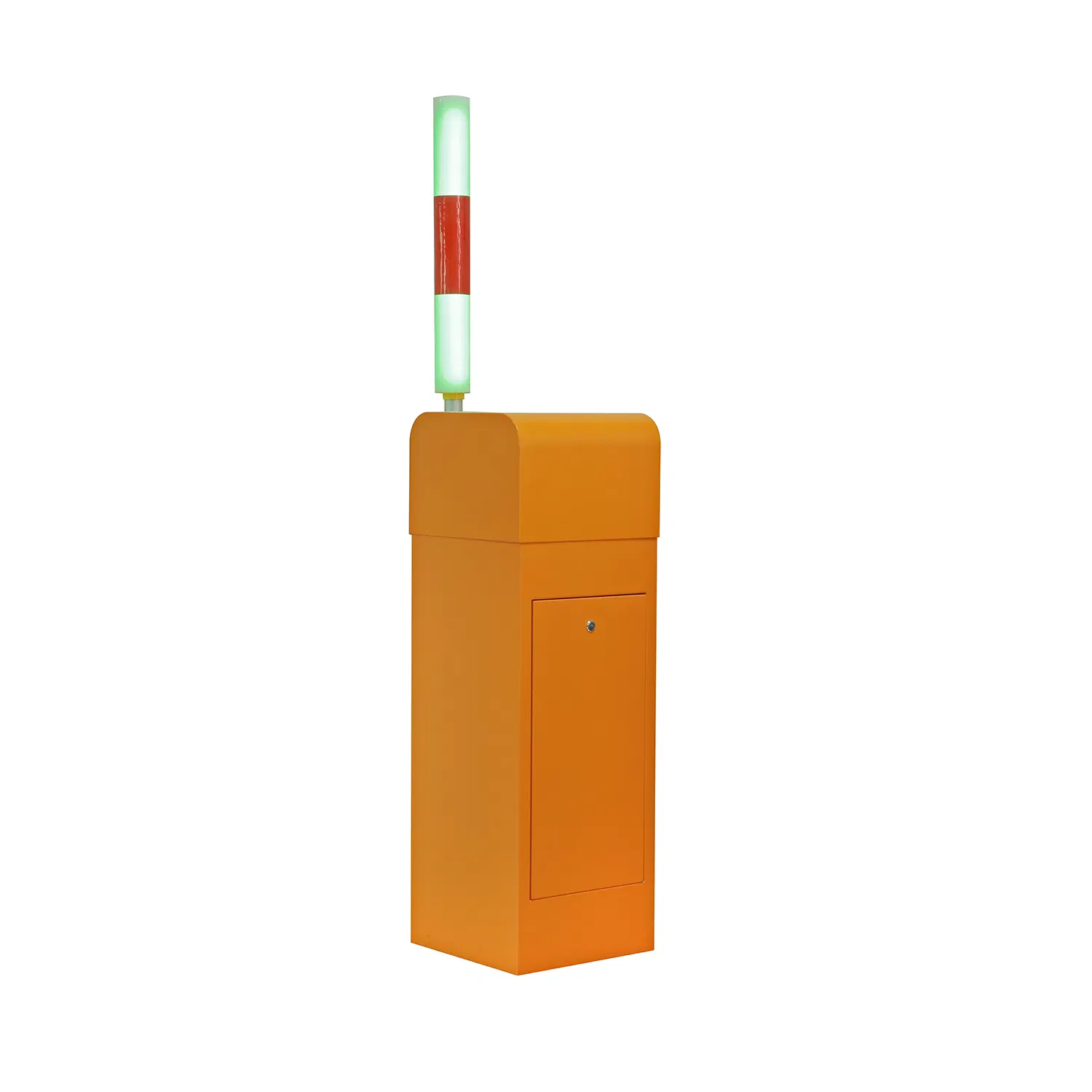

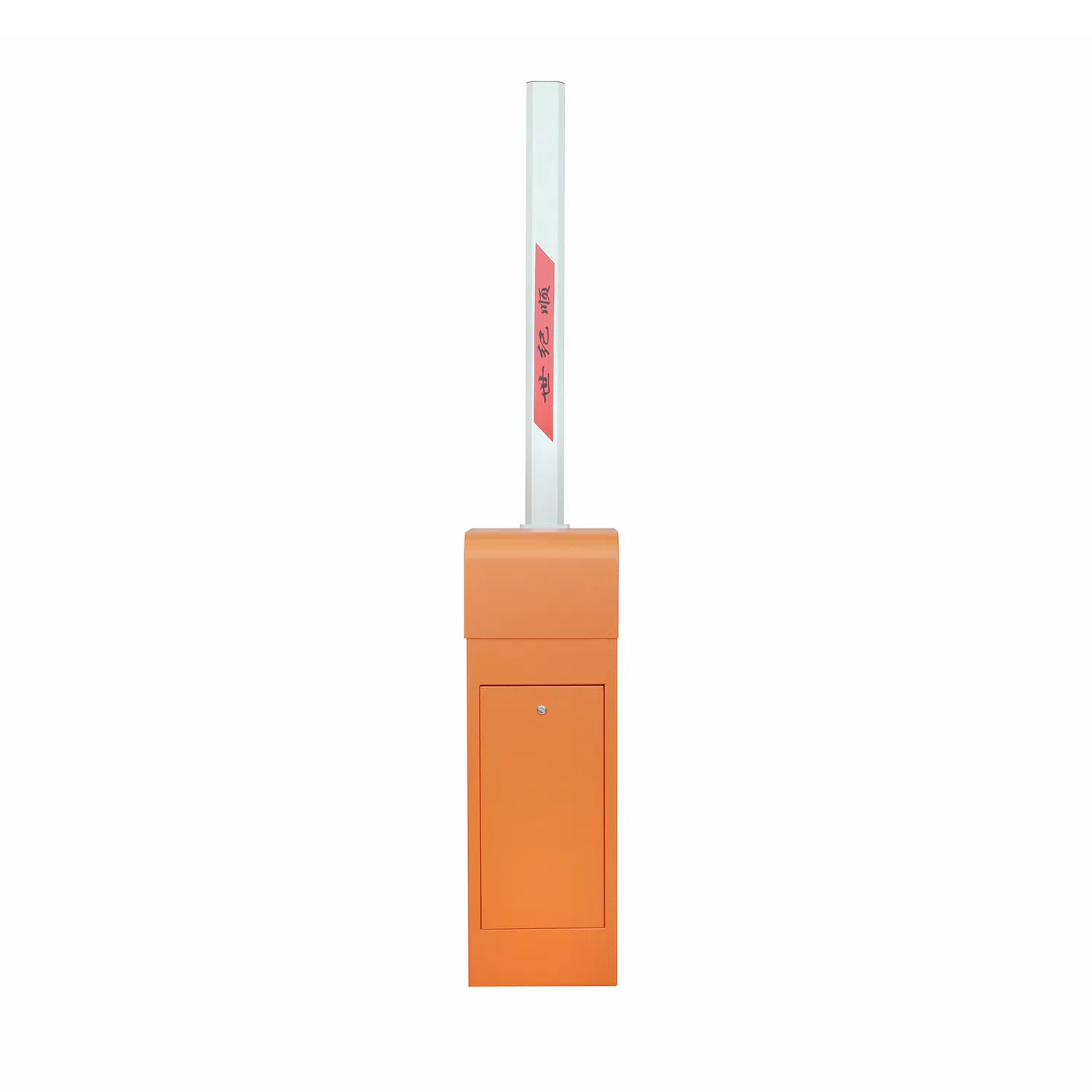

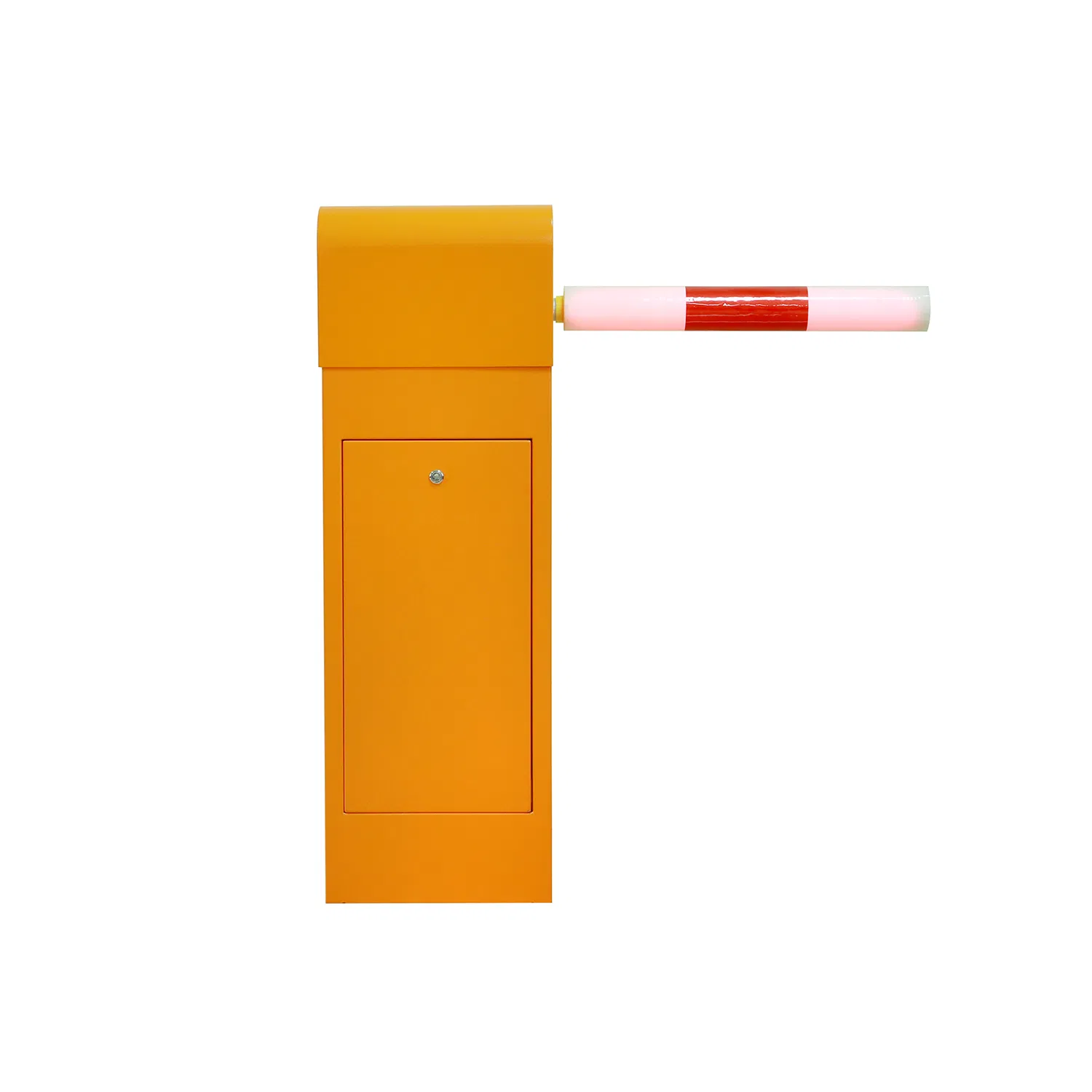

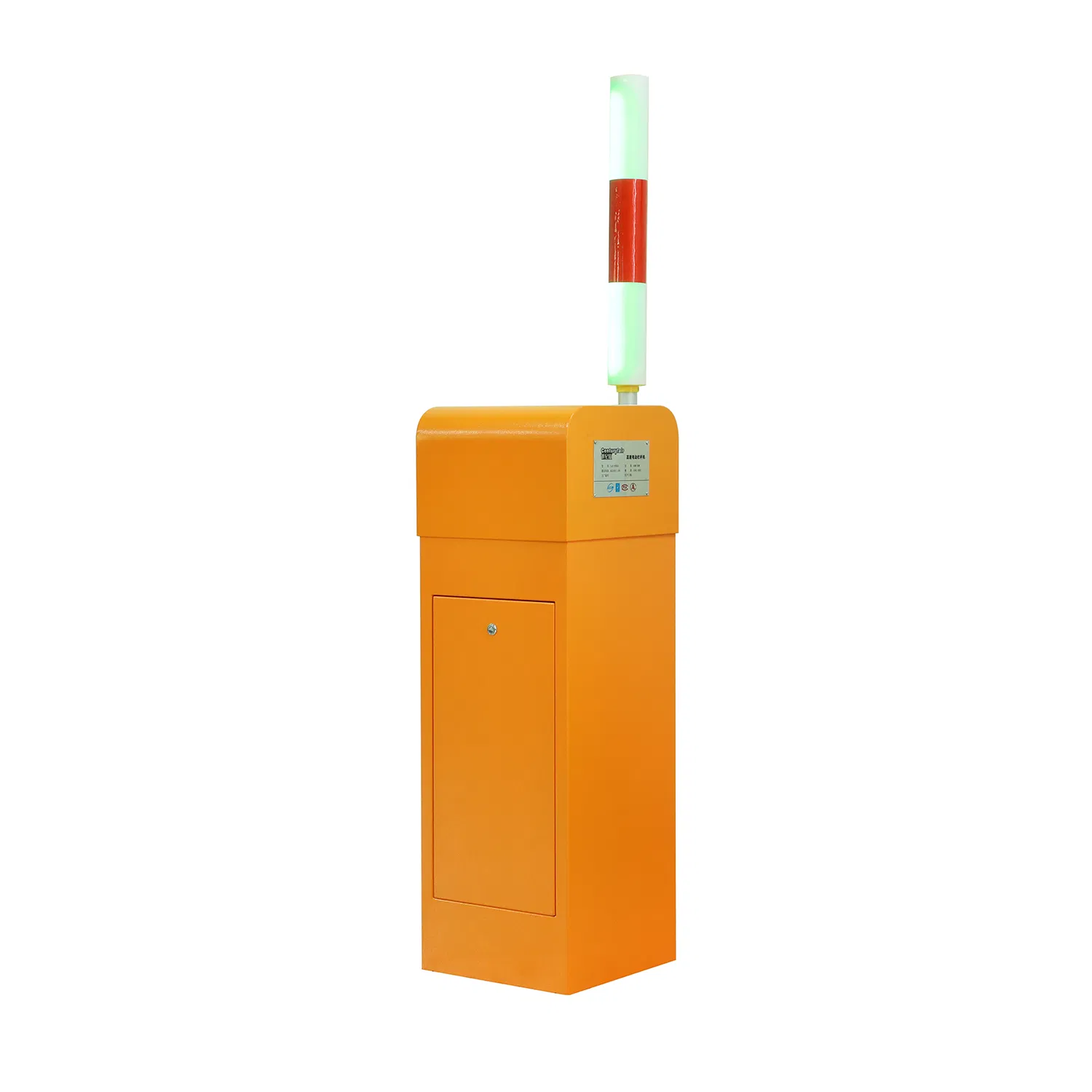

High Speed Barrier Gate (SJS-PD Series)

A high-speed AC torque motor, compact and lightweight, enables quick rod lifting at 0.9s. Features humanized safety, adjustable directions, and built-in encoder for precision and longevity.

Model NO.
SJS-PD003A
Position
Vehicle Fence
Material
Steel
Function
Obstruction
Post Fixation
Expansion Bolts
Service Life
5,000,000 Times
Product Dimensions
35cm*35cm*107cm
Protection Class
IP55
High-Speed Parking Barrier
Key Features
High-Speed AC Torque Motor: High-performance motor ensures stable, strong power and efficiency.
Fast Response: Quick motor response with low vibration and noise for smooth operation.
Rapid Lifting: Maximum rod lifting speed of 0.9s for high-traffic environments.
🛡
Humanized Safety: Designed to avoid hazards, ensuring safety for all users.
Adjustable Direction: Left and right direction adjustable to adapt to various scenarios.
🎯
Precision Encoder: Built-in encoder for high-precision limit and extended service life.

※ All products can be customized! Arm types available: Straight, Articulated, Fence, or Telescopic arm.

Technical Specifications
Supply VoltageAC220V+/-10% or AC110V
Power Frequency50/60Hz
Output Power80W
Rated Speed1500r/min
Standard Lever Length3 - 6m
Rising/Falling Time0.3s - 6s
Temperature Range-40℃ to +75℃
Remote Control Distance≤ 50m
Delivery & Service
Package
Export standard wood carton (56cm * 44.8cm * 115.8cm)
Warranty
Standard 12-month warranty
Training
On-site or remote operation/maintenance training available
Approvals
CE, CCC, ISO 9001: 2015

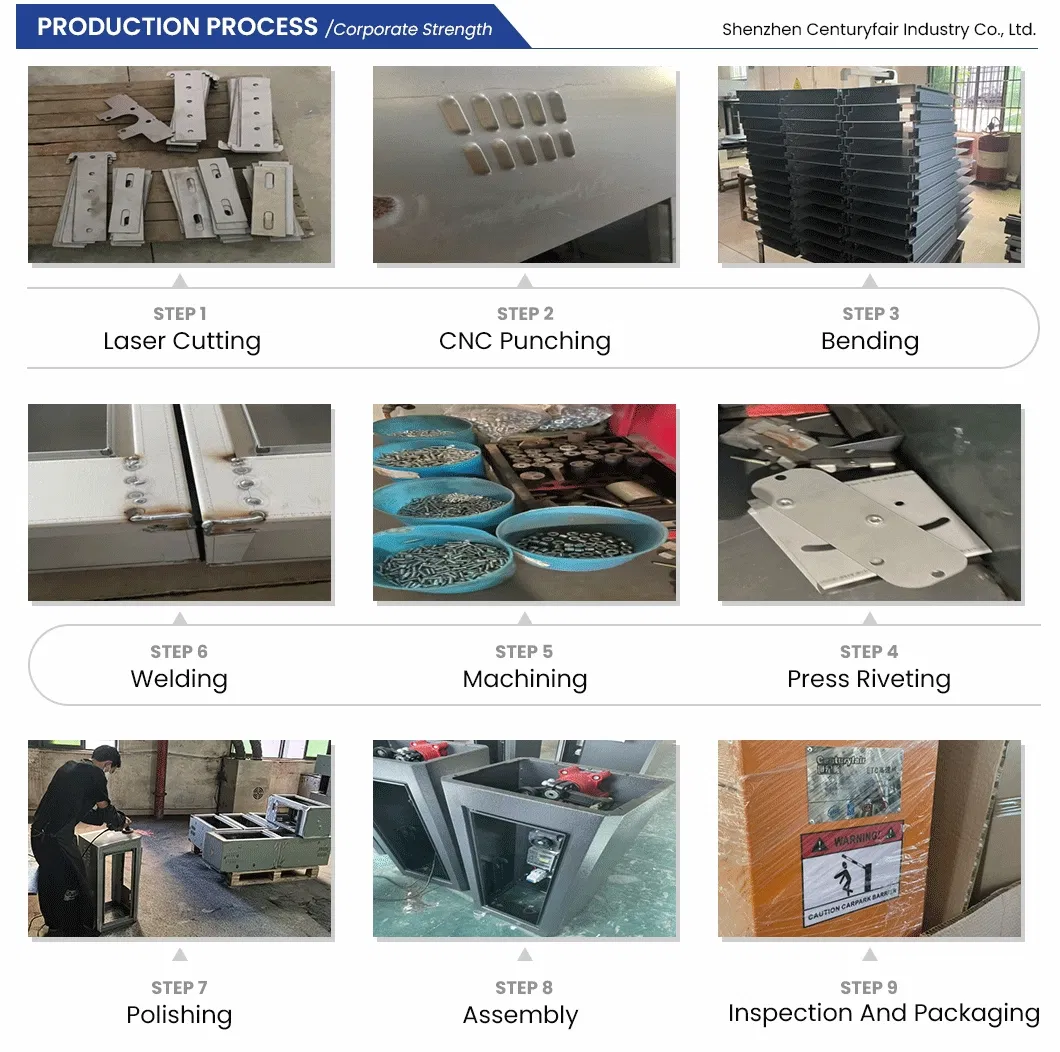

Process View
Frequently Asked Questions
What is the maximum speed of the barrier gate rod lifting?
The system utilizes a high-speed AC torque motor that allows for a maximum lifting speed of 0.9 seconds, making it ideal for high-traffic areas.
Can the arm direction be changed after purchase?
Yes, the design is highly adaptable; the left and right directions are adjustable to suit different site installation requirements.
What types of arms are compatible with the SJS-PD Series?
This series supports multiple arm types, including straight arms, articulated arms, fence arms, and telescopic arms.
Is the barrier suitable for extreme weather conditions?
Absolutely. It has an IP55 protection rating and is designed to operate reliably in a temperature range from -40℃ to +75℃.
What is the expected service life of the motor?
The high-precision motor and built-in encoder system are engineered for a long service life, tested to perform up to 5,000,000 times.
Are custom configurations available?
Yes, we provide full support for custom configurations and OEM/ODM services to meet specific project demands.
