Hydraulic pit lifting type mechanical car lift vehicle parking equipment

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

UCS20/AC

Power Supply

220V/380V, 50Hz/60Hz, 2.2Kw

Falling Prevention

Pull-Type

Vehicle Inlet/Outlet

Down

Certification

CE, ISO, CCC

Lift Mode

Hydraulic Cylinder

Voltage

220V

Working Mode

Manual

Driving

Motor

Design

Two Post

Transport Package

Steel Pallets + Wrapping

Specification

2.0/2.5 Tons

Production Capacity

100 pieces/Month

HS Code

84289020

Product Description

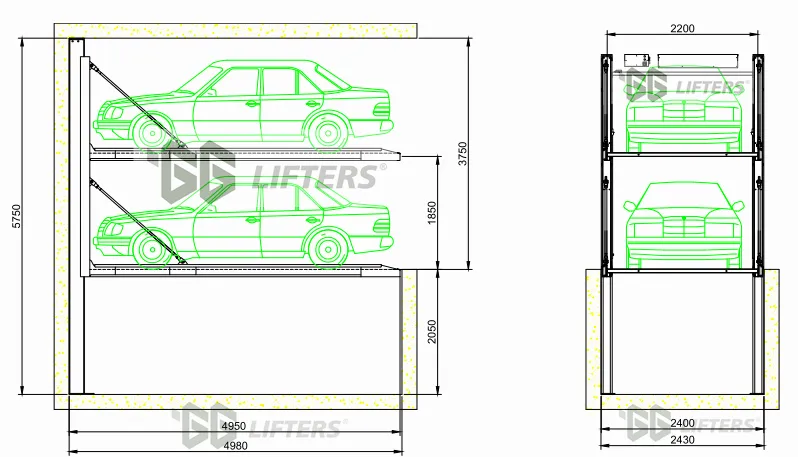

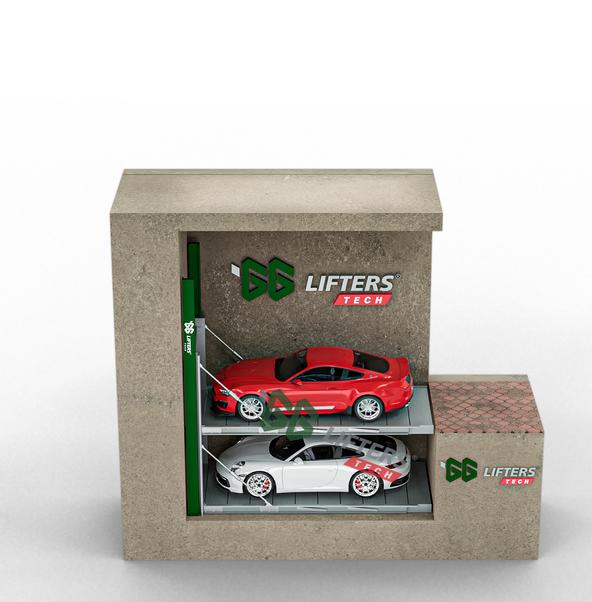

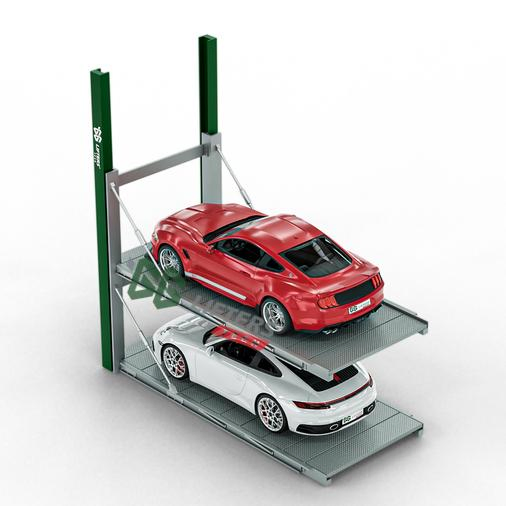

PIT CAR PARKING SYSTEM - New Type Pit vertical car parking system for home yard

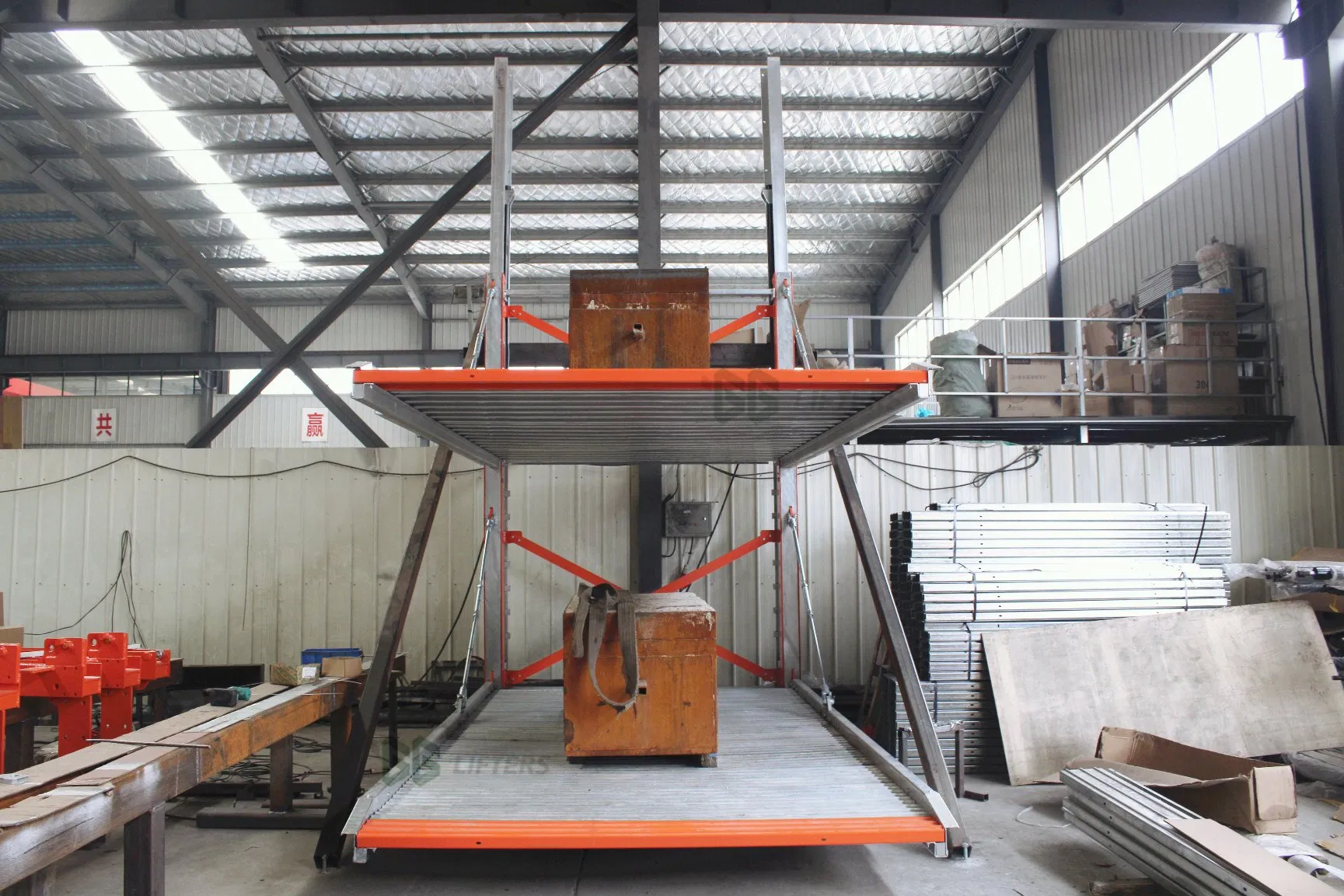

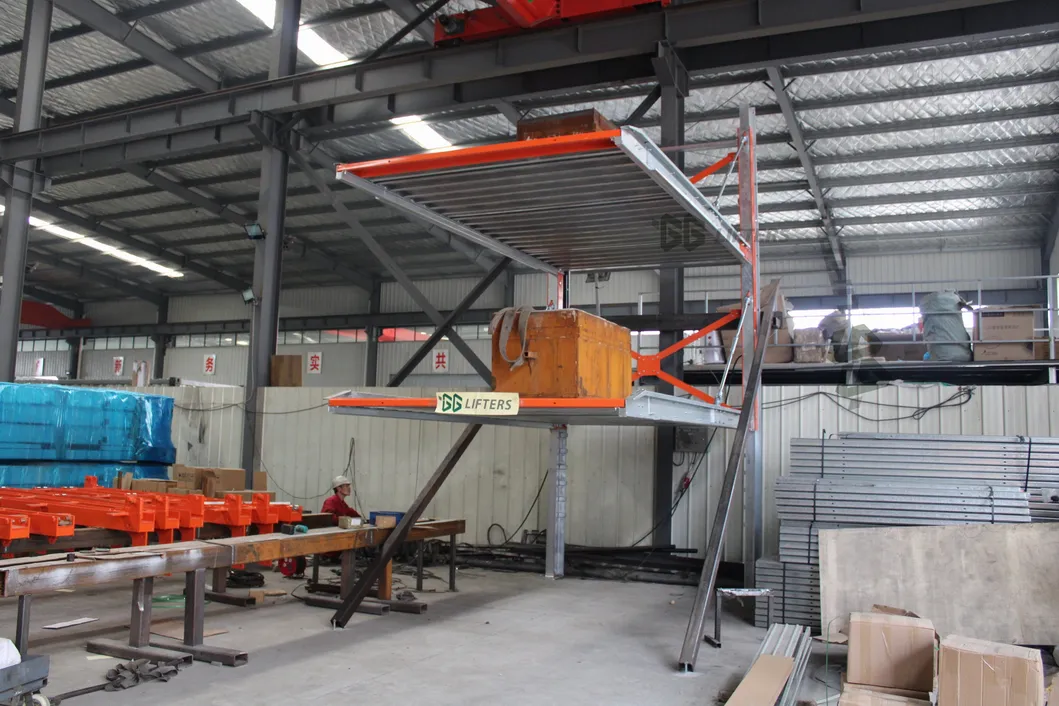

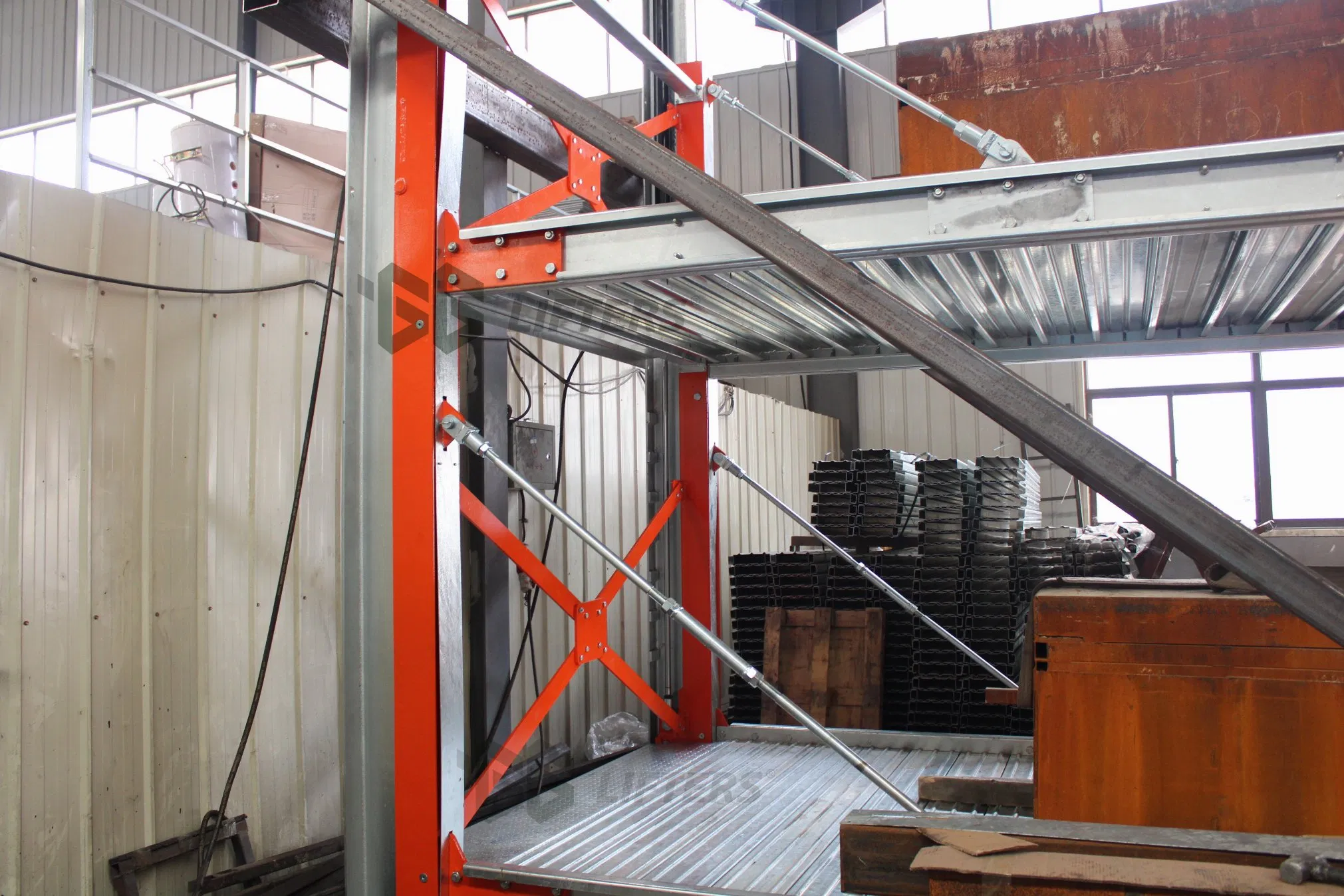

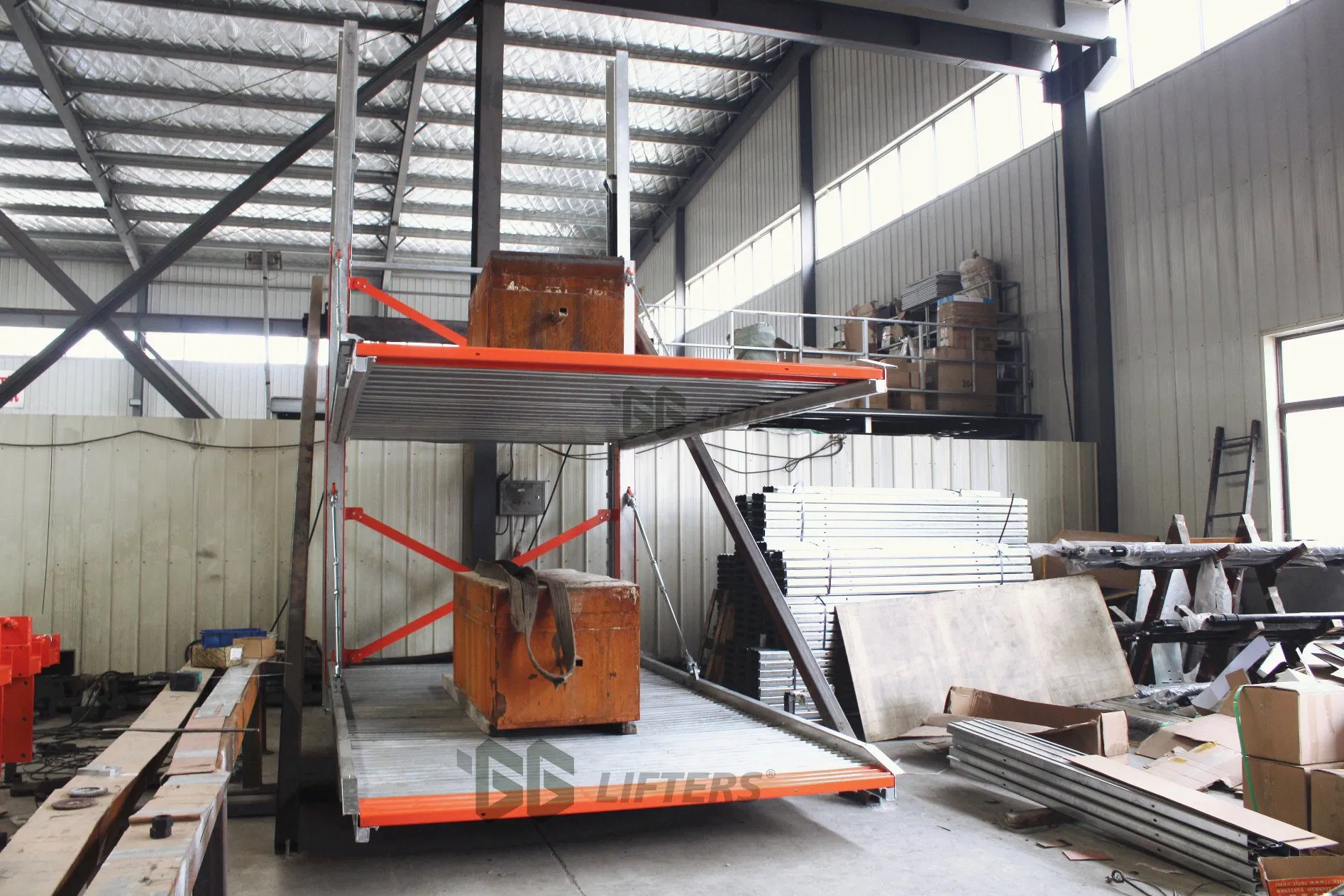

Hydraulic pit lifting type mechanical car lift

Hydraulic driven through 2 ea hydraulic cylinders system.
Flexible design according to customer requirements, suitable for residential & commercial use.
Directly park or pick up the car at any level independently.
Simple steel structure, easy for installation and maintenance.

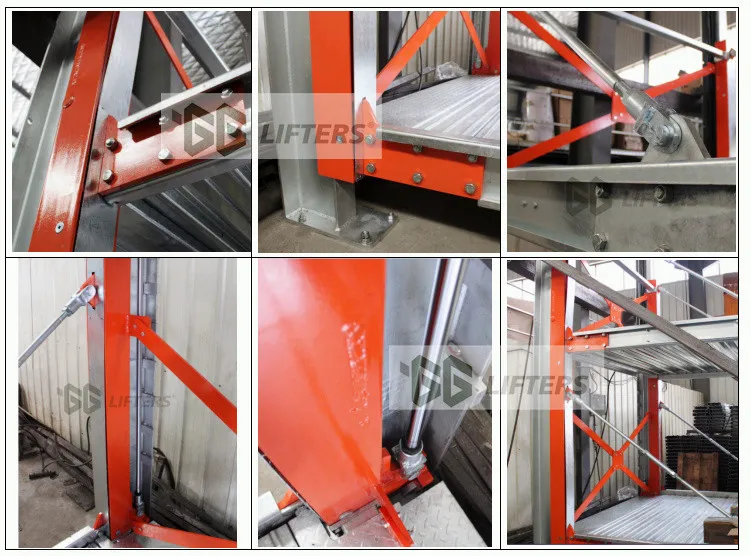

Cantilever supports with 2 posts together with longitudinal & cross beams to keep balance.
Hydraulic balance system to ensure balance of both cylinders.
Galvanized wave plates for upper & lower platforms of all units.
Front and back wave plates are removable for easy access to the pit ground floor in case of emergency.
Tire stoppers in each platform to ensure correct placement of the car.
1 ea limit switch in every level to stop platforms at predefined heights, IP 67.
Electric operation box is equipped with dead man Push Buttons (UP/Down).
Electric Operation Box is operated by 24 V to protect against short circuit.
Hydraulic power unit will be fixed according to site location.
Units are designed and built according to EN1493: 2010 and EN14010: 2003 standards.
Steel parts are hot dipped galvanized to ensure long life and avoid rust.

Frequently Asked Questions

How does the pit car parking system work?

The system utilizes a hydraulic lifting mechanism with two cylinders to move platforms vertically into a pre-constructed pit, allowing cars to be parked and retrieved independently at different levels.

Can this system be used for outdoor residential yards?

Yes, the steel parts are hot-dipped galvanized to prevent rust, making it highly durable for both residential yards and commercial environments.

What safety features are included?

The system includes pull-type falling prevention devices, IP67 waterproof limit switches at every level, tire stoppers, and a 24V safety control box with dead man push buttons.

Is independent parking possible for all vehicles?

Absolutely. This design allows you to park or pick up any car at any level without having to move other vehicles first.

What are the power requirements for installation?

The standard configuration supports 220V or 380V power supplies at 50Hz/60Hz, depending on your local electrical standards and requirements.

Is maintenance difficult for this type of system?

No, the system features a simple steel structure and removable galvanized wave plates, which allow for easy access and maintenance of the pit and hydraulic components.
