Liftara Lift
1 / 5
| Model | 600S | Application | Workshop, Shipboard, Warehouse, Building |
| Lift Mechanism | Telescoping Lift | Driven Type | Hydraulic |
| Working Height | 20.18m | Platform Height | 18.18m |
| Horizontal Outreach | 15.29m | Carrying Capacity | Middle-Level (454 kg/272 kg) |
| Weight | 9735kg | Running Mode | Self-propelled / Moving |
| Certification | ISO 9001 | Feature | Explosion-Proof, Insulating |
| Package Size | 871.00cm * 248.00cm * 250.00cm |
| Package Gross Weight | 9819.000kg |
| Packing Type | Nude Packing, by Container or Roro Ship |

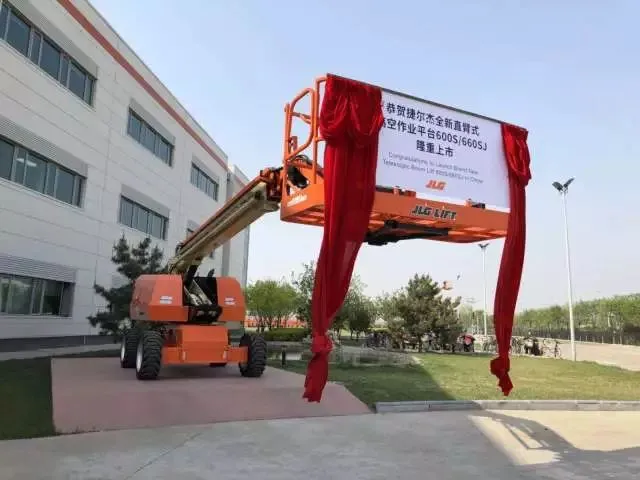

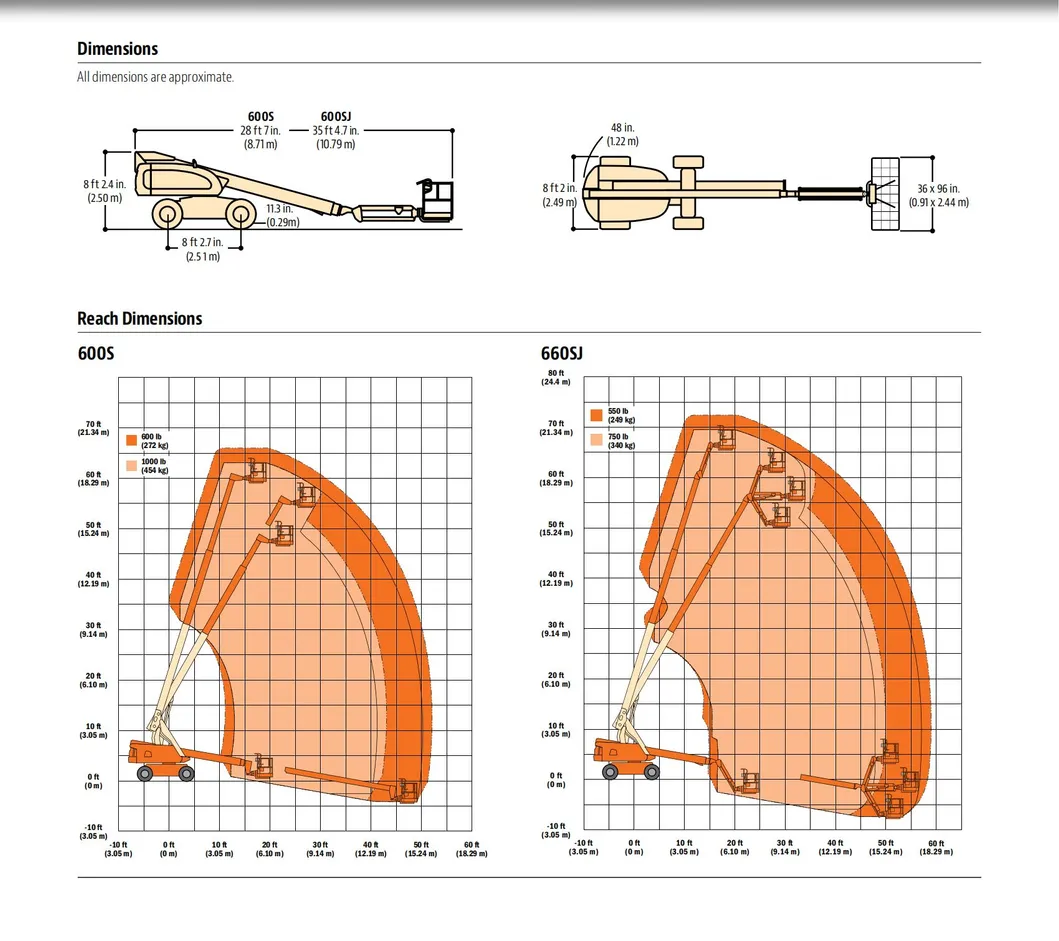

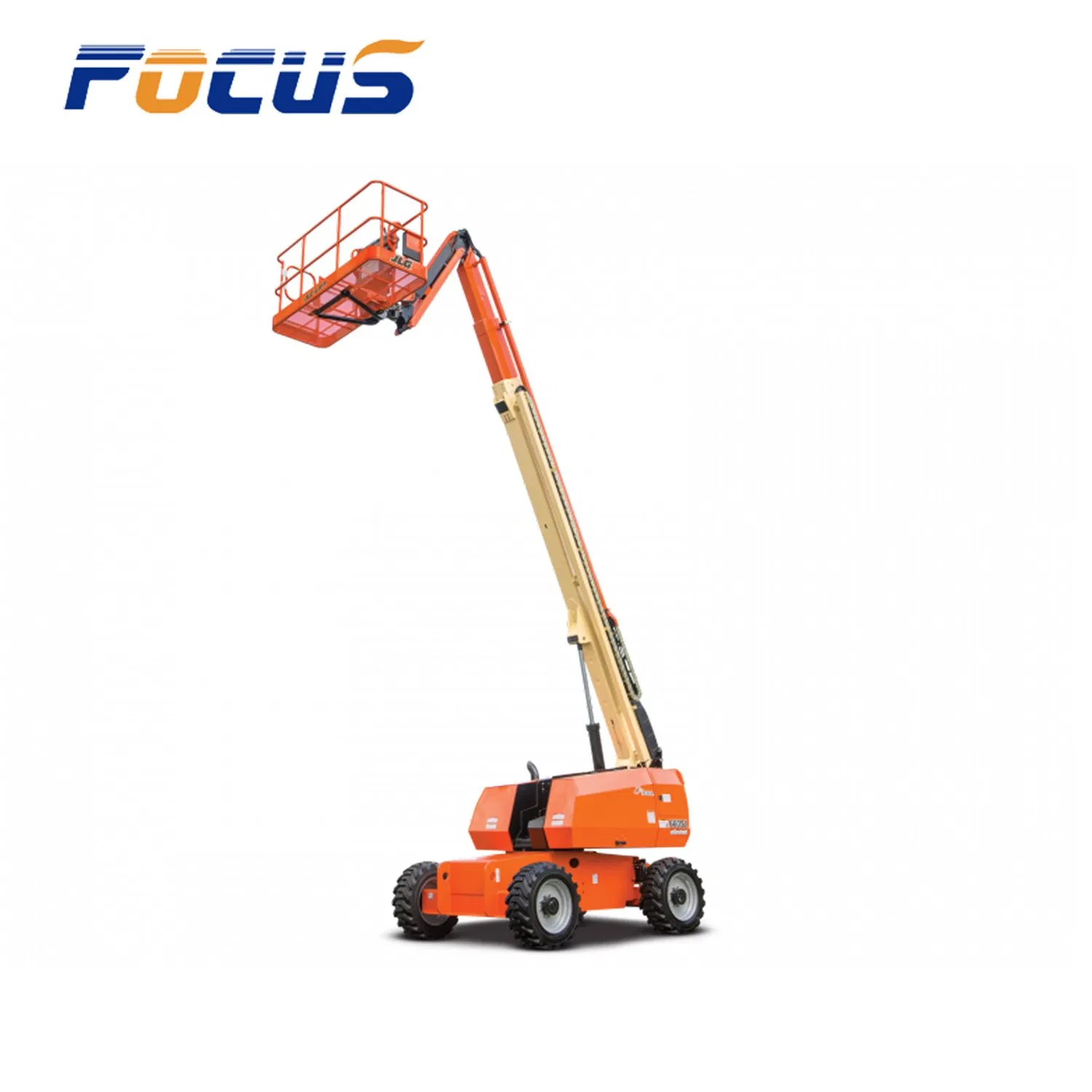

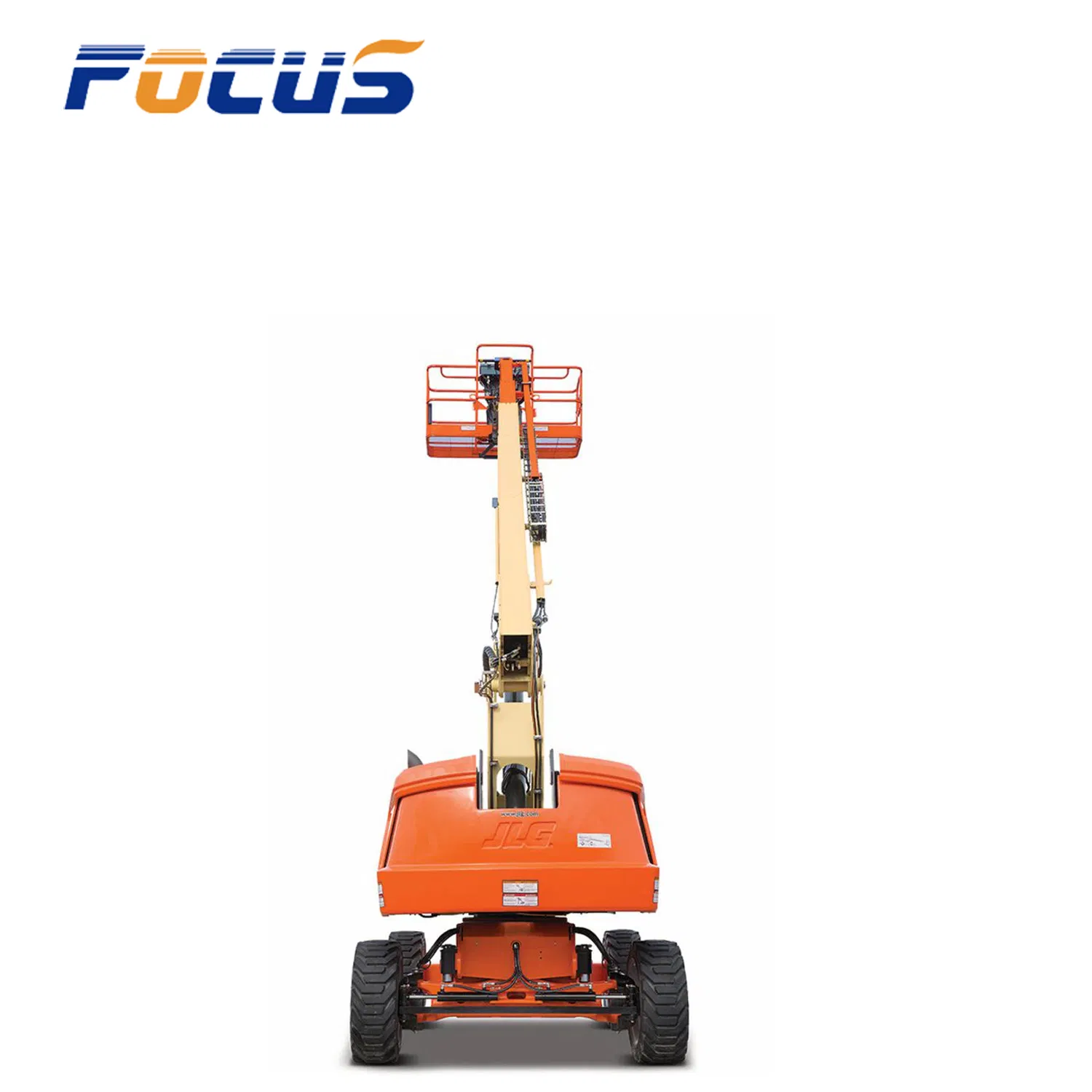

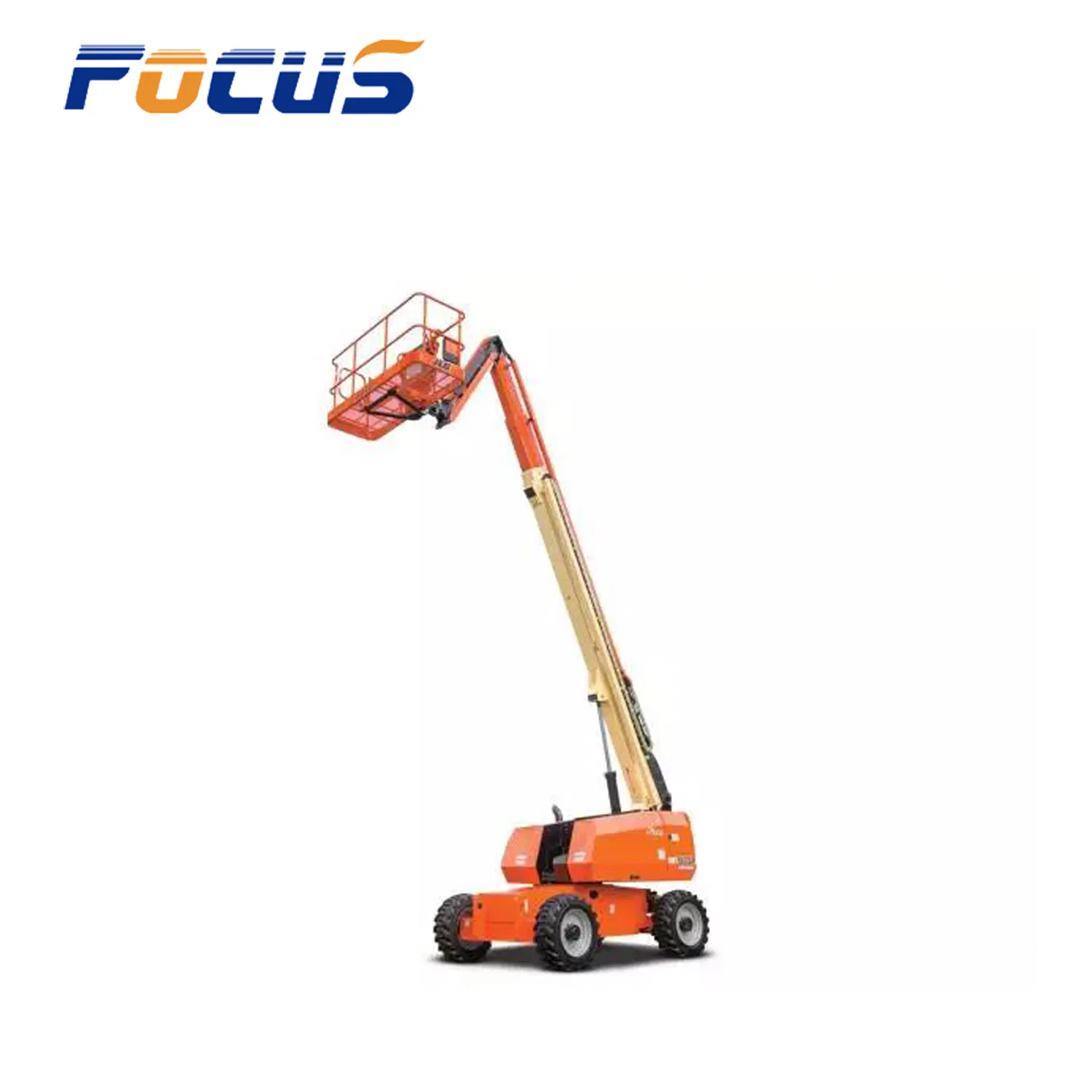

The straight boom aerial work platforms 600S and 660SJ have a wider operating range: the 600S has a working height of 20.14 meters and a horizontal reach of 15.24 meters. The load capacity has increased by 20% compared with similar products. The platform load capacity of the 600S reaches 454/272 kg, supporting up to 3 operators and more materials.
Equipped with an electronic leveling system and hydraulic valve system with pressure compensation, ensuring stable and accurate operation regardless of the load.

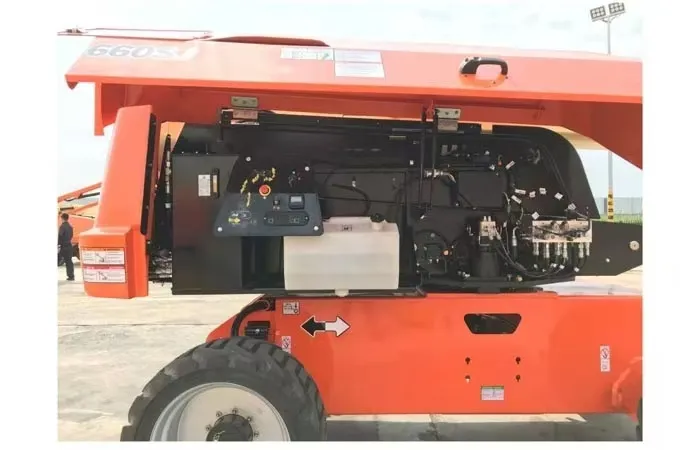

Designed for challenging environments, the 600 series features iron covers for the engine, fuel tank, and ground operating panels. High-strength imported steel with special anti-corrosion treatment ensures durability. The equipment uses heavy-duty tires suitable for various tough working conditions.
Equipped with a fault display screen and LCD screen on the ground control box for direct fault description. The CANBUS control system allows for quick diagnosis. Operators can use a classic handheld analyzer to extract equipment data, calibrate parameters, and analyze status efficiently.

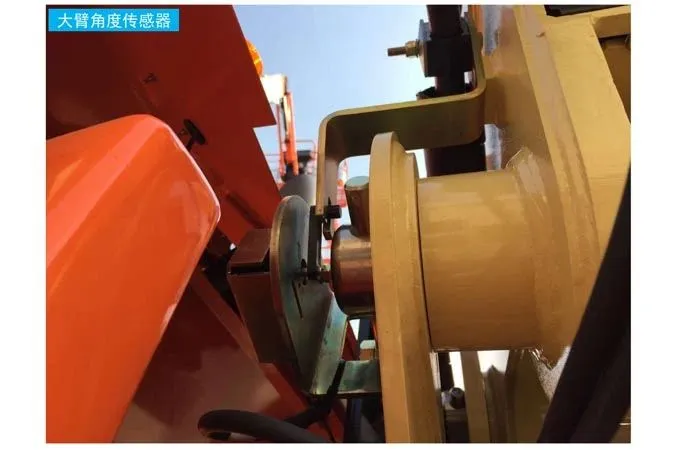

Features a newly designed load sensing system at the joint between the platform and the operating arm to prevent overloading risks. The cylinders include a buffer function at the end of the stroke to prevent emergency stops, improving comfort and safety.

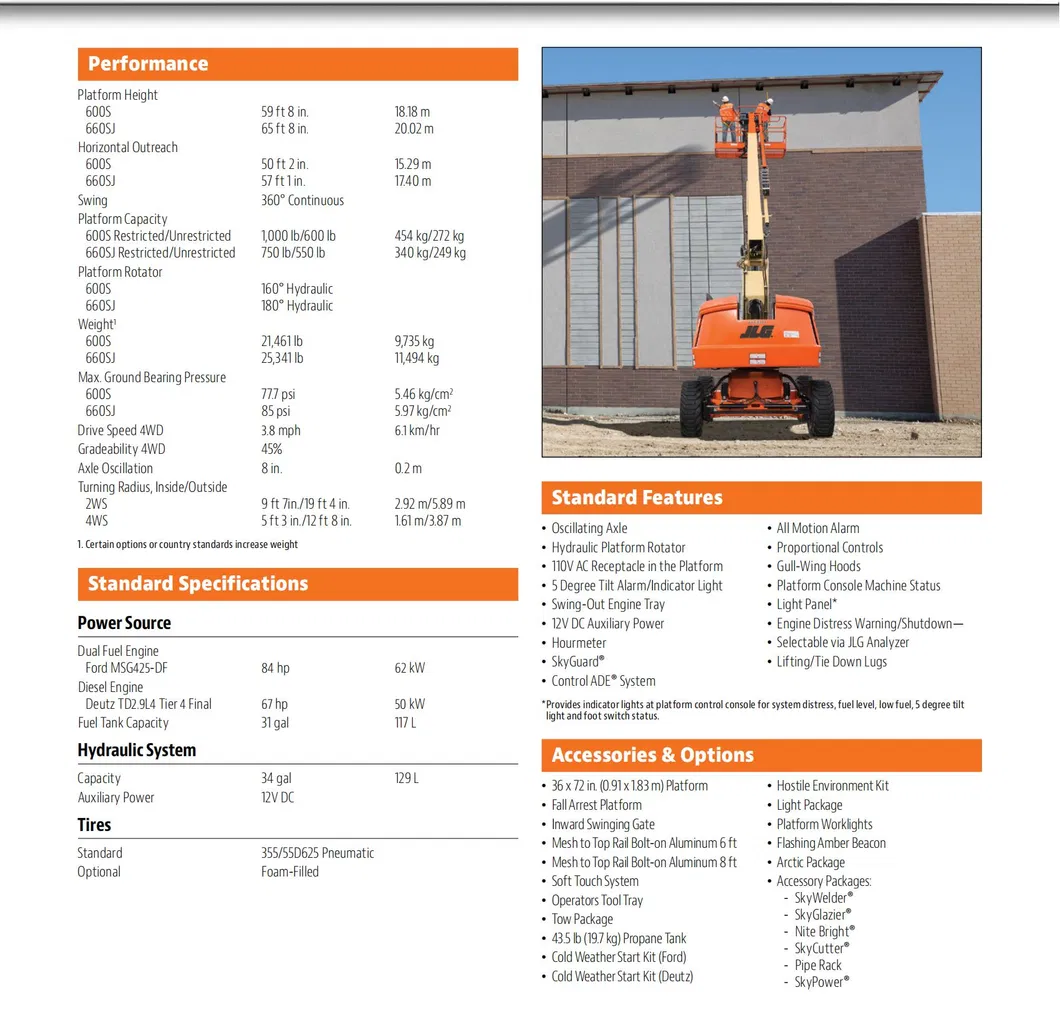

| Platform Height | 18.18 m |
| Horizontal Outreach | 15.29 m |
| Swing | 360 Degrees Continuous |
| Platform Capacity (Restricted) | 454 kg |
| Platform Capacity (Unrestricted) | 272 kg |
| Platform Rotator | 160 Degrees Hydraulic |
| Weight | 9,819 kg |
| Max. Ground Bearing Pressure | 5.84 kg/cm² |
| Drive Speed | 6.1 km/h |
| Gradeability | 45% |
We provide professional service 24/7 to ensure your equipment stays operational.
Our global diagnostic systems and mechanical oil-cooled engine configurations are designed for long-term reliability and ease of field repair.
