High-Speed Smart Barrier Sjs-Pd003D for Effective Traffic Control

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
SJS-PD003D
Position
Vehicle Fence
Material
Steel
Function
Obstruction
Post Fixation
Expansion Bolts
Degree of Distortion
Rigid Barrier
Product Dimensions
35cm*35cm*107cm
Supply Voltage
AC220V or AC110V
Output Power
80W
Rated Current
0.55A
Service Life
5,000,000 Times
Remote Distance
50m
🚀 High Speed Barrier Gate (SJS-PD Series)
A high-speed AC torque motor ensures compact size, light weight, quick response, and stable operation. It achieves high-speed rod lifting, with a max speed of 0.9 seconds. Featuring a safety-first design, it adapts to various scenarios with adjustable directions. Its built-in encoder provides precise limit control, boasting high precision, durability, and easy debugging.
High-Speed Smart Barrier
Key Features
High-speed AC torque motor: Provides stable, strong power for efficient operation.
Compact Design: Small size and light weight equipment structure.
Fast Response: Quick motor response with low vibration and noise.
Rapid Lifting: Maximum speed of 0.9s for high-efficiency traffic flow.
Safety First: Humanized design minimizes risks like pinching and collision.
Adjustable Direction: Left and right direction adjustable for various scenarios.
Built-in Encoder: High precision limit control and long service life.
Multiple Arm Types: Supports Straight, Articulated, Fence, or Telescopic arms.

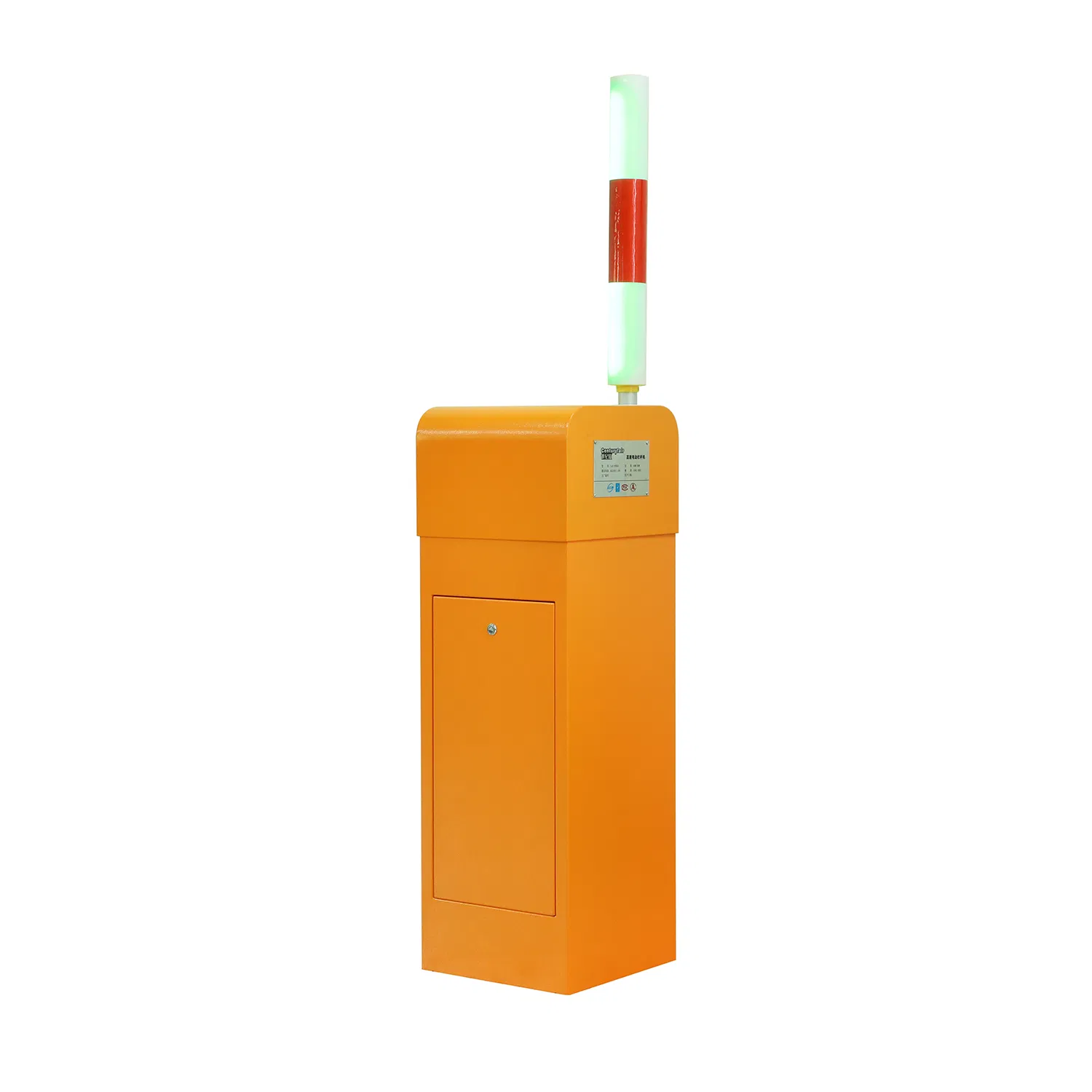

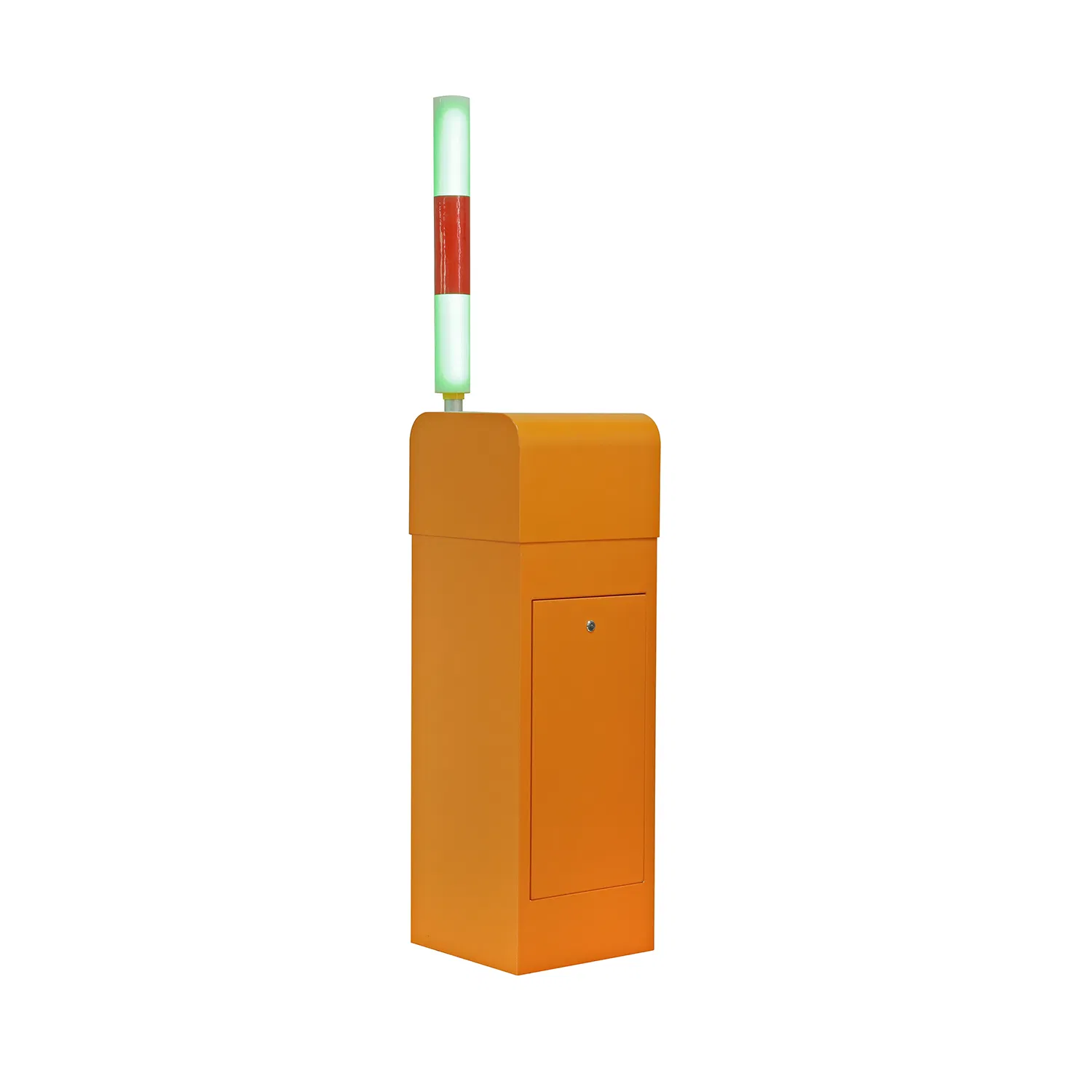

45-degree right side view
45-degree right side view

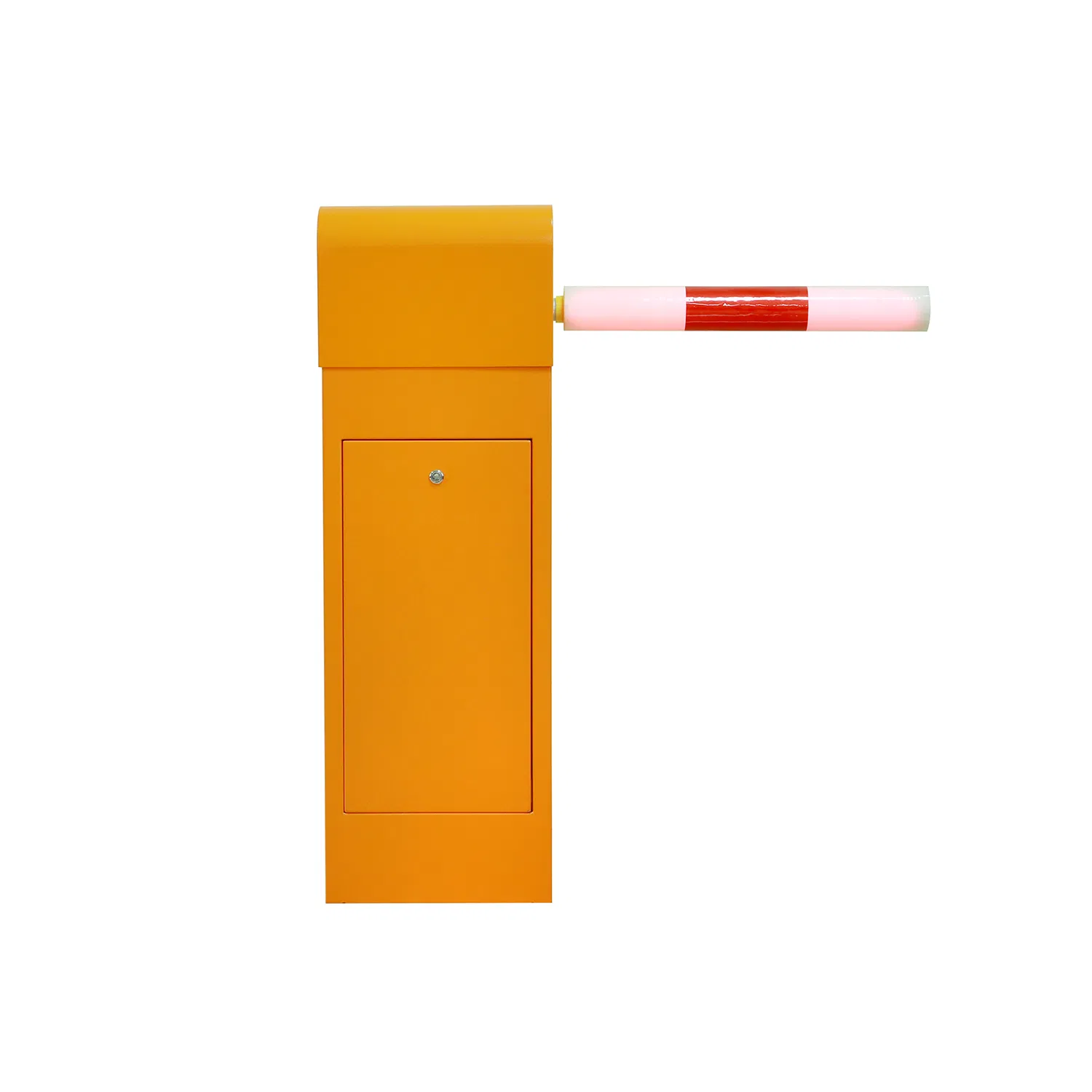

45-degree left side view
45-degree left side view

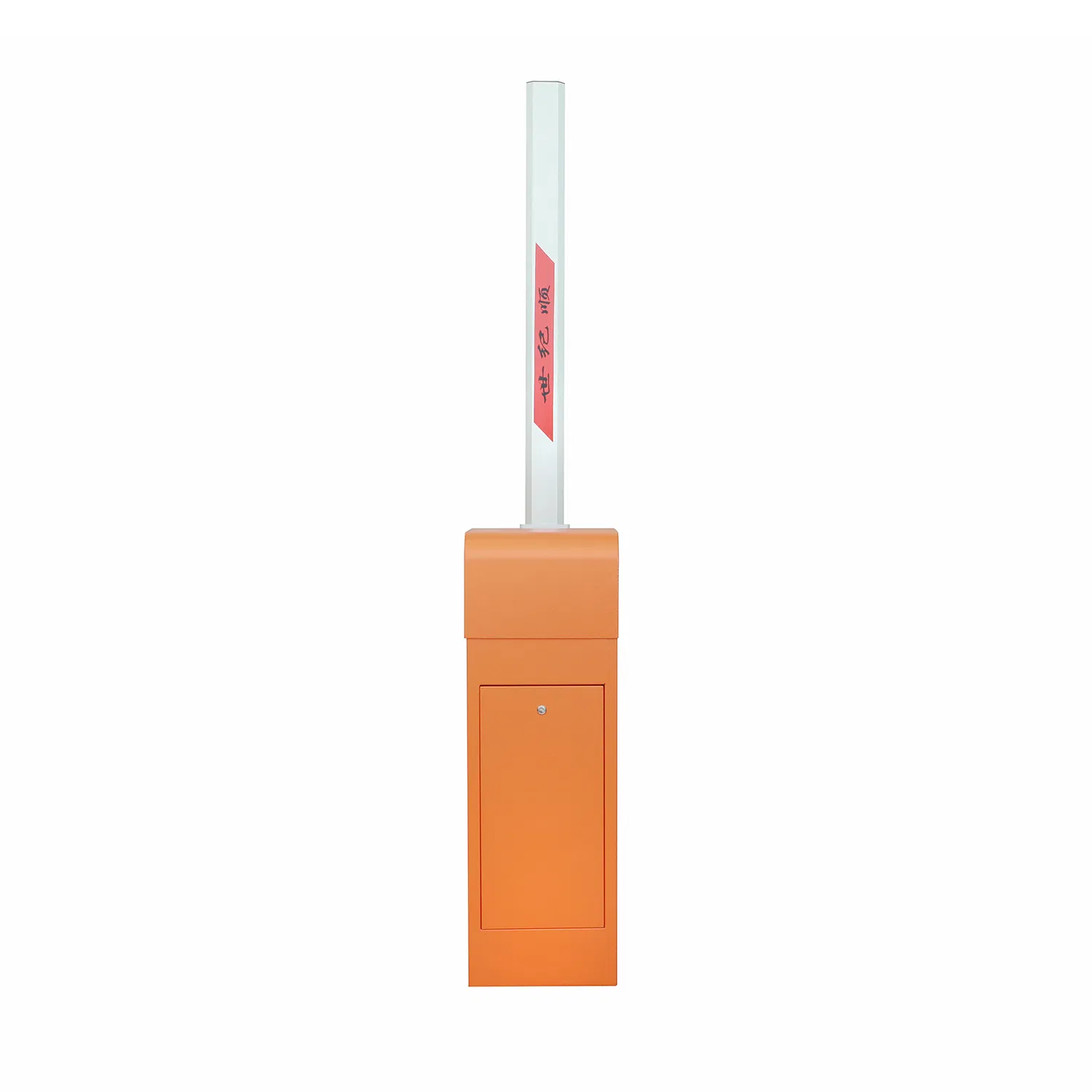

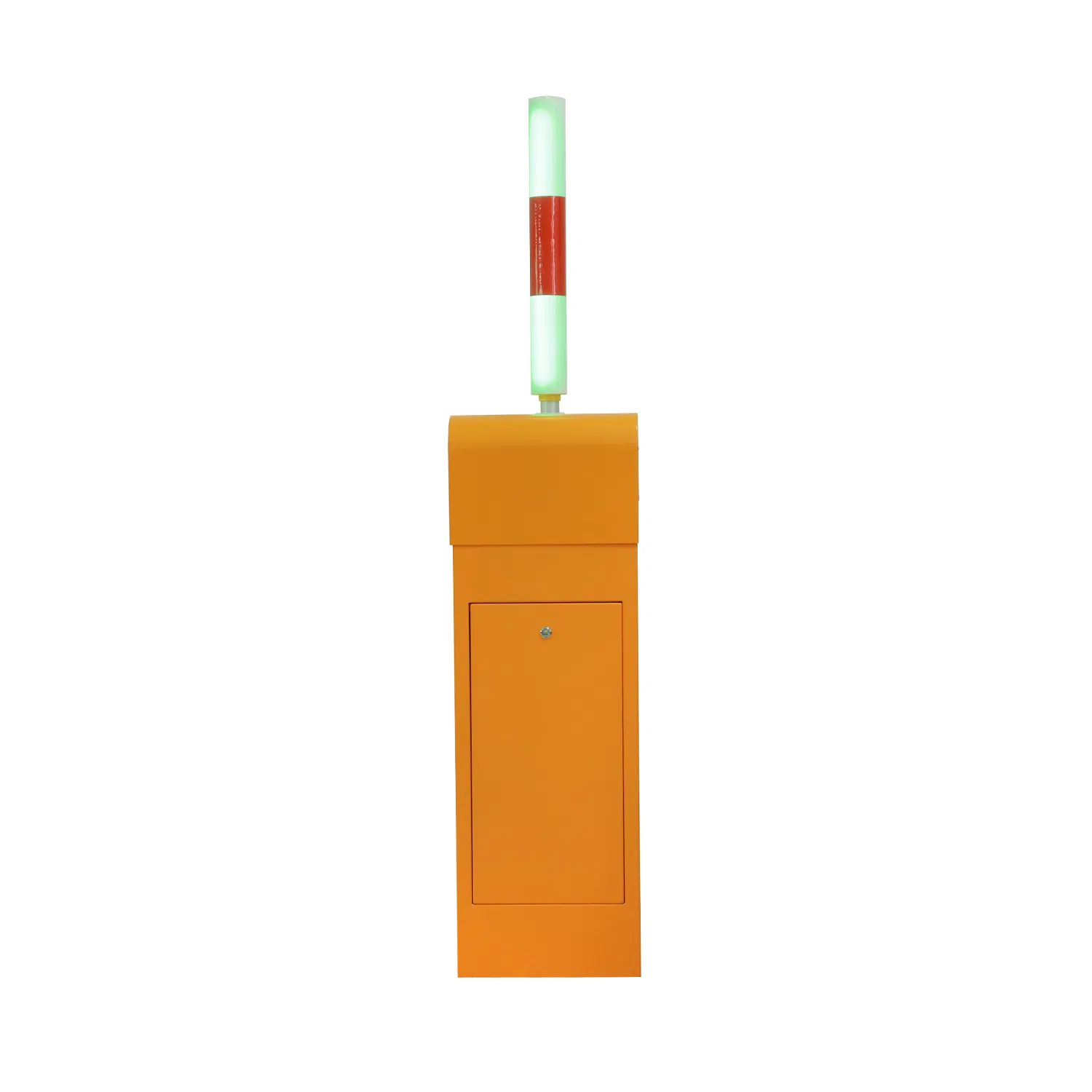

front elevation
Front elevation
Technical Specifications
Supply VoltageAC220V+/-10% or AC110V
Power Frequency50/60Hz
Output Power80W
Rated Current0.55A
Rated Speed1500r/min
Rated Torque35N*m
Standard Lever Length3 - 6m
Noise Level≤ 60dB
Rising/Falling Time0.3s - 6s
Service Life5 million times
Protection ClassIP55
Temperature Range-40℃ to +75℃
🛠 After Sales Service
Standard Warranty: 12 months.
Training: On-site (negotiable) or remote operation/maintenance training available.
Service Detail
Service Detail
Service Detail
Service Detail
Service Detail
Service Detail
Service Detail
Service Detail
Frequently Asked Questions
What are the main product offerings for traffic control?
We offer a wide range of solutions including High-Speed Barrier Gates, Turnstiles, and ETC (Electronic Toll Collection) solutions currently serving over 20 countries.
What makes the barrier gate motor special?
The system utilizes a high-speed AC torque motor that allows for a lifting speed as fast as 0.9 seconds while maintaining stable operation and low noise.
How is the quality of the barrier gates ensured?
Our products undergo rigorous R&D, including up to 1,200 wind tests for gates, and are manufactured under ISO 9001:2015 and CE quality assurance standards.
Can the barrier gate be used in extreme weather?
Yes, the equipment is designed to operate in a wide temperature range from -40℃ to +75℃ with a protection class of IP55.
What is the expected service life of the SJS-PD series?
The barrier gates are engineered for high durability, with a tested service life of up to 5,000,000 operation cycles.
Are OEM and ODM services available?
Yes, we welcome OEM/ODM requests and all products can be customized to meet specific project requirements.
