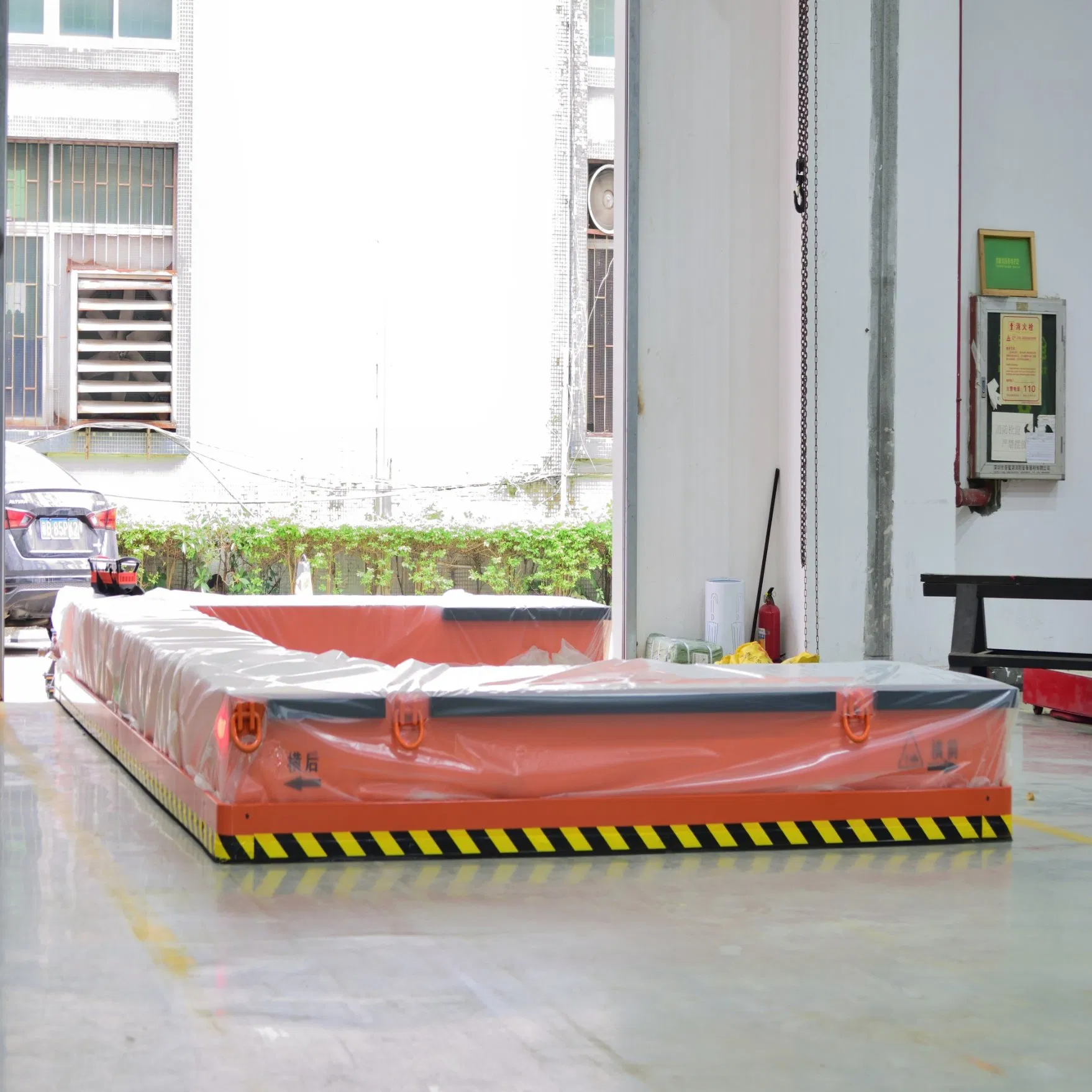

High Precision 10t Cleanroom Handling Equipment with Air Cushion Technology

Customization:	Available
After-sales Service:	24 Hours on Line, Video/Site Guidance
Warranty:	1 Year

i

Basic Information

Model NO.LR-AF

ApplicationWorkshop/Warehouse Crane

Carrying CapacityWeight Level

FeatureExplosion-Proof, Insulating

Air Pressure0.4-0.8MPa

Load Capacity1-1500t (Customizable)

Air Consumption5-8 M³/Min

Control MethodWired/Wireless Remote

Packaging & Delivery

Package Size500.00cm * 300.00cm * 100.00cm

Gross Weight1000.000kg

Transport PackageWooden Packing

P

Product Description

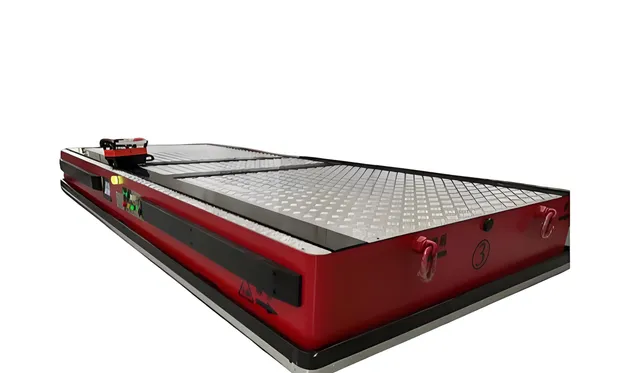

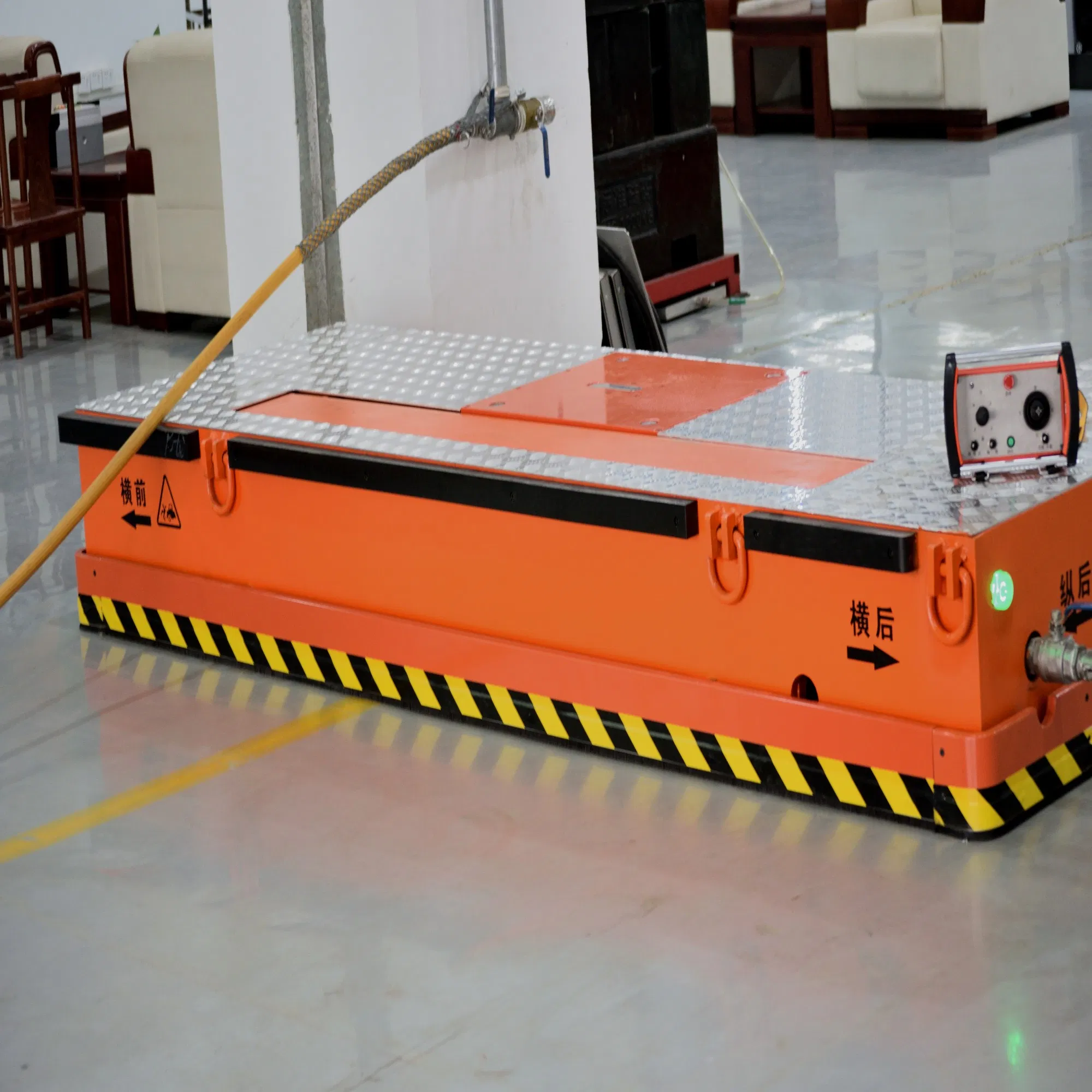

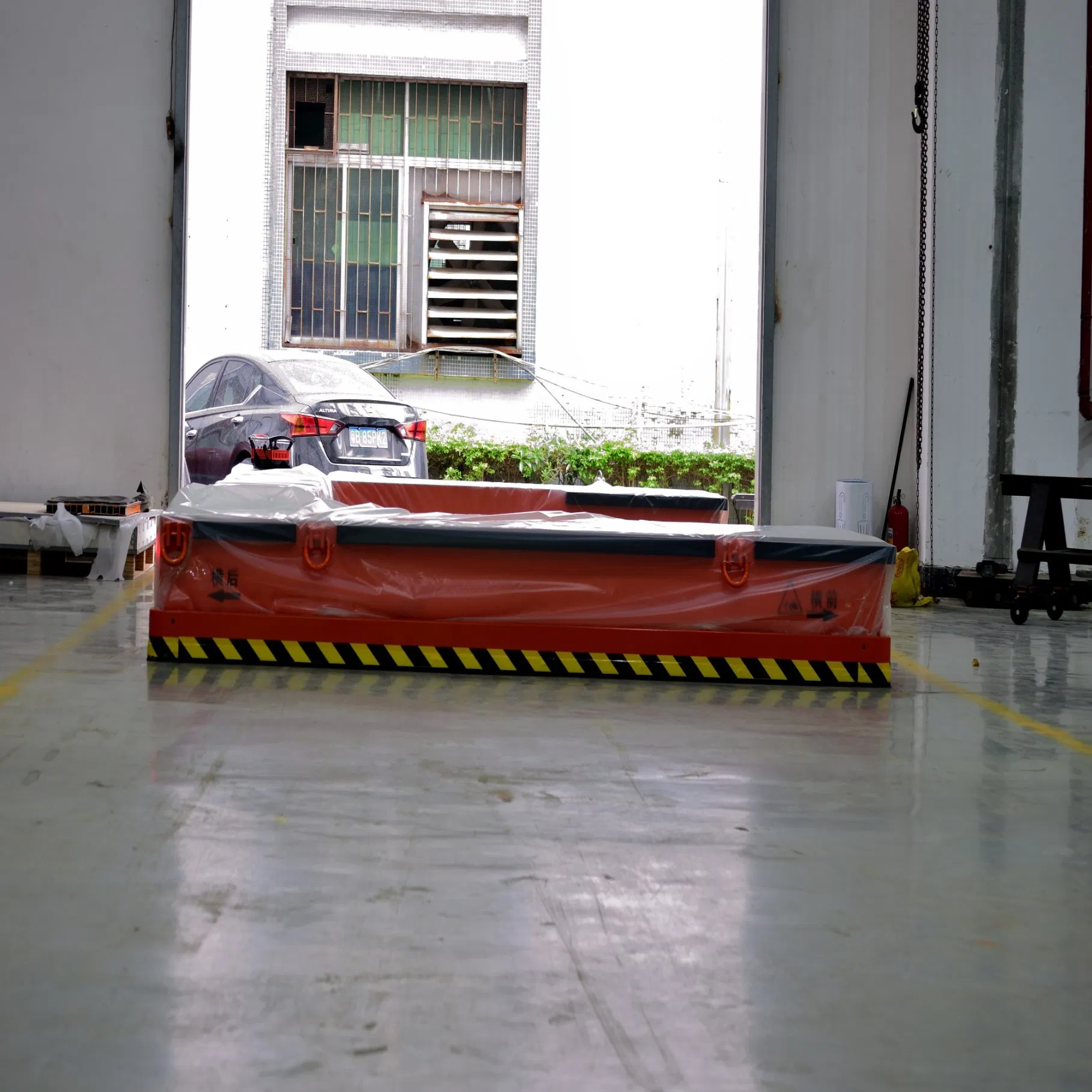

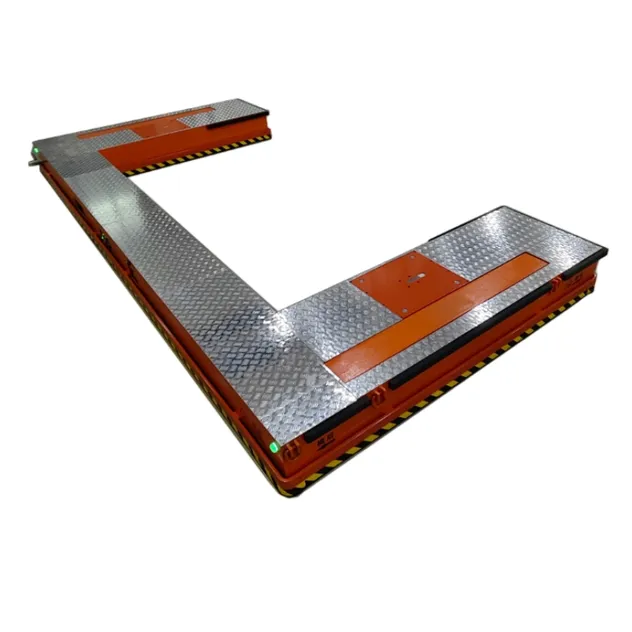

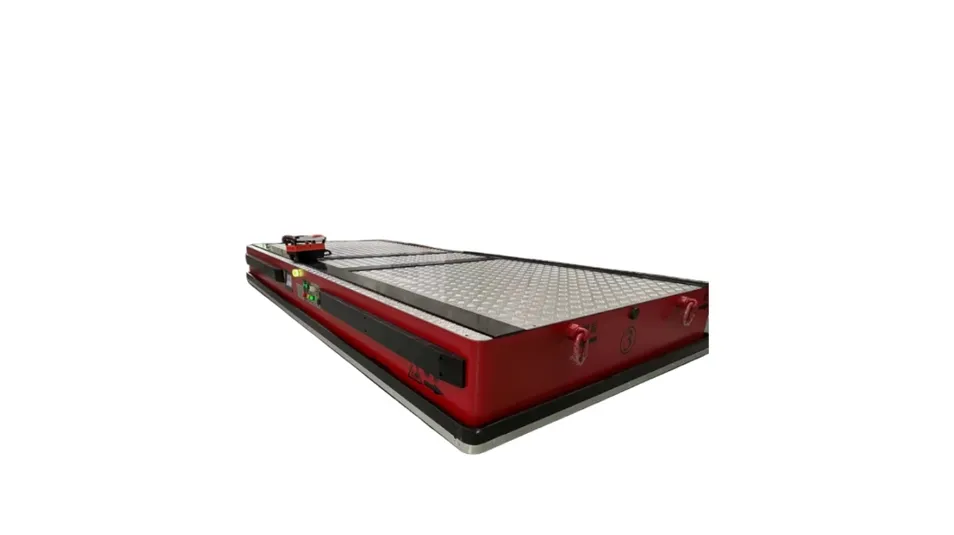

Air Bearing Transfer Cart: This remarkable air-floating flat transfer cart is engineered for heavy-duty, precision handling. Through the use of compressed air, it generates a frictionless cushion, facilitating the effortless movement of ultra-heavy loads with millimeter accuracy.

Industry Applications

Aerospace Manufacturing: Transport aircraft engines and fuselage sections within assembly lines.
Semiconductor & Electronics: Ideal for cleanroom handling of sensitive equipment.
Nuclear & Energy: Move reactors and shielding blocks with unmatched accuracy.
Medical Equipment: Transport large-scale devices like MRI and CT machines.
Shipbuilding: Precise alignment of large modules and decks.

V

Operational Video

Key Configurations

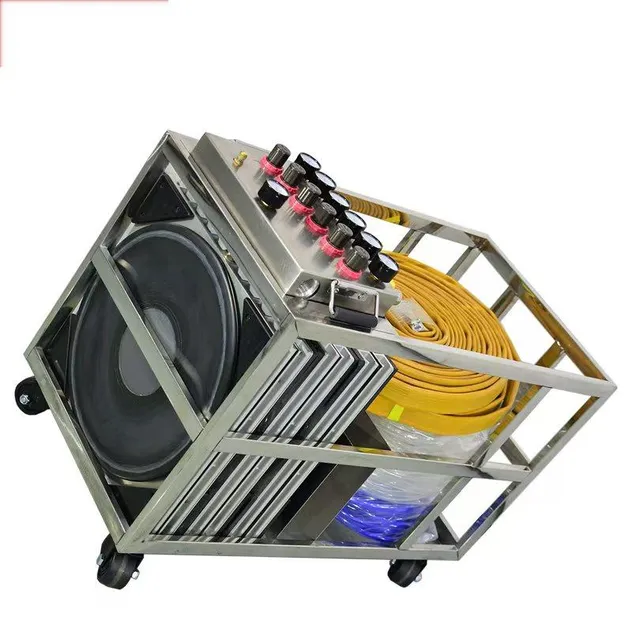

Air Supply System: Working pressure of 0.4–0.8 MPa.

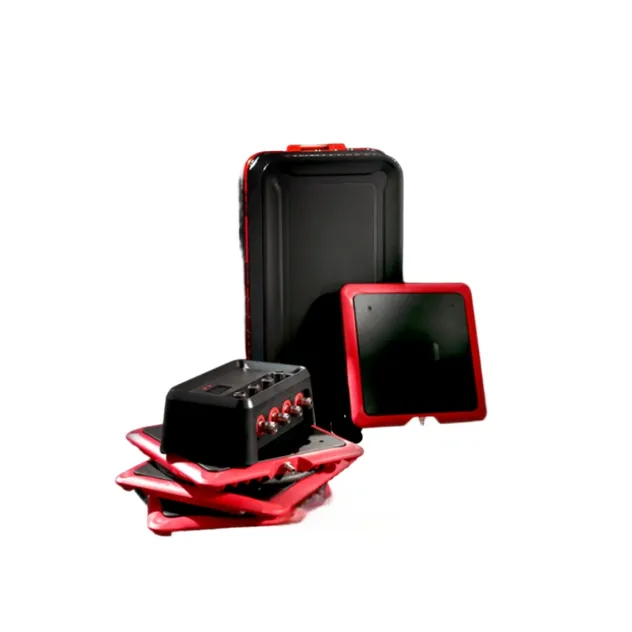

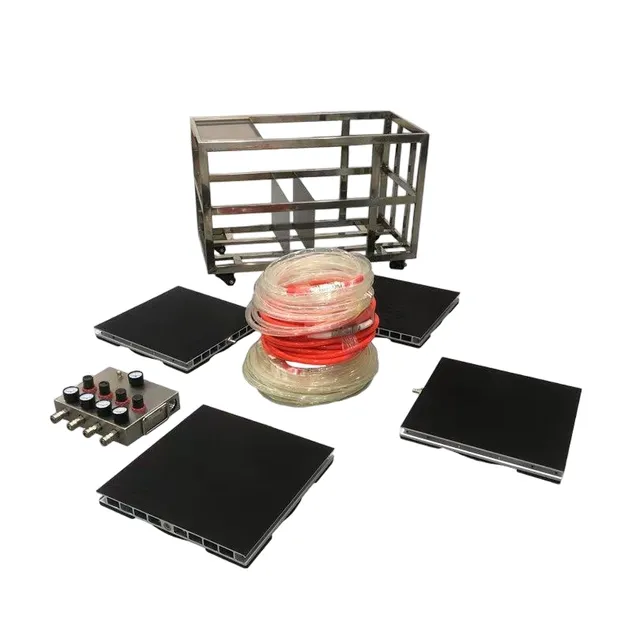

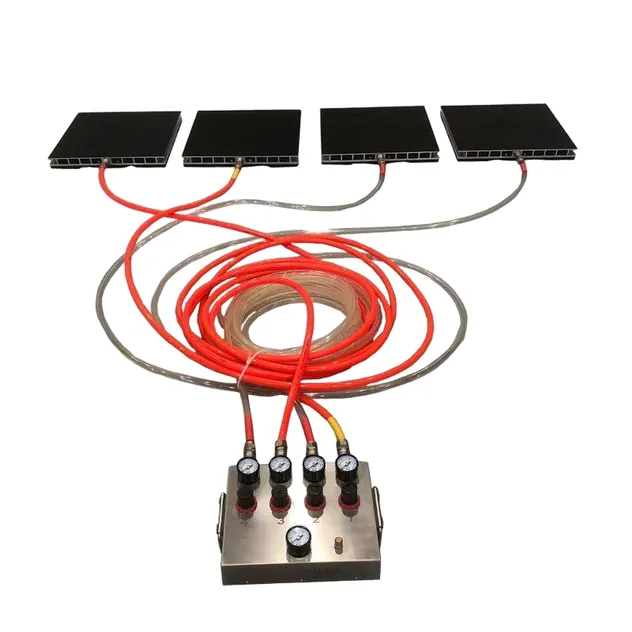

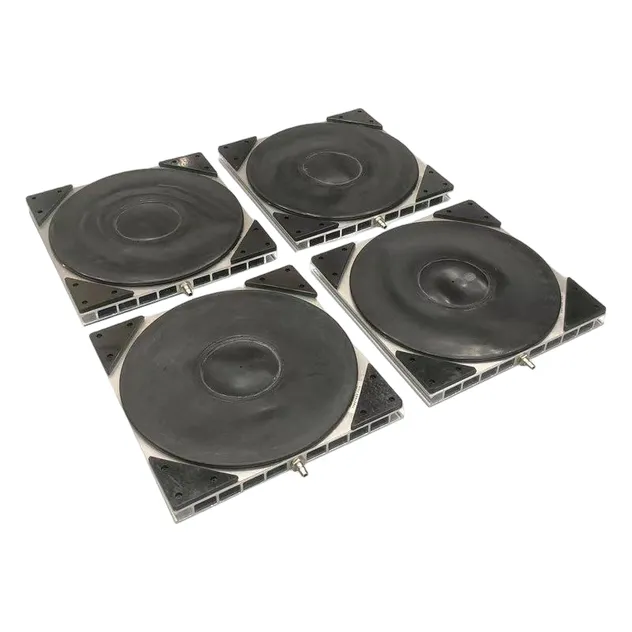

Floatation Mechanism: Integrated air cushion modules for contact-free movement.
Load Capacity: Customizable from 1 ton to 1500 tons.
Safety System: Built-in pressure monitoring and overload protection.

S

Technical Specifications

Item	Specification Range	Remarks
Load Capacity	1 ton ~ 1500 tons	Common: 5t, 10t, 20t, 30t, 50t, 100t
Platform Size	Customizable	Based on material size & site conditions
Ground Clearance	5mm ~ 10mm	Suspended after air film forms
Air Pressure	0.4 ~ 0.6 MPa	Matches factory compressed air
Power Supply	220V / 380V / Battery	Optional configurations
Movement	Manual / Electric / AGV	Omni wheels or tow bar options

C

About Us & Service

As a pioneering leader in the lifting equipment industry, we are driven by innovation and excellence. We emphasize high-quality management and state-of-the-art technology to deliver superior products. Our international trade presence spans Europe, America, Southeast Asia, and Africa.

Why Choose Our Solutions?

OEM/ODM Capabilities: Tailored solutions for unique specifications.
Global Support: 24/7 technical assistance and spare parts availability.
Turnkey Project Solutions: From initial concept to final completion.
Standard Warranty: Comprehensive 12-month coverage.

?

Frequently Asked Questions

Q: How does the air cushion platform work? A: It creates a thin air film between the platform and the floor using compressed air, allowing for contact-free, effortless floating transport.

Q: What kind of floor surface is required? A: A flat, smooth, non-porous hard surface such as epoxy resin or polished concrete is required for optimal performance.

Q: What is the maximum load capacity available? A: Our platforms are highly customizable, supporting loads ranging from 1 ton up to 1,500 tons depending on your specific requirements.

Q: Is it suitable for cleanroom environments? A: Yes, it is an excellent choice for cleanrooms as it offers frictionless and dust-free operation, maintaining pristine conditions.

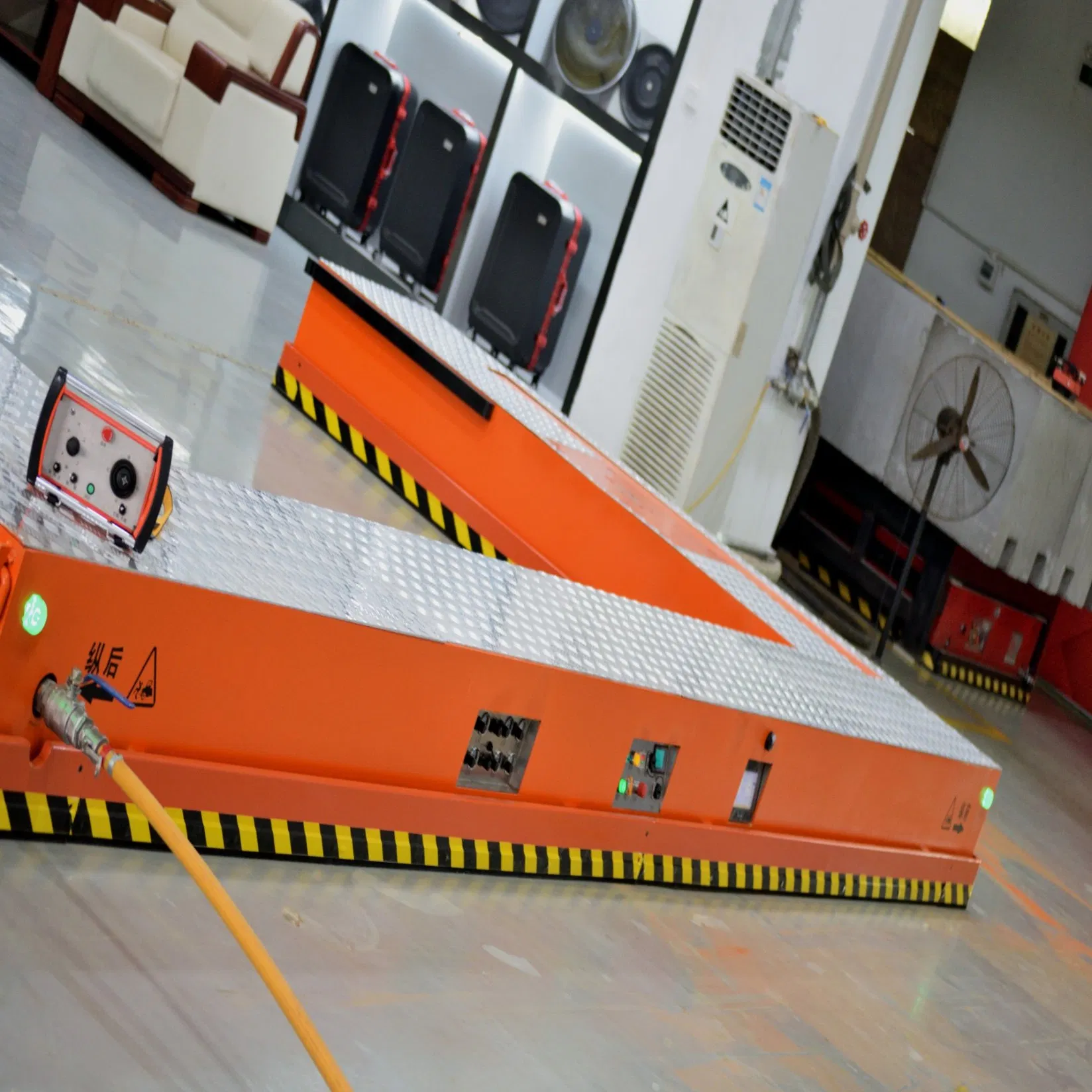

Q: Can the platform be controlled remotely? A: Yes, we provide both wired and wireless remote control options for precise directional movement and emergency stop functions.

Q: Will it cause any damage to the facility floor? A: No, the platform moves on a cushion of air without direct contact, preserving floor integrity and eliminating wear and tear.
