Advanced Generator Coil Winding Equipment for Customized Automobile Tools

Customization:	Available
After-sales Service:	Support
Warranty:	Support

Send Inquiry

Product Description

📊 Basic Information

Model NO.	ND-WD-DR2
Product Type	MDF Production Line / Stator Winding
Automatic Grade	Automatic
Power Source	Electric
Screw Design	Double-Screw
Certification	CE, ISO
Condition	New
Customized	Available
Transport Package	Wooden Box
Origin	China

⚙️ Product Description

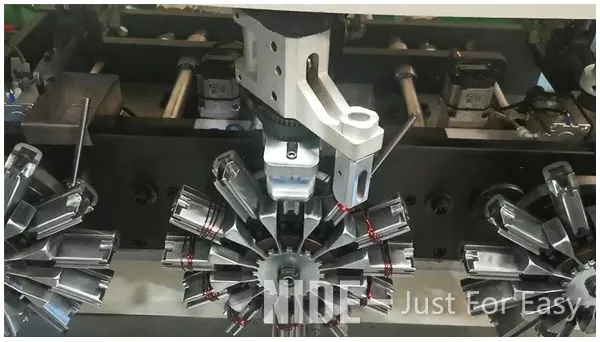

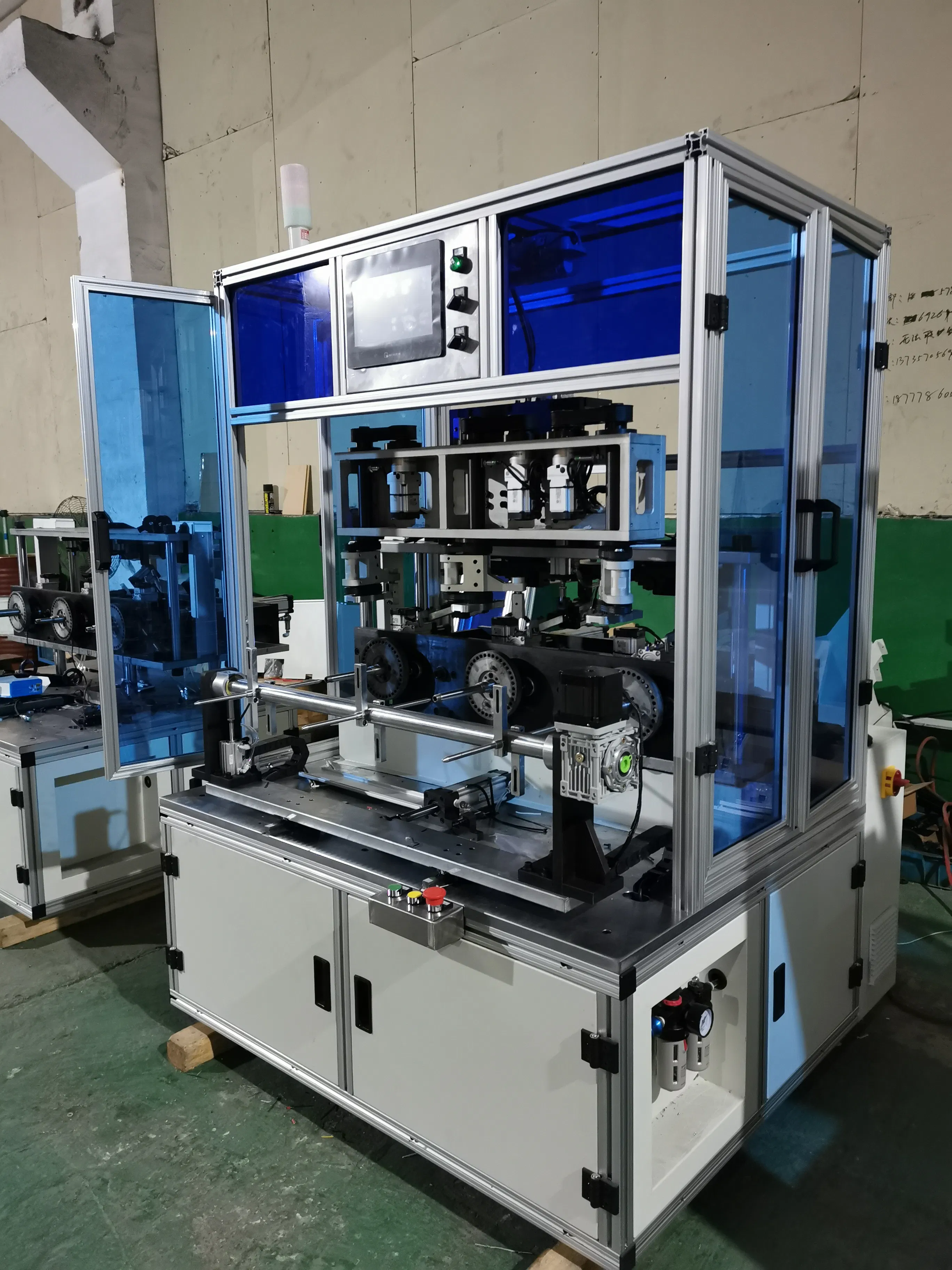

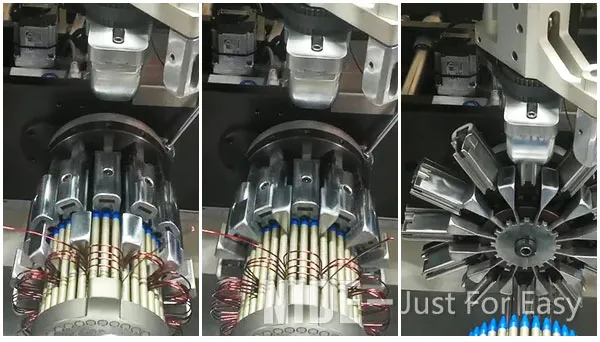

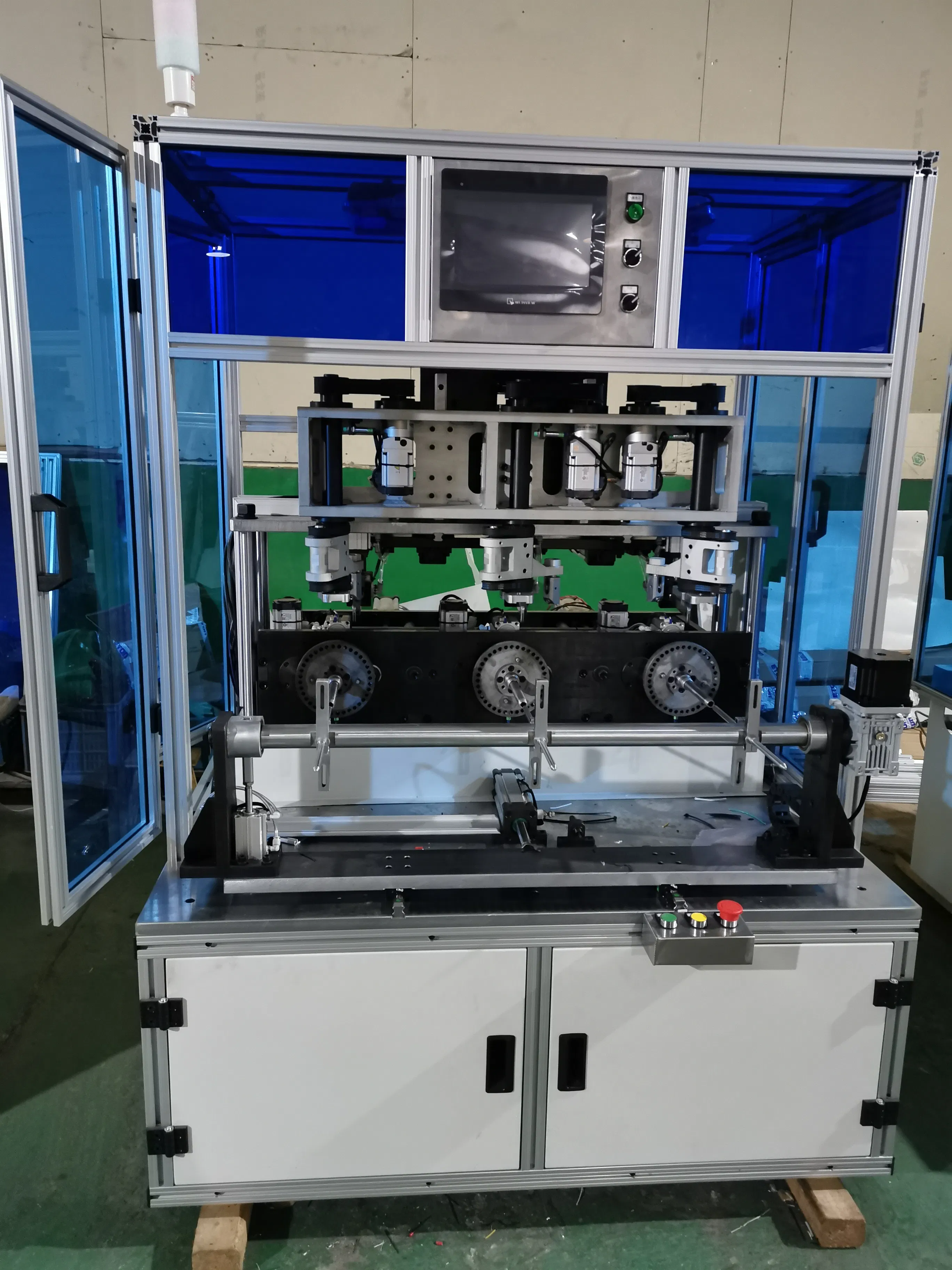

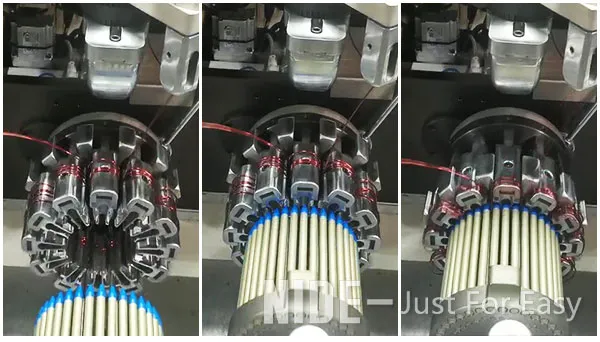

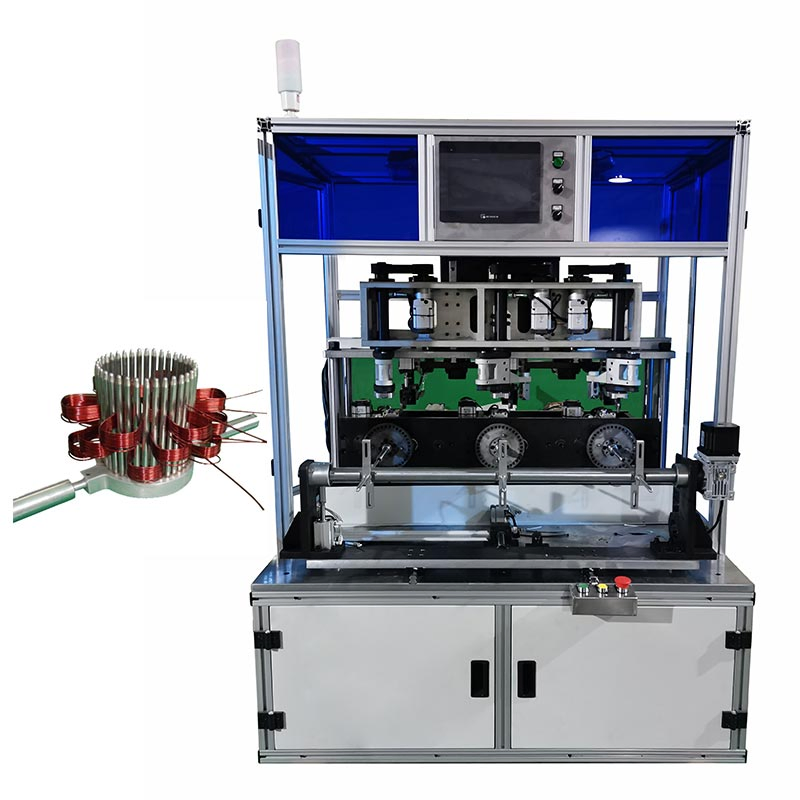

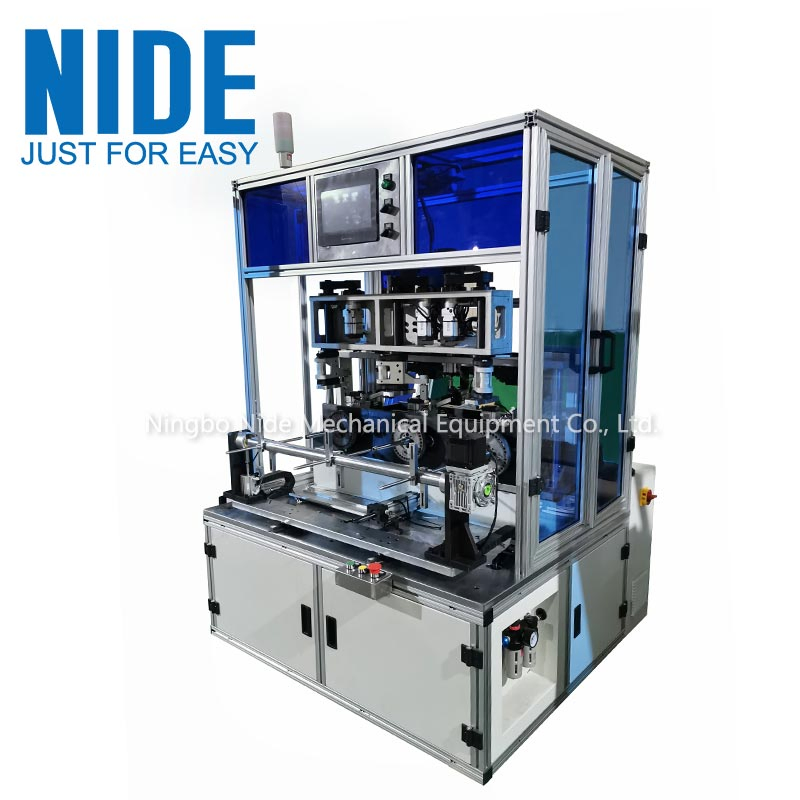

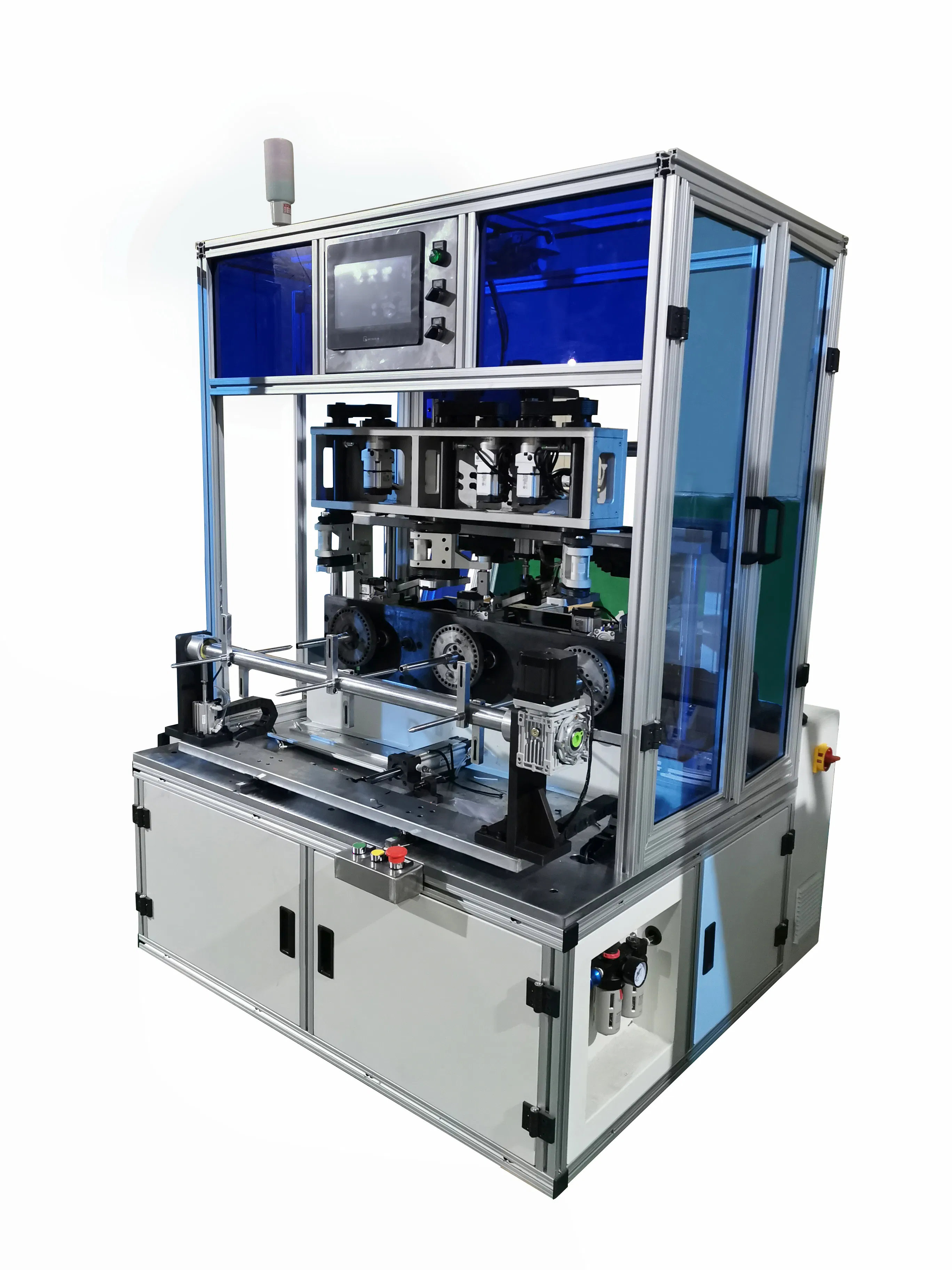

Welcome to a new era of efficiency with our cutting-edge Advanced Automobile Generator Stator Coil Lap Winding Tool for Electric Motors. This avant-garde automatic stator winding machine is meticulously crafted for the precision-driven manufacturing of advanced automobile generators and alternators. With its pioneering three-station coil lap winding technology, it not only amplifies productivity but also substantially reduces labor costs, making it an indispensable asset for contemporary manufacturing facilities.

📝 Product Parameters

Product Name	Automobile Generator Stator Winding Equipment
Stator ID	≥Φ85mm
Stator OD	≤Φ120mm
Stack Length	≤45mm
Wire Diameter	Φ0.85mm - Φ1.6mm
Servo Motors	Arraying: 750w \| Winding: 400w \| Indexing: 200w
Power Supply	380V, 3-phase 4-wires, 50Hz
Total Power	3kw
Air Source	0.5MPa
Environment	Temp: -5 to 38℃ \| Humidity: 60%
Dimensions	1250 x 1300 x 1900MM

🌟 Customized Services

Customized product design and manufacturing
Professional technical training
Expert technical suggestions and consulting

📦 Packaging & Shipping

Our shipping fees and delivery schedules are crafted to fit your specific requirements, providing a bespoke solution for your logistical needs. Connect with our experts today for in-depth insights and personalized service tailored to your demands.

💎 Our Advantages

Experience unmatched assurance where exceptional service converges with a unique philosophy, a seasoned professional team, and unrivaled product excellence. Our unwavering commitment has earned the trust of customers across over 50 countries, forming numerous collaborations with globally esteemed corporations.

🛠️ After Sales Service

Enjoy the peace of mind with a standard 12-month warranty.
Access our international service centers for swift assistance.
Expert engineers available for overseas support, ensuring flawless operation and maintenance.

🏢 Company Profile

Since its inception in 2010, our company has been a trailblazer in the realm of electric motor manufacturing technology, offering holistic solutions to cater to a vast array of requirements.

Our machinery finds application across a diverse spectrum of motors, including: Induction motors, BLDC motors, universal motors, three-phase motors, single-phase motors, AC motors, and DC motors.

Applications include: Washing machines, air conditioners, pumps, alternators, power tools, vacuum cleaners, electric cars, and more.

❓ Frequently Asked Questions

Q1: What range of stator sizes can this winding tool handle?

A: The equipment is designed for stators with an Internal Diameter (ID) of ≥Φ85mm and an Outer Diameter (OD) of ≤Φ120mm, with a maximum stack length of 45mm.

Q2: What type of wire is compatible with this machine?

A: This machine handles wire diameters ranging from Φ0.85mm to Φ1.6mm, suitable for various automobile generator specifications.

Q3: Does the equipment support customization?

A: Yes, we provide customized product designs, manufacturing adjustments, and specific training based on your production requirements.

Q4: What is the standard warranty and maintenance support?

A: We offer a standard 12-month warranty. Additionally, we have international service centers and engineers available for overseas maintenance and technical support.

Q5: What are the power and air requirements for installation?

A: The machine requires a 380V, three-phase 4-wire, 50Hz power supply and a stable air source of 0.5MPa.

Q6: What motor applications is this equipment suitable for?

A: It is ideal for automobile generators, alternators, BLDC motors, induction motors, and various household appliance motors like those in washing machines and air conditioners.
