5mwh Containerized Bess Liquid Cooled Energy Storage Solution for Microgrid Projects

1 / 5

5mwh Containerized Bess Liquid Cooled Energy Storage Solution for Microgrid Projects

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Weight:	43t

Send Inquiry

Product Description

Basic Information

Model NO.

5.015MWh

Nominal Voltage

1331.2V

Warranty

3 Years

Nominal Capacity

5015kWh

Cycle Life

10 Years

Rated Power

5MWh

IP Rating

IP54

Specification

Liquid Cooling

Origin

China

Product Description

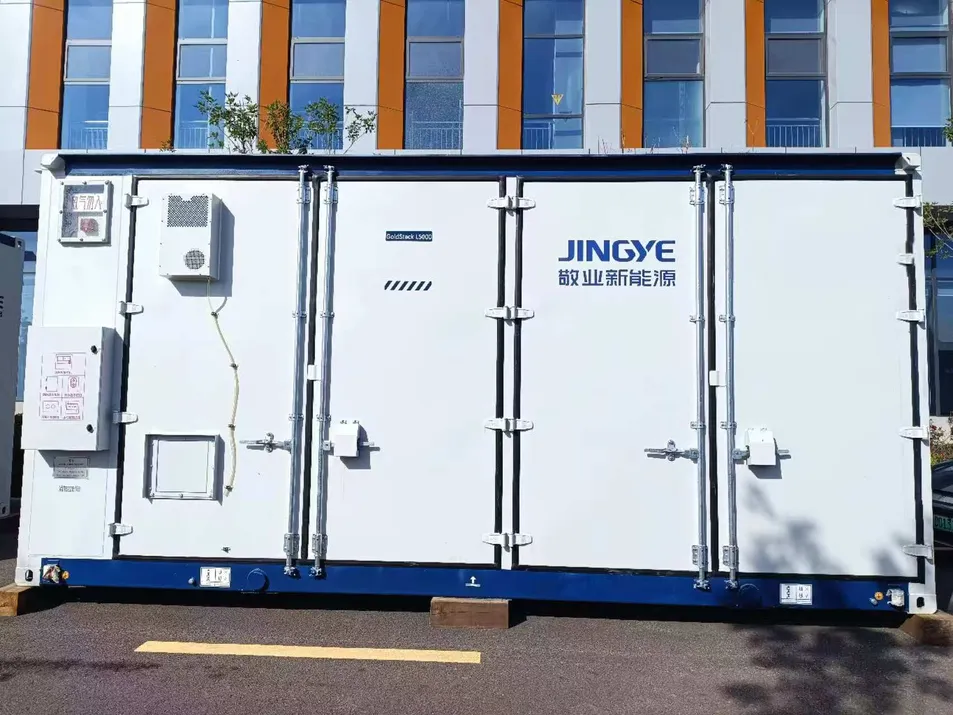

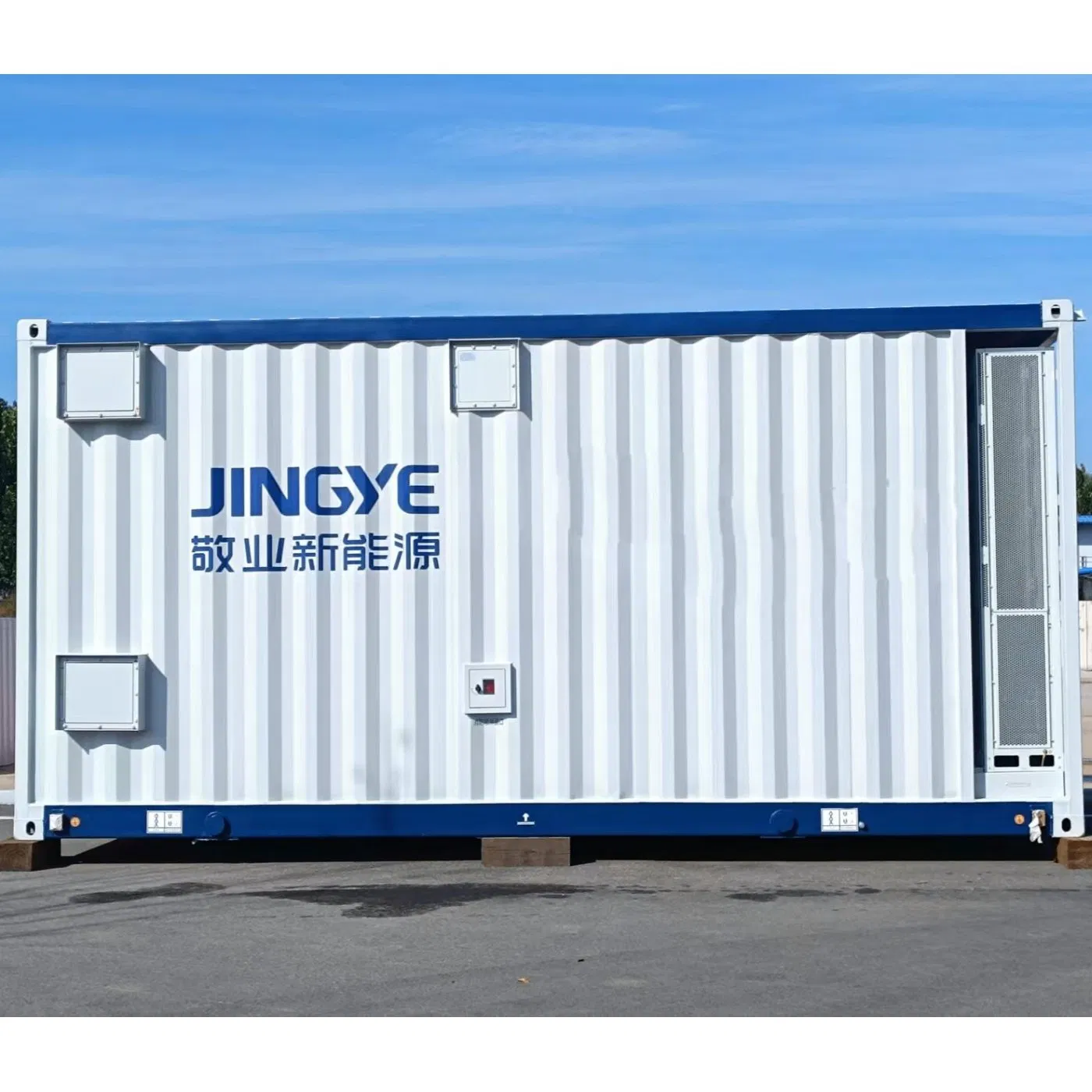

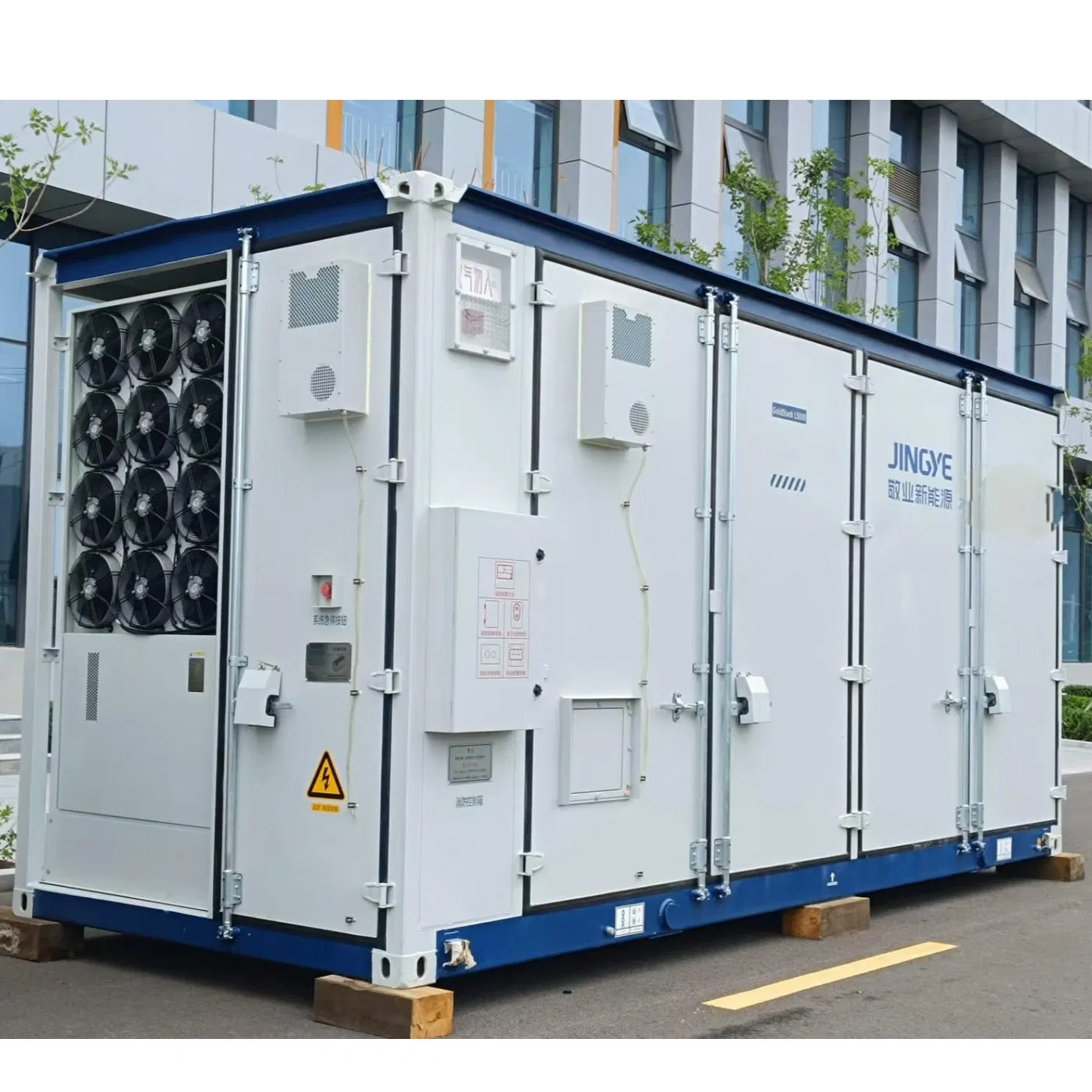

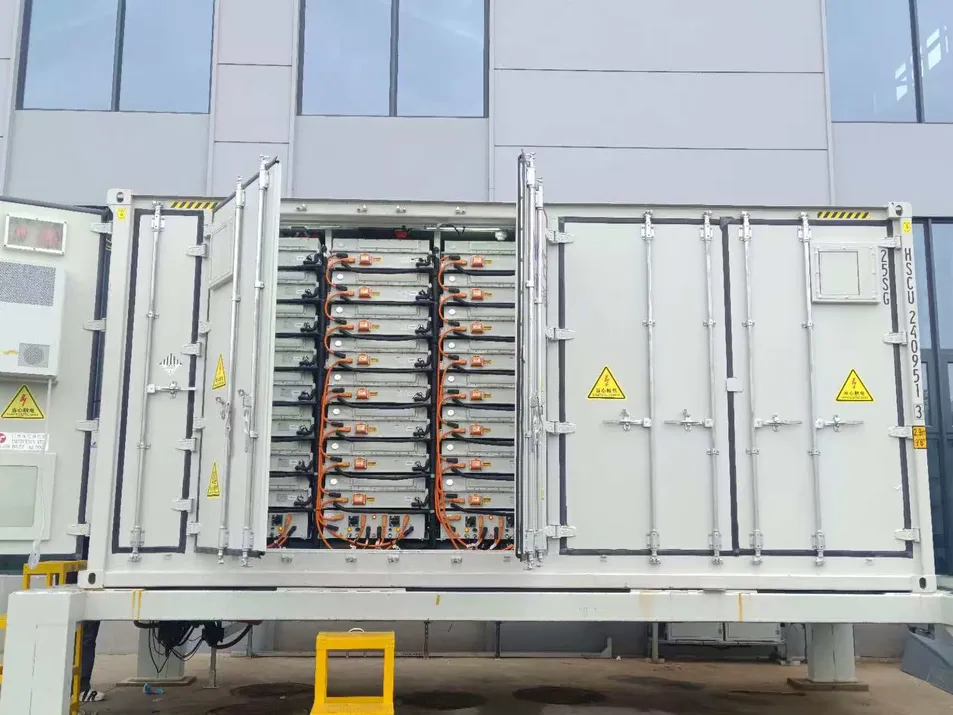

Energy Storage Container

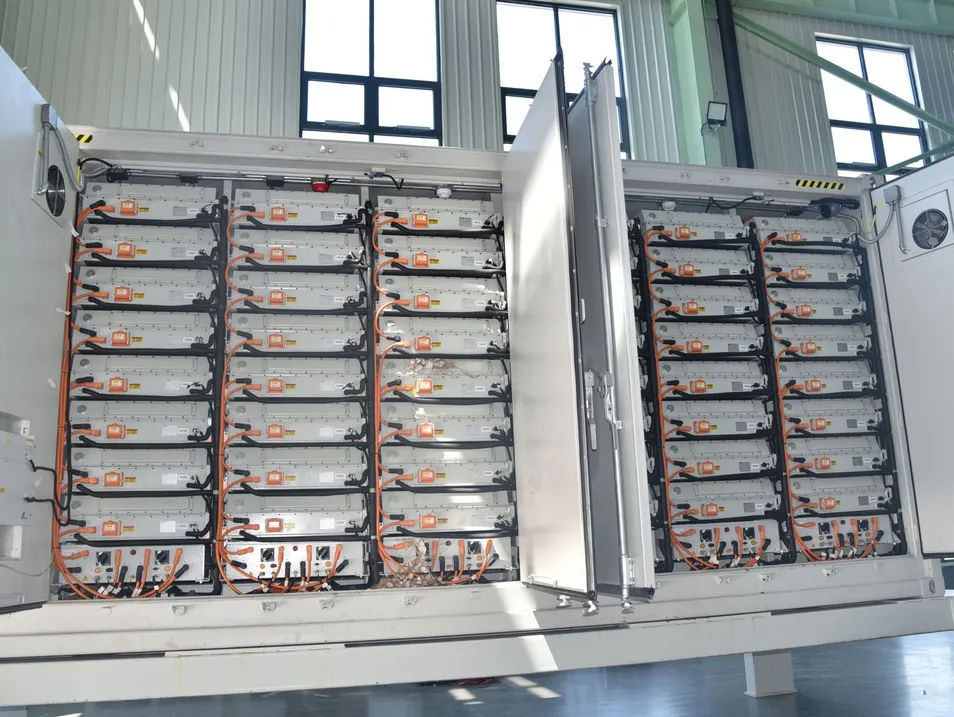

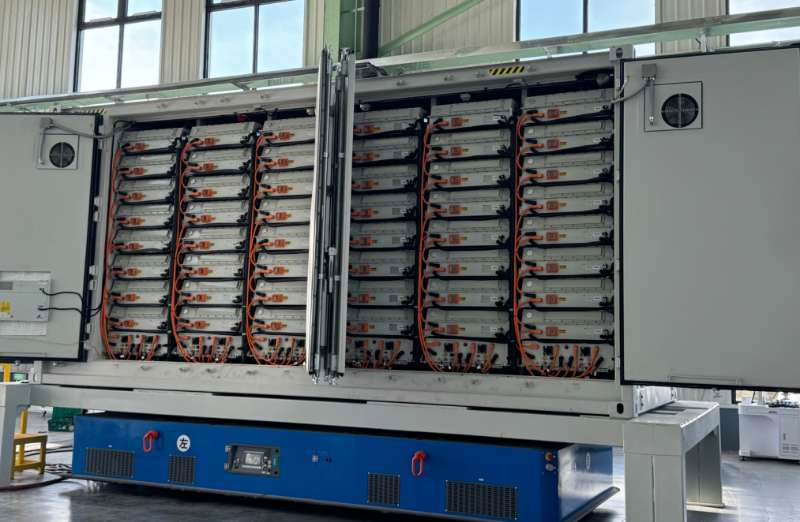

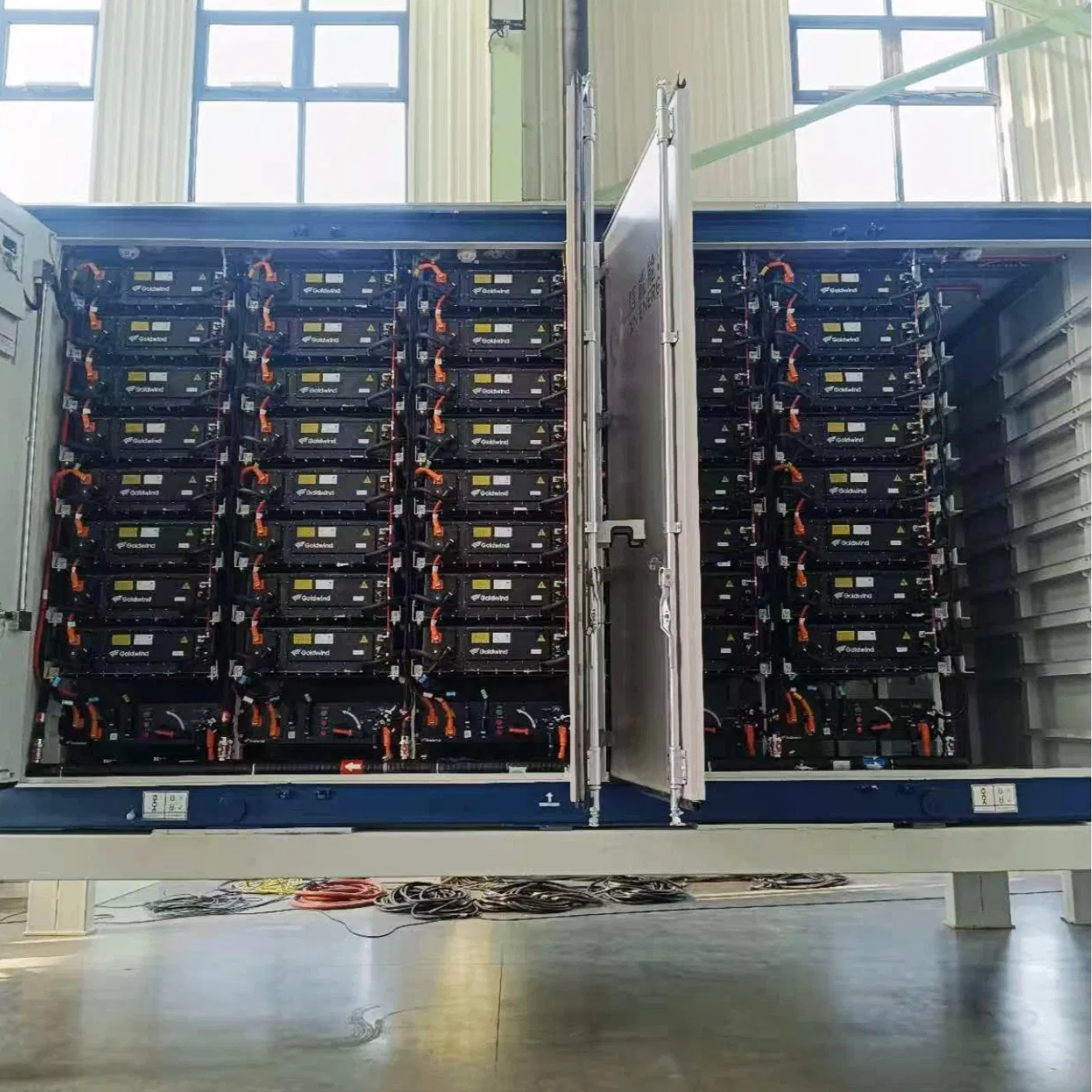

5015KWh Liquid Cooling energy storage system based on high-capacity 314Ah energy storage cells, consisting of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, thermal management systems, and environmental control systems. The system uses simplified integration technology, installing PACK, distribution busbars, and liquid cooling units within a standard 20-foot container, ensuring safety and suitability for various transportation conditions.

Product Features:

Battery Technology Utilizes mature, high-efficiency, long-life large-capacity lithium iron phosphate batteries.

Battery Management Equipped with advanced intelligent battery management products to ensure product safety.

Thermal Management Industrial-grade air conditioning systems ensure a temperature difference of 3℃ inside the PACK.

Safety Protection Three-level automatic alarm and fire extinguishing system for PACK, cluster, and compartment.

Technical Specifications

No.	Item	Specification
1	Configuration	12(1P104S4)
2	Rated Power	5MWh
3	Rated Voltage	1331.2VDC
4	Voltage Range	1164.8V - 1497.6VDC
5	Rated Charging Power	≤ 2.5MW
6	Rated Discharge Power	≤ 2.5MW
7	IP Rating	IP54
8	Dimensions	L6058 x W2438 x H2896mm
9	Weight	About 43t
10	Refrigeration method	Liquid Cooling

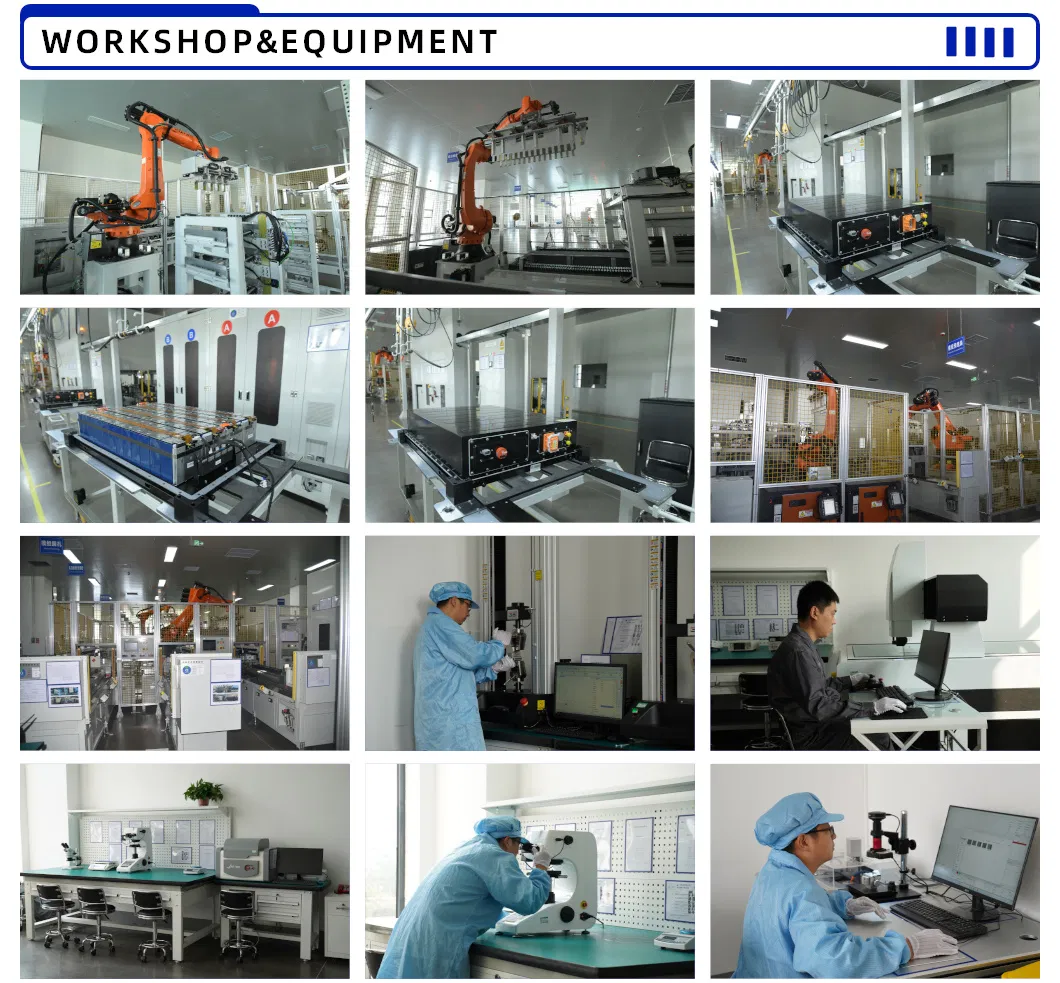

Workshop & Equipment

Equipped with advanced and automated production lines, the facility has an annual production capacity of 5 GWh for energy storage systems. Products are widely used in smart grids, wind/solar distribution, and industrial energy storage fields. The production process ensures rapid, efficient, and high-quality results for global requirements.

Certifications & Exhibition

Frequently Asked Questions

What are the primary energy storage products available?

We provide 5MWh Energy Storage Containers, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and specialized Battery Packs.

Do you support customization services for specific projects?

Yes, we offer flexible customization services for products across diverse process types to meet unique project requirements.

How do you ensure production and delivery timelines?

Equipped with a comprehensive automated production line and proficient technical personnel, we guarantee stable production and on-time delivery of all products.

How can we obtain detailed quotations?

You can contact the staff online directly via the website, and they will promptly provide you with a detailed technical quotation.

Are you a source factory or a trading company?

We are a formal source factory with standardized production processes, offering competitive factory-direct pricing and top-quality products.

What is the annual production capacity?

The facility currently maintains an annual production capacity of 5 GWh of energy storage systems and 2.4 million pieces of CCS busbars.
