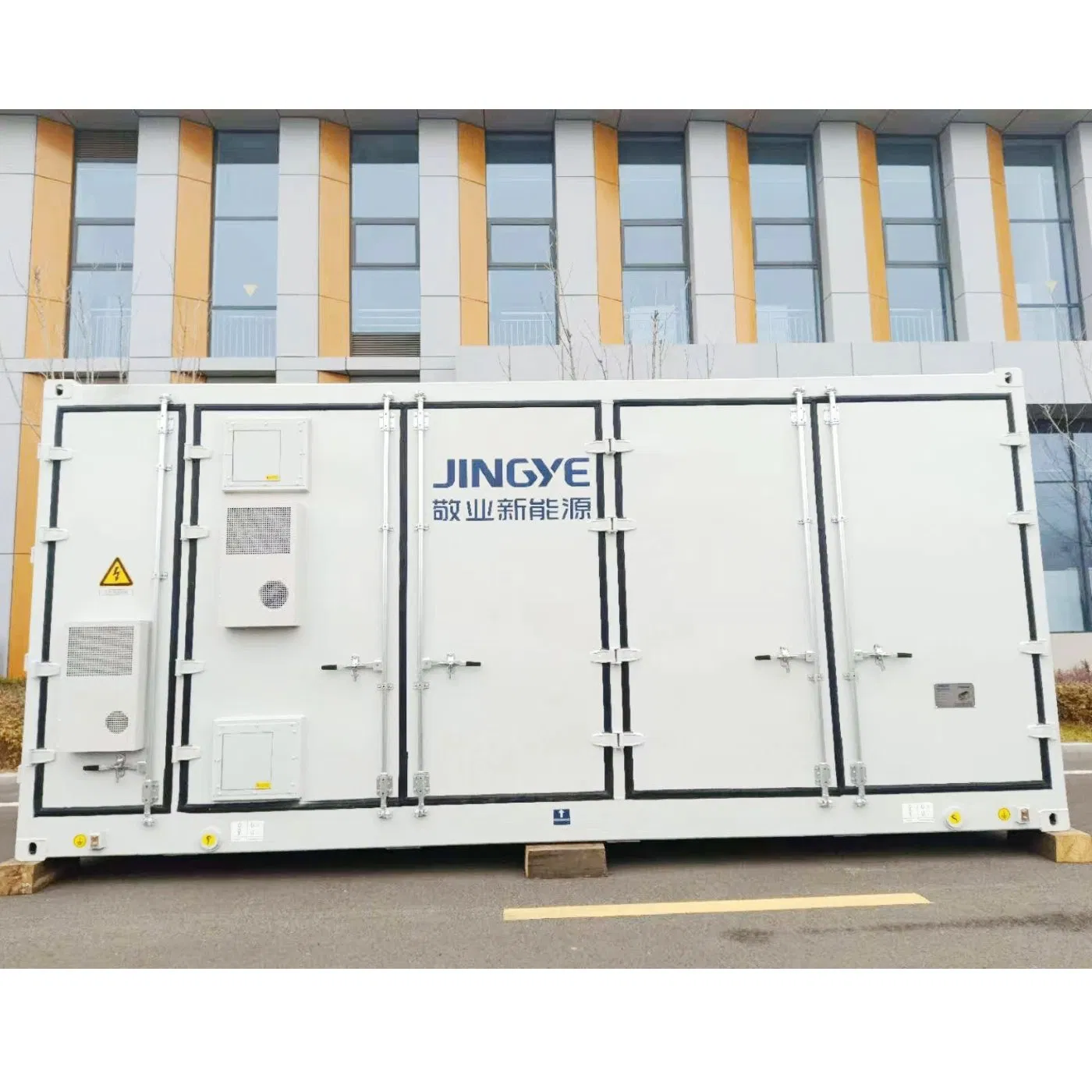

5mwh Containerized Energy Storage Solution for EPC Projects

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Weight:	43t

Basic Information

Model NO.

5.015MWh

Nominal Voltage

1331.2V

Warranty

3 Years

Nominal Capacity

5015kWh

Cycle Life

10 Years

Rated Power

5MWh

IP Rating

IP54

Cooling System

Liquid Cooling

Product Overview

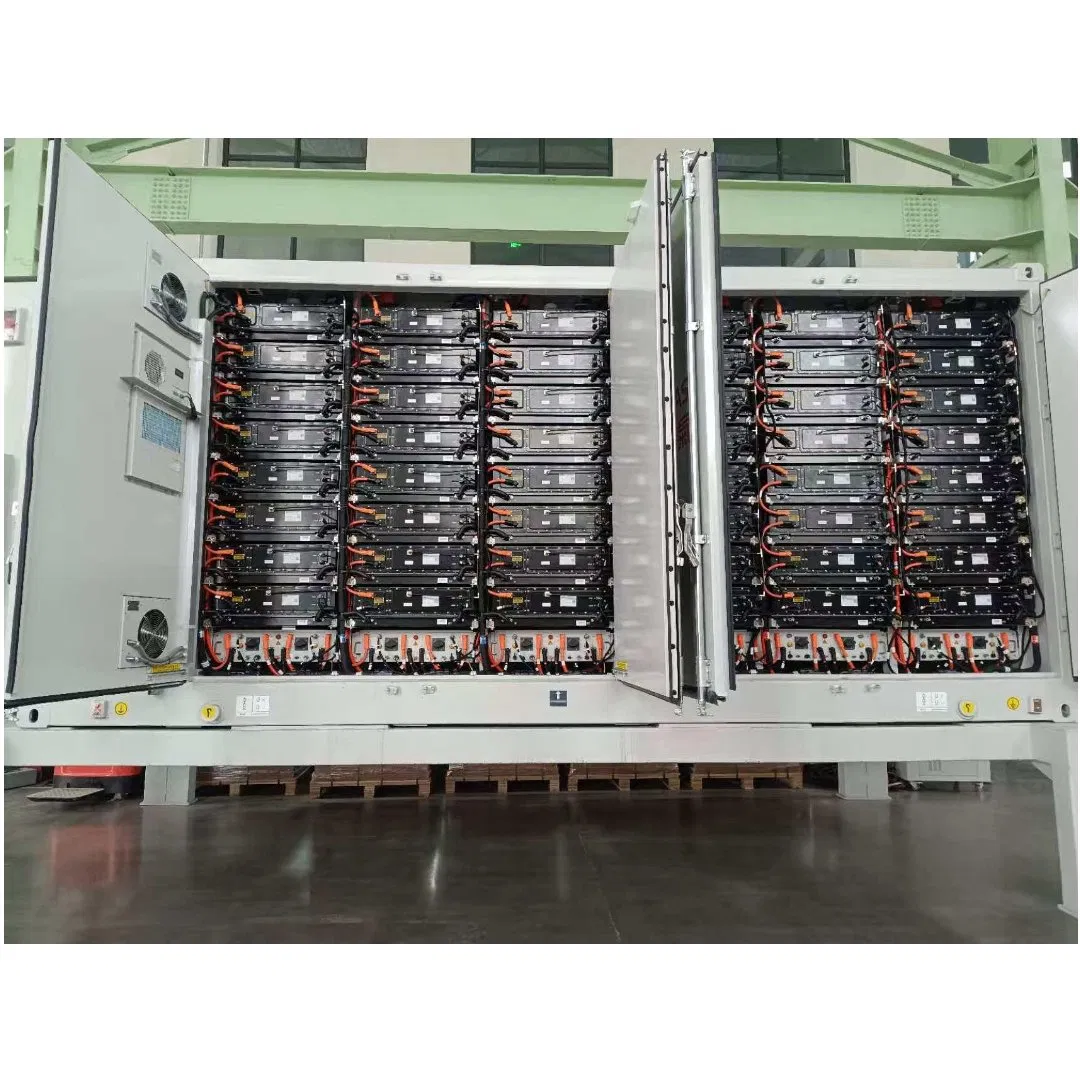

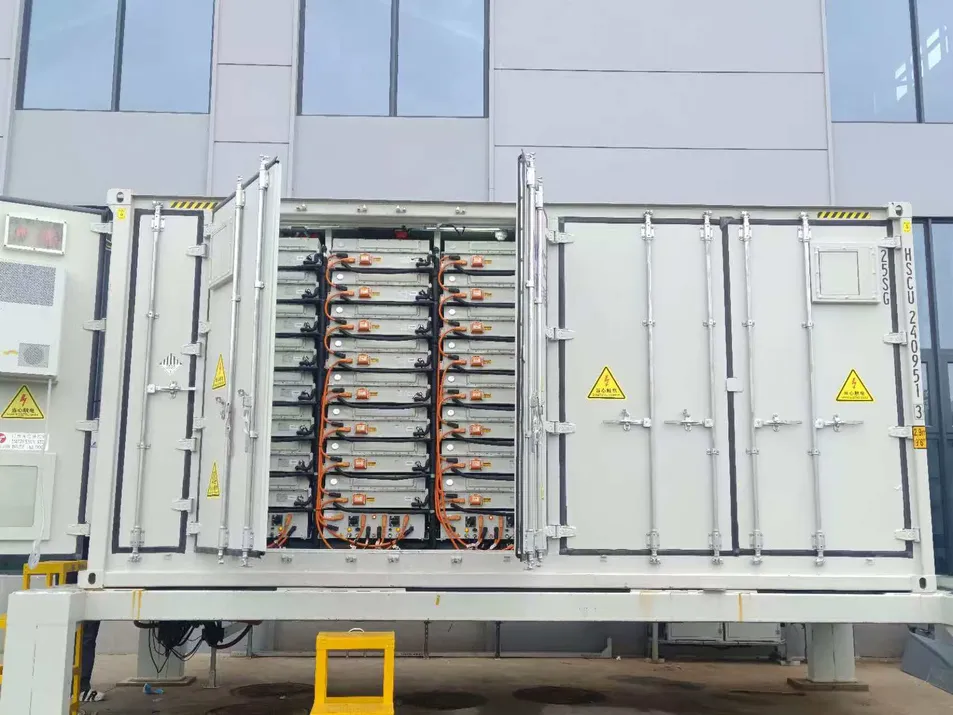

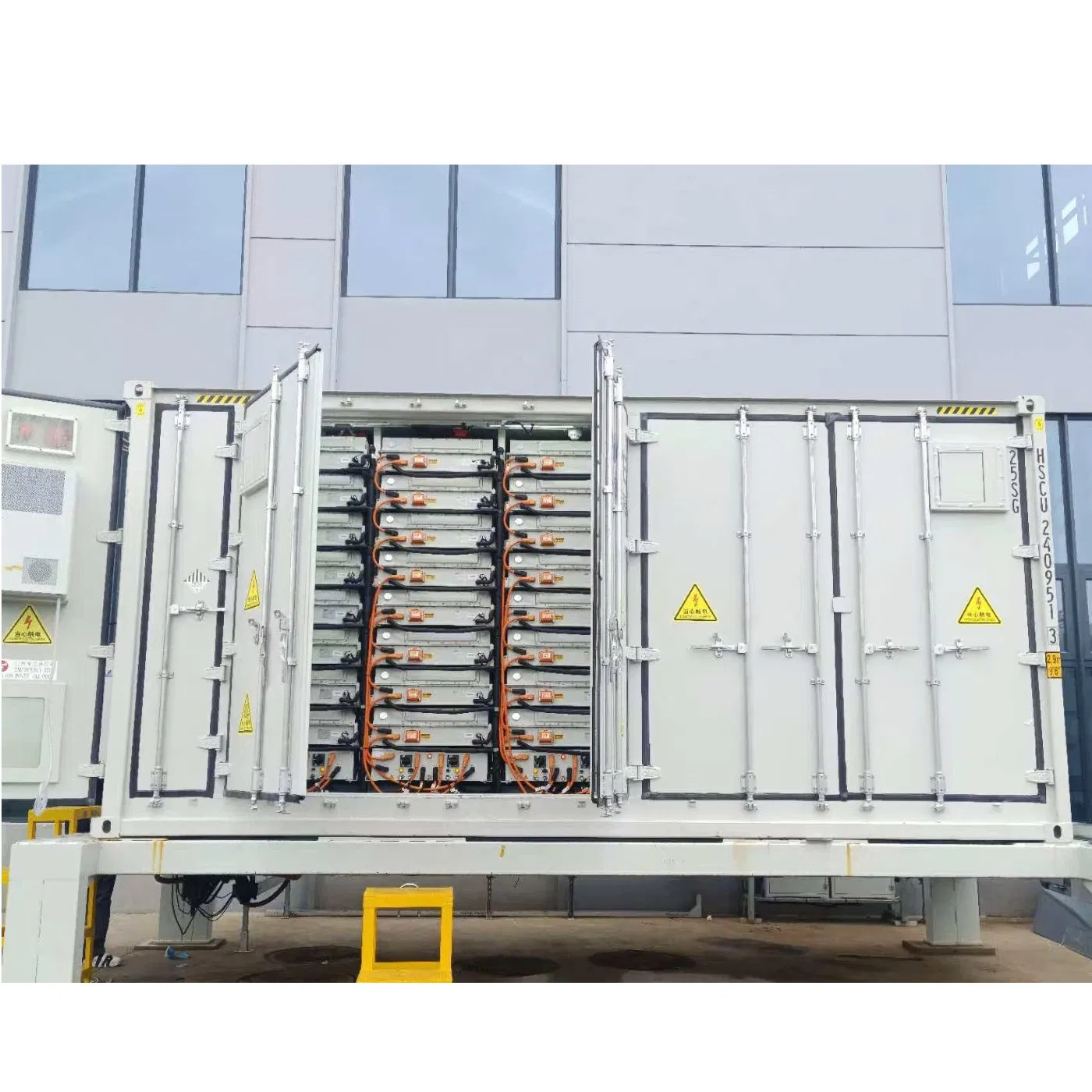

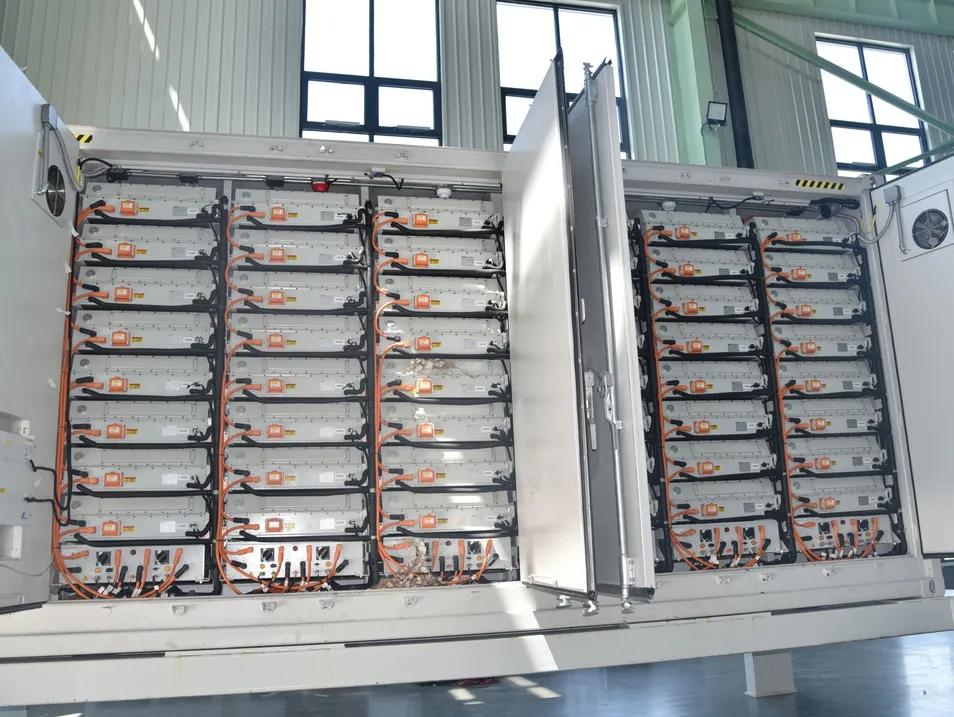

Energy Storage Container: The 5015KWh Liquid Cooling energy storage system is based on domestic high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, thermal management systems, and electrical control systems.

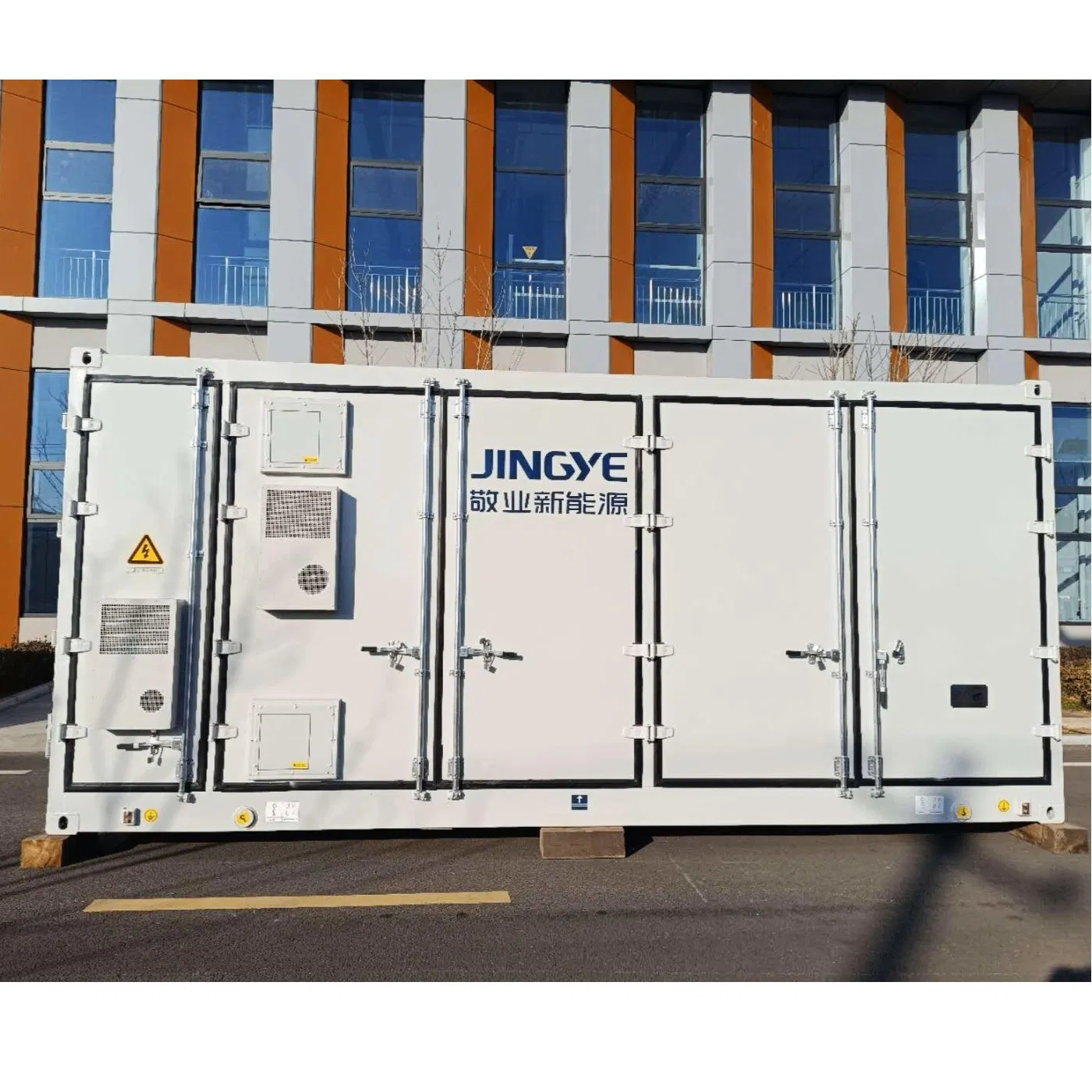

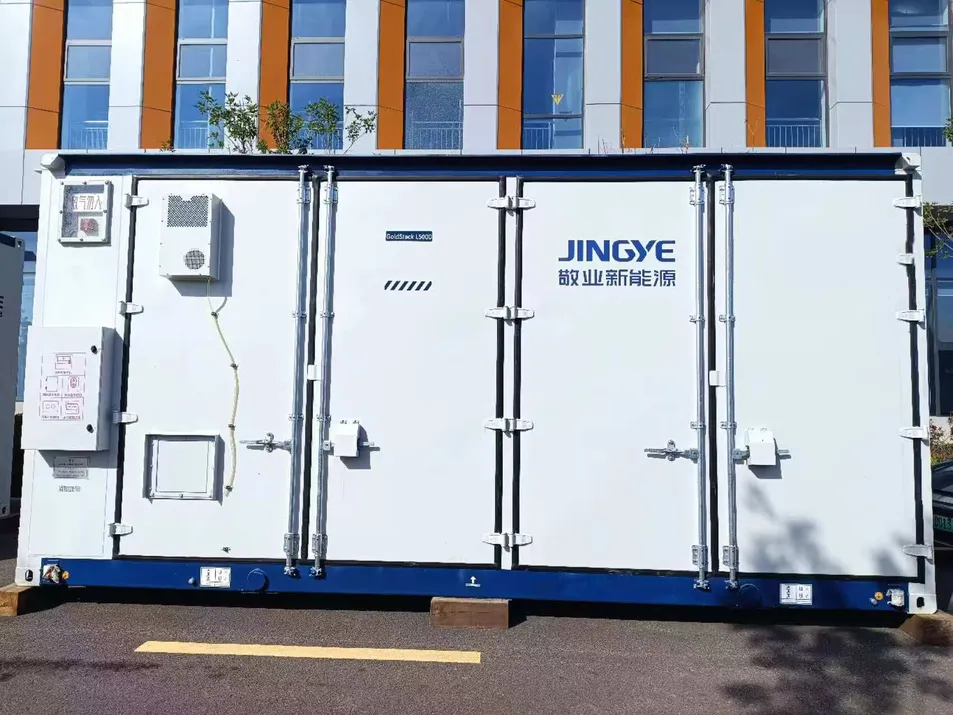

The system uses simplified integration technology, installing PACK, distribution busbars, liquid cooling units, and fire protection systems within a standard 20-foot container (2438mm-2896mm-6058mm). It is arranged in three compartments to ensure maximum safety and efficiency across various site designs.

Key Features

●
Battery Technology: High-efficiency, long-life lithium iron phosphate batteries.
●
Thermal Management: Intelligent liquid cooling ensures a temperature difference within 3℃ in the PACK.
●
Safety Protection: Multi-level automatic fire extinguishing system (PACK, cluster, and compartment level).
●
Monitoring System: Includes temperature, humidity, smoke, video, and access control monitoring.
●
Modular Design: Simple structure optimized for transportation, installation, and maintenance.

Technical Specifications

Item	Specification
Configuration	12 * (1P104S * 4)
Rated Power	5MWh
Rated Voltage	1331.2VDC
Voltage Range	1164.8V - 1497.6VDC
Charging/Discharge Power	≤ 2.5MW
Operating Temperature	-30℃ to 60℃ (Discharge)
Dimensions	L6058 x W2438 x H2896mm
Weight	Approx. 43t
Communication	Ethernet, CAN, ModbusRTU

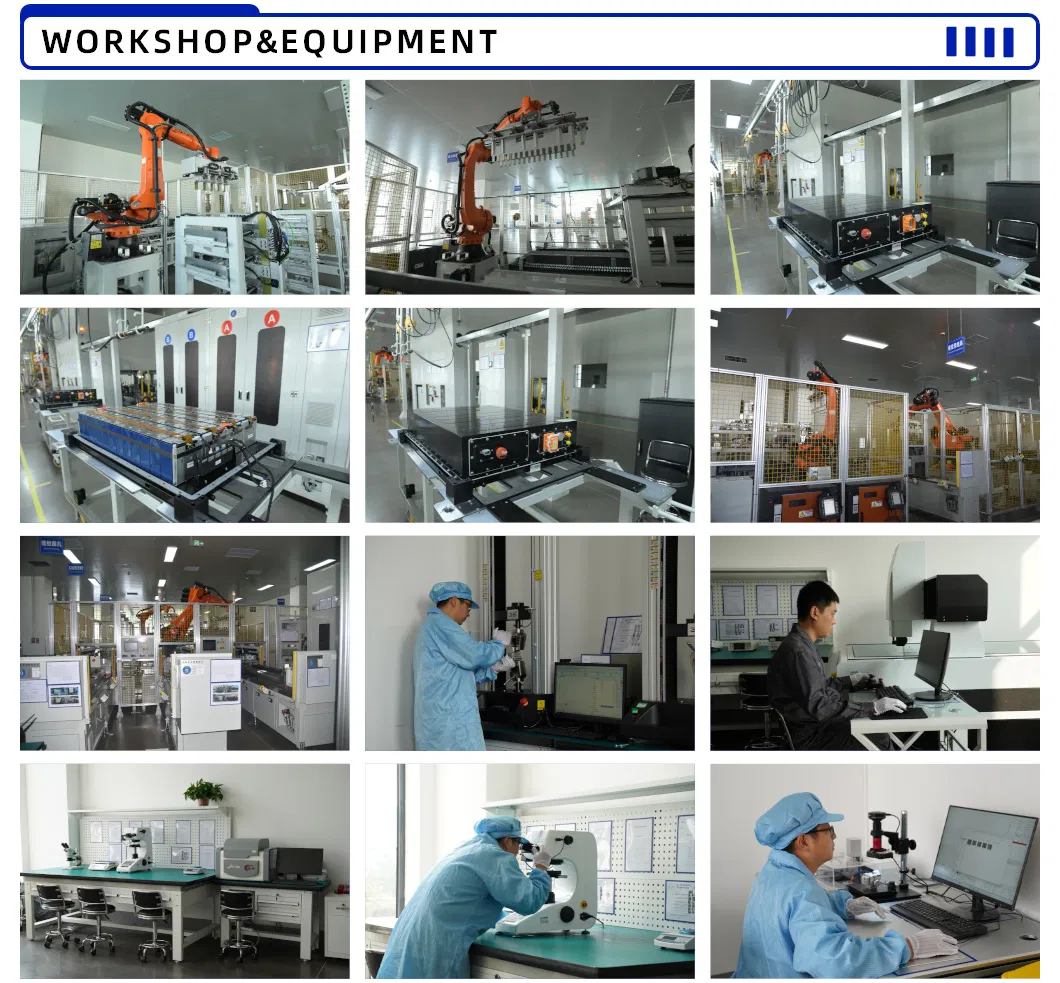

Workshop & Equipment

Equipped with advanced automated production lines, the annual capacity reaches 5 GWh for energy storage systems and 2.4 million pieces of CCS busbars. These products are widely used in smart grids, industrial energy storage, and green transportation.

Frequently Asked Questions

Q1: What are the main energy storage products available?

A: Our main products include 5MWh Energy Storage Containers, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and specialized Battery Packs.

Q2: Do you support customization services for specific projects?

A: Yes, we offer flexible customization services for products across diverse process types and energy requirements.

Q3: How do you ensure production and delivery timelines?

A: Equipped with comprehensive automated production lines and proficient technical personnel, we guarantee stable production and on-time delivery.

Q4: How can we receive a detailed quotation?

A: Simply contact our staff online directly via the website, and they will promptly provide you with a detailed technical quotation.

Q5: Are you a source factory or a trading company?

A: We are a formal source factory with standardized production processes, offering competitive prices and top-quality industrial products.

Q6: What is the safety standard of the storage containers?

A: The systems are built to IP54 standards and feature three-level fire extinguishing systems using perfluorohexane or aerosol.
