| Model NO. | SJS-PD003D |
| Position | Vehicle Fence |
| Material | Steel |
| Function | Obstruction |
| Post Fixation | Expansion Bolts |
| Degree of Distortion | Rigid Barrier |
| Product Dimensions | 35cm*35cm*107cm |
| Supply Voltage | AC220V or AC110V |
| Output Power | 80W |
| Rated Current | 0.55A |
| Service Life | 5,000,000 Times |
| Remote Control Distance | 50m |
| Transport Package | Export Wood Case |
| Specification | CE, ISO9001; 2015 |
| Origin | China |
| Production Capacity | 10,000 PC/Year |
| Package Size | 56.00cm * 44.80cm * 115.80cm |
| Package Gross Weight | 60.000kg |

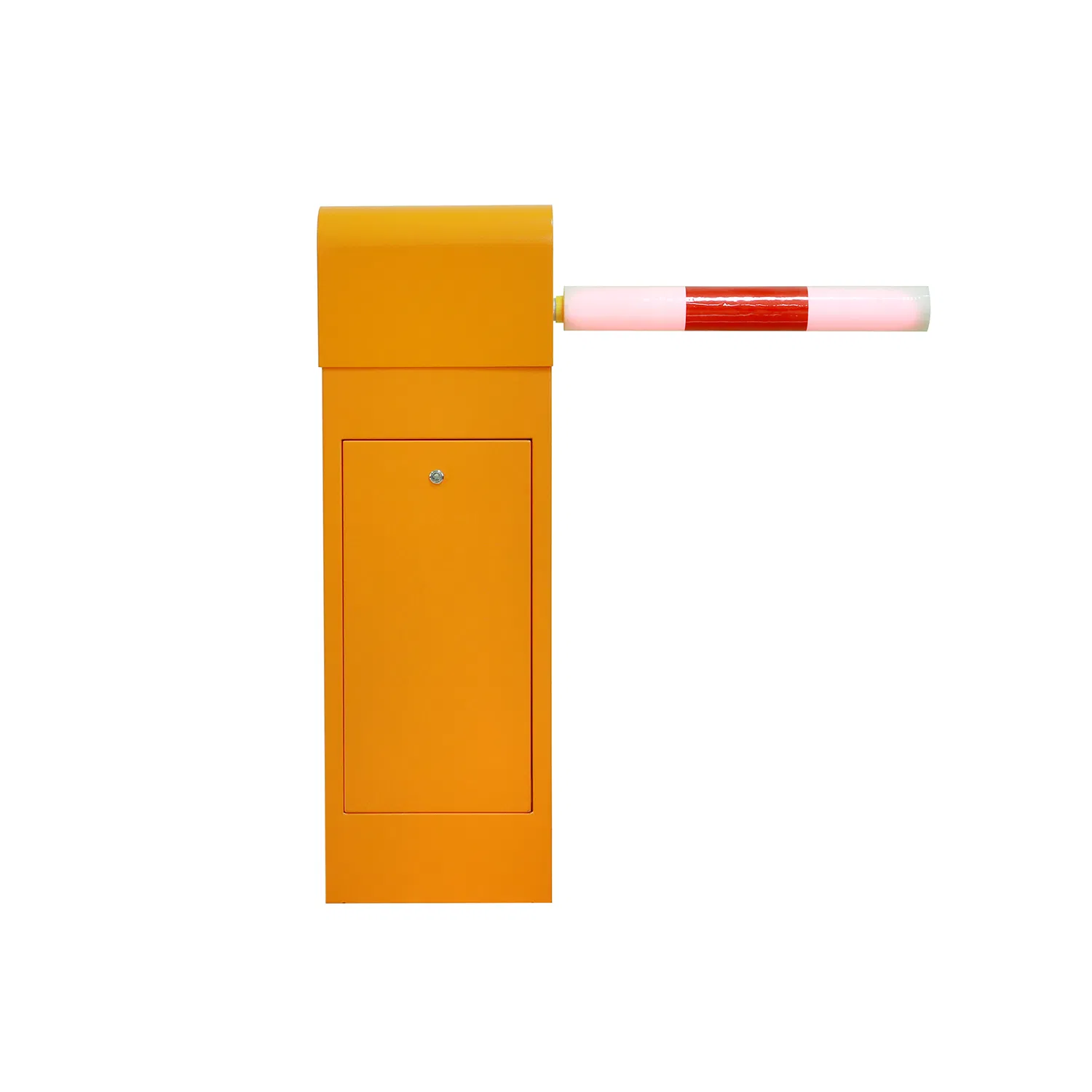

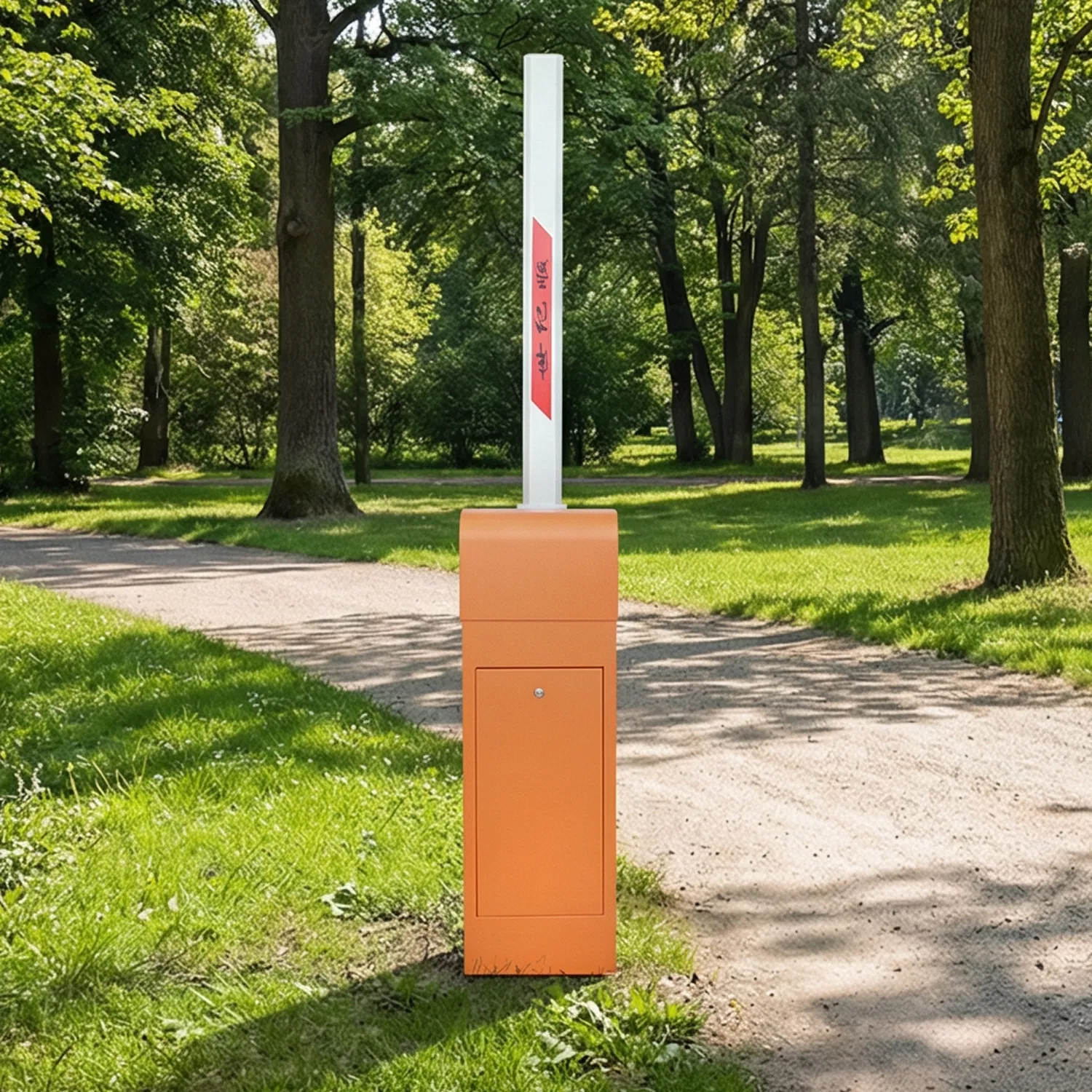

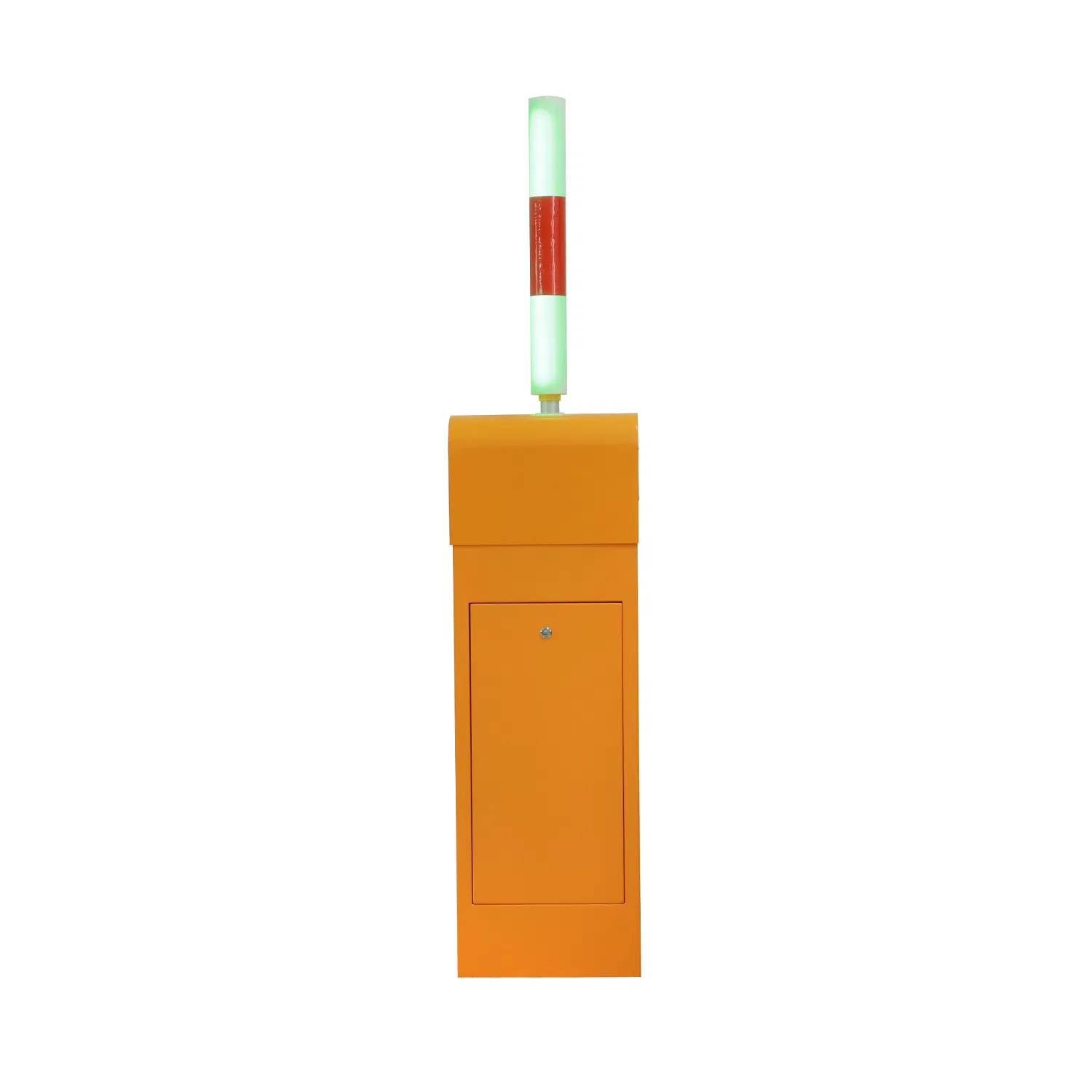

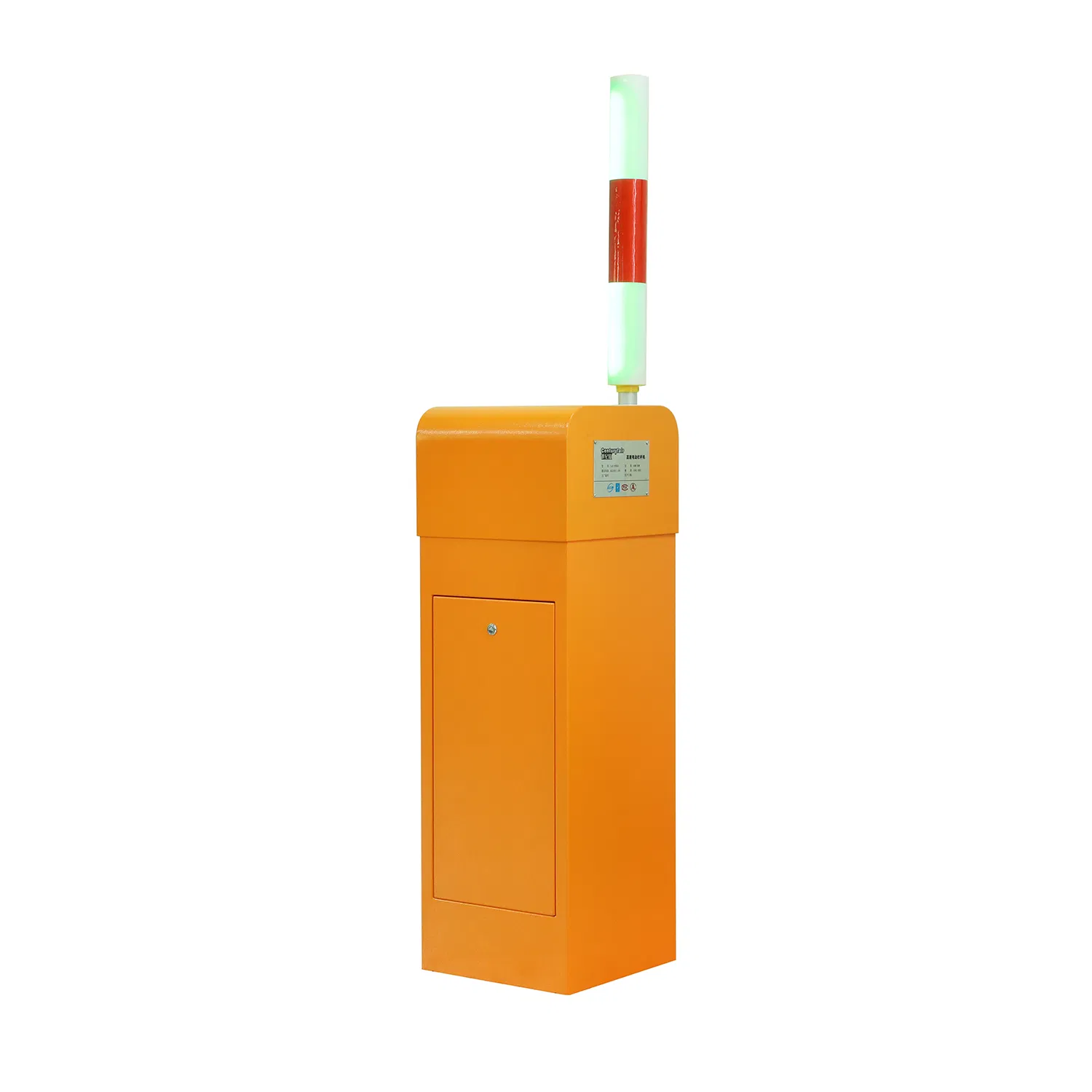

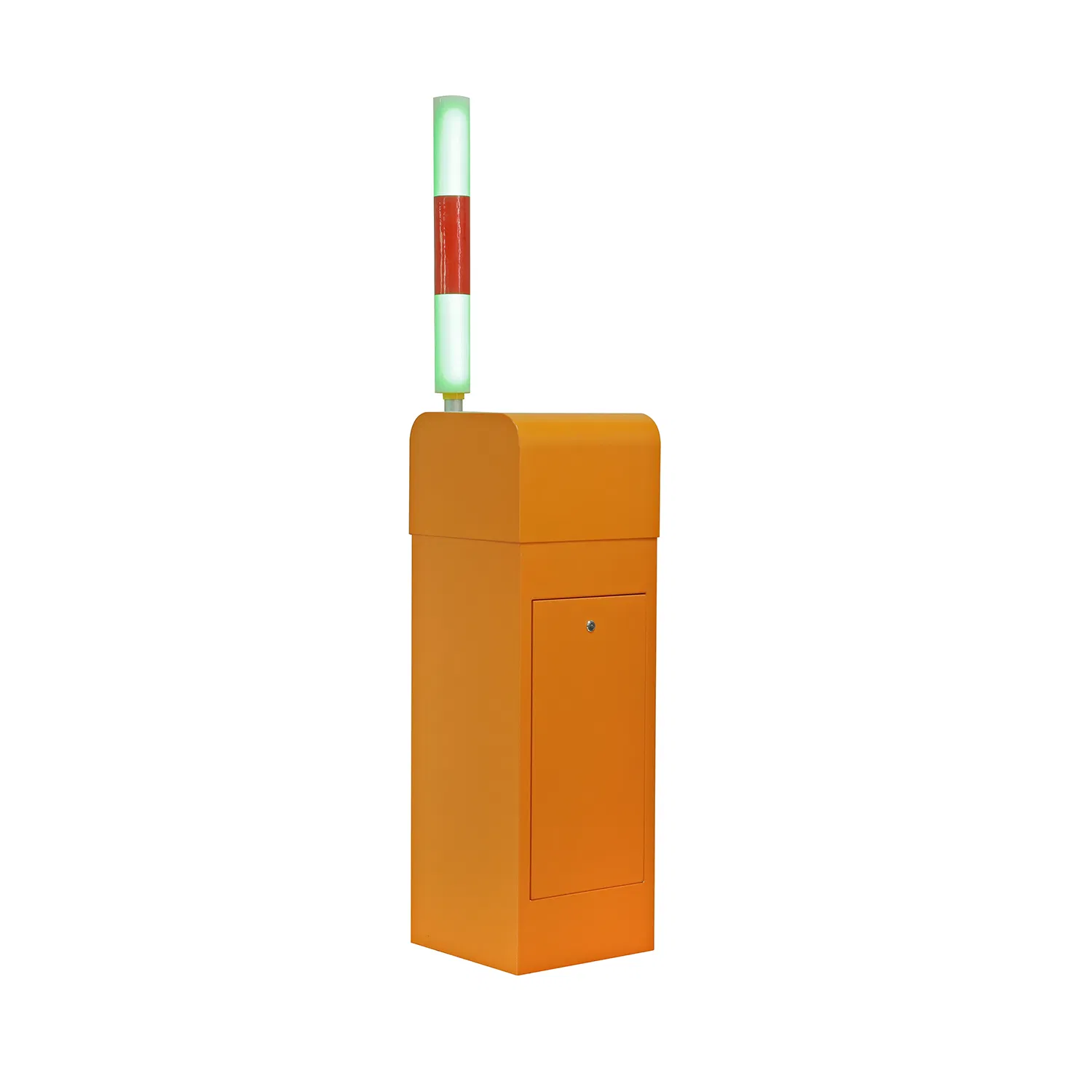

Adopts a compact, high-speed AC torque motor for fast, stable operation and 0.9s rod lift. Humanized safety design with adjustable directions fits diverse applications. Built-in encoder ensures precision and longevity.
All products can be customized!
| Supply Voltage | AC220V+/-10% or AC110V |
| Power Frequency | 50/60Hz |
| Output Power | 80W |
| Rated Speed | 1500r/min |
| Rated Torque | 35N*m |
| Standard Lever Length | 3 - 6m |
| Noise | <=60dB |
| Rising/Falling Time | 0.3s - 6s |
| Protection Class | IP55 |
| Temperature Range | -40℃ to +75℃ |
| Humidity | ≤95% |
Package: Export standard wood carton
Delivery date: 7-10 days after payment confirmed
Payment terms: 50% T/T in advance, balance 50% before shipment
Approval: CE, CCC, ISO 9001: 2015
OEM/ODM service available.
Standard Warranty: 12 months.
Training: On-site (negotiable) or remote operation/maintenance training.
