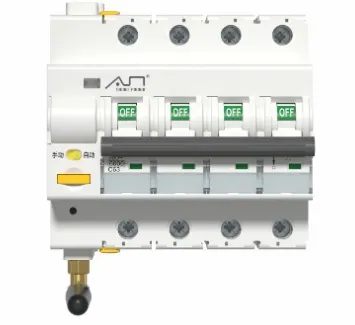

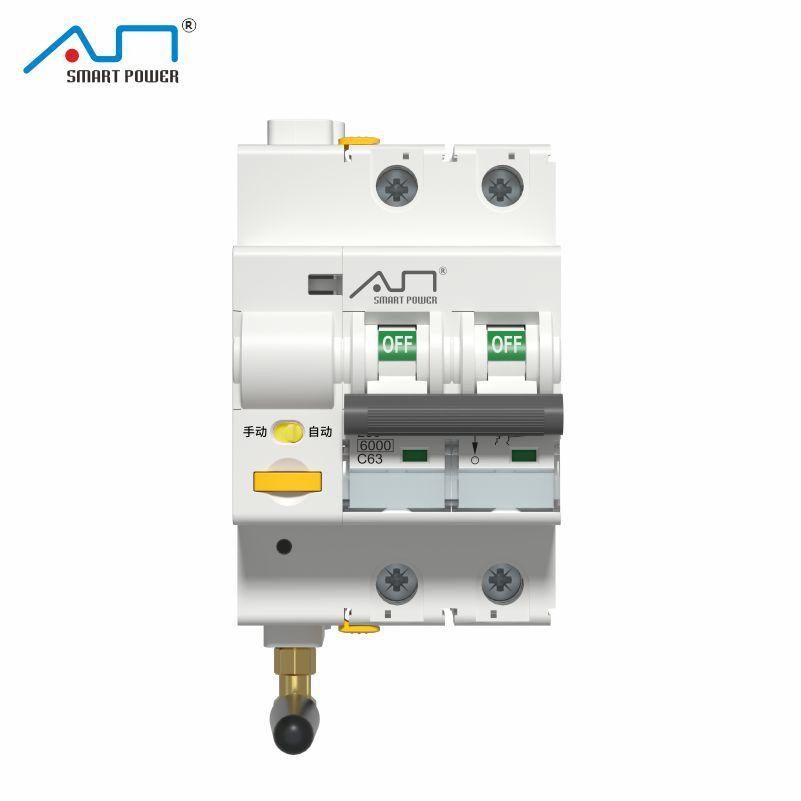

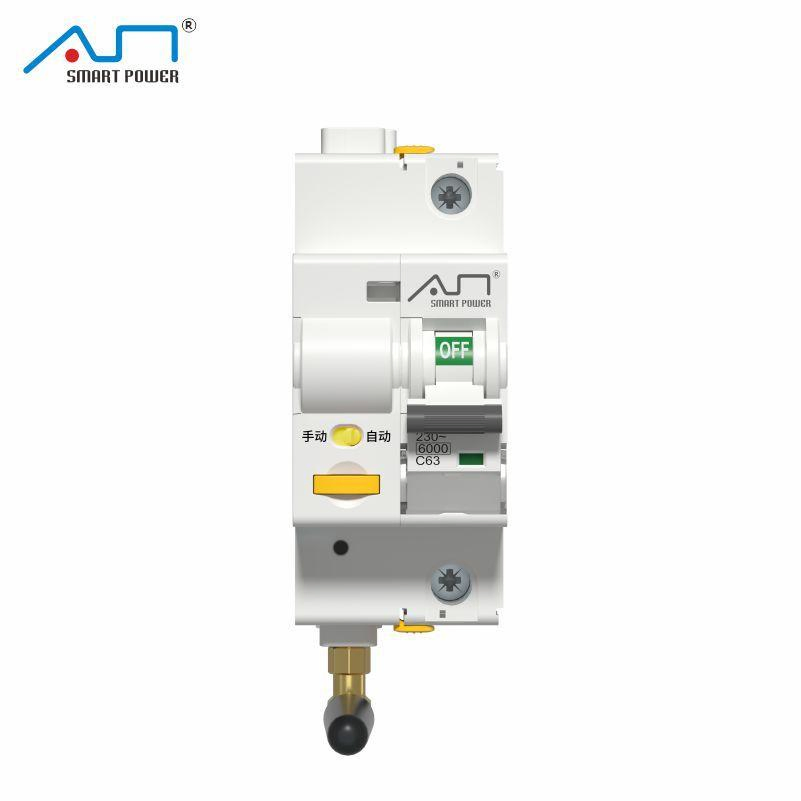

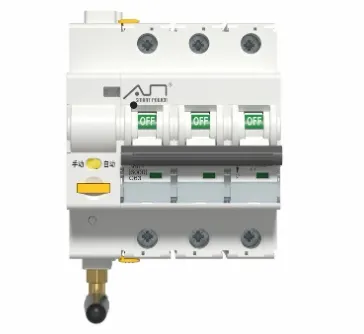

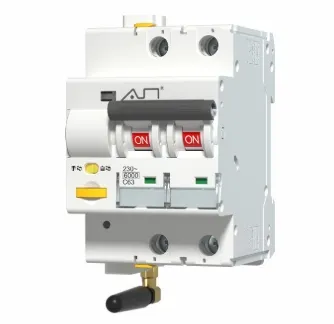

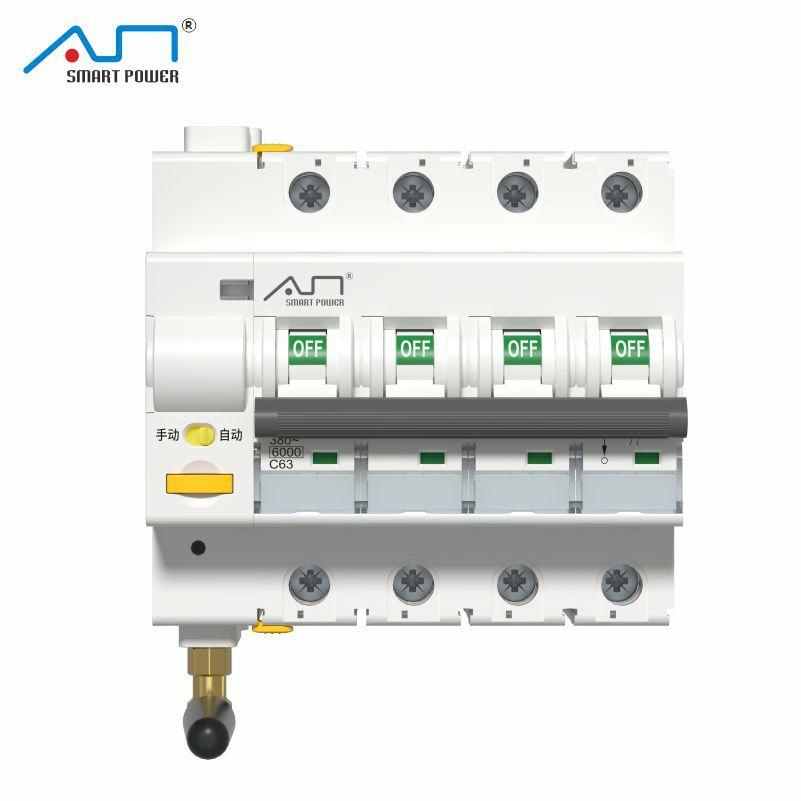

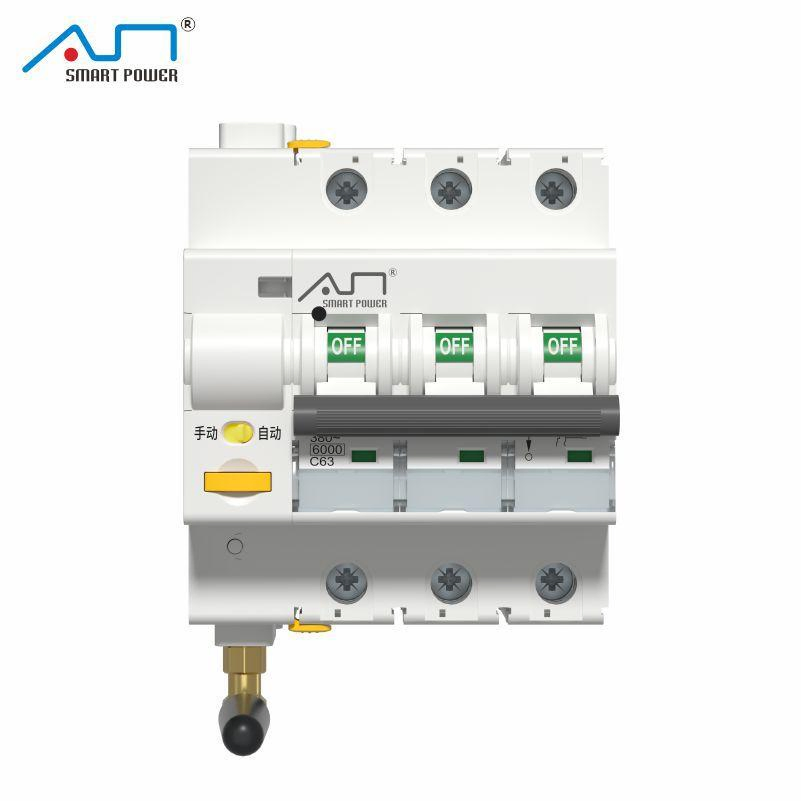

Affordable Circuit Breaker Solutions for Optimal Power Control

Customization:	Available
a:	63
Transport Package:	Carton

Basic Information

Model NO.: 63*63*1P+N*6*AC230*

Specification: 7.5*9.5*12.5cm

Trademark: none

Origin: China

Packaging & Delivery

Package Size: 7.50cm * 9.50cm * 12.50cm

Gross Weight: 0.400kg

Product Description

High-Performance Hydraulic Excavator
Introducing our high-performance hydraulic excavator, meticulously engineered to deliver unmatched durability, efficiency, and versatility across construction, mining, and earthmoving projects. Armed with cutting-edge technology and constructed with robust materials, this excavator guarantees outstanding digging force, seamless operation, and optimal fuel efficiency. Tailored for heavy-duty applications, it promises exceptional performance across diverse terrains and challenging working conditions.

Technical Parameter

Normal Working Conditions: +40 ℃ Upper limit / -5 ℃ Lower limit
Installation site altitude: ≤ 3000 meters
Atmospheric Conditions: Humidity ≤ 50% at 40 ℃
Pollution Class: Level 2
Mounting Classes: Ⅱ and Ⅲ

Technical Specifications

Rated Voltage: AC230V/400V
Current Shell Frame: 63A
Breaking Capacity: Ics rated at 6000A
Rated Current (In): 16A, 25A, 32A, 40A, 50A, 63A
Lifespan: 10,000 mechanical / 6,000 electrical cycles
Wiring: Clamp connection terminals (25 mm²)

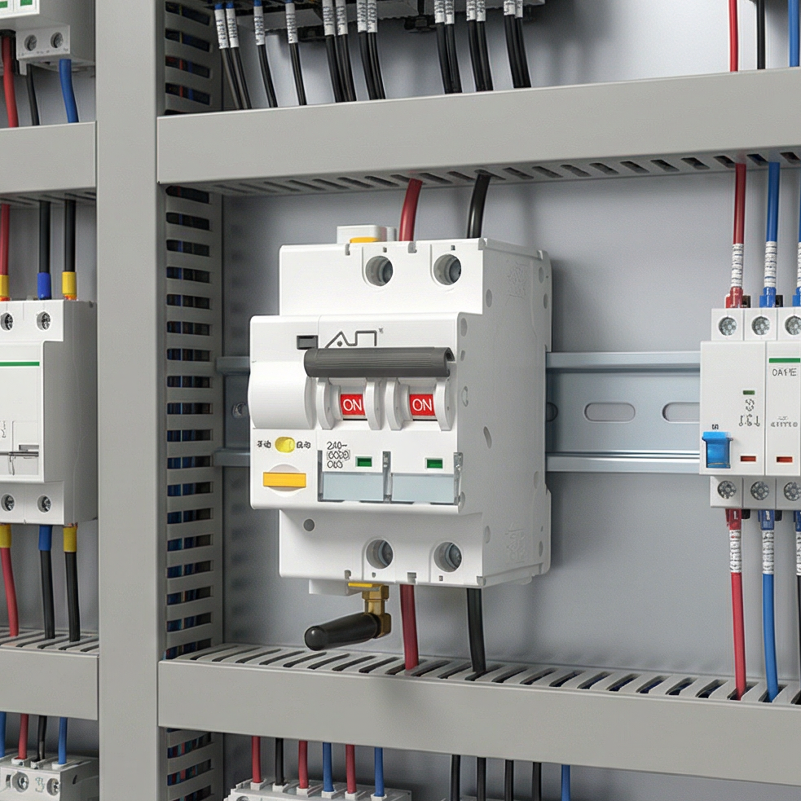

Installation: Standard 35.5×7.5mm guide rail

No.	Release Device Type	Rated Current (In)	Initial State	Test Current	Set Time	Results
1	BCD	In≤63A	Cold	1.13In	≥1h	Not trip
2	BCD	In≤63A	Hot	1.45In	≤1h	Trip
3	BCD	In≤32A	Cold	2.55In	1s < t < 60s	Trip
4	B / C / D	All	Cold	3In / 5In / 10In	≥0.1s	Not trip
5	B / C / D	All	Cold	5In / 10In / 20In	<0.1s	Trip

Warranty & Support

Standard Warranty: 12 months or 2,000 operating hours.

Extended Warranty: Optional up to 36 months.

Global Support: 24/7 technical assistance and spare parts.

Training: On-site or remote operation training.

Operational Guidelines

Shield from rainwater during transit; store in well-ventilated environments.
Regularly remove dust for optimal performance.
Verify technical specifications before operation; do not disassemble without guidance.
Ensure correct neutral wire connection.
Tighten connecting screws thoroughly before use.
Operational temperature set at 30±5 ℃. Capacity reduction coefficient of 0.8 applies for sealed box installations.

Packing List: Product * 1; Instruction Manual * 1; Antenna * 1 (WiFi/4G); Wiring terminal * 1.
