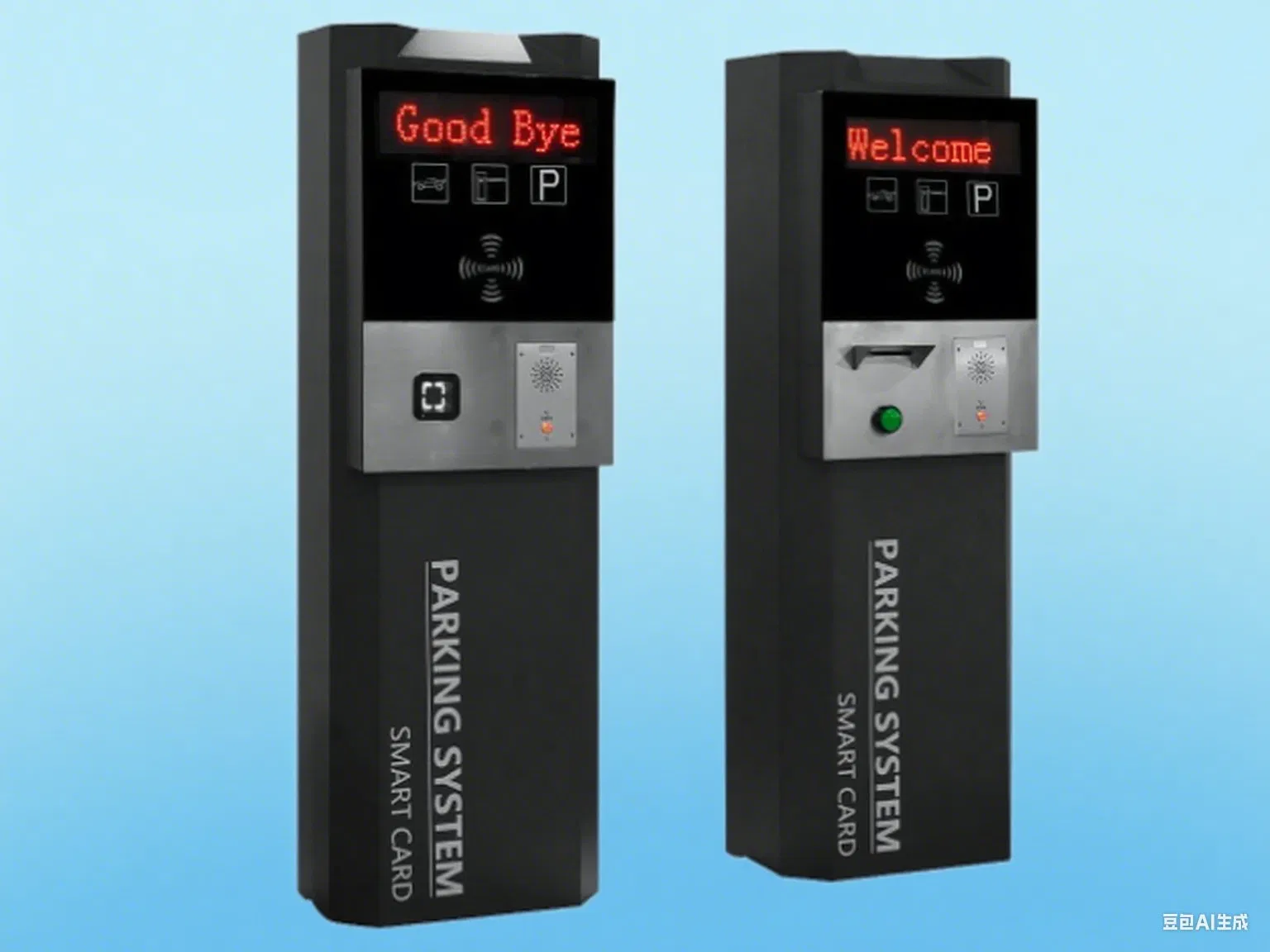

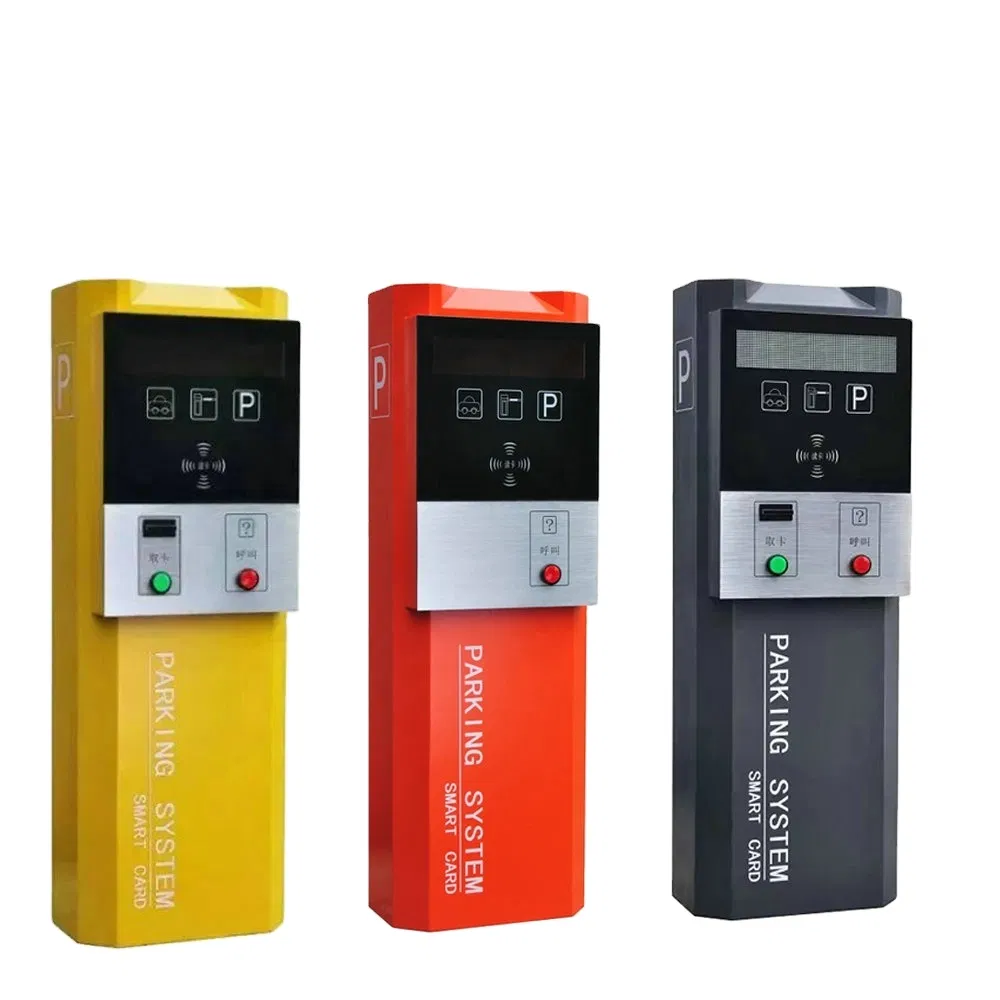

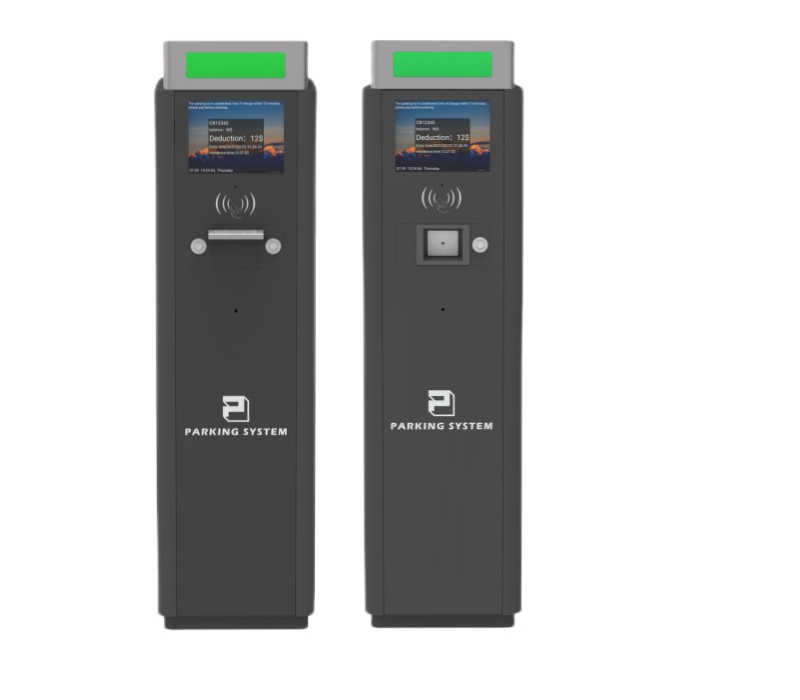

Advanced Speed Color System for Efficient Parking Solutions

Basic Information

Model NO.

QG

Operation Mode

Automatic

Payment Method

Card Payment

Screen Size

12 inch

Material

Aluminium

Warranty

2 years

Arm Speed

1.2s, 3s, 6s (Suggest 3s)

Cabinet Weight

45kg - 55kg

Boom Type

Straight Boom Barrier Gate

Protection Grade

IP44

Product Description

Introducing a groundbreaking marvel in traffic control solutions: the Automatic Traffic Barrier Arm Barrier Gate System.

Our Standard Barrier Gate is meticulously engineered to set new standards in performance. With an impressive arm stretch reaching up to 6 meters, this barrier promises precision-tailored arm speeds of 1.2s, 3s, and 5s. Designed to deliver outstanding functionality in diverse indoor and outdoor environments, it adaptable effortlessly to any setting.

Crafted with meticulous attention to detail, this system meets contemporary demands for safety, speed, and efficiency. It is the prime selection for locations ranging from parking lots and hotels to schools, enterprises, and public institutions.

01

System Integration: Delivers an unmatched level of integration with robust functionality for extraordinary performance.

02

Motor Protection: State-of-the-art elevating overtime and motor overheating protection systems ensure remarkable longevity.

03

Precise Control: Harmonized with a Hall sensing device for precise inductive limit control, facilitating contactless operation.

04

High Reliability: Incorporates a superior large power relay ensuring unwavering stability.

05

Wireless Remote: Innovative wireless remote control module with one million groups of learning codes for high security.

Technical Parameters

Input Power	AC220 / AC110 50/60HZ
Rated Power	100W
Working Temperature	-30°C < C < 80°C
Protection Grade	IP44
Rod Center Height	830mm / 890mm
Remote Distance	> 30 Meters
Communication Interface	RS232 (Direct Computer Connection)
Input Interface	+12V level signal or pulse width > 100MS

Product Gallery

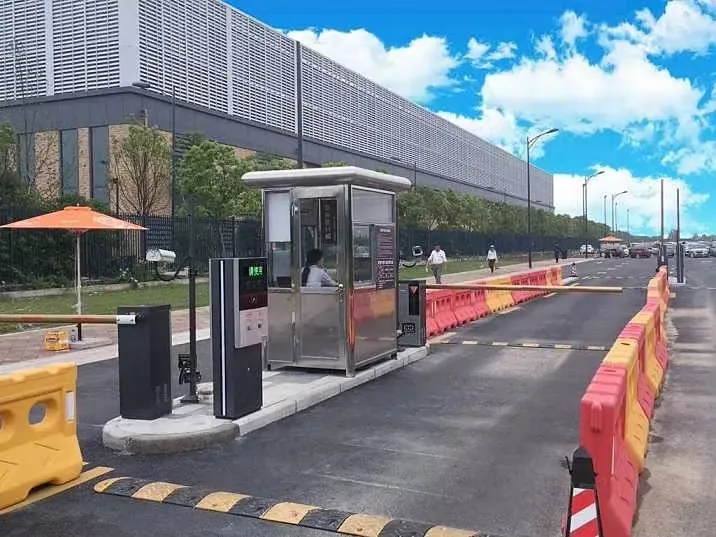

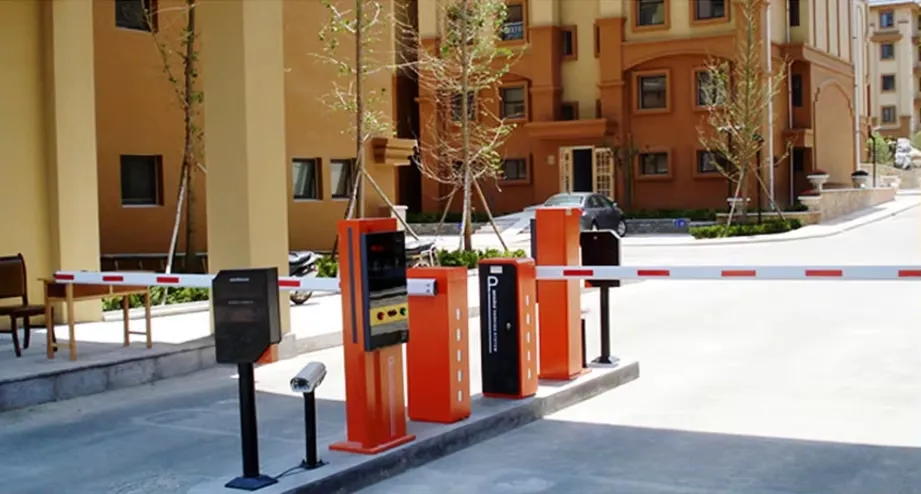

Project Cases & Customer Photos

Frequently Asked Questions

1. What are the available speeds for the barrier arm?

The barrier gate offers precision-tailored arm speeds of 1.2s, 3s, and 5s. We generally recommend the 3s speed for optimal balance between speed and durability in most environments.

2. Is the system suitable for outdoor use in extreme temperatures?

Yes, the motor is designed to work efficiently in temperatures ranging from -30°C to 80°C, and the cabinet features an IP44 protection grade, making it suitable for various moisture-rich and outdoor conditions.

3. How is the quality of the barrier gate guaranteed?

We ensure quality through a strict process including a pre-production sample before mass production and a final thorough inspection of every unit before shipment.

4. What integrated safety features does the barrier gate have?

The system includes motor overheating protection, elevating overtime protection, and a Hall sensing device for precise contactless limit control to prevent mechanical wear.

5. What types of boom arms can be used with this system?

This specific model is designed for Straight Boom Barriers with a maximum length of up to 6 meters.

6. Can the barrier be connected to a computer system?

Yes, it features an enhancement type RS232 communication interface which allows it to be connected directly to a computer for management and control.
