Liftara Lift
1 / 5
A compact AC torque motor ensures small size, light weight, fast response, and stable operation. It allows quick rod lifting, with a top speed of 0.9 seconds. Features humanized safety, adjustable directions, and a built-in encoder for precise control, offering accuracy, longevity, and simple debugging.

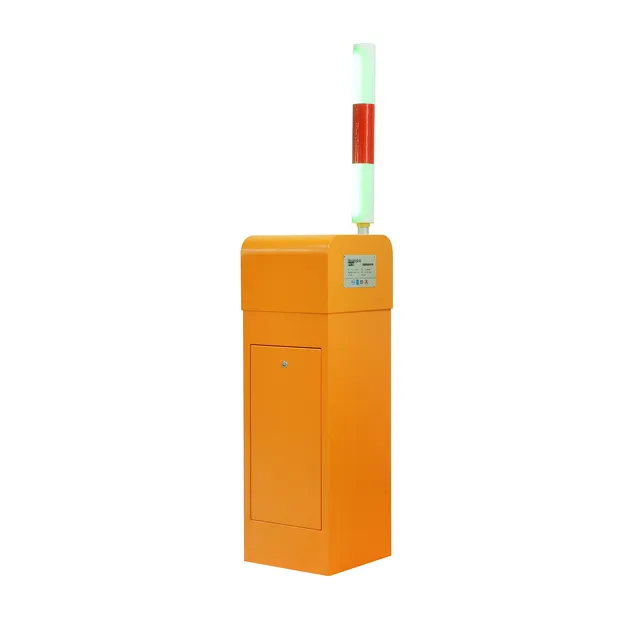

45-degree right side view

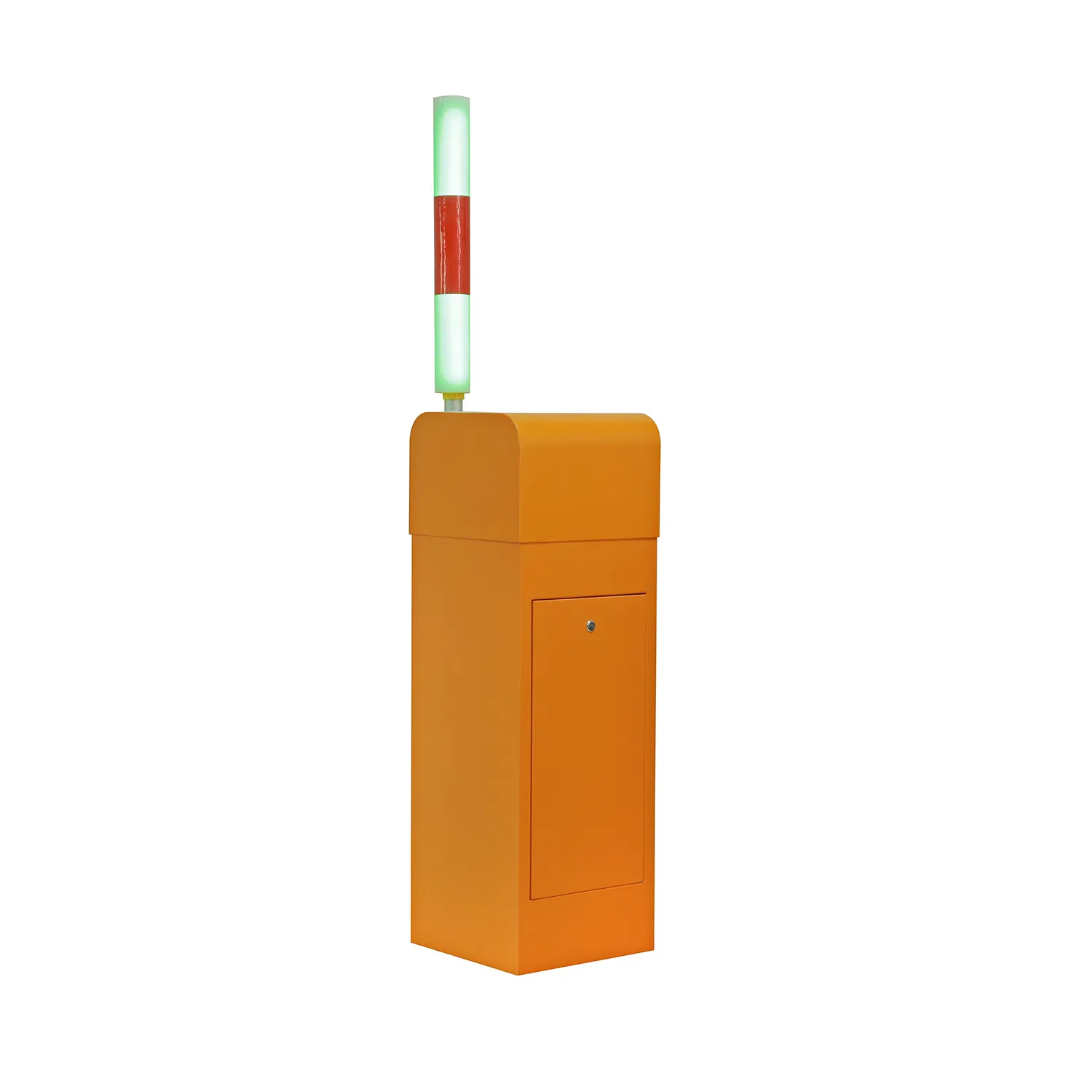

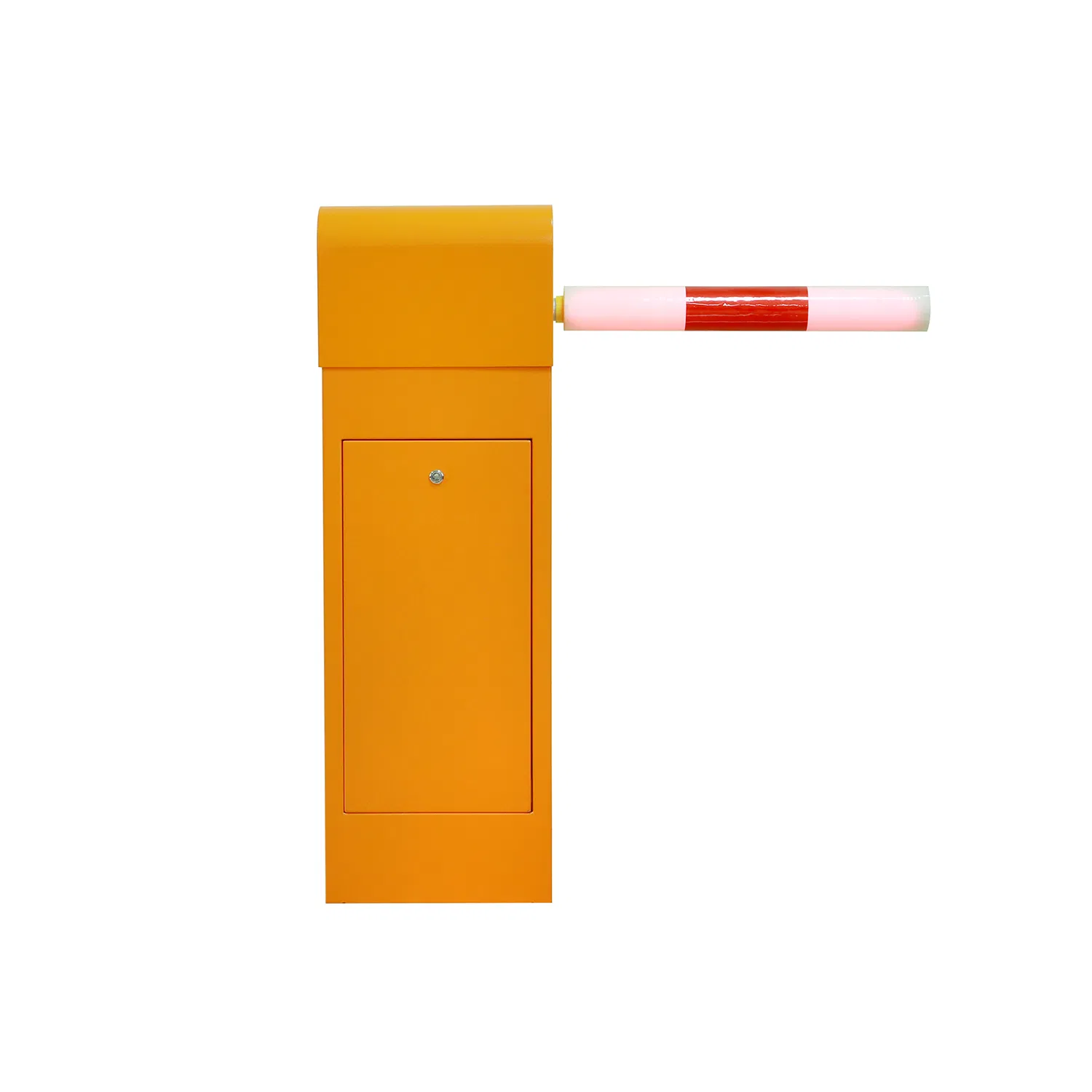

45-degree left side view

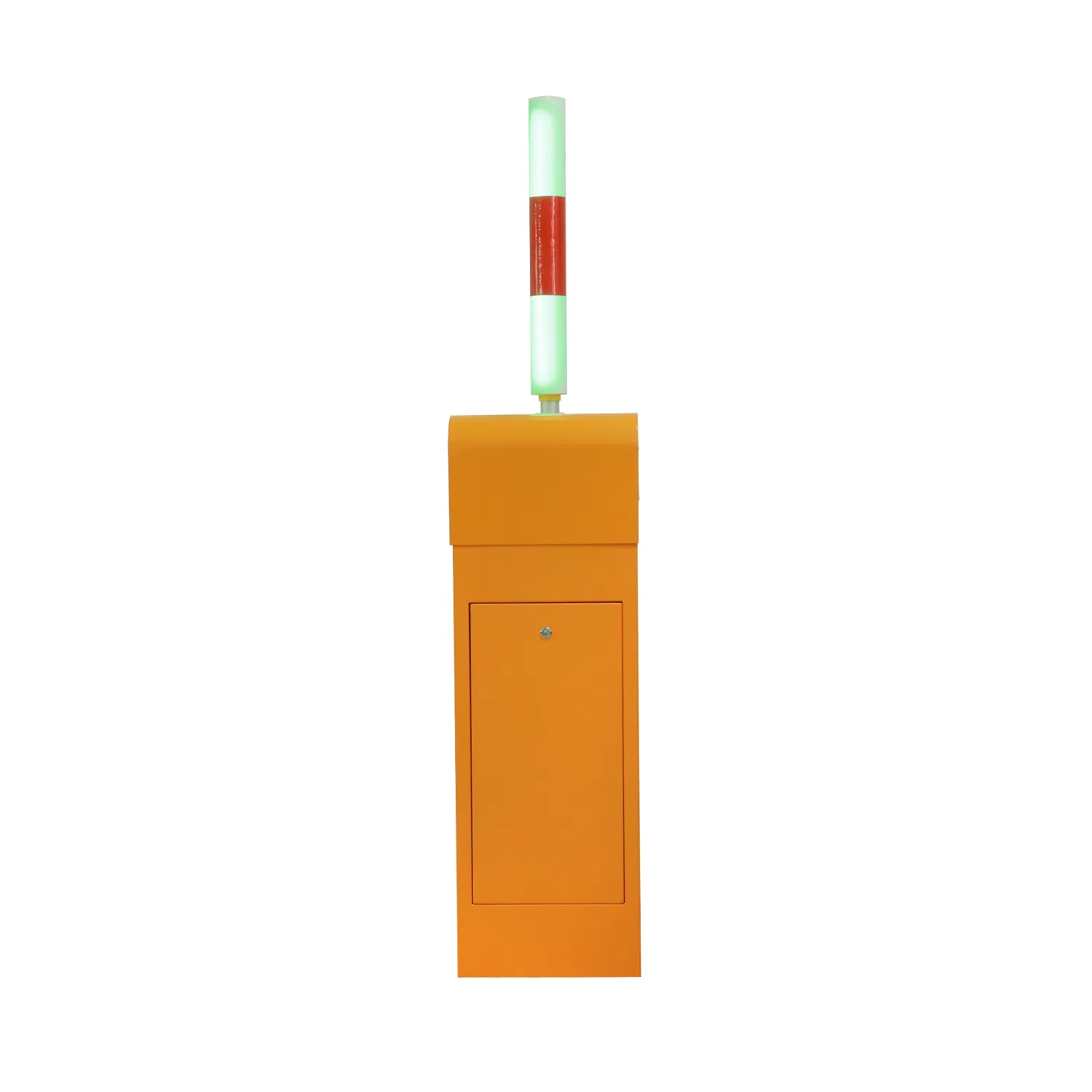

Front elevation
| Supply Voltage | AC220V+/-10% or AC110V |
| Power Frequency | 50/60Hz |
| Output Power | 80W |
| Rated Current | 0.55A |
| Rated Speed | 1500r/min |
| Rated Torque | 35N*m |
| Standard Lever Length | 3 - 6m |
| Noise | ≤60dB |
| Rising/Falling Time | 0.3s - 6s |
| Protection Class | IP55 |
| Temperature Range | -40℃ to +75℃ |
| Service Life | 5 million times |
Package: Export-standard wood carton
Delivery Date: 7-10 days post-payment confirmation
Approvals: CE, CCC, ISO 9001: 2015
Standard Warranty: 12 months.
Training: On-site (discussable) or remote operation/maintenance training for all clients.
