Product Overview
Post Fixation
Expansion Bolts
Degree of Distortion
Rigid Barrier
Product Dimensions
35cm*35cm*107cm
Supply Voltage
AC220V or AC110V
Service Life
5,000,000 Times
Remote Control Distance
50m
Production Capacity
10,000 PC/Year
High Speed Barrier Gate (SJS-PD Series)
This series adopts a small, lightweight high-speed AC torque motor with fast response and stable operation. It enables rod lifting at 0.9s speed, with adjustable directions for broader use. The built-in encoder ensures precision, longevity, and easy setup.
Key Features
High-speed AC torque motor: High-performance motor provides stable, strong power for efficient operation.
Compact Design: Small size and light weight with a refined equipment structure.
Stable Operation: Quick response to control commands with low vibration and noise.
Rapid Lifting: Maximum rod lifting speed of 0.9 seconds.
Safety Focus: Humanized design prevents hazards like pinching and collisions.
Versatile Installation: Left and right directions are adjustable to adapt to various scenarios.
High Precision: Built-in encoder ensures accurate gate rod positioning and long service life.
Visual Guidance: Integrated LED traffic indicators.
Flexible Arm Types: Supports Straight, Articulated, Fence, and Telescopic arms.
Product Perspectives

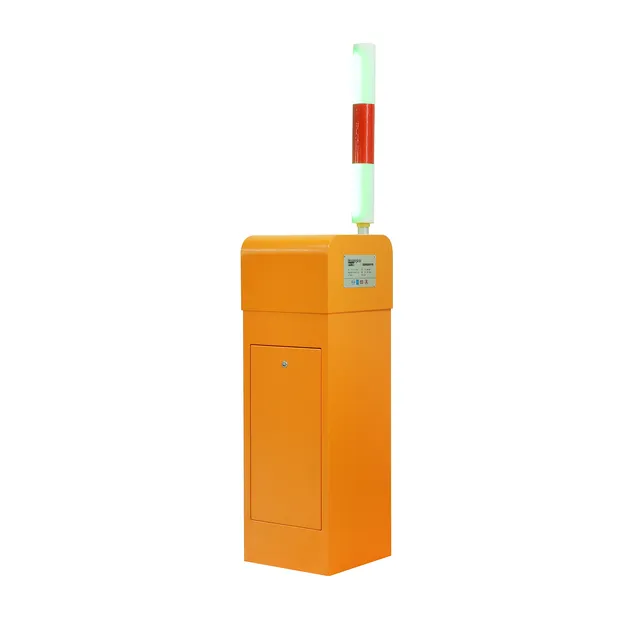

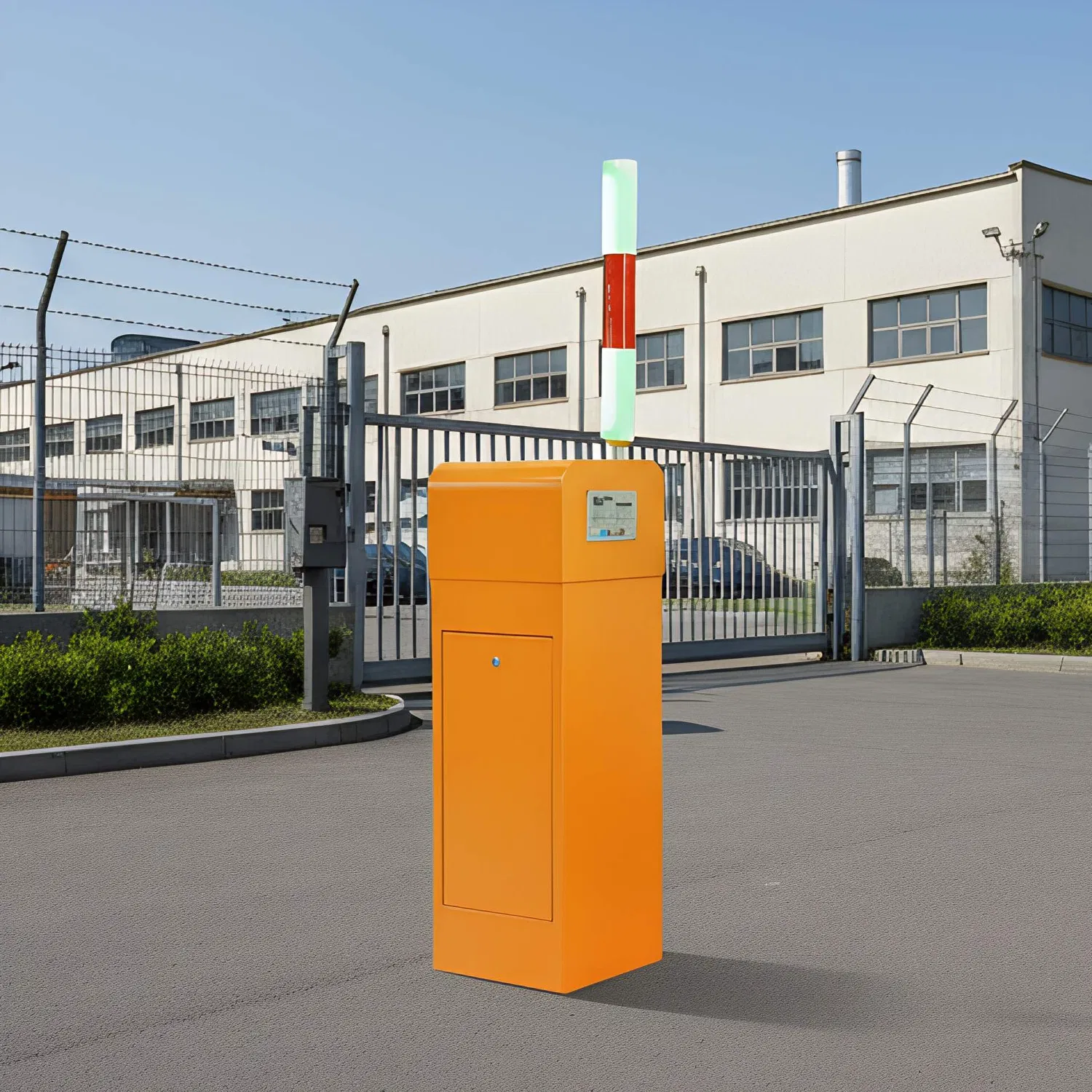

45-degree right side view

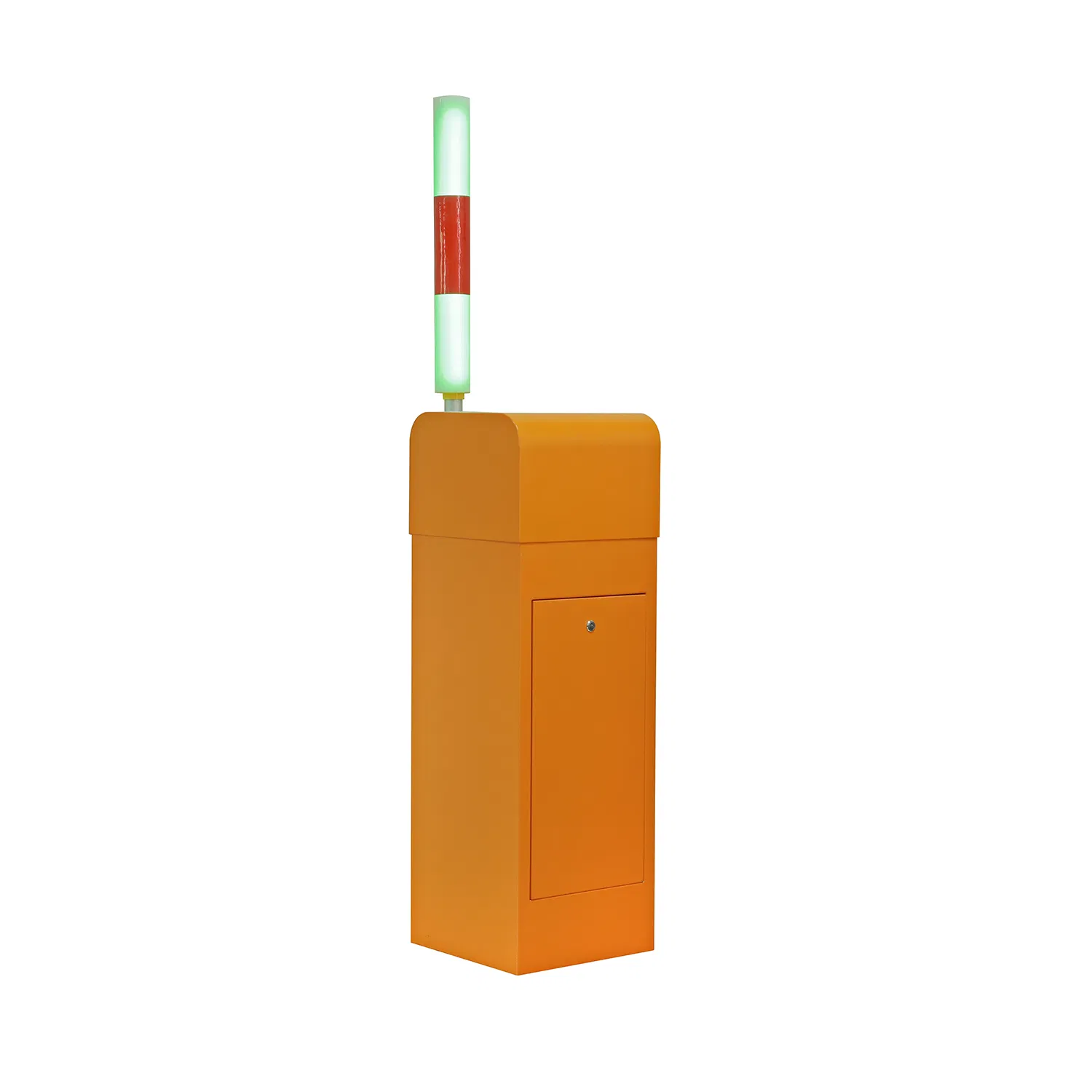

45-degree left side view

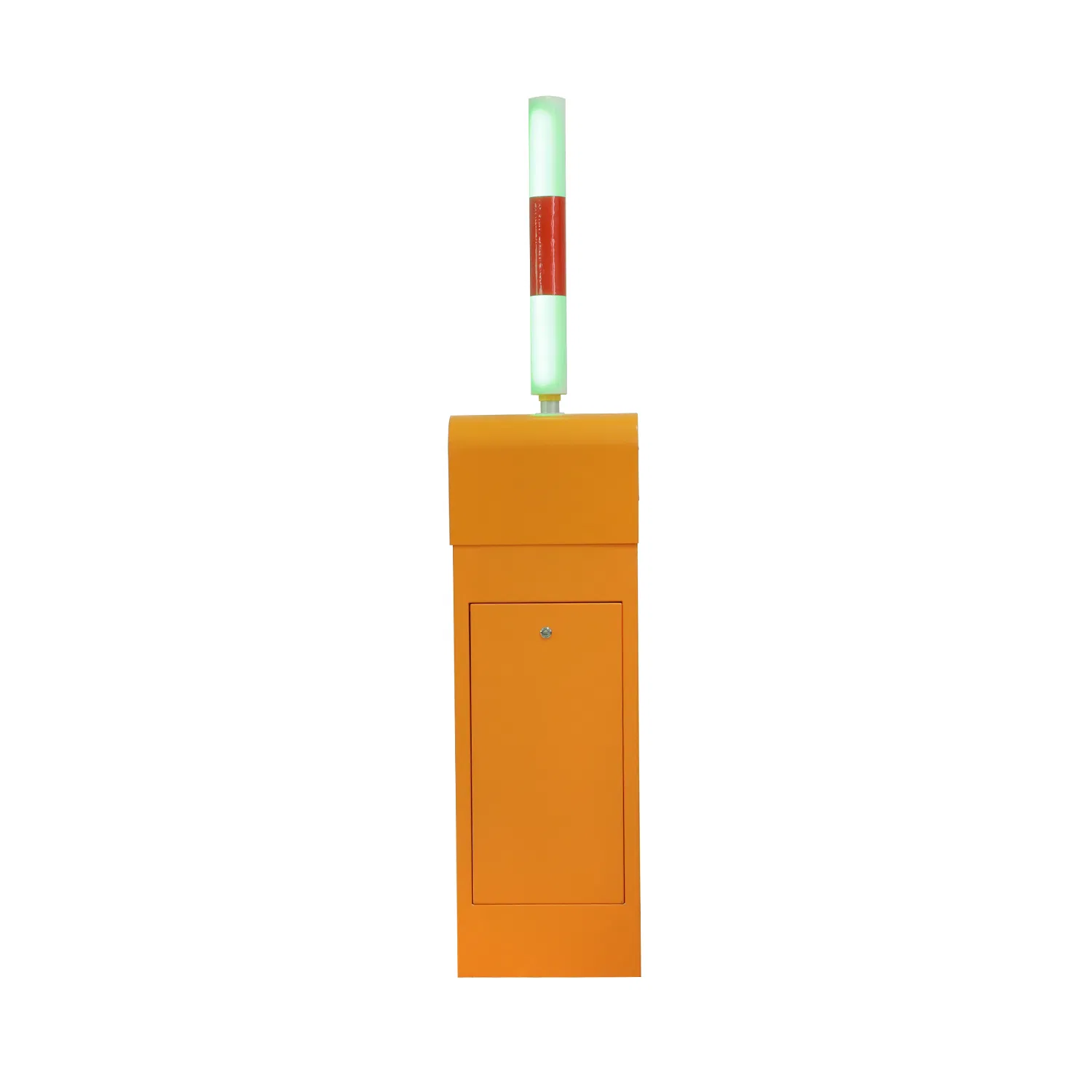

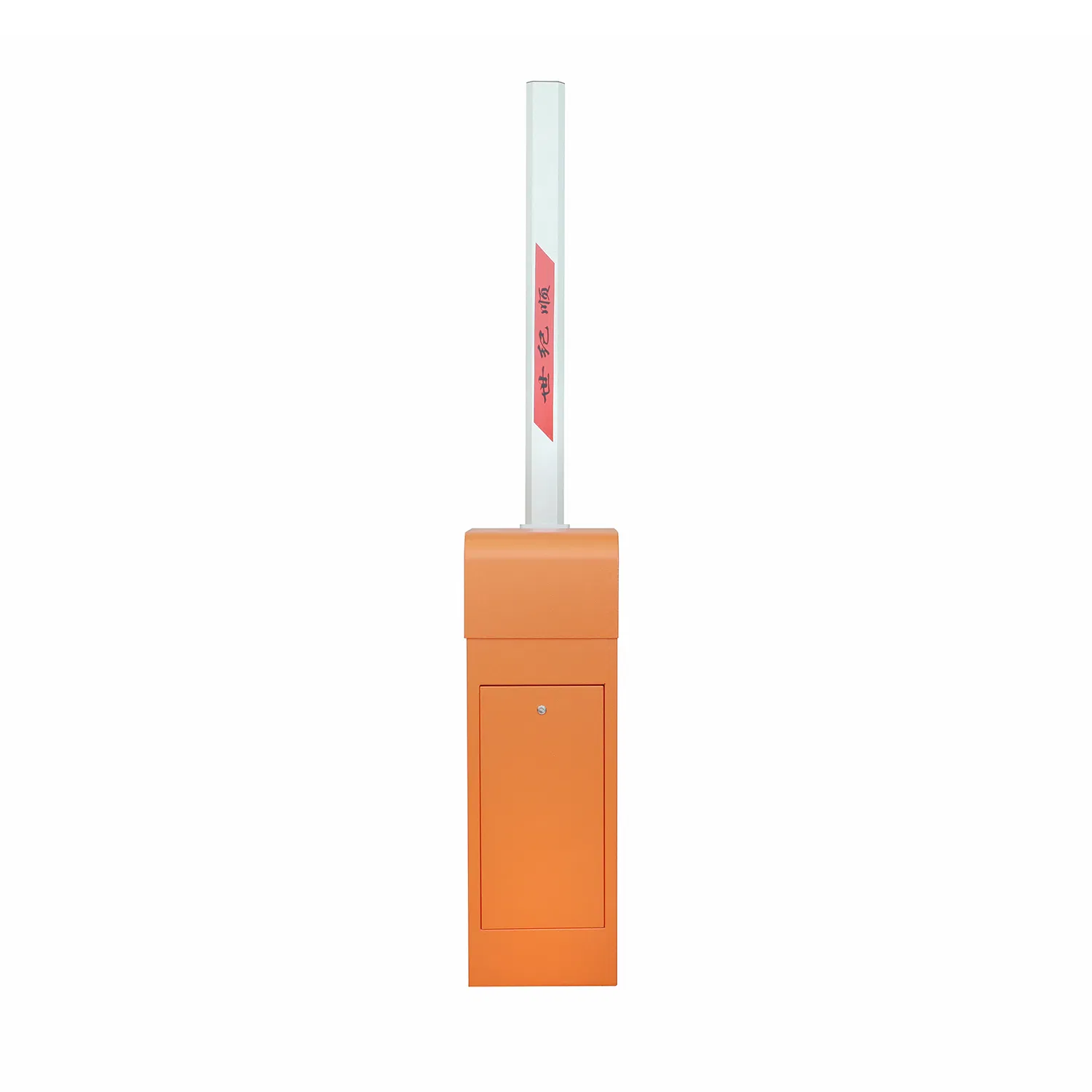

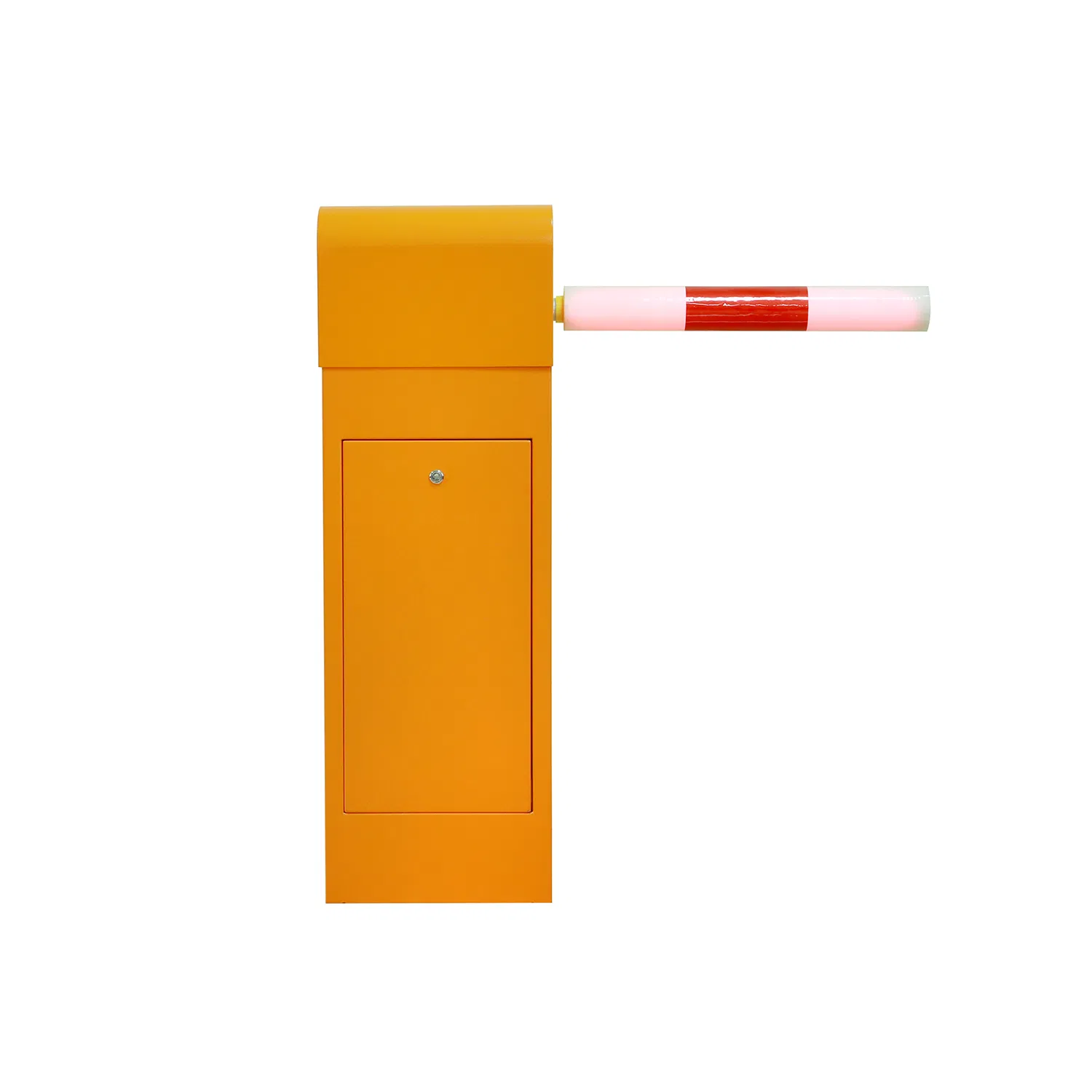

Front elevation
Technical Specifications
| Supply Voltage | AC220V+/-10% or AC110V |
| Power Frequency | 50/60Hz |
| Output Power | 80W |
| Rated Current | 0.55A |
| Rated Speed | 1500r/min |
| Rated Torque | 35N*m |
| Standard Lever Length | 3 - 6m |
| Noise Level | <=60dB |
| Rising/Falling Time | 0.3s - 6s |
| Service Life | 5 million times |
| Protection Class | IP55 |
| Temperature Range | -40℃ to +75℃ |
| Humidity | ≤95% |
| Remote Control Distance | ≤50m |
Logistics & Service
Package: Export standard wood carton
Delivery: 7-10 days after payment confirmation
Payment Terms: 50% T/T in advance, 50% balance before shipment
Certifications: CE, CCC, ISO 9001: 2015
OEM/ODM: Service available upon request
After Sales Service
Standard Warranty: 12 months.
Training: Comprehensive support via remote operation or on-site maintenance training as discussed.
Frequently Asked Questions
Q1: What is the maximum opening speed of the barrier gate?
A: The high-speed AC torque motor allows for a maximum rod lifting speed of 0.9 seconds.
Q2: Can the gate handle high-frequency usage?
A: Yes, the system is designed for a service life of up to 5,000,000 operation cycles, making it ideal for busy parking lots and toll stations.
Q3: Is the arm direction interchangeable?
A: Yes, the arm direction is adjustable between left and right to suit different site layouts and installation requirements.
Q4: What types of arms are available for this series?
A: We offer multiple arm types including straight, articulated, fence, and telescopic arms to meet various obstruction needs.
Q5: What safety features are included?
A: The gate features a humanized safety design to prevent pinching and collisions, along with built-in high-precision encoders for accurate positioning.
Q6: What are the environmental operating limits?
A: The equipment is designed to operate reliably in temperatures ranging from -40℃ to +75℃ and humidity levels up to 95%.
