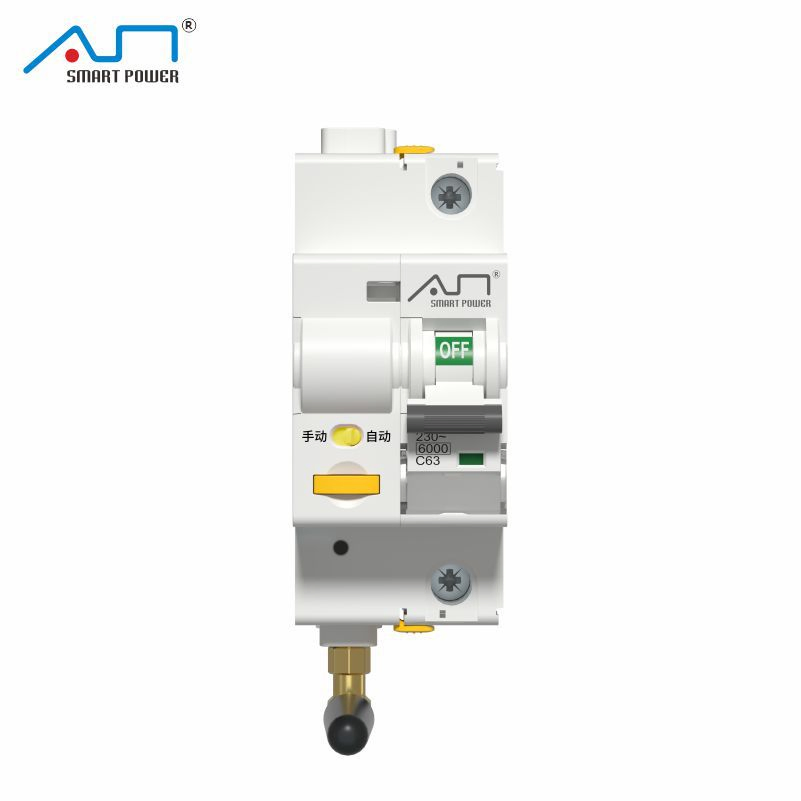

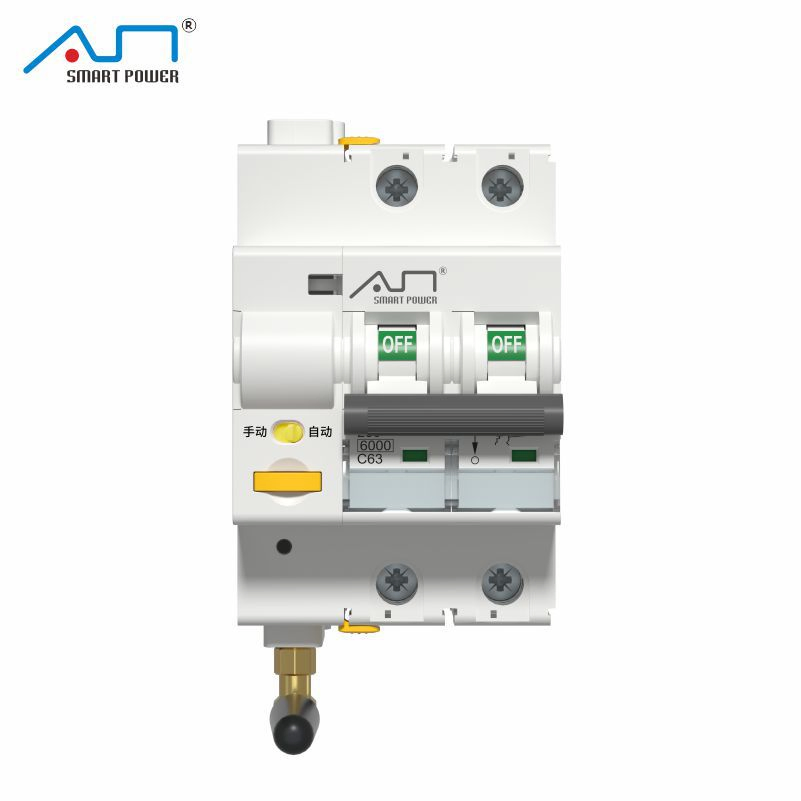

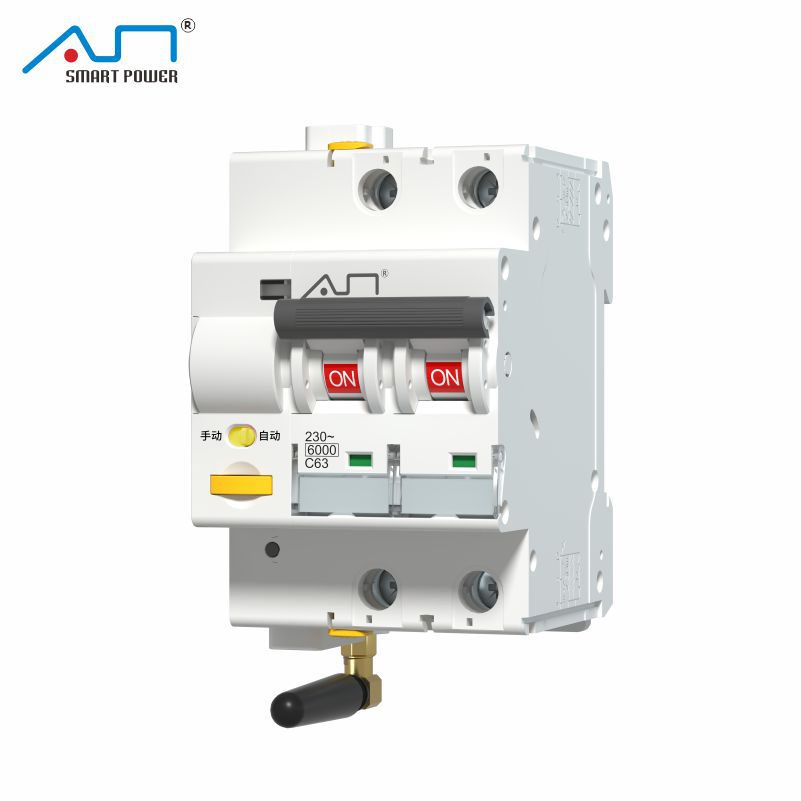

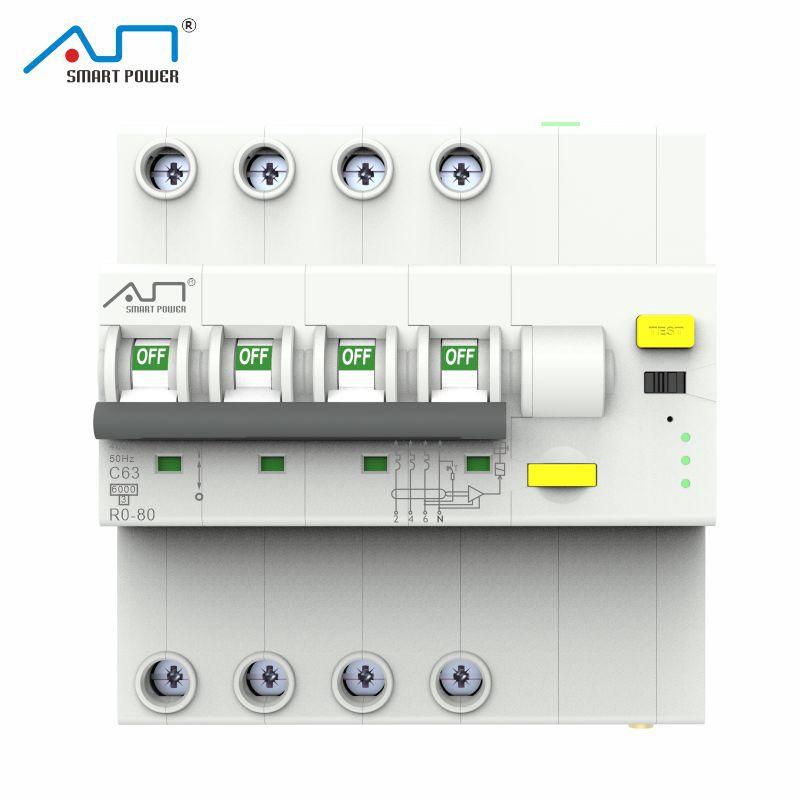

Advanced Circuit Breaker Solutions for Enhanced Electrical Protection

Customization:	Available
a:	63
Transport Package:	Carton

Send Inquiry

Product Description

Basic Information

Model NO.

63*63*1P+N*6*AC230*

Specification

7.5*9.5*12.5cm

Trademark

none

Origin

China

Packaging & Delivery

Package Size

7.50cm * 9.50cm * 12.50cm

Gross Weight

0.400kg

Product Description

High-Performance Hydraulic Excavator

Introducing our high-performance hydraulic excavator, meticulously engineered to deliver unmatched durability, efficiency, and versatility across construction, mining, and earthmoving projects. Armed with cutting-edge technology and constructed with robust materials, this excavator guarantees outstanding digging force, seamless operation, and optimal fuel efficiency. Tailored for heavy-duty applications, it promises exceptional performance across diverse terrains and challenging working conditions.

Technical Parameters

Air Temperature: Upper limit +40 ℃; Lower limit above -5 ℃. Average over 24h ≤ +35 ℃.
Extreme Operational Range: -25 ℃ to +70 ℃.
Altitude: Installation site altitude must not surpass 3000 meters.
Atmospheric Conditions: Relative humidity ≤ 50% at +40 ℃.
Pollution Class: Class 2 (primarily non-conductive pollution).
Mounting: Compatible with mounting classes II and III.

Key Ratings:
• Rated Voltage: AC230V/400V
• Current Shell Frame: 63A
• Breaking Capacity: Ics 6000A
• Rated Current (In): 16A, 25A, 32A, 40A, 50A, 63A
• Lifespan: Mechanical (10,000 cycles), Electrical (6,000 cycles)

Technical Specifications Table

No.	Type of Release Device	Rated Current (In)	Initial State	Test Current	Set Time	Expected Results
1	BCD	In≤63A	Cold	1.13In	≥1h	Not Trip
2	BCD	In≤63A	Hot	1.45In	≤1h	Trip
3	BCD	In≤32A	Cold	2.55In	1s < t < 60s	Trip
4	B / C / D	All	Cold	3In / 5In / 10In	≥0.1s	Not Trip
5	B / C / D	All	Cold	5In / 10In / 20In	<0.1s	Trip

Operational Notes

Ensure the circuit breaker is shielded from rainwater during transit and storage.
Regularly remove dust and dirt for optimal performance.
Verify technical specifications on the nameplate before operation.
Do not disassemble or adjust the device without professional guidance.
Ensure the neutral wire is correctly connected.
Tighten connecting screws thoroughly to avoid poor contact.
