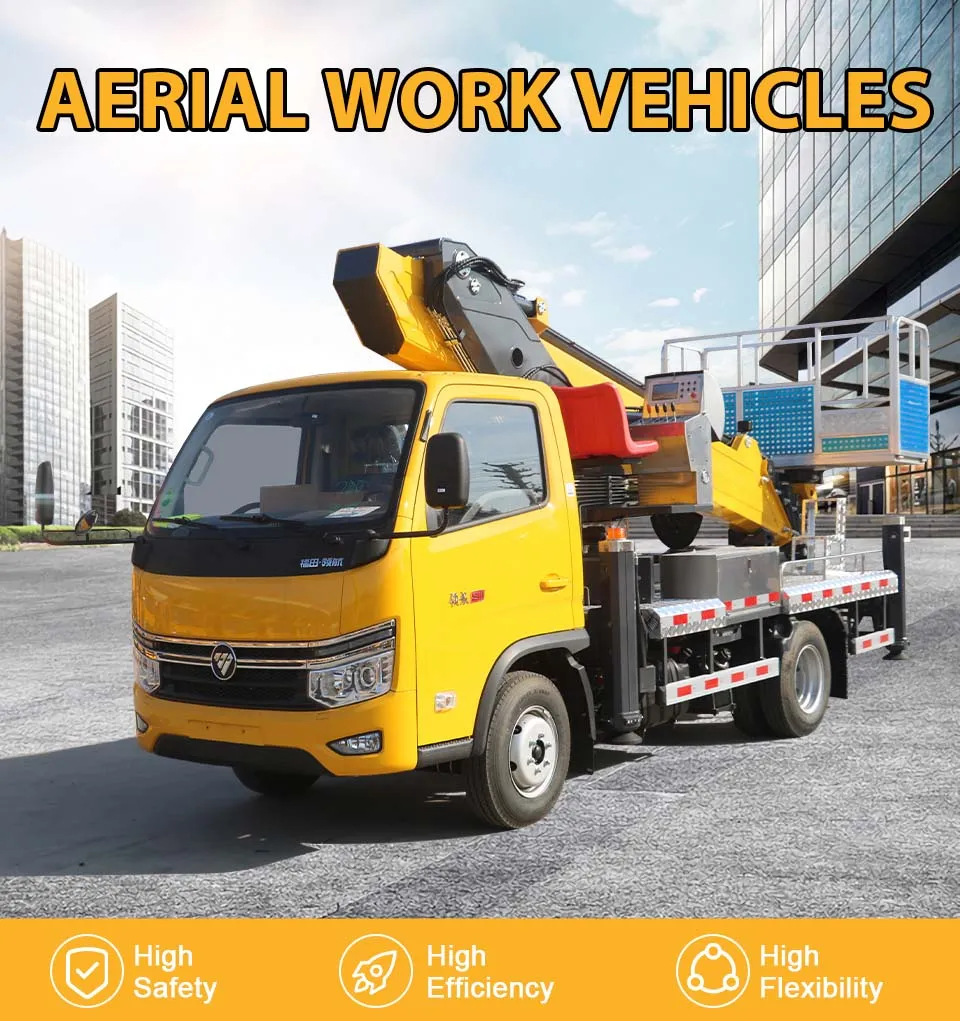

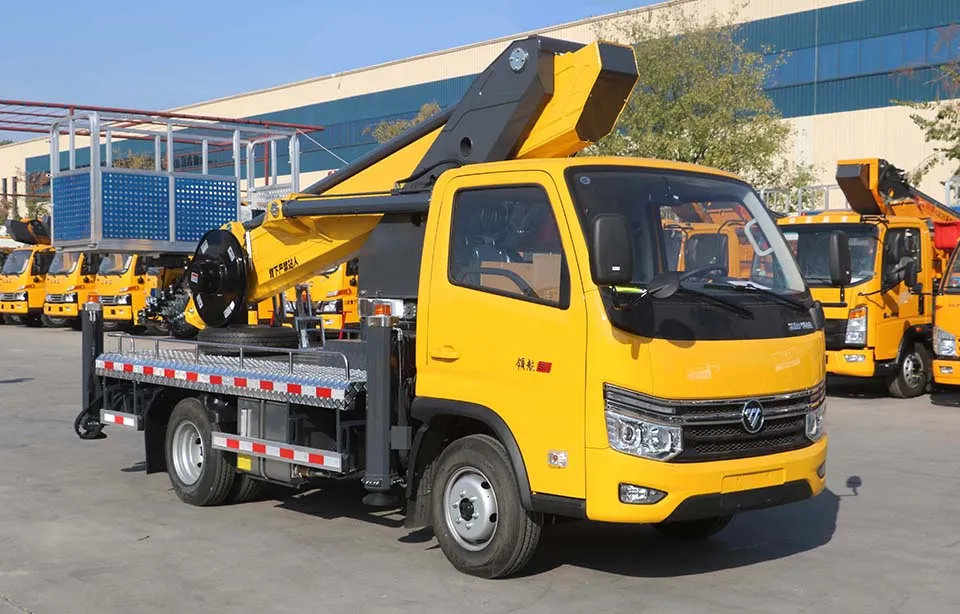

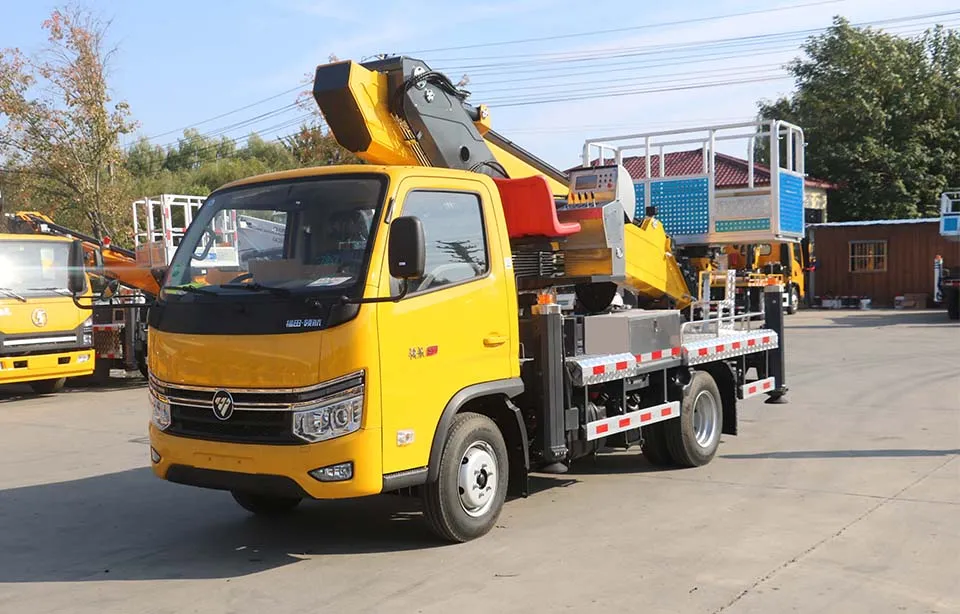

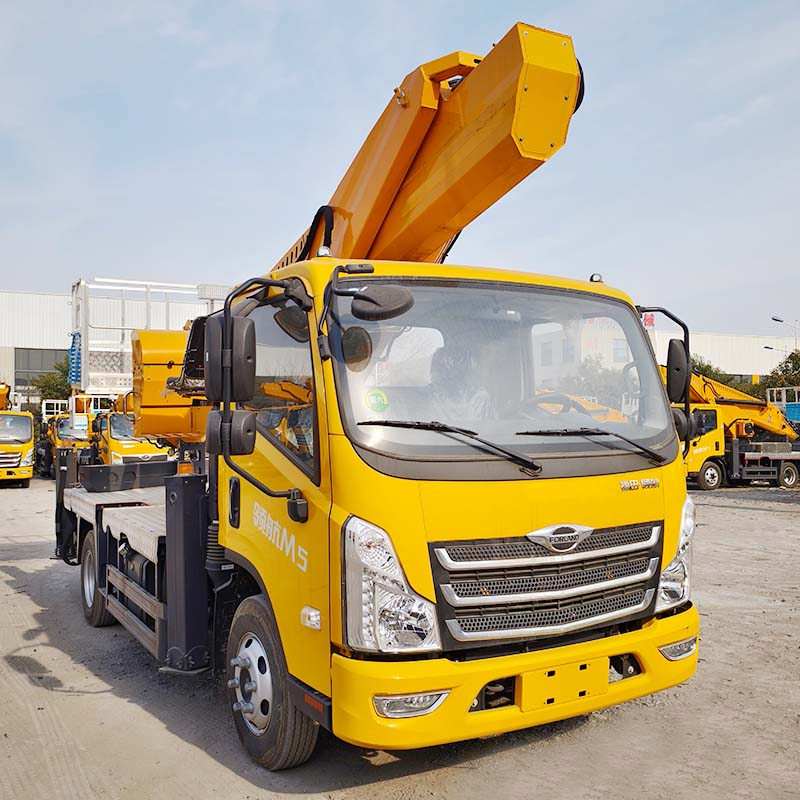

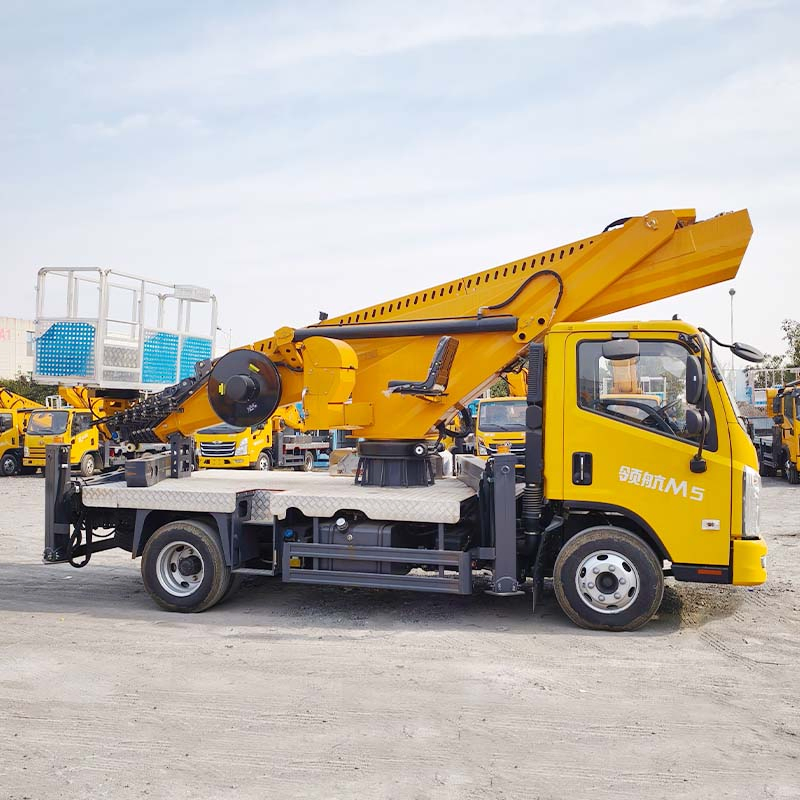

Aerial work vehicle Features:
Aerial Work Capability: Capable of safely and reliably lifting personnel and tools to a designated height for aerial work.
Maneuverability: Usually mounted on a vehicle chassis, these boom lifts offer excellent maneuverability and flexibility, allowing for easy movement between locations.
High Safety: Equipped with a variety of safety features, such as outrigger leveling, to ensure worker safety during operations.
Versatility: Some boom lifts also feature 360-degree rotation, leveling capabilities, and heavy lifting capabilities to meet diverse operational needs.

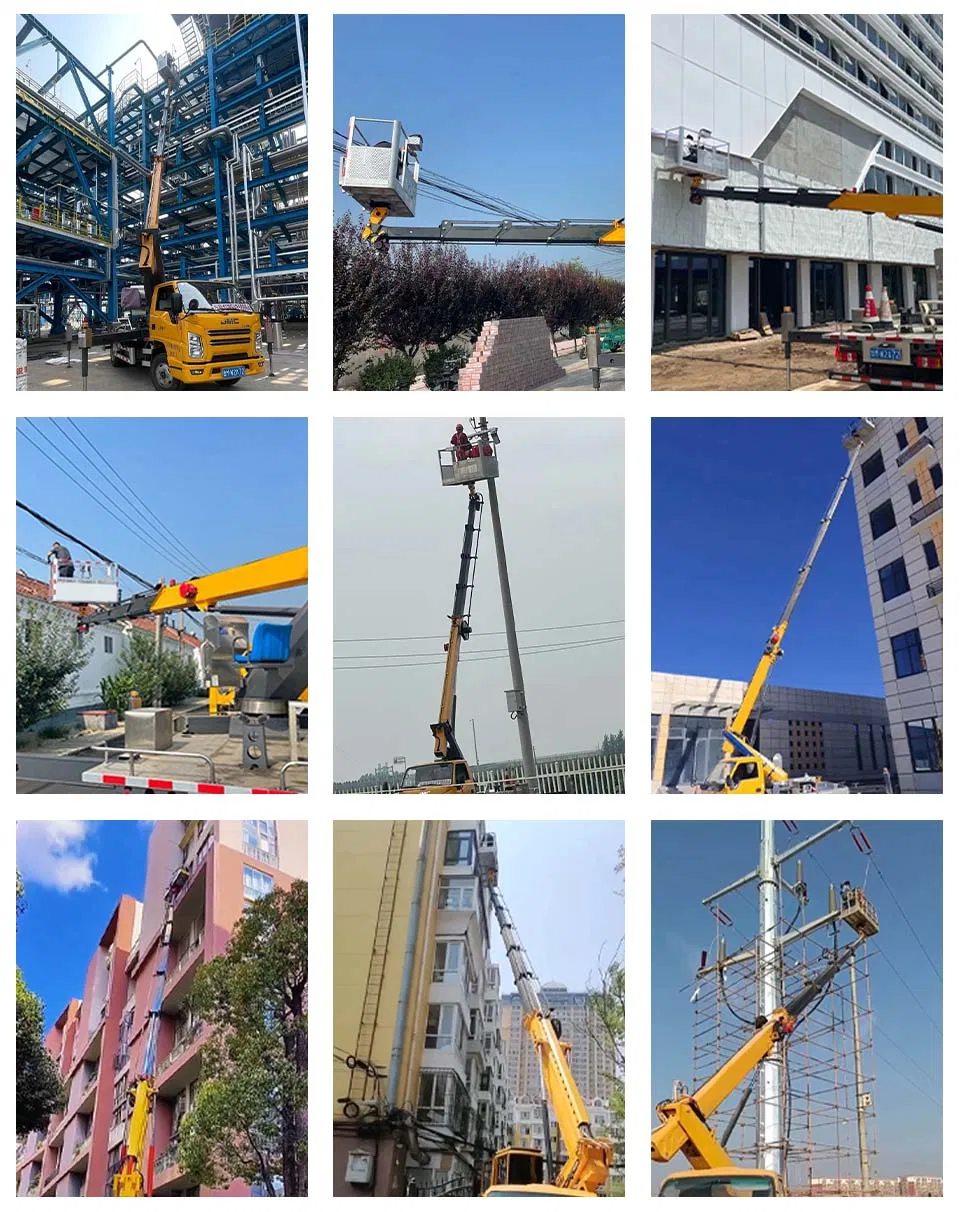

Wide Applications: These boom lifts are widely used for aerial work in the power, municipal, landscape, and transportation sectors.
| Chassis Specifications |
| Chassis | Futian | Howo | JAC |
| Engine | Quanchai 122hp | Weichai 140hp | JAC Ruijie 130hp |
| Gearbox | Wanliyang 5-speed | Wanliyang 5-speed | Wanliyang 5-speed |
| Wheelbase | 2800mm | 3280mm | 2850mm |
| Weight | 4500KG | 4500KG | 4500KG |
| Aerial Work Platform Specifications |
| Max Operating Height | 30.5 meters | 33.5 meters | 45m / 60m |
| Max Working Radius | 15 meters | 18 meters | 25m / 30m |
| Rated Load | 200KG | 200KG | 300kg |
| Boom Rotation | 360° | 360° | 360° |
| Boom Type | 7-section | 9-section | 9-section |

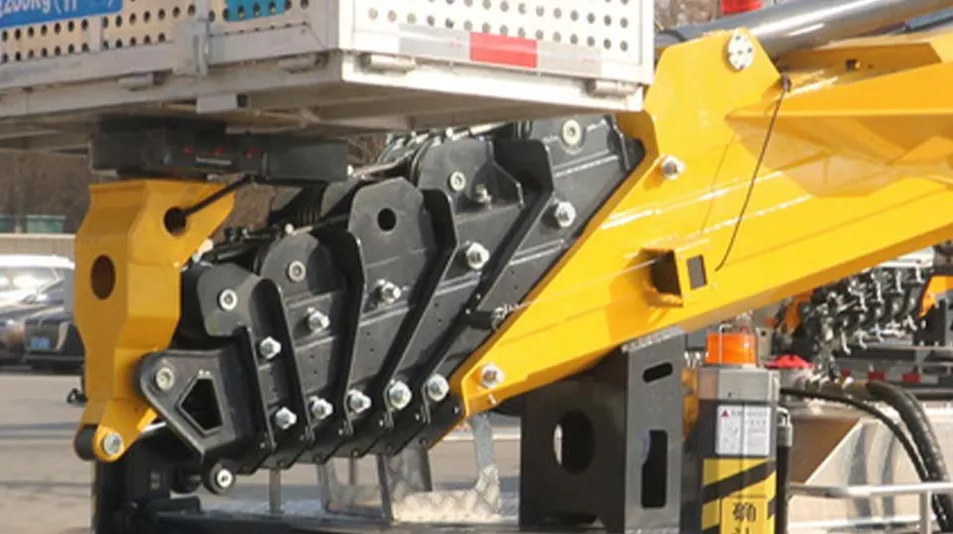

Leveling device
The work platform will achieve indiscriminate leveling based on the changes in the oil cylinder driven by the lifting and lowering of the boom.

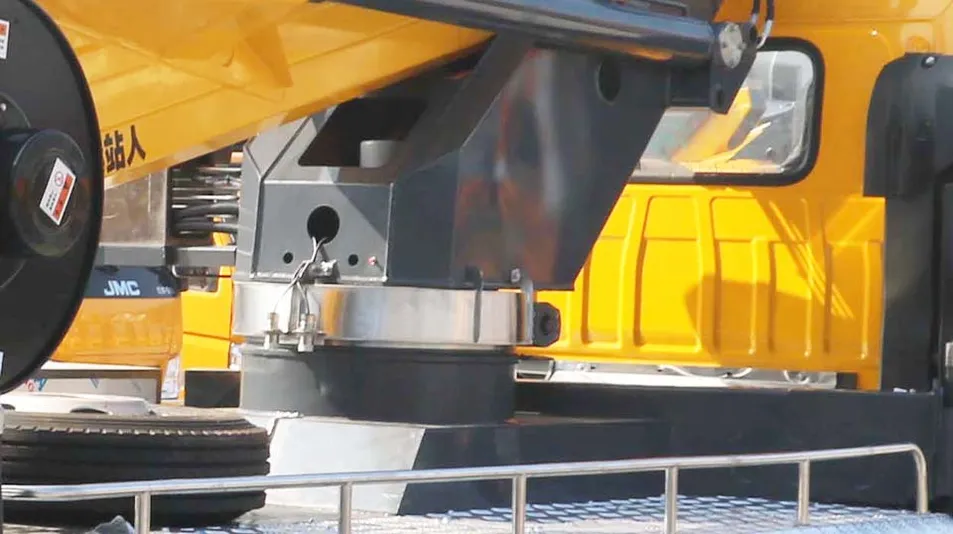

Horizontal rotation
Horizontal large rotation during vehicle operation can enhance stability, grip, and smooth rotation.

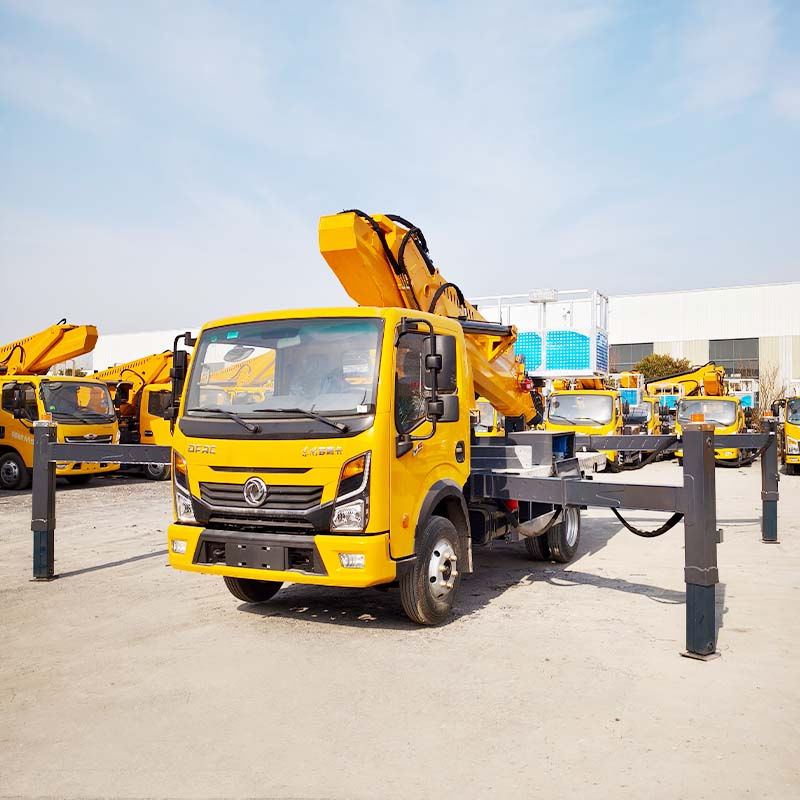

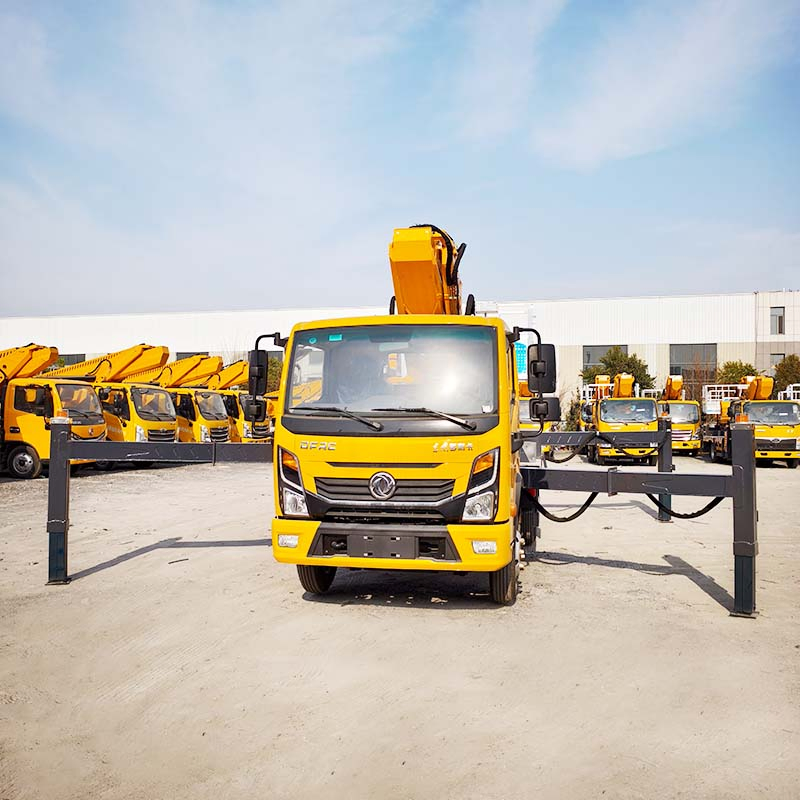

Hydraulic support leg
The distribution of focus points is even, and the center of gravity is more stable to adapt to complex terrain.

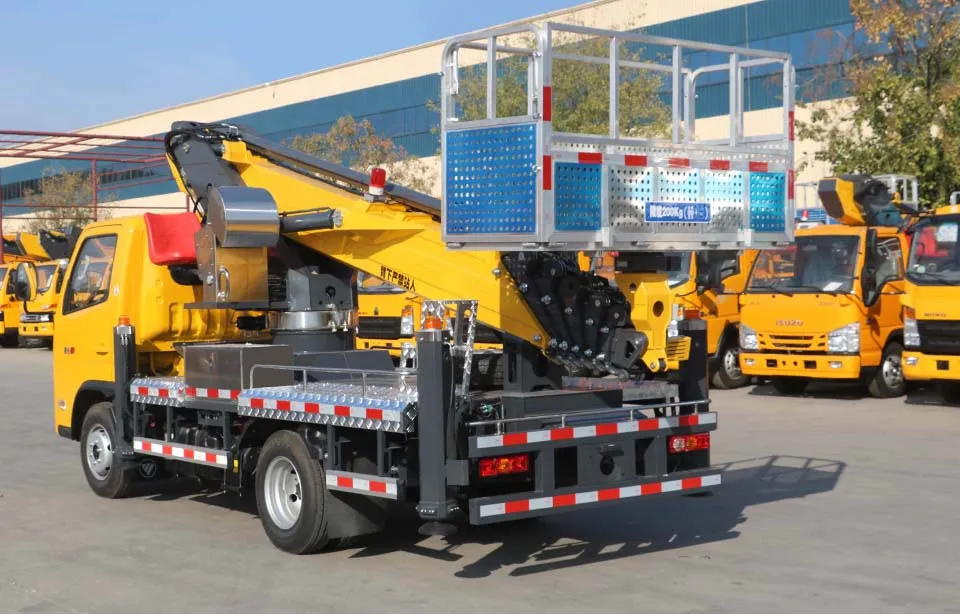

Safety Platform
Equipped with automatic leveling function, 360 rotation, and overload protection for safer operations.
?
Frequently Asked Questions
How many years of factory experience do you have?
We have 20 years of production experience and nearly 10 years of export experience, having served more than 120 countries and regions.
What types of payment are accepted?
Normally, both T/T and L/C at sight are acceptable for our transactions.
What is the estimated delivery time?
Delivery typically takes 7-40 working days after receiving the 30% T/T deposit or L/C.
What is the standard warranty period?
The standard warranty is 1 year. For large quantity orders, terms can be negotiated.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set.
Do you offer product customization?
Yes, we provide customization based on your requirements, including boom length, engine configuration, and more.
