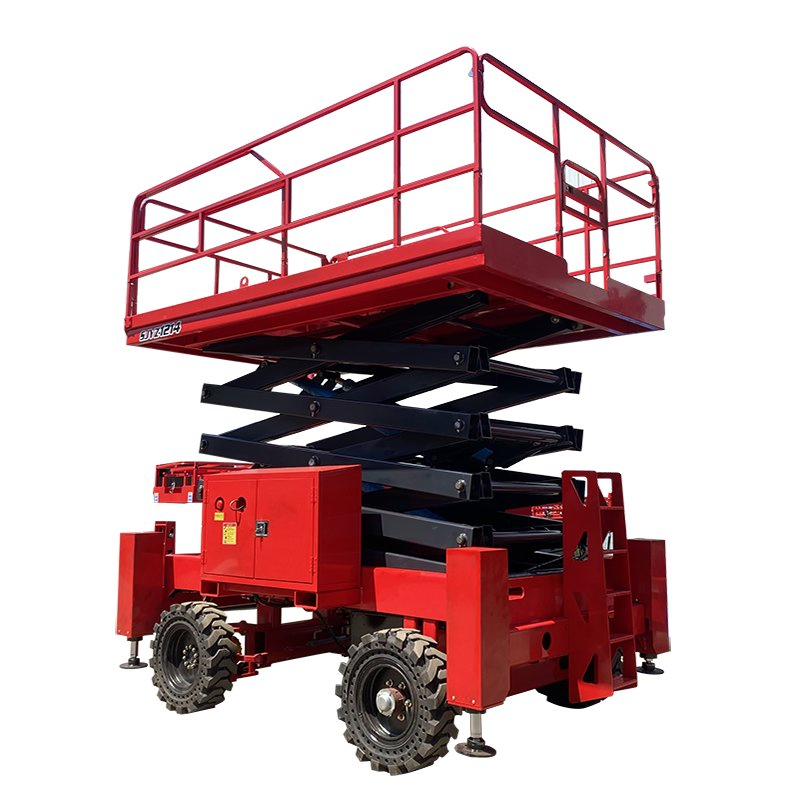

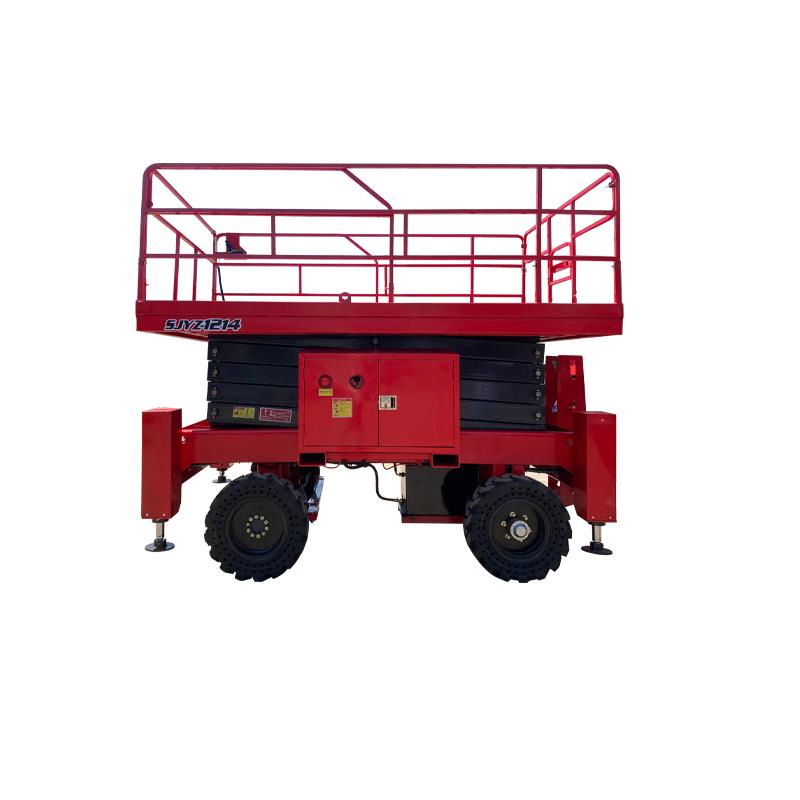

320kg Capacity Electric Mobile Scissor Lift Manlift Mobile Platform Rough Terrain Elevated Work Platform

1 / 5

320kg Capacity Electric Mobile Scissor Lift Manlift Mobile Platform Rough Terrain Elevated Work Platform

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📘 Basic Information

Lift Mechanism

Scissor Lift

Carrying Capacity

Weight Level

Moves

Moving

Driven Type

Hydraulic

Power Source

24V DC or 48V

Travel Speed (Raised)

0.5km/H

Table Size

2270*1120mm

Load Capacity

320kg-450kg

Working Height

6-12m

Extend Platform

900mm

Weight

1460kg-3600kg

Production Capacity

8000 Pieces Per Month

🏗️ Product Description

Key Advantages:

Lifting height ranging from 6m to 16m to suit various industrial needs.
Electric model available in both Wheel or Track configurations.
Specialized Rough Terrain Crawler design for challenging environments like grasslands and rough construction grounds.
Robust crawler system ensures excellent stability and accessibility across obstacles.

Model	DX06LD	DX08LD	DX10LD	DX12LD
Capacity	450kg	450kg	320kg	320kg
Extendable Platform Cap.	113kg	113kg	113kg	113kg
Max Platform Height	6m	8m	9.75m	11.75m
Max Working Height	8m	10m	12m	14m
Overall Length	2470mm	2470mm	2470mm	2470mm
Overall Width	1390mm	1390mm	1390mm	1390mm
Platform Size	2270*1120mm	2270*1120mm	2270*1120mm	2270*1120mm
Extendable Length	900mm	900mm	900mm	900mm
Lifting Motor	48v/4kw	48v/4kw	48v/4kw	48v/4kw
Travel Motor	2*48v/4kw	2*48v/4kw	2*48v/4kw	2*48v/4kw
Net Weight	2400kg	2550kg	2840kg	3000kg

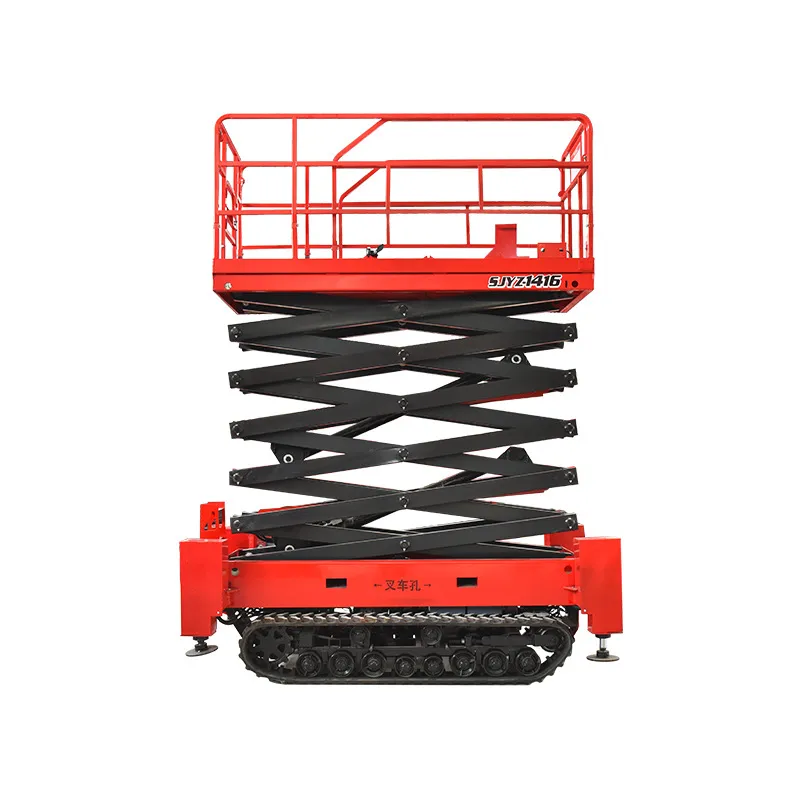

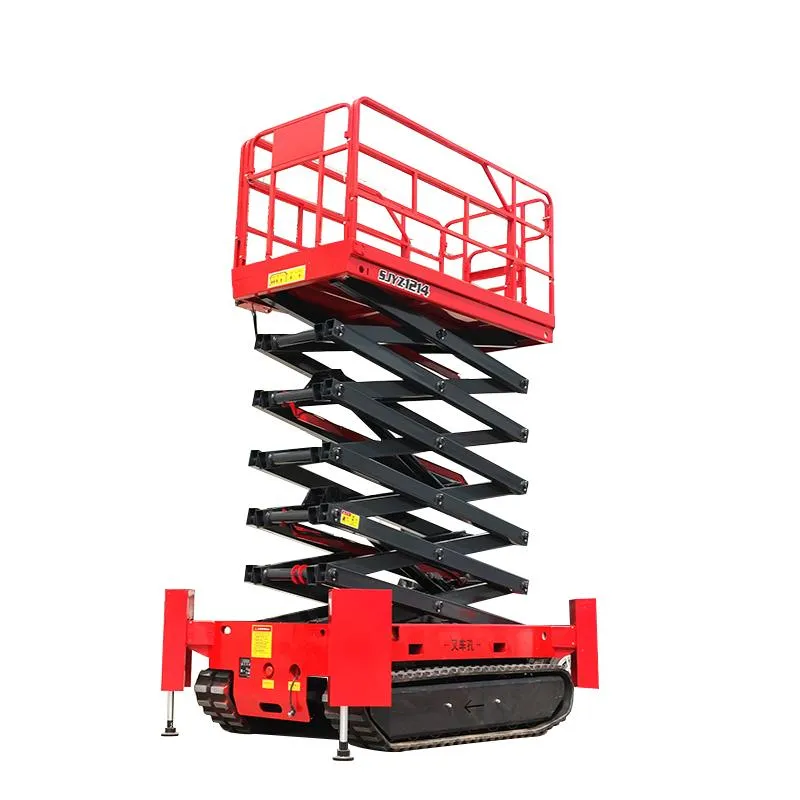

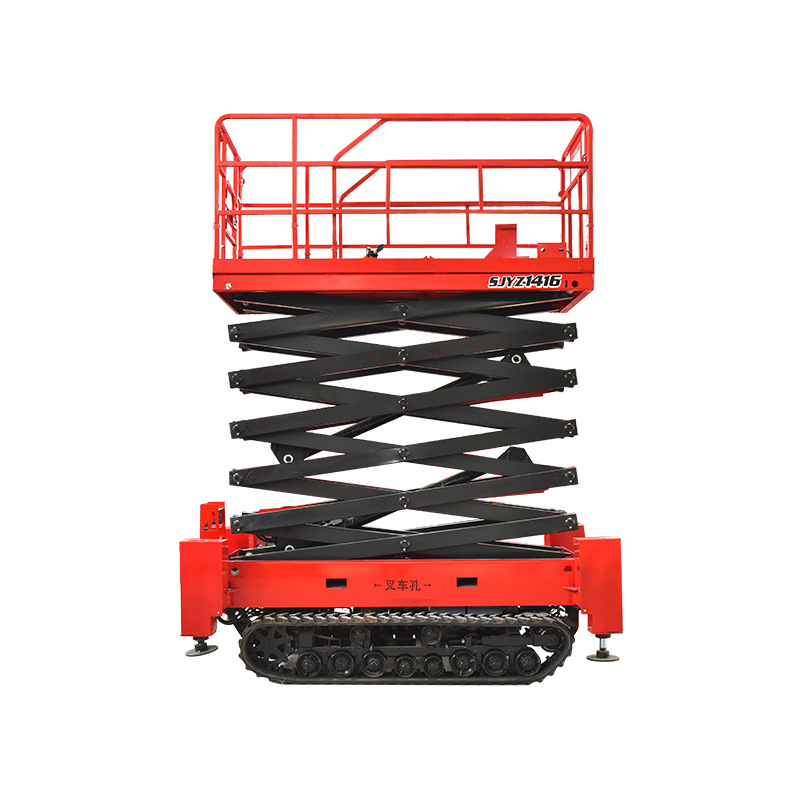

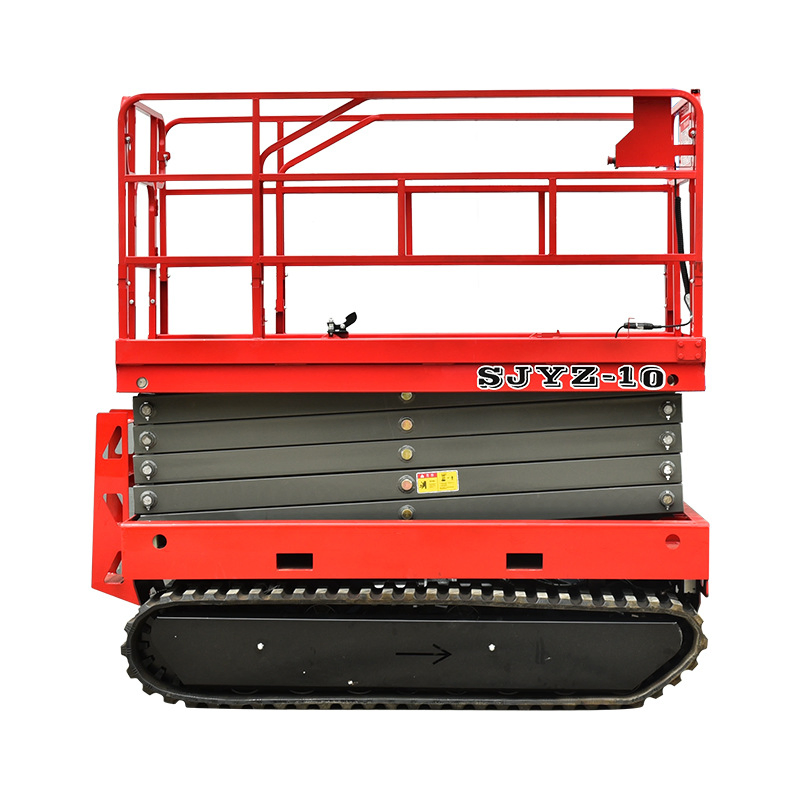

The Rough Terrain Crawler Scissor Lift is specifically engineered for difficult working conditions. Its unique crawler tracks provide the necessary traction and stability to navigate across rough obstacles, construction debris, or uneven soil where traditional wheeled lifts might struggle.

❓ Frequently Asked Questions

What is the maximum working height of this scissor lift?

Depending on the model, the maximum working height ranges from 8 meters up to 14 meters.

Can this lift be used on uneven or soft ground?

Yes, the crawler-type design is specifically made for rough terrain, including grasslands and construction sites where wheels might get stuck.

What is the load capacity of the platform?

The load capacity varies by model, supporting weights between 320kg and 450kg.

Does the platform have an extension feature?

Yes, it includes an extendable platform of 900mm to provide extra horizontal reach for workers.

What power source does the lift use?

The lift is powered by an electric system using 24V DC or 48V batteries, making it suitable for both indoor and outdoor use.

Is the lift easy to transport?

Yes, it is designed to be packed securely in wooden boxes or standard containers for safe international transport.
