Uvis02 Under Vehicle Inspection Camera Waterproof Camera Inspection CCTV Camera

Customization:	Available
Technology:	Infrared
Style:	Dome Camera

Basic Specifications

Model NO.

UVIS02

Type

Normal

Sensor

CMOS

HDMI Format

480P

Horizontal Res.

480tvl

Kind

Security Camera

Certification

CE, RoHS

Feature

High Definition

Color

Black

Portable

Yes

Warranty

12 Months

Origin

China

Product Description

The Under Vehicle Inspection Camera is a video camera designed for security professionals for the inspection of a vehicles undercarriage. The system was created to provide a method to quickly and easily visualize the entire underside of a vehicle. Incorporating a high-resolution color video camera with a fully integrated illumination system this system provides the user with a clear view in any lighting condition, day or night.

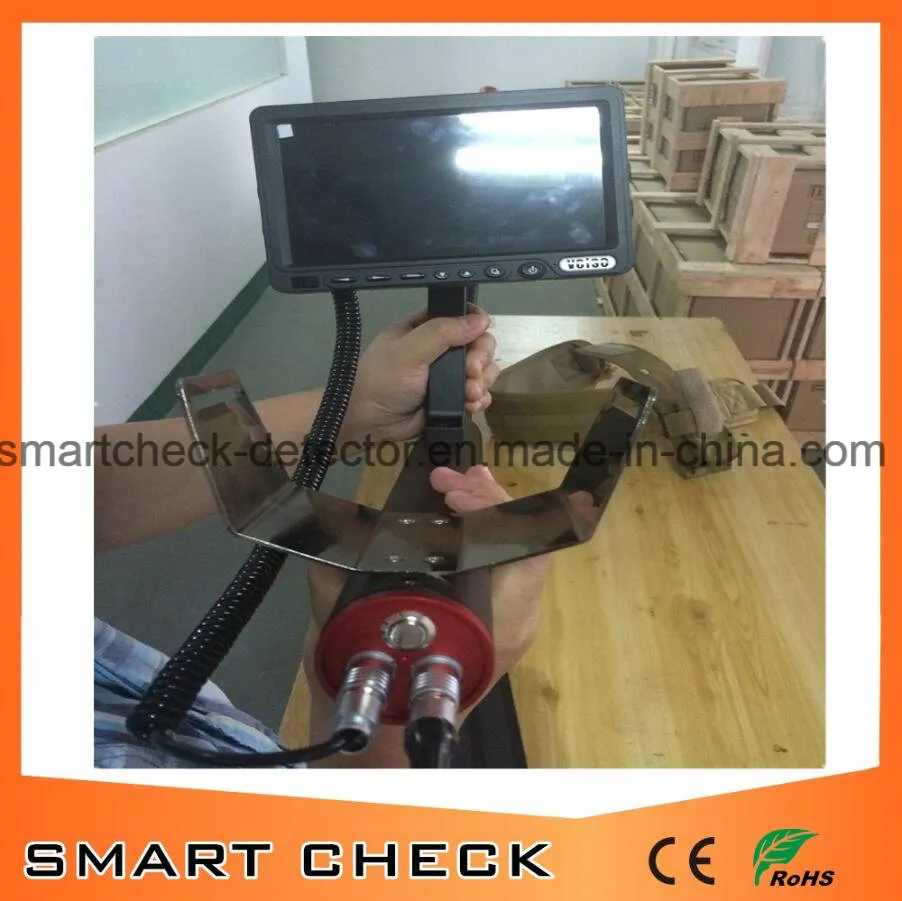

The system can be used with the color LCD display attached for efficient one hand operation, while operational flexibility is maximized by the display's ability to detach. With optional display extension cables, the display can be used over 30' away from the probe. It is an ideal piece of equipment for border crossings, airports, shipping ports, military bases, and embassies.

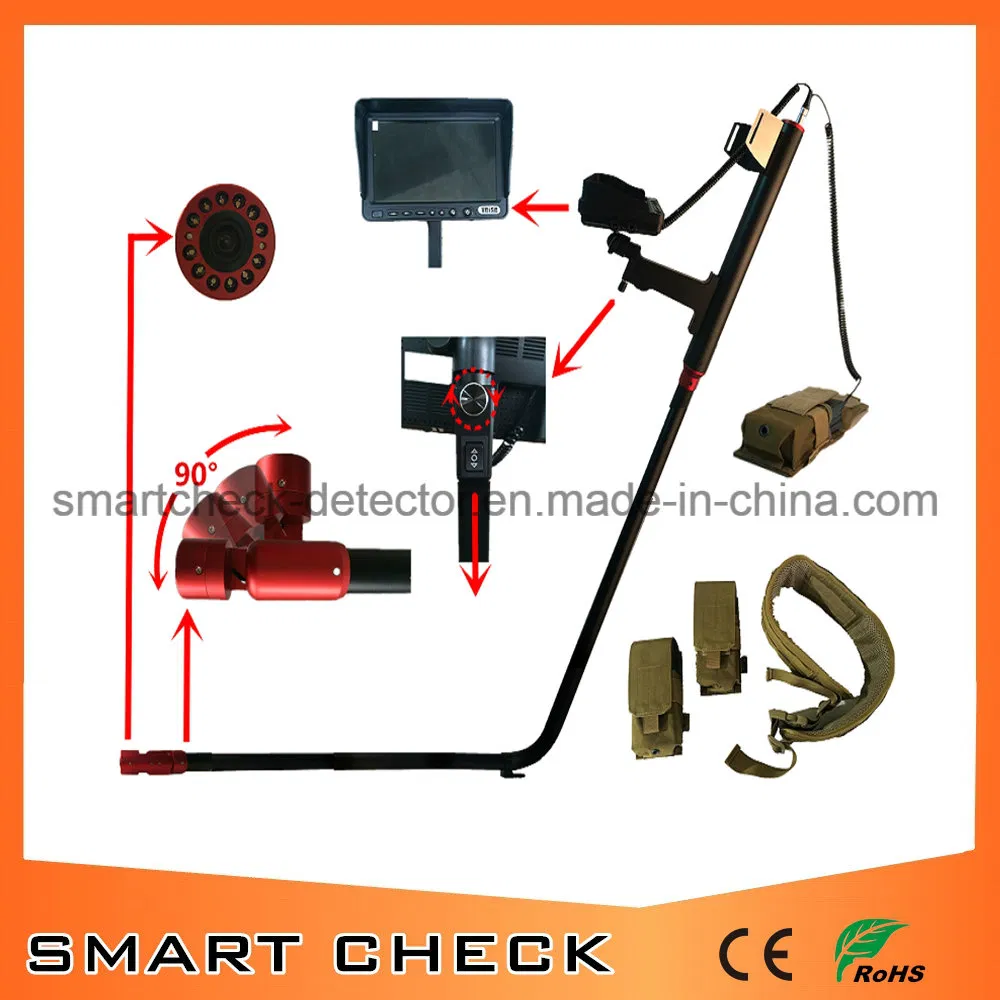

Under Vehicle Inspection Camera Overview

Key Features

Color Camera with DSP Color Control
7" LCD Detachable Display

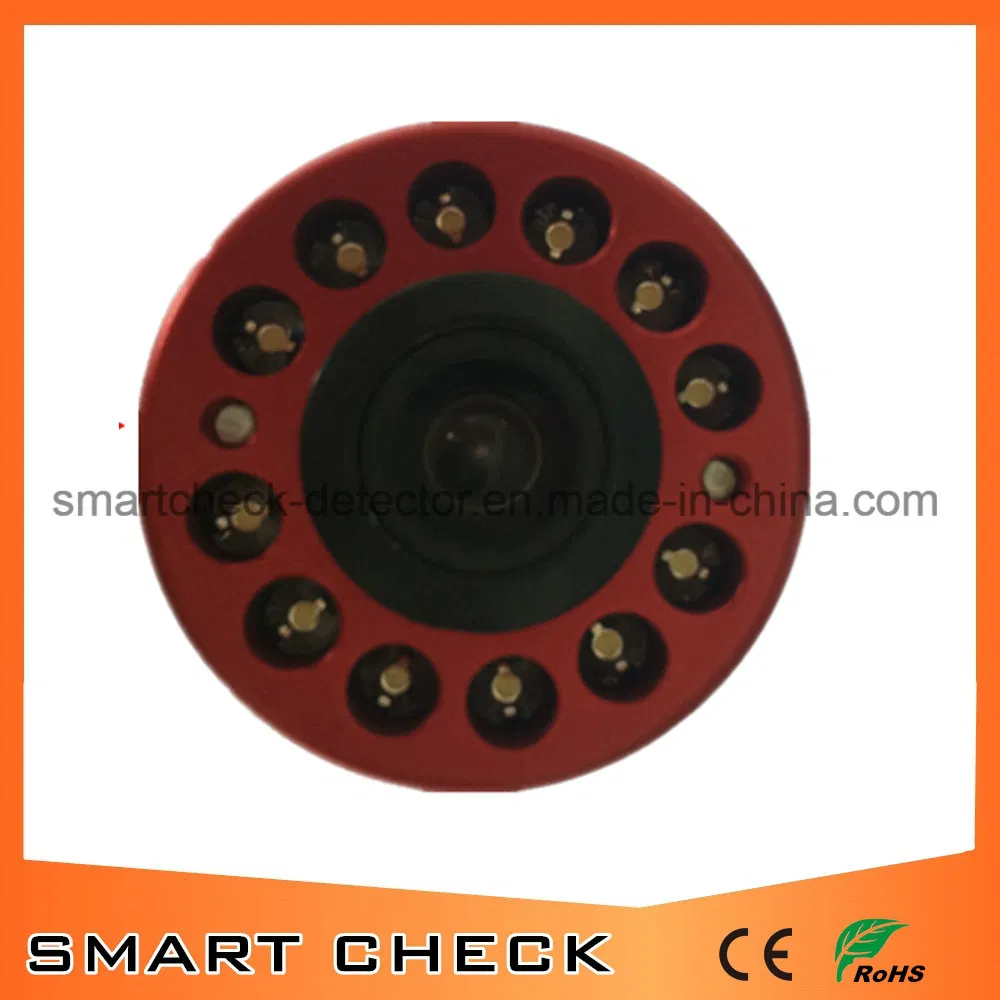

Integrated 16 Element White LED Illumination

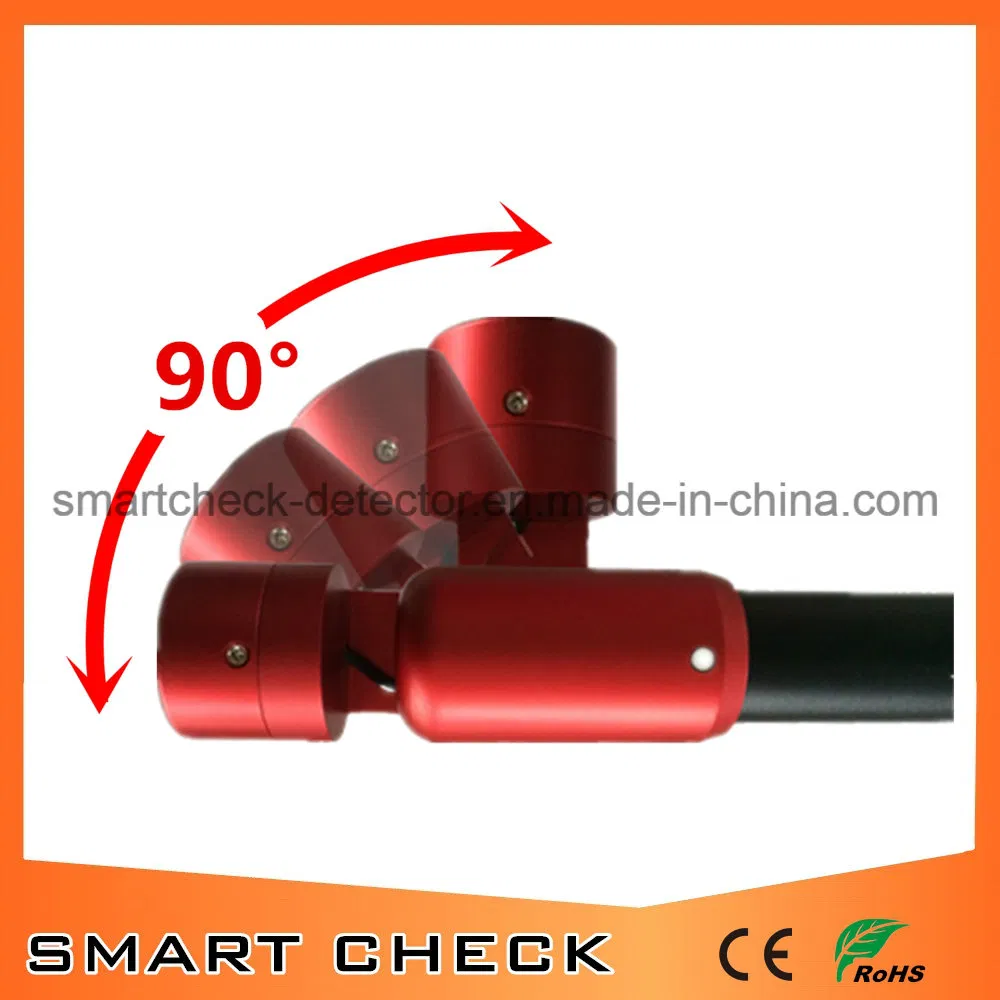

Remote Articulating Camera Head (90 Degrees)
Waterproof Camera Head

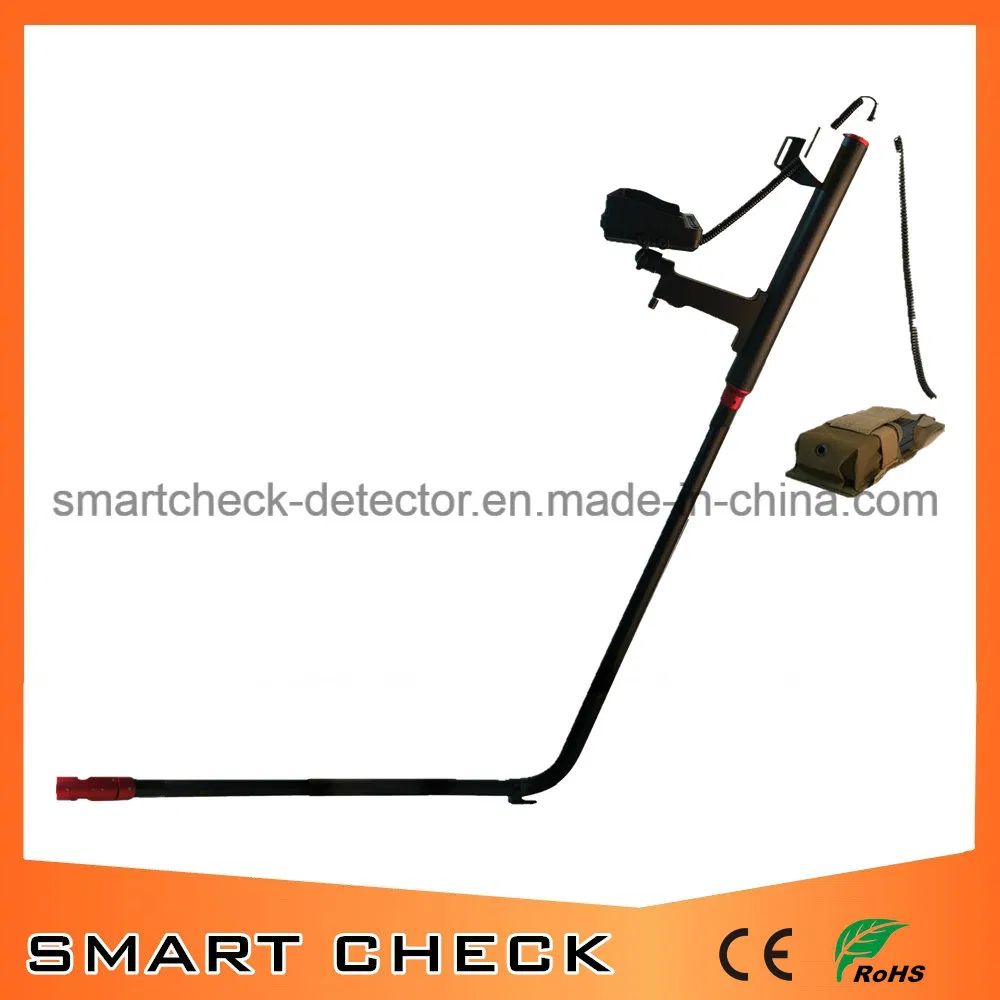

Lightweight & Telescopic Probe
Two Batteries included with Charger
Full One Year Warranty

Technical Specifications

Component	Specification Details
Camera	Color, 180 degree lens 1/4 CCD, 250K(NTSC)/290K(PAL)
Illumination	12 element white LED array with dual level output
Display Monitor	7" Diagonal, active-matrix TFT display with on-screen graphics
System Length	Telescopes from 25" (63.5 cm) to 43" (109.2 cm)
Probe Weight	5 lbs (2.5 kg) with display attached
Battery Type	Li-Ion 10000mAh; 5-8 working hours per battery
Operational Temp	14° to 140° F (-10° to 60° C)

Maintenance Guide

Camera Part Maintenance: Restore smooth operation by cleaning debris.

1

Remove foreign objects from the camera and LED module manually.

2

Apply a small amount of silicon grease directly on the cord.

3

Wipe away excess grease with a clean rag.

4

Periodic inspection of screw fasteners is recommended.

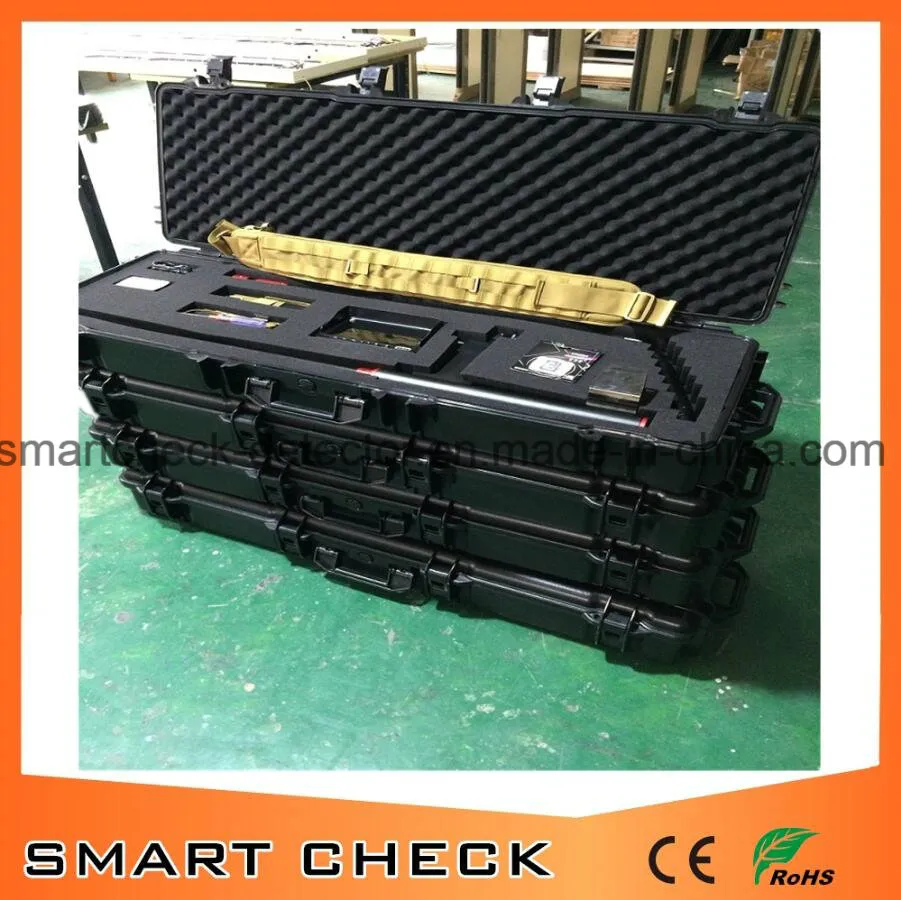

Packing List

01

12V Li battery Charger

02

Tube set

03

Li battery (2pcs) + Connection wire

04

7" color LCD monitor

05

Control box & Camera set

06

Remote controller & 32G SD card

07

ABS Water tight case & Belt

Frequently Asked Questions

Can I have a sample order for UVIS02 system?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

What is the lead time for production?

Samples need 7-10 working days, while mass production takes 2-3 weeks for orders over 30 sets.

Is there a MOQ limit for the camera?

The MOQ is 1 set for sample checking purposes.

How are the goods shipped?

Options include DHL, UPS, FedEx, or TNT (4-7 days), as well as airline and sea shipping.

Do you offer a guarantee for the products?

Yes, we offer a 1-year warranty for our inspection products.

How do you handle faulty units?

Our products have a strict quality control system (defective rate < 0.2%). During the guarantee period, we repair or replace defective batch products.
