Handheld Under Vehicle Inspection Camera

1 / 5

Handheld Under Vehicle Inspection Camera

Customization:	Available
Camera Types:	Dual Camera (Chassis Dolly + Flexible Goose-Neck)
Monitor Size:	7 Inch HD Color LCD

Send Inquiry

Product Description

Basic Info

Model NO.

UVHH100

Monitor Resolution

1920 X 1080 (Full HD)

Image Resolution

5 Megapixels (3200 X 1800)

Transport Package

Wooden Case

Specification

Complete Kit with Monitor, Cameras, Pole

Origin

China

HS Code

854370

Production Capacity

300sets/Month

Product Overview

VUHH100 Handheld Under Vehicle Inspection System - Portable Dual Camera Kit with 7" HD Monitor for Security, and Remote Area Inspections.

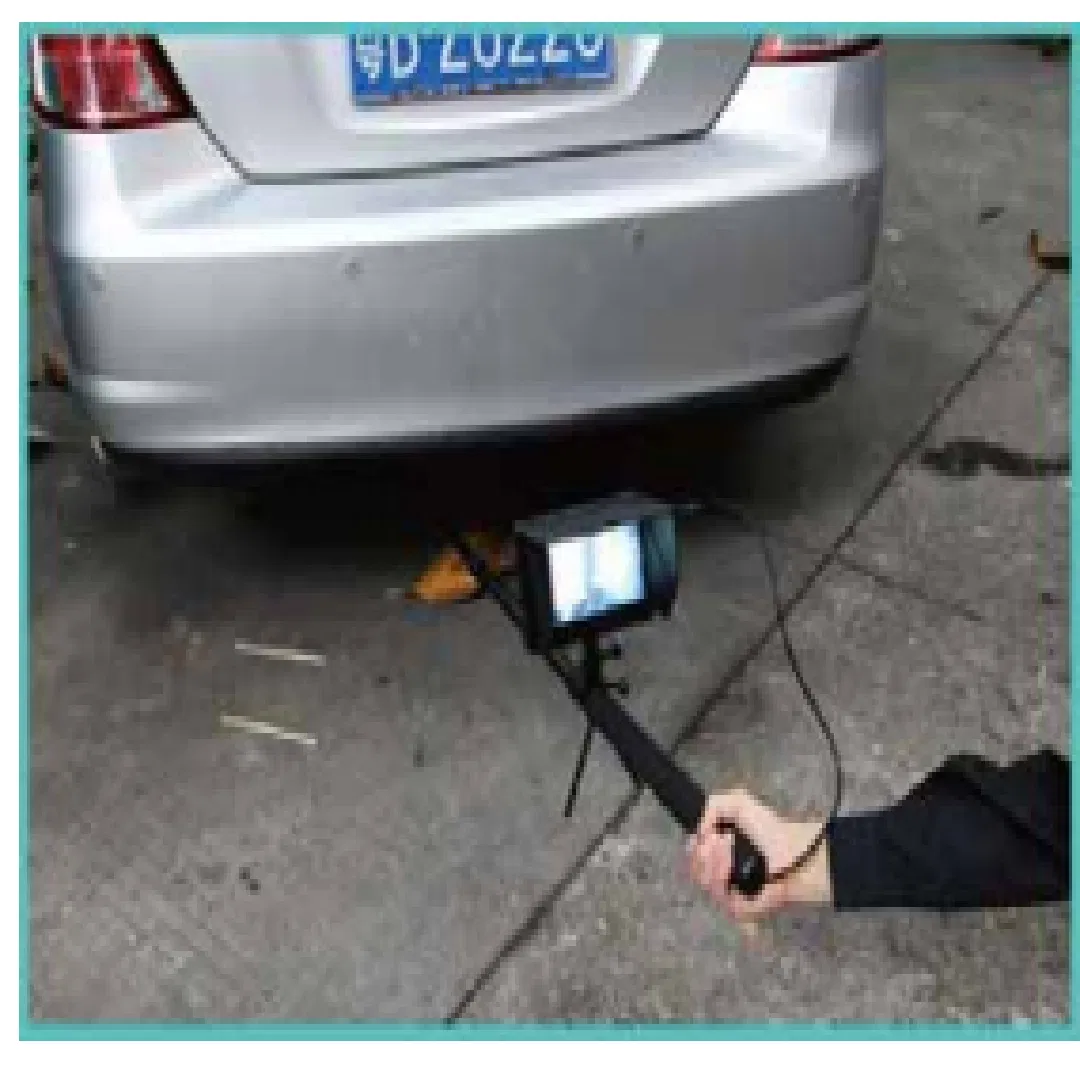

The VUHH100 Handheld Under Vehicle Inspection System is a lightweight, portable, and versatile inspection solution designed for rapid deployment in security-sensitive environments. Perfect for perimeter security, border crossings, vehicle entry points, and remote area surveillance, this system provides operators with the ability to thoroughly inspect vehicle undercarriages, hard-to-reach spaces, and dead zones with ease.

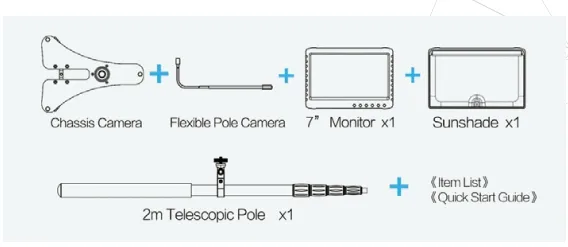

The kit features a dual-camera design: a wheeled dolly camera for comprehensive under-vehicle inspection on any road surface, and a flexible goose-neck camera for inspecting confined spaces such as attics, pipes, and behind immovable objects. The 7-inch HD color monitor delivers real-time 1080p video feed, with long battery life and rugged construction for reliable field operation.

Dual Camera System

Camera Type	Description	Key Features

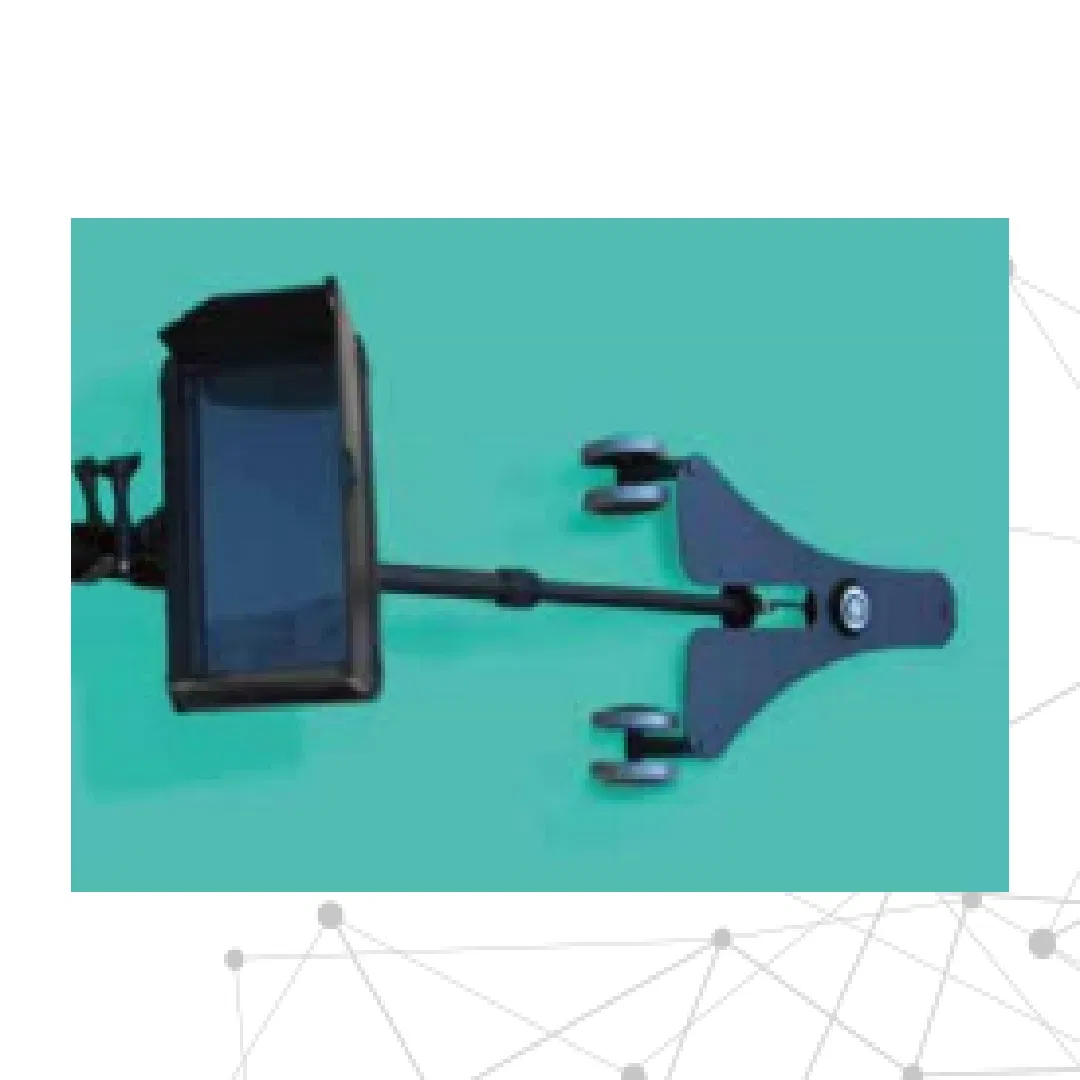

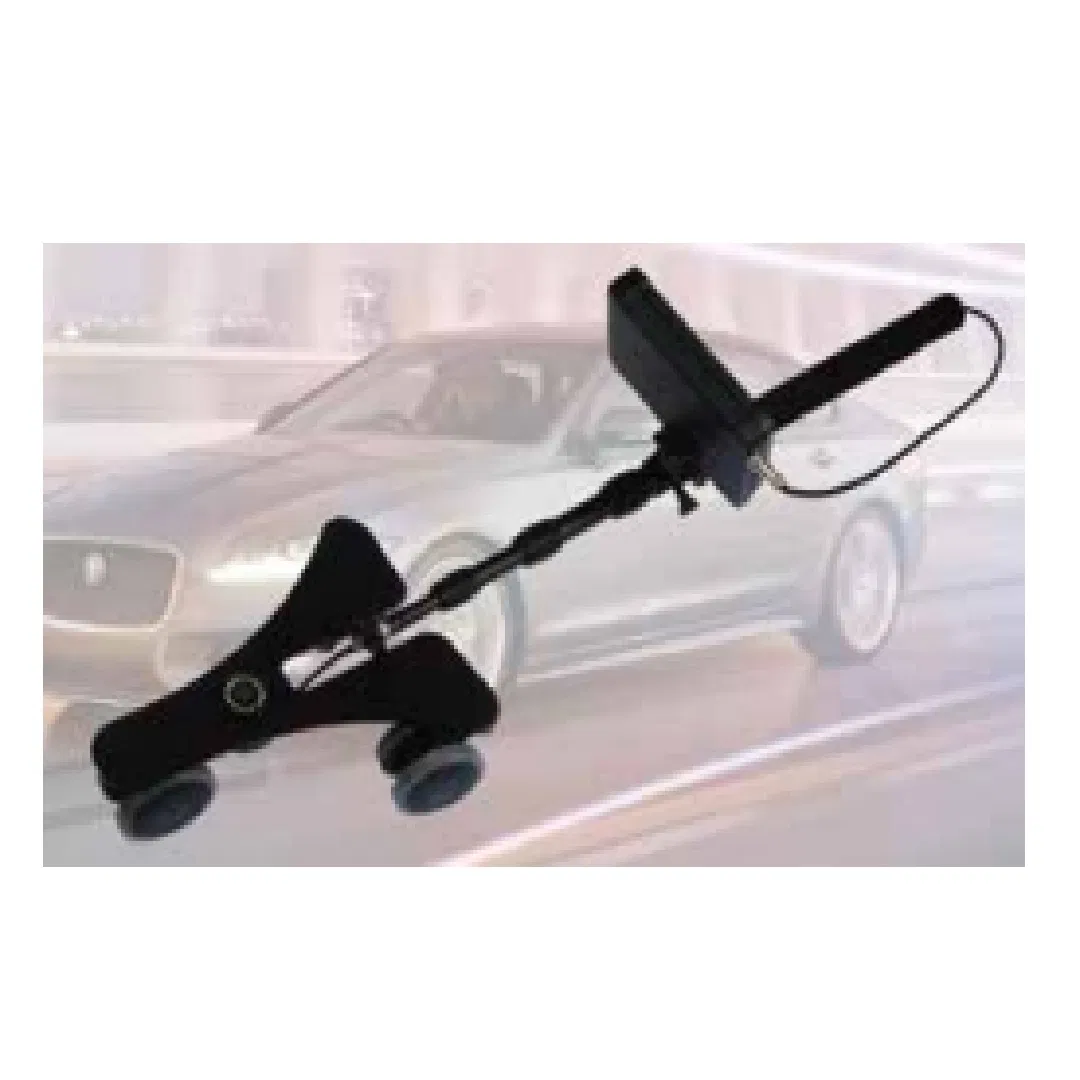

Chassis Camera (Wheeled Dolly)	Mounted on a wheeled dolly with 360° omni-directional wheels	- 5MP high-resolution imaging - 105° wide-angle lens - Wear-resistant tires for all terrain - Easy maneuverability
Flexible Goose-Neck Camera	Articulating camera on a 25cm flexible pipe	- 5MP high-resolution imaging - 90° wide-angle lens - 0.5mm micro lens for tight spaces - Perfect for pipes and voids

Key Features

Dual Camera Versatility: Wheeled dolly for under-vehicle scanning and flexible goose-neck for confined spaces.
High-Resolution Imaging: 5-megapixel sensors (3200 x 1800) for crystal-clear images and 1080p video recording.
7-Inch HD Monitor: Full HD resolution 1920 x 1080 with adjustable brightness and sunshade.
Long Battery Life: 5-10 hours of continuous operation for extended field missions.
Extendable Telescopic Pole: Extends from 58cm to 188cm for full access to vehicle undersides.
Onboard Recording: Supports TF memory cards up to 64GB for documentation.
All-Terrain Mobility: 360° omni-directional wheels work on asphalt, concrete, gravel, or dirt.

Technical Specifications

Component	Parameter	Specification
Chassis Camera	Resolution	5 Megapixels (3200 x 1800)
	Lens	3.6mm F1.2, 105° FOV
	Wheel Type	360° Omni-directional
	Weight	73g
Flexible Camera	Resolution	5 Megapixels (3200 x 1800)
	Lens	0.5mm F1.2, 90° FOV
	Pipe Length	25cm
Monitor	Screen Size	7 Inch HD LCD
	Battery Life	5-10 Hours
	Storage	TF Card (Up to 64GB)
	Video Res	1920 x 1080
Telescopic Pole	Length	58cm - 188cm

Comparison Advantages

Feature	Traditional Systems	VUHH100 System
Portability	Fixed installation	Fully portable, deploy anywhere
Deployment	Hours or days	Minutes from case to operation
Camera Type	Single fixed camera	Dual (Dolly + Flexible)
Power	Mains power required	Battery (5-10 hour runtime)
Terrain	Flat surfaces only	All-terrain wheels

Applications

• Checkpoints: Rapid entry control point screening.

• Borders: Thorough examination of vehicles.

• Security: Perimeter checks at secure facilities.

• Law Enforcement: Evidence gathering and contraband detection.

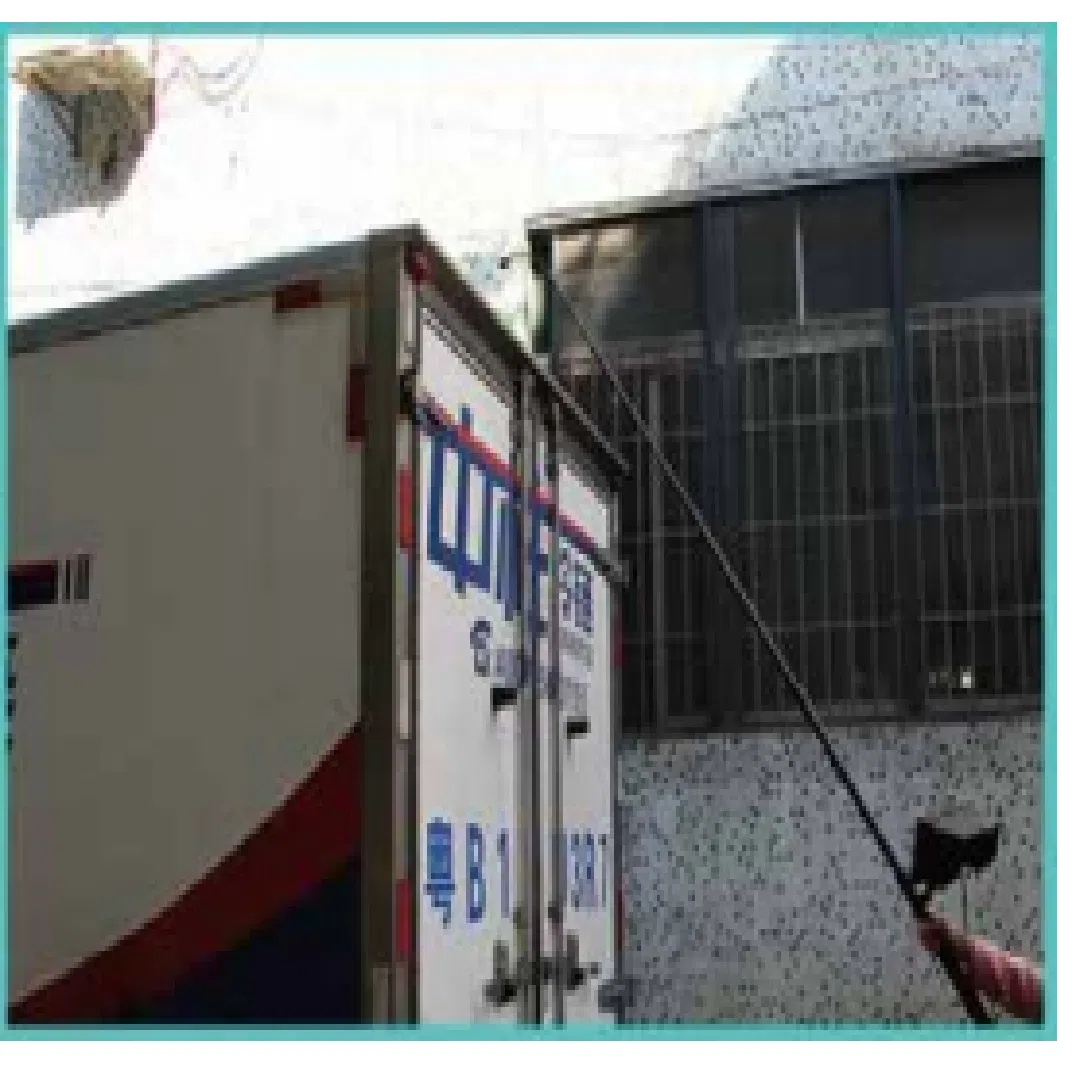

• Inspections: Confined spaces like pipes and ducts.

Frequently Asked Questions

What is the main advantage of the VUHH100 system?

The primary advantage is its portability and dual-camera versatility. It can be deployed in minutes anywhere and includes both a wheeled camera for under-vehicle use and a flexible camera for tight, confined spaces.

How long does the battery last on a full charge?

The ruggedized battery-powered monitor provides between 5 to 10 hours of continuous operation, depending on usage, making it ideal for long field missions.

Can the system record video for evidence?

Yes, the system supports TF memory cards up to 64GB. It can record high-definition 1080p video and capture 5MP still images for later review or evidence purposes.

What kind of terrain can the wheeled dolly handle?

The chassis camera features 360° omni-directional wheels with wear-resistant tires, allowing it to move smoothly over asphalt, concrete, gravel, and dirt.

What is the maximum reach of the inspection pole?

The telescopic extension pole can be adjusted from a collapsed length of 58cm to a fully extended length of 188cm, providing access to the underside of vehicles of all sizes.

Is the screen visible in direct sunlight?

Yes, the 7-inch HD monitor features adjustable brightness and includes a one-button deployable sunshade to ensure clear visibility even in bright outdoor conditions.
