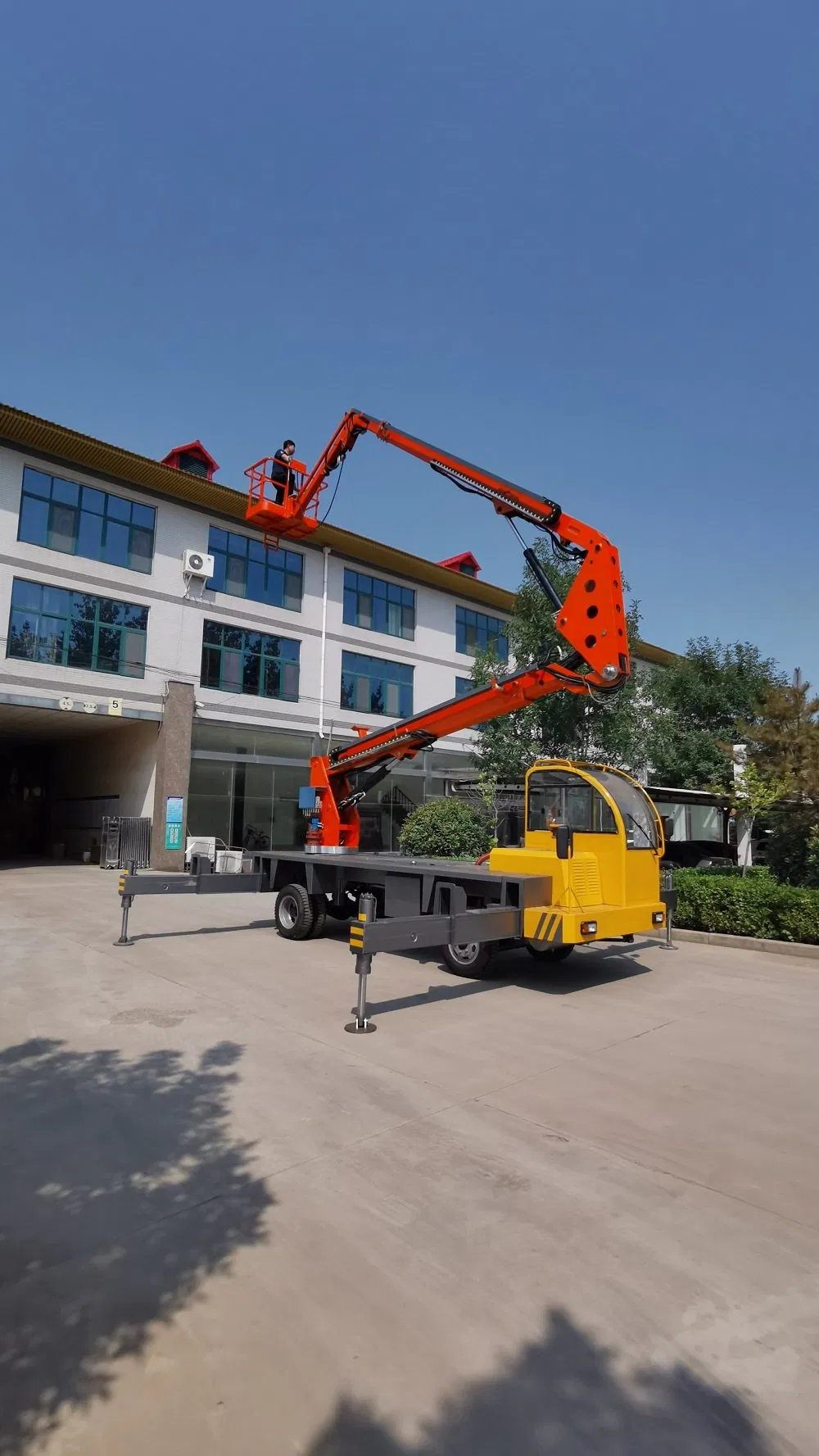

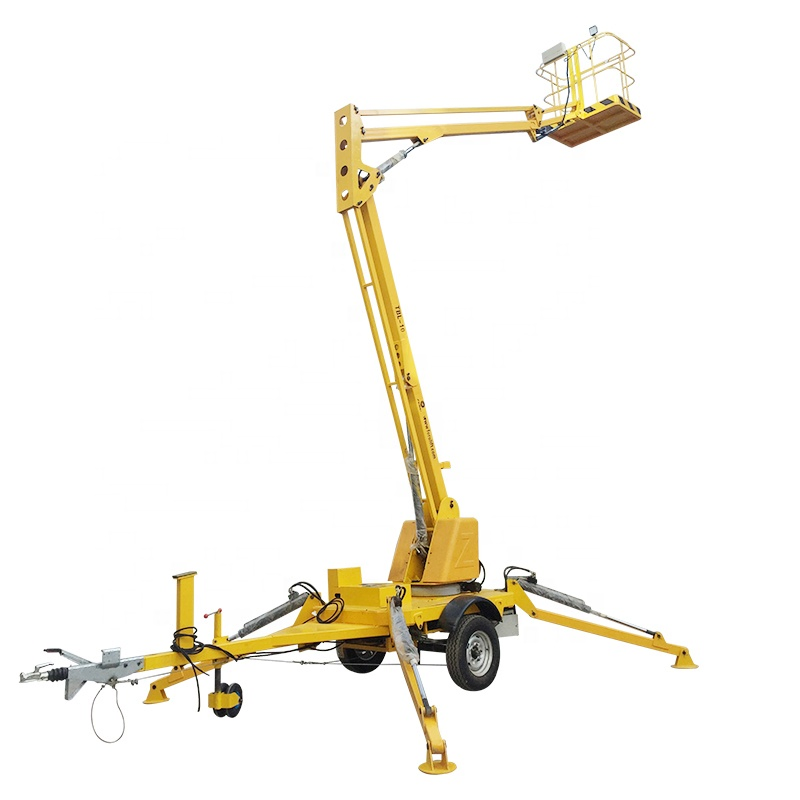

8-20 M 250kg Towable Telescopic Articulating Boom Electric Hydraulic Spider Lift

Customization:	Available
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Hydraulic

ℹ️

Basic Specifications

Model NO.

2020 Series

Carrying Capacity

Middle-Level

Moves

Self-propelled

Driven Type

Hydraulic

Running Mode

Moving

Certification

ISO 9001

Wheelbase

1.89m

Lifting Speed

3-5m/Min

Battery

4*6V/225ah

Charger

24V/25A

Transport Package

Sea, Air and Land Transport

Specification

5.20*1.75*2.10

🏗️

Product Description

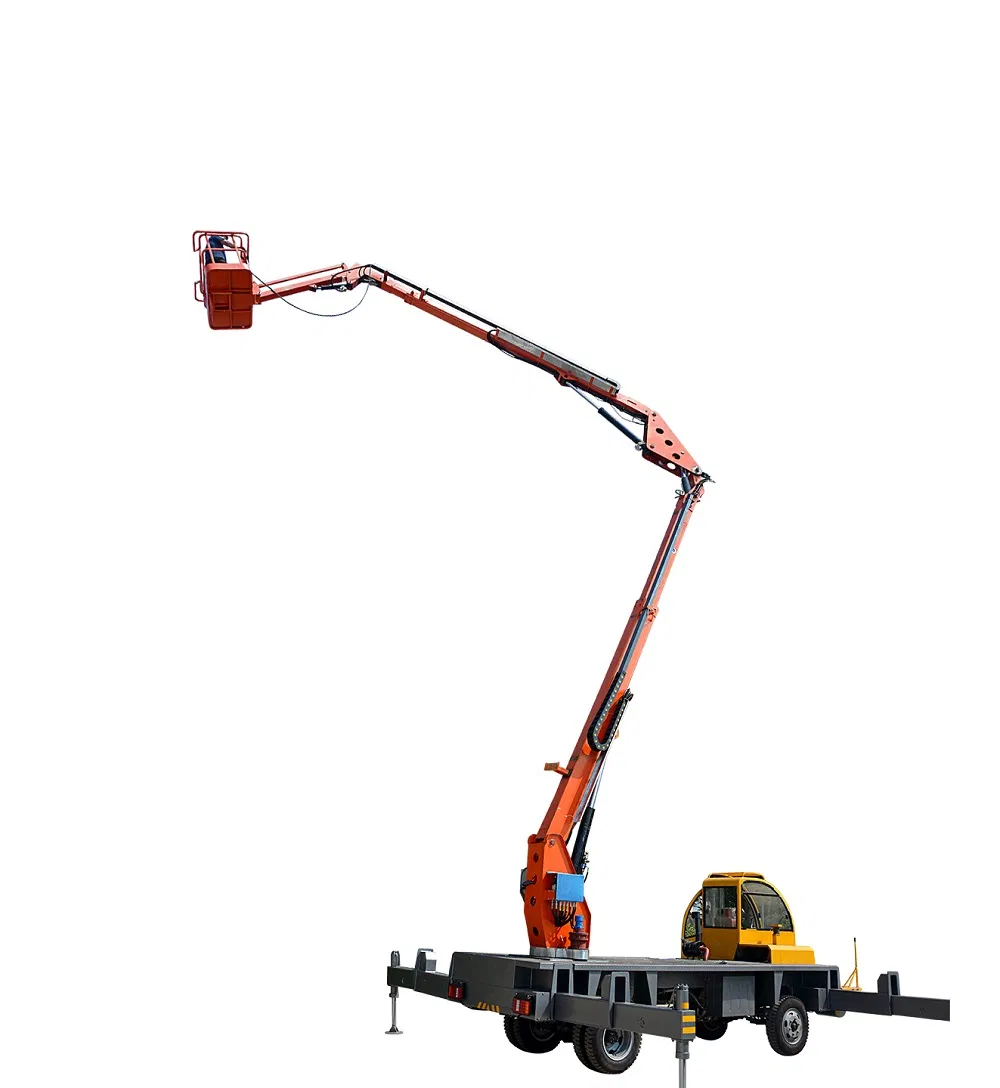

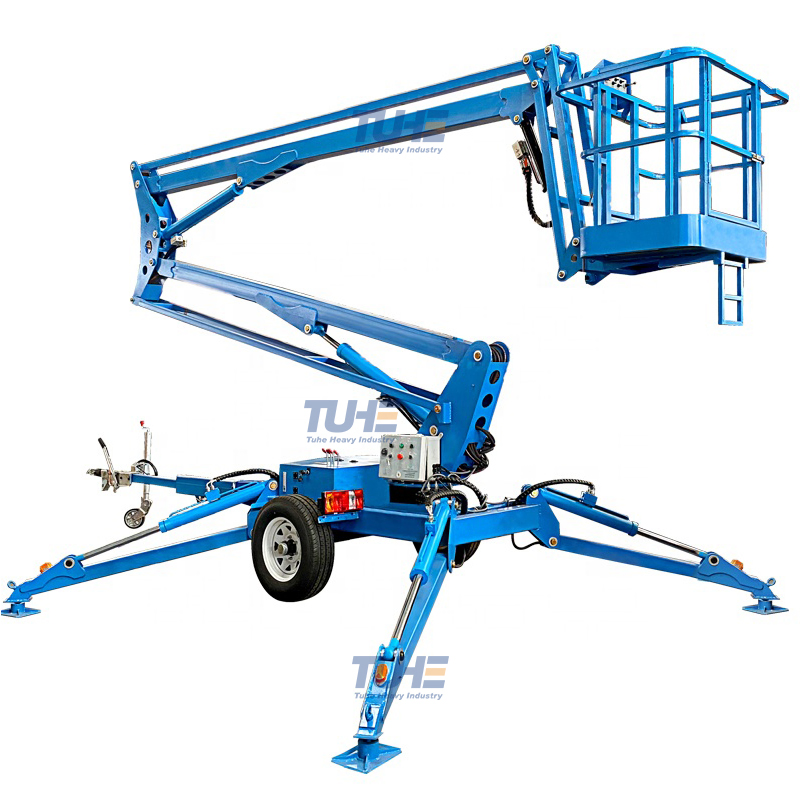

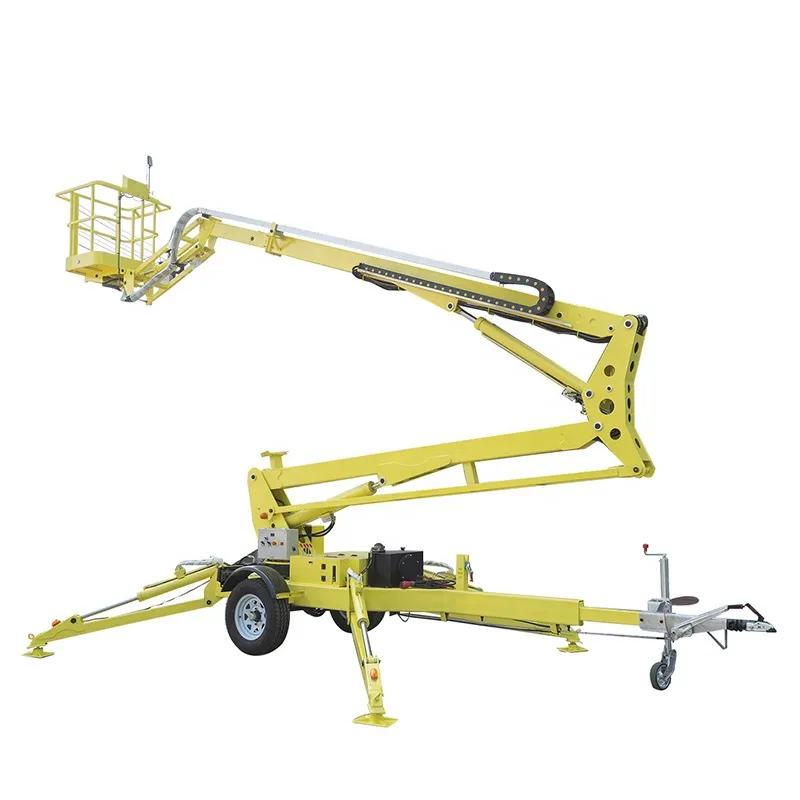

Trailer Mounted Boom Lift: The lift arm series features a compact structure, utilizing high-quality high-strength steel for a lightweight design. It offers direct access to AC power for startup and features fast automatic hydraulic support feet for safe and simple operation. The working platform can be raised with a large horizontal extension span, significantly increasing the working area. The platform is rotatable, making it easy to cross obstacles and reach specific working positions. Transportation is convenient via trailer with speeds up to 90km/h.

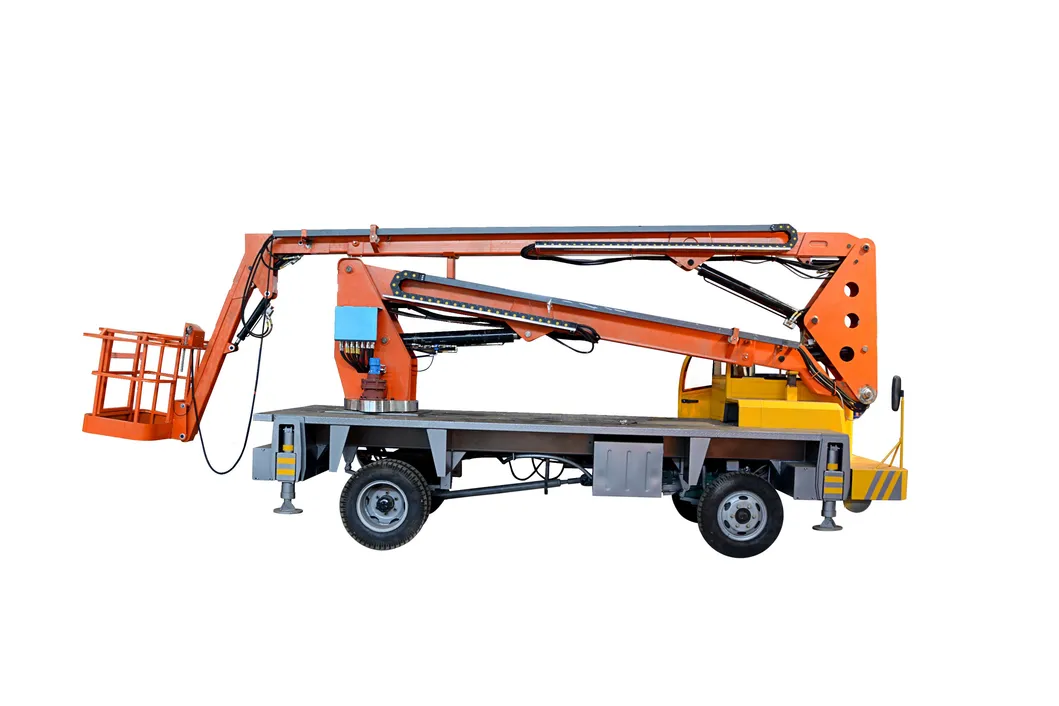

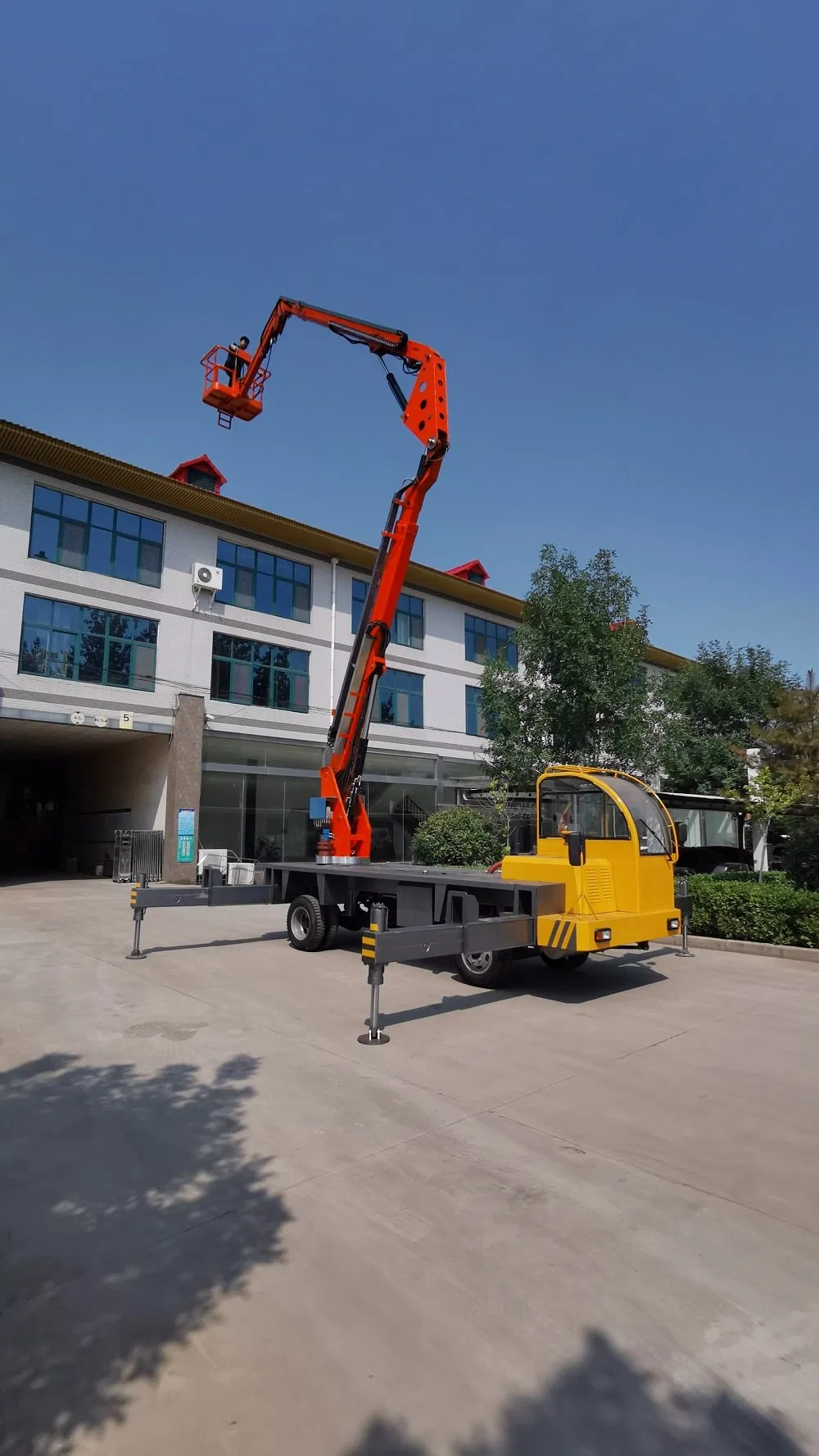

Self-Propelled Boom Lifting Platform: This folding arm vehicle is widely used for installation and maintenance in municipal power, street lighting, advertising, photography, gardening, and at airports or large industrial enterprises. It is suitable for rugged terrain and provides extensive space operation capabilities. Ideal for bridge construction, shipbuilding, and outdoor engineering. Diesel-powered models require no external power, making them perfect for field operations with fast walking speeds.

🔍

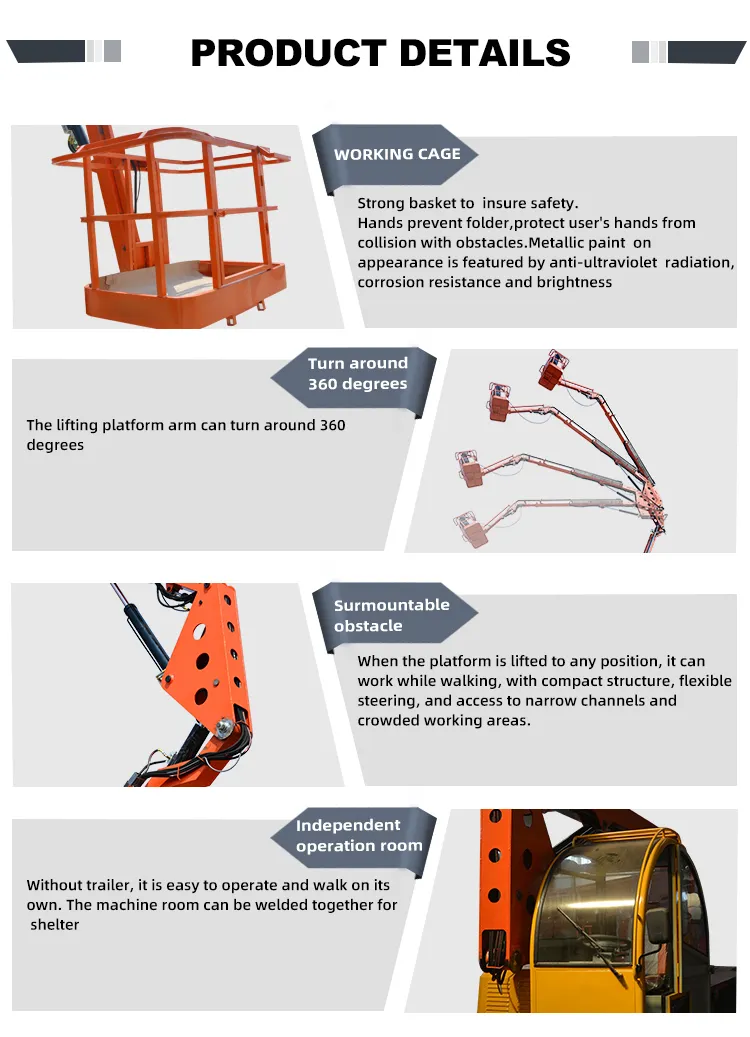

Product Details

📊

Technical Specifications

DIESEL POWERED MODELS
Model	Platform Height(m)	Working Height(m)	Dimension(mm)	Platform Size(mm)	Weight(T)	Operating Radius(m)	Load(kg)
QBJ0.3-14	14	16	610019002700	10006501000	3.8	8.1	200
QBJ0.3-16	16	18	650019002700	10006501000	4.2	9.3	200
QBJ0.3-18	18	20	680020002800	10006501000	4.7	12	200

BATTERY POWERED MODELS
Model	Platform Height(m)	Working Height(m)	Dimension(mm)	Platform Size(mm)	Weight(T)	Operating Radius(m)	Load(kg)
QBJ0.3-14	14	16	610019002700	10006501000	3.8	8.1	200
QBJ0.3-16	16	18	650019002700	10006501000	4.2	9.3	200
QBJ0.3-18	18	20	680020002800	10006501000	4.7	12	200

🏢

Manufacturer Profile

Our company is a professional manufacturer of hydraulic lifting platforms. With a strong technical team, we have developed a variety of lifting products featuring intelligence and reliability, backed by numerous technical patents. Our product range includes scissor lifts, aluminum alloy lifts, rail-type platforms, and boarding bridges. These products are widely utilized in construction, warehousing, airports, and sports stadiums for high-altitude installation, maintenance, and cleaning tasks.

❓

Frequently Asked Questions

🔹 What is the maximum towing speed for the trailer boom lift?

The trailer mounted boom lift is designed for convenient transportation and can reach towing speeds of up to 90km/h.

🔹 Can these platforms operate on uneven ground?

Yes, the self-propelled and folding arm aerial vehicles are designed to handle various types of rugged terrain, making them ideal for field operations.

🔹 What power options are available for the lifting platforms?

We offer both Diesel-powered models (ideal for field operations without external power) and Battery-powered models for indoor or noise-sensitive environments.

🔹 How do the hydraulic support feet work?

The lift is equipped with automatic hydraulic support feet that can be quickly set up to provide a stable and safe base for high-altitude operations.

🔹 What are the typical applications for these lifts?

They are widely used for municipal power maintenance, street lamp installation, advertising, gardening, airport facility maintenance, and bridge construction.

🔹 What certifications do these products hold?

Our manufacturing processes and products are certified under ISO 9001 standards, ensuring high quality and reliability.

📦
