| Model NO. | DDZY2397 / DTZY2397 |
| Display | Digital LCD |
| Usage | Watt-Hour Meter for Industry and Home Use |
| Type | Energy Meter |
| Communication | LoRaWAN / WiFi / 4G / Bluetooth / RS485 |
| Installation | Wall Hanging |
| Standard | IEC62053-21, IEC62052-11, DL/T645-2007 |
| Phase | Single Phase / Three Phase |
| Control Type | Wireless Remote Control |

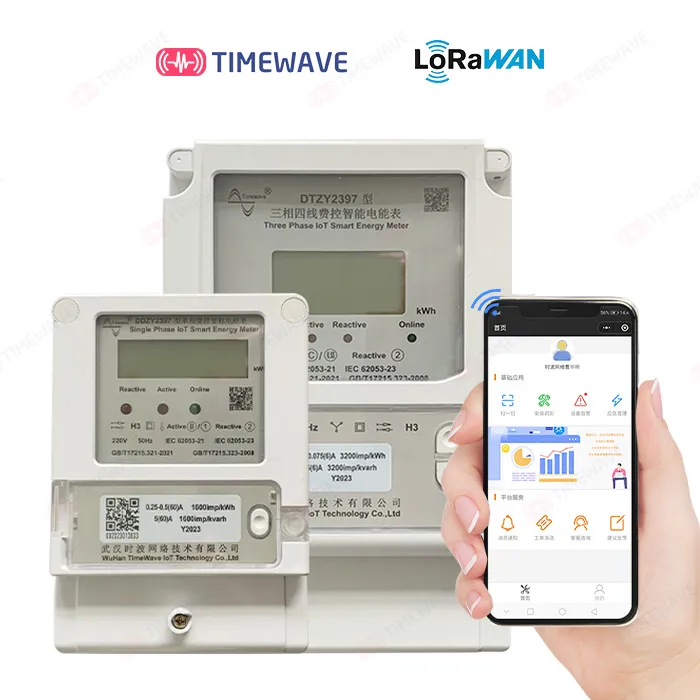

The intelligent electricity meter features electric energy measurement, power parameter measurement, time-sharing measurement, real-time freezing, and on-off control. It offers long communication distance, large capacity, fast installation, and a long service life.
| Parameter | Value |
|---|---|
| Rated Voltage (Un) | 220V |
| Rated Current (Ib) | 5A (Max 80A) |
| Starting Current | 0.4% Ib |
| Accuracy | Active Class 1 / Reactive Class 2 |
| Power Dissipation | <1.5W, 10VA |
| Temperature Range | -25ºC to +55ºC (Operating) |
| LoRaWAN Frequency | EU868, US915, AS923, CN470, etc. |
| Parameter | Direct Meter | CT Meter |
|---|---|---|
| Rated Voltage | 3×220/380V | 3×220/380V |
| Rated Current | 5A (Max 100A) | 1.5A (Max 6A) |
| Active Accuracy | Class 1 / B | Class 0.5S / C |
| Clock Precision | ±0.5S/d (23ºC) | |
| RS485 Interface | 1200 - 9600 bps | |

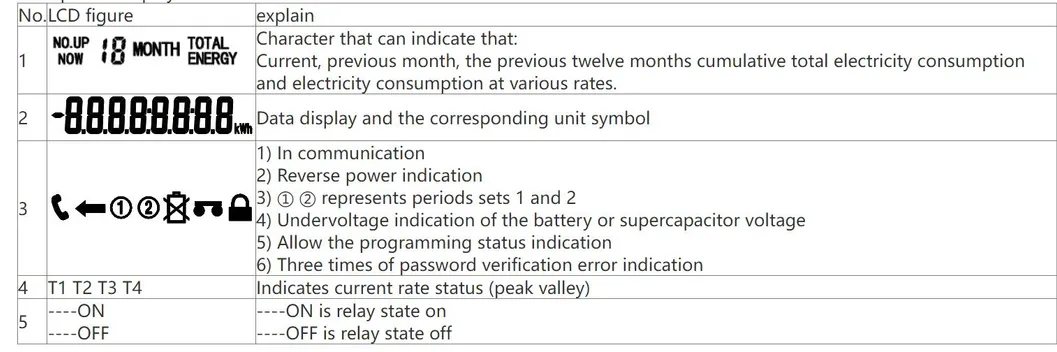

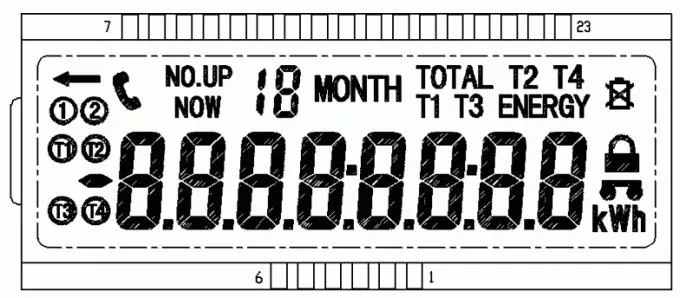

Single Phase LCD
Three Phase LCD

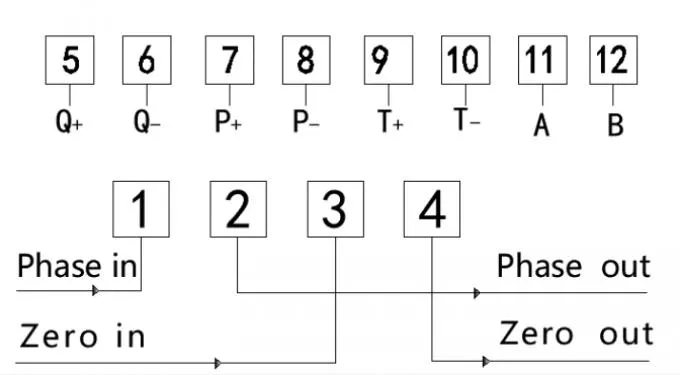

Note: Live installation is strictly prohibited. Use copper wires for connections and ensure screws are tightened to avoid contact heating.
