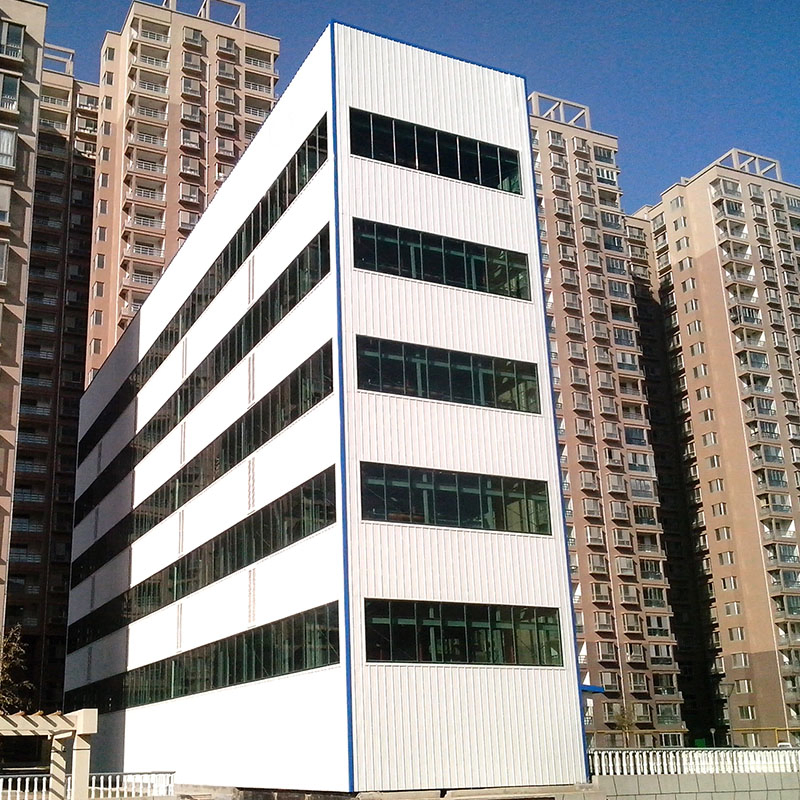

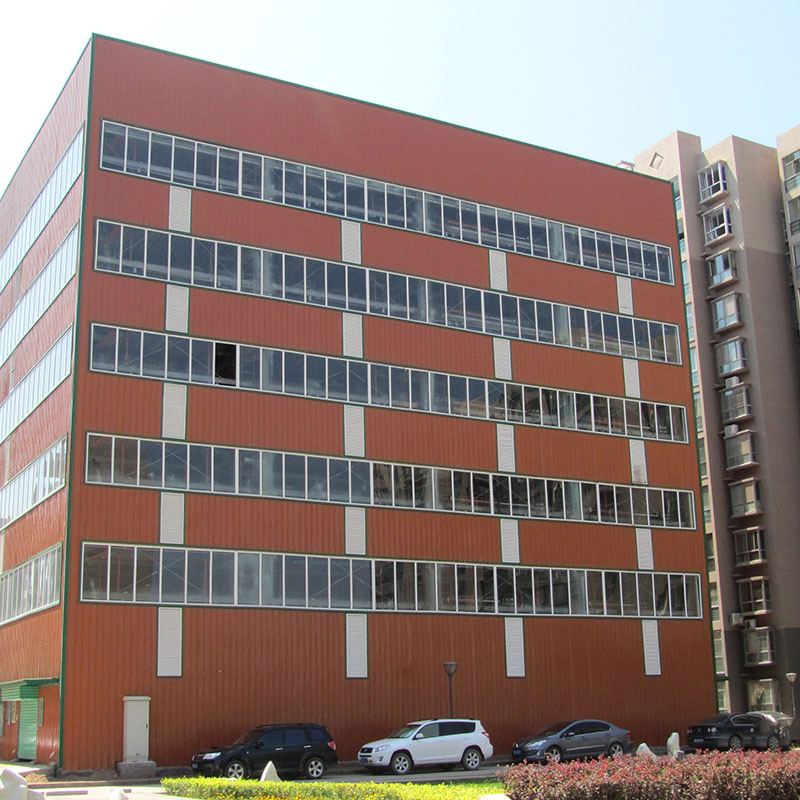

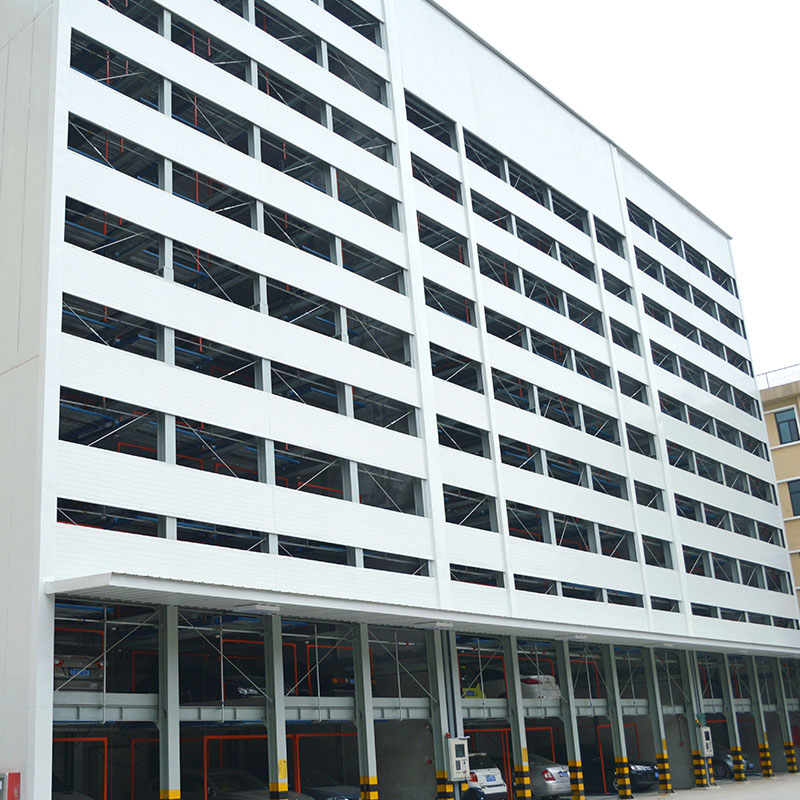

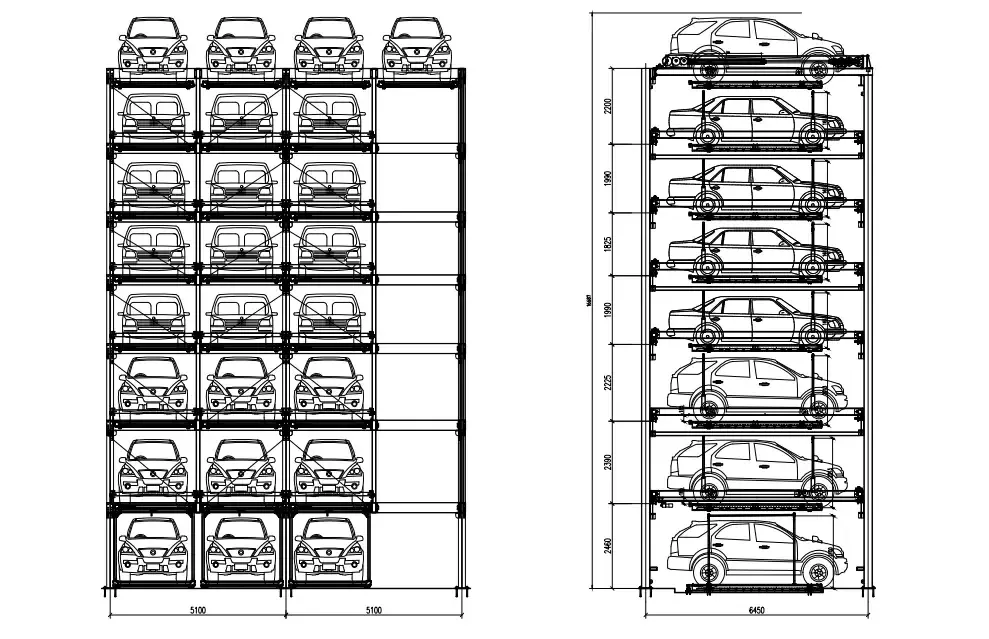

Operating Principle: The equipment is arranged in multiple layers and columns. Except for the top layer, each layer is equipped with an empty parking space as an exchange parking space. When the target parking space needs to be accessed, all parking spaces below move horizontally to create a lift channel. After the platform is lowered to the ground, vehicles can be accessed easily.
Equipment Features: Driven by high-performance motor or hydraulic systems. It is highly adaptable for basements or open ground spaces, utilizing a carrier plate exchange form for maximum efficiency.
| Item | Specification Details |
|---|---|
| Drive Mode | Hydraulic / Motor + Steel Wire Rope |
| Car Size (Sedan) | ≤ 5000 * 1850 * 1550mm |
| Car Size (SUV) | ≤ 5000 * 1850 * 2050mm |
| Max Car Weight | 2000kg / 2500kg / 3000kg |
| Lifting Speed | 4.5 – 10 m/min |
| Traversing Speed | 7.5 m/min |
| Retrieval Time | Max 40 seconds |
| Operation Mode | Mobile App, IC Card & Keypad |
| Surface Treatment | Shot blasting + zinc spraying + paint coating |

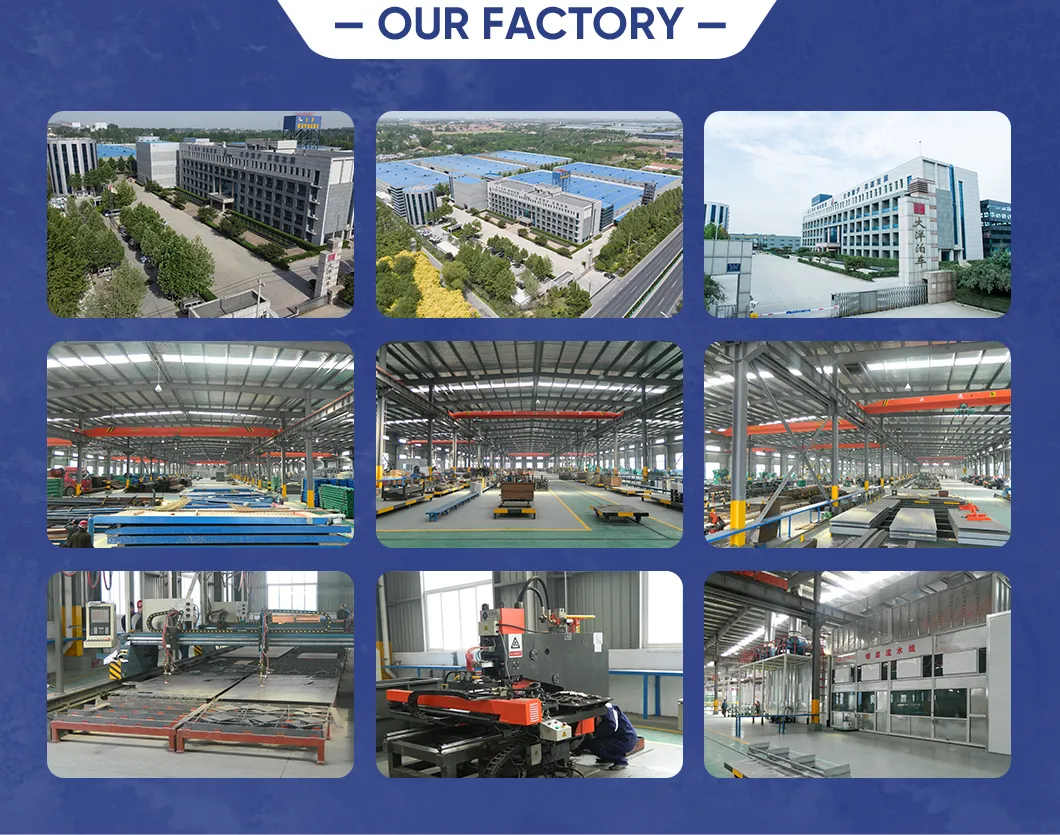

Our production facilities utilize advanced and high-precision processing systems to ensure the accuracy and aesthetic quality of every component. Key equipment includes:
Certifications: ISO 9001, ISO 45001, ISO 14001, ISO 50001 & CE certifications with over 200 technical patents.
After-Sales Support: 2-year warranty, free operation training, and 24/7 technical consultation services.
