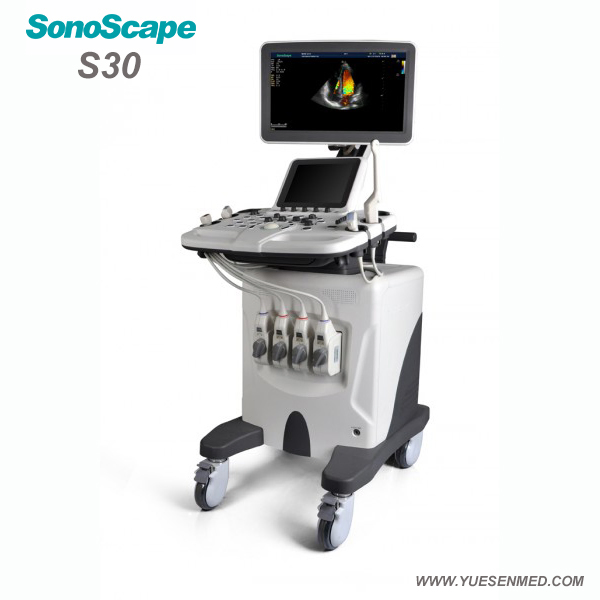

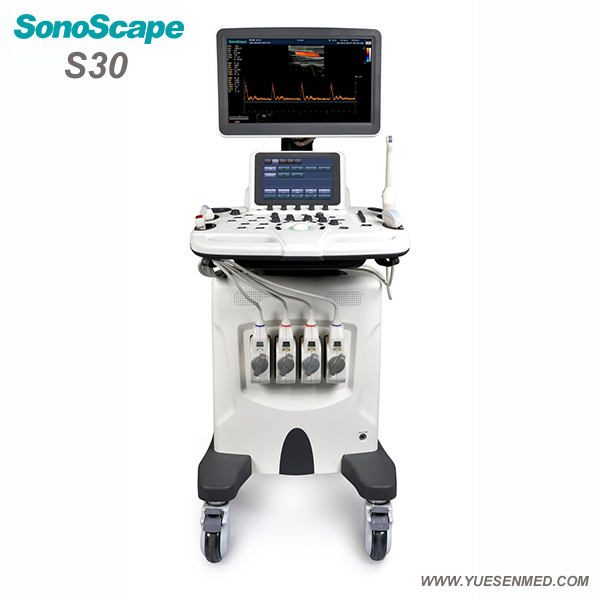

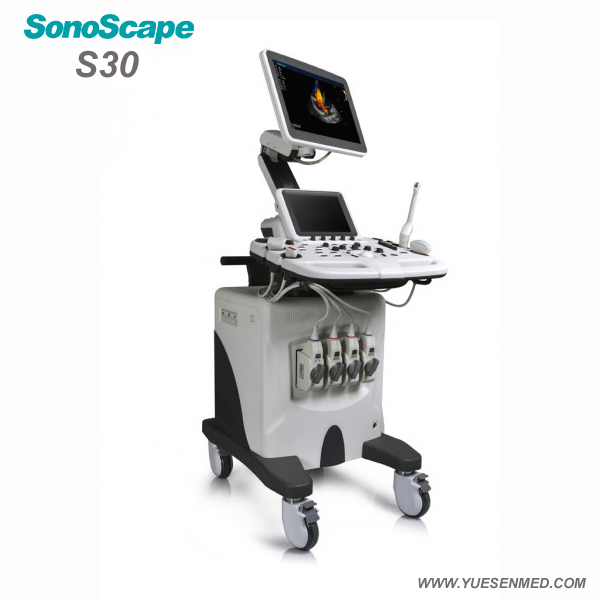

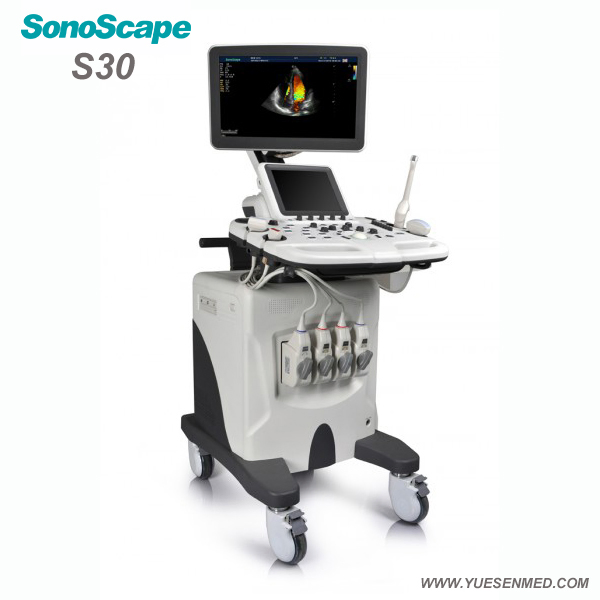

Hospital Medical Sosonoscape S30 3/4D Color Doppler Trolley Mobile Ultrasound Machine

1 / 5

Hospital Medical Sosonoscape S30 3/4D Color Doppler Trolley Mobile Ultrasound Machine

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	Ultrasound Scanner

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

S30

Certification

CE, ISO13485

Features

Mobile Trolley

Monitor

19 Inch LCD Widescreen

Color Doppler

Cfm, Pdi, Pw

Power Supply

100~240VAC±10%

Production Capacity

5,000 Sets/Year

Origin

China

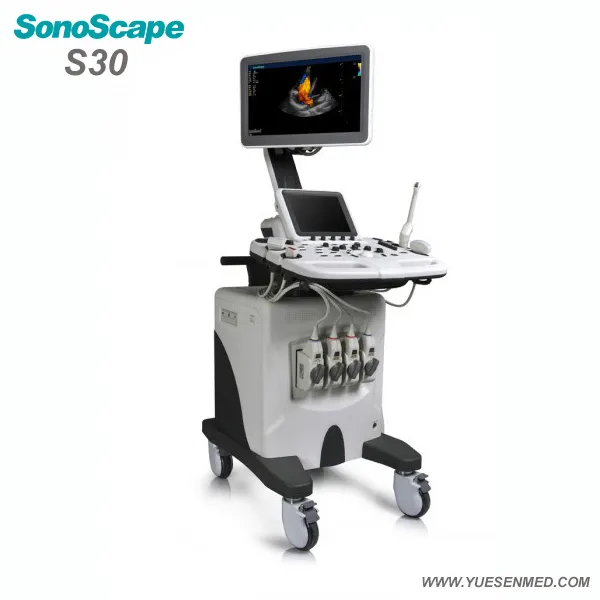

3D/4D Color Doppler Trolley Mobile Ultrasound Machine

🔍 Product Overview

The S30 is a powerful and versatile general imaging system designed to meet a wide variety of diagnostic needs. Its sleek console design allows for easy movement in tight clinical spaces, while the internal hardware is packed with advanced technology to deliver precision, speed, and high-quality diagnostic images.

🛠️ Standard Hardware

S30 Main Unit	19" High Resolution LED Color Monitor
8" High Resolution Touch Screen	Four Active Transducer Connectors
One CW Transducer Connector	DVD-RW / USB 2.0 / 500GB HDD
ECG Module	Full Height-Adjustable Control Panel

✨ Advanced Imaging Technologies

📡 Imaging Modes

B / 2B / 4B / M / THI
CFM / PDI / DirPDI / PW / CW
HPRF / Pulse Inversion Harmonic
Trapezoidal & Compound Imaging
Freehand 3D Imaging

⚙️ Specialized Features

μ-Scan: 2D Speckle Reduction
Multi-beam Technology
Advanced Cardiovascular Kit (TDI, IMT)
M-Tuning: One-button Optimization
C-Xlasto Elastography

🔌 Configured Transducers

Linear Array L742	Vascular, Small parts, MSK etc. (4-16MHz/38mm)
Phased Array 2P1	Cardiac, Transcranial (1-6MHz)
Convex Array C353	Abdominal, Obstetrics, Gynecology (2-6.8MHz/R55mm)
Endocavity 6V3	Gynecology, Obstetrics, Urology (3-15MHz/R10mm)

📸 Product Display

❓ Frequently Asked Questions

What clinical applications does the S30 support?

The S30 is highly versatile, supporting Abdominal, Small Parts, Obstetrics, Gynecological, Urological, and Cardiology applications.

What is the screen setup for this ultrasound machine?

It features a 19-inch high-resolution LCD widescreen on an articulating arm and a 10-inch interactive graphic touch screen for streamlined operation.

Does the system support digital data management?

Yes, it supports DICOM 3.0 including Transmission, Worklist, Print, Storage Commitment, and MPPS for efficient data transfer.

What is M-Tuning technology?

M-Tuning is a one-button image optimization feature that provides instant refinement for B-mode, color mode, and pulse wave Doppler studies.

How many transducer ports are available?

The system is equipped with four active transducer ports and one dedicated CW transducer connector.

What advanced cardiovascular tools are included?

It includes a comprehensive cardiovascular kit featuring TDI (Tissue Doppler Imaging), Color M mode, IMT (Intima-Media Thickness) assessment, and Steer M mode.
