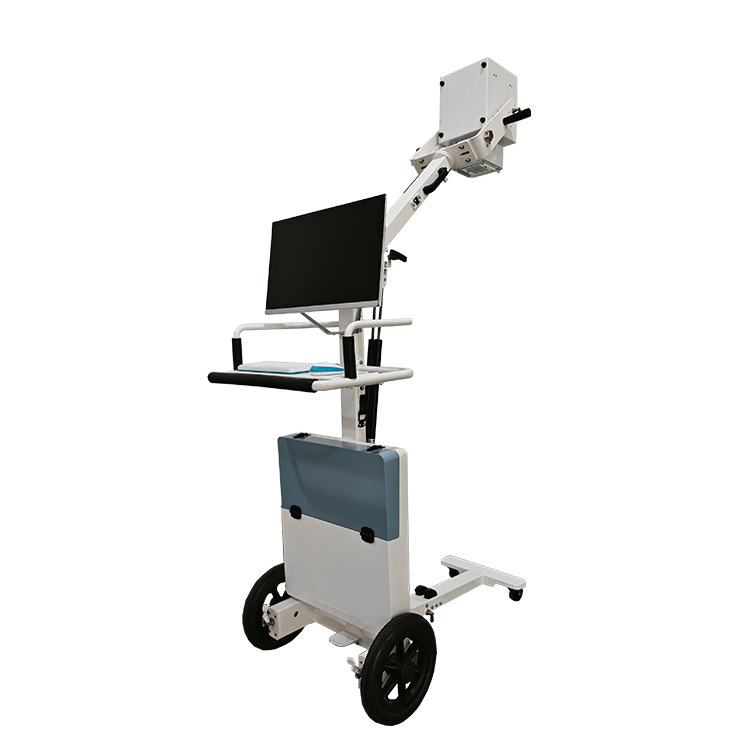

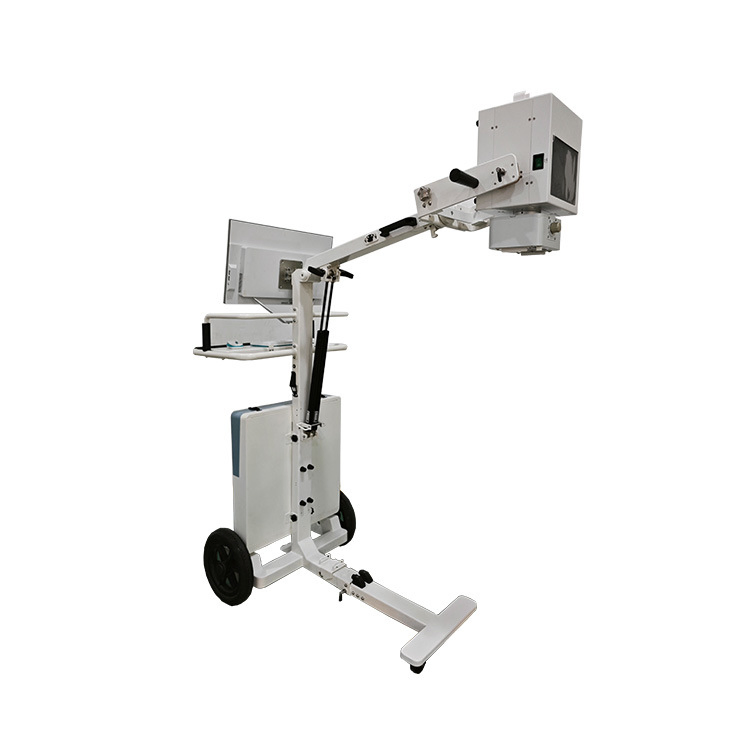

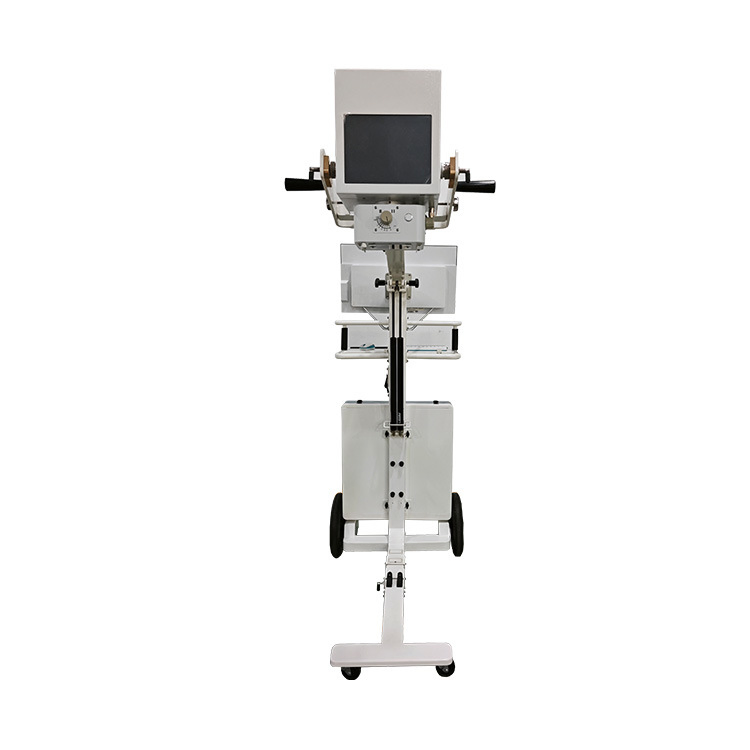

Xmx5kw Medical Factory Price Mobile Frame Ll-in-One PC Dr Mobile Digital Radiography System

1 / 5

Xmx5kw Medical Factory Price Mobile Frame Ll-in-One PC Dr Mobile Digital Radiography System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.XMX5KW

CertificationCE, ISO13485

GroupAll

Power Output5kw

Current10-100mA

Voltage40-125kv

Mas0.1-200mas

Exposure Time1-4000ms

Focus Size1.0/2.0

Detector TypeWireless Fpd

Vision Size1417″

A/D Conversion16 Bits

Spatial Resolution3.4 Lp/mm

Pixel Size2304×2800

Transport PackageCarton with Foam

OriginChina

Production Capacity100 Unit/Week

Product Description

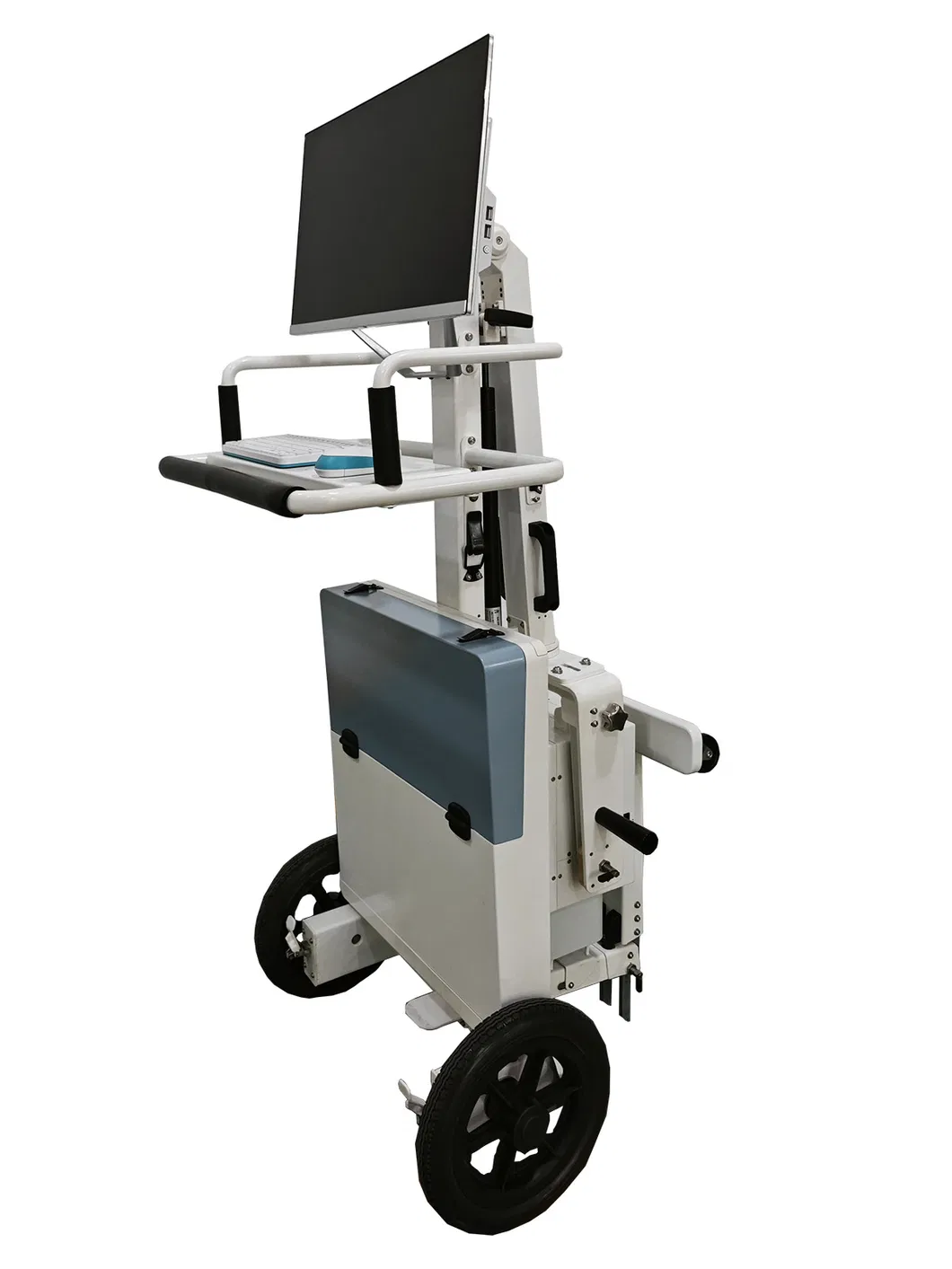

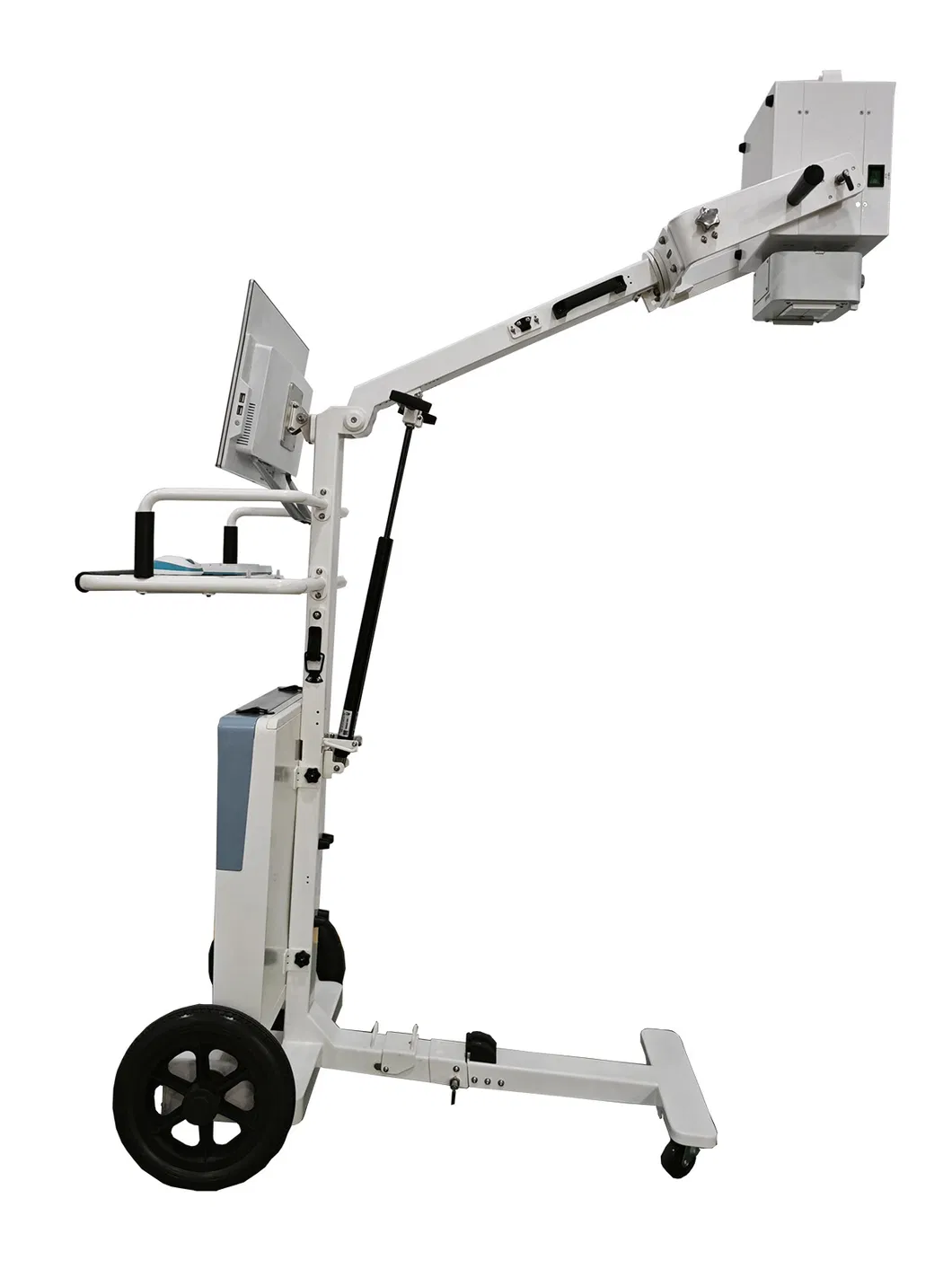

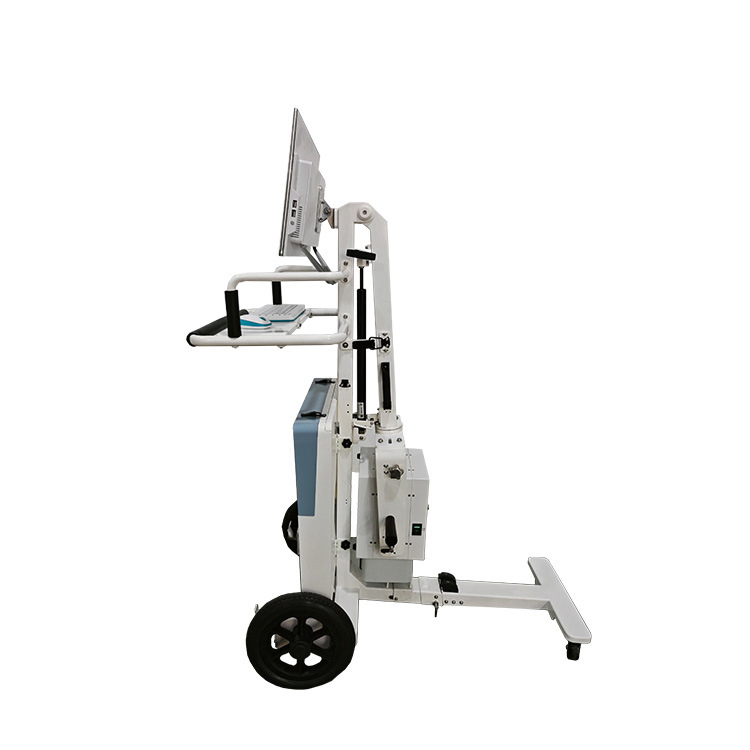

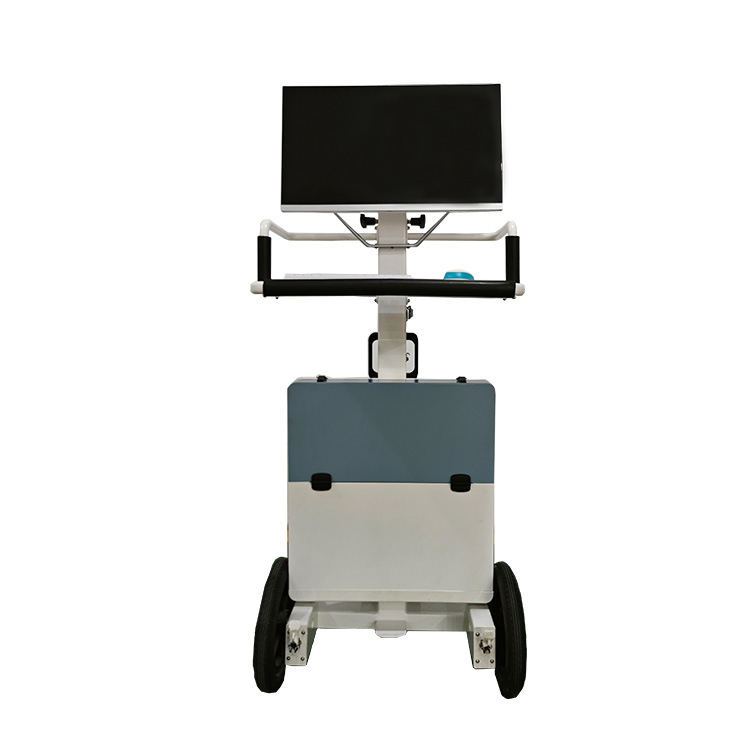

XMX5KW Mobile Digital Radiography System

Main Features:

Easy positioning changes enable sequential exposures of the chest and abdomen to be acquired quickly.
Four swiveling wheel casters allow precise, easy positioning and travel in any direction.
Articulating control panel allows rotation and height adjustment for instant confirmation.

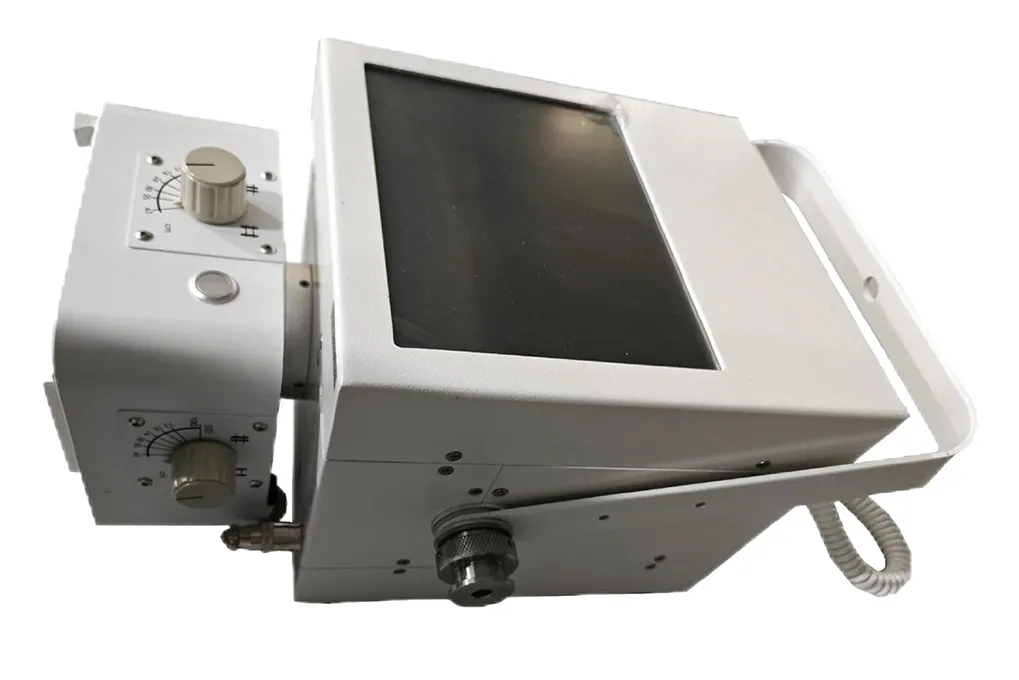

Small lightweight design and extended reach of the tube head allows one-hand operation.
Full Configuration: Mobile Frame, All-in-one PC, Flat Panel Detector, Image Processing Software.

Wireless Transmission & Easy Exposure interface
Hand switch and visual console for fast work flow
Direct deposition CsI for better image quality with lower dose
16 bit ADC for more image details
High-frequency inverter technology
Automatic measurement of shooting distance and thickness

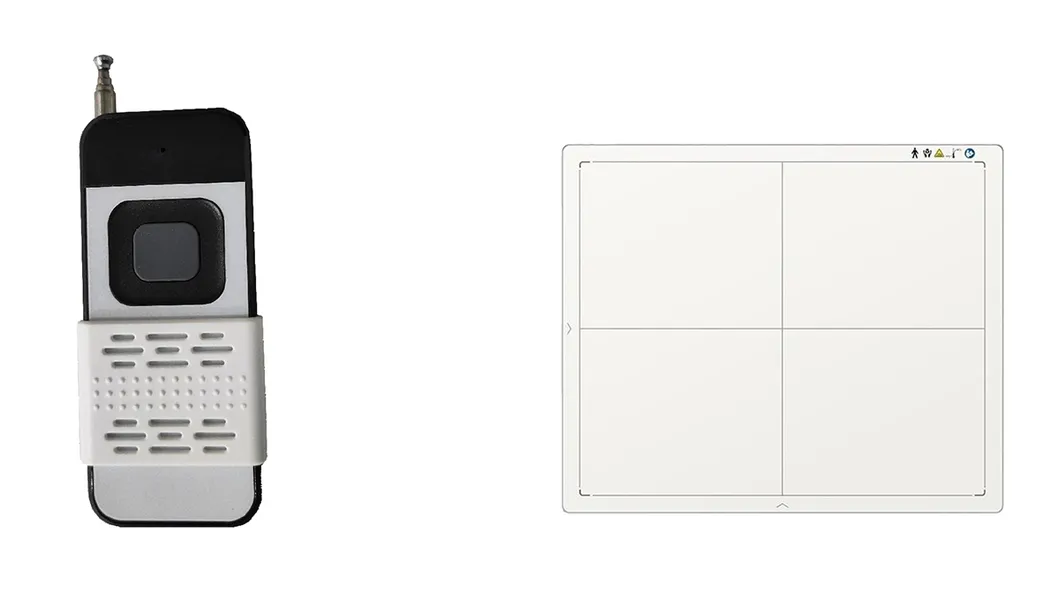

X-ray Detector (Flat Panel Detector)

Type: Amorphous Silicon / Scintillator: Cesium Iodide
Active Area: 14x17 Inch / Pixel Matrix: 2304 × 2800
Pixel Pitch: 150um / A/D Conversion: 16bits
DQE: >=70% / Spatial Resolution: 34Lp/cm
Acquisition time: ≤2S / Ingress Protection: IPX1

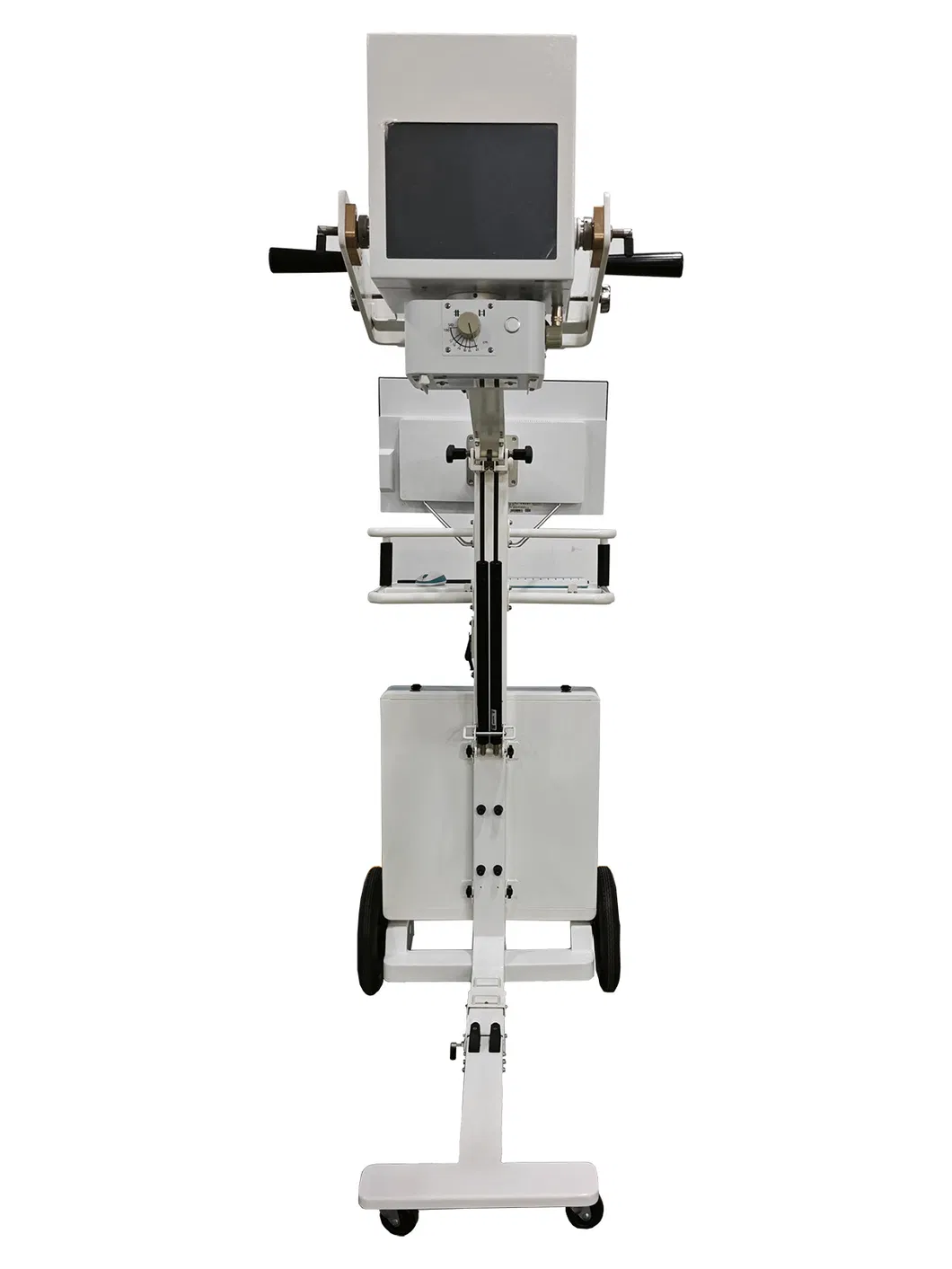

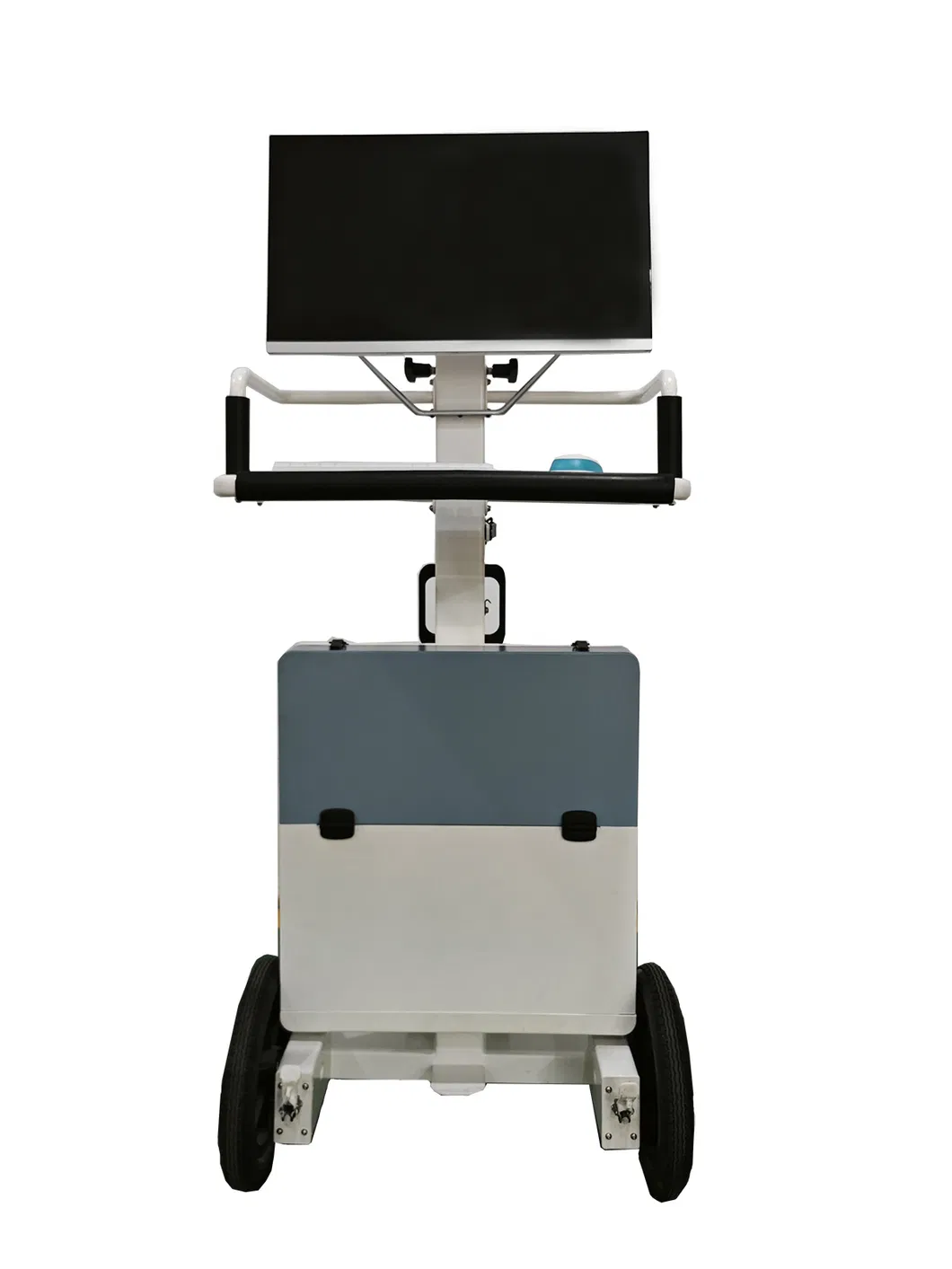

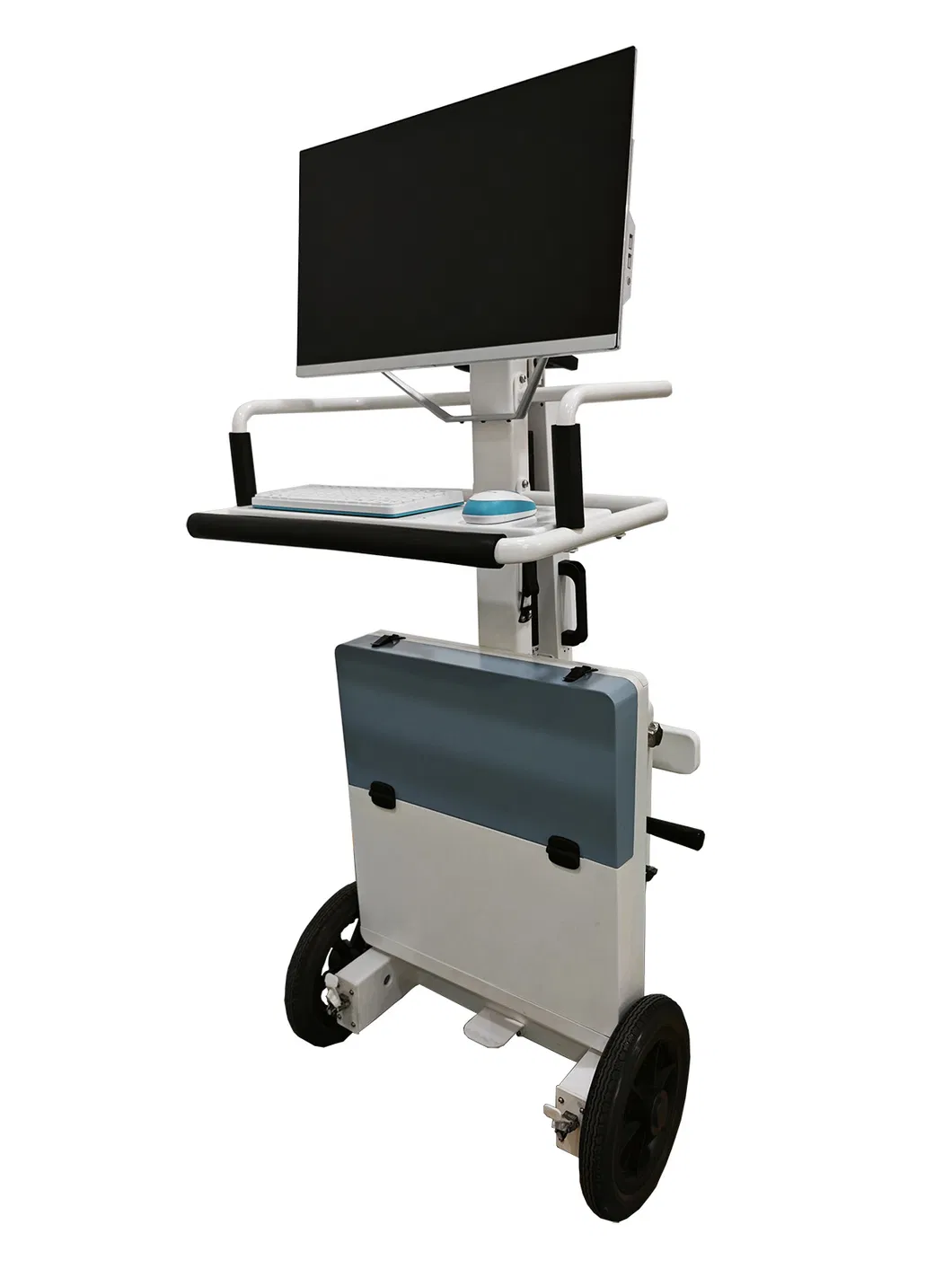

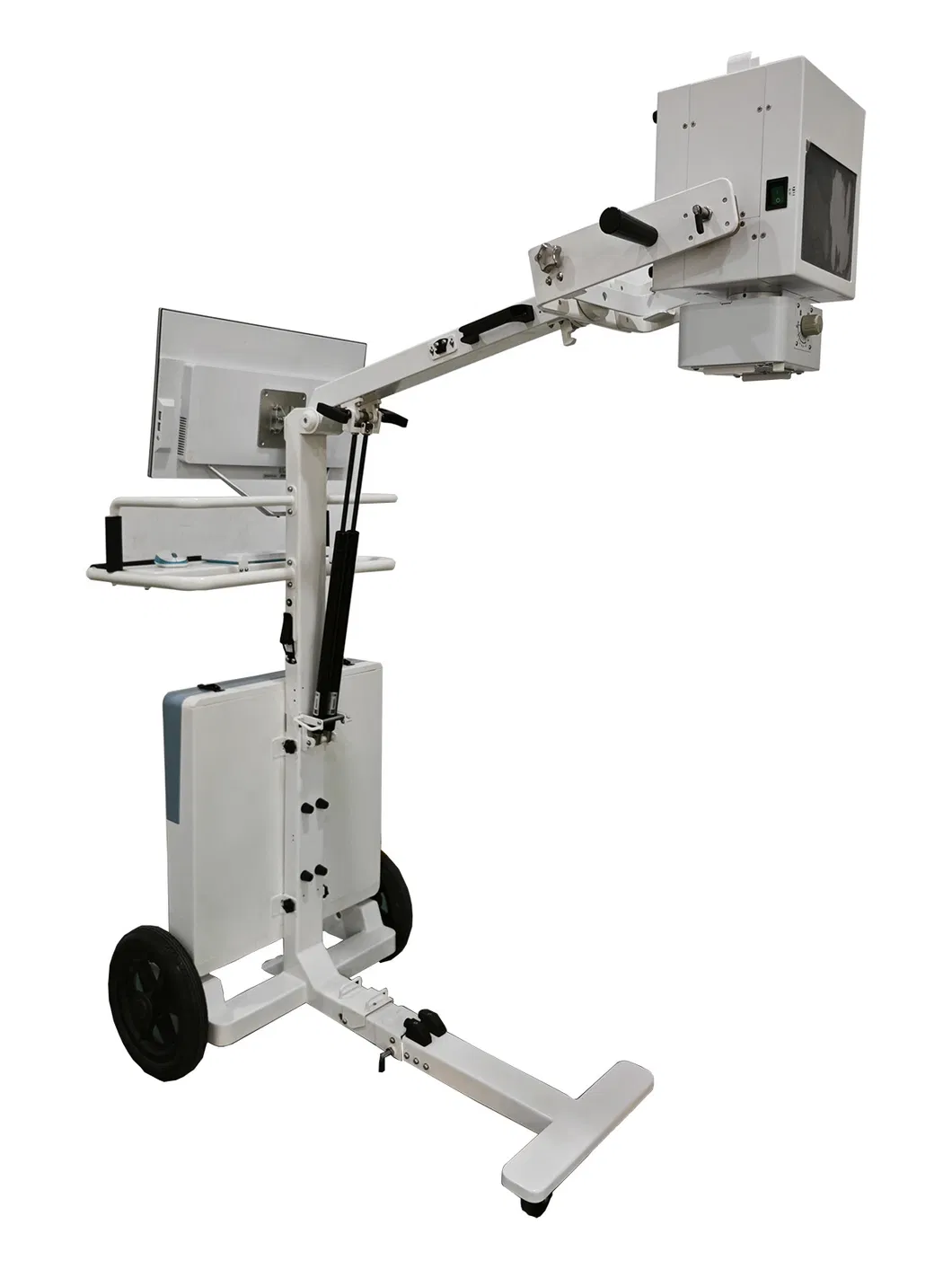

Advanced Mobility & Connectivity

The dual side hand grips facilitate the tube positioning for efficient access to bedside and polytrauma patients. Large wheels make it suitable for outdoor situations: operation fields, ER, and sport events.

Equipped with high frequency 5 kW or 8 kW generators. Integrated computer enables instantaneous display, processing, local and USB storage, networked archiving, and printing via DICOM interface.

Software Functions

AcquisitionHIS/RIS integration, exposure parameter setting (kV, mA, mAs, ms).

ProcessingAuto window width/level, ROI adjustment, gray scale transformation.

Zoom & RollLocal zoom, actual size, 90° rollover, vertical/horizontal flip.

ManagementDICOM 3.0 support, database retrieval, medical record inquiry.

Technical Data Comparison

Model	XMX5KW	XMX8KW
Power Output	5kW	8kW
Current	10-100mA	10-125mA
Voltage	40-125kV	40-125KV
mAs	0.1-200mAs	0.1-400mAs
Exposure time	1-4000ms	1-6300ms
Focus Size	1.0/2.0	0.6/1.2
Detector Type	Wireless FPD	Wireless FPD
A/D Conversion	16 bits	16 bits
Pixel Size	2304×2800	2304×2800

Frequently Asked Questions

Q1: What are the main power options for this mobile DR system? A: The system is available in two main configurations: a 5kW model (XMX5KW) and an 8kW model (XMX8KW) to suit different clinical needs.

Q2: Can the system be used in tight hospital spaces? A: Yes, it features four swiveling wheel casters and a lightweight design that allows it to spin in place and travel easily through tight corridors or ER bays.

Q3: What type of detector is included in the configuration? A: It uses a high-resolution 14x17 inch Wireless Flat Panel Detector (FPD) with Amorphous Silicon technology and a Cesium Iodide scintillator for superior image quality.

Q4: Does the software support standard hospital imaging protocols? A: Absolutely. The system supports DICOM 3.0 and can seamlessly integrate with HIS/RIS systems to obtain patient information and transfer imaging data.

Q5: How fast can I see the images after exposure? A: The acquisition time is ≤2 seconds, and the integrated PC allows for instantaneous image display and immediate processing.

Q6: What is the spatial resolution of the detector? A: The detector provides a high spatial resolution of 3.4 lp/mm, ensuring clear and detailed diagnostic images.
