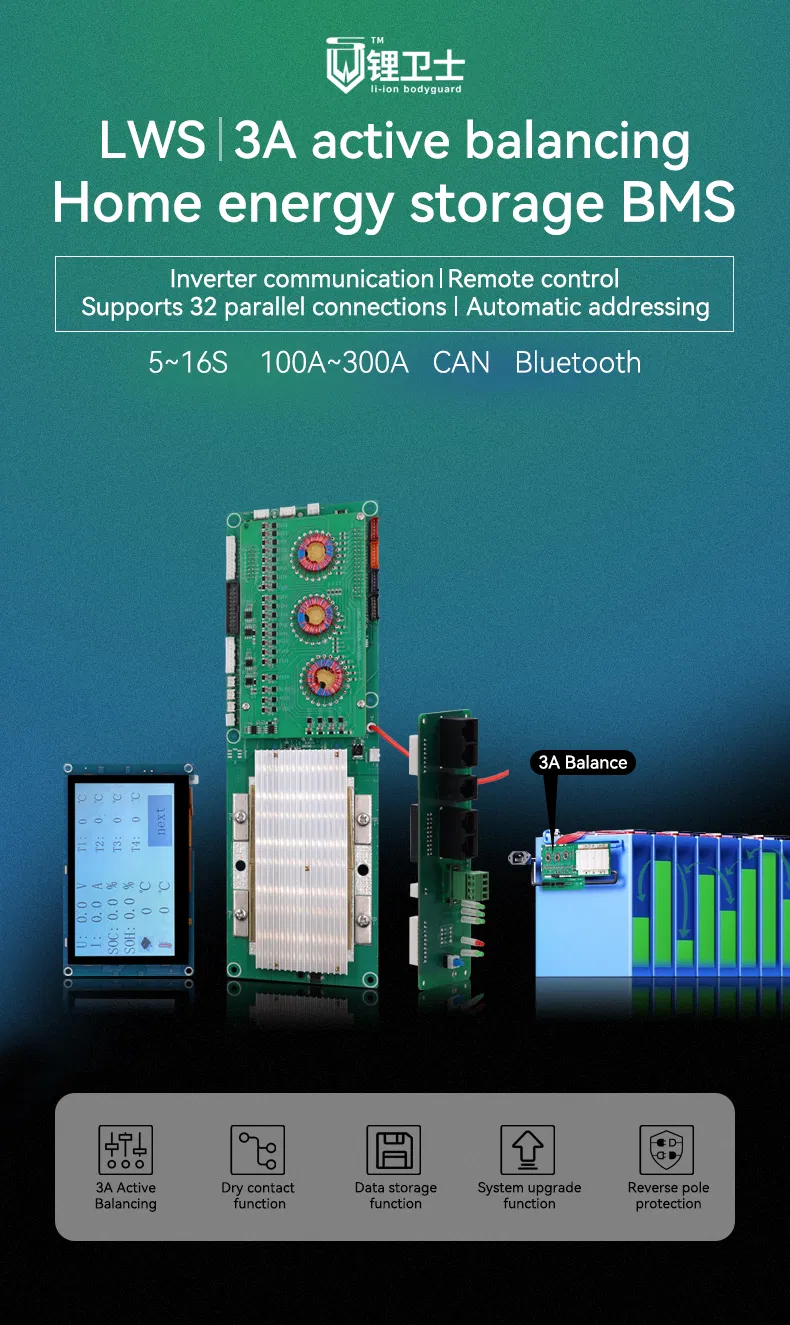

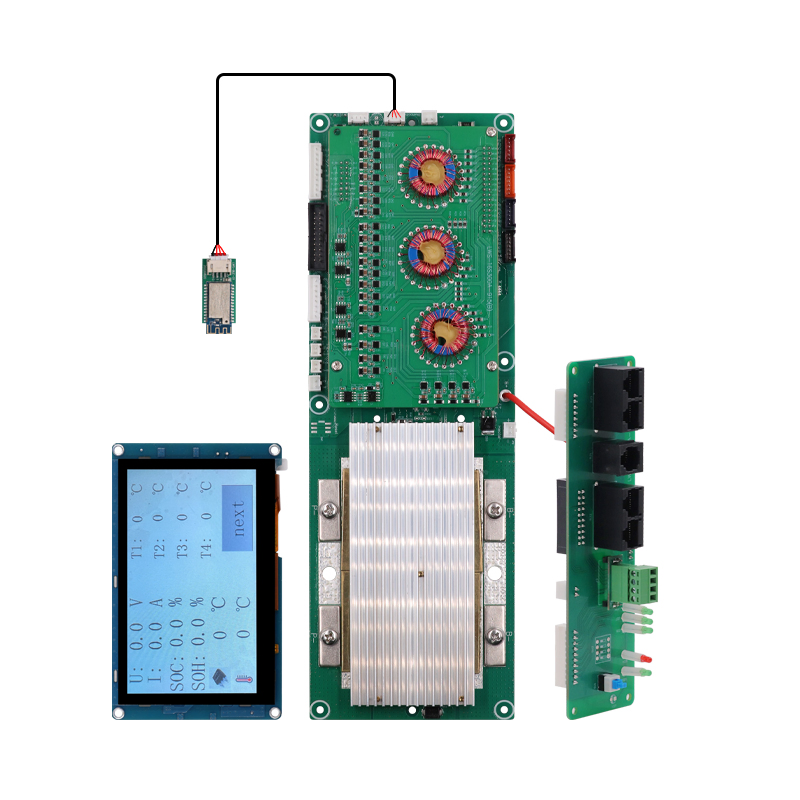

LWS-16S300A-994: Detect and protect the battery from over-charge, over-discharge, over-current, short-circuit, and temperature fluctuations. Features an automatic voltage balance function.
Built with high-end electronic components (High End IC and MOSFET). Simple structure design ensures stable quality and performance. Flexible application allows usage for fewer battery series by leaving connection pins empty.
| Item | Min | Max | Type | Unit |
|---|---|---|---|---|
| Normal working voltage | 12.5 | 60 | 48 | V |
| Normal charging voltage | 18 | 60 | 57 | V |
| Working temperature range | -20 | 70 | 25 | °C |
| Continuous charging current | / | 300 | / | A |
| Continuous discharge current | / | 300 | / | A |

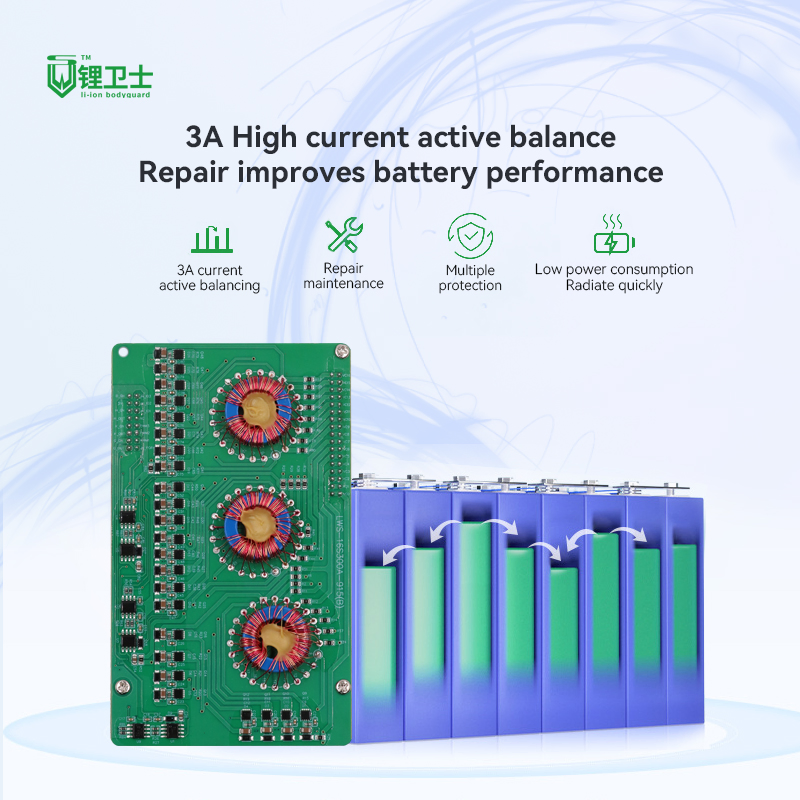

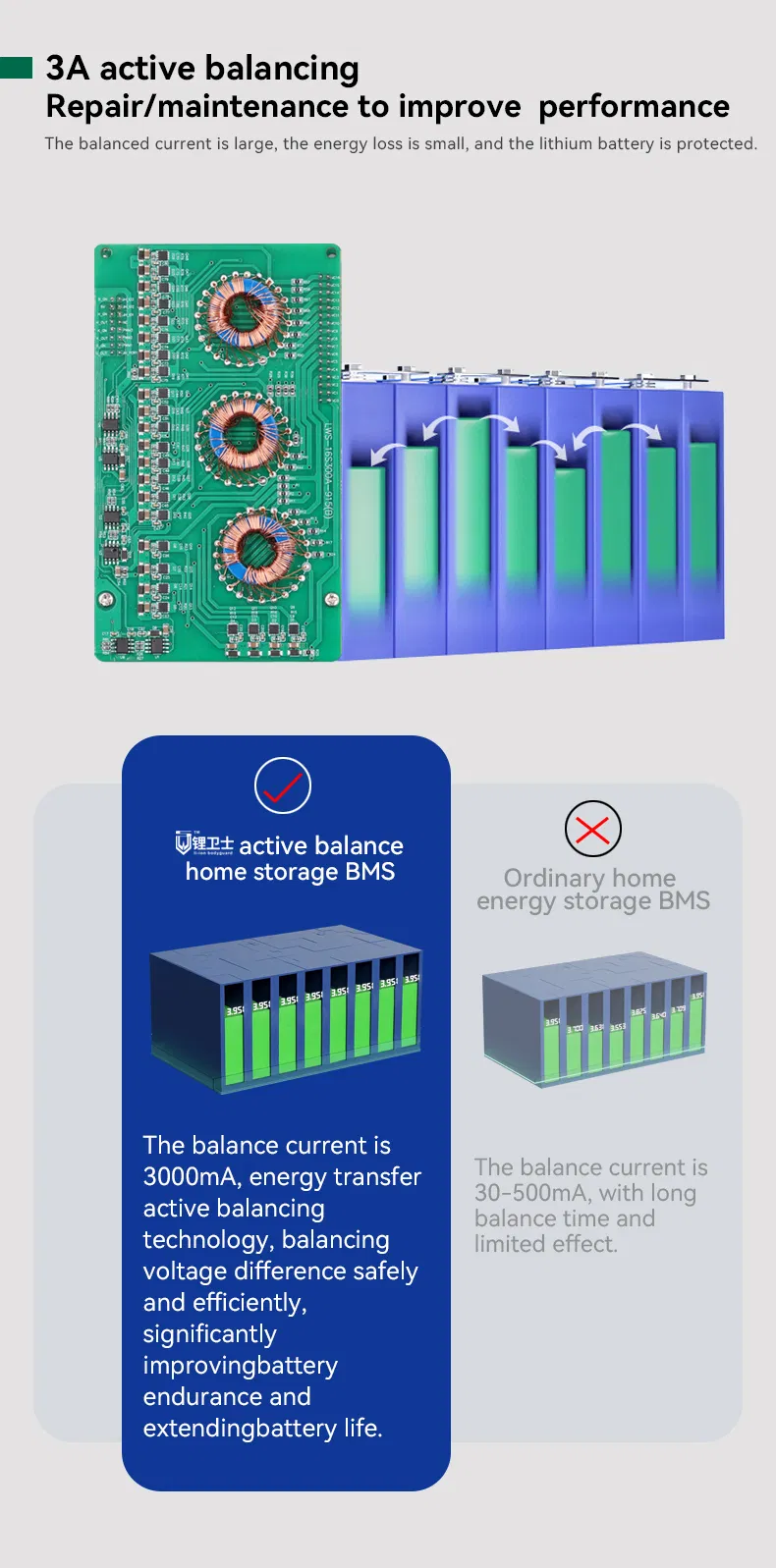

| Active balance current | / | 3 | / | A |
| Passive balance current | / | 100 | 50 | mA |
| No. | Status | Data | Action Value | Recovery | Delay (ms) |
|---|---|---|---|---|---|
| 1 | Charge | Total voltage | 3.5 × N | 3.45 × N | 1000 |
| 2 | Charge | Single voltage | 3.5 | 3.45 | 2000 |
| 3 | Charge | Over current 1 | 300 | / | 4000 |
| 5 | Charge | High temp | 55 | 50 | 4000 |
| 11 | Discharge | Cell voltage | 2.6 | 2.7 | 2000 |
| 19 | Any state | Voltage Diff | 0.45 | 0.3 | 1000 |
