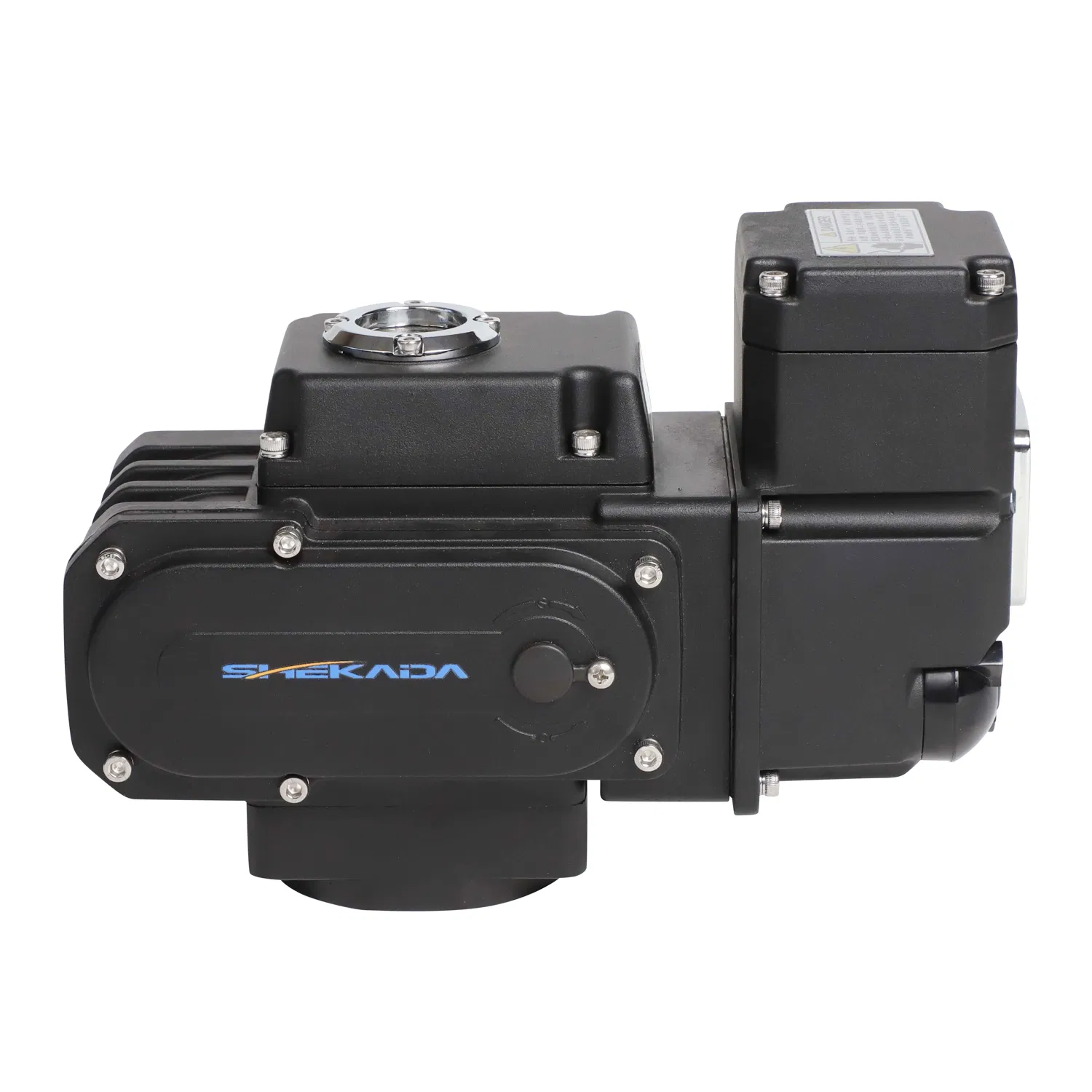

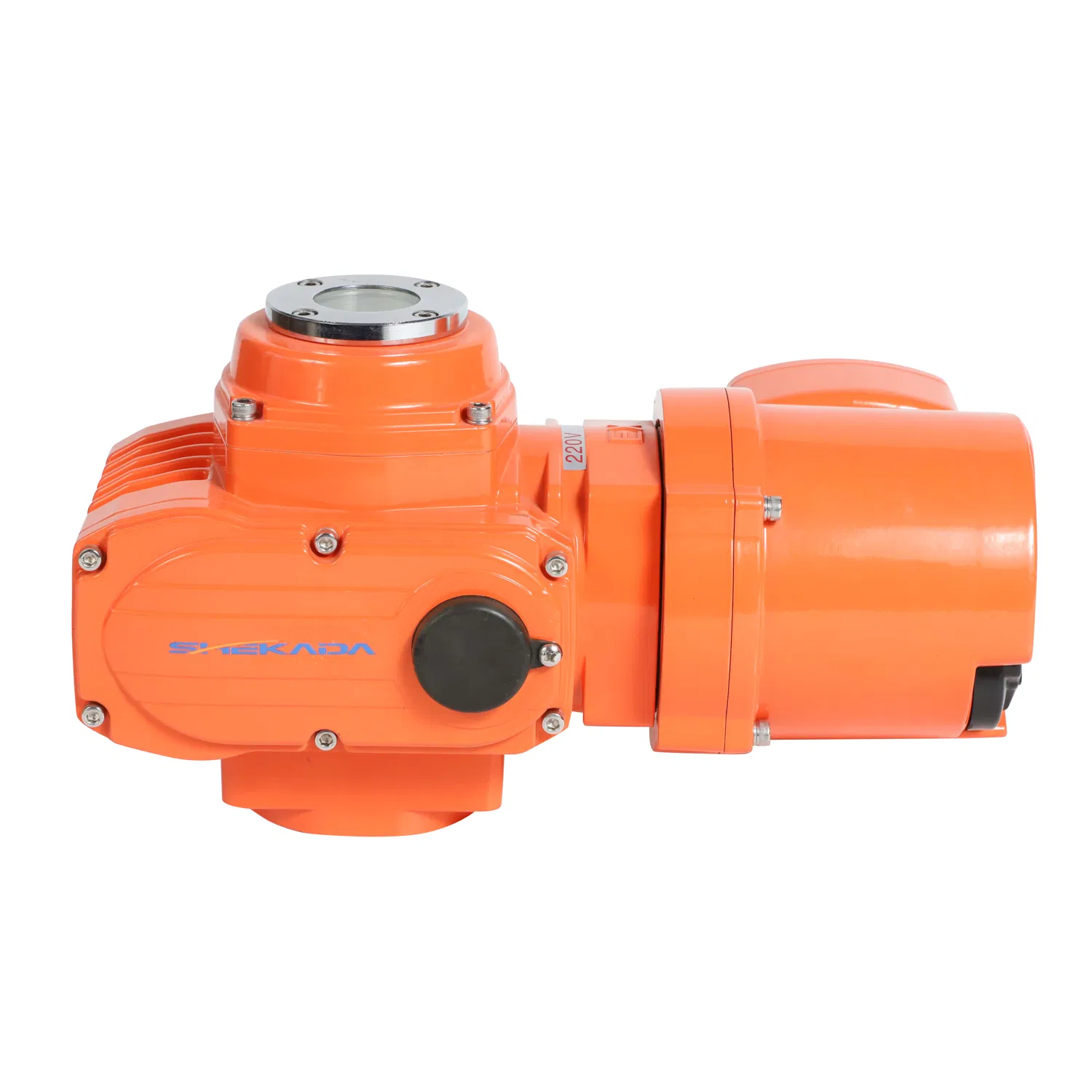

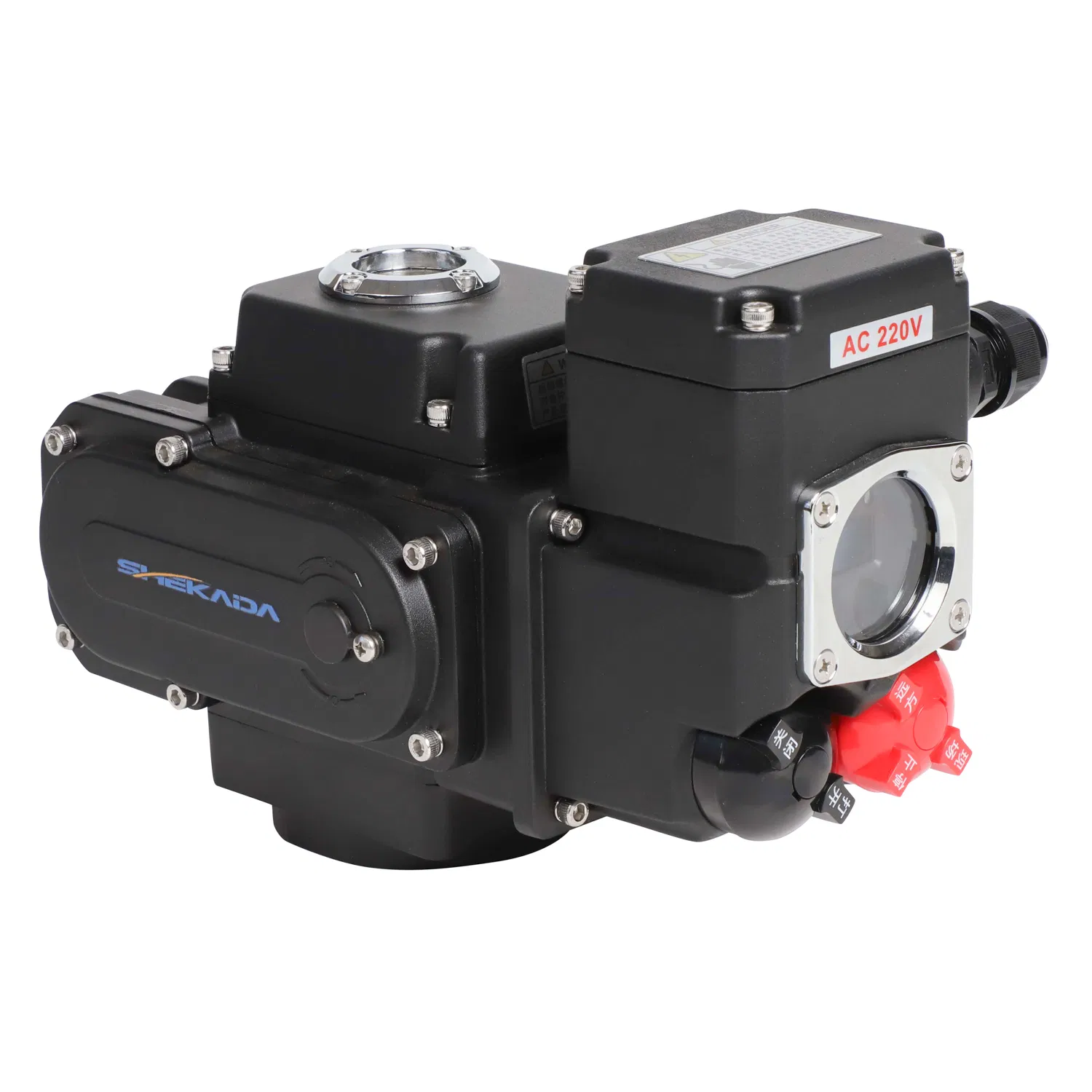

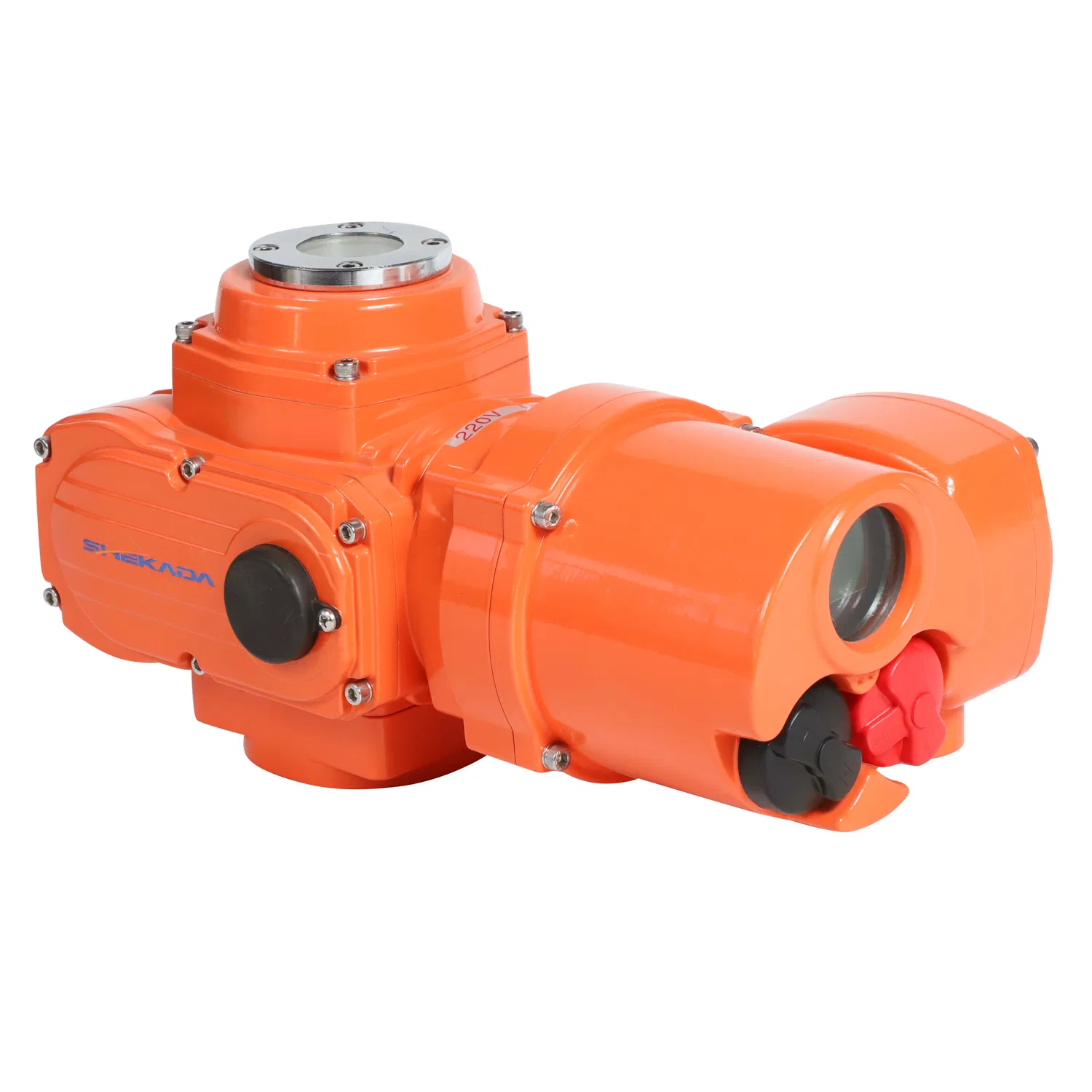

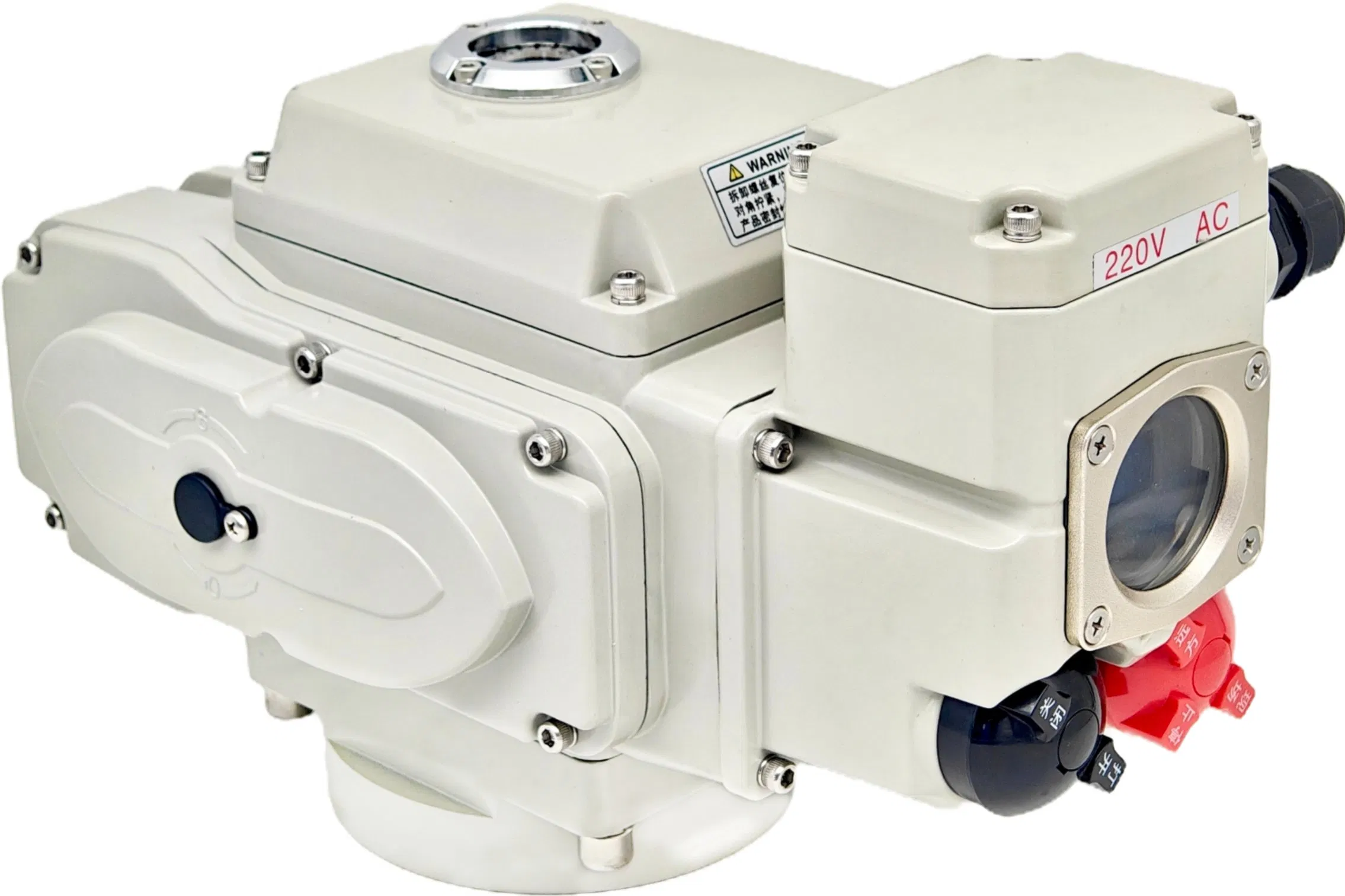

Integrated Part-Turn Smart Actuator IP68 1000n·M

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.
SIT-100
Power Source
Electric Power
Temperature
Ordinary Temperature
Connection
Flange
Material
Aluminum Alloy
Output Torque
50nm-6000nm
Mounting
Any Orientation
Support
OEM / Customized
Origin
China
Capacity
5000 Pieces Per Month
Product Description

Introducing our high-performance electric valve actuator, designed for precise valve control in various industrial applications. This compact and durable actuator is available in switch type, modulating type, and intelligent integrated type, catering to different operational needs.

With a quarter turn mechanism and options for AC220V/AC380V/DC24V power supply, this actuator ensures efficient and reliable performance. It is IP67 rated, with an optional IP68 rating for added protection against dust and water ingress.

Integrated Part-Turn Smart Actuator
Smart Actuator IP68
Core Specifications & Industry Use

This product is widely used in petroleum, chemical engineering, water treatment, marine, papermaking, power plants, heating, wind power, and new energy industries.

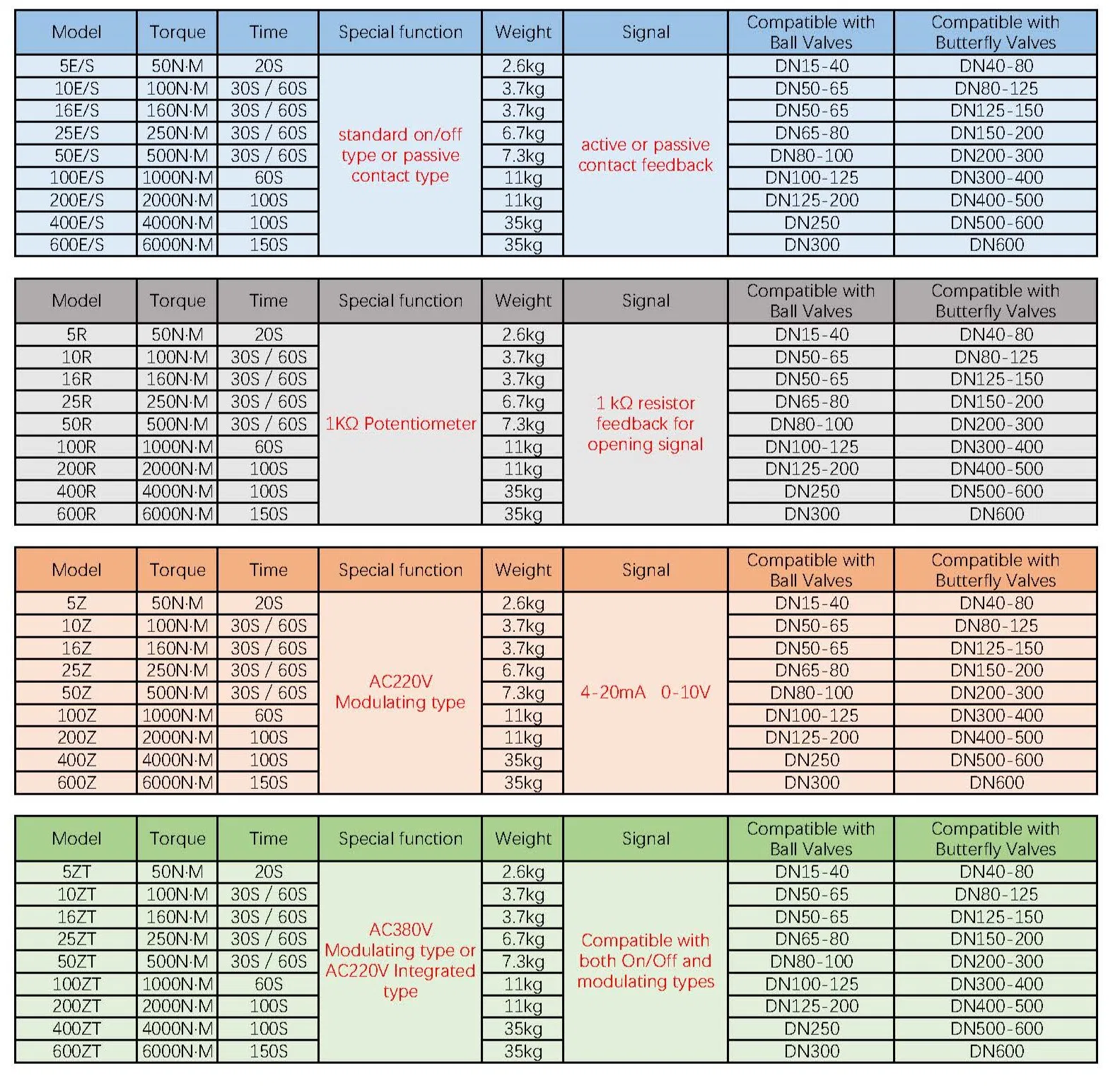

SKD Series Core Specifications
💡 Configurable Parameters:
  • Voltage: Default AC220V (Optional: DC12V/DC24V/DC220V/AC24V/AC110V/AC380V)
  • Operating Temperature: Default -25℃ to +60℃ (Optional: -40℃ to +70℃)

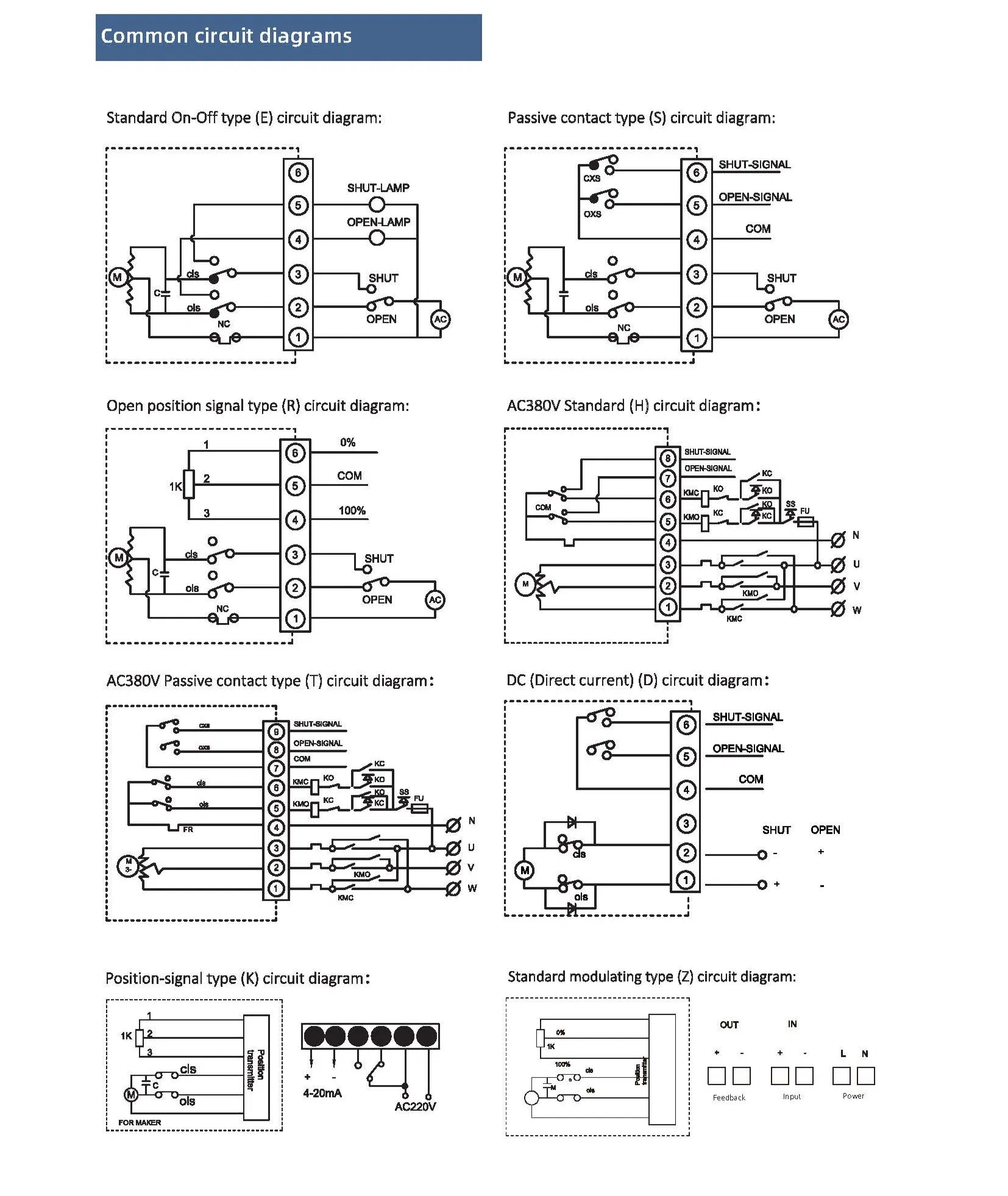

Product circuit diagrams
Package & Manufacturing

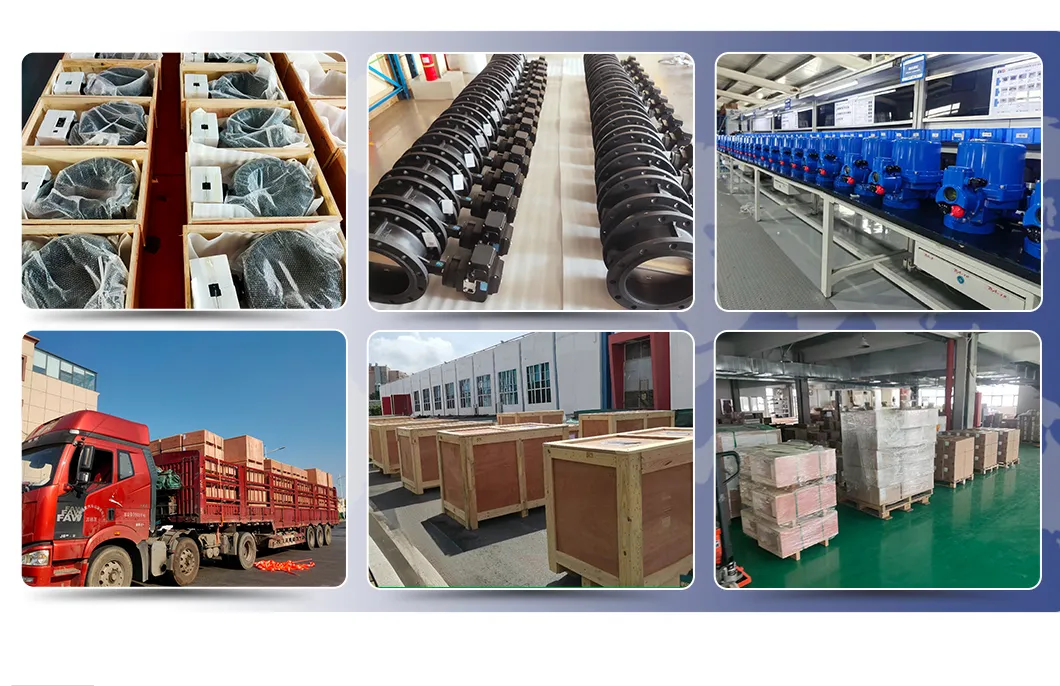

Package and Shipping

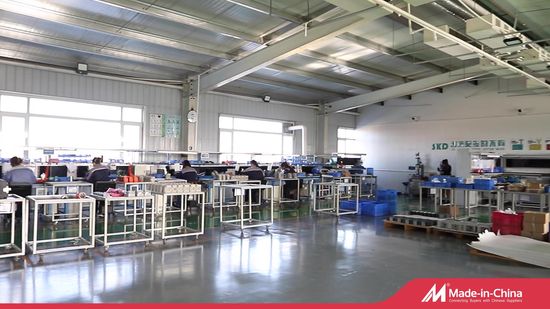

🛠️ Assembly & Commissioning Center

From design blueprints to delivery, we adhere to lean production and strict standards. Every precision component is accurately assembled with millimeter-level craftsmanship. Our flexible production line meets small batch customization and large-scale production needs.

Assembly Video Cover
Frequently Asked Questions
Can the electric actuator achieve an IP68 protection rating?
Yes, it can. Testing is carried out according to specific environment factors such as water immersion duration and depth to ensure compliance.
How long is the warranty period for this product?
One year based on the date of manufacture.
Does the product support 485 bus with a backup line?
Yes, our SQT series products support configurations for 485 bus (such as Modbus, Profibus) with a backup line.
What is your Minimum Order Quantity (MOQ)?
The MOQ is 1 unit for the electric actuator.
Is it possible to customize the actuator with my own logo?
Yes, we provide OEM services. Please provide your relevant logo information for customization.
What are your core advantages in this field?
With nearly 20 years of focus solely on electric actuators, our products offer excellent cost-effectiveness, reliable quality, and complete functionality driven by deep industrial understanding.
