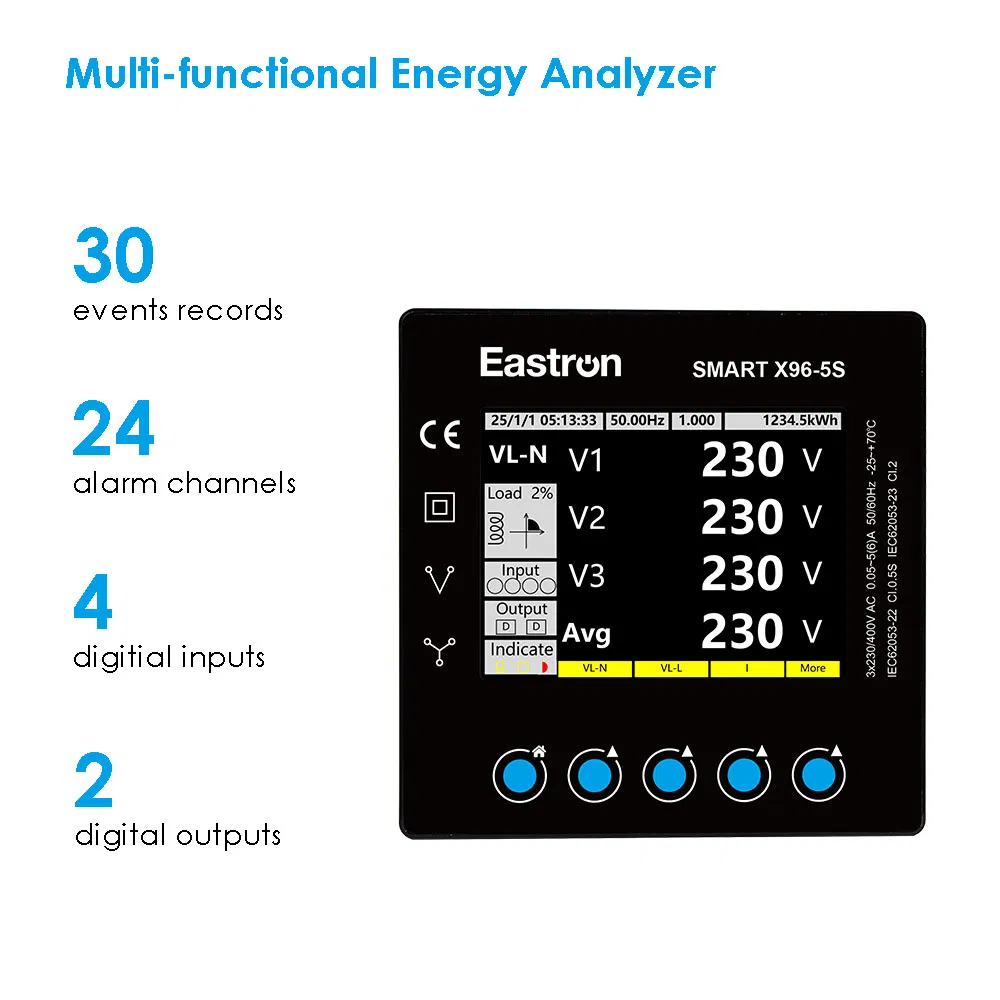

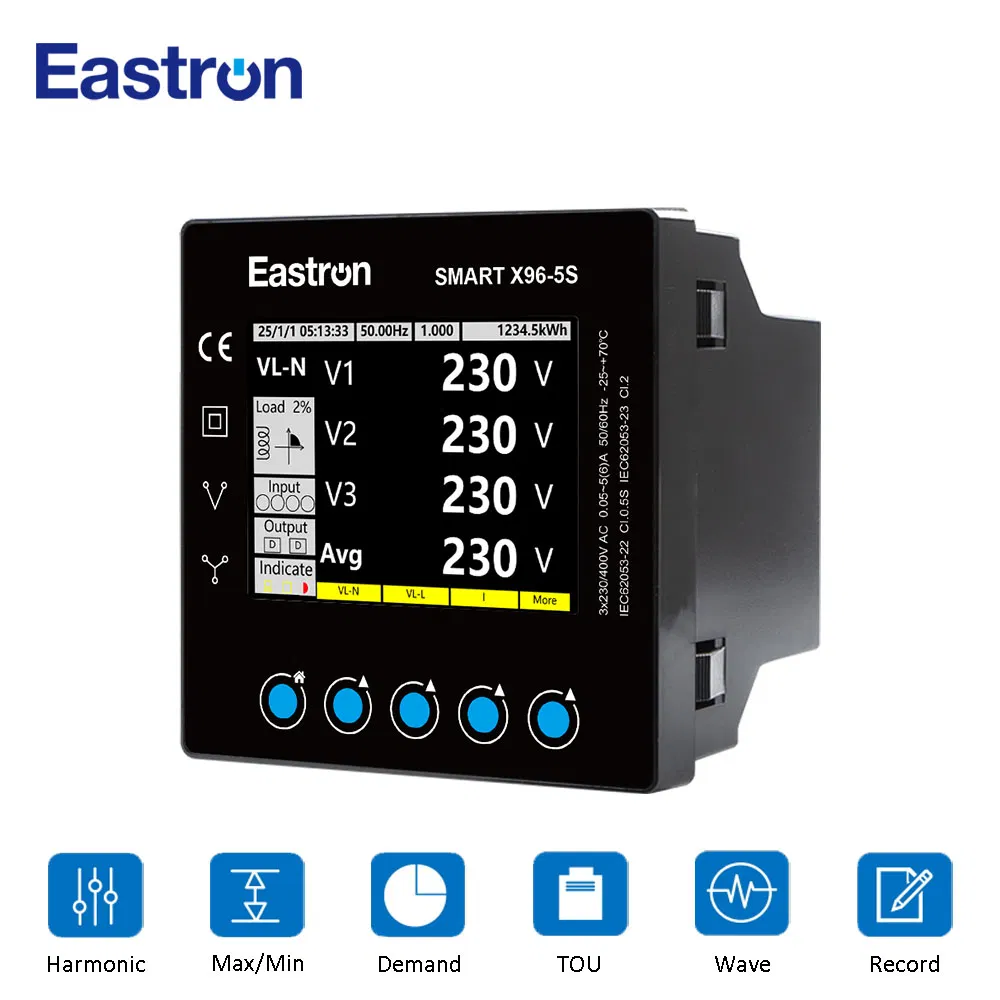

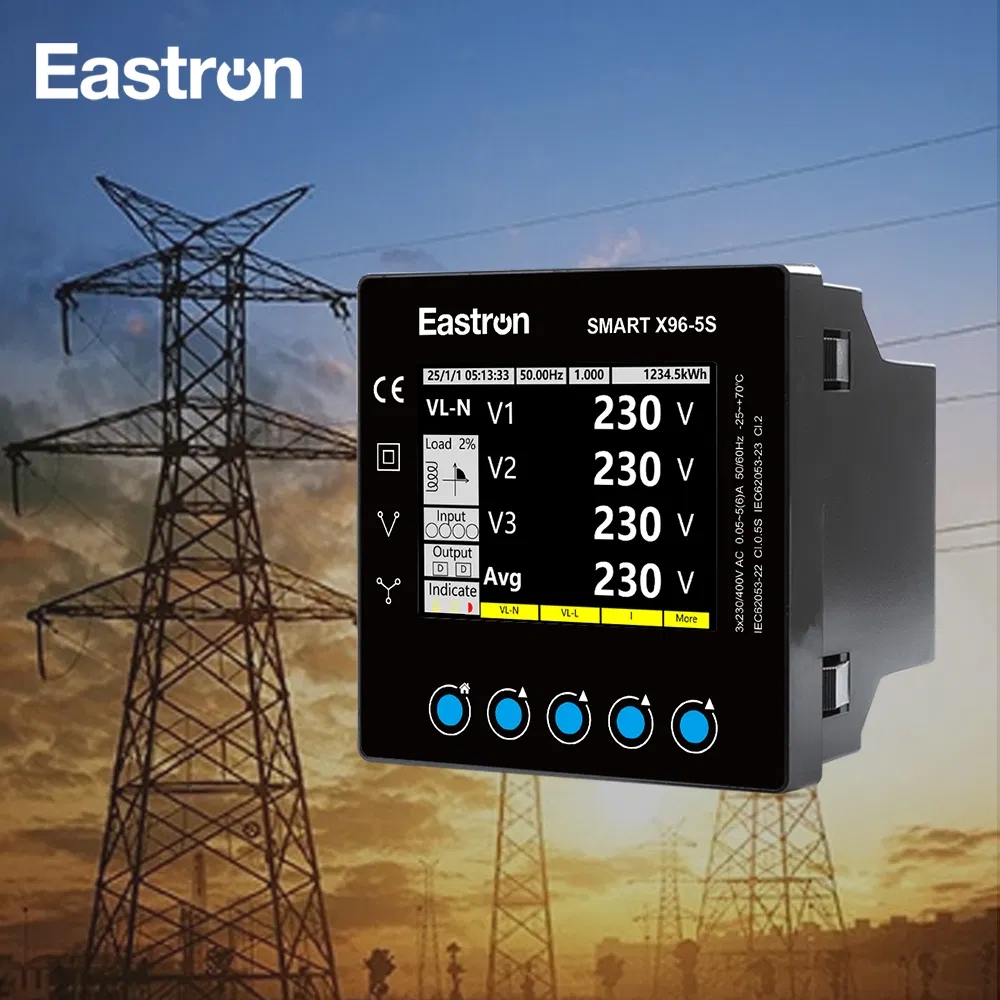

The Smart X96-5S is a panel-mounted multifunctional energy analyzer. As a digital monitoring product, it integrates the functions of measurement, monitoring and communication in one device. With modern computer and digital signal processing technologies, this series of meters can replace various discrete components such as traditional transmitters, indicating instruments and relays.

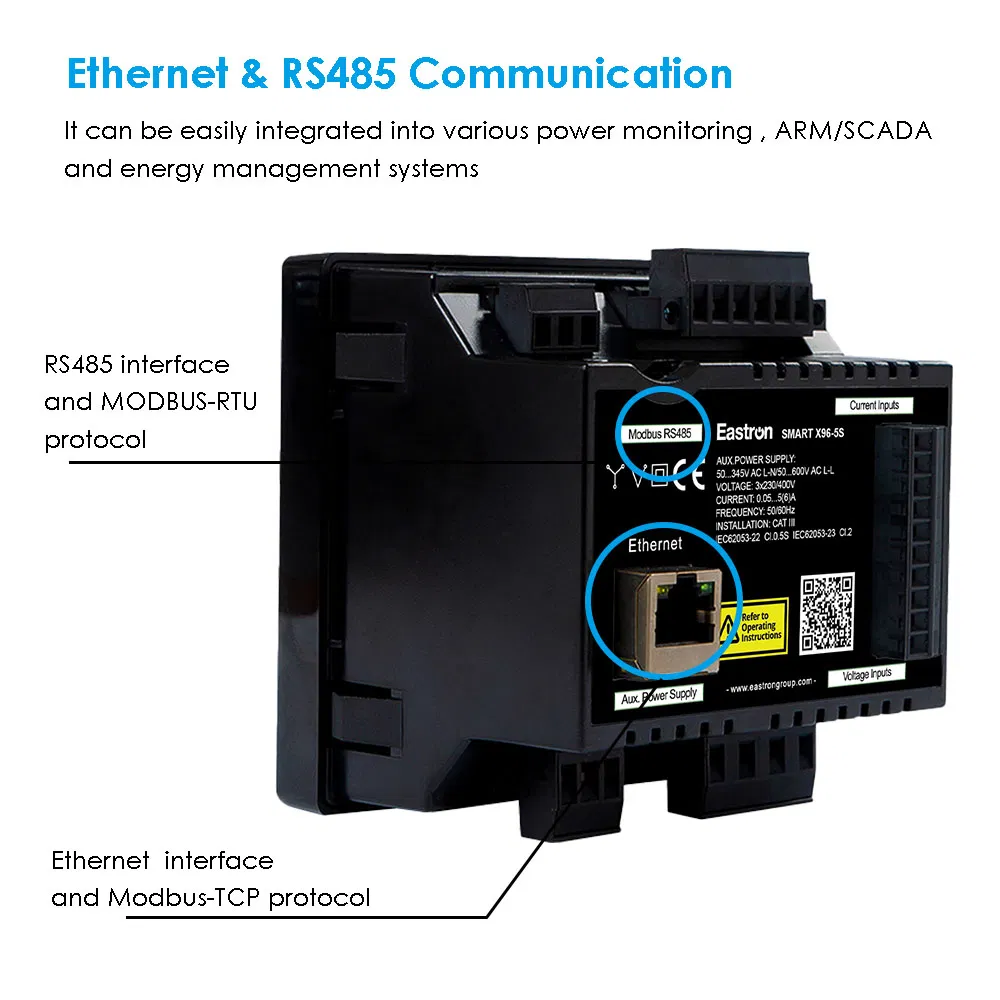

Equipped with a RS485 interface and MODBUS-RTU protocol, it can be easily integrated into various power monitoring, SCADA and energy management systems.
It measures common electrical parameters including three-phase current, voltage, active/reactive power and electrical energy comprehensively, making it suitable for real-time monitoring and data acquisition systems.
| Electrical Characteristics | ||
|---|---|---|

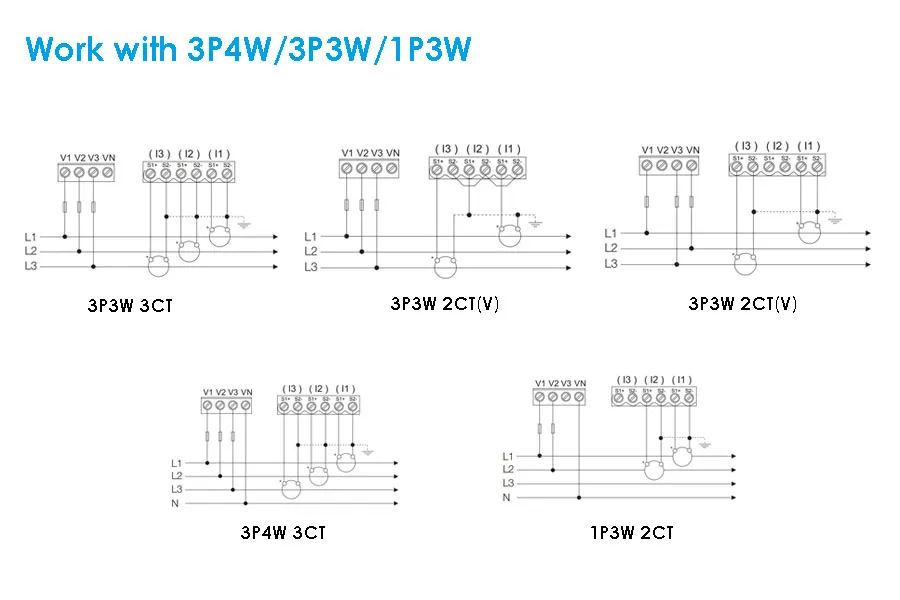

| Type of Measurement | RMS (3P, 3P+N) | |
| Measurement Accuracy | Active Energy | Class 0.5S IEC62053-22 / Class C EN50470-3:2022 |
| Frequency | ±0.05% | |
| Current / Voltage | ±0.2% | |
| Power Factor | ±0.005 | |
| Input & Output | ||
|---|---|---|

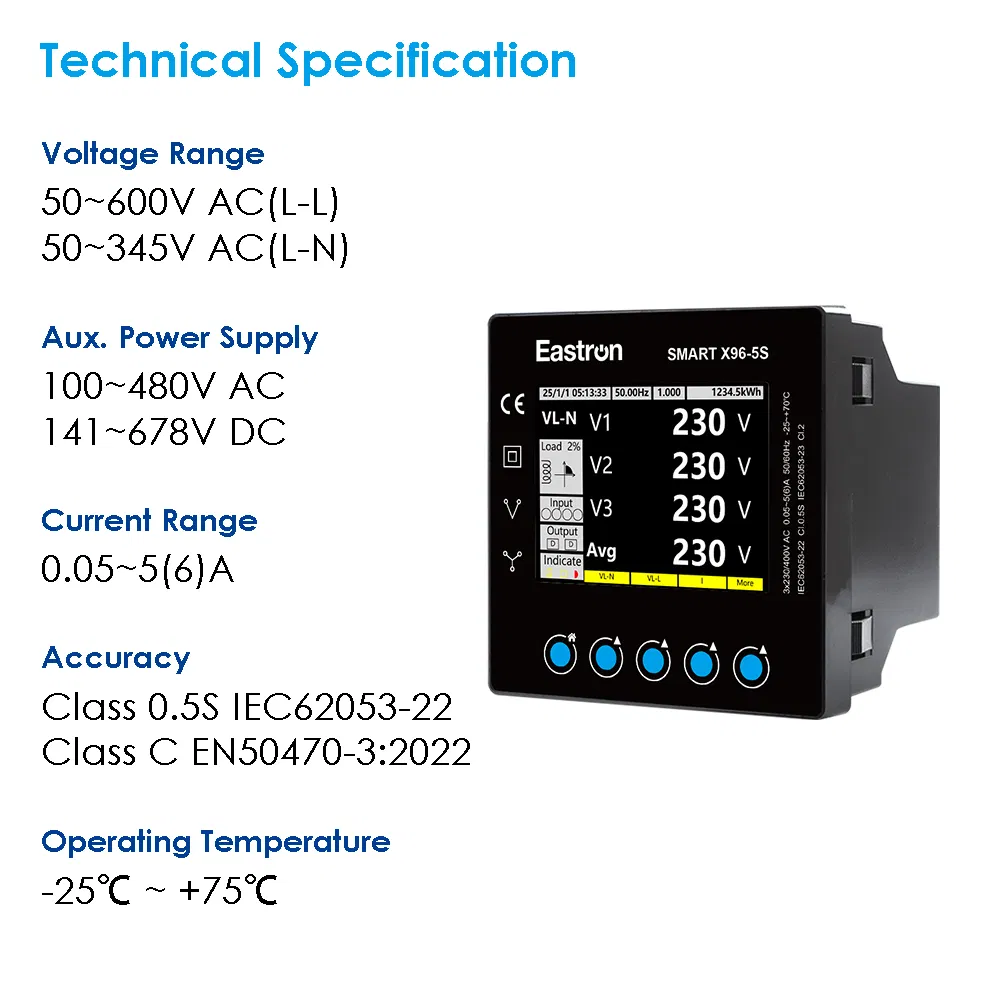

| Aux. Power Supply | 100~480V AC / 141~678V DC | |
| Voltage Range | 50~600 V AC(L-L) / 50~345 V AC(L-N) | |
| CT Secondary | 1A / 5A | |
| PT Secondary | 100~480 V | |
| Communications | |
|---|---|
| Interface 1 | RS485 (MODBUS RTU) |
| Transmission Speed | 1200 to 115200bps |
| Interface 2 | Ethernet (Modbus-TCP) |
| IP Port | 502 |
We are a leading high-tech manufacturer of electricity products and energy measurement solutions. Over the years, we have developed a wide range of electricity meters, sensors, communication modules, and management systems.
To ensure product reliability, we operate a professional lab that performs EMC, LVD, accuracy, and environment tests according to IEC, EN, GB, and UL standards. With over 280 patents, our production operates under ISO 9001 and holds various international certifications.
