China 8-20m 200kg Height Diesel Trailer Boom Lift Articulating Boom Lift

Customization:	Available
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Hydraulic

Technical Specifications

Model NO.

2020 Series

Carrying Capacity

Middle-Level

Moves

Self-propelled

Driven Type

Hydraulic

Running Mode

Moving

Certification

ISO 9001

Wheelbase

1.89m

Lifting Speed

3-5m/Min

Battery

4*6V/225ah

Charger

24V/25A

Transport Package

Sea, Air and Land Transport

Specification

5.20*1.75*2.10

Origin

Shandong

Production Capacity

12000 pieces/Year

Product Description

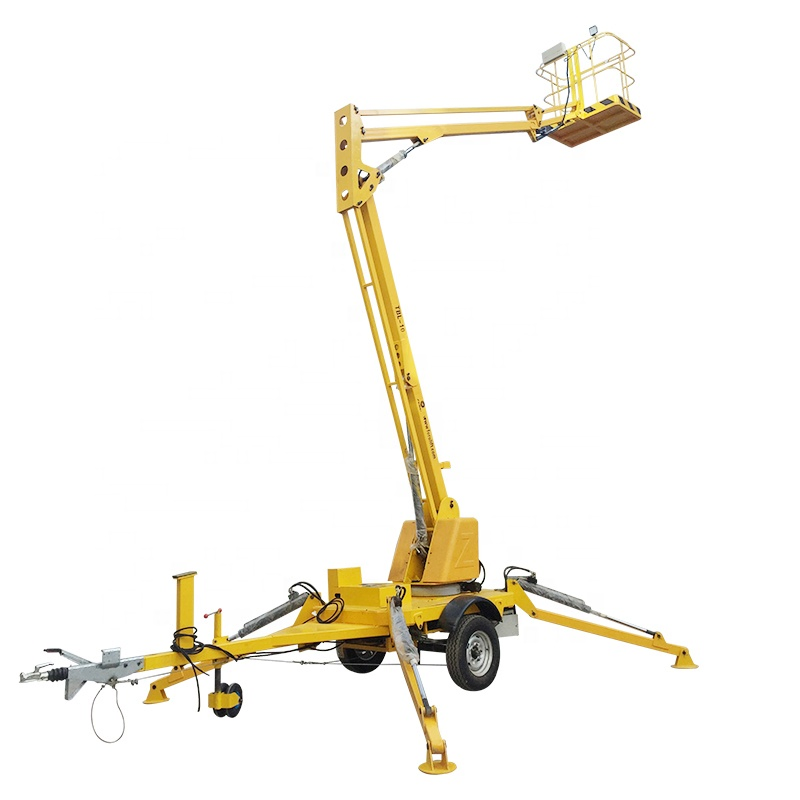

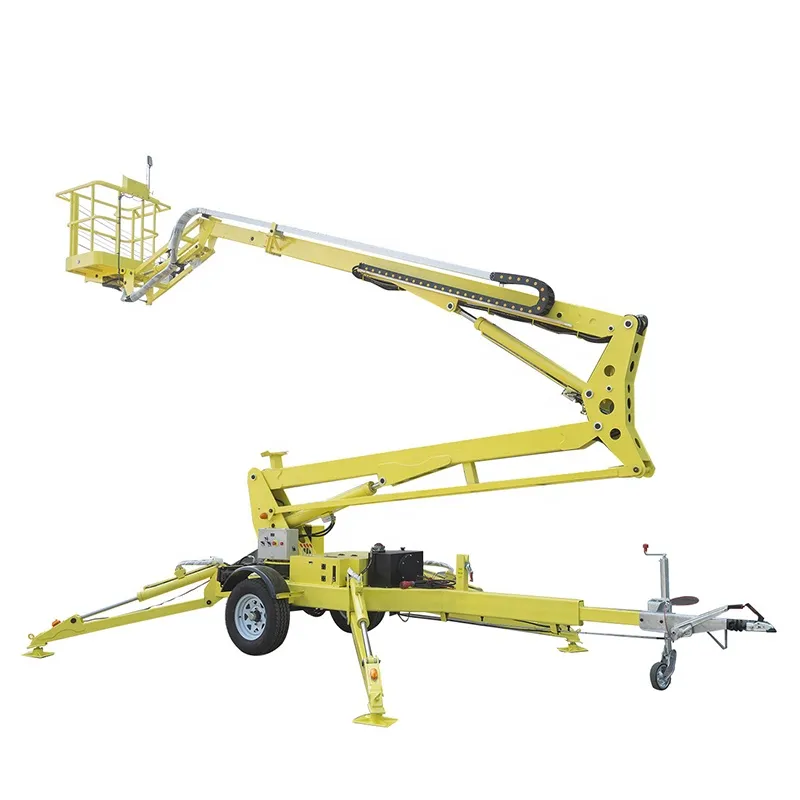

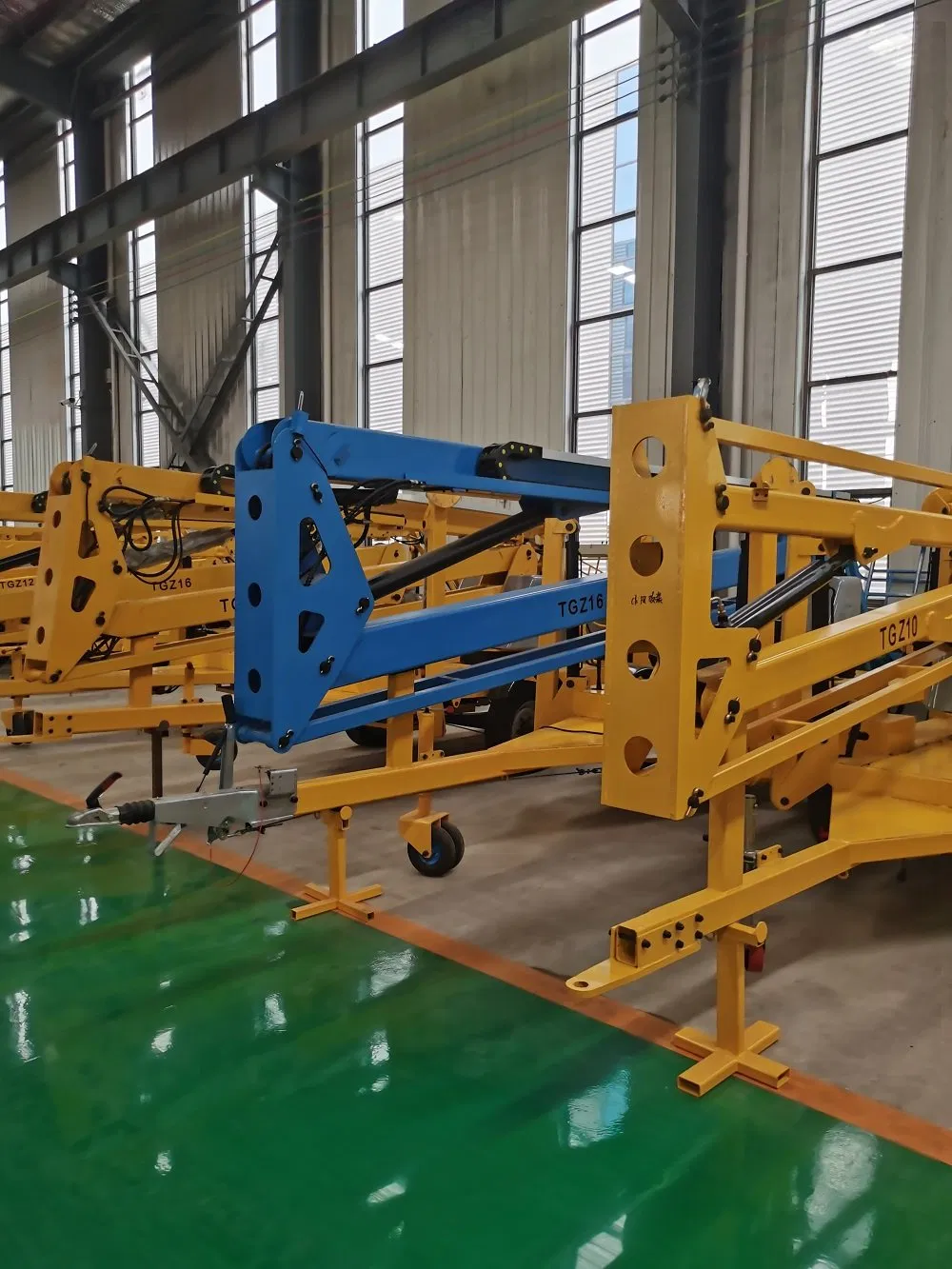

Trailer Mounted Boom Lift

The lift arm series offers a compact structure utilizing high-quality, high-strength steel. It provides the advantages of being lightweight with direct access to AC power for startup. Features include fast-setting automatic hydraulic support feet for safe and simple operation. The working table can be raised with a large horizontal extension span, significantly increasing the working area. The platform is rotatable, making it easy to cross obstacles and reach precise working positions.

Compact design for easy transportation
Hydraulic support feet for maximum safety
Rotatable platform for flexible positioning
Trailer speed capability up to 90km/h

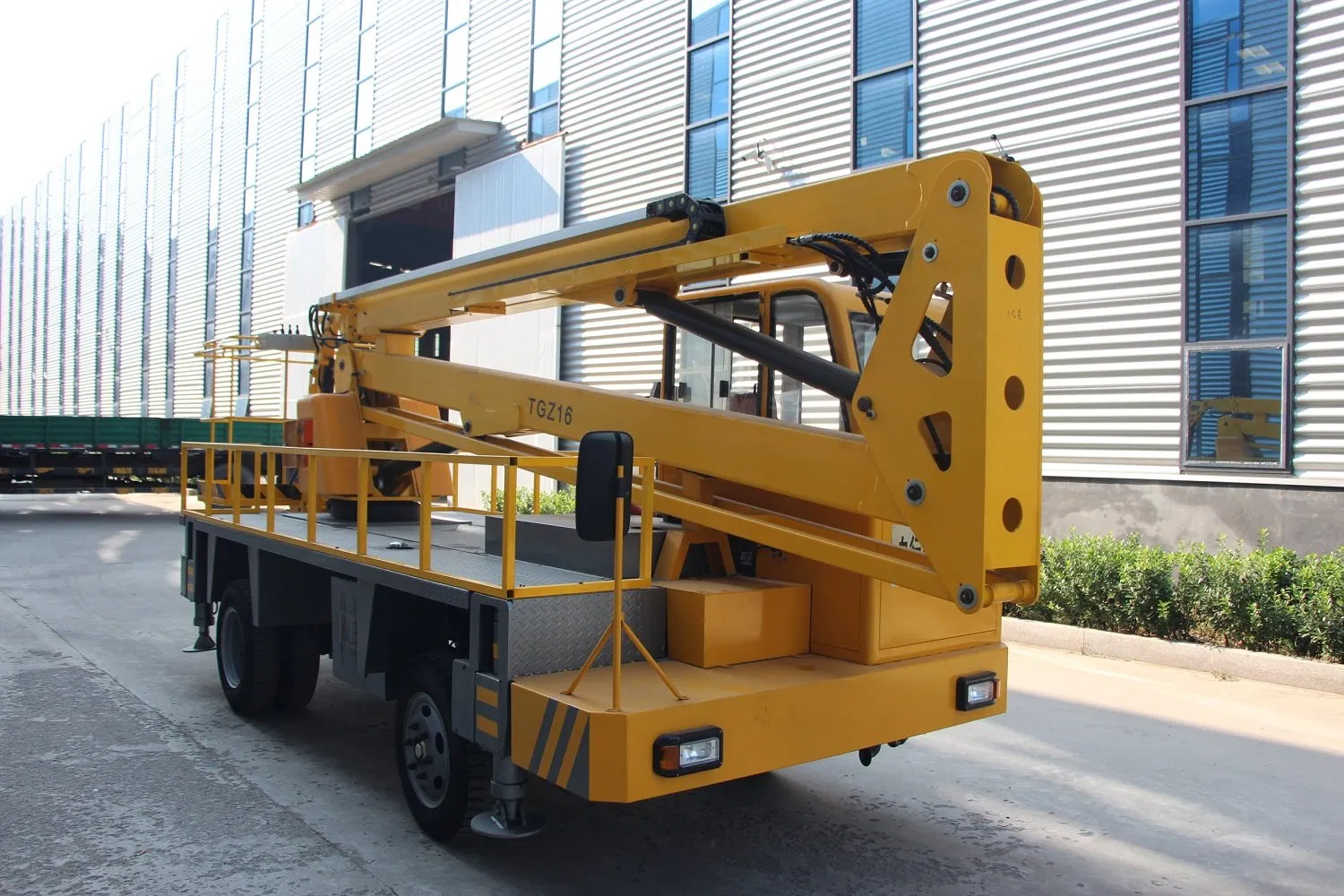

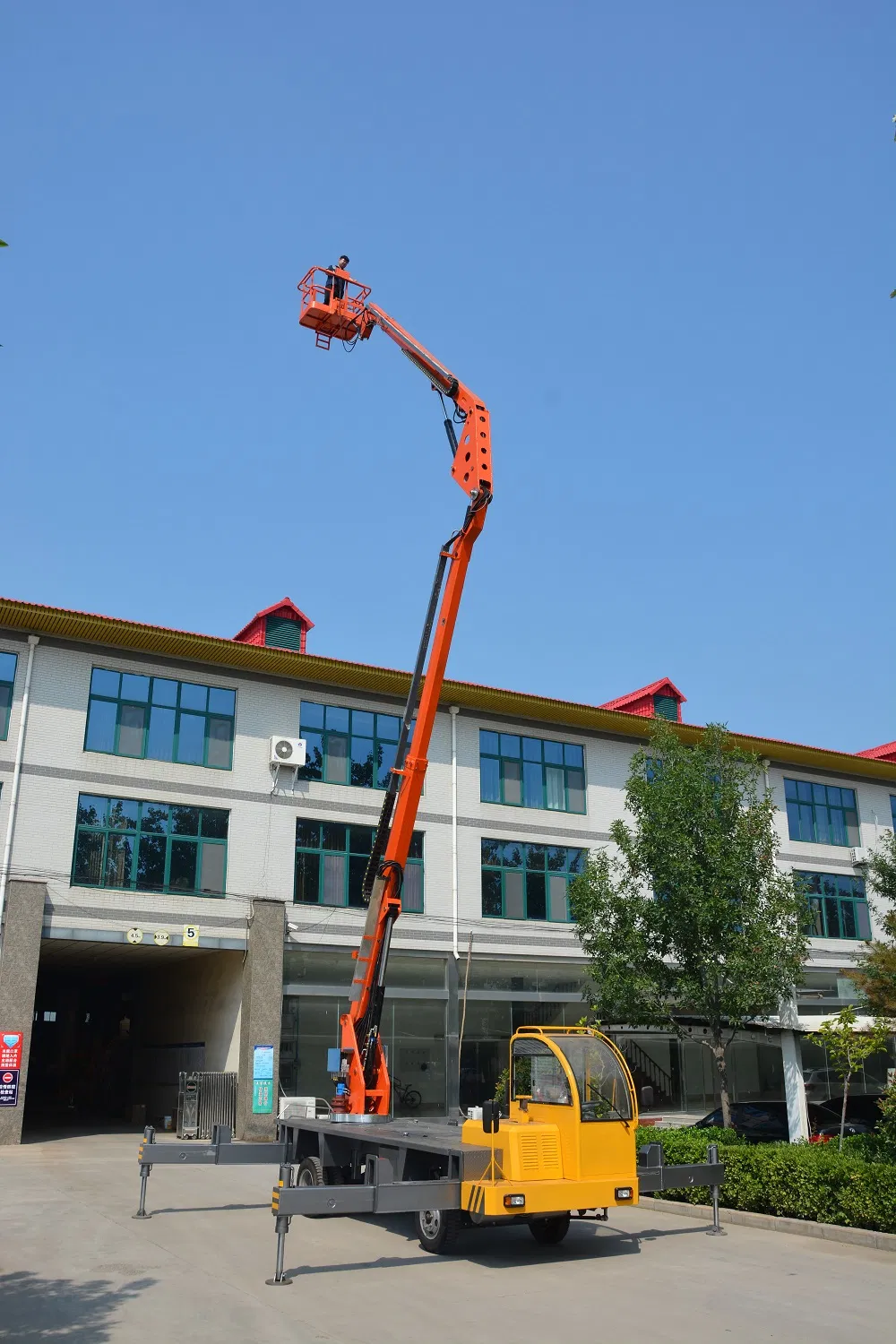

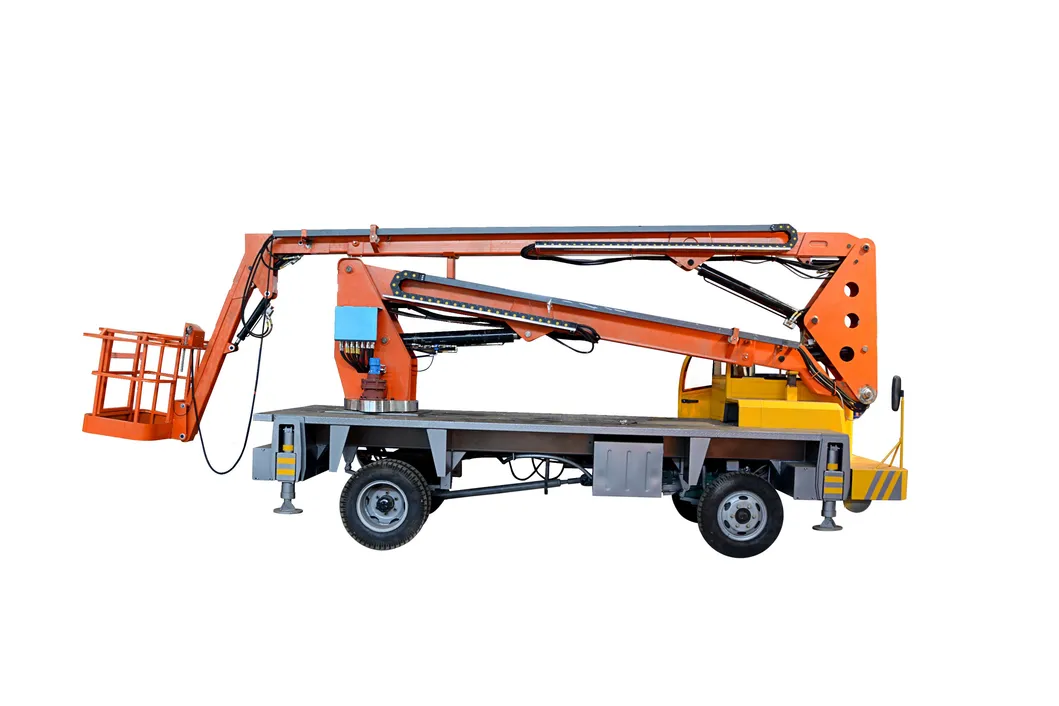

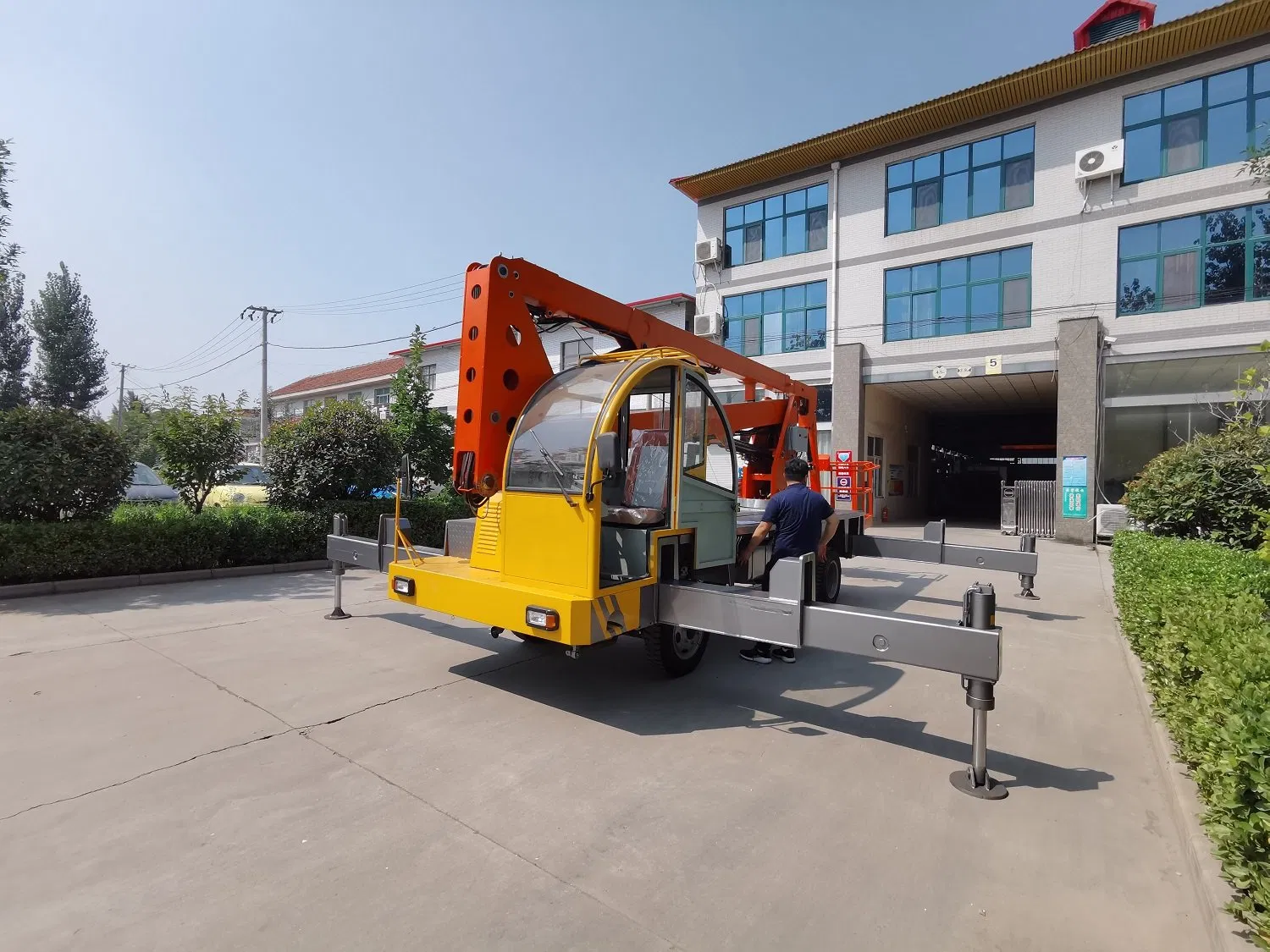

Self-Propelled Boom Lifting Platform

Our folding arm aerial vehicles are widely utilized for installation, maintenance, and climbing tasks in municipal power, street lighting, advertising, photography, gardening, and wharf operations. They are ideal for rugged terrain and large-scale space operations, including bridge construction, shipbuilding, airports, mines, and ports. The diesel engine versions require no external power supply, making them perfect for field operations with fast walking speeds and high power output.

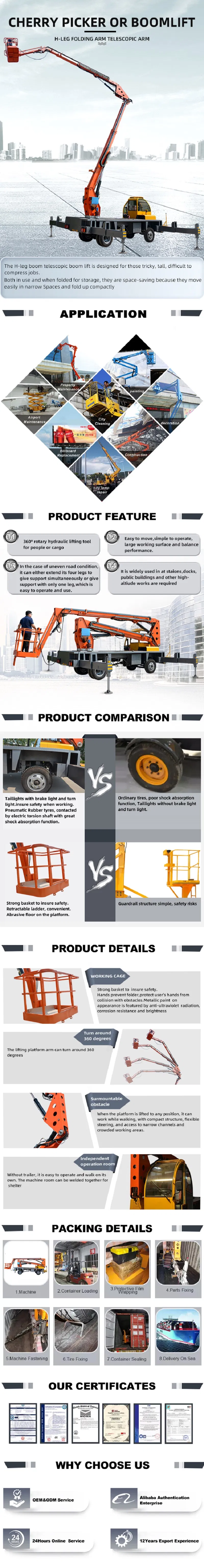

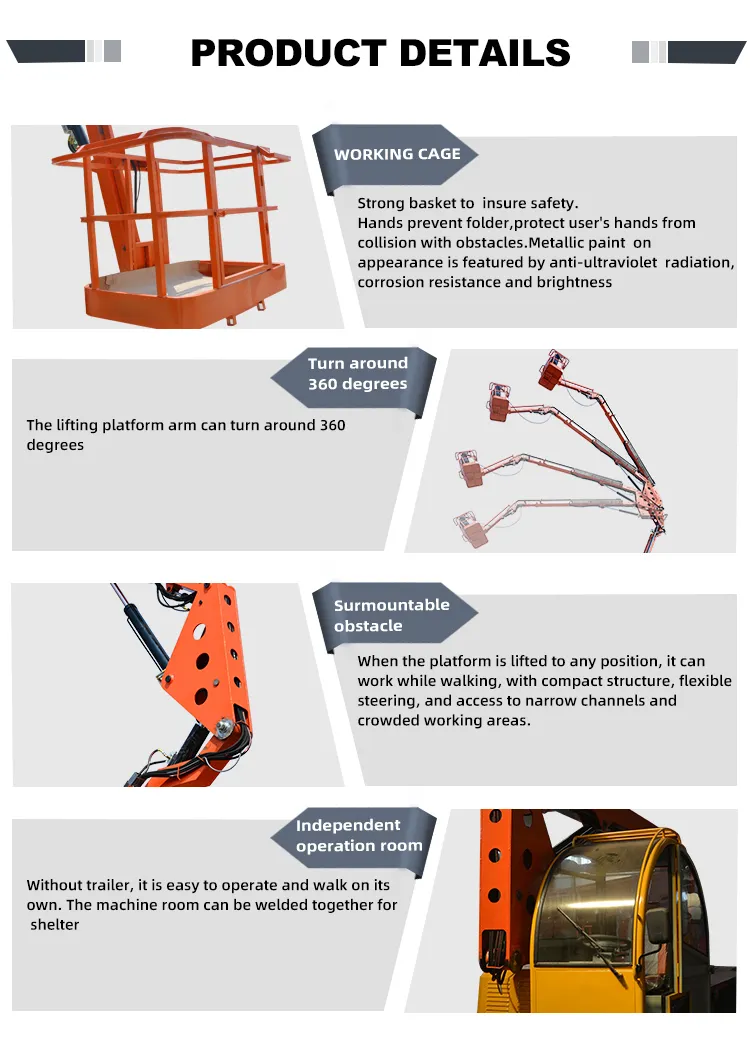

Product Details

Technical Parameters

DIESEL POWERED MODELS
Model	Platform Height(m)	Working Height(m)	Dimensions(mm)	Platform Size(mm)	Power(HP)	Weight(T)	Max Radius(m)	Load(kg)
QBJ0.3-14	14	16	610019002700	10006501000	22	3.8	8.1	200
QBJ0.3-16	16	18	650019002700	10006501000	22	4.2	9.3	200
QBJ0.3-18	18	20	680020002800	10006501000	22	4.7	12	200
QBJ0.4-16	16	18	650020002850	10006501000	52	5.5	9.3	200
QBJ0.4-18	18	20	680022202900	10006501000	52	5.8	12	200
QBJ0.4-20	20	22	720022202950	10006501000	52	6.5	9.3	200

BATTERY POWERED MODELS
Model	Platform Height(m)	Working Height(m)	Dimensions(mm)	Platform Size(mm)	Battery Spec	Weight(T)	Max Radius(m)	Load(kg)
QBJ0.3-14	14	16	610019002700	10006501000	12V*200ah x6	3.8	8.1	200
QBJ0.3-16	16	18	650019002700	10006501000	12V*201ah x6	4.2	9.3	200
QBJ0.3-18	18	20	680020002800	10006501000	12V*202ah x6	4.7	12	200

Professional Manufacturing

As a professional manufacturer of hydraulic lifting platforms, we maintain a strong technical team dedicated to developing innovative aerial solutions. Our product range includes scissor lifts, aluminum alloy lifts, rail-type platforms, and cylinder lifts. These products are widely implemented across construction sites, warehouses, airports, and large industrial enterprises for maintenance and installation tasks. We prioritize intelligence and reliability in every piece of equipment produced.

Frequently Asked Questions

What is the maximum working height of these boom lifts?

Our standard models offer working heights ranging from 14 meters up to 22 meters, depending on the specific configuration (Diesel or Battery powered).

Can the platform rotate for better positioning?

Yes, the platform is designed to be rotatable, allowing operators to easily cross obstacles and reach precise working positions.

What are the main power options available?

We offer two main power systems: High-performance Diesel engines for field operations without external power, and Battery-powered systems for indoor or noise-sensitive environments.

Is the trailer-mounted boom lift easy to transport?

Absolutely. The trailer-mounted models are designed for convenience and can be towed at speeds up to 90km/h for rapid deployment across different sites.

How does the automatic hydraulic support system work?

The system features fast-acting hydraulic legs that can be quickly deployed to level the machine and ensure a stable, safe base before lifting operations begin.

Are these lifts suitable for outdoor rugged terrain?

Yes, our self-propelled folding arm lifts are specifically designed to handle various types of rugged terrain, making them ideal for outdoor engineering and construction tasks.
