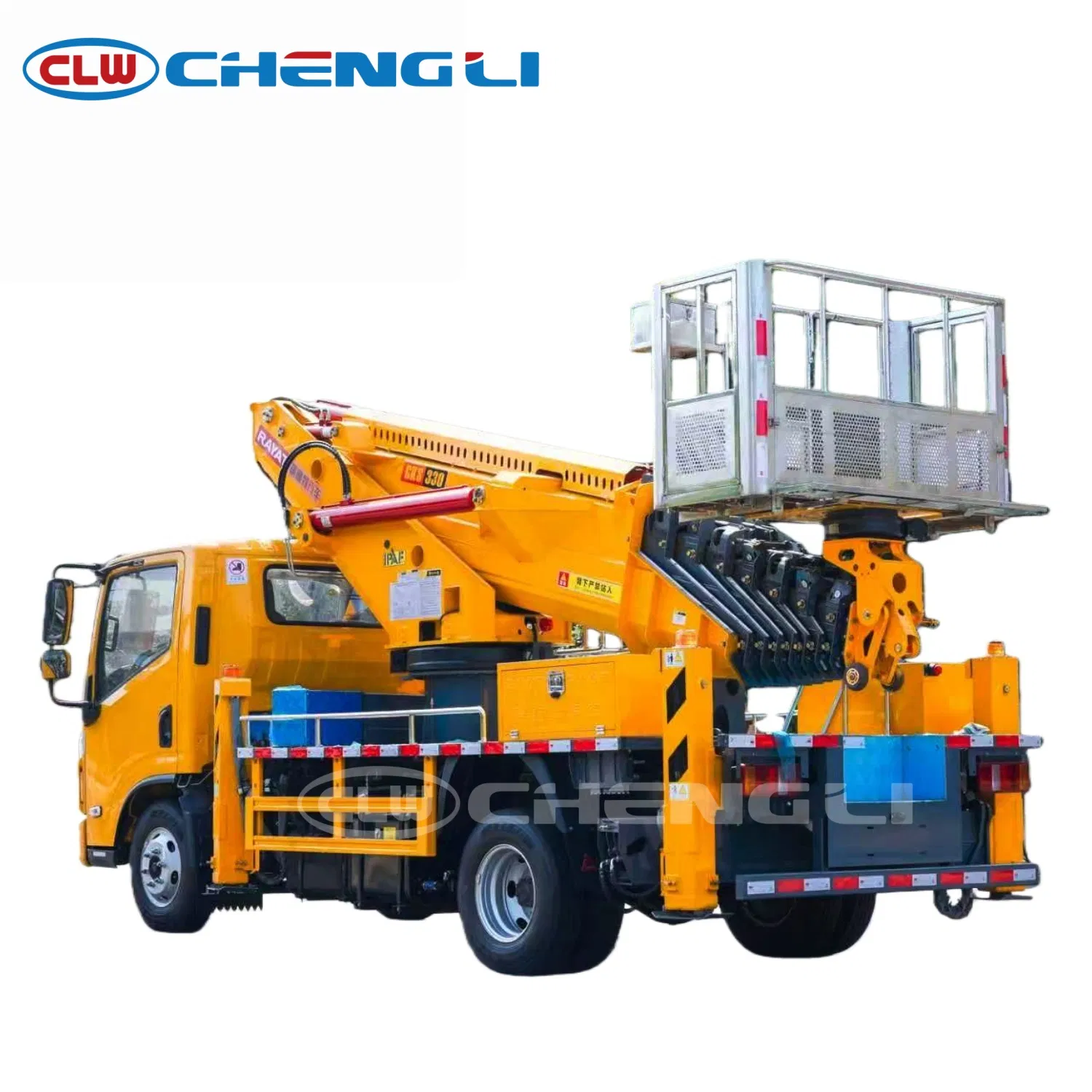

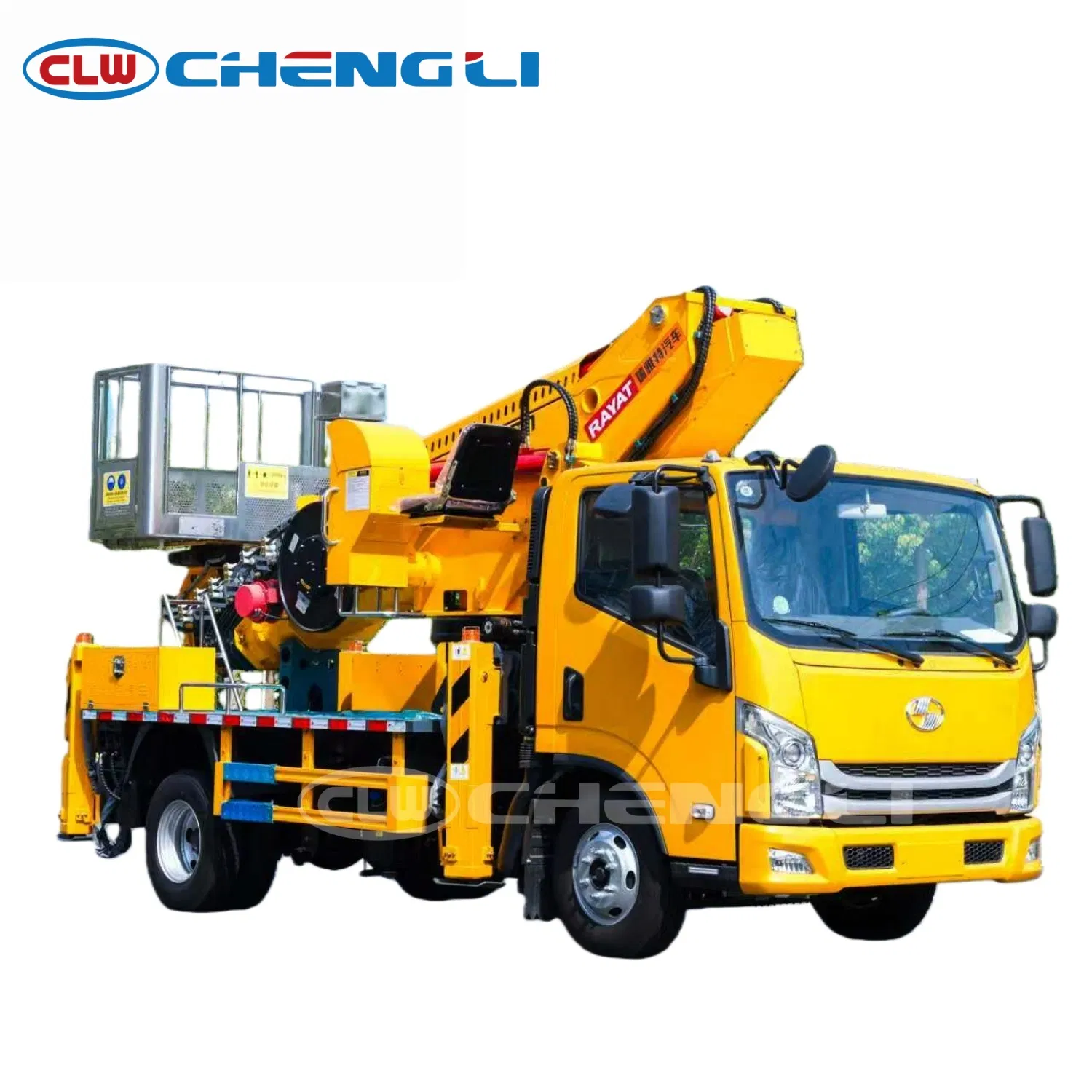

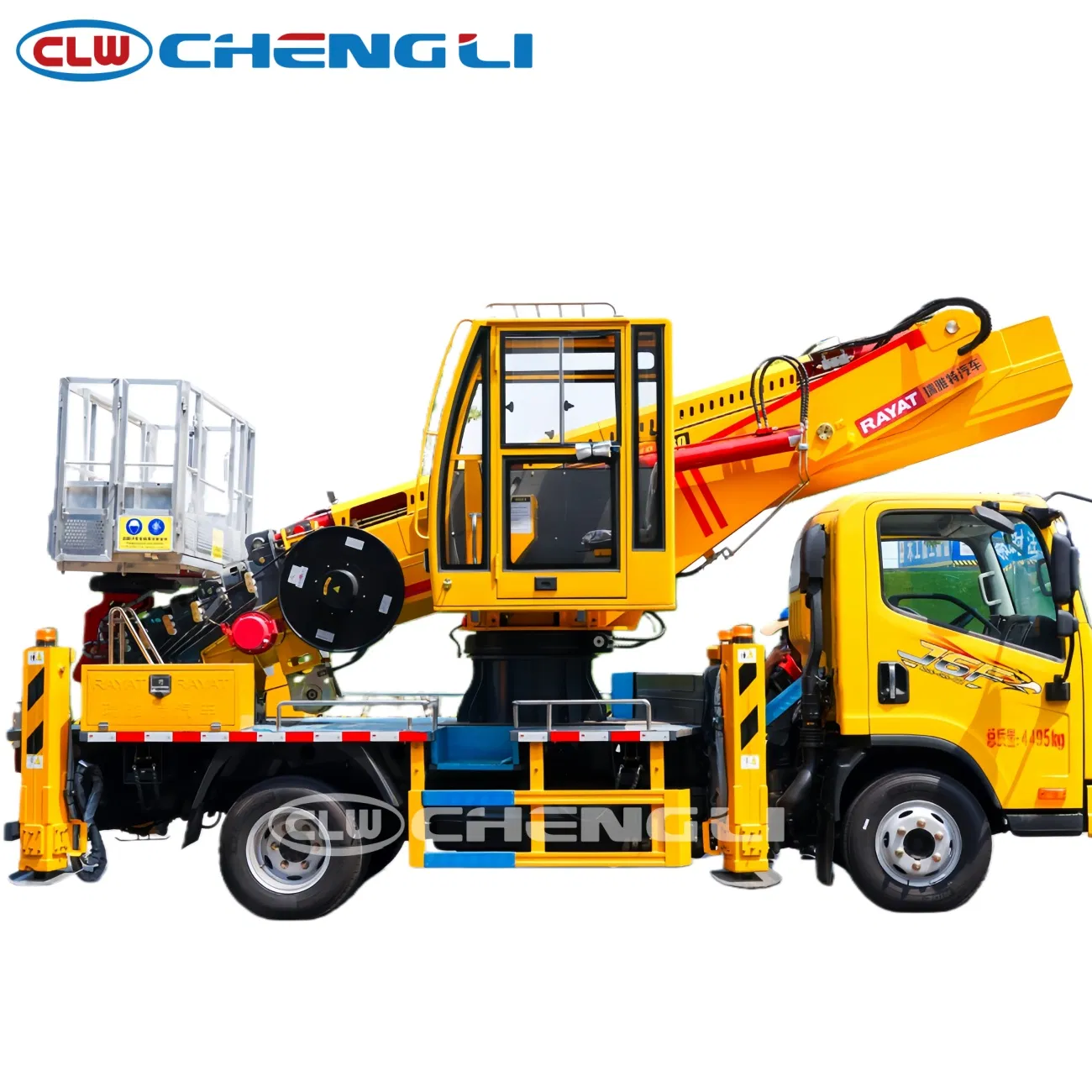

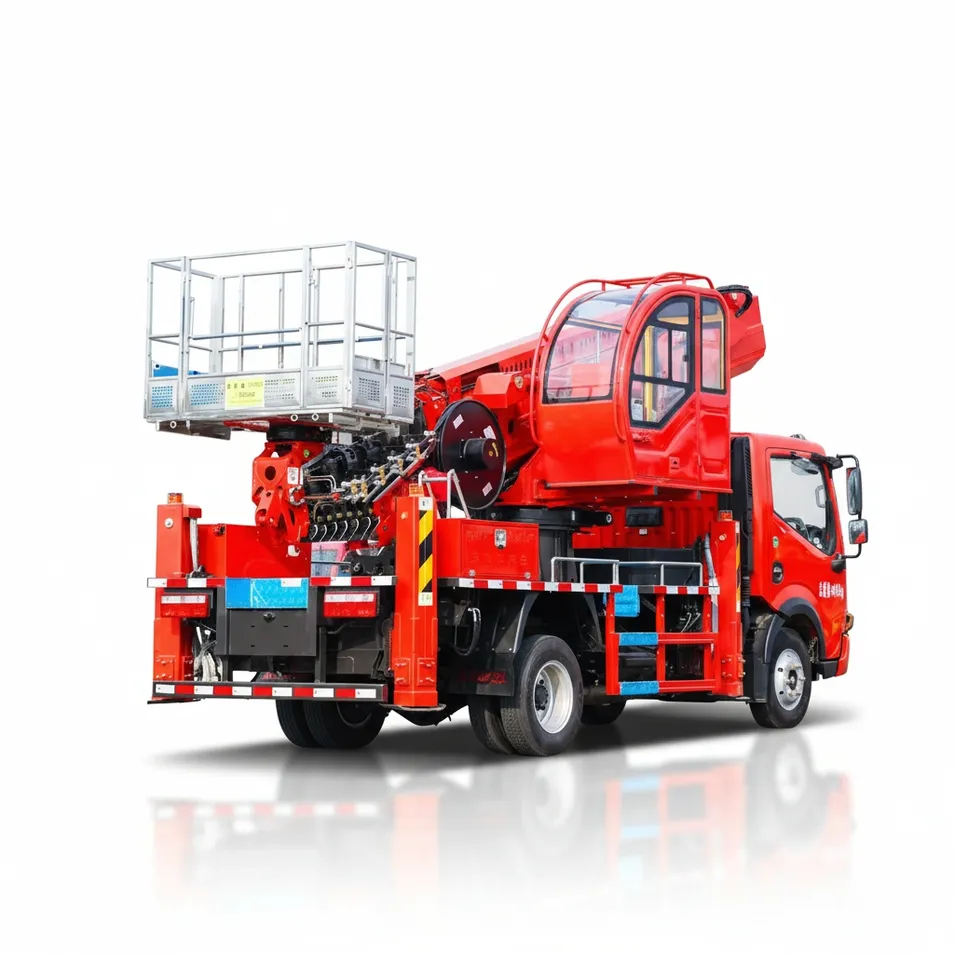

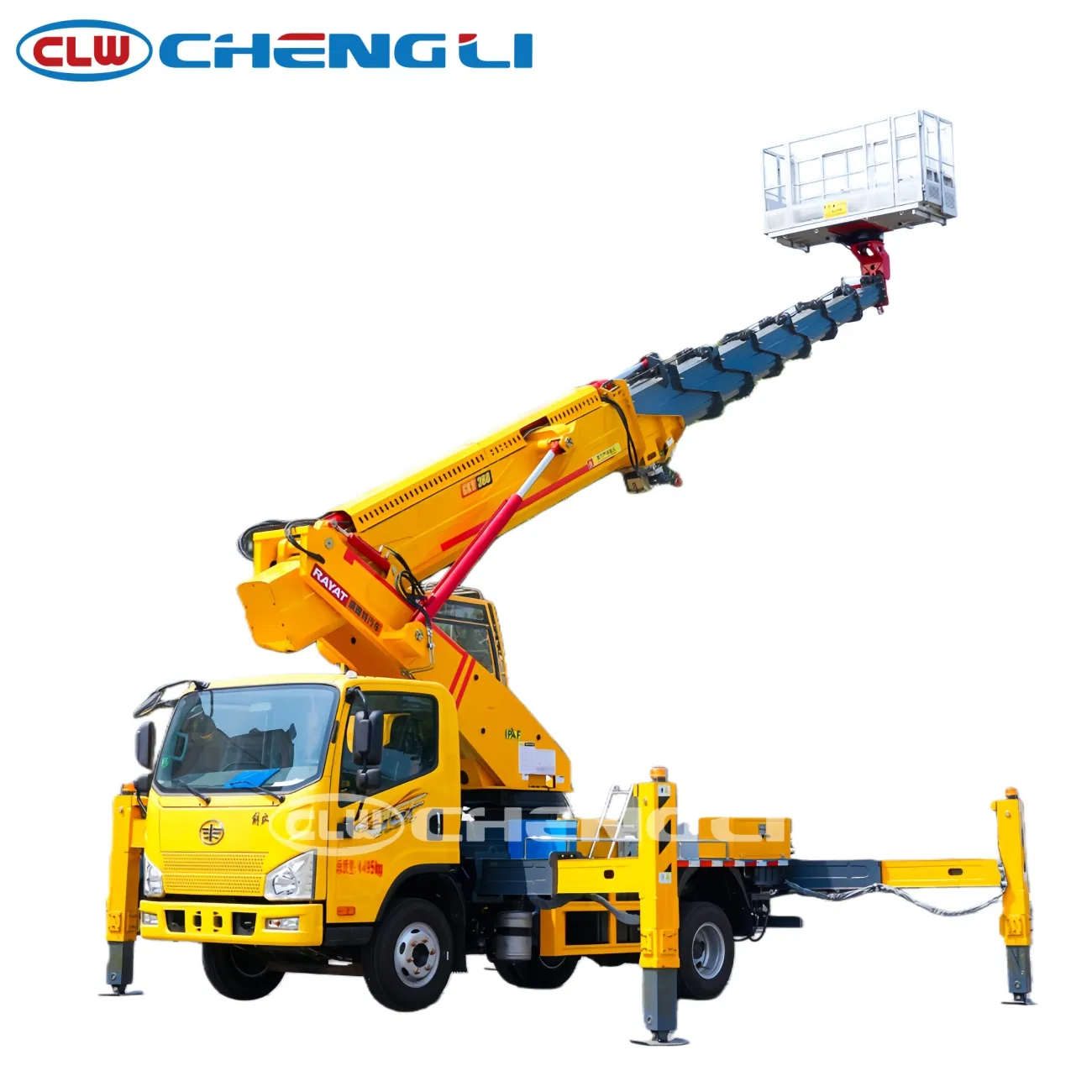

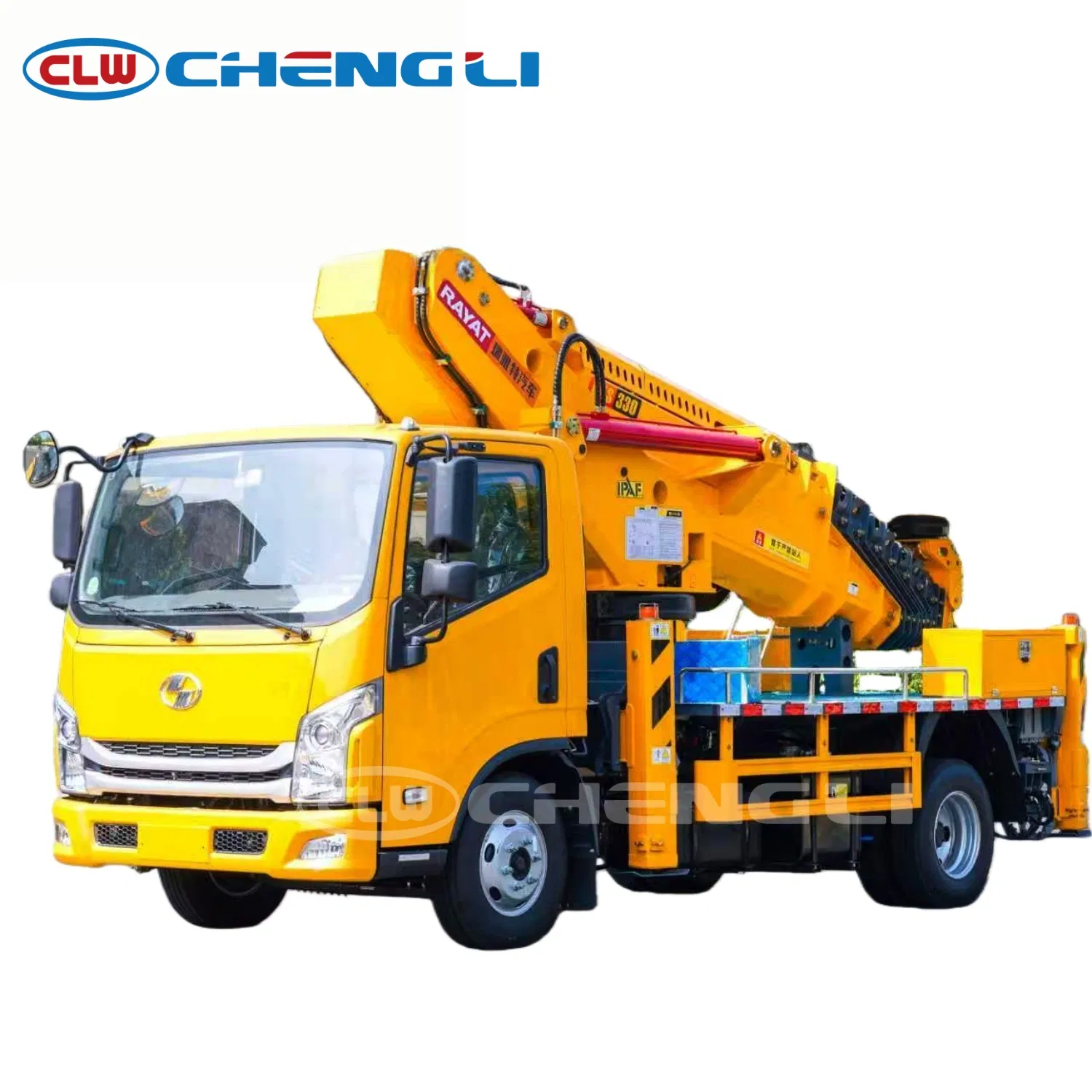

36m Aerial Platform Truck (S-Type Telescopic Boom)
The 36-meter Aerial Work Vehicle (GKS36-2025) is a robust and efficient platform designed for mid-to-high-altitude tasks, achieving a maximum working height of 36 meters. This model utilizes an advanced eight-section sixteen-sided synchronous telescopic arm and is built on a high-performance chassis with a Weichai 151 hp engine. It features a platform capacity of 200 kg and provides operational flexibility through 360° continuous rotation and three control methods: fixed turntable, hydraulic handle, or a wireless remote control box.
Technical Specifications
| Product Model | GKS36-2025 |
| Overall Dimension | 6080 x 2400 x 3550 mm |
| GVW | 9100 kg |
| Max. Working Height | 36 m |
| Max. Platform Capacity | 200 kg (Approx. 3 People) |
| Platform Dimension | 1600 x 700 x 1000 mm (Customizable) |
| Engine Model | WP25Q151E62 (Weichai) |
| Engine Horsepower | 151 Hp / 109 kW |
| Transmission | 8 Gears Manual |
| Tire Configuration | 11.00R20 18PR (6 Tires) |
| Emission Standard | Euro 2/3/4/5/6 |
| Max. Speed | 95 km/h |

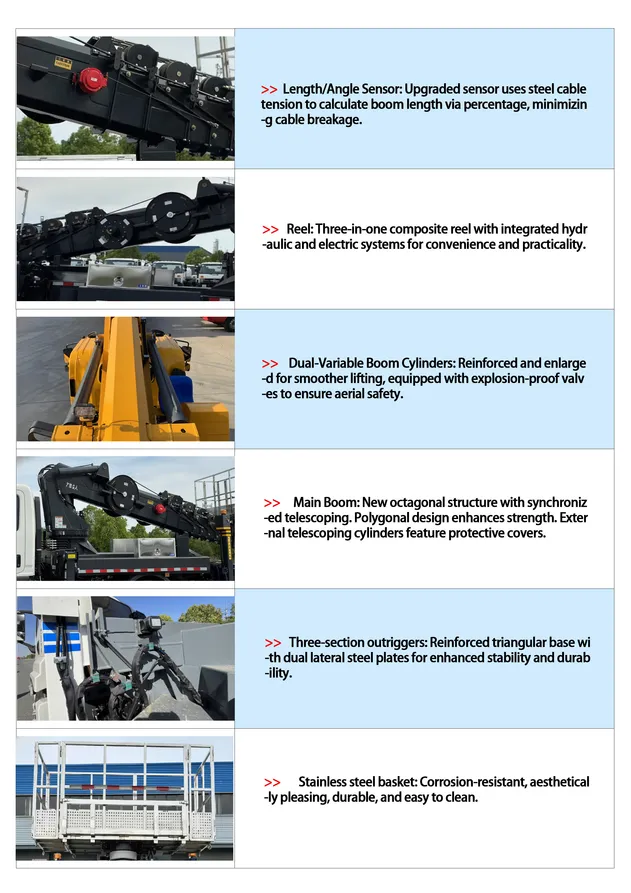

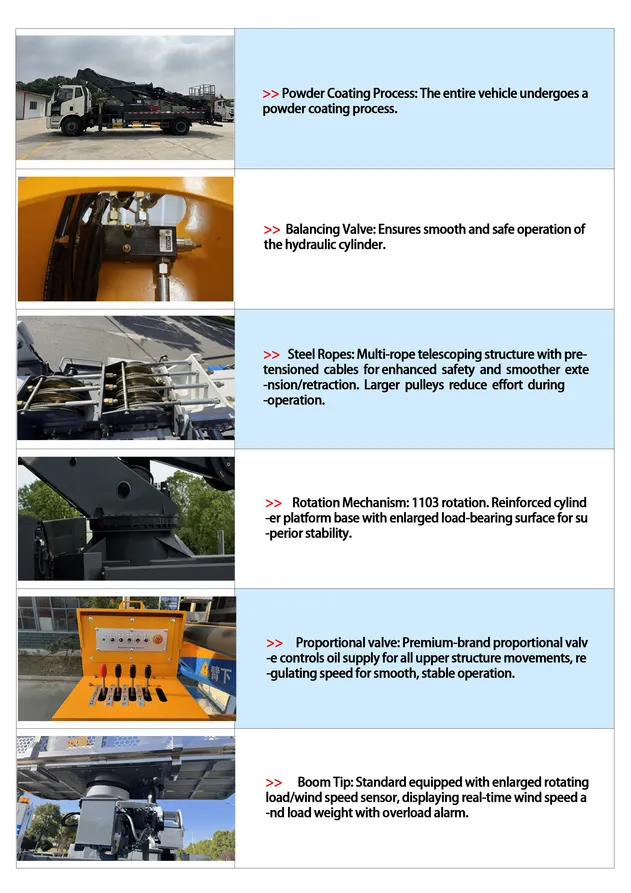

Key Vehicle Advantages
High Reach & Stability
- Industry-Leading Height: Maximum operating height of 36 meters.
- Nine-Section Boom: Sixteen-sided synchronous telescopic arm for superior stability.
- 360° Rotation: Continuous rotation for comprehensive area coverage.

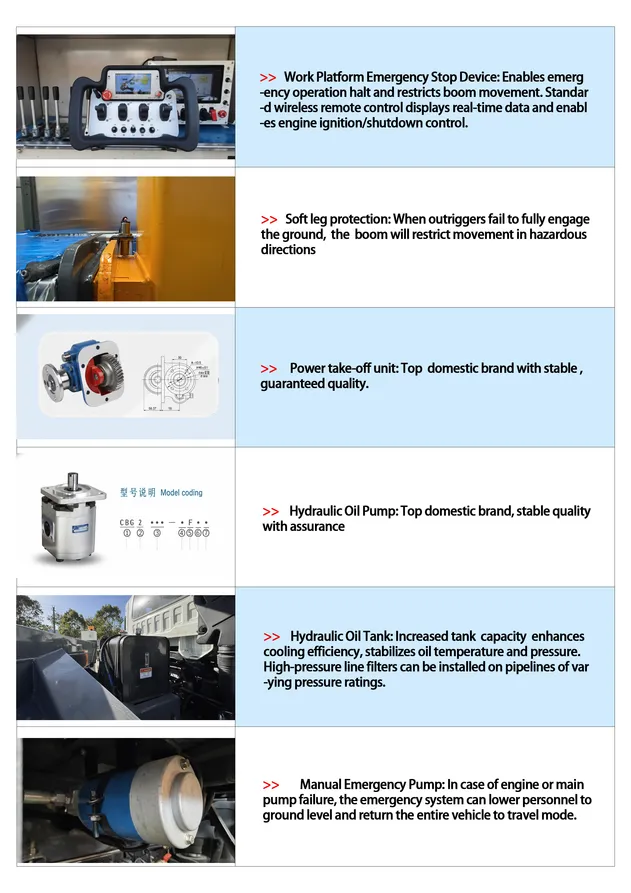

Advanced Safety Systems
- Soft Leg Detection: Real-time monitoring of outrigger force status.
- Emergency Return: Electric-hydraulic pump for safe descent during power failure.
- Automatic Interlock: Prevents simultaneous upper and lower control operation.

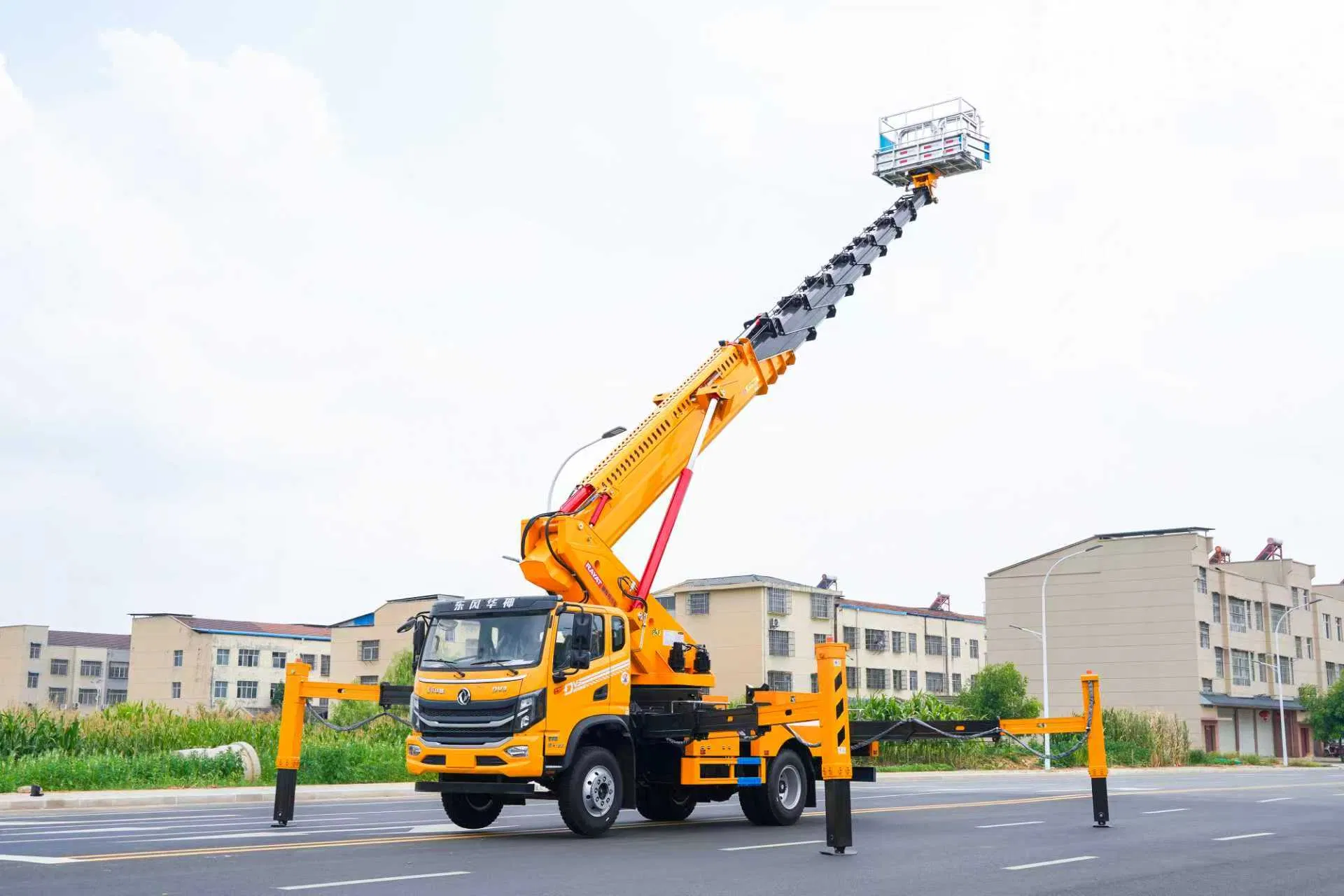

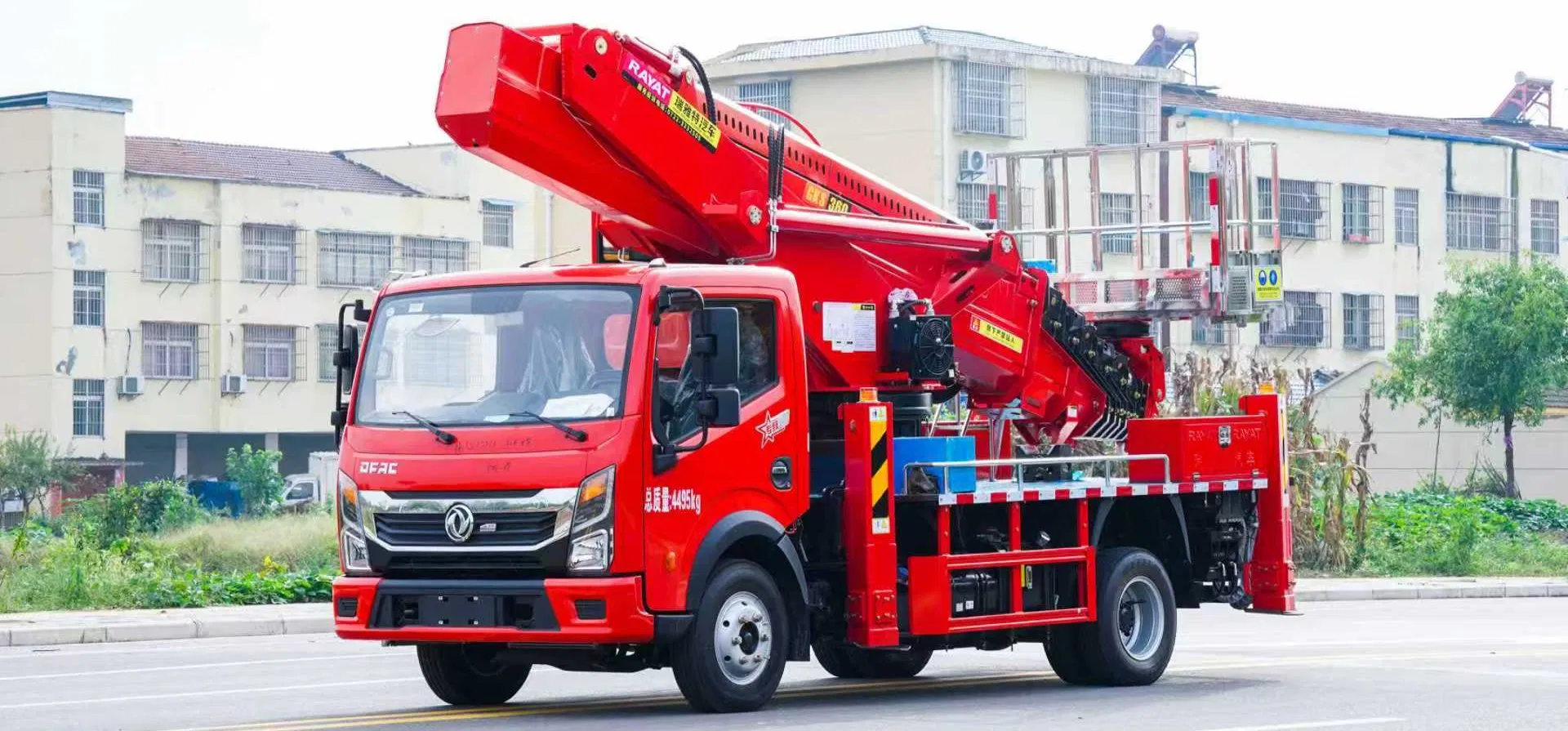

Application Scenarios
Construction & Infrastructure: Skyscraper glass wall installation, bridge maintenance, and stadium lighting service.
Utility & Energy: Power grid inspections, wind turbine cleaning, and petrochemical plant piping maintenance.
High-Rise Maintenance: Facade cleaning, structural checks, and industrial silo repairs.

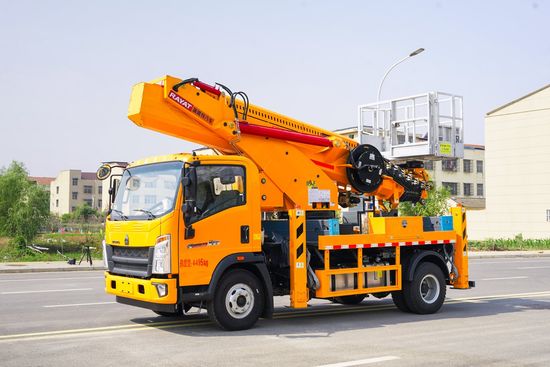

Product Video Demonstration

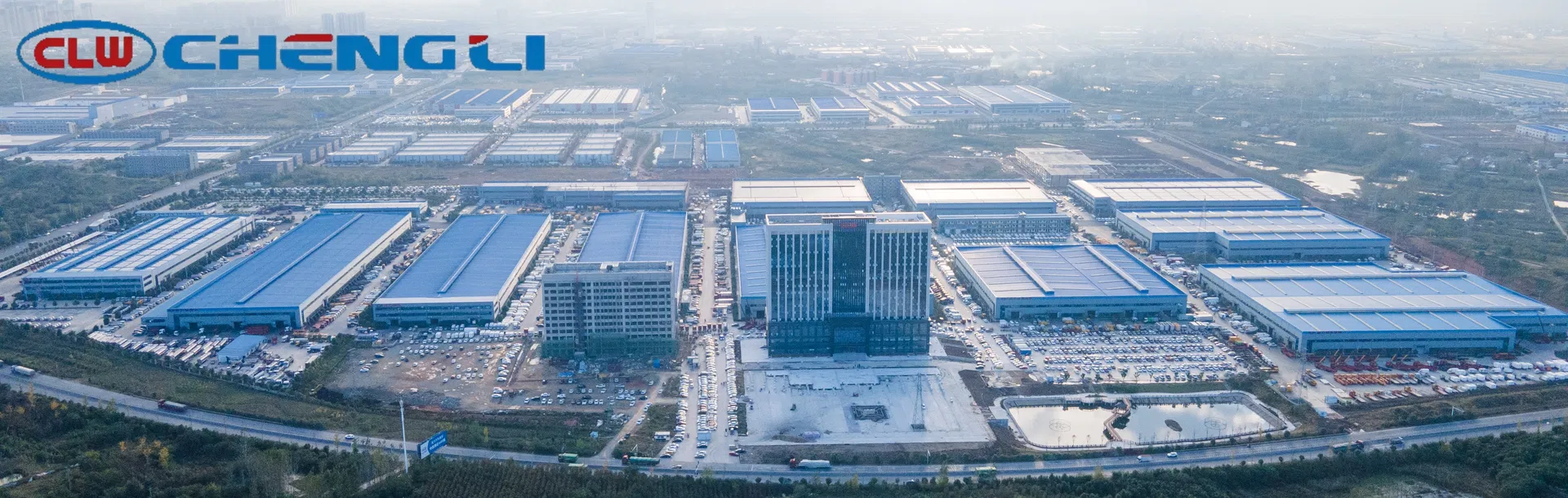

Professional Manufacturing & Logistics
Our manufacturing group is a global leader in special vehicle production, operating multiple facilities with advanced certification including ISO 9001, ASME, and EU ADR. With an annual capacity of over 100,000 special vehicles, we ensure top-tier quality control.

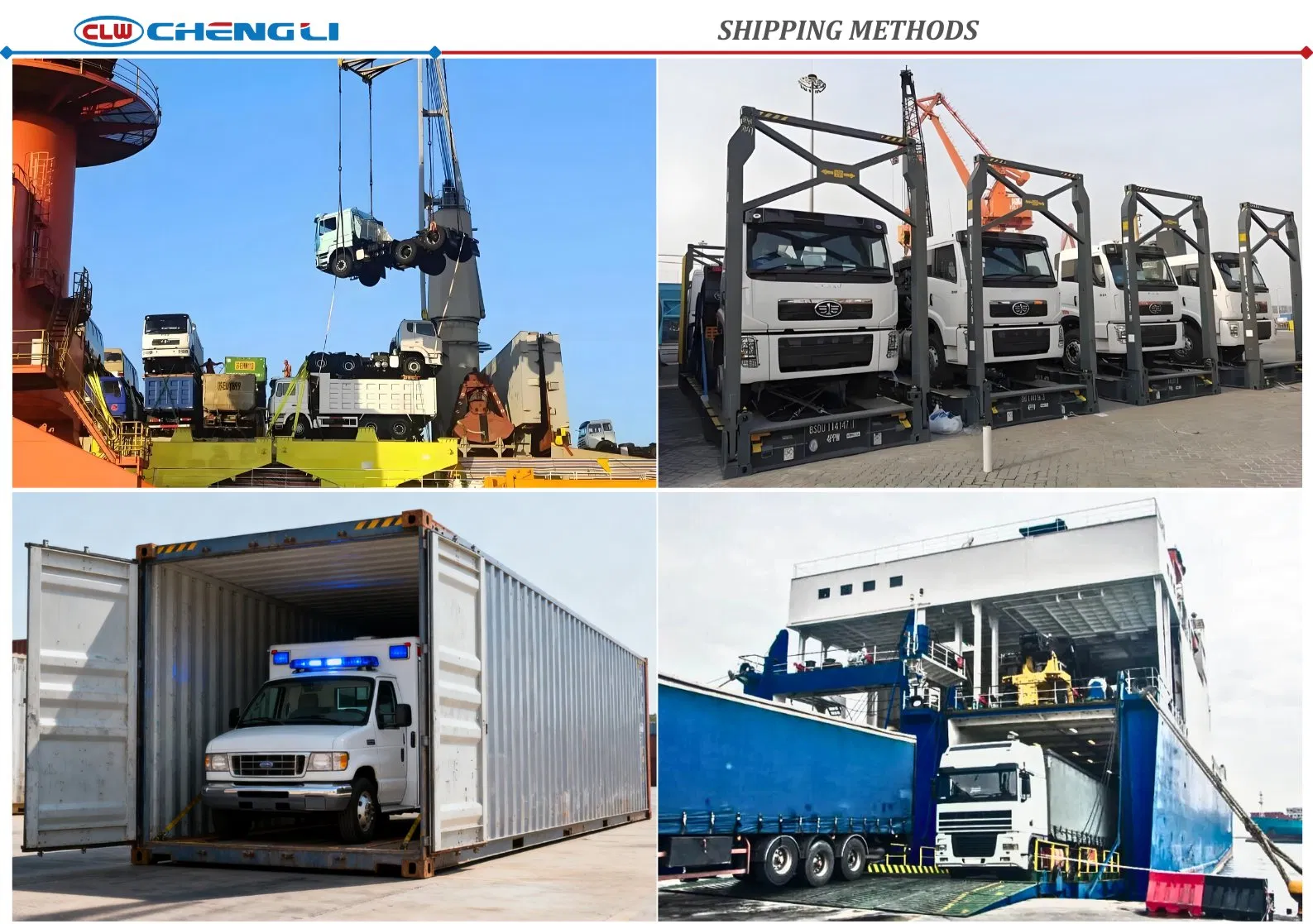

Shipping Methods
We offer 4 main maritime shipping options: Bulk Carrier for efficiency, Container for protection, Flat Rack for oversized units, and Ro-Ro for maximum safety and fast loading.
After-Sales Service & Warranty
• Warranty: 12 months or 25,000 - 50,000 KM.
• Technical Support: 24/7 online assistance and video operation training.
• Spare Parts: Long-term supply of genuine components via sea, air, or land.
• Training: Free on-site operation training available at our facility.
Frequently Asked Questions
Q: What is the maximum reach and capacity of the platform?
A: The truck achieves a maximum operating height of 36 meters with a rated load capacity of 200 kg, suitable for up to 3 operators.
Q: What makes the 8-section telescopic boom better than articulated designs?
A: The synchronous telescopic design offers faster vertical ascent and significantly higher stability for high-altitude tasks.
Q: How many ways can the vehicle be controlled?
A: There are three control methods: fixed turntable operation, hydraulic handle operation from the chassis, and a wireless remote control for precision from any angle.
Q: What happens if the engine fails while the boom is extended?
A: The vehicle is equipped with an emergency electric-hydraulic pump that allows the operator to safely lower the platform to the ground.
Q: How is stability maintained during operation?
A: Stability is ensured by front and rear V-type two-section outriggers and a "Soft Leg Detection" system that alerts the operator if any outrigger becomes unstable.
Q: Can the boom rotate a full 360 degrees?
A: Yes, the heavy-duty rotator device allows for 360-degree continuous rotation for maximum work efficiency.
