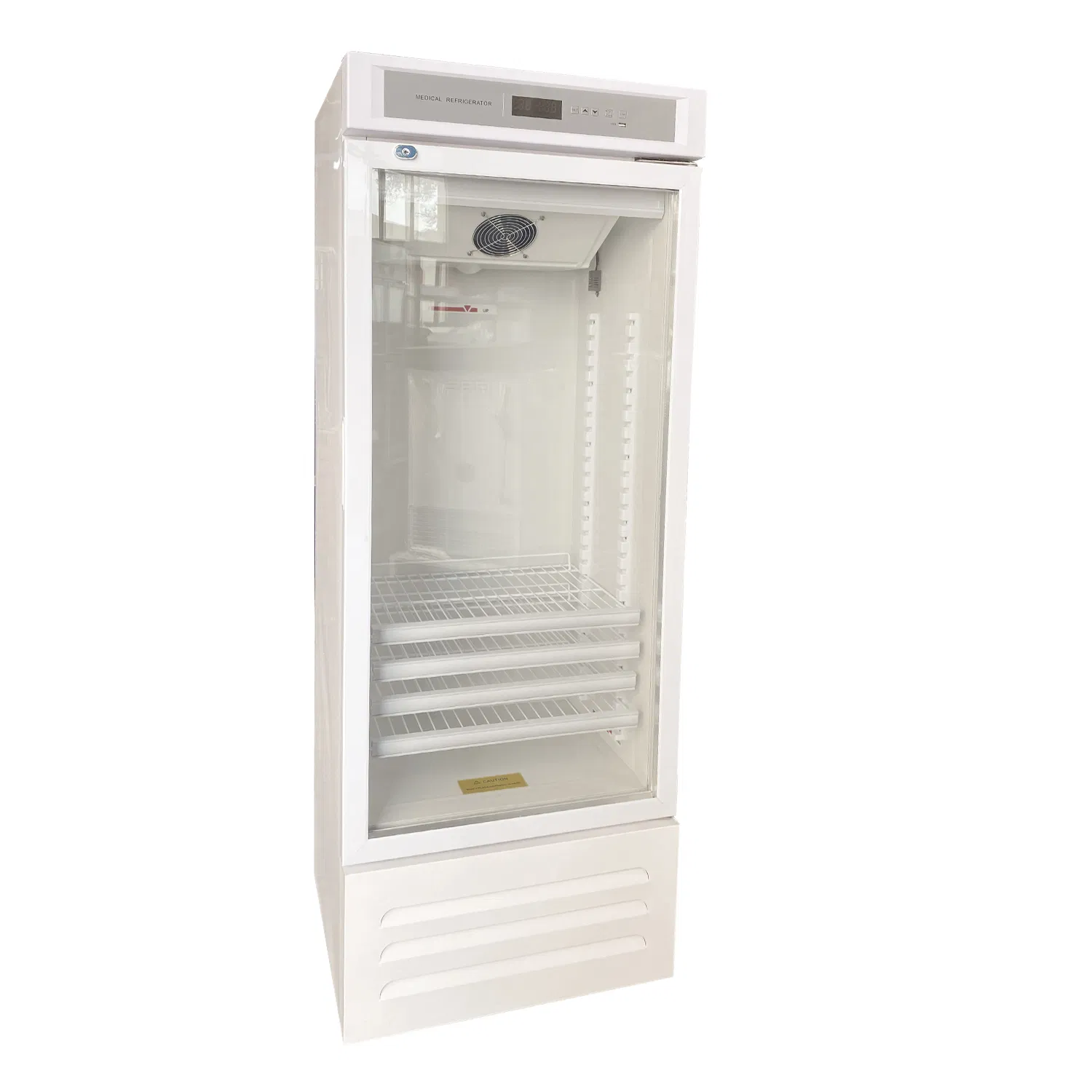

Zmade Medical Equipment Yc-260: External Size for Easy Access

Customization: Available
Customized: Non-Customized
Certification: ISO13485

Product Description

Basic Information
Model NO.
YC-260
Scale
Medium
Alarm
Over-Temperature Alarm Function
Type
Medical Cryostat
Storage Temp
2-20℃
External Size
595*500*1700mm
Content Size
510*390*1100mm
Specification
260L
Origin
China
HS Code
8418211000
Capacity
1000 Units

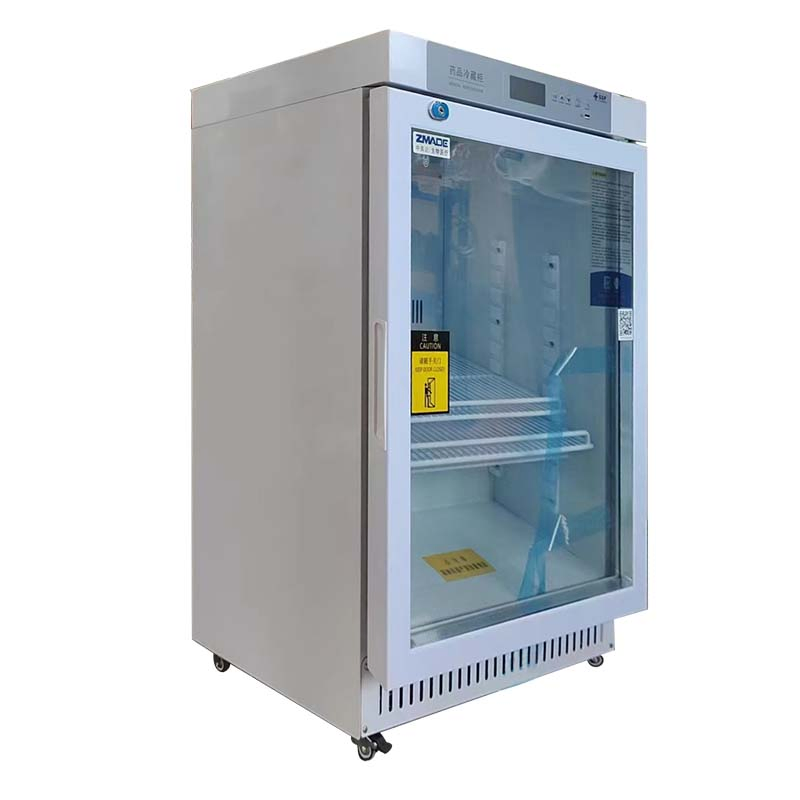

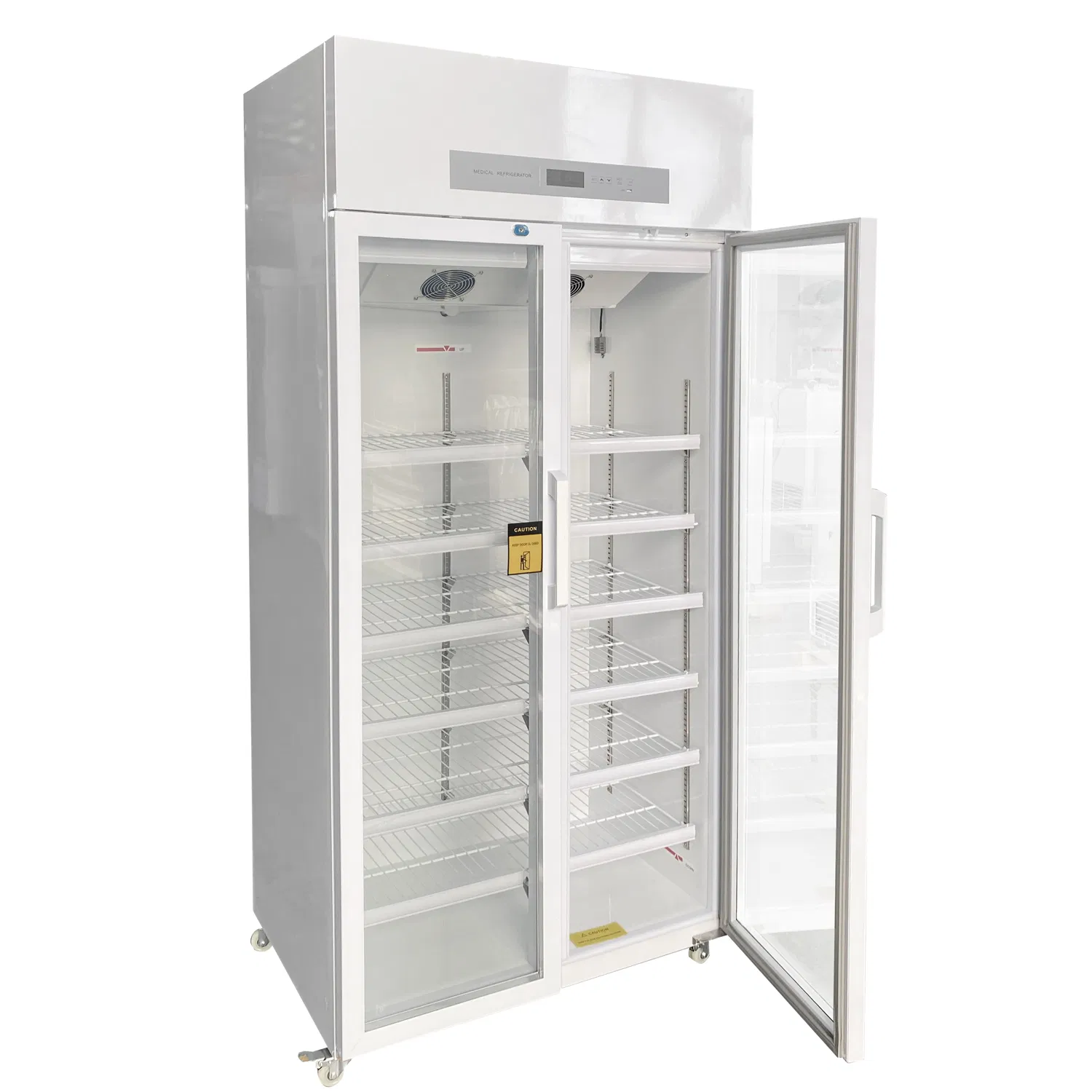

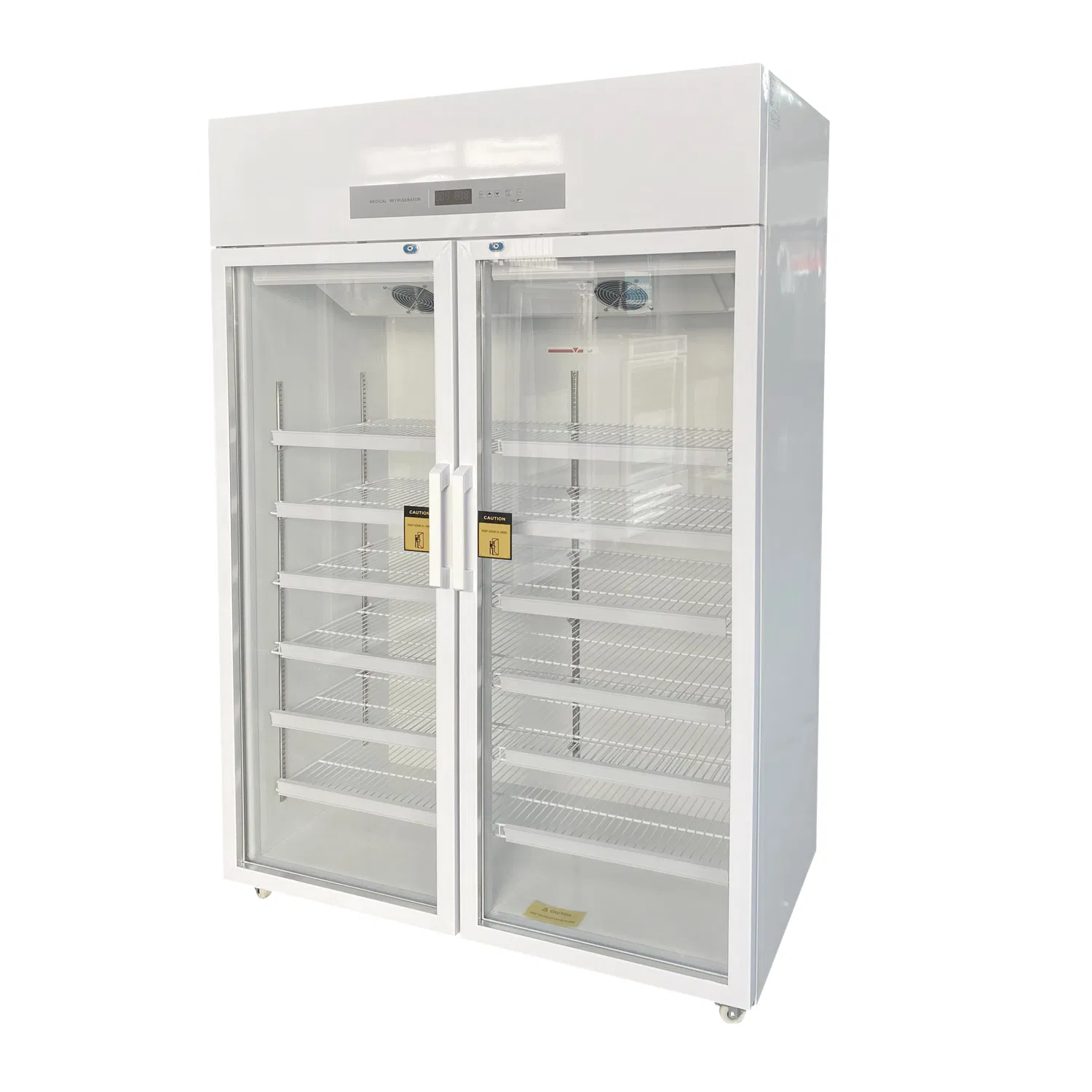

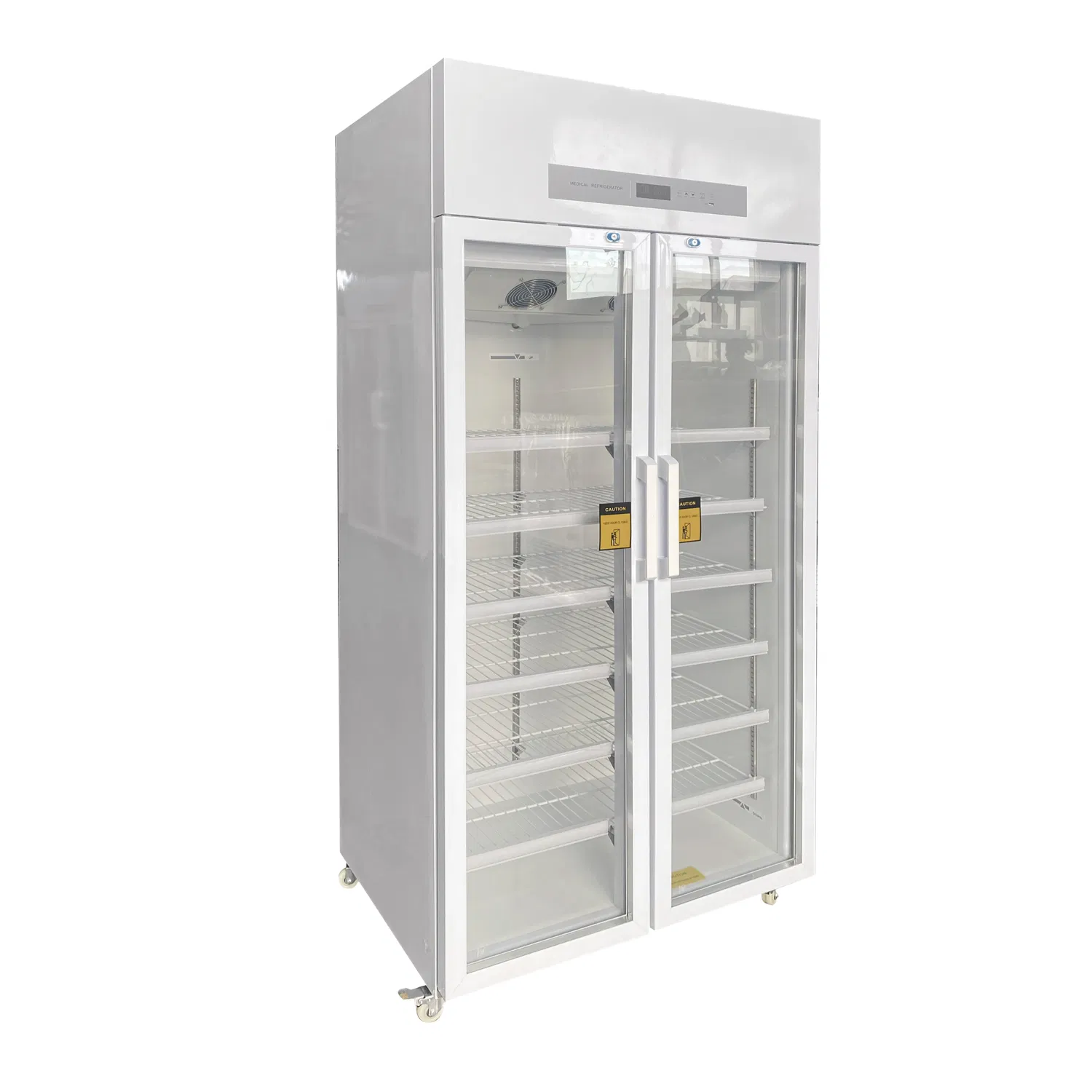

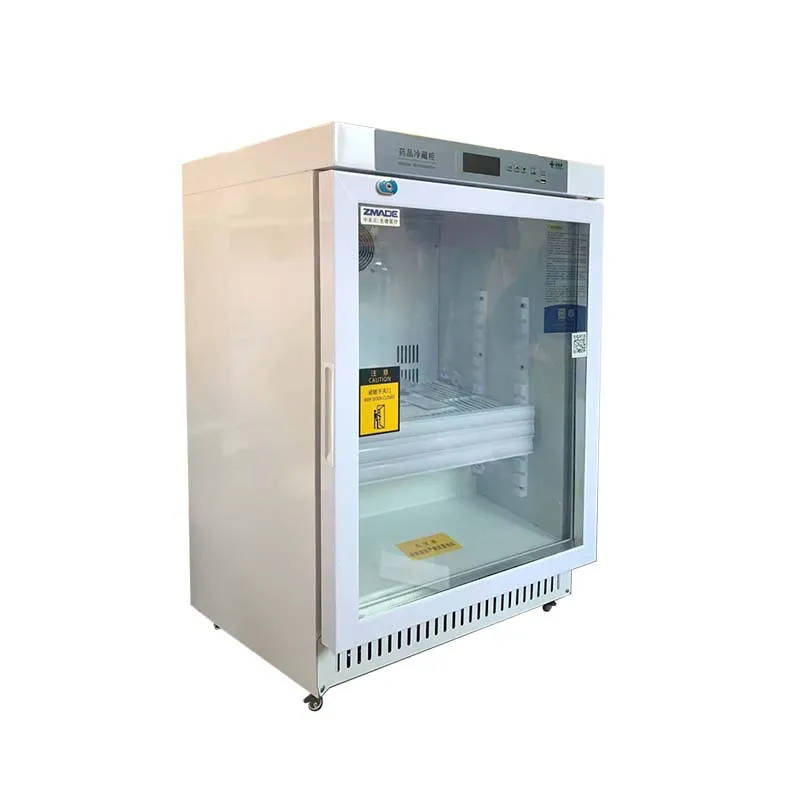

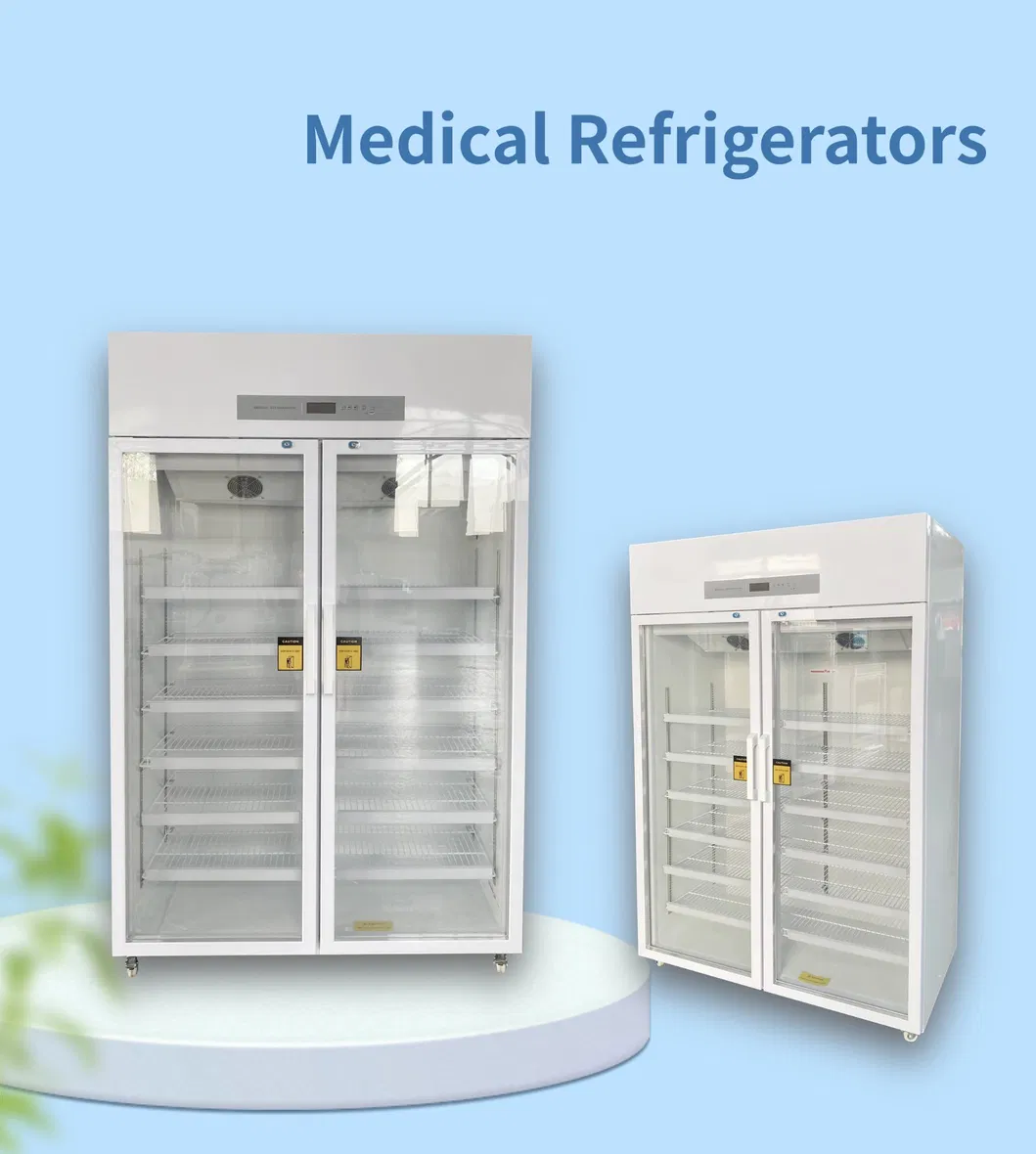

Product Gallery

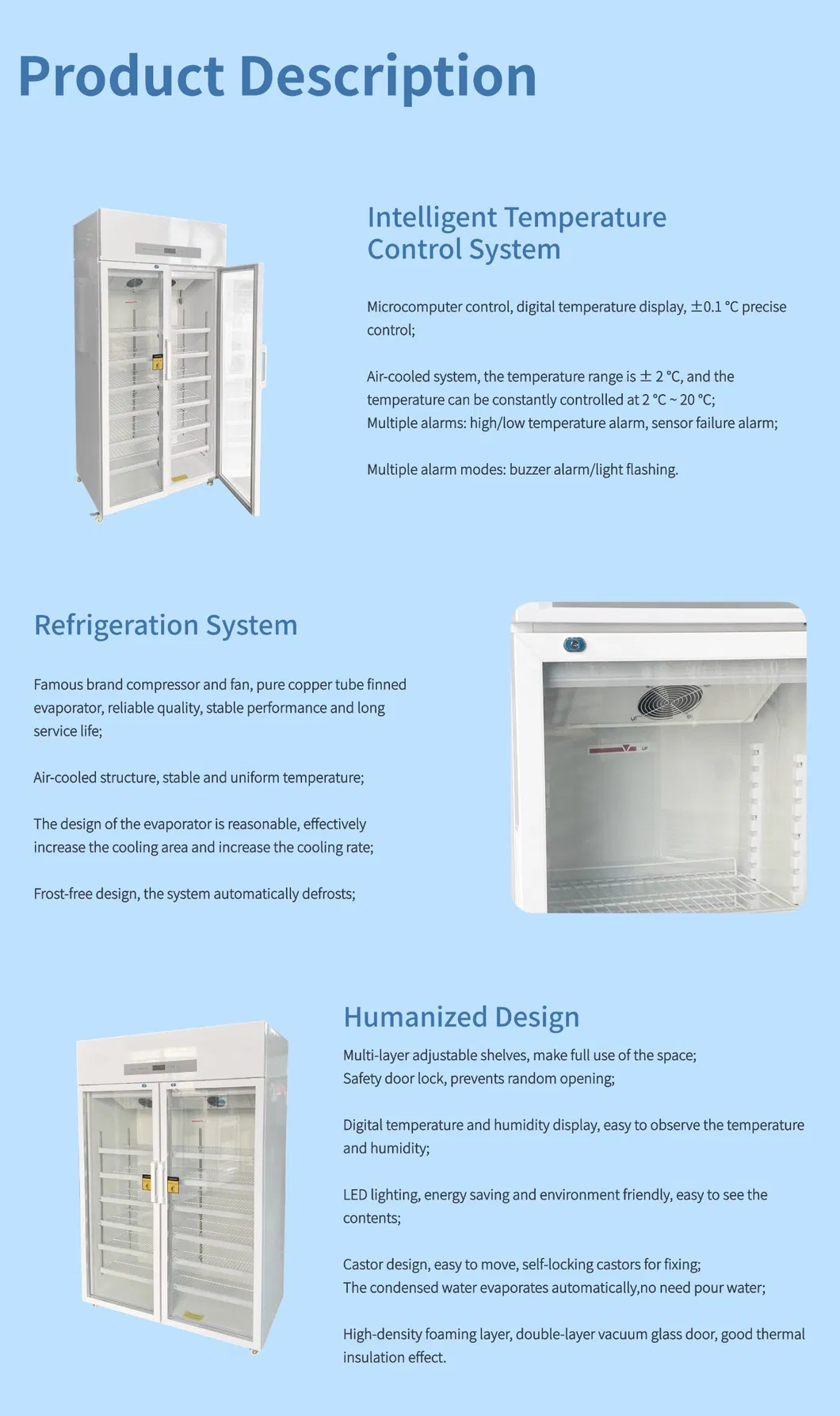

Product Description
📋
Crafted from high-quality stainless steel, this advanced laboratory and hospital medicine refrigerator is engineered for precision and reliability in storage.
Application

This refrigerator is meticulously designed to meet the stringent requirements of the latest GSP standards for medicine storage, ensuring compliance and safety. It is versatile for storing medicines, reagents, and various sensitive items that require optimal cold storage conditions. Ideal for use in hospitals, clinics, blood stations part of health and epidemic prevention systems, and university laboratories.

Intelligent Temperature Control System

The digital microcomputer control system offers precise control with a digital display of temperature and humidity, ensuring an accuracy of ±0.1ºC. The adjustable temperature settings allow customization of the start-stop temperature difference. Equipped with a built-in clock and power-off setting memory function for uninterrupted operation. The intelligent humidity control system automatically adjusts humidity levels to maintain optimal storage conditions. High/Low temperature alarm function allows users to set personalized alarm thresholds for enhanced safety.

Refrigeration System

Featuring a renowned brand compressor that ensures stable and reliable performance with an extended lifespan; a high-power fan, shock-absorbing technology, and low noise levels ensure long-lasting functionality; a finned evaporator and high-efficiency air-cooled condenser offer rapid cooling. Utilizes a fluorine-free, eco-friendly refrigerant, prioritizing environmental sustainability.

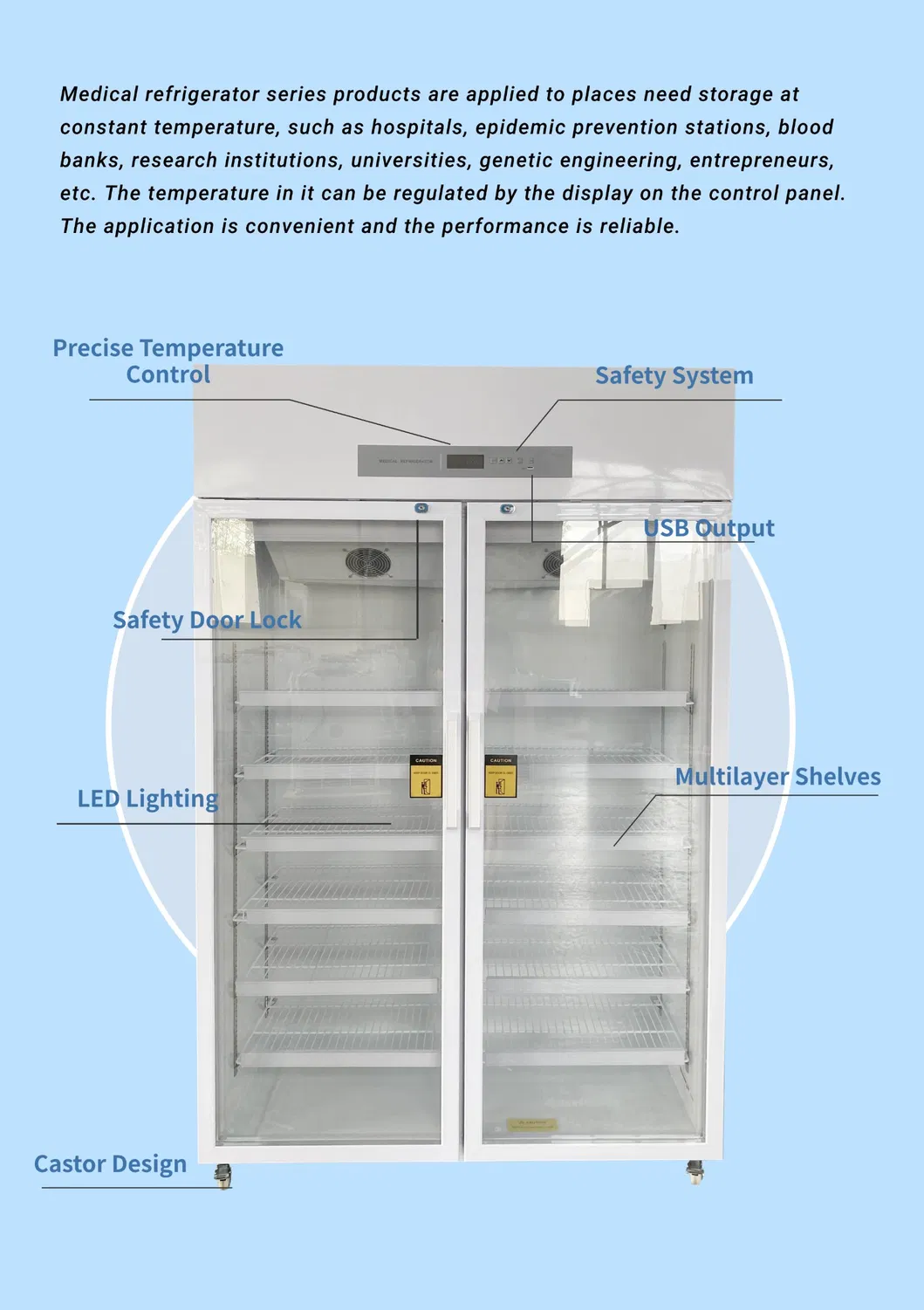

Humanized Design

The secure door lock feature prevents unauthorized access, ensuring that stored contents remain safe. Compatible with a wide voltage range of 187~242V, accommodating various power supplies. Features a LOW-E coated glass, providing excellent anti-condensation properties. Equipped with adjustable shelves complete with label strips, allowing users to efficiently organize and access medicines. Condensed water is cleverly evaporated automatically, eliminating the need for manual water removal.

Security System

The system offers multiple fault alarms for comprehensive monitoring: High/Low temperature alarms, sensor fault notifications, optional door opening and power failure alarms for advanced security. Multiple alarm modes include: Buzzer alerts and Code flashing warnings to ensure that any issues are rapidly identified. Equipped with multiple protection features: Including power on/Light delay protection, shutdown interval delay protection, and memory start-stop functionality to ensure operational safety and reliability.

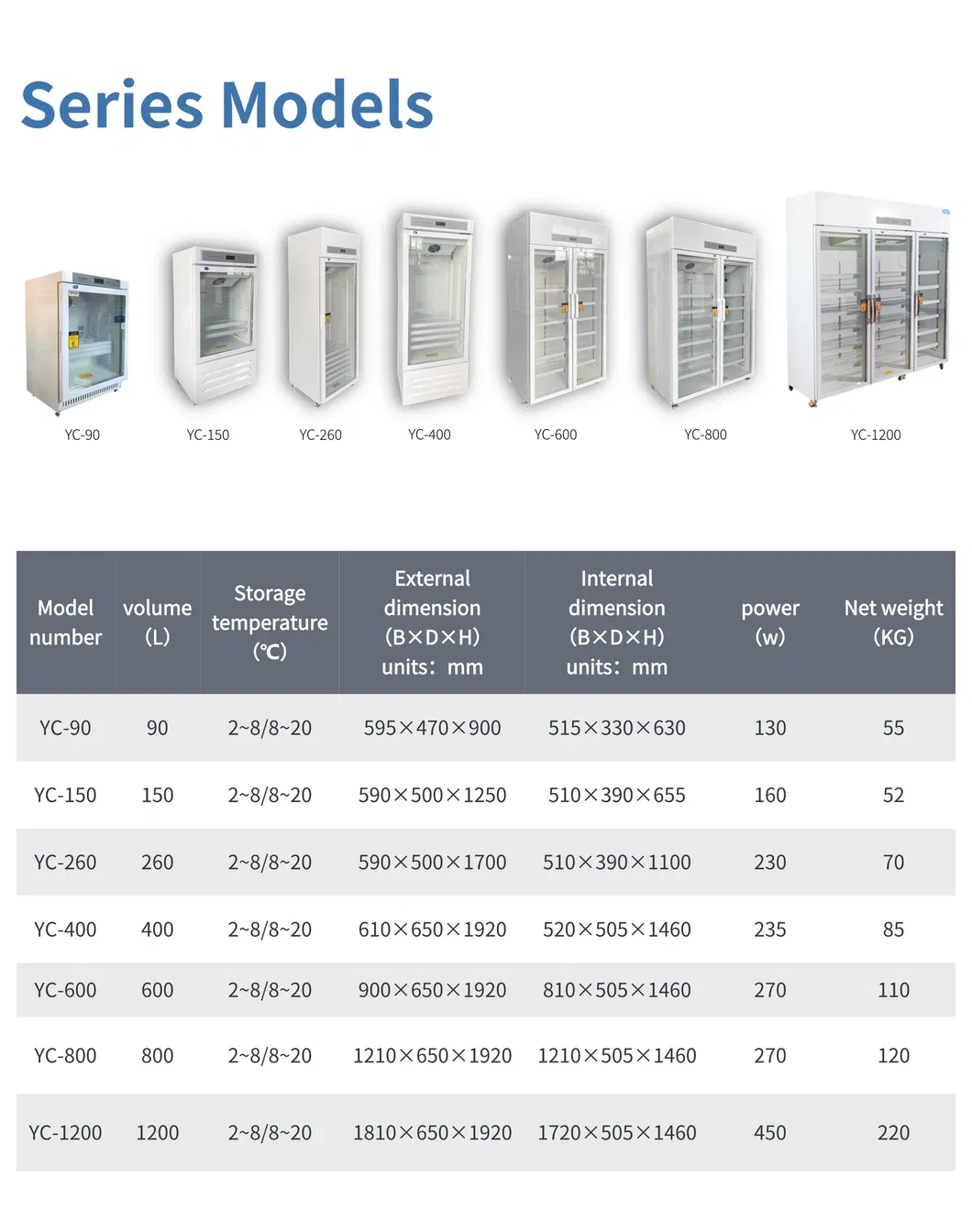

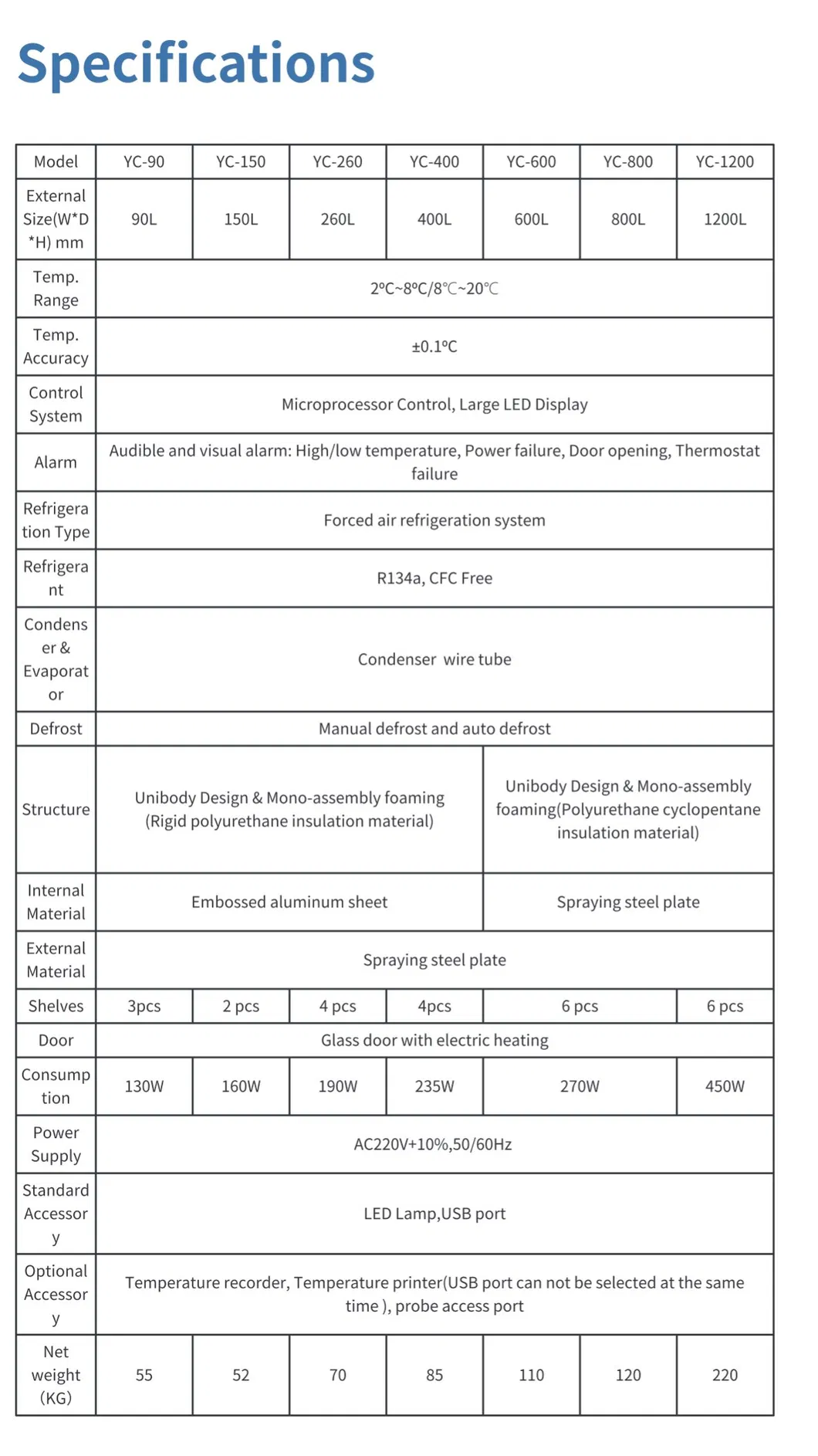

Technical Specifications
Model Volume Storage Temp External Dimensions Content Size Power (W) Net Weight (kg)
YC-9090L2-8ºC/8-20ºC595*470*900515*330*63013055
YC-150150L2-8ºC/8-20ºC590*500*1250510*390*65516052
YC-260260L2-8ºC/8-20ºC590*500*1700510*390*110023070
YC-400400L2-8ºC/8-20ºC610*650*1920520*505*146023585
YC-600600L2-8ºC/8-20ºC900*650*1920810*505*1460270110
YC-800800L2-8ºC/8-20ºC1210*650*19201120*505*1460270120
YC-12001200L2-8ºC/8-20ºC1810*650*19201720*505*1460450220
Frequently Asked Questions (FAQ)
Q1: What are the primary applications for the YC-260 medical refrigerator?
It is specifically designed for hospitals, clinics, university laboratories, and health prevention systems to store sensitive medicines, reagents, and biological samples.
Q2: How precise is the temperature control on this unit?
The unit features a digital microcomputer control system that maintains temperature and humidity with an accuracy of ±0.1ºC.
Q3: Does the refrigerator include safety alarm systems?
Yes, it includes multiple fault alarms such as high/low temperature alerts, sensor failure notifications, and optional power failure or door-open alarms via buzzer and light codes.
Q4: Is the glass door resistant to condensation?
Yes, the refrigerator is equipped with LOW-E coated glass which provides excellent anti-condensation properties for clear visibility of contents.
Q5: Is the cooling system environmentally friendly?
The system utilizes a fluorine-free, eco-friendly refrigerant and a high-efficiency compressor to ensure sustainability and low noise levels.
Q6: How is the maintenance of condensed water handled?
The design allows for automatic evaporation of condensed water, eliminating the need for manual drainage or maintenance.
