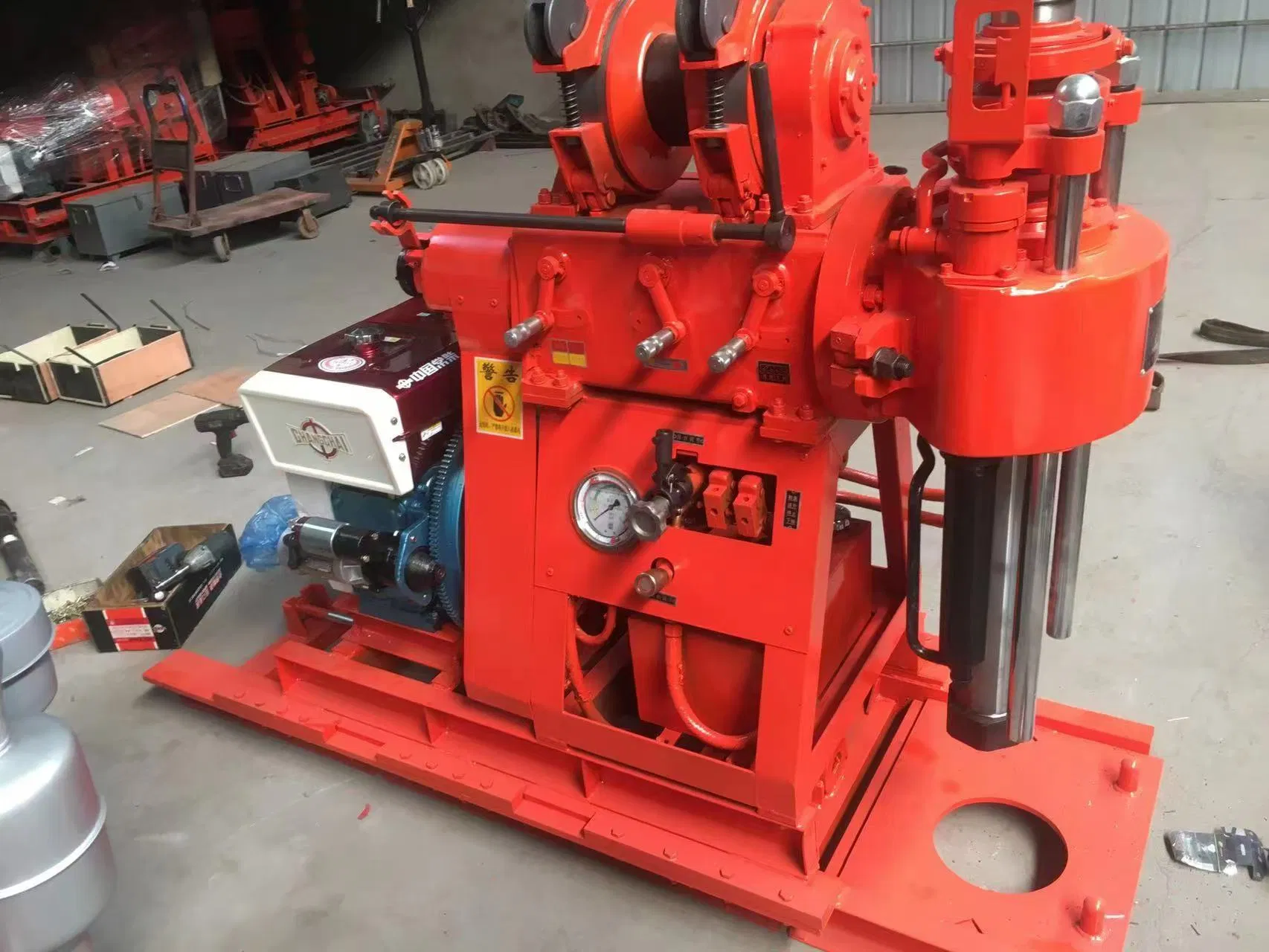

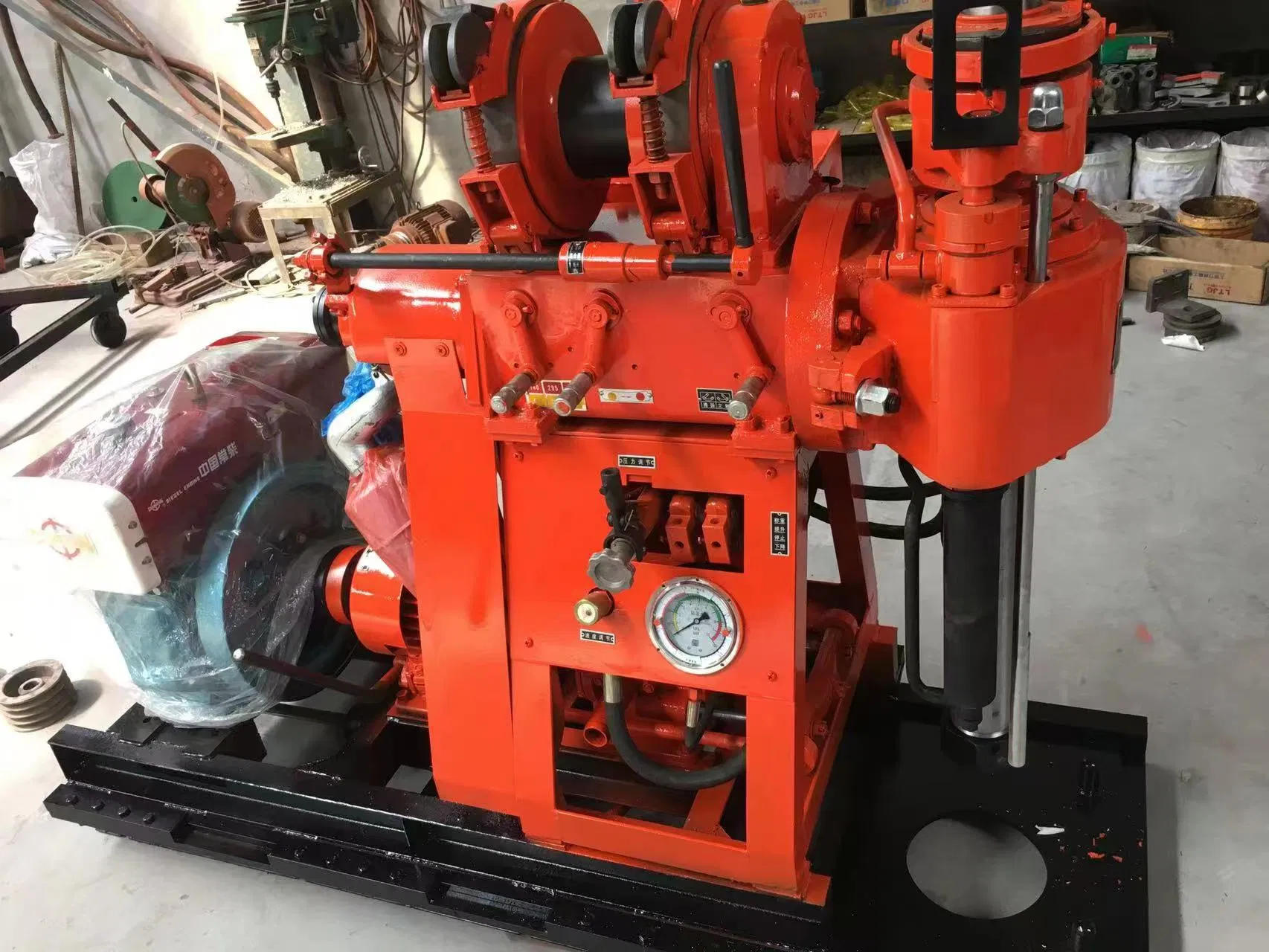

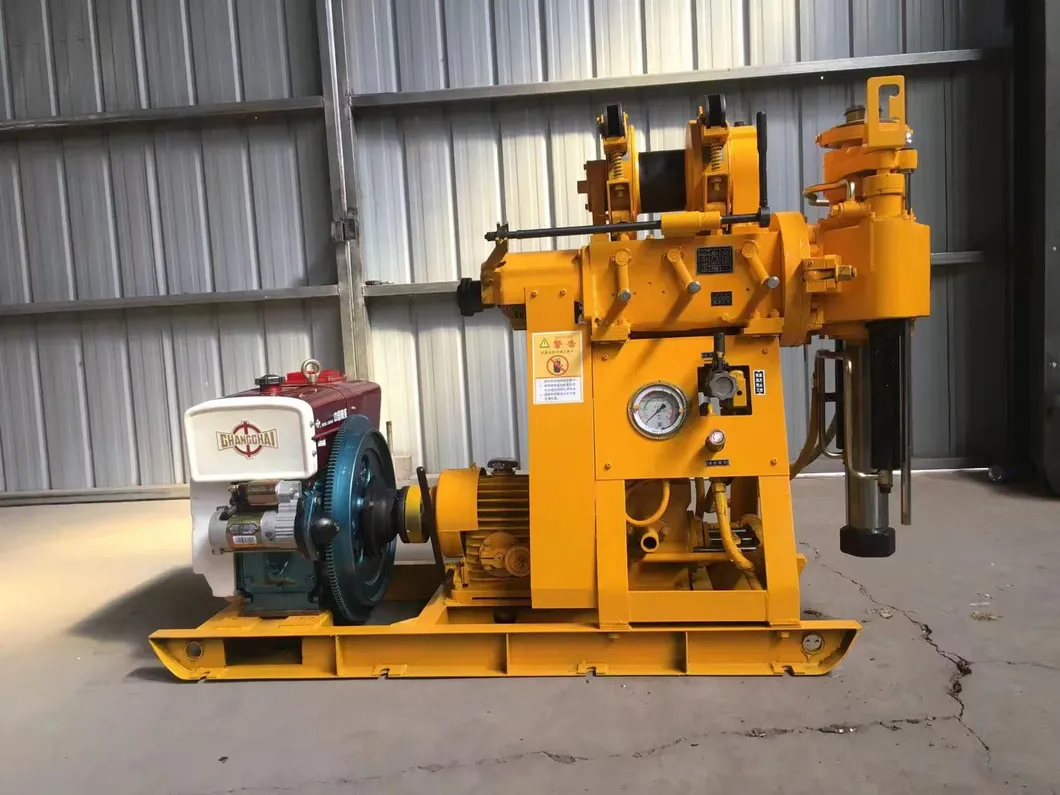

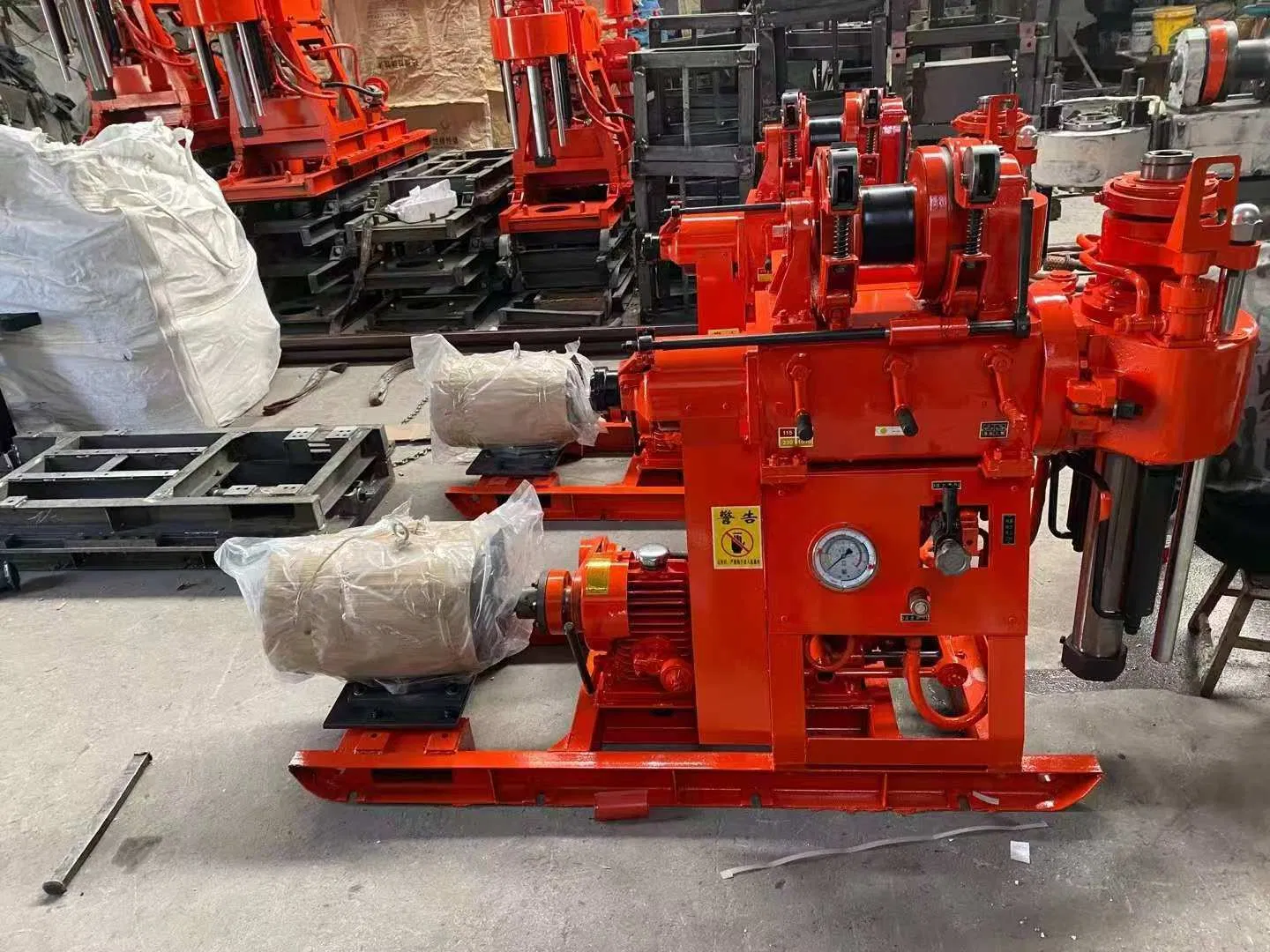

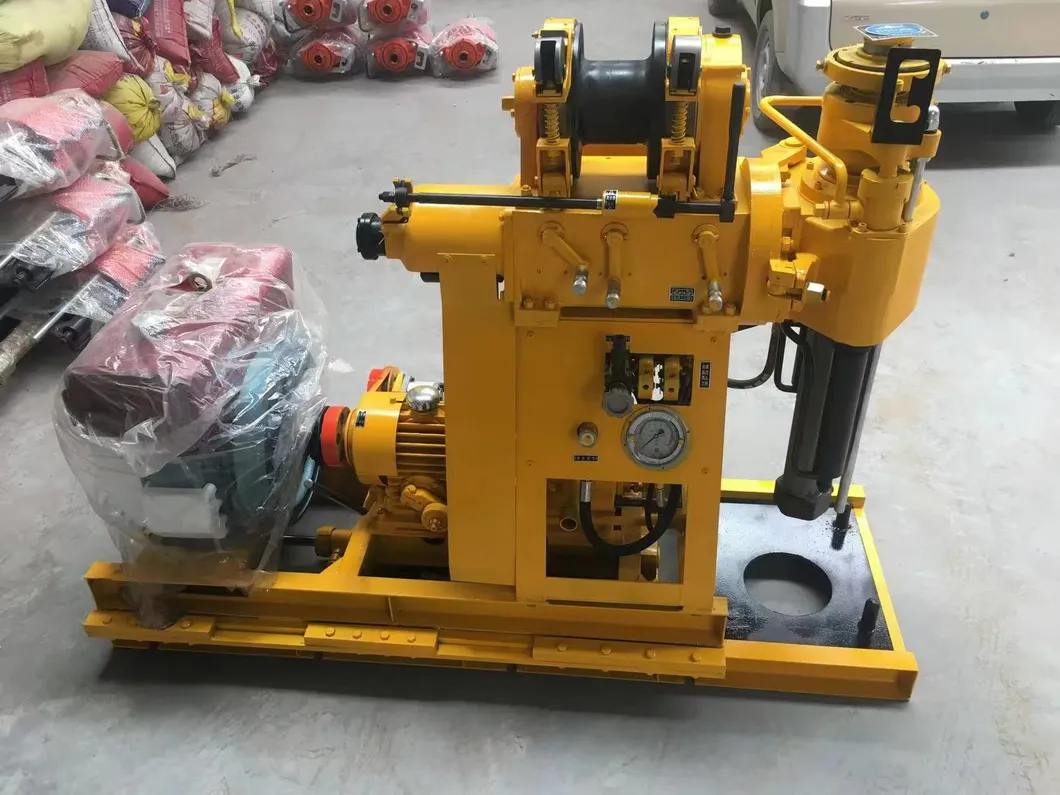

The GK-200 Drilling Rig with hydraulic feeding is known for its high power, large hoisting load (2T), and large torque transmission. Its vertical hexagonal spindle rotating speed varies between 66r/min to 820r/min.

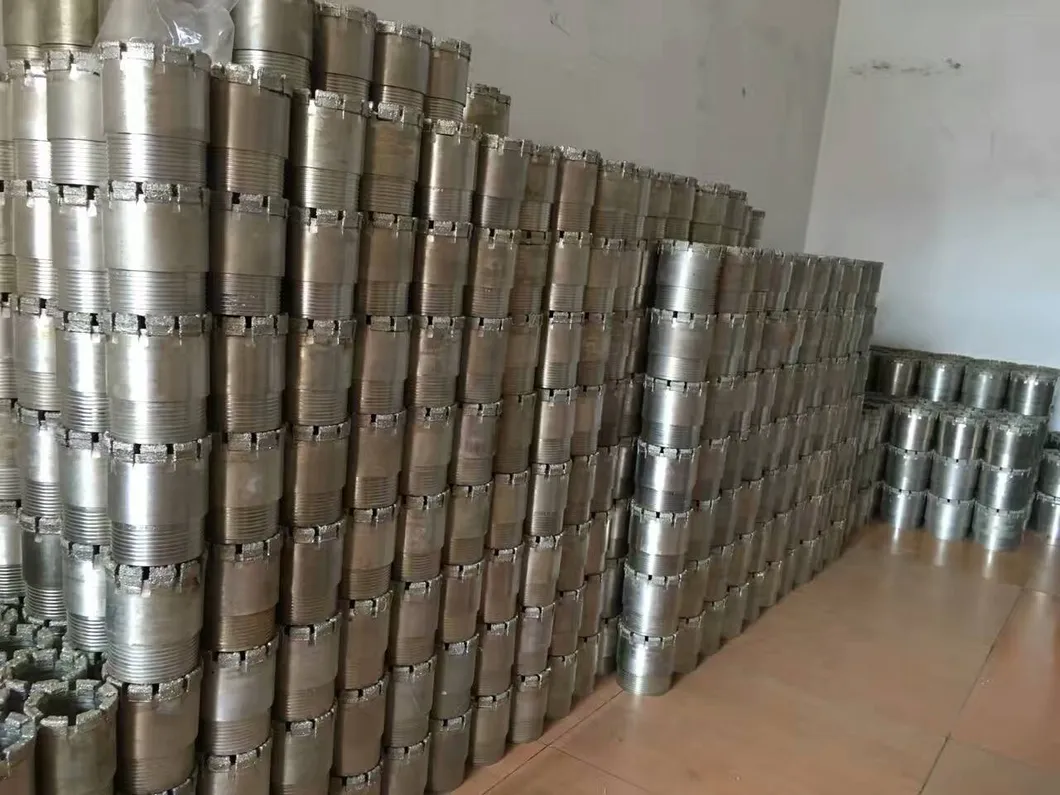

This rig is ideal for geotectonic surveys, geological core drilling, small hole drillings for grouting, blasting, and water wells in railway, water conservancy, bridge, dam foundation, and other constructions. It can be equipped with diamond drill bits, alloy drill bits, and steel roller drill bits to accommodate various geological structures.
| Drill Parameters | |
|---|---|
| Drilling Depth | 200m |
| Hole Diameter | 75mm |
| Drill Rod Diameter | 50mm |
| Angle Range | 90°-75° |
| Weight (without power unit) | 550kg |
| Swivel Head & Hoist | |
|---|---|
| Spindle Speed (4-speed) | 66, 180, 350, 820 r/min |
| Spindle Stroke | 450mm |
| Spindle Lifting Capacity Max | 25KN |
| Max. Lifting Capacity (Single Rope) | 25KN |
| Wire Rope Diameter | 9.3mm |
| Power Unit Options | |
|---|---|
| Model (Diesel Engine) | ZS1115 (16.2KW / 2200r/min) |
| Model (Motor) | Y160-4 (11KW / 1460r/min) |
