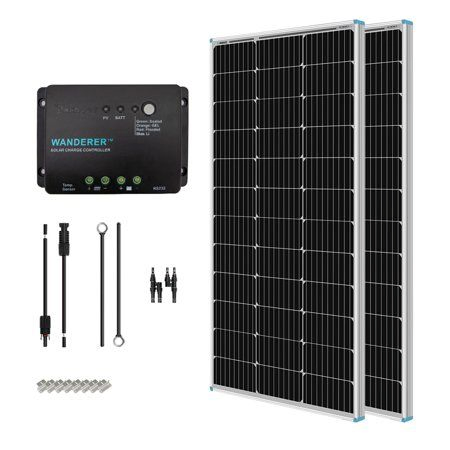

Wholesale Price Complete Solar System off Grid 8kw Solar Energy System

1 / 5

Wholesale Price Complete Solar System off Grid 8kw Solar Energy System

Customization:	Available
After-sales Service:	Warranty
Warranty:	15 Years

Send Inquiry

Product Description

🌐 Overview & Basic Info

Model NO.:ZB-8kw off Grid Solar Power System

Condition:New

Certification:ISO, CE

Battery Type:Lead-Acid, Lithium Ion

Mounting Type:Ground Mounting

Output Voltage:110V-240V

Work Time:24 Hours

Solar Panel Type:Monocrystalline Silicon

Load Power:3kw, 5kw, 10kw

Output Frequency:60Hz/50Hz

HS Code:8541430000

Capacity:5,000 Sets/Year

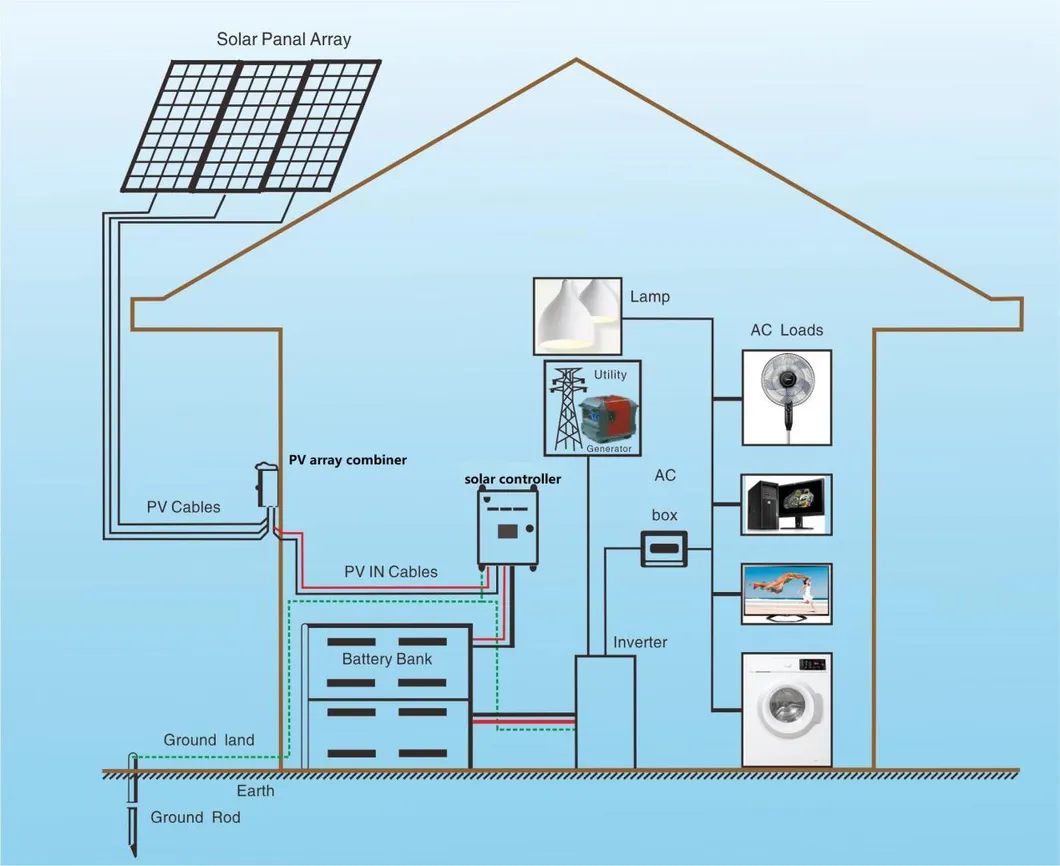

🚀 MSP-8KW Off Grid Solar Power System

Off Grid Hybrid Solar System Features:

Ideal for locations without mains power or frequent power outages.
Utilizes high-capacity batteries as reliable backup power.
Intelligent automatic switching to mains power when battery levels are low.
Focused on self-consumption and energy independence.

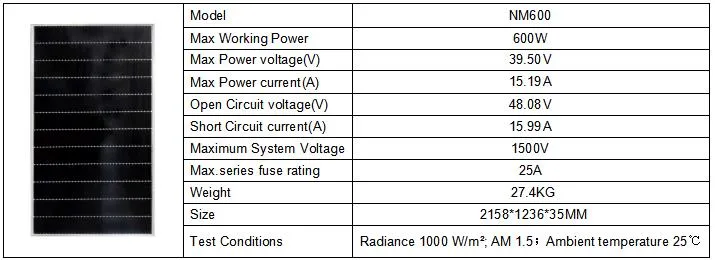

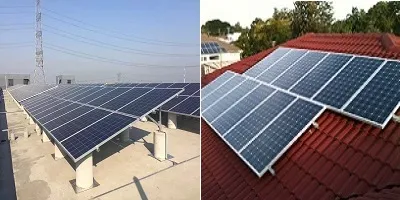

☀️ High-Efficiency PERC Solar Panels

Our panels leverage advanced PN junction movement of electrons to generate voltage efficiently.

A-grade monocrystalline solar cells.
PERC backplane / Shingled technology to prevent hot spot effects.
Conversion efficiency reaches up to 22%.
15-year material warranty and 25-year efficiency output guarantee.

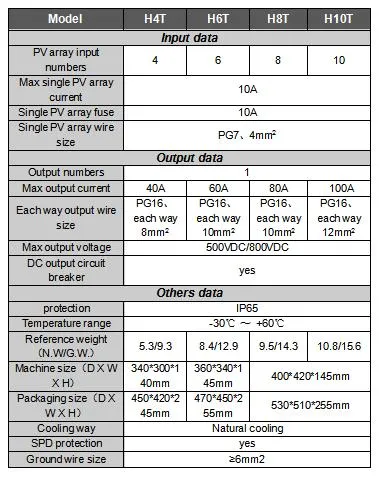

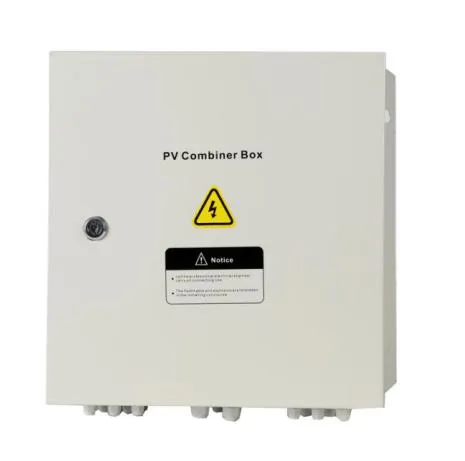

🛡️ Professional PV Combiner Box

Supports multiple access channels (4, 6, 8, and 10 channels).
Built-in lightning arrester and high-voltage protection system.
IP65 waterproof grade, perfectly suited for outdoor installation.
Maximum withstand voltage of 1000V with fire prevention technology.

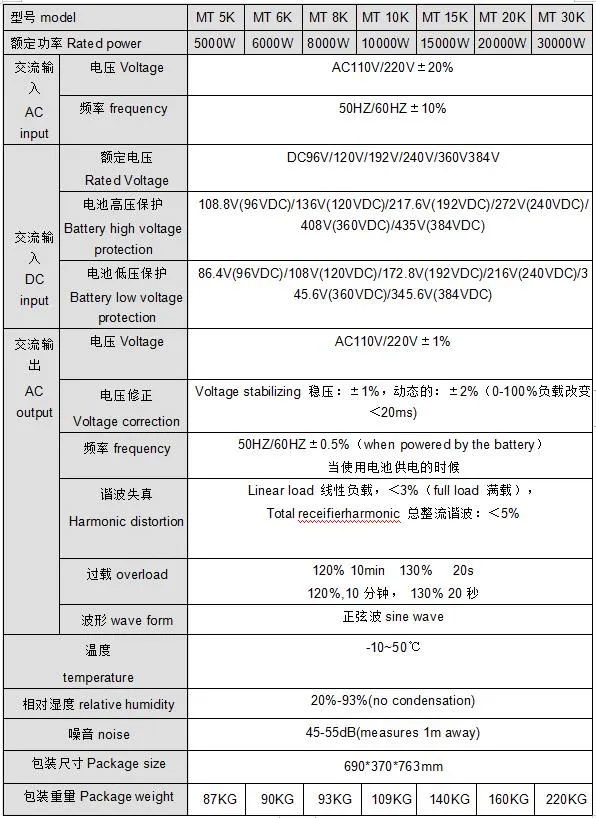

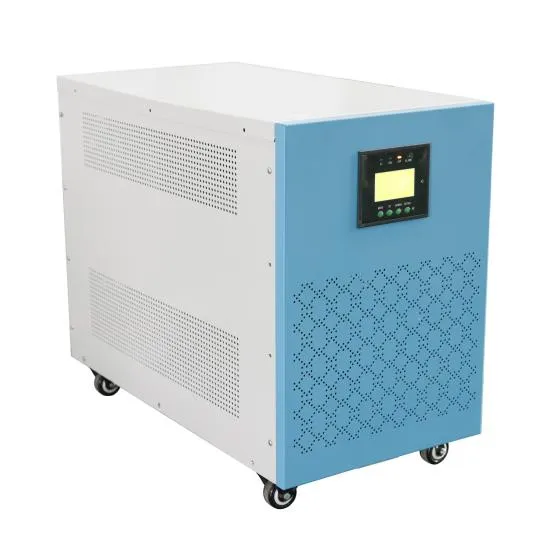

🔋 Advanced Solar Inverter (5-10kw / 96vdc)

Equipped with Fuji brand IGBT tubes for superior impact resistance and durability.
Converts DC battery power to AC power for household appliances.
Dual protection with optional mains and battery operation modes.
Automatic overload protection and recovery system.
Compatible with inductive loads: Air conditioners, refrigerators, pumps, and more.

📊 Technical Parameters & Load Reference

MSP-8KW Off Grid Solar Power System - Load Reference
Load Name	Wattage	Qty	Total Watt
Lights	11W	8	88W
Fan	80W	2	160W
Computer	150W	2	300W
Printer	250W	1	250W
Fax Machine	150W	1	150W
Refrigerator	120W	1	120W
Washing Machine	300W	1	300W
Microwave	1500W	1	1500W
Electric Cooker	300W	1	300W
Air Conditioner (1.5HP)	1125W	3	3375W
Satellite Receiver/VCD	25W	1	25W
Color TV	100W	2	200W
Water Pump	200W	1	200W
Total Power Capacity			7392W

⭐ Why Choose Us

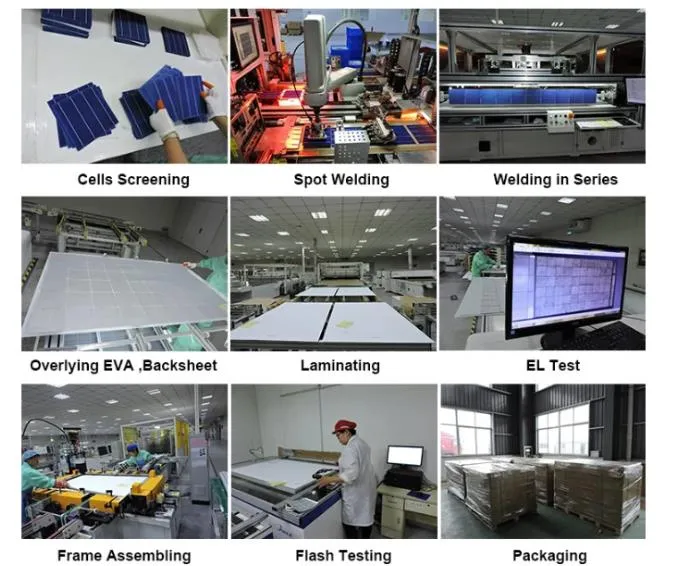

⚙️ Productive Process

Frequently Asked Questions

Q1: Can this 8kW system run an air conditioner? A1: Yes, the system is designed to handle inductive loads. According to our load reference, it can comfortably support up to three 1.5HP air conditioning units.

Q2: What happens if there is no sunlight for several days? A2: The system uses batteries (Lead-Acid or Lithium Ion) as backup power. If the battery level drops too low, the inverter can automatically switch to mains power to ensure your appliances keep running.

Q3: How durable are the solar panels? A3: The PERC solar panels come with a 15-year material warranty and are guaranteed to maintain efficiency for 25 years. They also feature technology to prevent hot spot effects.

Q4: Is the system safe for outdoor installation? A4: Yes, the PV combiner box is rated IP65 waterproof and includes lightning arresters and high-voltage protection to ensure safety in various weather conditions.

Q5: What is the advantage of the Fuji IGBT tube in the inverter? A5: Compared to ordinary MOS tubes, the Fuji IGBT brand tube is more impact-resistant, stable, and durable, especially when running heavy inductive loads like motors or compressors.

Q6: Can I sell electricity back to the grid with this system? A6: No, this is an off-grid system designed for self-sufficiency and backup. It is not intended for selling electricity back to the utility grid.
