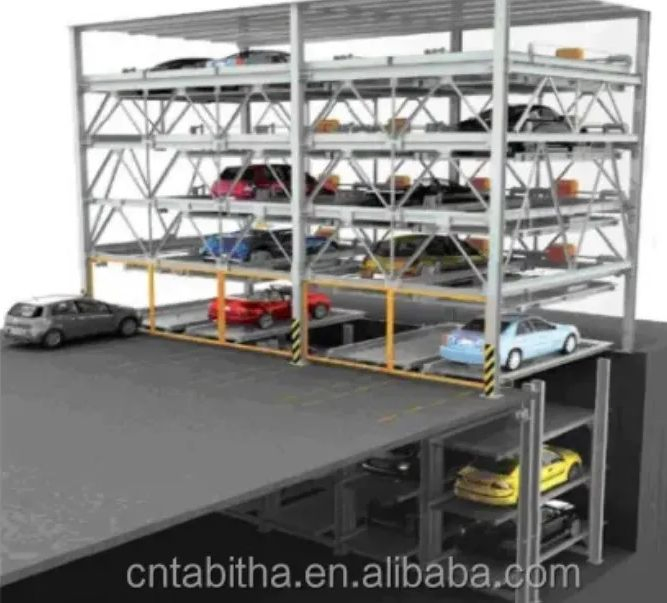

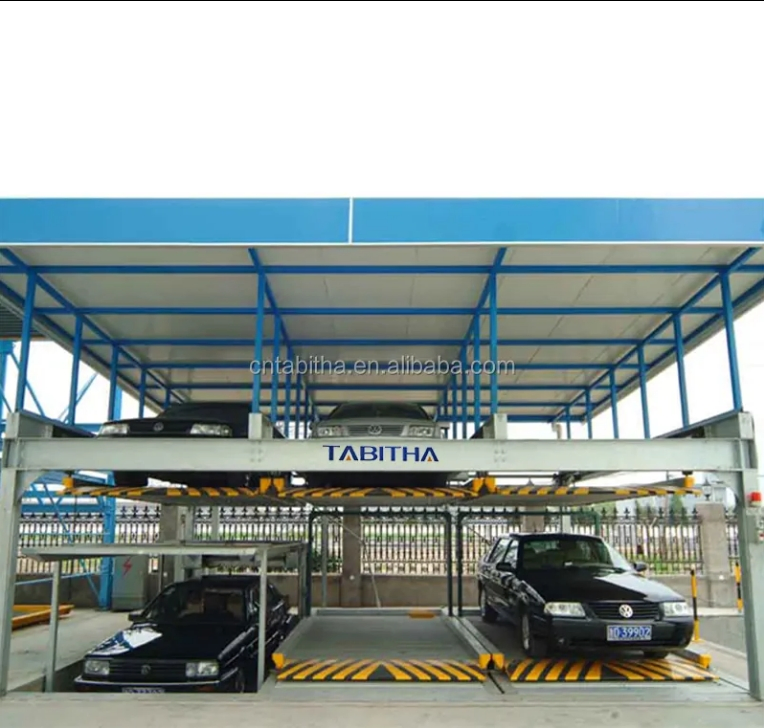

CE Certified Multi - Level Underground Sliding Lifting Parking System

1 / 5

CE Certified Multi - Level Underground Sliding Lifting Parking System

Customization:	Available
Level:	2-15 Levels
Parking Post:	Customized

Send Inquiry

Product Description

Basic Information

Model NO.

PSH

Color

Customized

Installation

Multi-Level, Underground

Material

Steel

Operation Mode

Automatic

Power Source

Electric

Warranty

5 Years

Power

3.7-15kw

Control Mode

ID Card / Key Board

Car Weight

1800/2500kgs

Certification

CE/ISO

Voltage

110/220/380V

Product Description

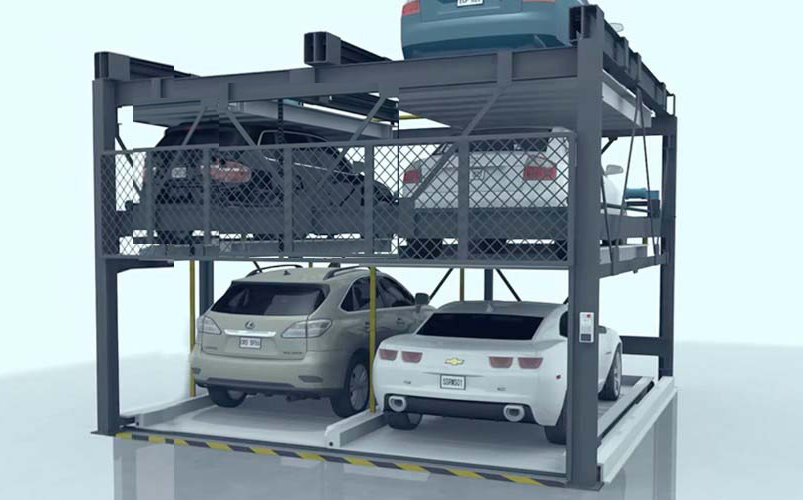

Working Principle

Utilize the lifting and sliding of the car loading plate to access vehicle. Each parking space contains a car plate to reach the ground floor by lifting, lowering and sliding movement so that the driver is able to enter the garage and get access to the car. The top and the underground floor are for full parking (only lifting needed), while remaining floors use empty shifts for sliding and lifting. The process is fully automated via the control system.

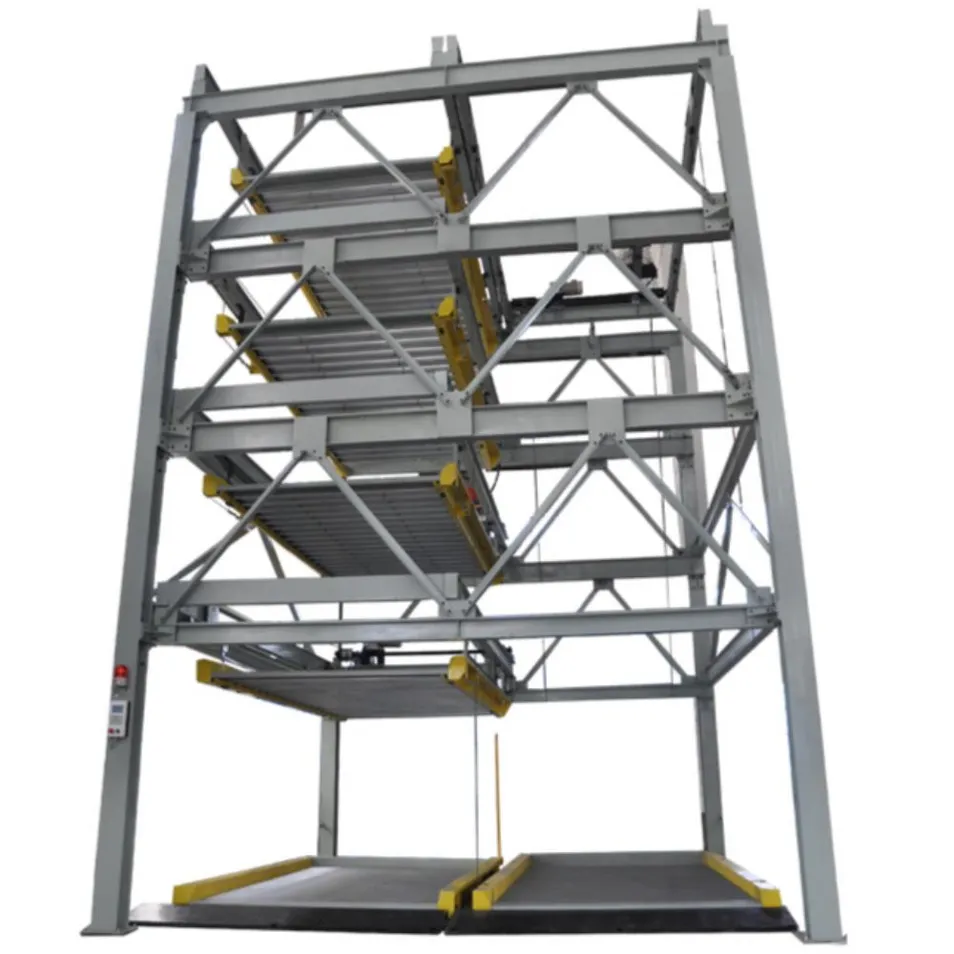

Available System Types:

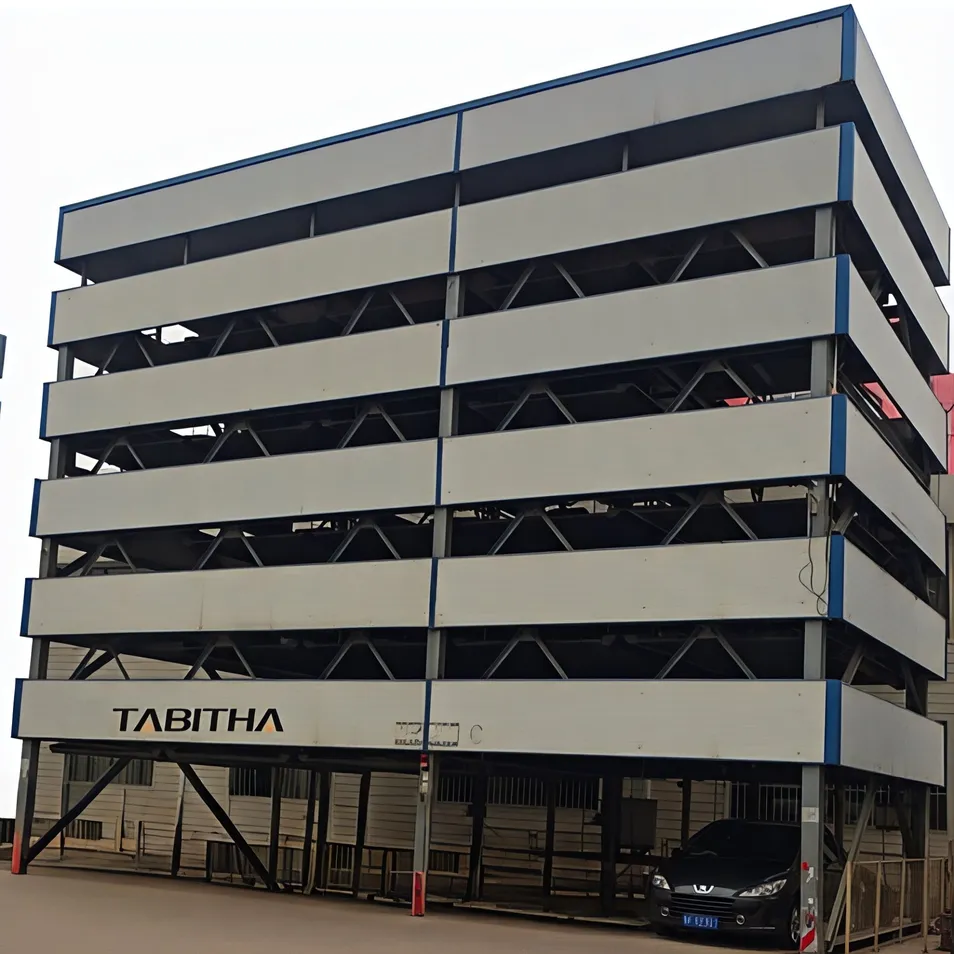

■ 2 to 6 floors above ground.

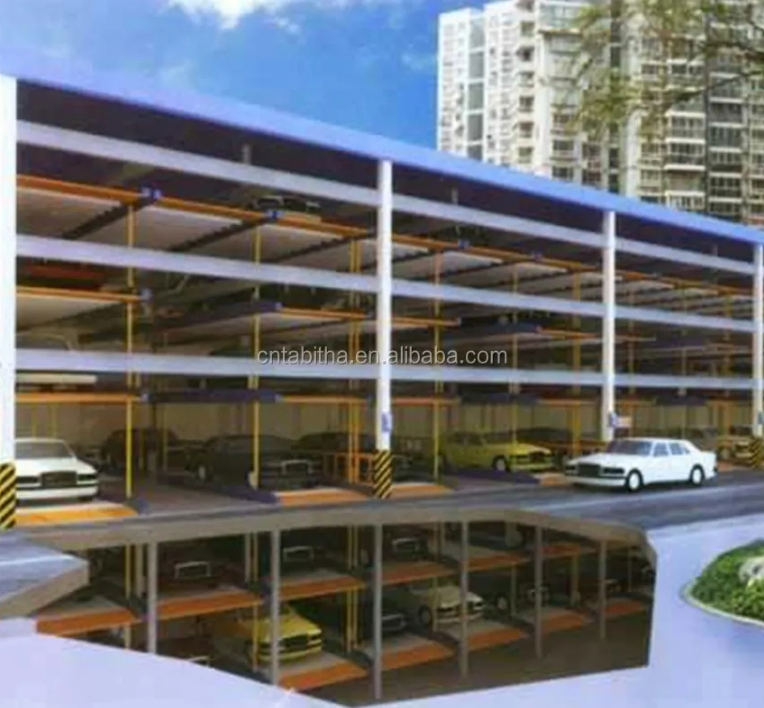

■ Combined basement floors (-1+2 to -3+6 configurations).

■ Traversing puzzle parking systems.

■ Transmission via chain or steel wire options.

Key Features:

✓ Adaptable, flexible layout for specific terrain.

✓ Simple steel structure and transmission.

✓ Smooth, safe, and reliable operation.

✓ Energy saving and low noise.

✓ Multiple security detection devices.

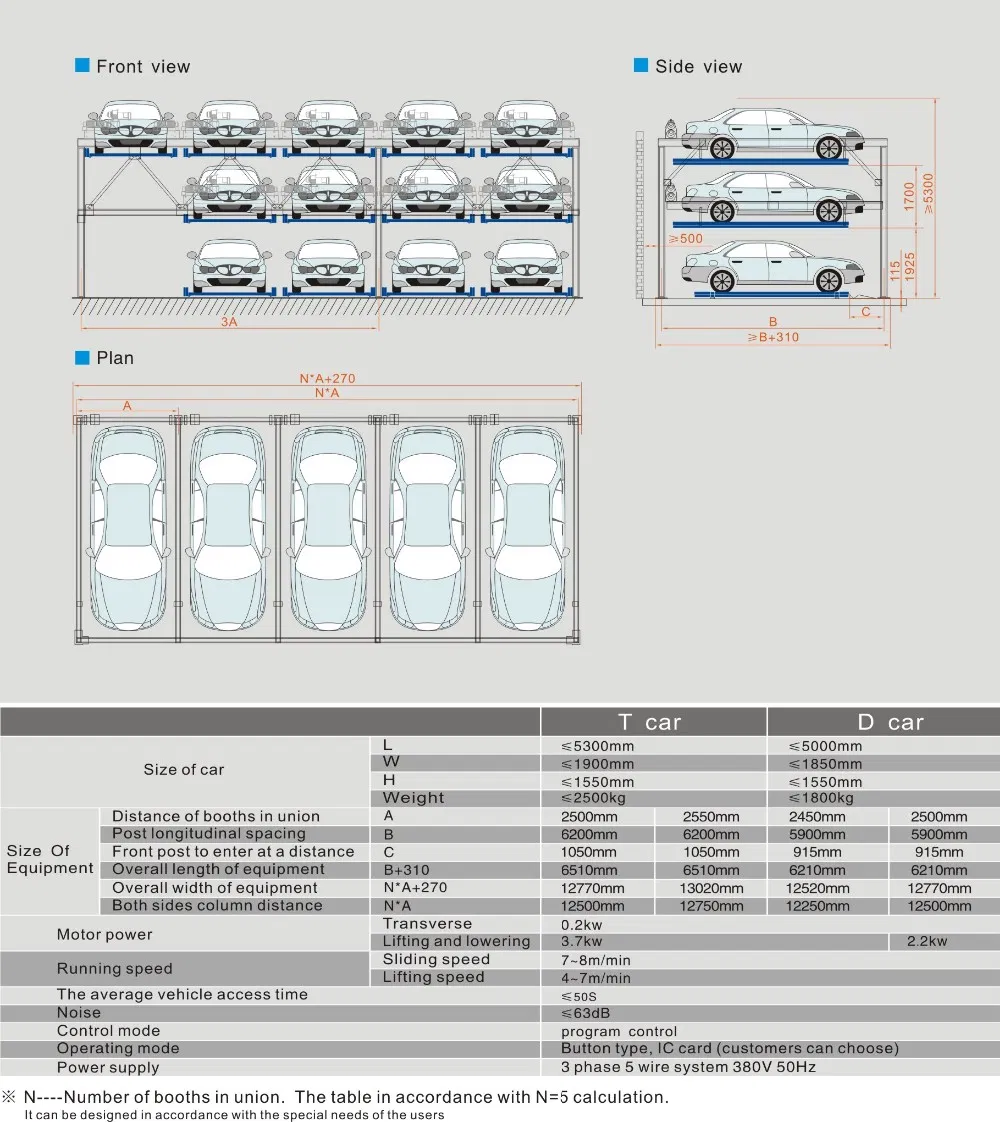

Specification

Certifications

● Top-notch Safety Assurance: Fully meeting EU safety directives for household or industrial use.

● Reliable Performance: Products are repeatedly tested and optimized for long-lasting durability.

● International Recognition: CE mark signifies high-standard quality globally.

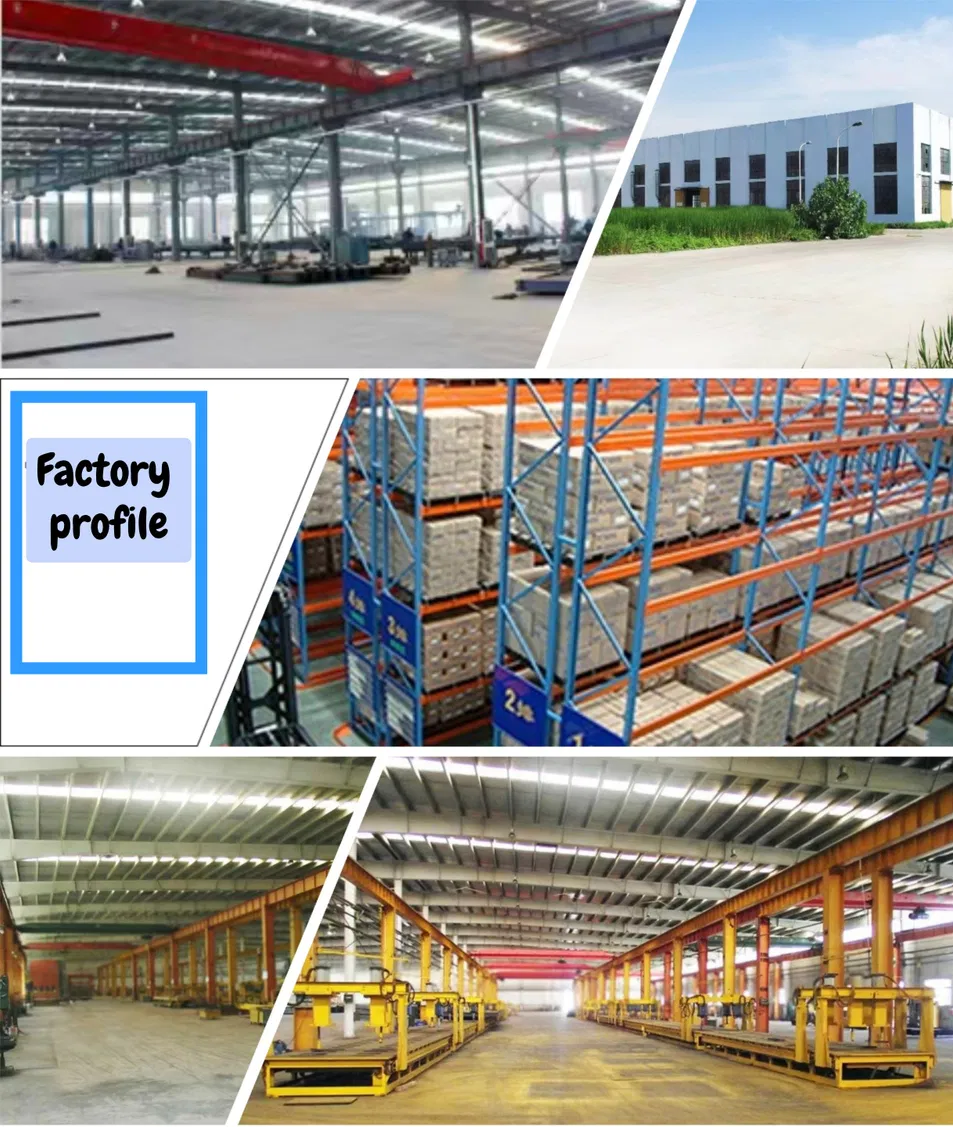

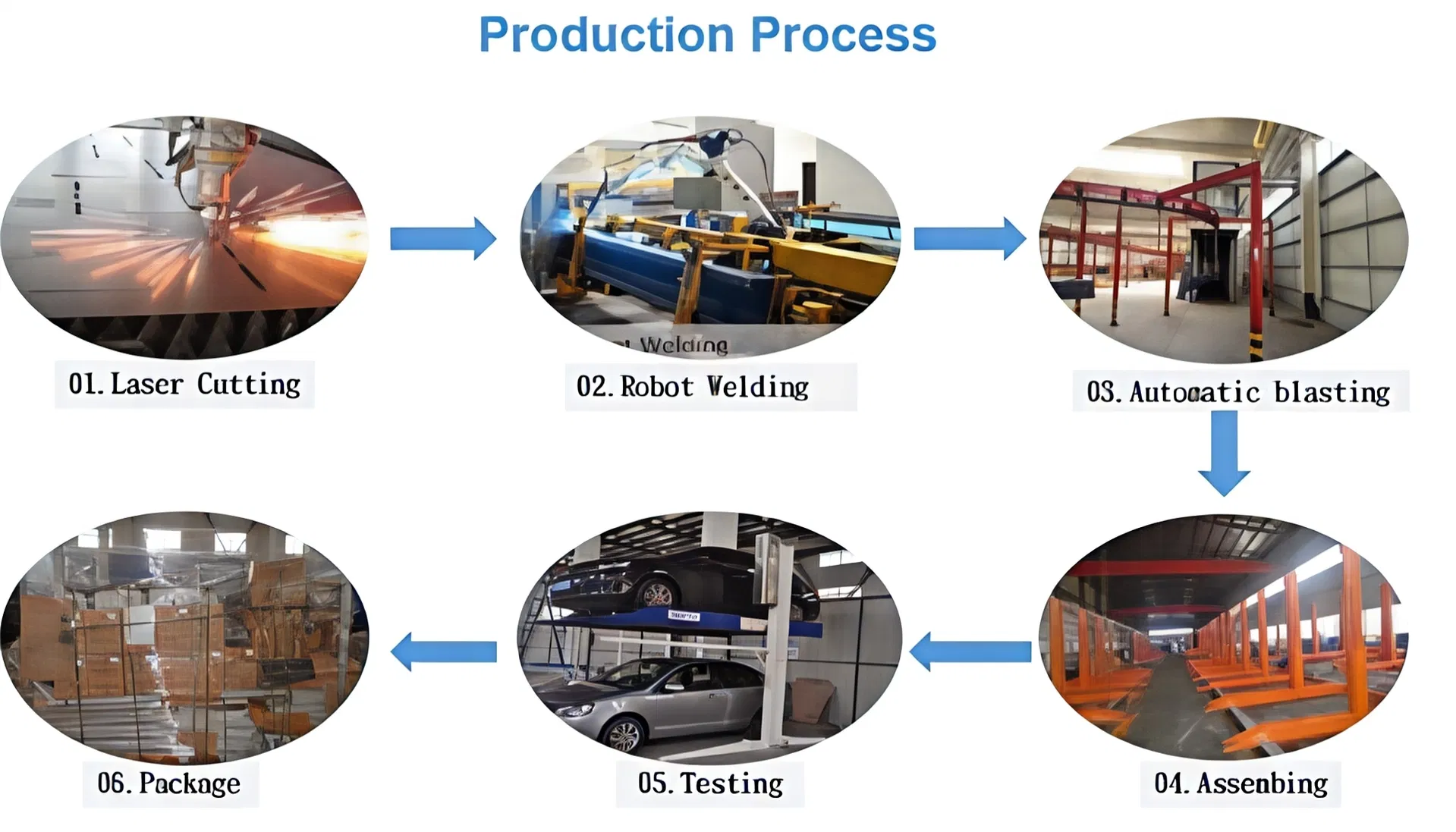

Production & Quality Control

1. Modern equipment ensuring efficient production.

2. Exquisite craftsmanship with quality as the cornerstone.

3. Zero tolerance for product quality defects through strict inspection.

4. Technology-powered production and sustainable green practices.

Packaging & Logistics

■ Robust Escort: High-strength packaging materials like tough corrugated cartons and thick foams.

■ Tailored Care: Customized solutions fitting the product's contour for all-round protection.

■ Professional Encapsulation: Skilled workers following strict standards for every shipment.

Frequently Asked Questions

How many levels can the PSH parking system be built?

The system can be configured from 2 to 6 floors above ground and can also be combined with 1 to 3 basement levels.

What safety features are included in the system?

Safety features include an anti-slip surface, emergency stop button, overload protection, safety railings, and multiple safety sensors to ensure safe operation.

Is the parking system customizable for specific car sizes?

Yes, the standard available car size is 5000x1850x1550/1950mm, but the color and layout can be adjusted to meet specific terrain and client needs.

What is the warranty period for this equipment?

We provide a 5-year warranty on the system, ensuring long-term reliability and peace of mind for our customers.

How is the system controlled by the user?

Users can easily access their vehicles using an ID card or a keyboard system. The entire process of lifting and sliding is then automatically handled by the control system.

What certifications does the product hold?

The system is fully CE and ISO certified, meeting strict international safety and quality standards for industrial and commercial use.
