(OEM & ODM Service Available)

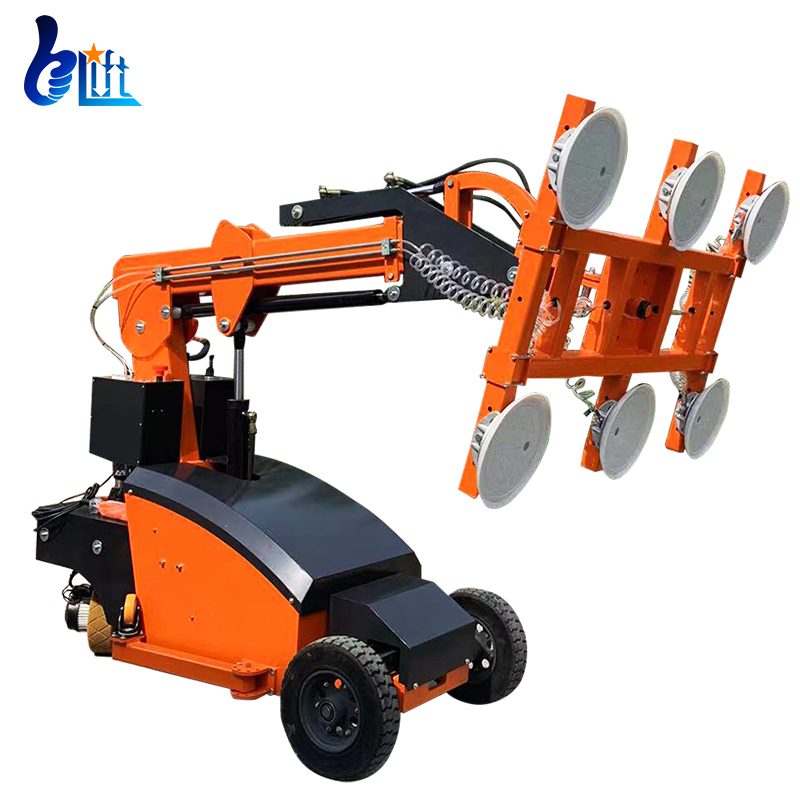

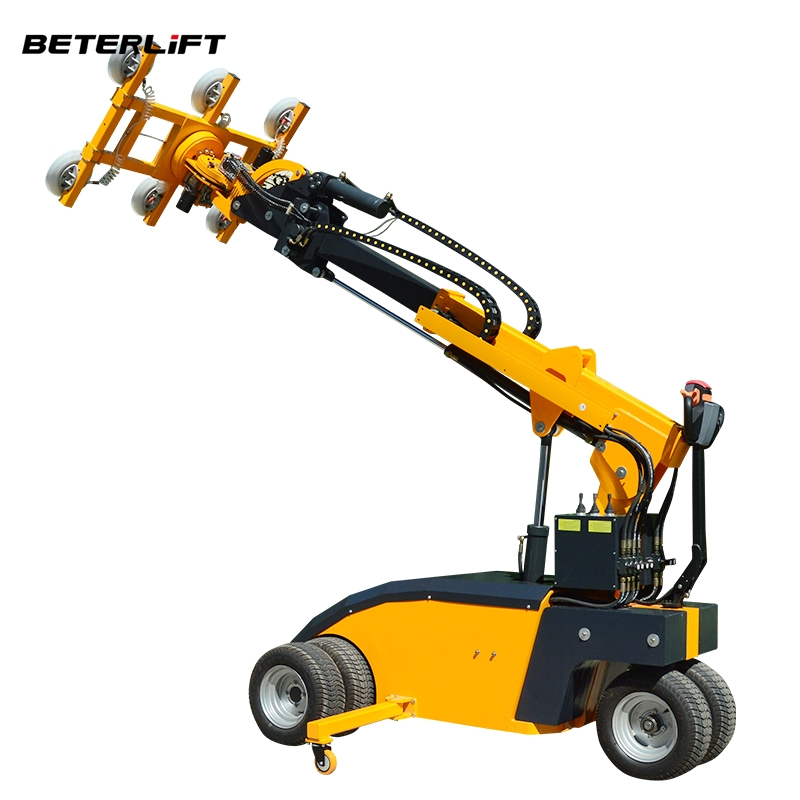

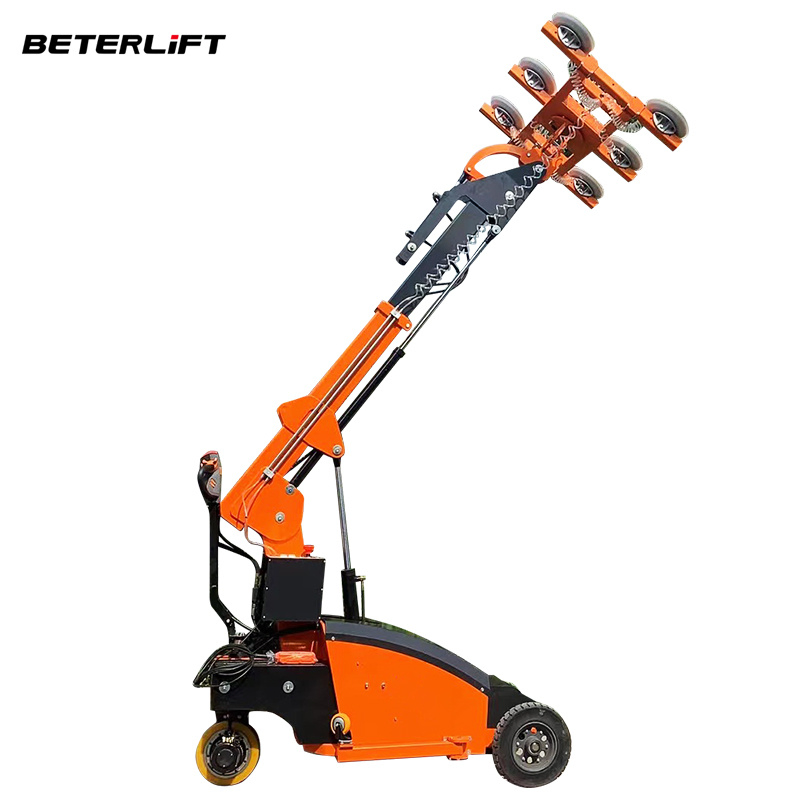

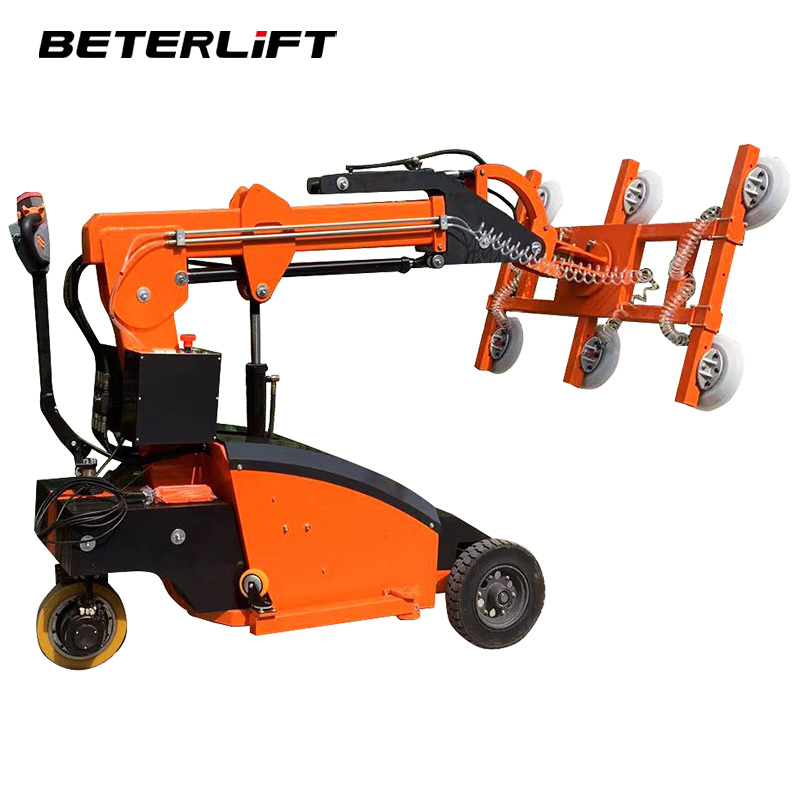

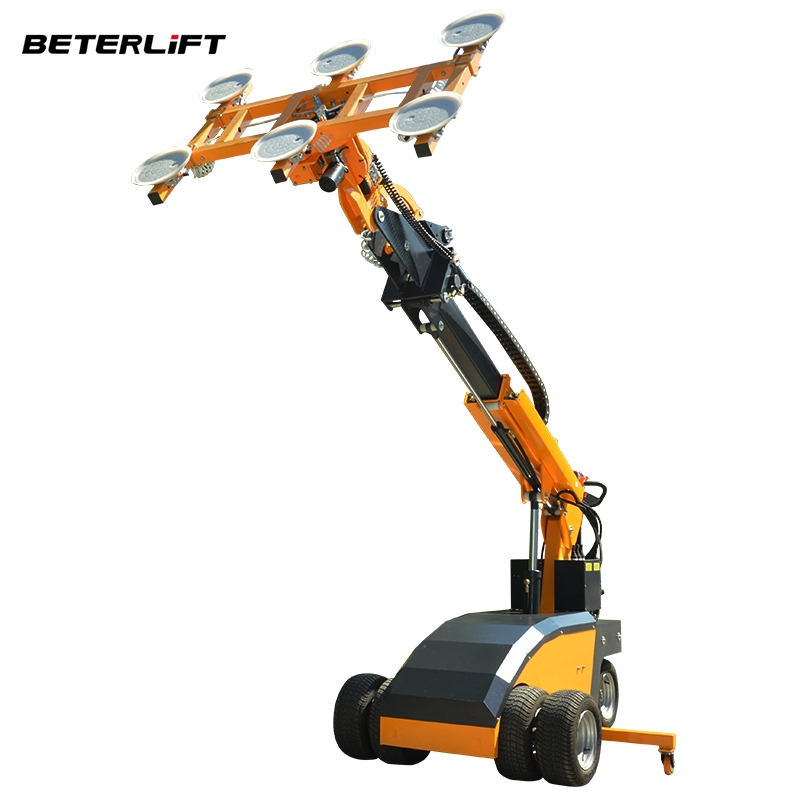

The Robot Vacuum lifter LD Series is a fast, safe and convenient automatic equipment. It utilizes the principle of vacuum adsorption, employing a vacuum pump as the source to generate suction at the cup end, firmly holding various workpieces such as glass and iron plates. The rotatable mechanical arm then picks up and transports the workpiece to the designated position.

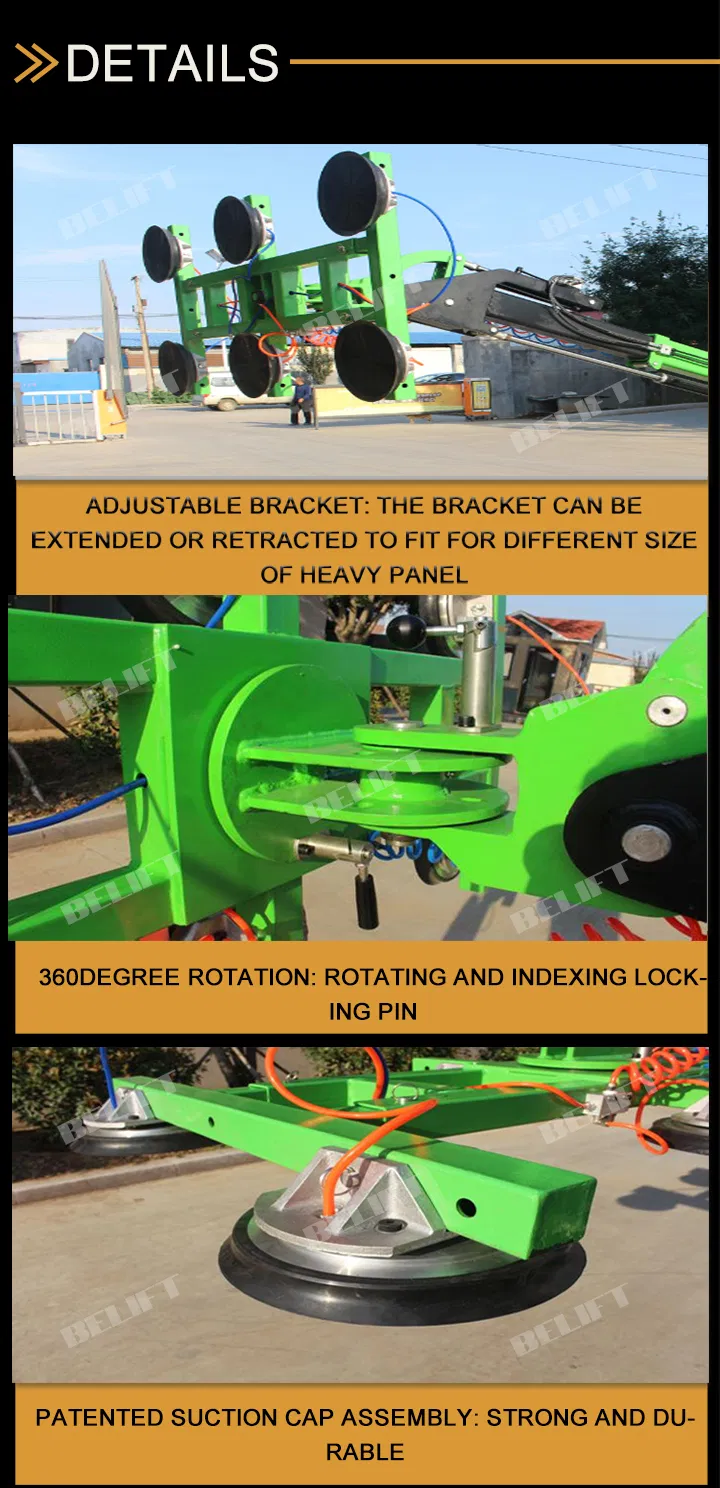

This machine is primarily suitable for the installation or transportation of glass, wood, cement, and iron plates. By replacing the sponge suction cup, it can adapt to different materials. It is equipped with an adjustable bracket that can be extended to accommodate panels of various sizes.
| Model Type | BGL-LD-300 | BGL-LD-400 | BGL-LD-500 | BGL-LD-600 | BGL-LD-800 |
|---|---|---|---|---|---|
| Load Capacity (Retract) | 300kg | 400kg | 500kg | 600kg | 800kg |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm |
| Qty of Suction Cup | 4pcs | 6pcs | 6pcs | 6pcs | 8pcs |
| Drive Motor | 24V/600W | 24V/600W | 24V/900W | 24V/1200W | 24V/1200W |
| Chassis L*W | 2660x810mm | 2660x810mm | 2800x810mm | 2800x810mm | 2800x810mm |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg |

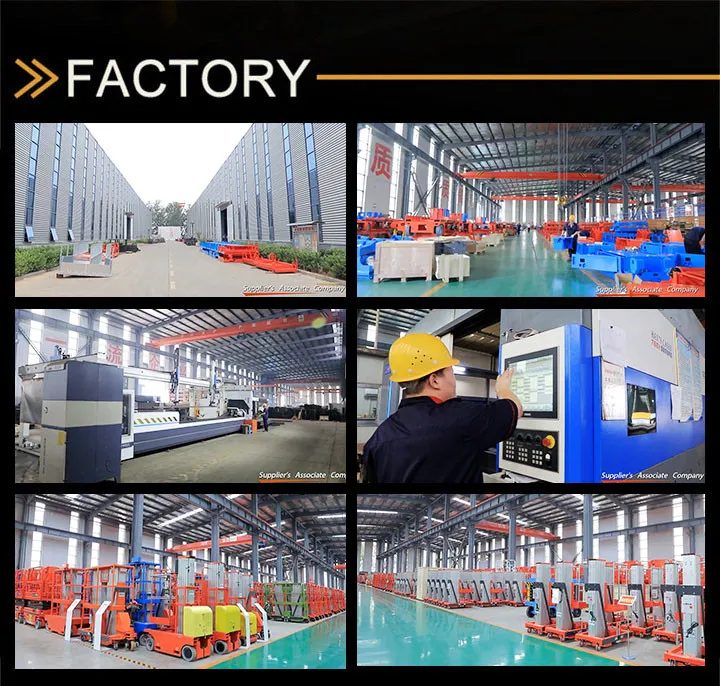

Specialized in the industry of Manufacturing Aerial Work Platforms and Material Lift Platforms, our products are trusted by customers worldwide. We provide solutions for both standard and customized lifting needs.
Certificates: CE, ROHS, SGS, ISO etc.
