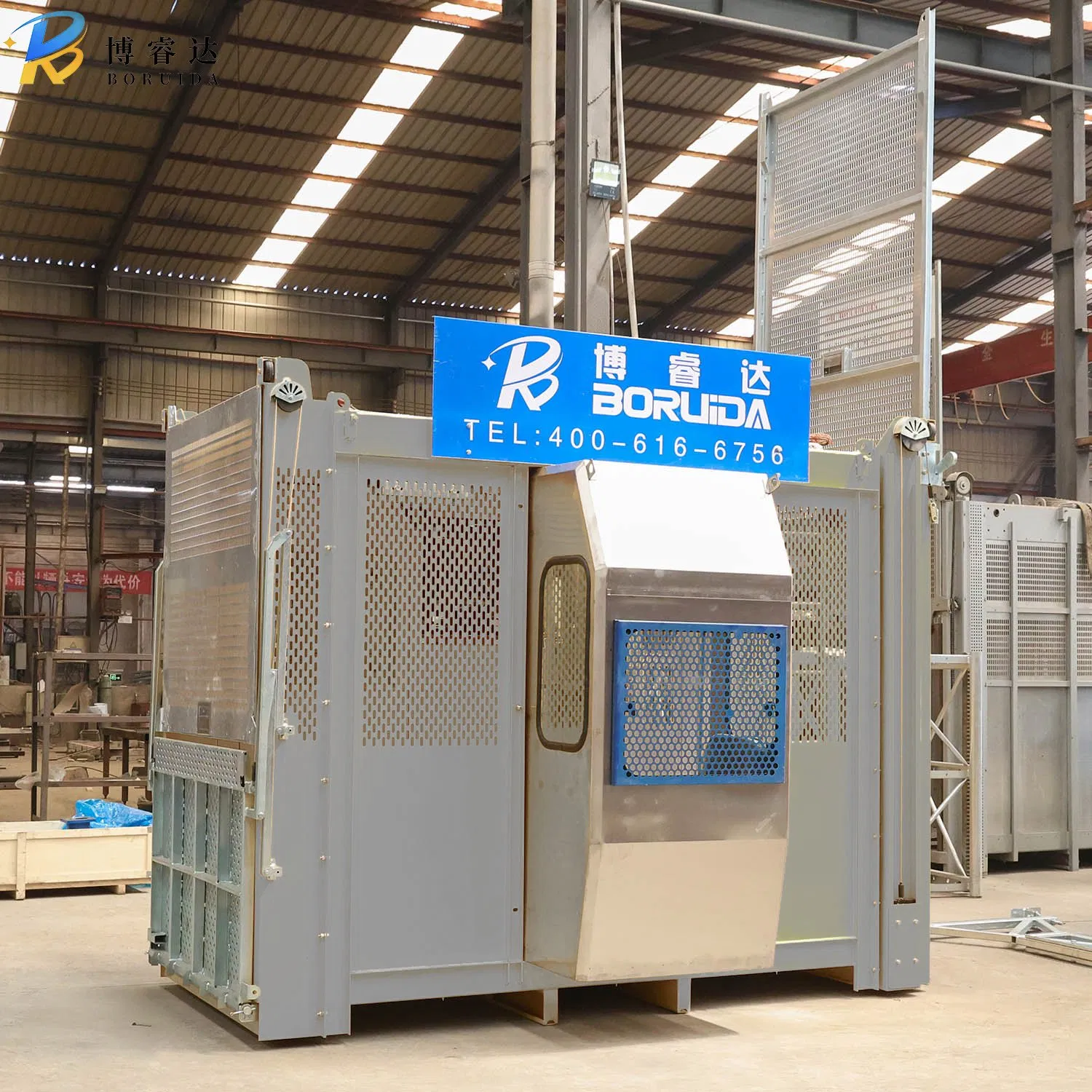

Twin Cage Construction Site Elevator 0-60 M/Min Sc200/200 2 Ton Lifting Equipment
Twin Cage Construction Site Elevator 0-60 M/Min Sc200/200 2 Ton Lifting Equipment
Twin Cage Construction Site Elevator 0-60 M/Min Sc200/200 2 Ton Lifting Equipment
Twin Cage Construction Site Elevator 0-60 M/Min Sc200/200 2 Ton Lifting Equipment
Twin Cage Construction Site Elevator 0-60 M/Min Sc200/200 2 Ton Lifting Equipment
1 / 5
Twin Cage Construction Site Elevator 0-60 M/Min Sc200/200 2 Ton Lifting Equipment
Twin Cage Construction Site Elevator 0-60 M/Min Sc200/200 2 Ton Lifting Equipment
Twin Cage Construction Site Elevator 0-60 M/Min Sc200/200 2 Ton Lifting Equipment
Twin Cage Construction Site Elevator 0-60 M/Min Sc200/200 2 Ton Lifting Equipment
Twin Cage Construction Site Elevator 0-60 M/Min Sc200/200 2 Ton Lifting Equipment

Twin Cage Construction Site Elevator 0-60 M/Min Sc200/200 2 Ton Lifting Equipment

Customization: Available
After-sales Service: Yes
Warranty: 12 Month
Send Inquiry

Product Description

Basic Information
Model NO.
SC200/200
Type
Stationary
Load Capacity
1T - 2T
Speed
20M/Min - 40M/Min
Usage
Construction Hoist
Sling Type
Wire Rope
Lift Drive
Electric Motor
Lift Mechanism
Articulated Lift
Cage Size
3m*1.5m*2.2m
Motor Number
3 Motor
Lifting Speed
100m/Min
Mast Section Size
0.65m*0.65m*1.508m
Origin
China
HS Code
84262000
Product Overview

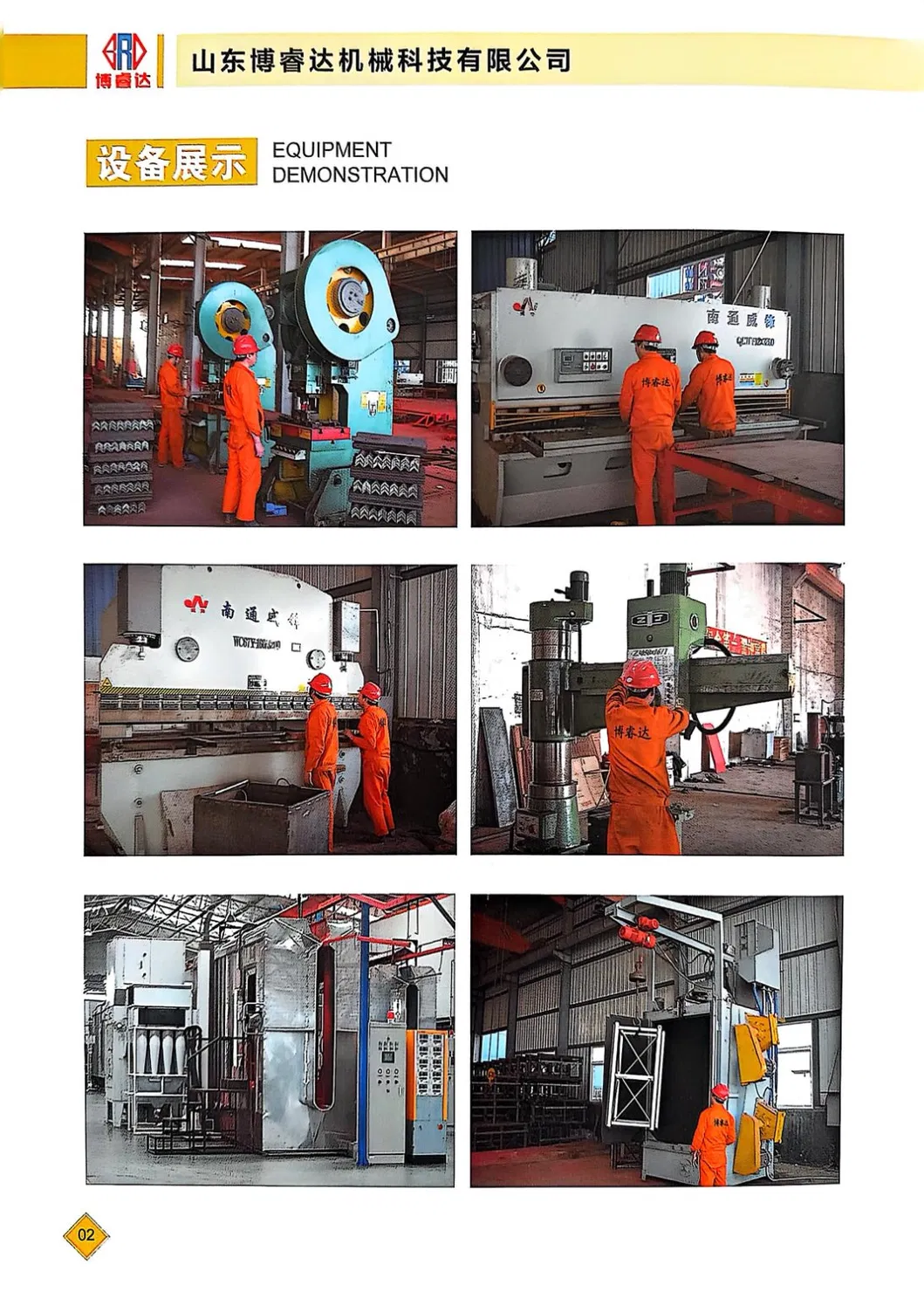

Dedicated Design & Manufacturing

1. Our production lines utilize specialized fixtures, moulds, and gauges to ensure precise detailing and size consistency.

2. We select high-quality raw materials from China Bao Steel Group. Key components including motors, reducers, gearboxes, and safety devices are sourced from reputable brands like Schneider or top Korean manufacturers to ensure low noise and reliable quality.

3. The equipment features a compact and reasonable structure designed for easy installation and adjustment.

4. Rigorous factory testing is conducted on every unit, including motor brake checks, safety device operation, limit switch verification, dropping tests, loading tests, and mast section erection tests.

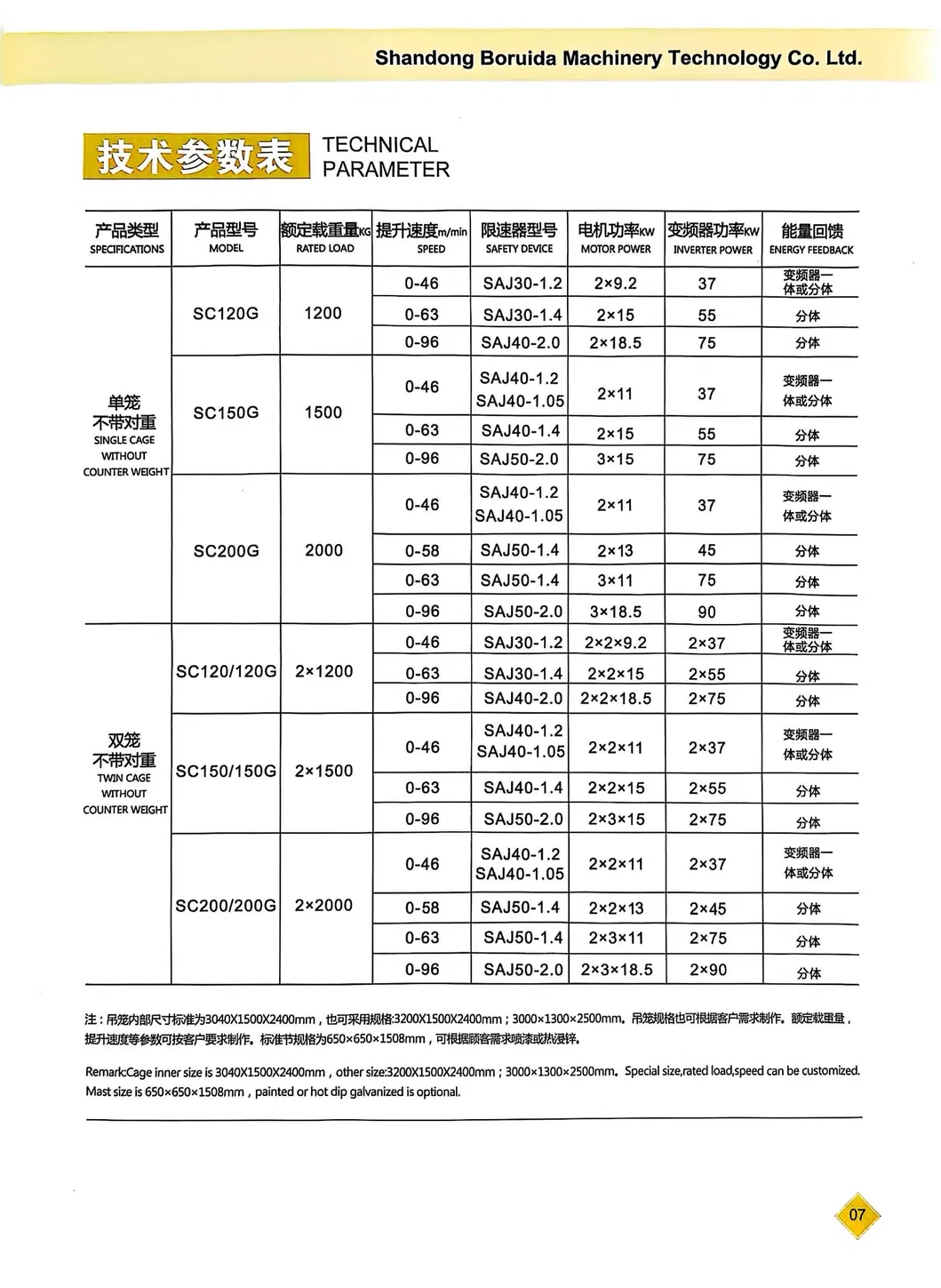

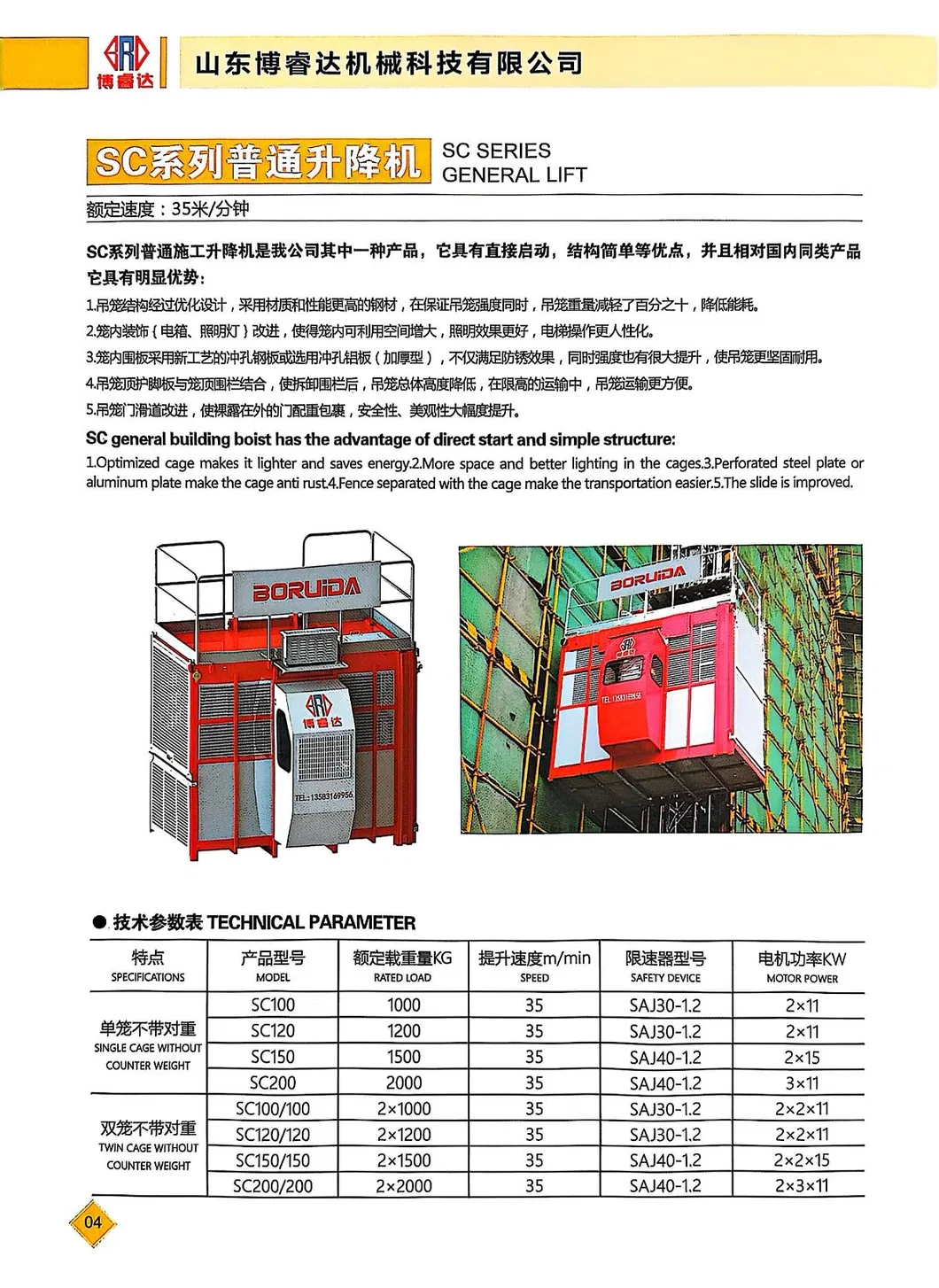

Technical Specifications
Characteristic Type Model Rated Loading Lifting Speed Motor Power
Double Cages Standard SC200/200 2x2000kg 33m/min 2x(3x11kw) / 2x(3x8.5kw)
Standard SC150/150 2x1500kg 33m/min 2x(2x13kw)
Standard SC100/100 2x1000kg 33m/min 2x(2x11kw)
Single Cage Standard SC200 2000kg 33m/min 3x11kw / 3x8.5kw
Standard SC150 1500kg 33m/min 2x13kw
Standard SC100 1000kg 33m/min 2x11kw

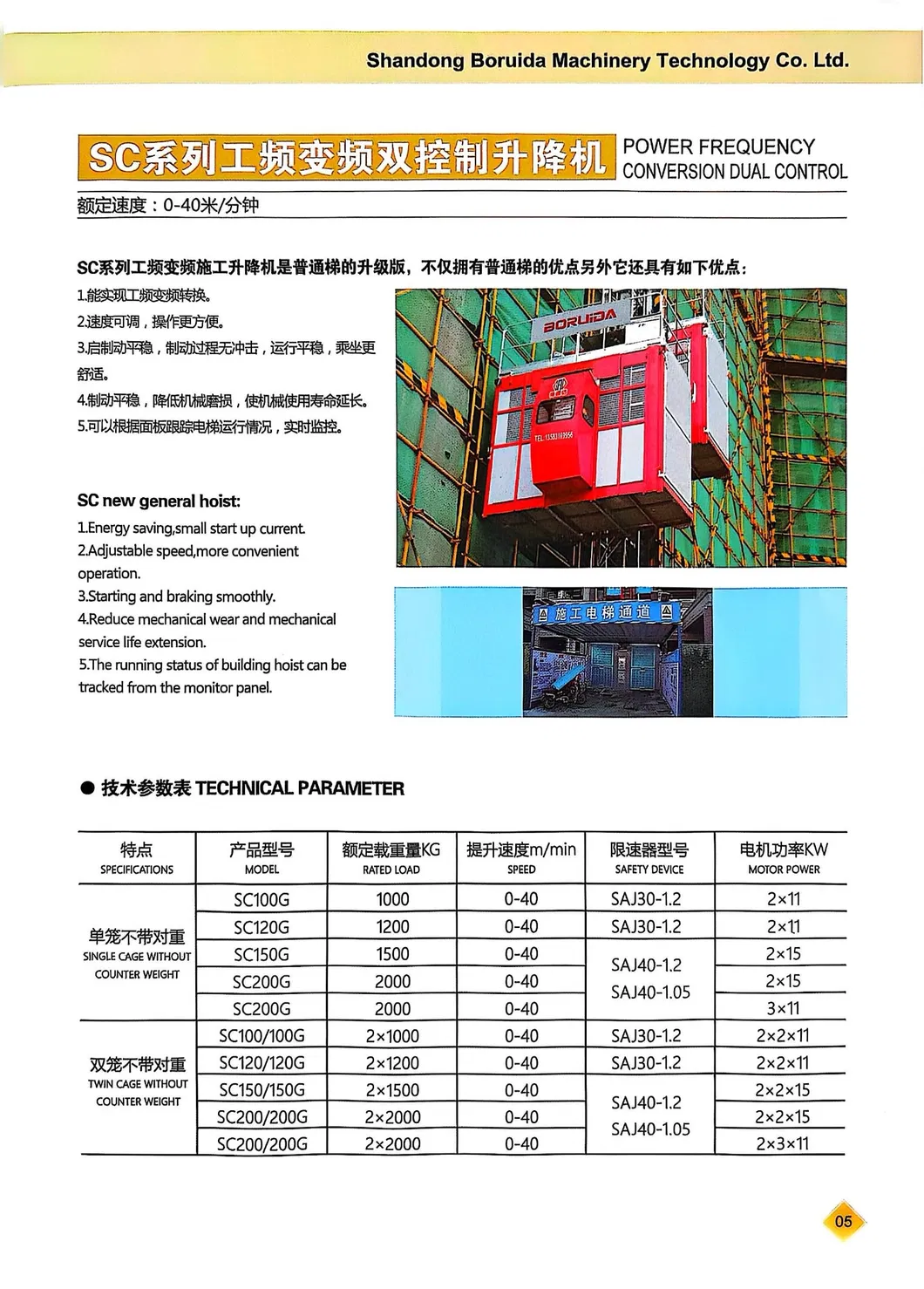

Frequency Control Low Speed SC200/200D 2x2000kg 0-40m/min 2x(3x11kw)
Mid Speed SC200/200Z 2x2000kg 0-60m/min 2x(2x23kw)
Prominent Features of Construction Lift
  • 1
    Robot Welding: Mast sections are welded by robots, ensuring reliable quality and an elegant appearance.
  • 2
    Blasting Technology: All steel structures undergo blasting to remove rust, ensuring outstanding surface painting adhesion.
  • 3
    High-Grade Materials: Suspension cage guarding boards use figured aluminum plates, providing a lightweight yet artistic structure.
  • 4

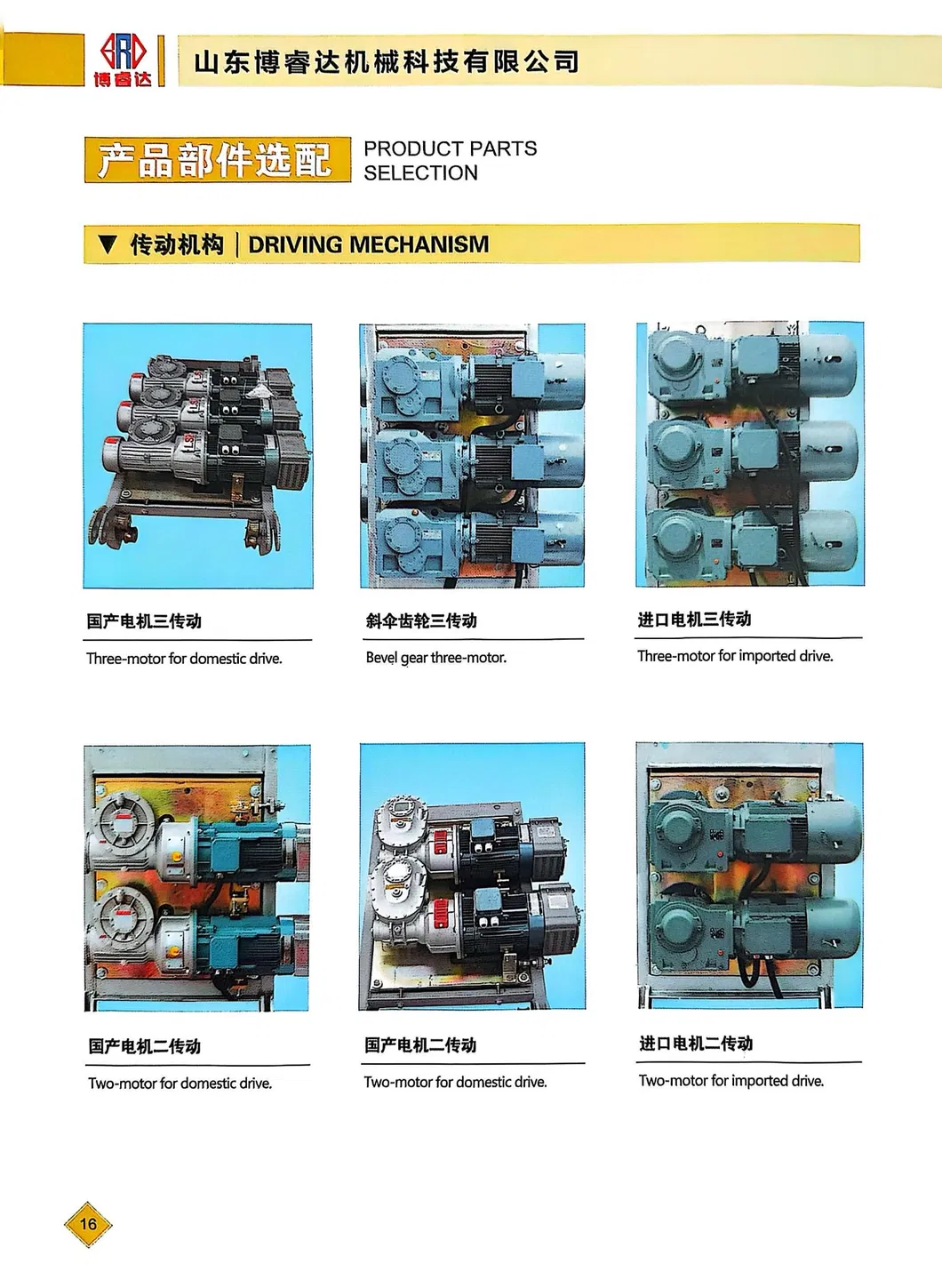

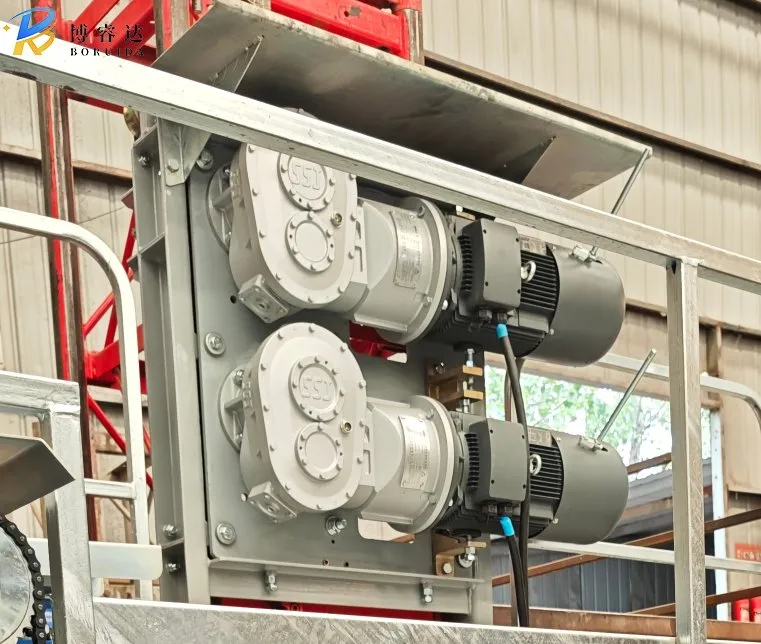

    Stable Transmission: Mechanisms supplied by professional manufacturers offer high efficiency and a long service life.
  • 5
    Advanced Safety: Equipped with SAJ40-1.2 anti-falling devices and a variety of limiters and mechanical chain devices to prevent accidents.
  • 6

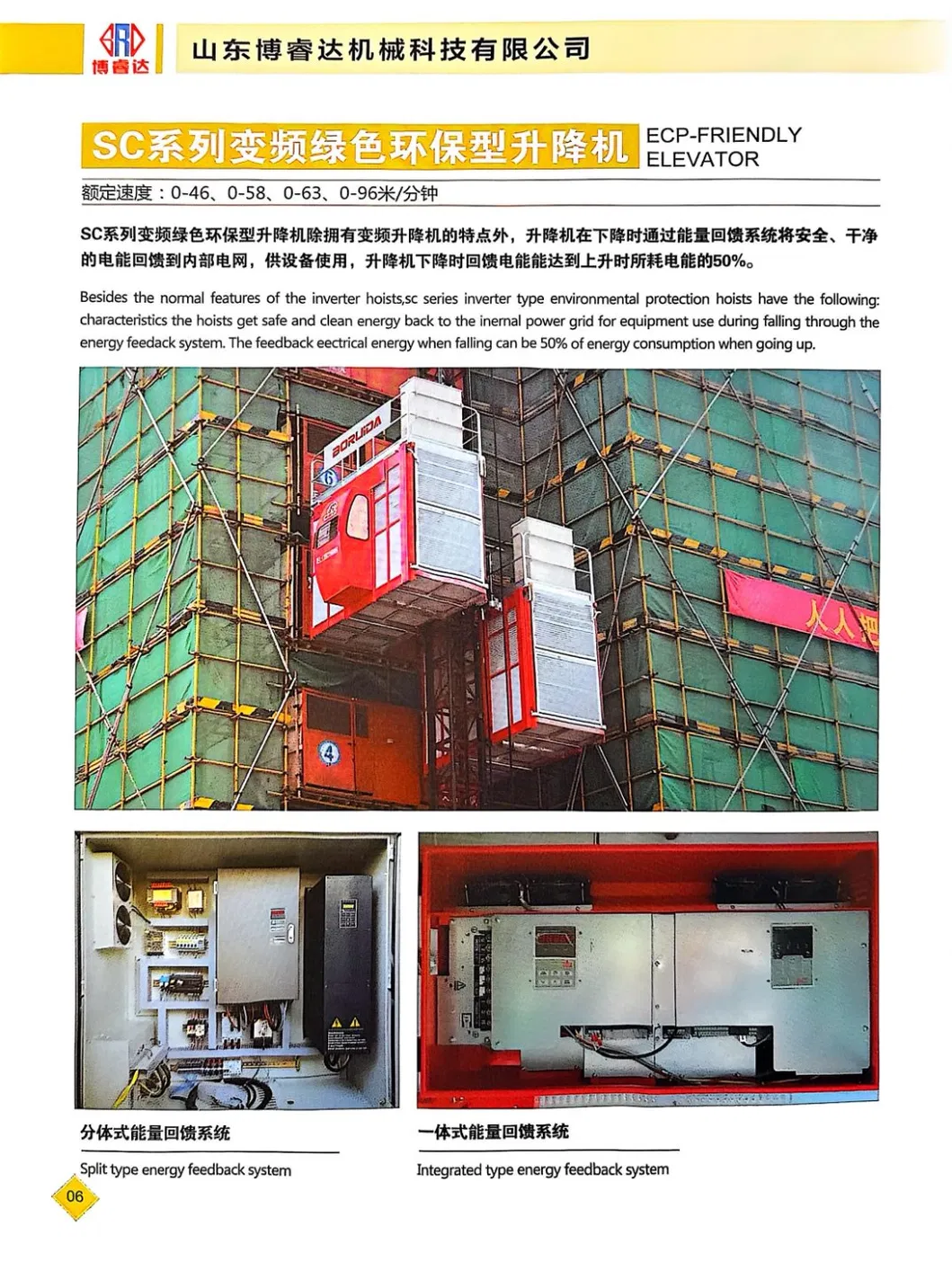

    Energy Efficient: Frequency conversion models provide stable starting electricity and energy-saving performance.
Product Display
Construction Site Elevator
Lifting Equipment
Twin Cage Elevator

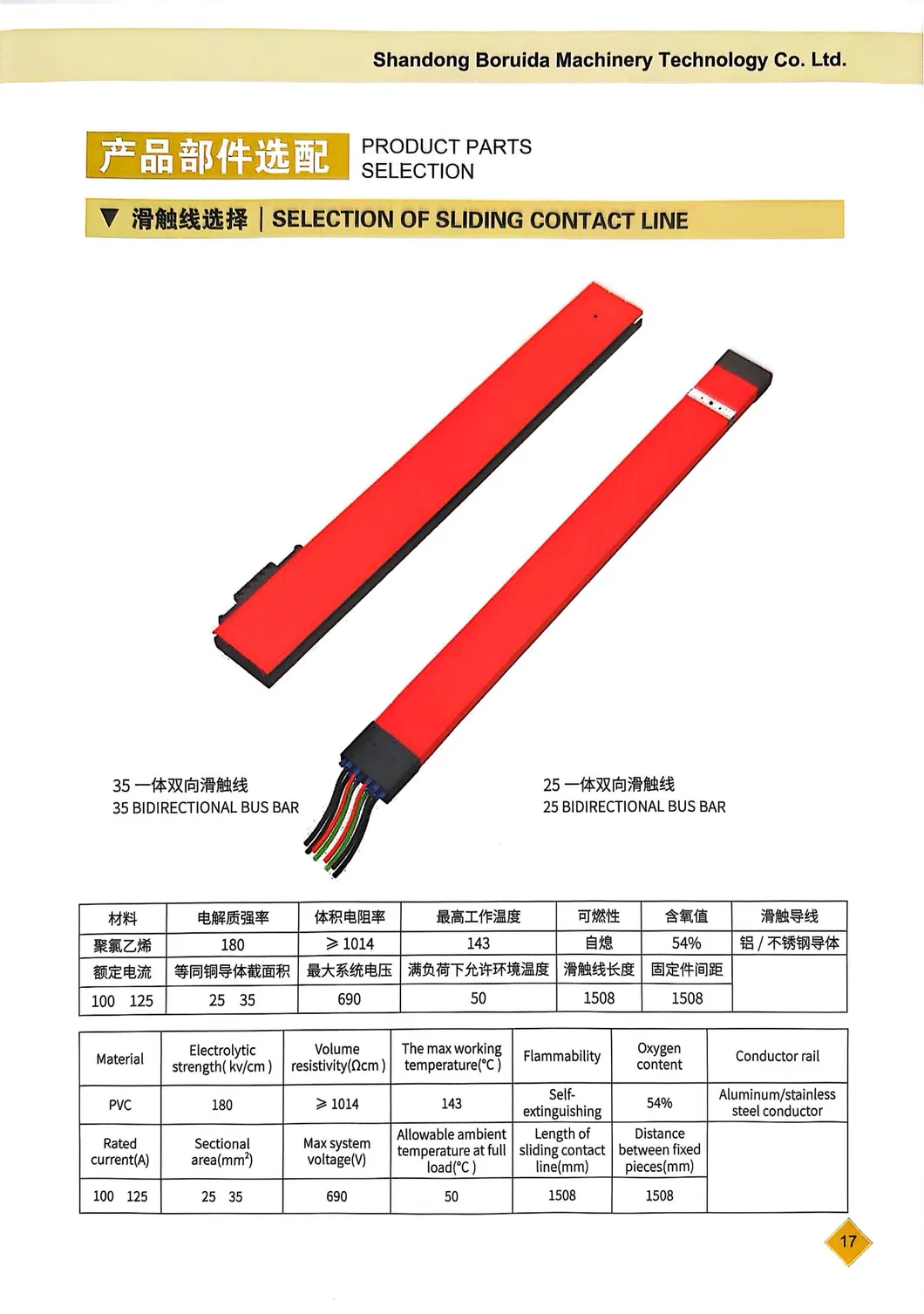

Hoist Detail

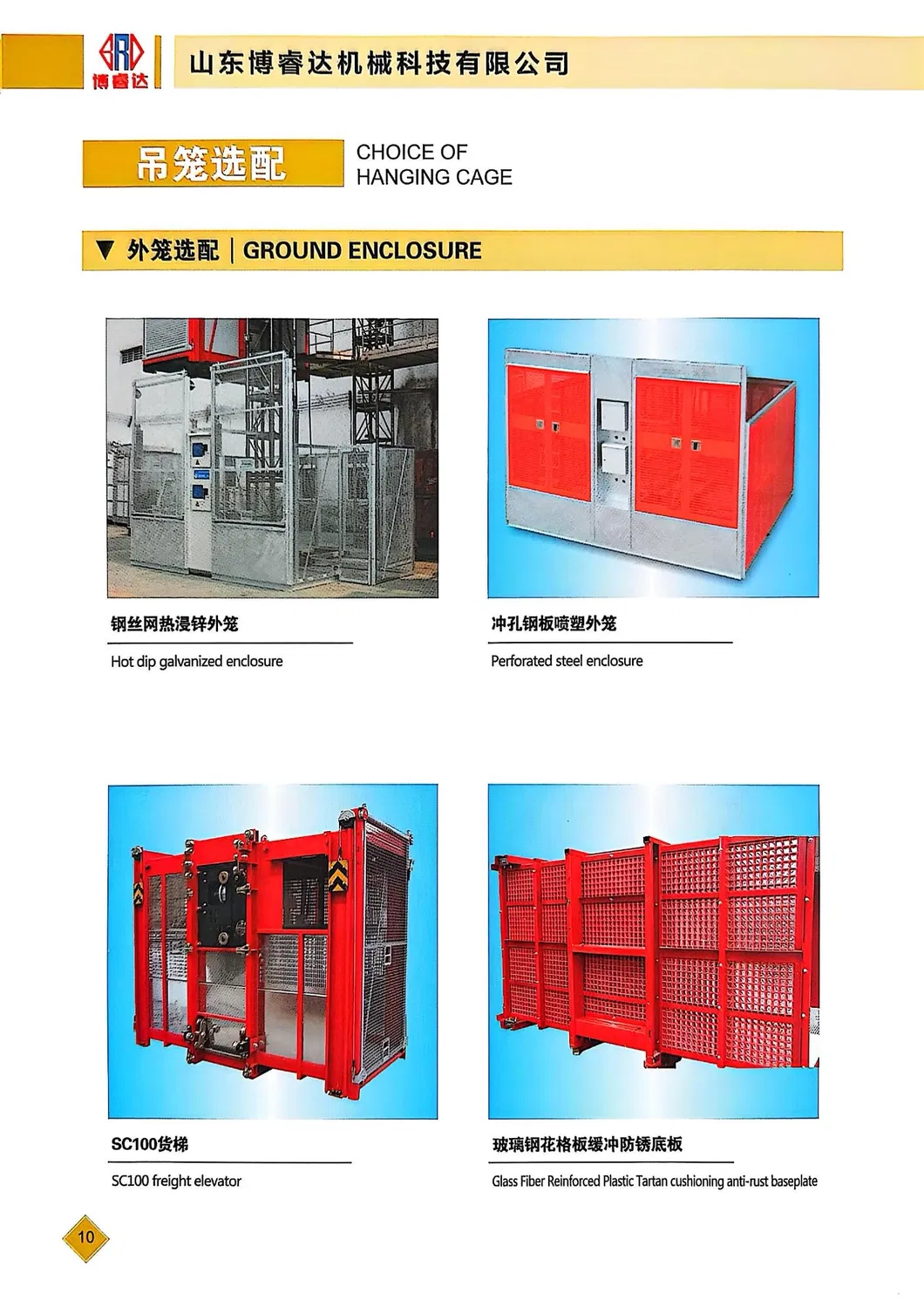

Construction Hoist

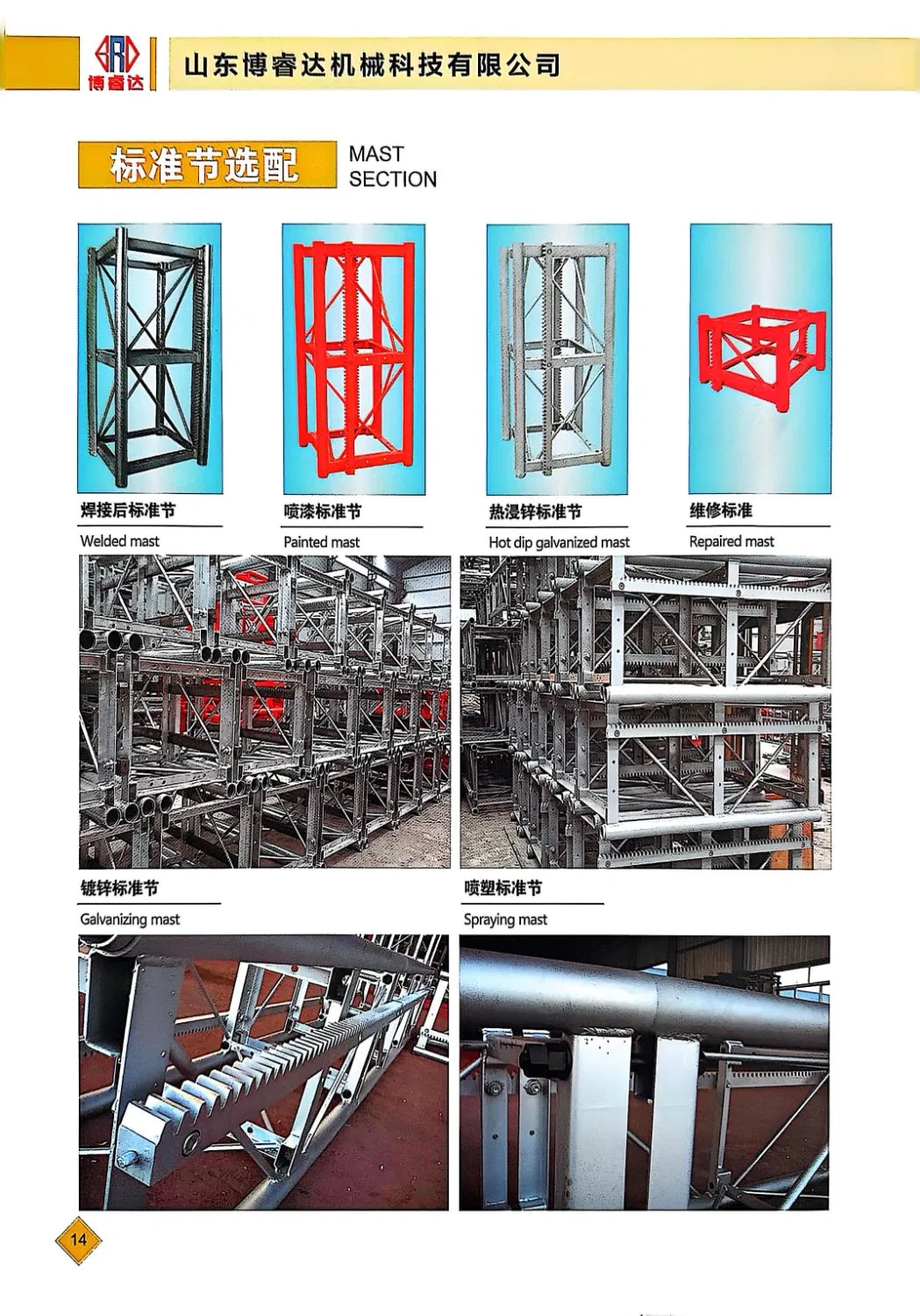

Mast Section

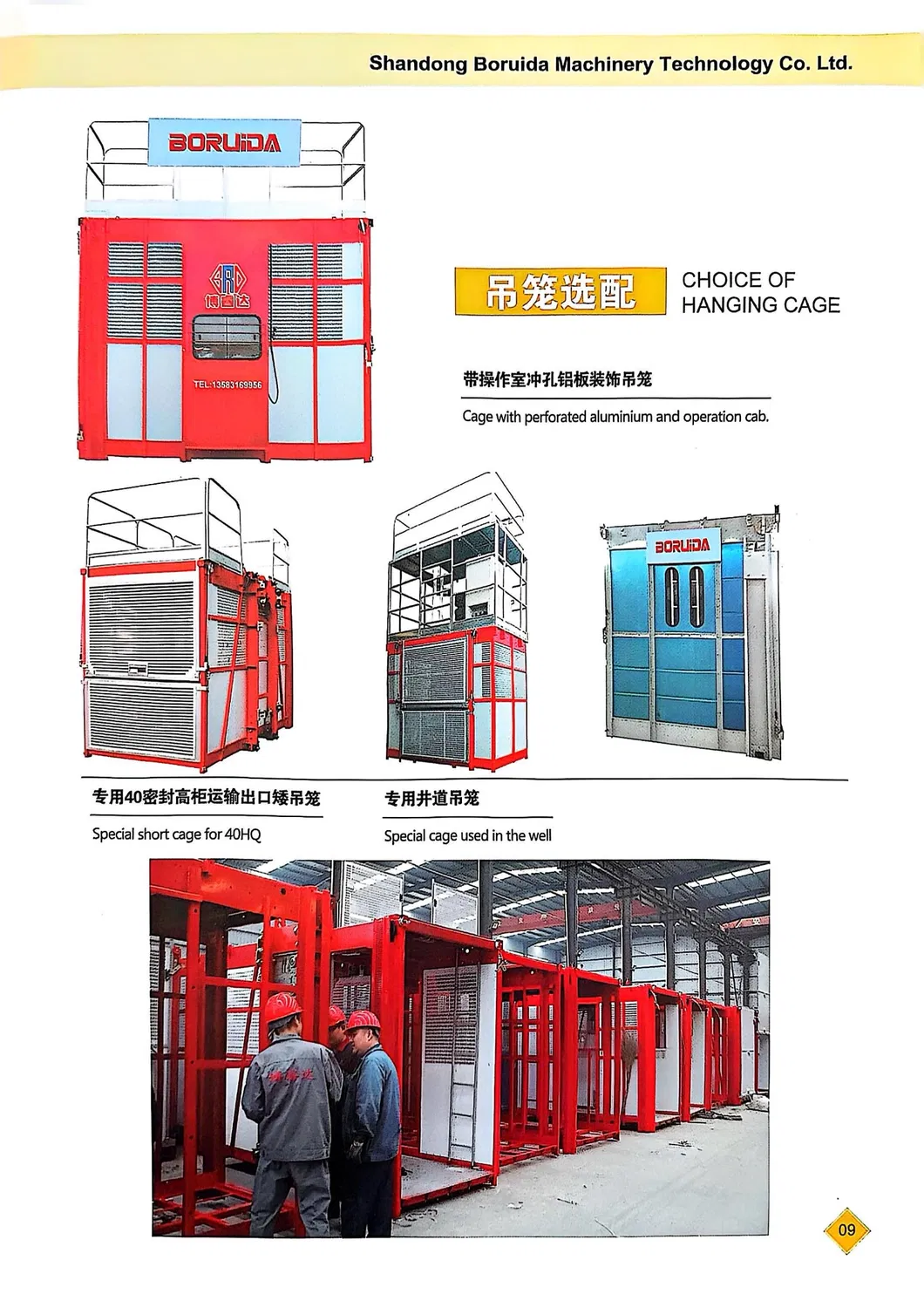

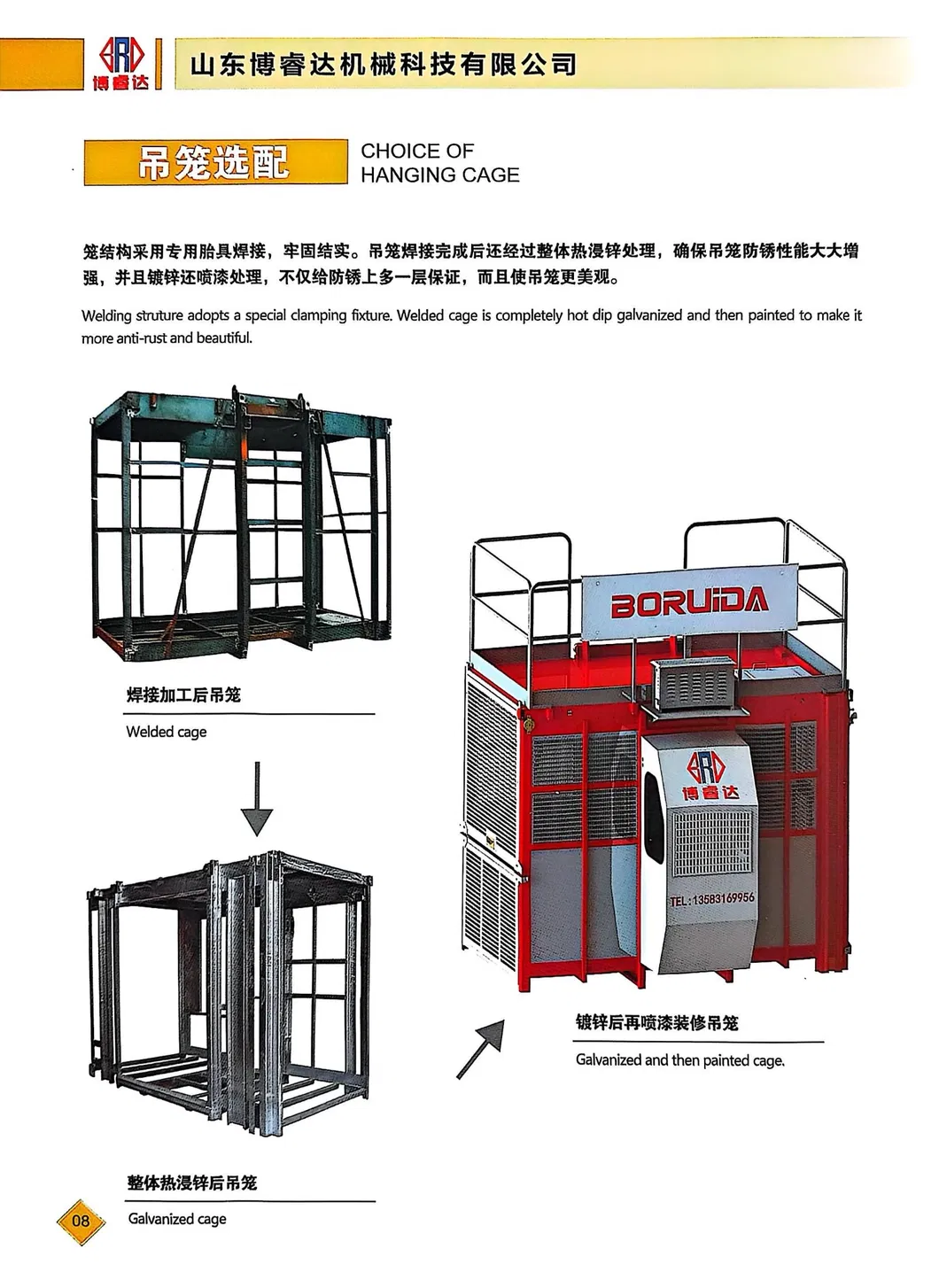

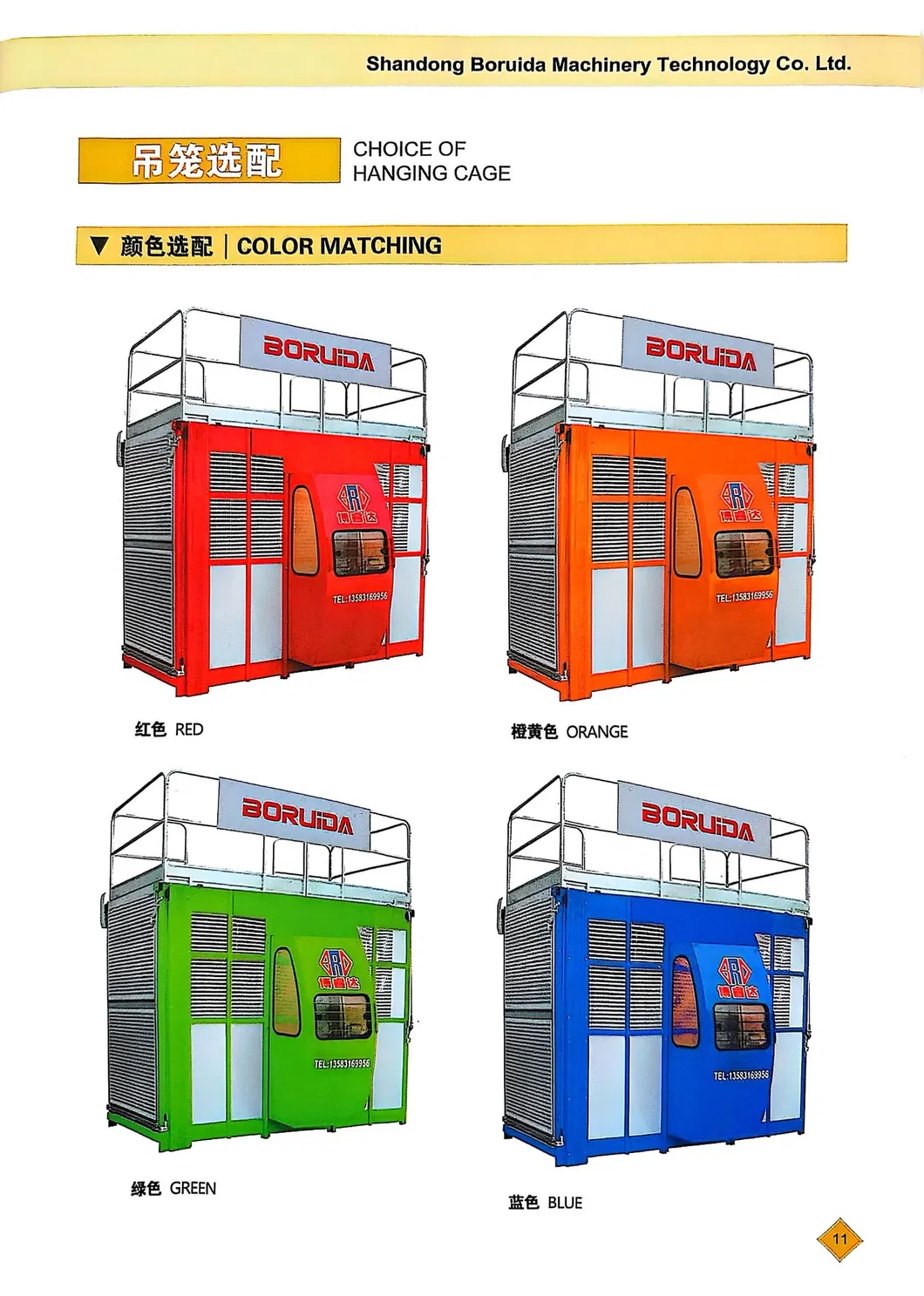

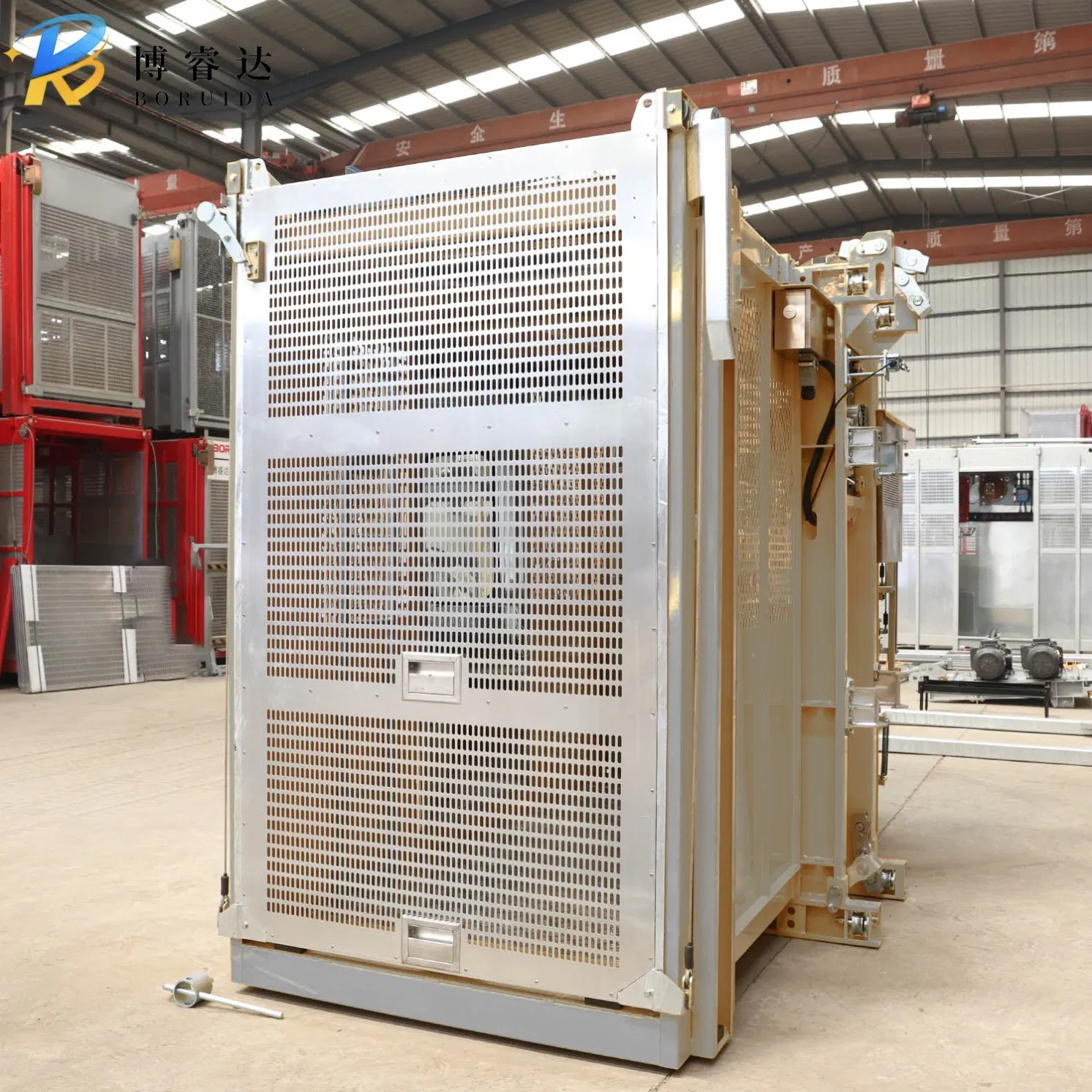

Cage Design
Site Installation
Safety Mechanism

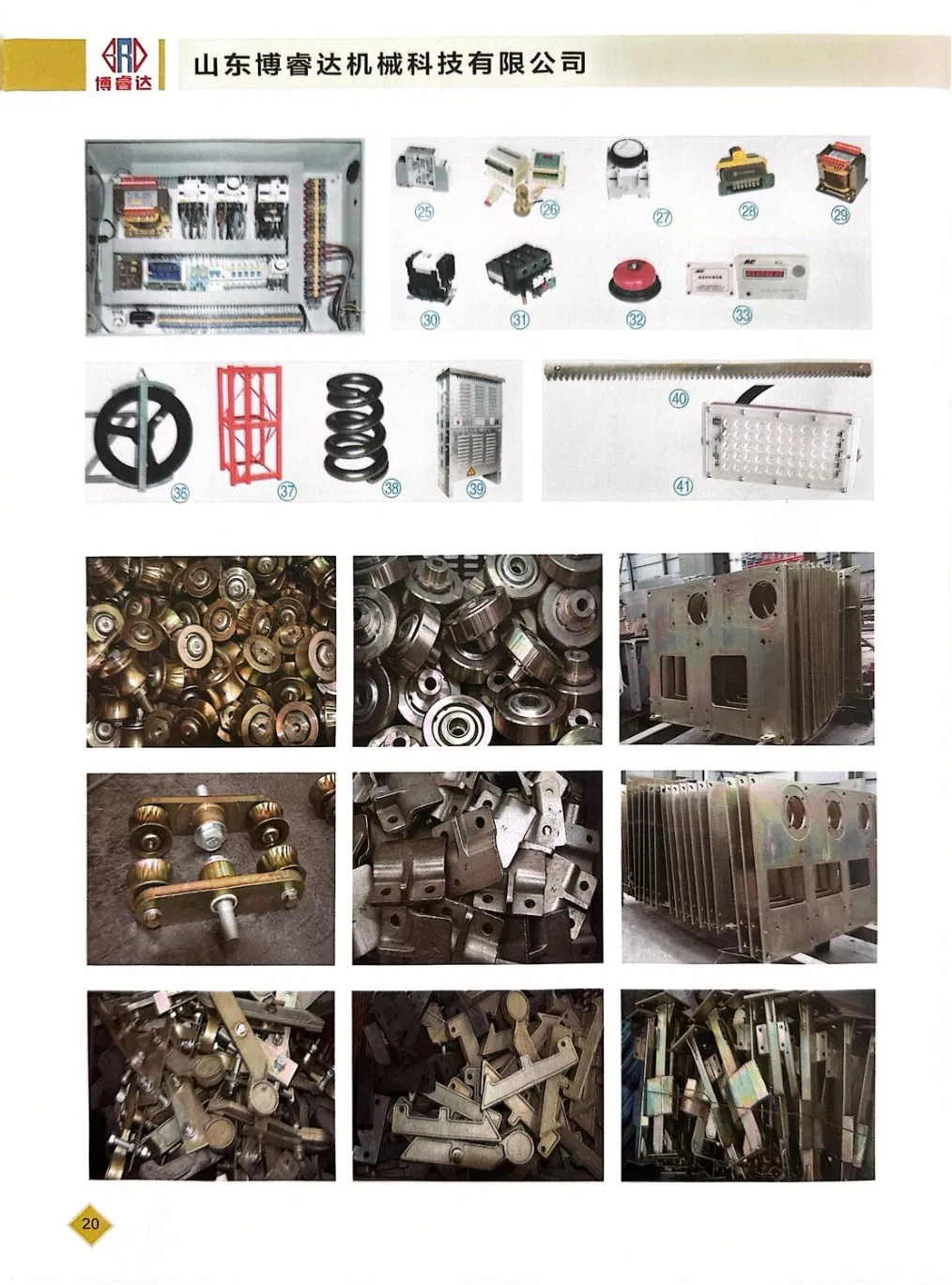

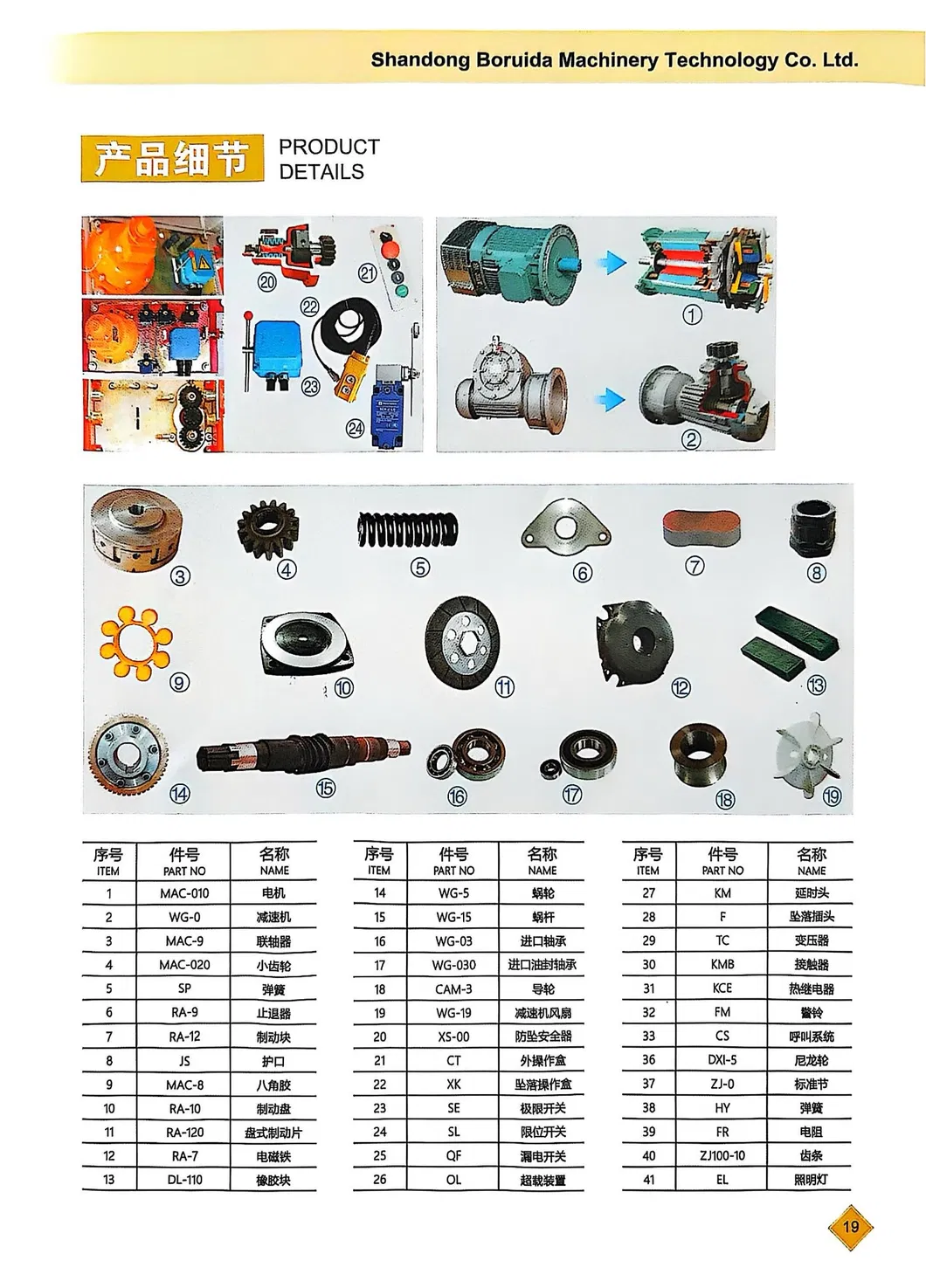

Elevator Components
Hoist Operation
Lifting Speed Control
Elevator Mast
Double Cage Setup
Site Hoist

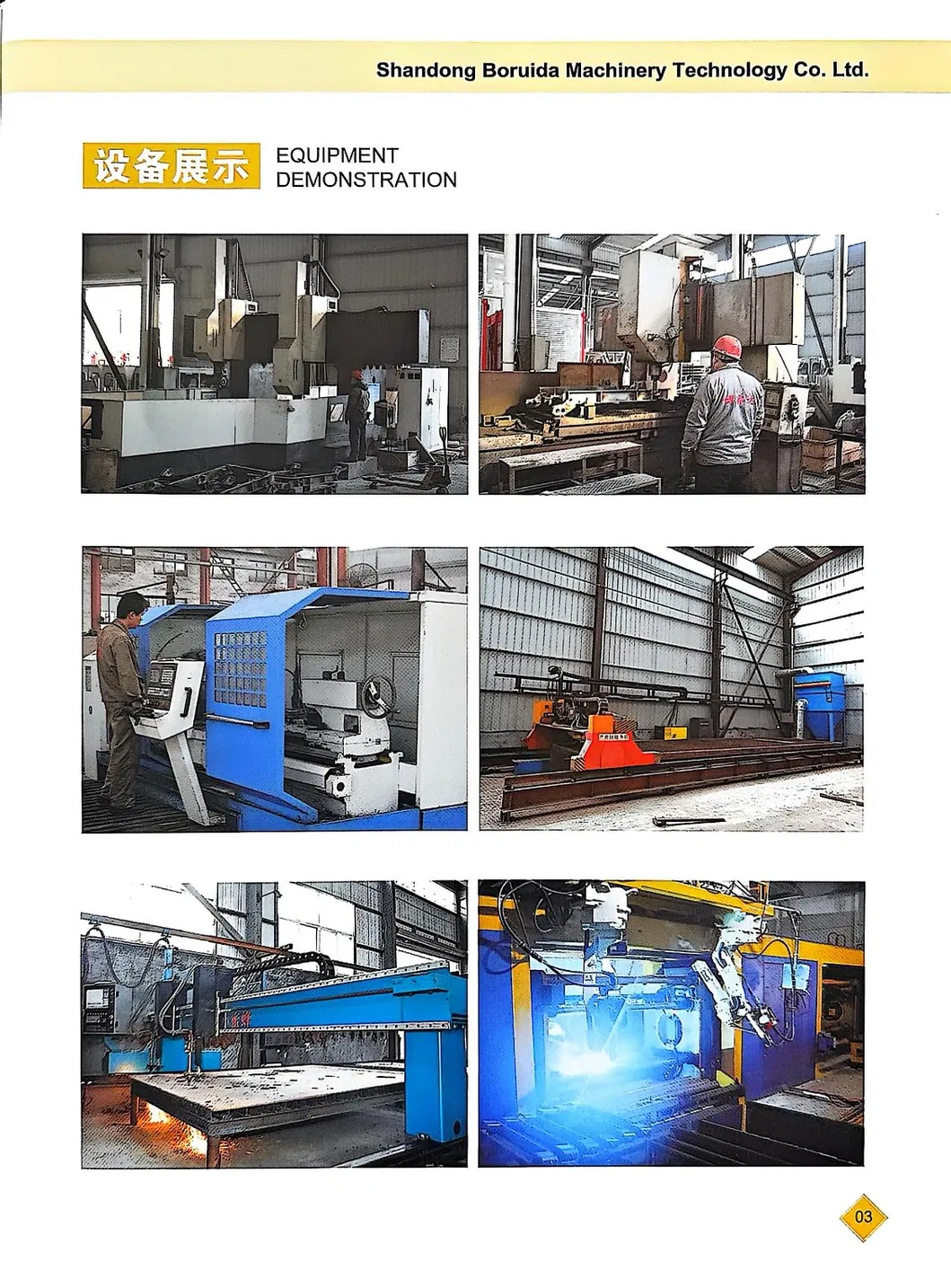

Construction Lift
Lifting Platform
Safety Device
Industrial Hoist

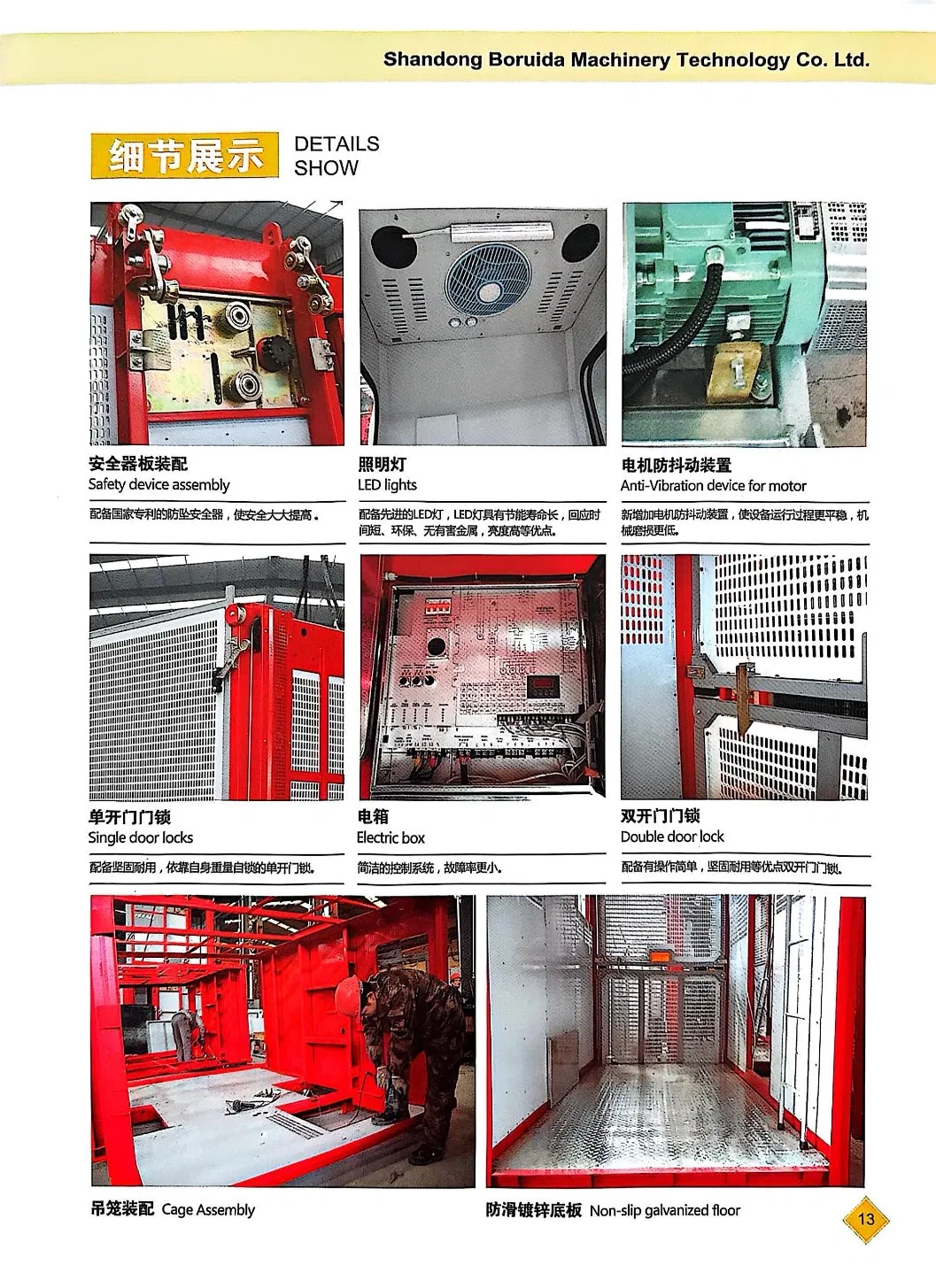

Transmission Gear

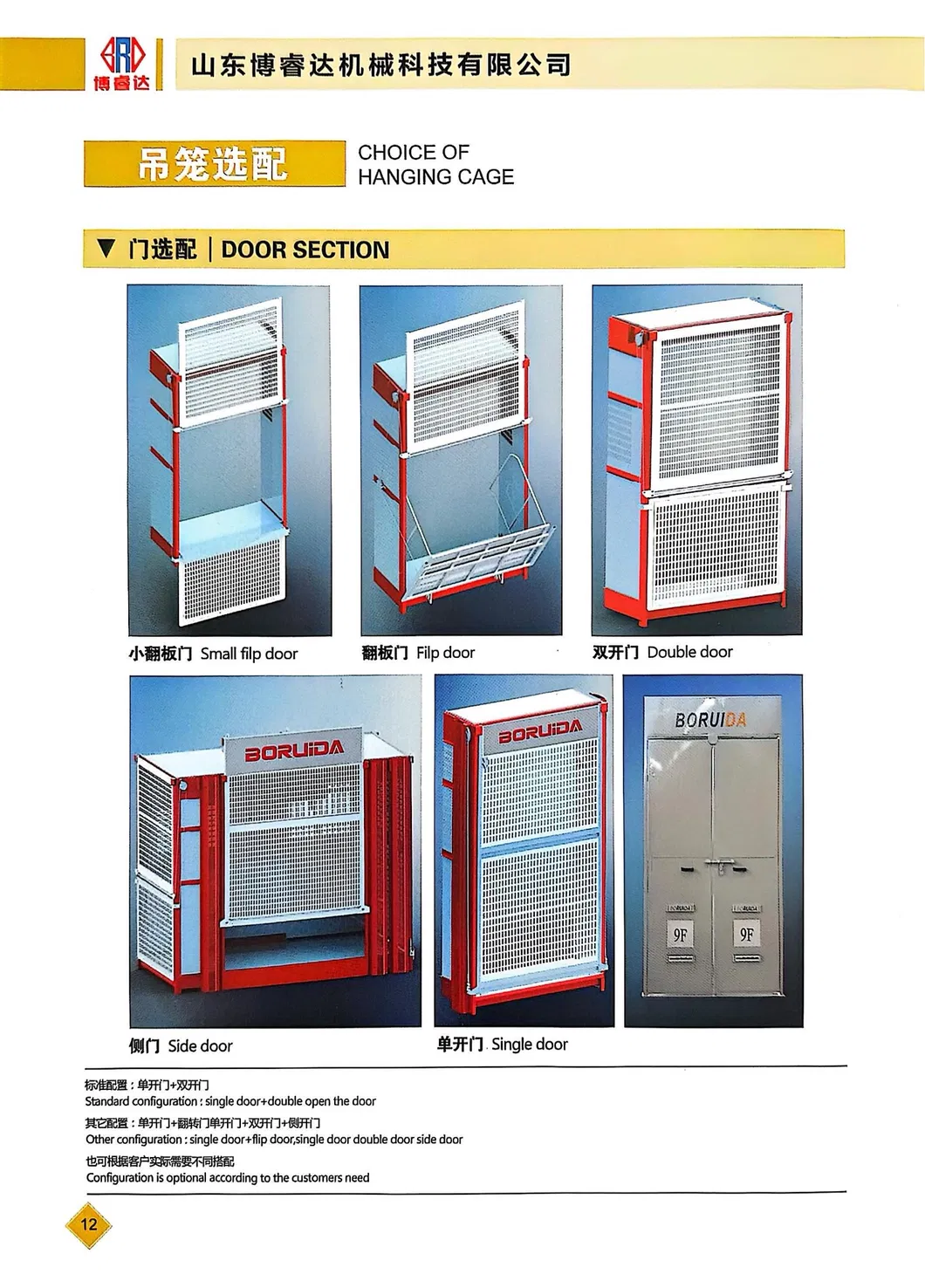

Double Cage Detail
Mast Setup

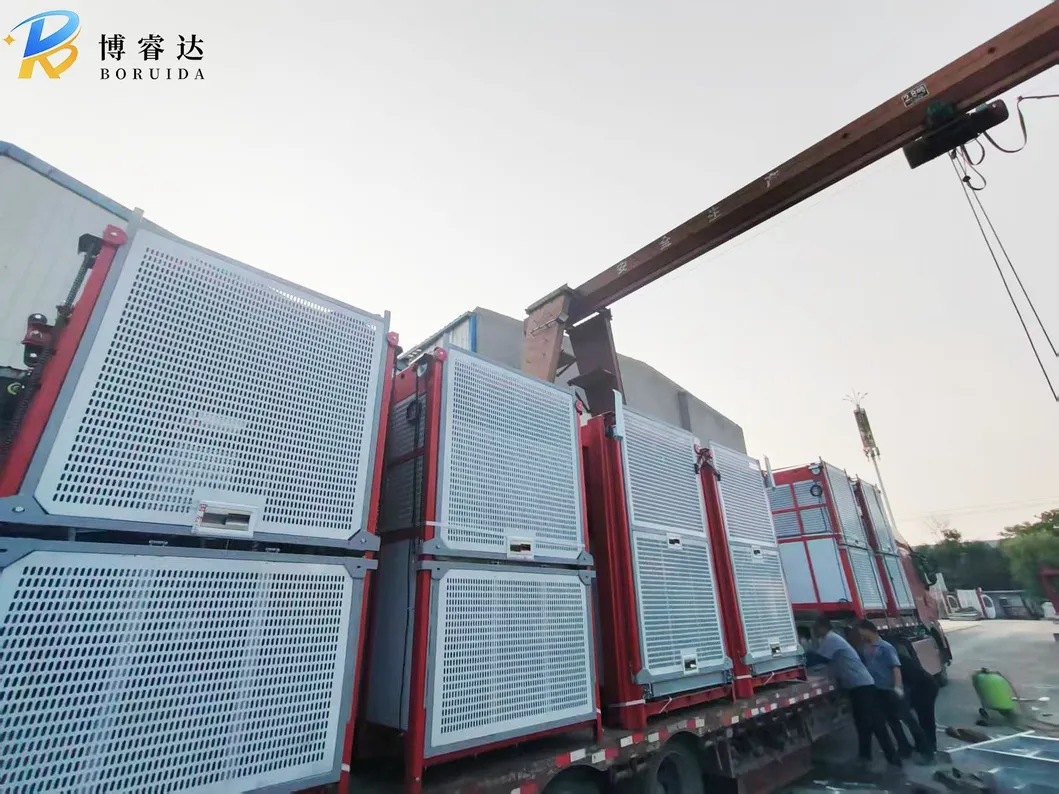

Elevator View
Hoist Cage

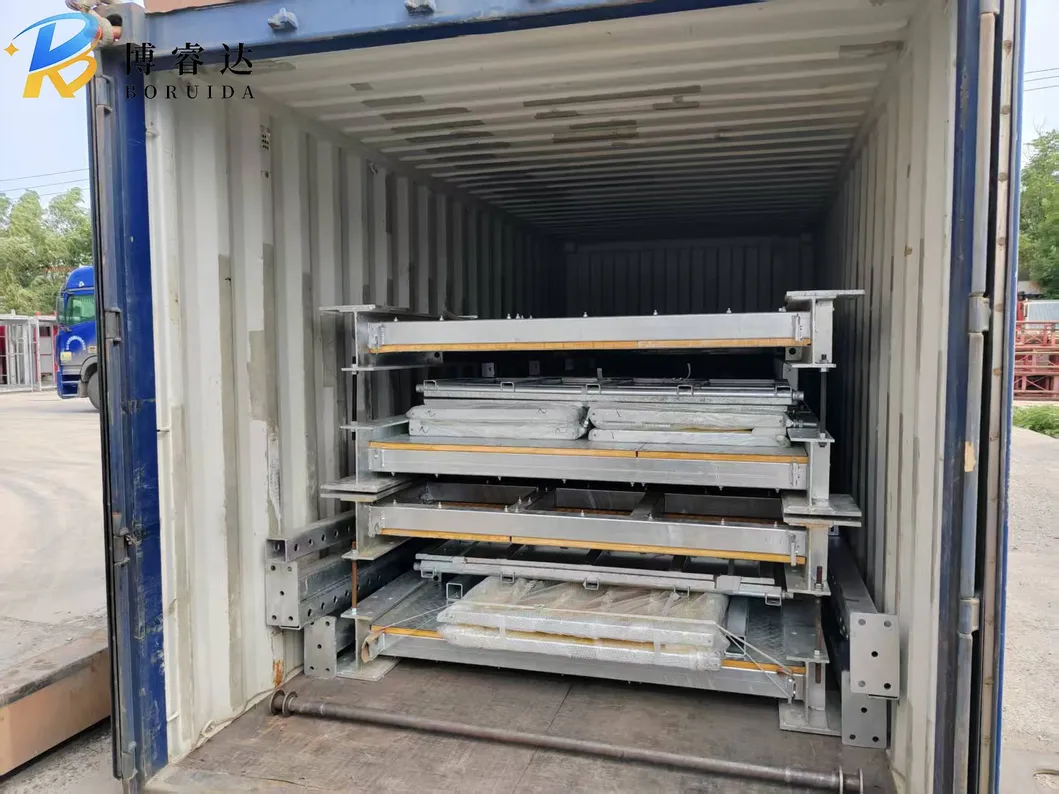

Final Assembly
Frequently Asked Questions
Q1: What is the maximum load capacity for the SC200/200 model?
The SC200/200 double cage model has a rated loading capacity of 2x2000kg, making it suitable for heavy-duty construction transport.
Q2: How is the safety of the elevator cage ensured?
Safety is ensured through anti-falling safety devices (SAJ40-1.2), overload protection, multiple limit switches, and mechanical chain devices.
Q3: Are the mast sections durable for long-term use?
Yes, the mast sections are made of high-quality seamless steel pipe with robot welding and blasting technology for superior rust removal and paint adhesion.
Q4: What are the lifting speed options available?
Standard models offer 33m/min, while frequency control models offer variable speeds ranging from 0-40m/min to 0-60m/min.
Q5: Can the equipment be used in various weather conditions?
The steel structure is processed with anti-aging and anti-corrosion treatments, though standard safety protocols for wind and weather should always be followed.
Q6: Are the electrical components reliable?
We use high-quality electrical components from reputable global brands like Schneider to ensure operational stability and longevity.
