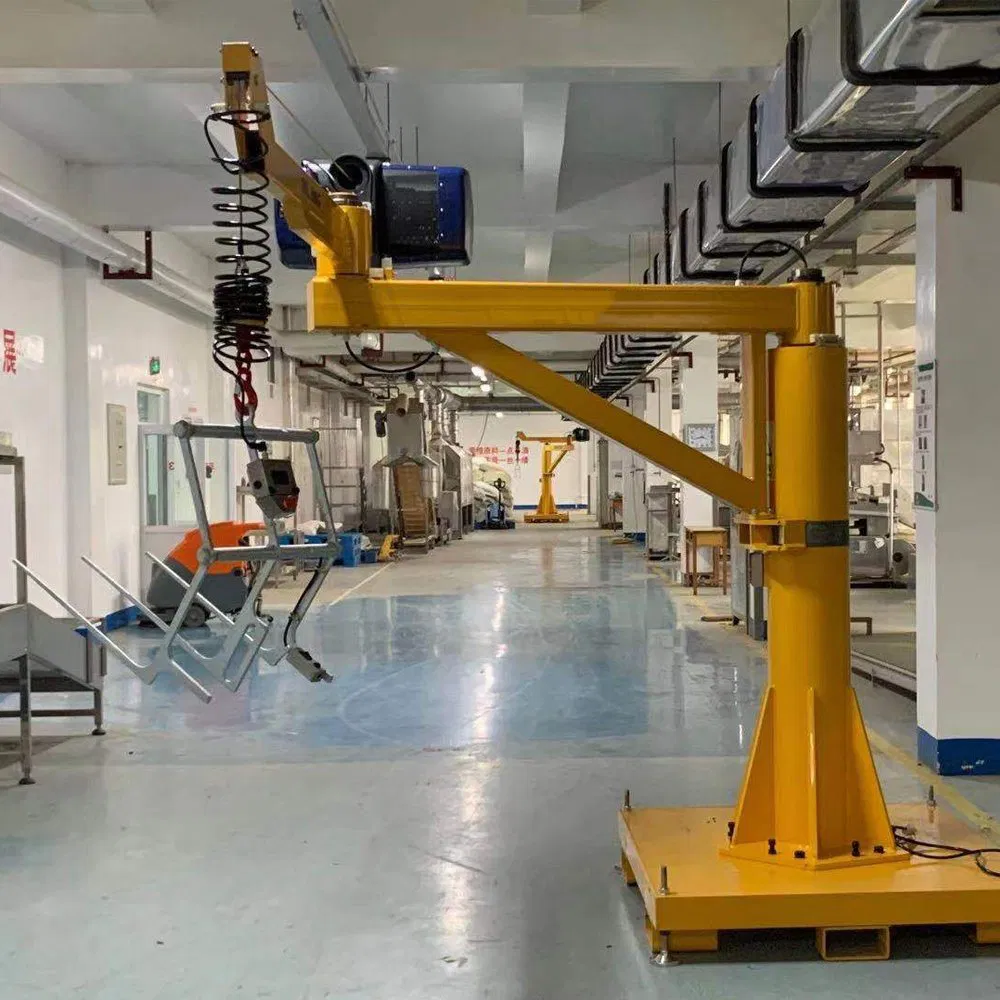

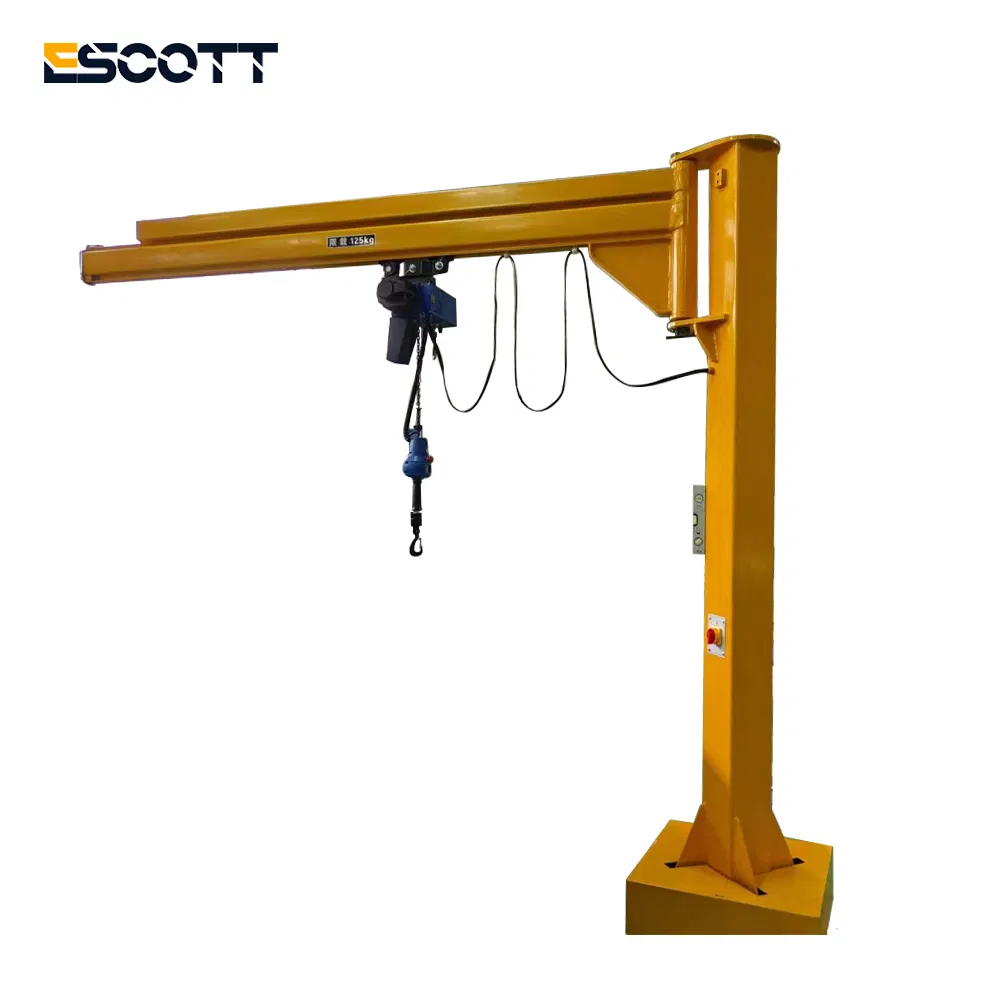

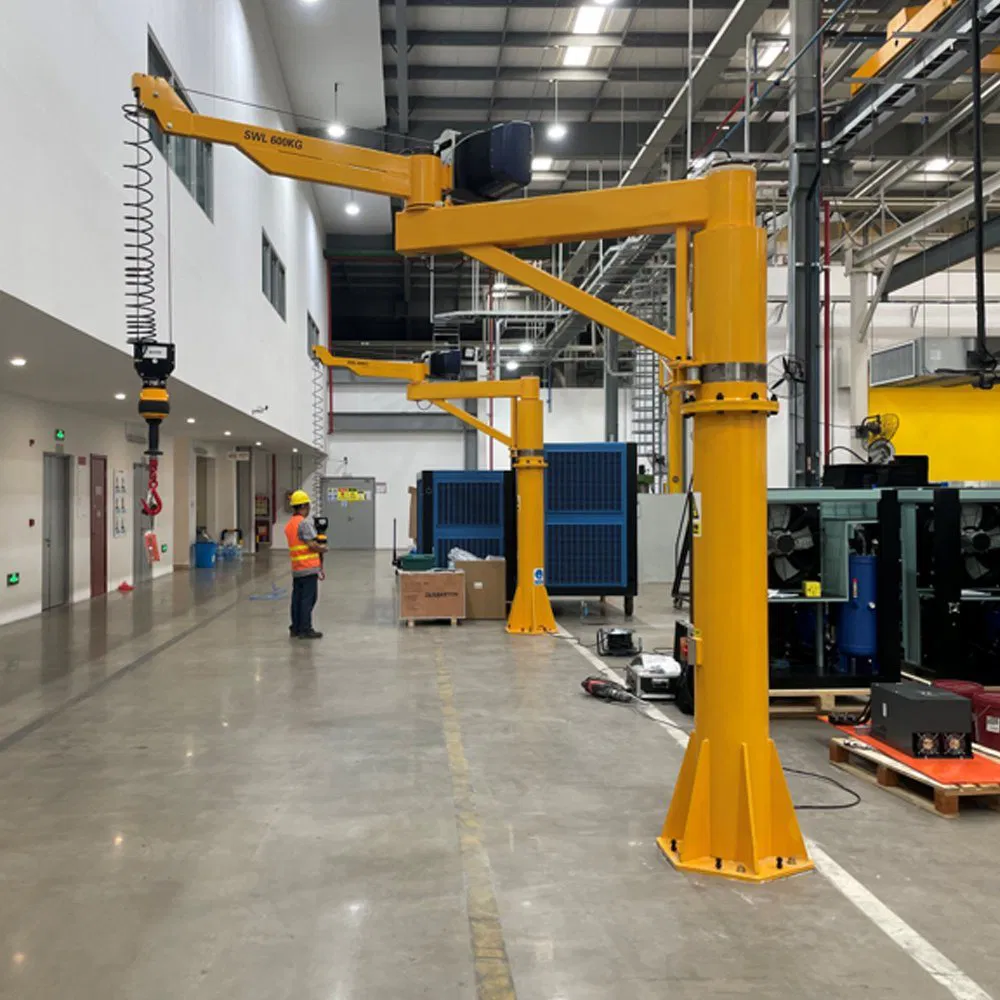

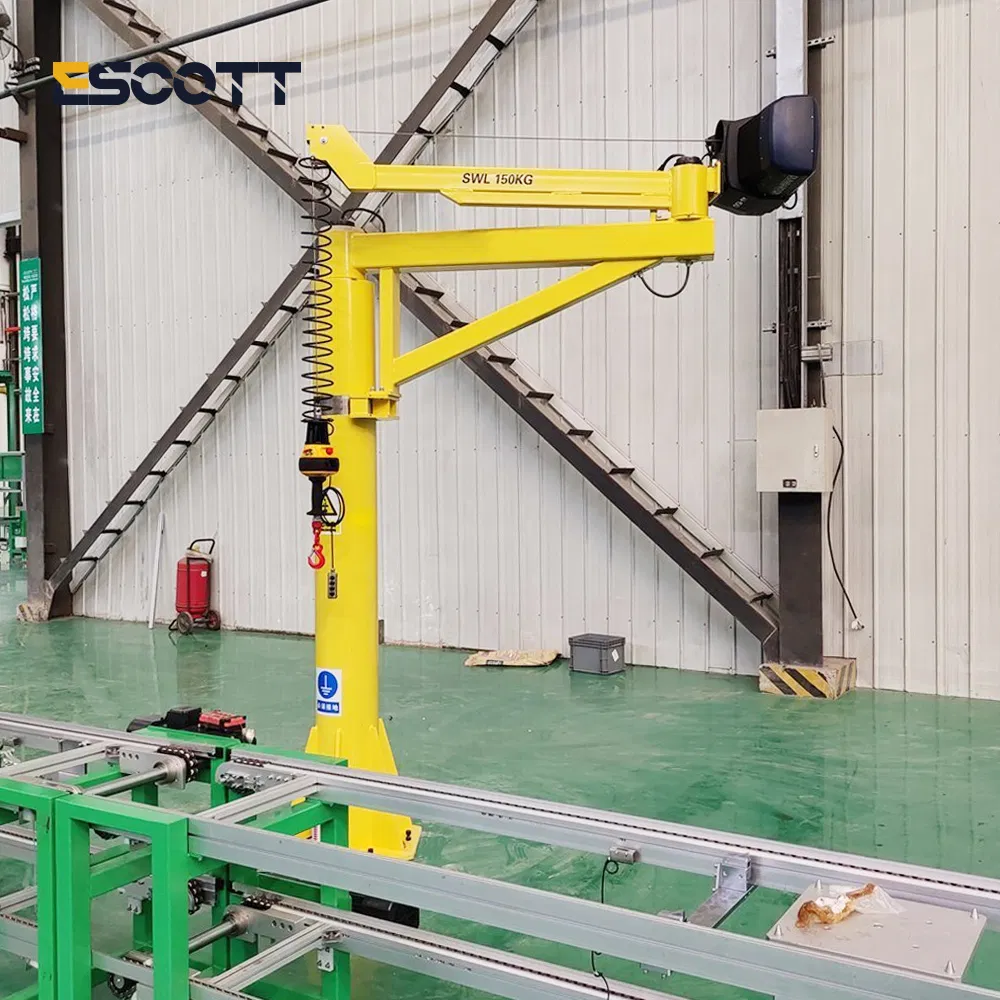

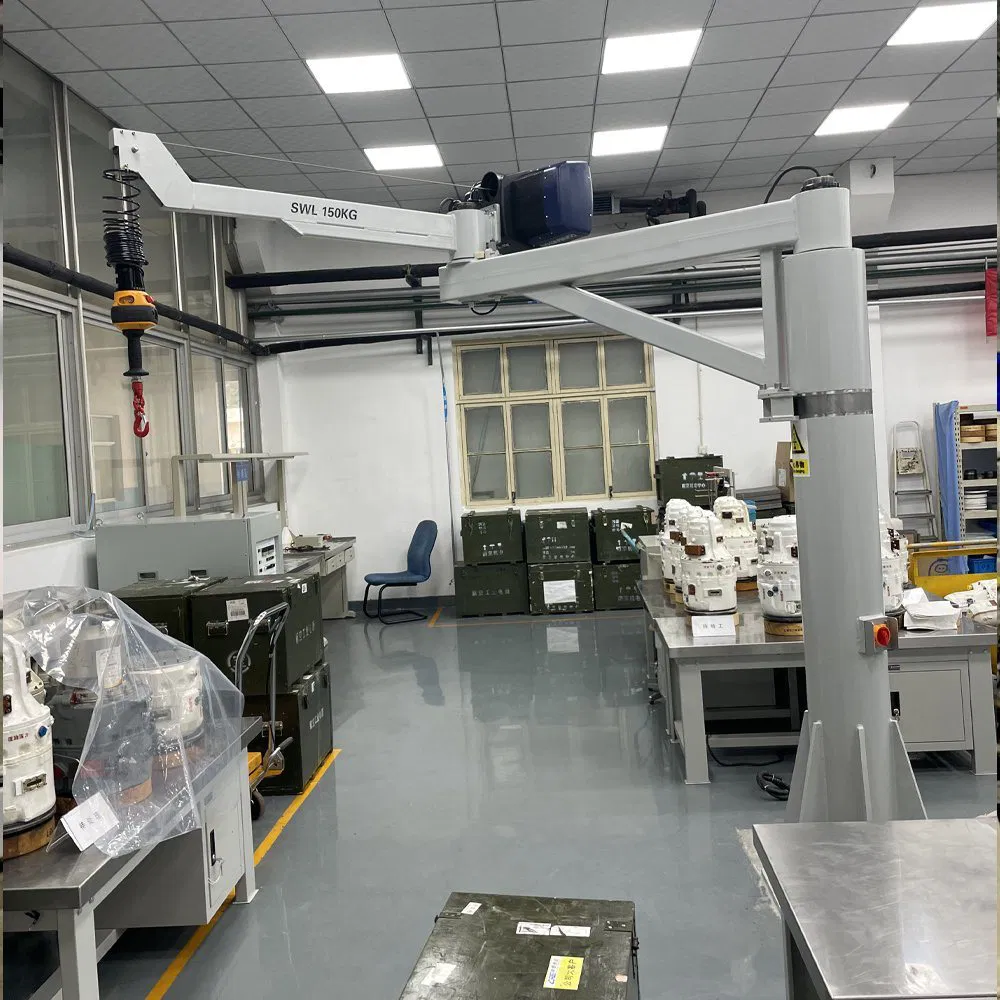

200kg Intelligent Hoist Folding Arm Jib Crane Robot Arm Material Lifting Equipment
With over 10 years of specialized expertise in material handling solutions, we provide high-performance pneumatic manipulators, vacuum lifters, jib cranes, and truss hoists. Our solutions are tailored to improve operational safety, productivity, and efficiency with cutting-edge technology.

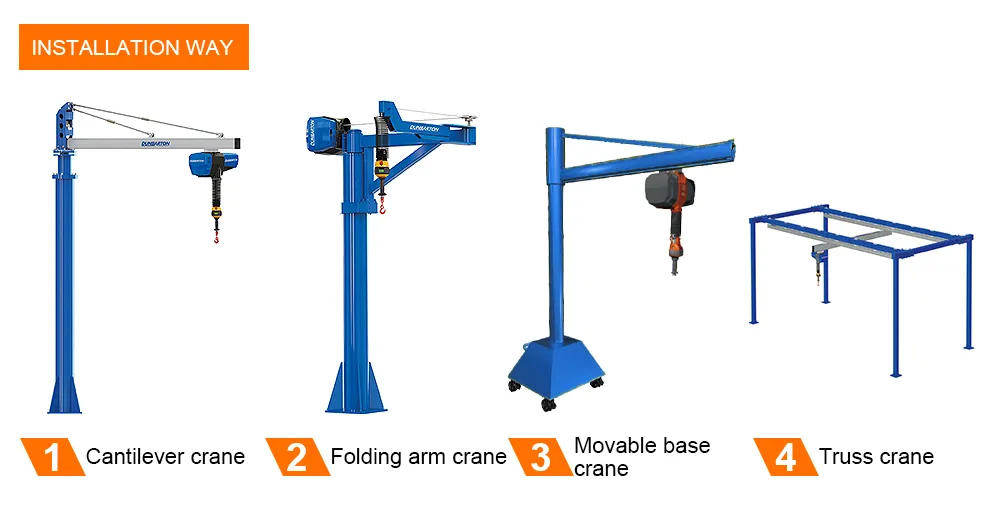

Adopts steel pipe for the column and I-beam for the main beam. Features simple structure, flexible operation, and large working space.
Composed of a column, rotating arm, and lifting unit. Accurate positioning, covers multiple units with a small footprint.
A Jib Crane is a type of manipulator equipment with a cable. It realizes lifting functions by connecting auxiliary lifting equipment installed on the mechanical arm with a fixture via soft cable.
It is used with various non-standard fixtures for workpiece handling, palletizing, loading, and unloading. It reduces operator fatigue, maximizes productivity, and ensures worker safety.

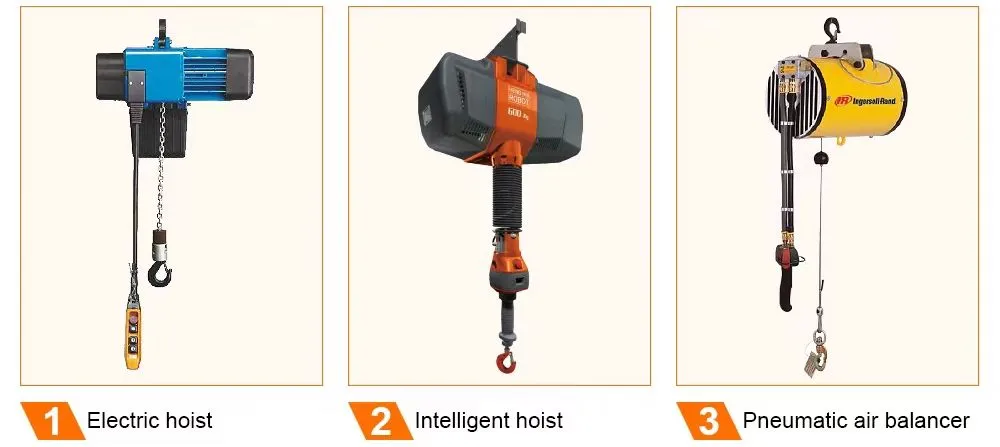

Low cost, simple operation, and low maintenance. Available in wire rope and chain types with single or two-speed lifting options.
Composed of servo drive and motor, controlled by a microprocessor. Allows variable speed movement and high precision for efficient handling.
Uses compressed air thrust to balance load gravity. Allows for easy suspension and manipulation of heavy objects, improving safety.
1. Column
2. Cantilever arm
3. Auxiliary lifting hoist
4. Handle
5. Tooling Structure
| NAME | BMS125 | BMS250 | BMS500 | BMS1000 | BMS2000 |
|---|---|---|---|---|---|
| Max Load (kg) | 125 | 250 | 500 | 1000 | 2000 |
| Speed (m/min) | 8/2 | 8/2 | 8/2 | 4/1 | 4/1 |
| Power (kw) | 0.4/0.1 | 0.4/0.1 | 0.4/0.1 | 0.75/0.2 | 1.5/0.37 |
| Medium | Chain | ||||
| NAME | IAD-H80 | IAD-H200 | IAD-H300 | IAD-H600 |
|---|---|---|---|---|
| Max Load (kg) | 80 | 200 | 300 | 600 |
| Unloaded Speed (m/min) | 40 | 30 | 15 | 7.5 |
| Max Stroke (m) | 3.5 | 3.5 | 3.5 | 1.7 |
| Power | 220V±10% 50HZ | |||
