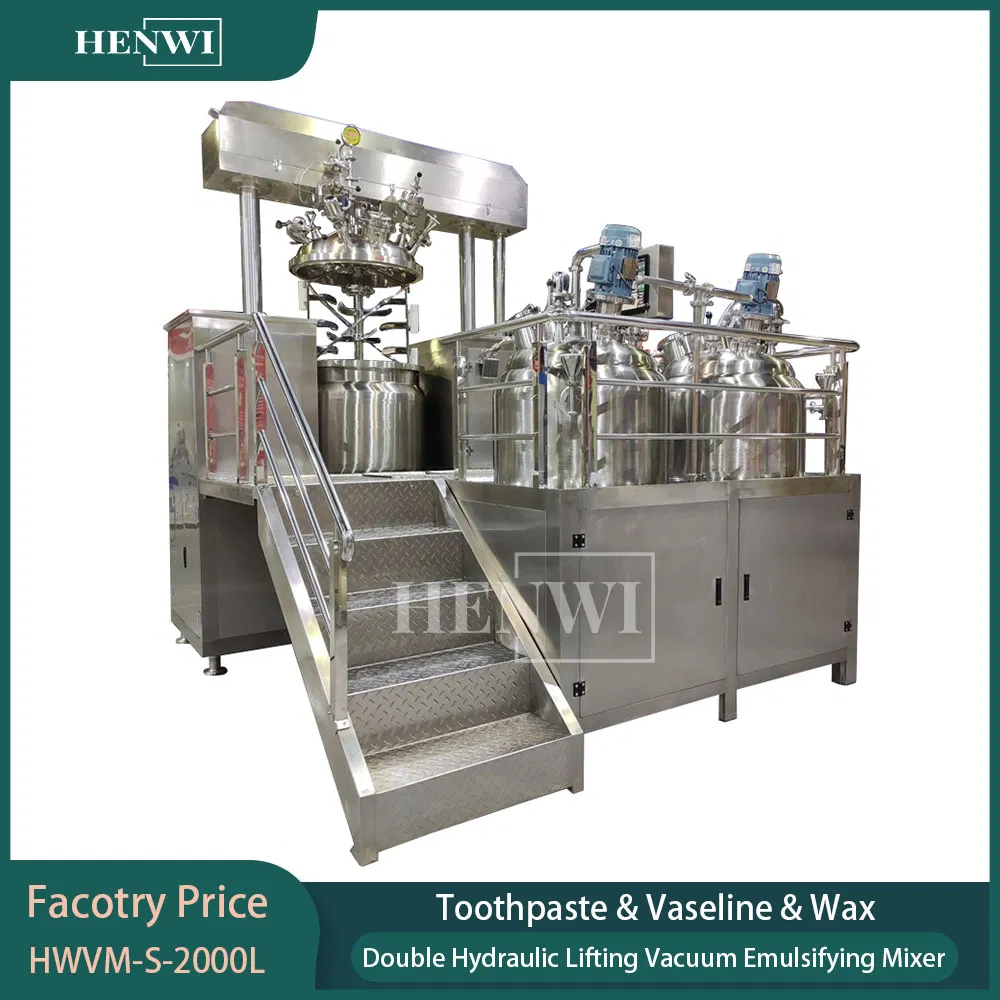

500L 1000L 2000L Vacuum Mixing Emulsifying Equipment for Cosmetic Cream Ointment Lotion Making and Mixing
500L 1000L 2000L Vacuum Mixing Emulsifying Equipment for Cosmetic Cream Ointment Lotion Making and Mixing
500L 1000L 2000L Vacuum Mixing Emulsifying Equipment for Cosmetic Cream Ointment Lotion Making and Mixing
500L 1000L 2000L Vacuum Mixing Emulsifying Equipment for Cosmetic Cream Ointment Lotion Making and Mixing
500L 1000L 2000L Vacuum Mixing Emulsifying Equipment for Cosmetic Cream Ointment Lotion Making and Mixing
1 / 5
500L 1000L 2000L Vacuum Mixing Emulsifying Equipment for Cosmetic Cream Ointment Lotion Making and Mixing
500L 1000L 2000L Vacuum Mixing Emulsifying Equipment for Cosmetic Cream Ointment Lotion Making and Mixing
500L 1000L 2000L Vacuum Mixing Emulsifying Equipment for Cosmetic Cream Ointment Lotion Making and Mixing
500L 1000L 2000L Vacuum Mixing Emulsifying Equipment for Cosmetic Cream Ointment Lotion Making and Mixing
500L 1000L 2000L Vacuum Mixing Emulsifying Equipment for Cosmetic Cream Ointment Lotion Making and Mixing

500L 1000L 2000L Vacuum Mixing Emulsifying Equipment for Cosmetic Cream Ointment Lotion Making and Mixing

Customization: Available
Additional Capabilities: Milling, Vacuum, Mixing/Dispersing/Emulsifying/Homogenizing
After-sales Service: Engineers Available to Service Machinery Overseas, Free Spare Parts, Online Support, video Technical Support, on-Site/on-Line
Send Inquiry

Product Description

Basic Specifications

Model NO.HWVM-SG-2000L
ApplicationLiquid, Viscous Fluid, Cream/Lotion/Toothpaste
CertificationCE, ISO
Main MaterialStainless Steel SUS304/SUS316
Mixing Capacity500-2000L
Speed Range0-65 Rpm
Homogenizer Speed0-3600rpm
Vacuum Systemup to -0.085apm

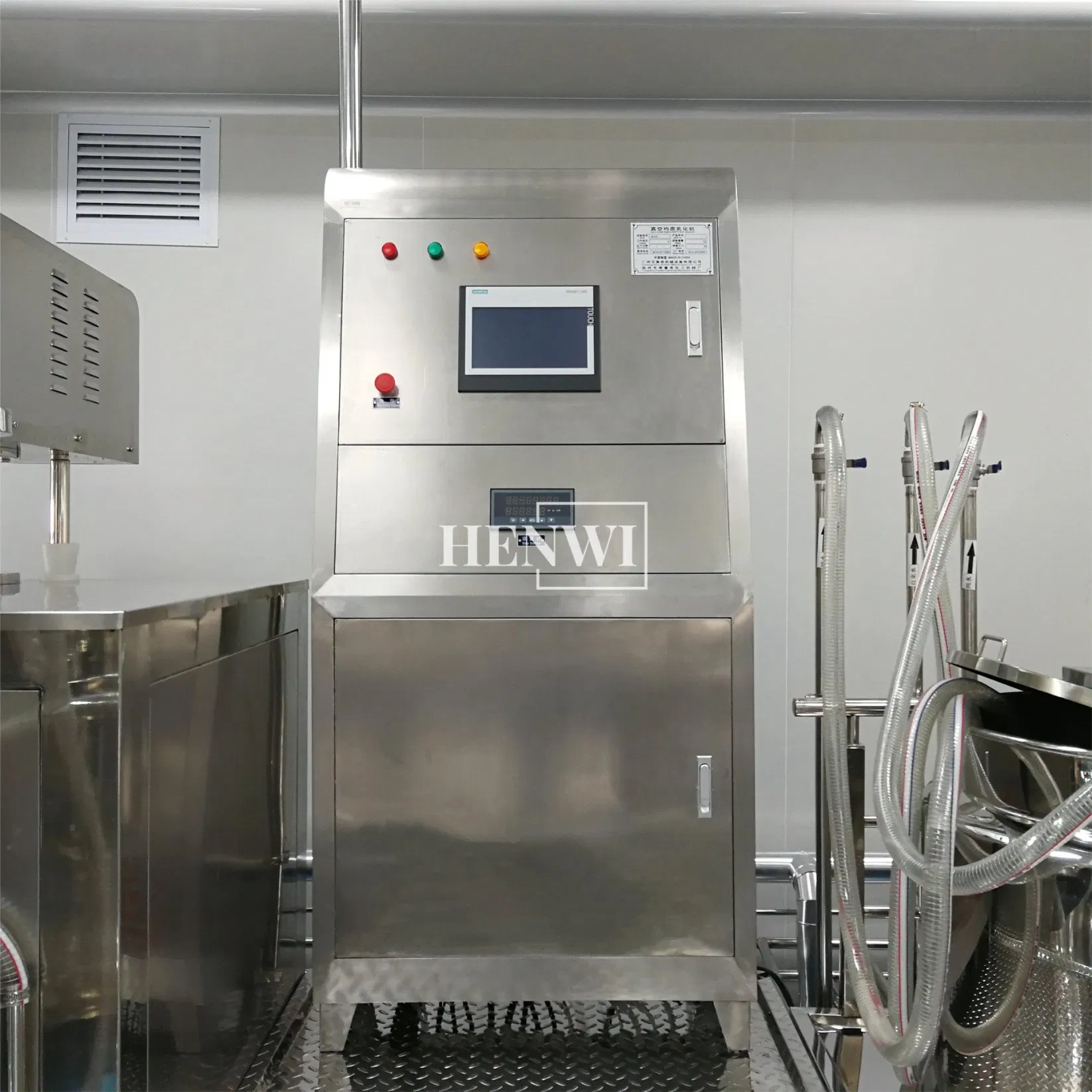

Control SystemPLC / Button Control
Warranty2 Years

Product Description

Hydraulic Lifting Vacuum Emulsifier Mixer
The machine is suitable for the production of various kinds of paste, cream products in cosmetic and pharmaceutical industrial. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes, etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.

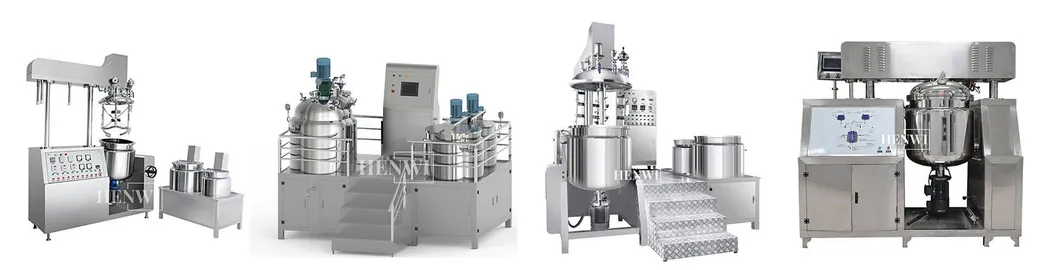

Vacuum Mixing Equipment
✔ Standard configuration includes Emulsifier, water phase tanks, and oil phase tank.
✔ Three-layer tank design with steam or electric heating options.
✔ Variable frequency speed scraper mixing.
✔ 3600rpm high-speed homogenizer, fineness 0.2-5um.

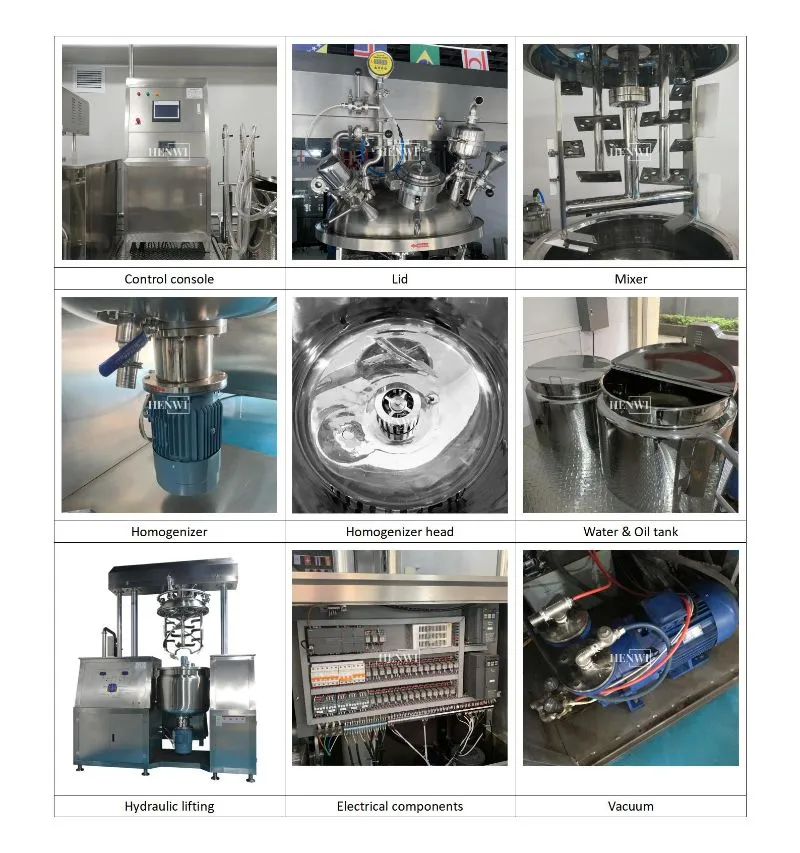

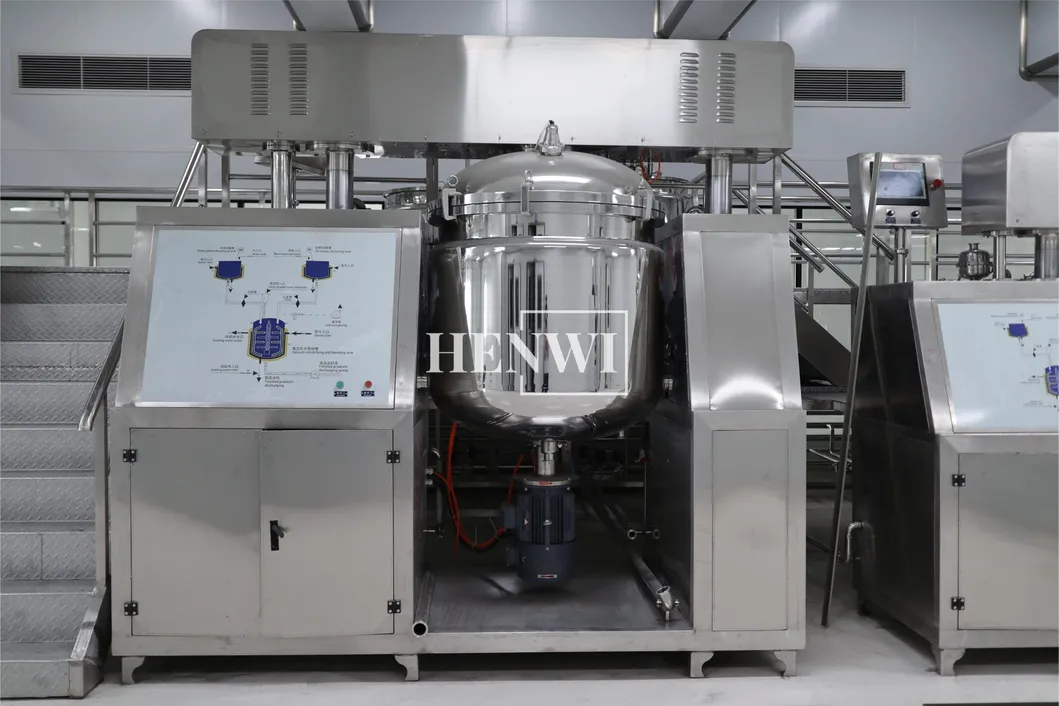

Configuration Details

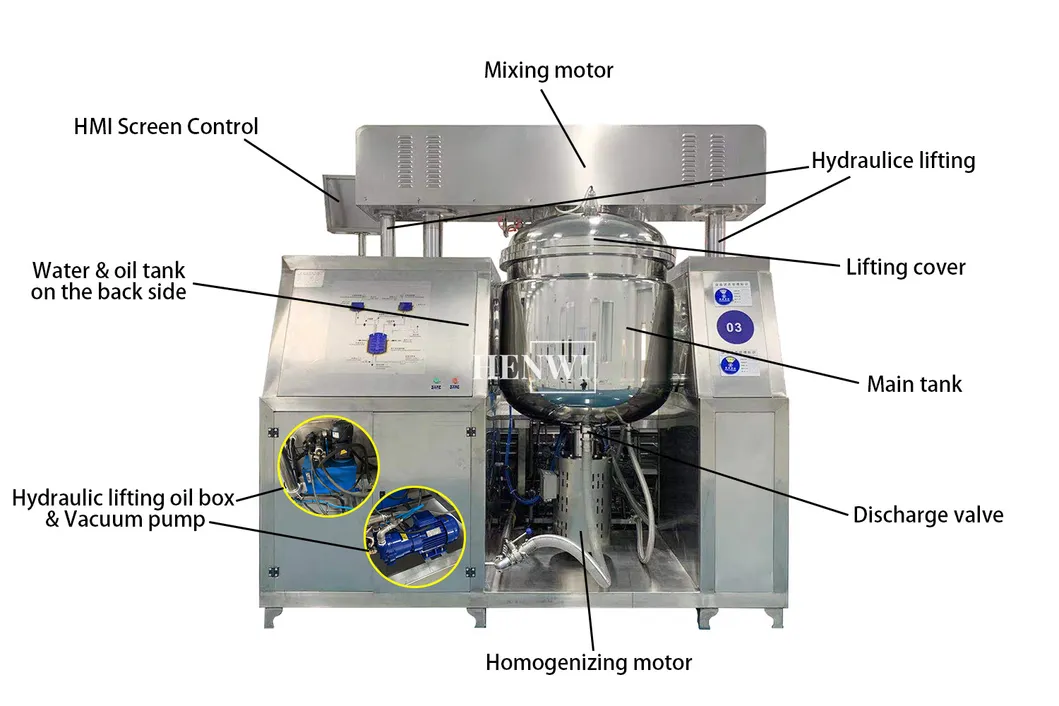

Mixer View

Working Principle

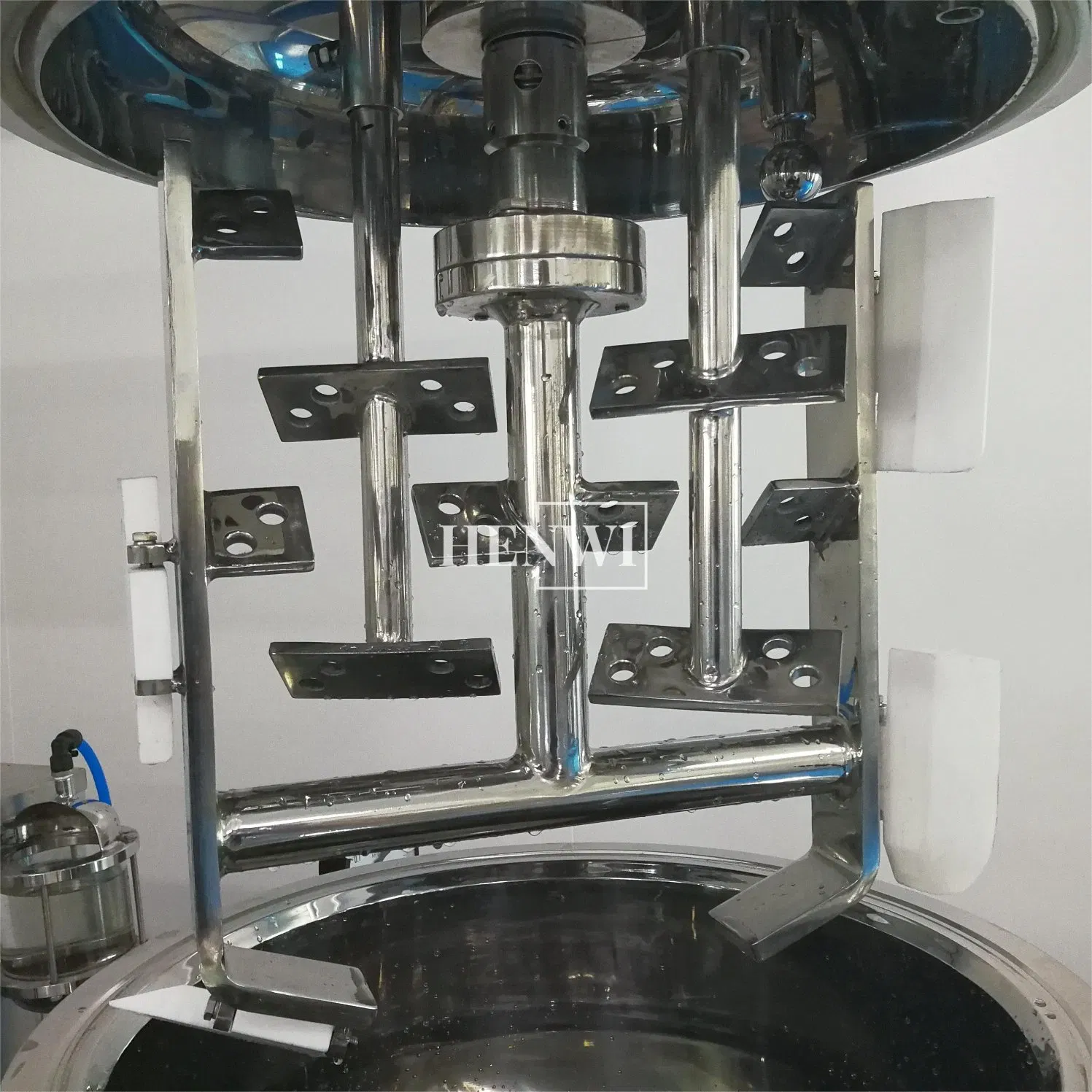

The materials in the water-phase tank and oil-phase tank are heated up and stirred. After thorough mixing, they are transferred to the emulsifying tank by vacuum pump. The material is stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall. With very high-speed emulsifying effect, the material is seriously cut, sheared, and cracked into 200nm - 2um particles.

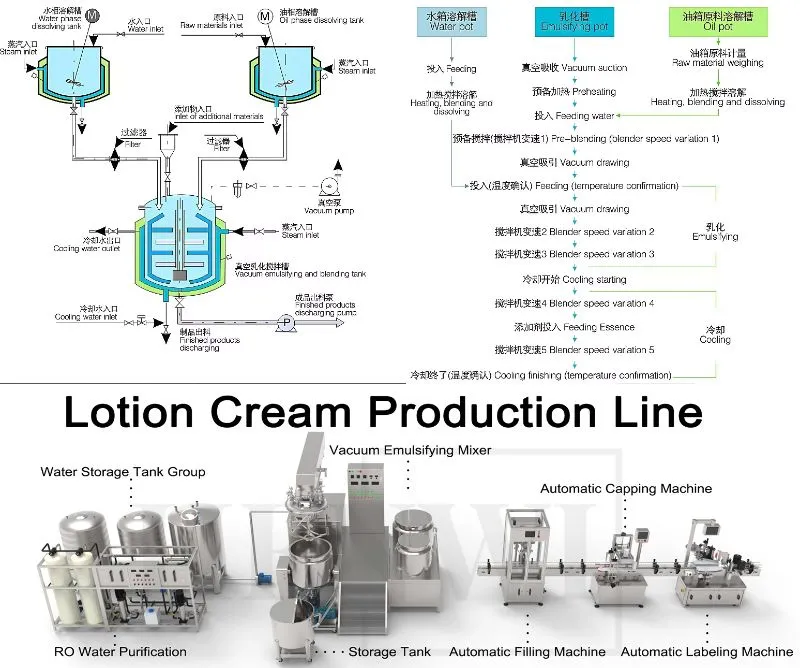

Working Principle Diagram

Applications

Application Range
Product Samples

Product Parameters

Working Capacity2000L
Heating MethodSteam / Electric
Mixing TypeUpper frame oar scraper mixer
Mixing Speed0-65rpm

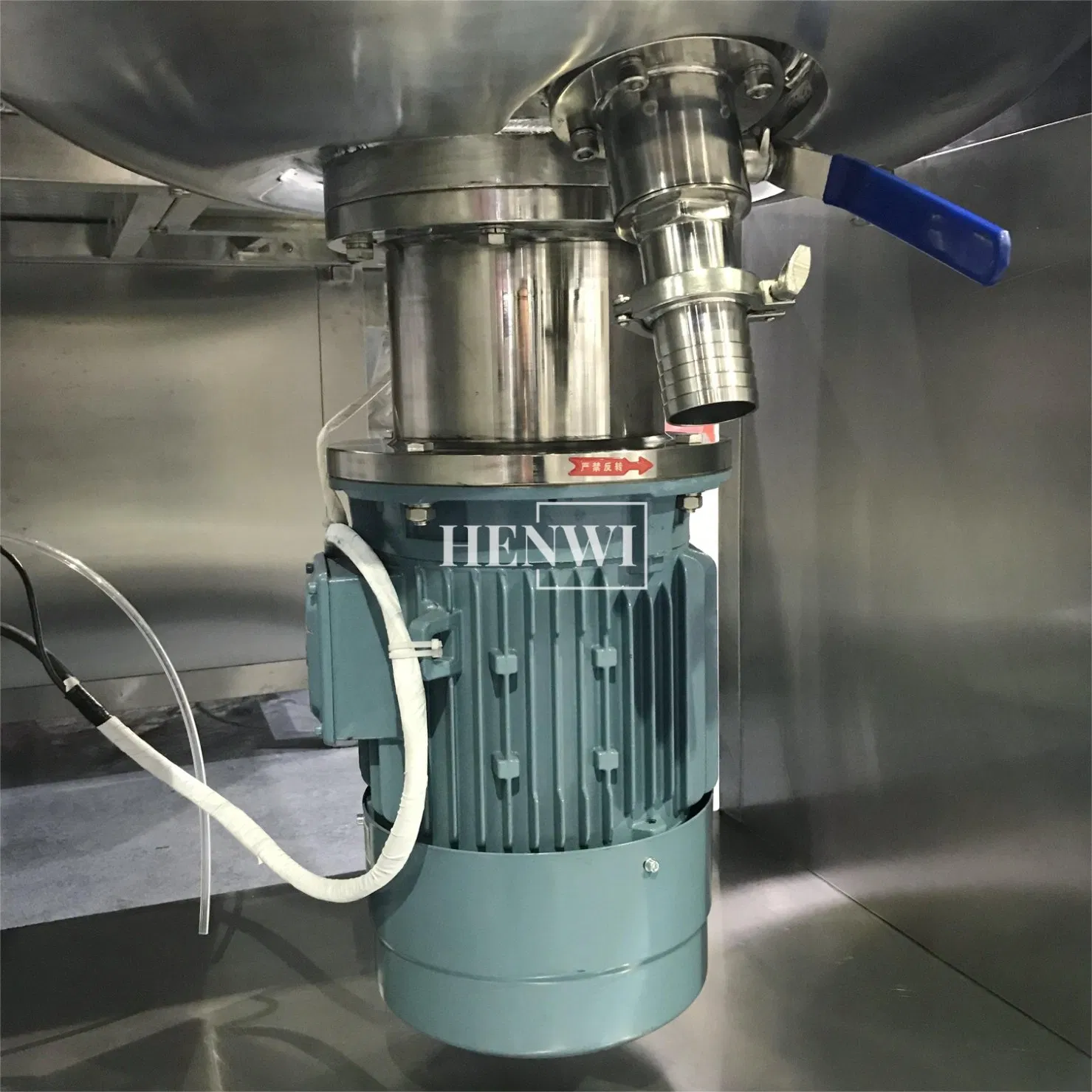

Homogenizer TypeBottom homogenizer with frequency inverter
Homogenizer Speed0-3000rpm(50Hz) / 0-3600rpm(60Hz)

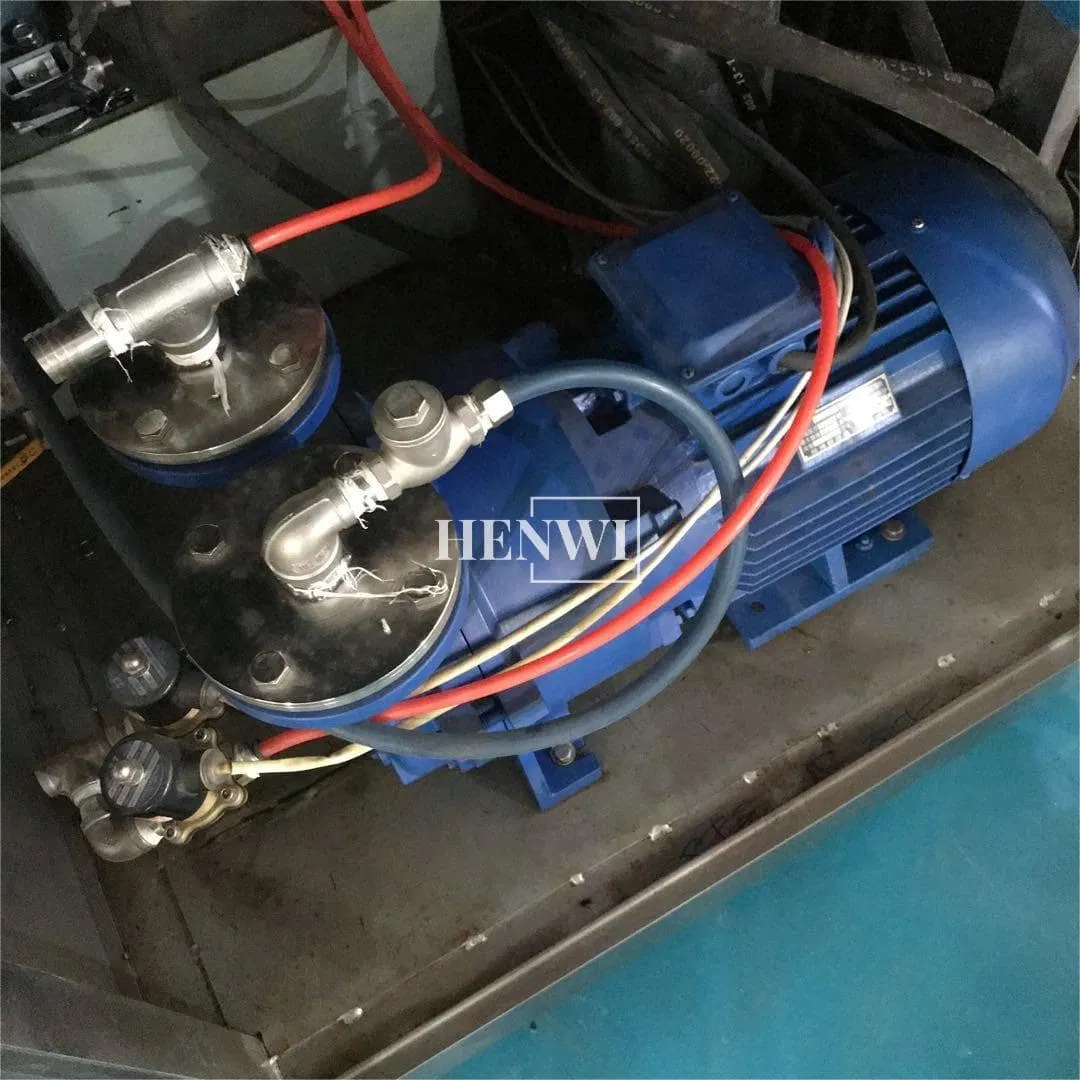

Vacuum PumpWater cycle, 4KW
Tank MaterialInner SUS316 (7mm), Middle/Outer SUS304 (6mm)

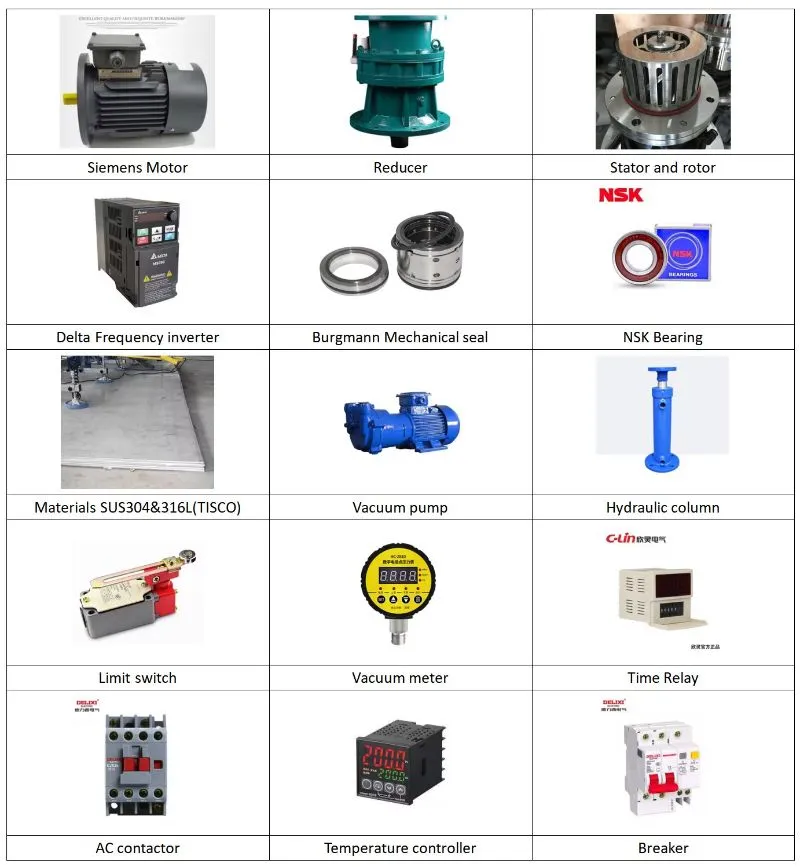

Technical Drawing

Frequently Asked Questions

1. Are you a manufacturer or a trading company?
We are a leading technology-oriented machinery manufacturer in China specializing in cosmetic, pharmaceutical, and food industrial equipment.
2. Can you recommend a complete production line?
Yes, we provide full solutions. For cream products: RO Water Treatment → Vacuum Homogenizer → Storage Tank → Filling Machine → Capping → Labeling. We offer both semi-auto and full-auto options.
3. What are your payment and delivery terms?
Standard terms are T/T (40% deposit, 60% before delivery). Delivery usually takes 15-30 days after receiving the deposit.
4. What is the warranty for your equipment?
We provide a 2-year warranty on our vacuum emulsifying mixers, ensuring long-term reliability and support for your production.
5. What materials are used in the construction of the tanks?
The inner layer in contact with the product is made of SUS316L stainless steel for maximum corrosion resistance, while the middle and outer layers are made of SUS304.
6. Can the mixing and homogenizer speeds be adjusted?
Yes, both the scraper mixer and the homogenizer are equipped with frequency inverters, allowing for variable speed control (0-65rpm for mixing and 0-3600rpm for homogenizing).

Factory & Quality Showcase

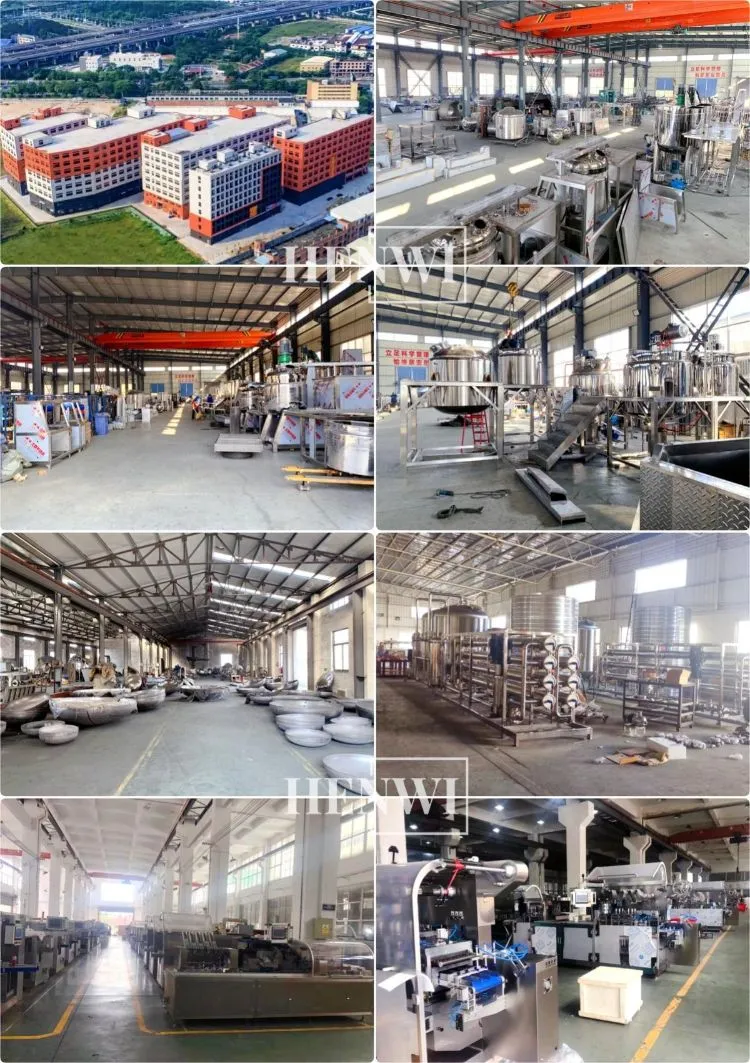

Factory 1

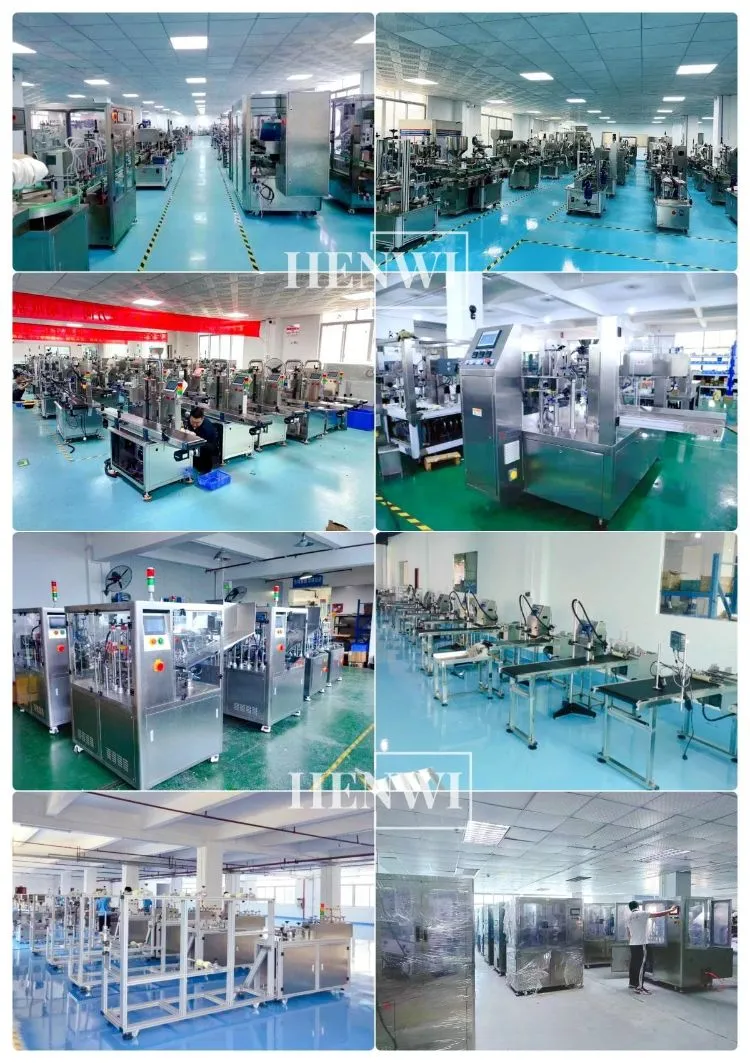

Factory 2

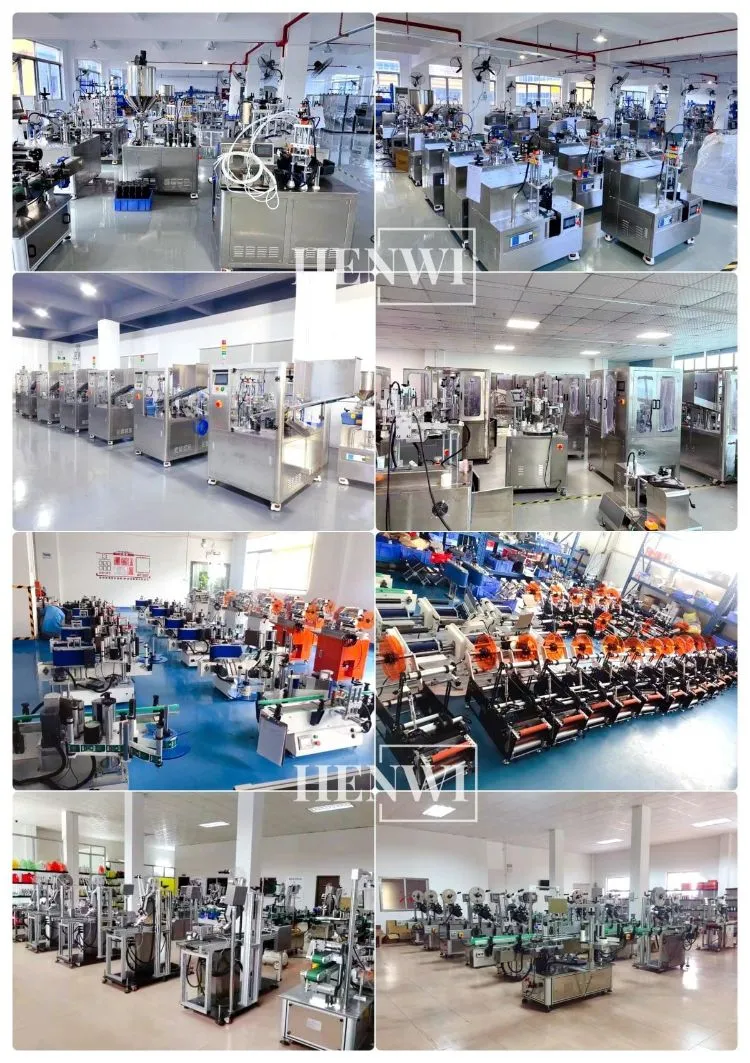

Factory 3

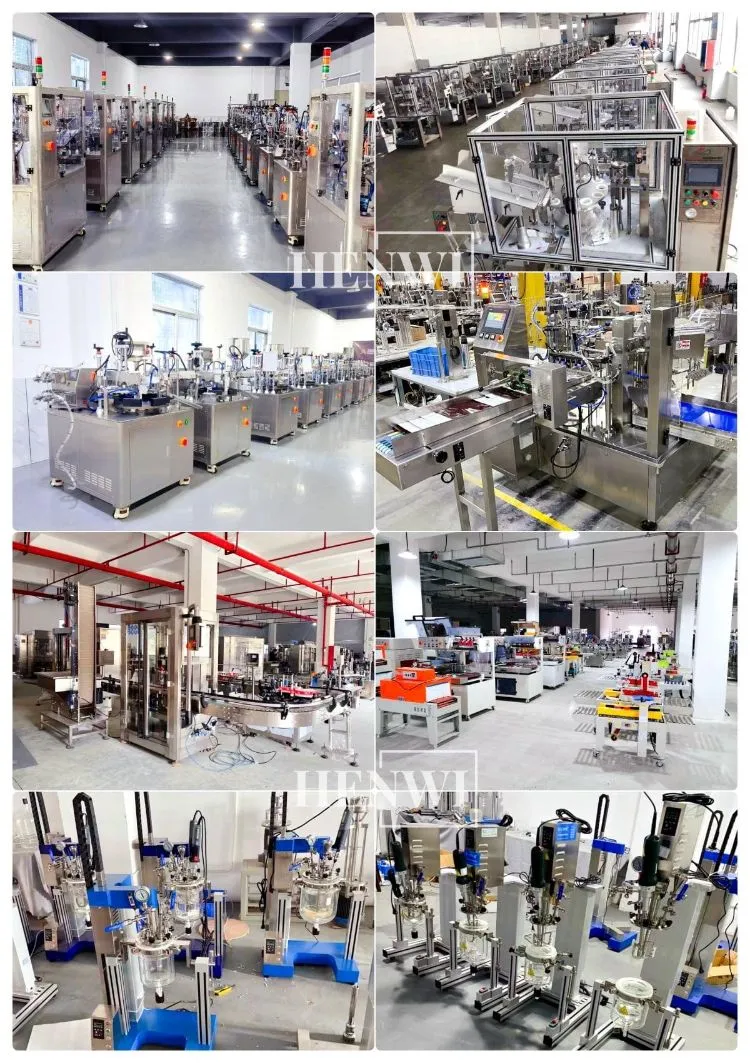

Factory 4

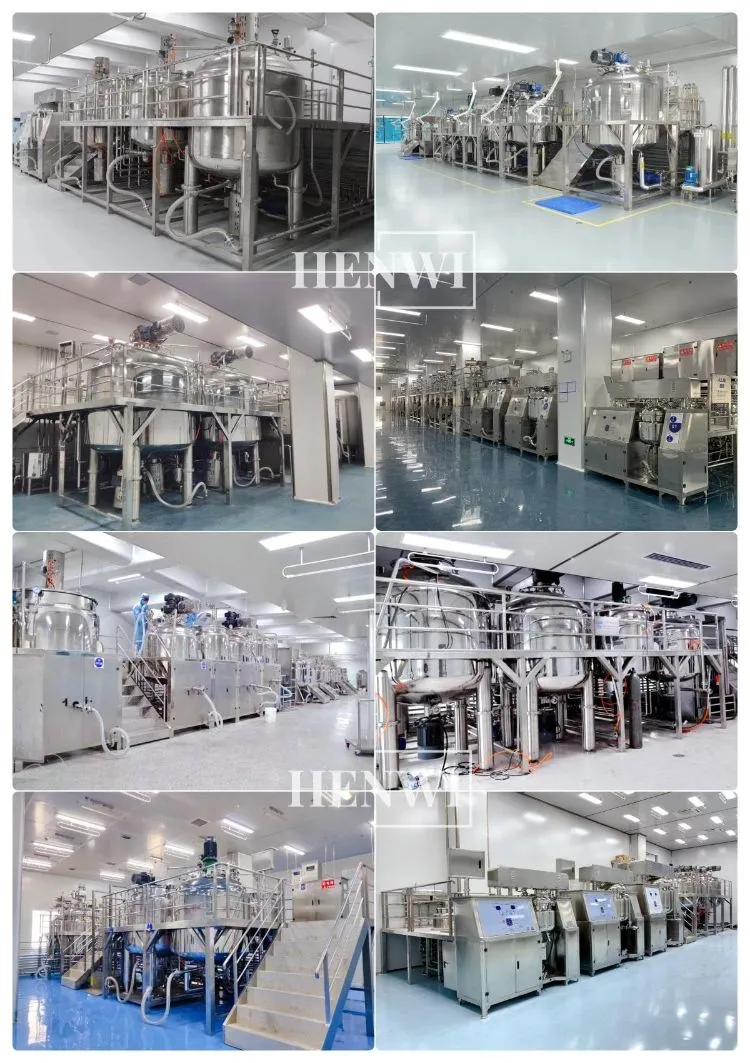

Factory 5

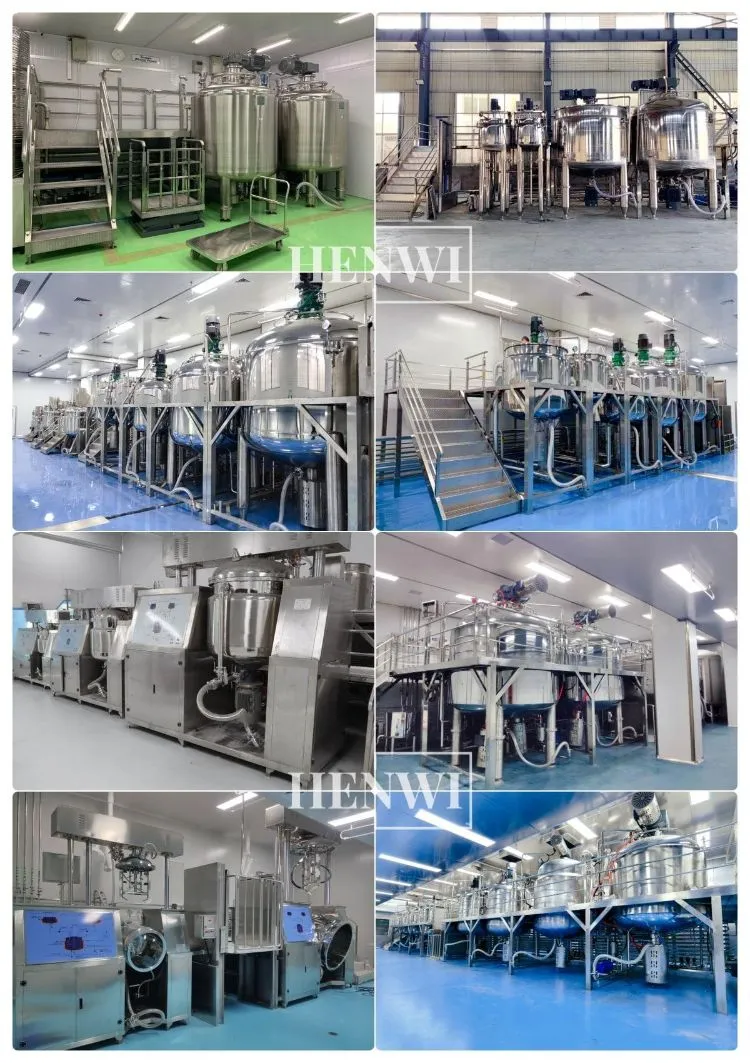

Factory 6

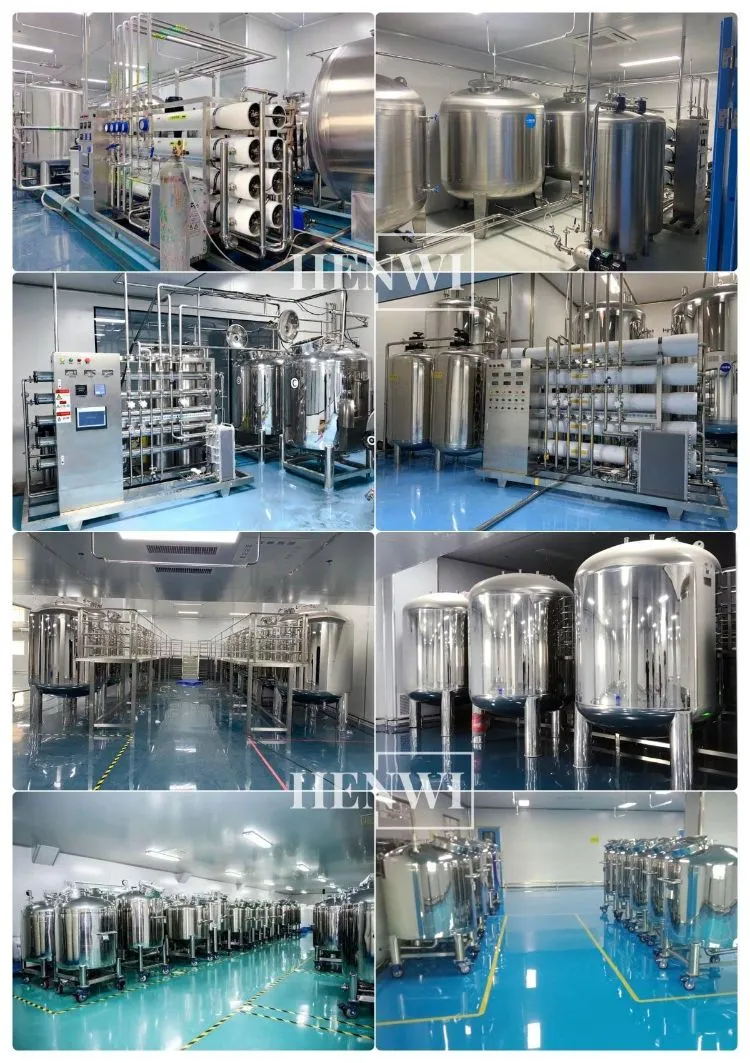

Factory 7

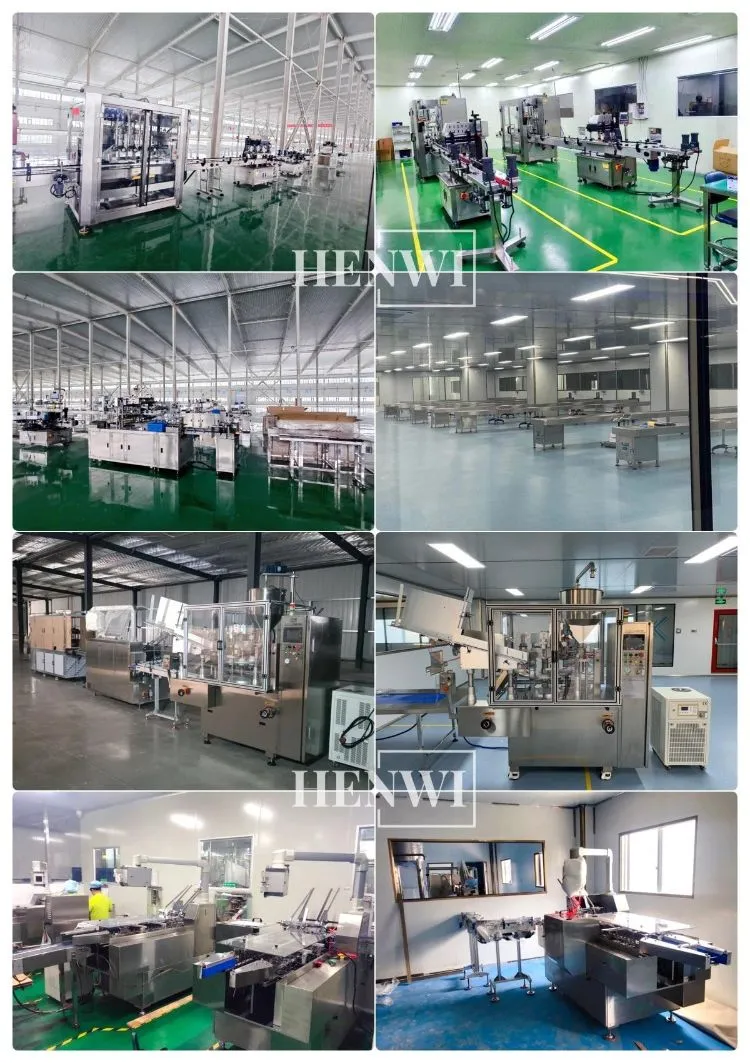

Factory 8

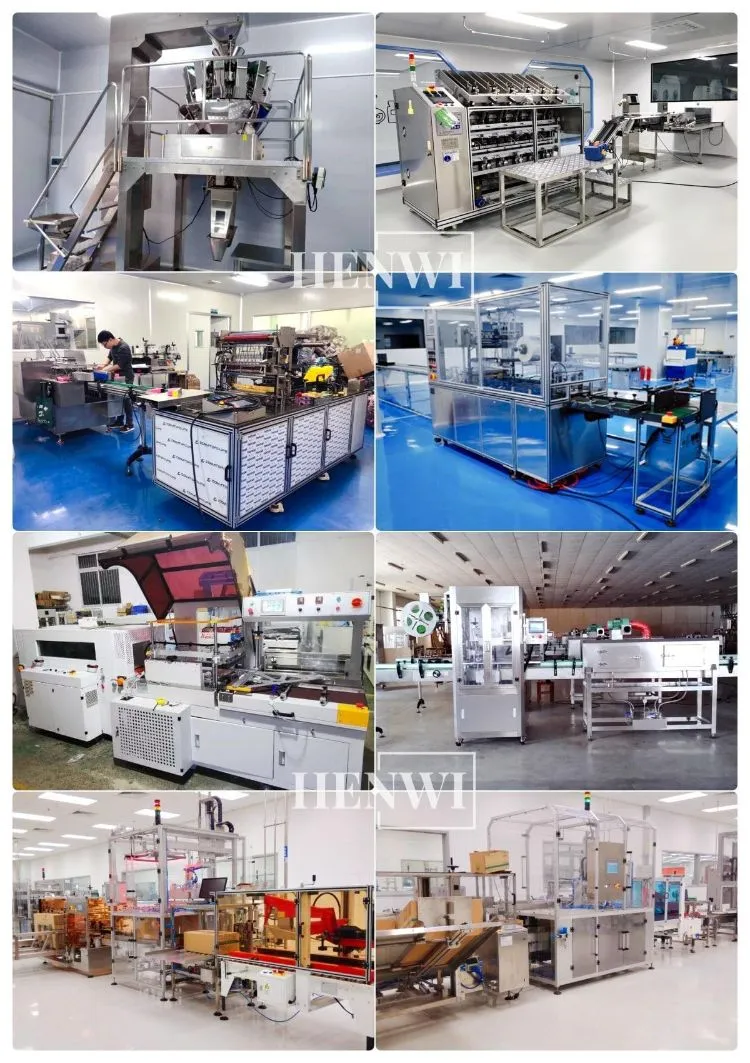

Factory 9
