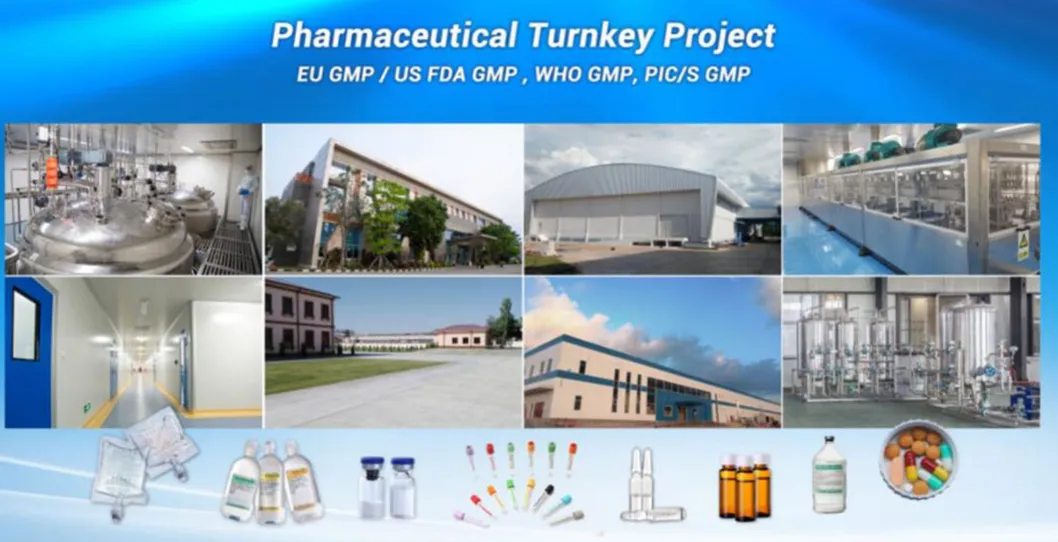

The pioneer supplier of turnkey plants provides integrated engineering solutions for worldwide pharmaceutical and medical factories, including vacuum blood collection tubes, syringes, and needles, in compliance with EU GMP, US FDA cGMP, PICS, and WHO GMP.

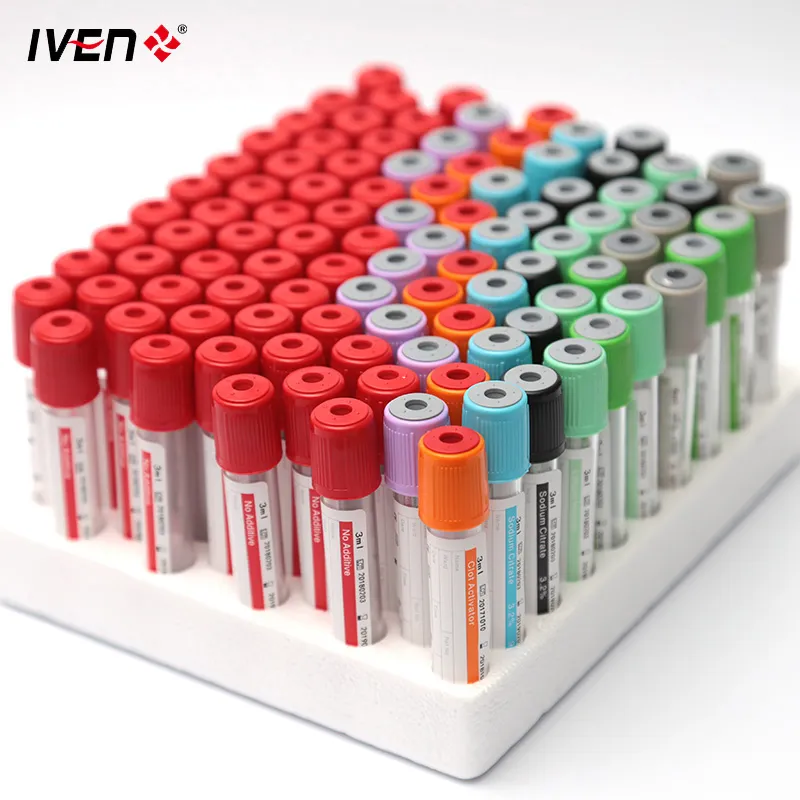

The vacuum blood collection tube turnkey plant includes clean rooms, auto-control and monitoring systems, pharmaceutical water treatment, cap and tube injection systems, and complete assembly lines. Custom engineering solutions focus on:

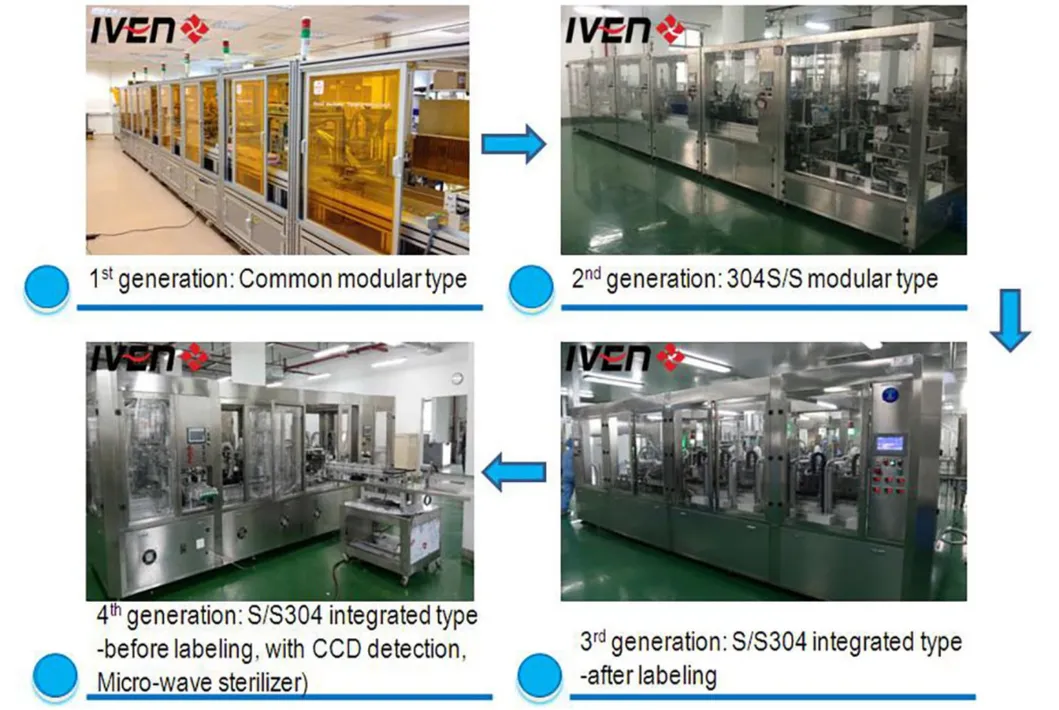

Adopting advanced vacuum blood collection tube production technology developed over 15 years, the latest generations of assembly lines provide the most efficient manufacturing standards for turnkey plants.

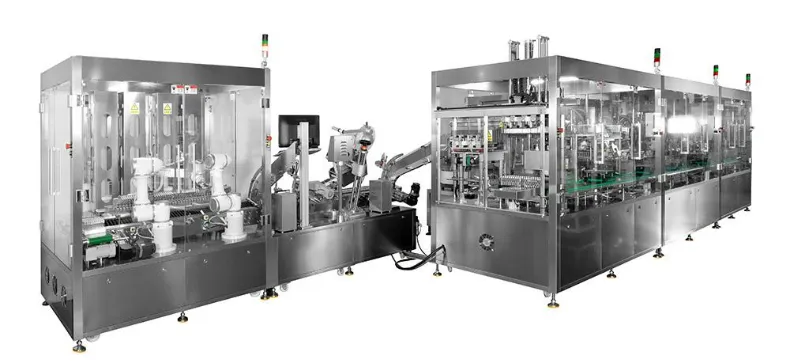

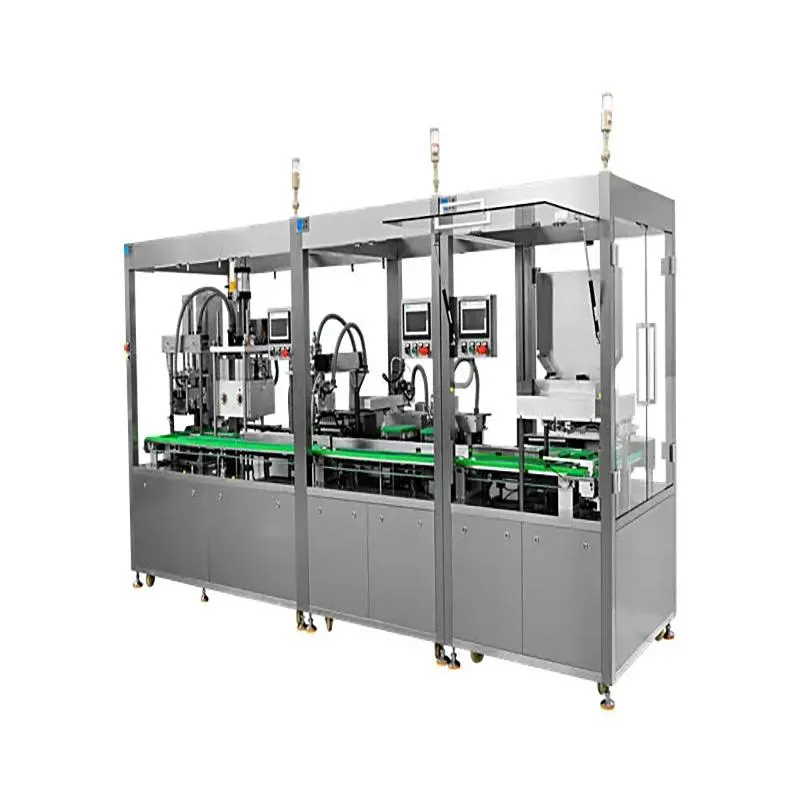

S/S 304 Combination Type Vacuum Blood Collection Tube Assembling Line

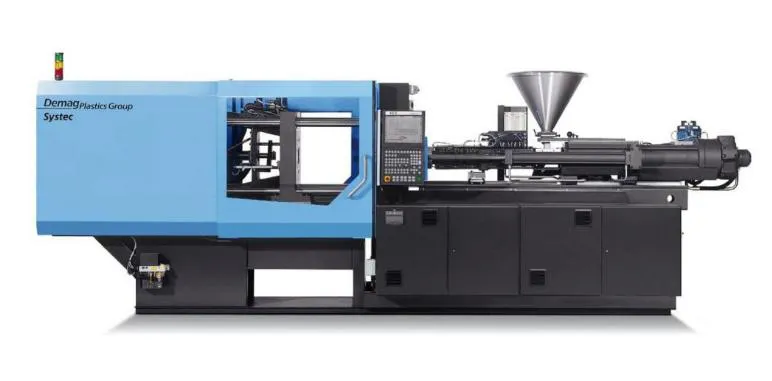

1. Injection Molding: High-quality machines for tubes and caps ensuring precision.

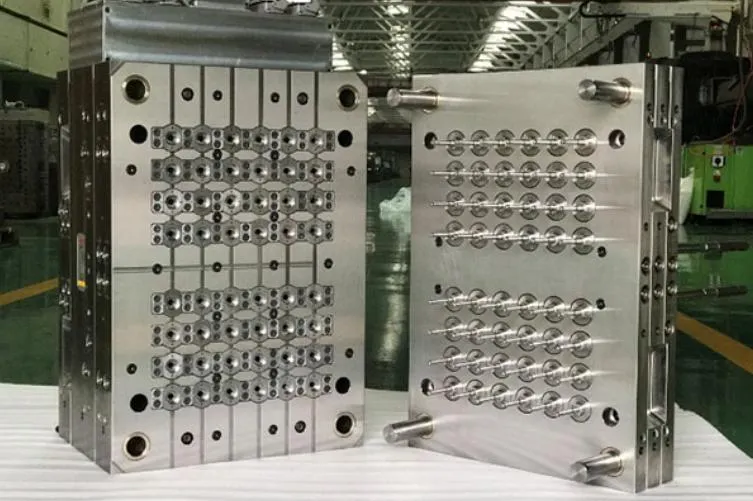

2. Injection Mold: Utilizing hot runner systems to save material and maintain quality.

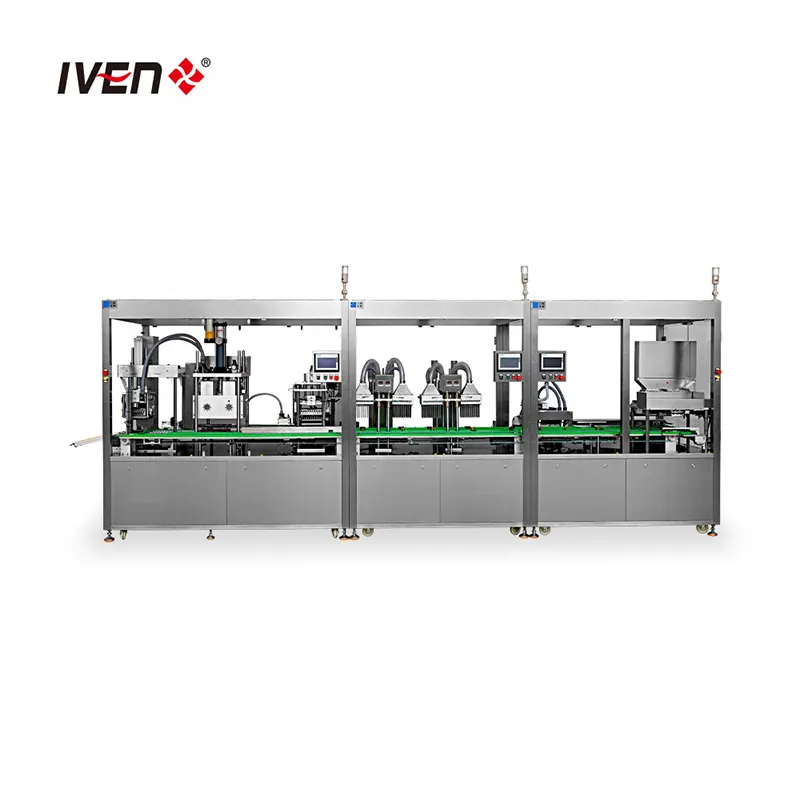

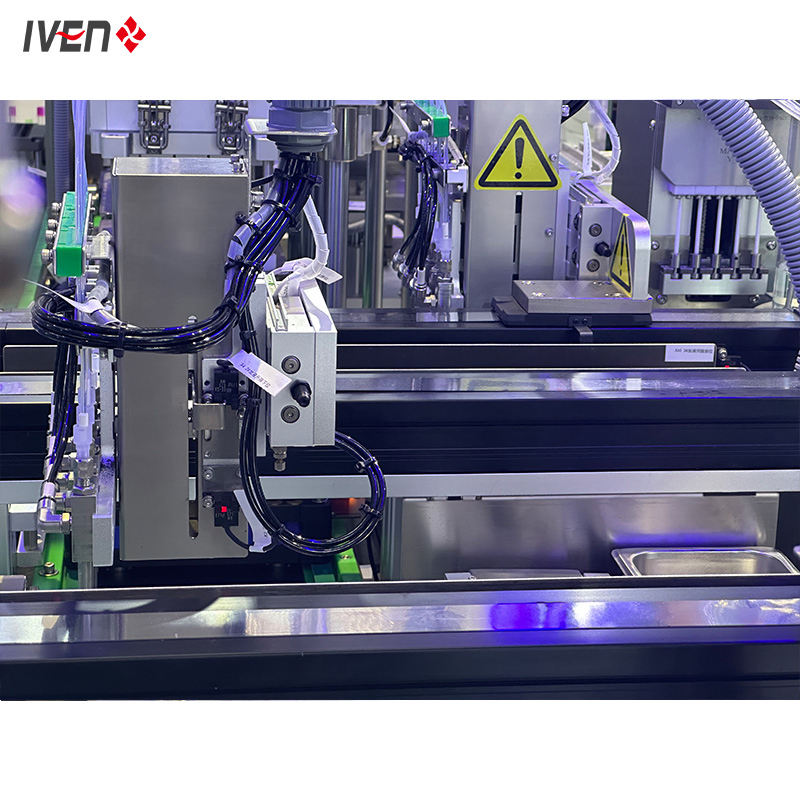

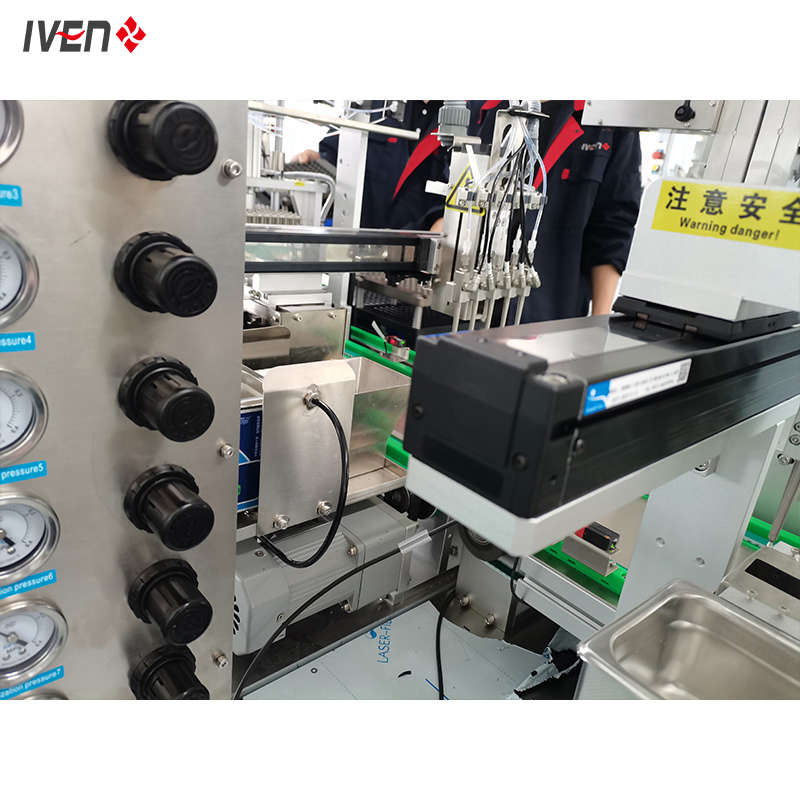

3. Assembling Line: Includes loading, dosing, drying, capping, and vacuuming.

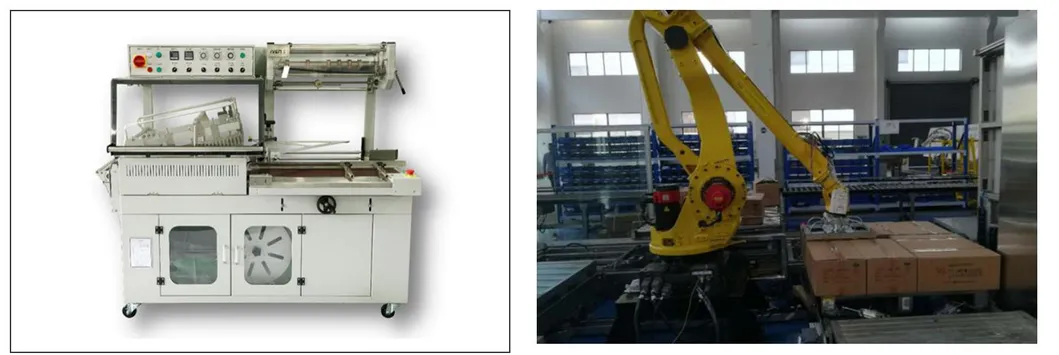

4. Packing Line: Automatic or manual shrink packaging and carton loading.

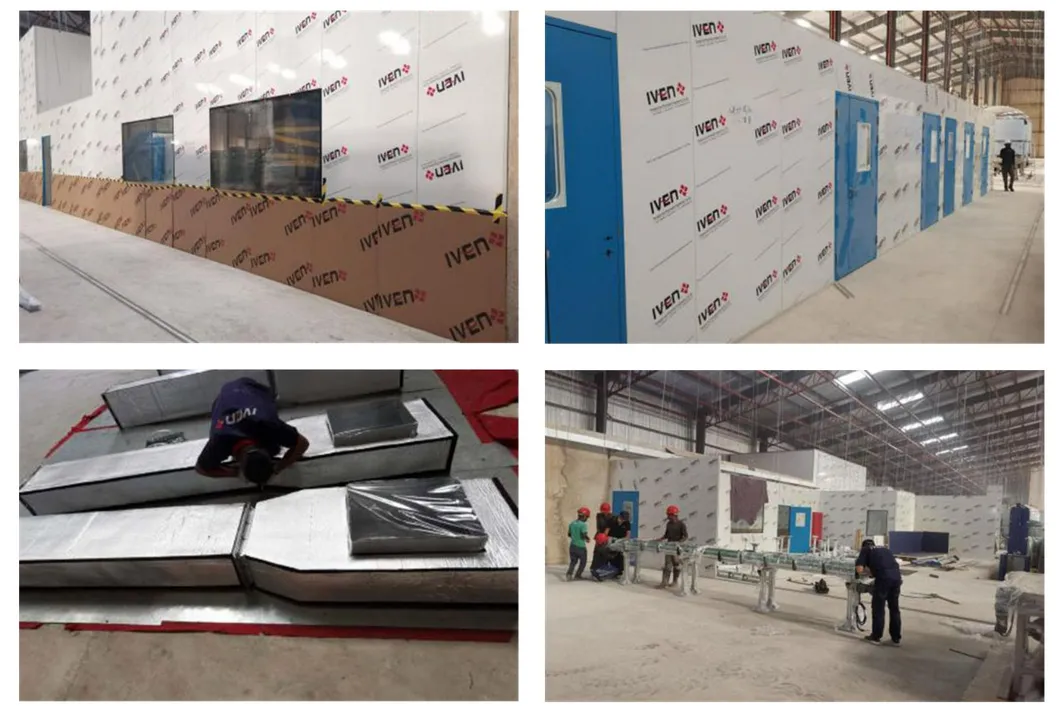

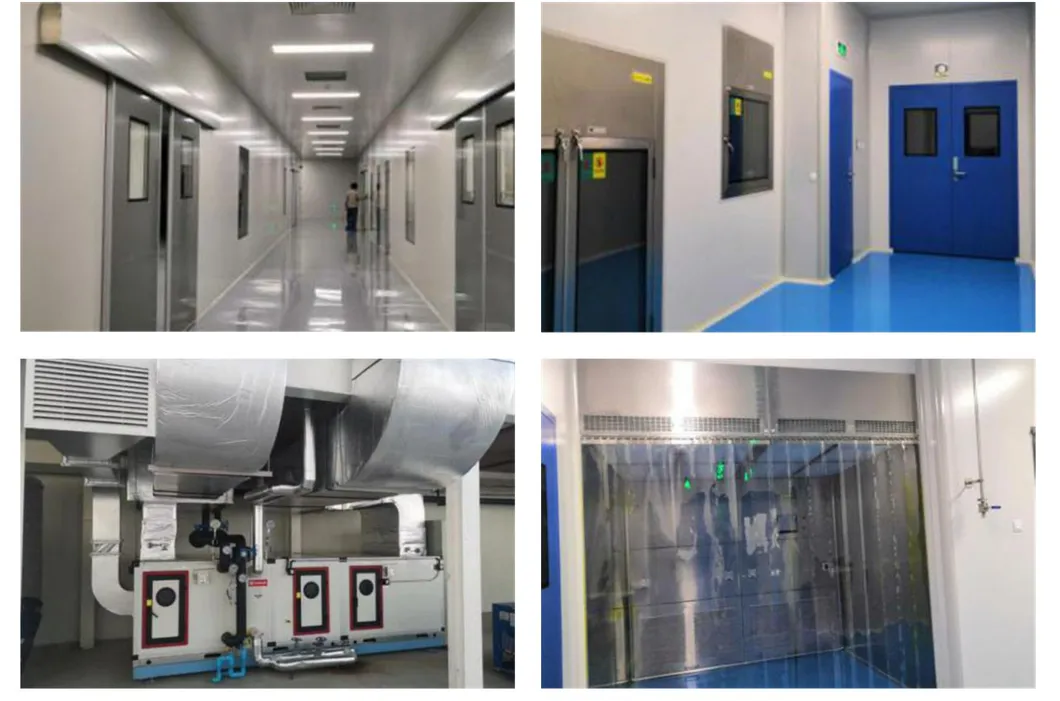

5. Clean Room & HVAC: Integrated wall panels, HEPA filters, and auto-control for Class C + A environments.

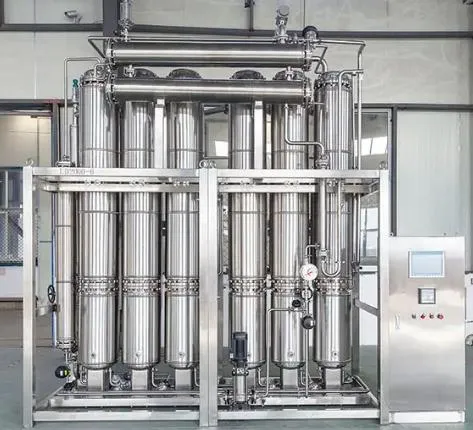

6. Pharmaceutical Water: Includes 2RO purified water treatment systems.

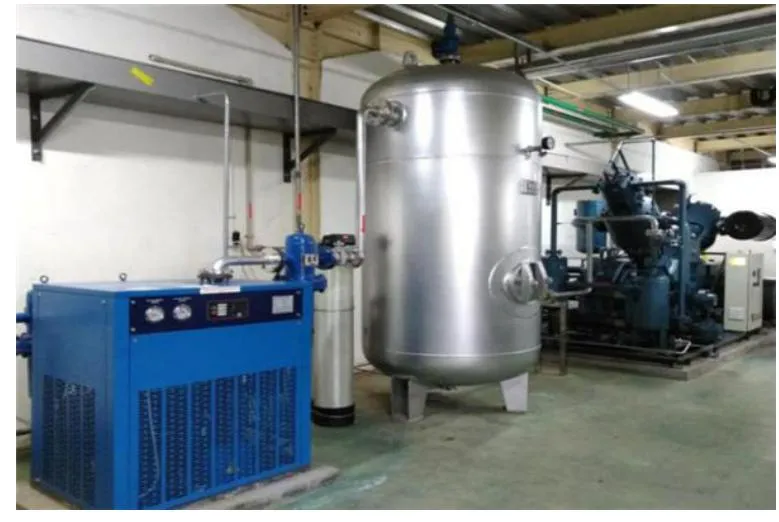

7. Air Compressor: Supplies necessary compressed air for the entire facility.

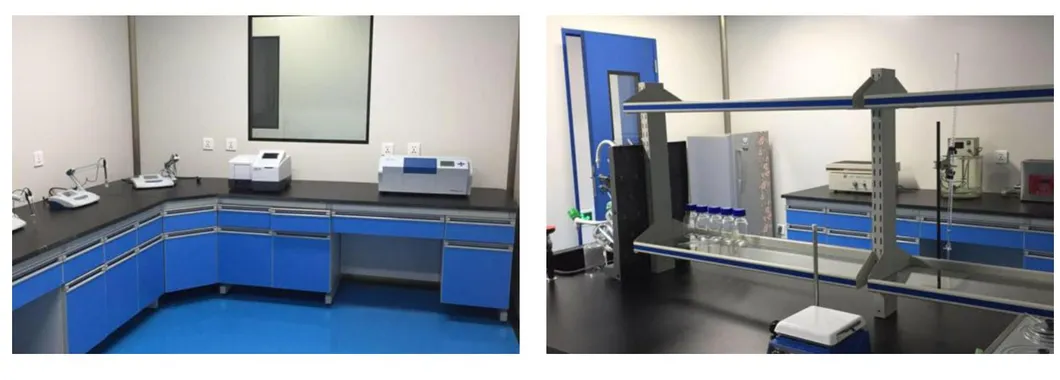

8. Laboratory: Complete lab instruments and furniture for raw material and sample testing.
Professional technical teams provide onsite training and after-sales support to ensure long-term technical assurance. Full range documentation (IQ/OQ/PQ/DQ) is provided to facilitate GMP & FDA certification.

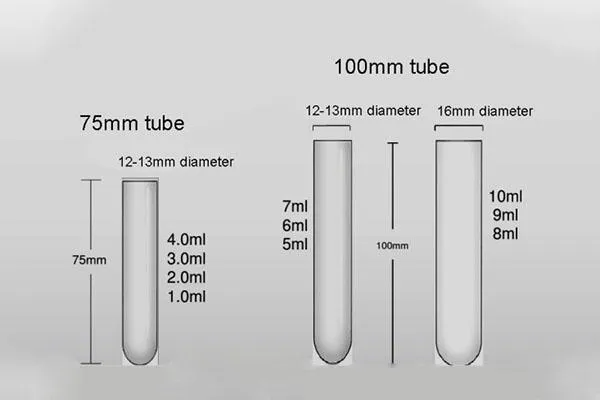

One line suits 13*75mm, 13*100mm, and 16*100mm tubes.

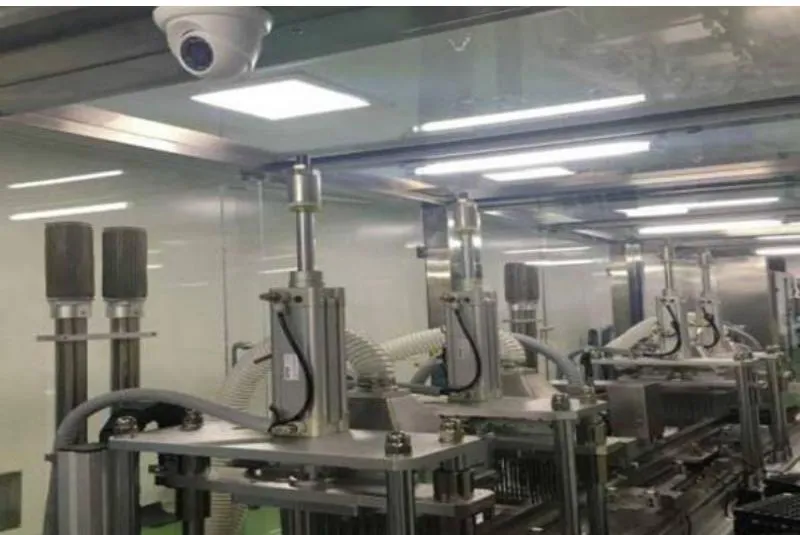

Remote control system for online trouble shooting.

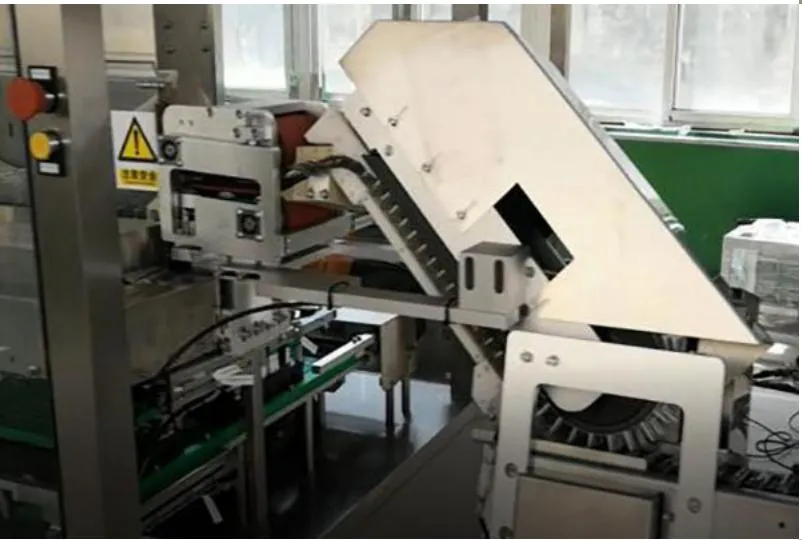

Auto connection between labeling and assembling line.

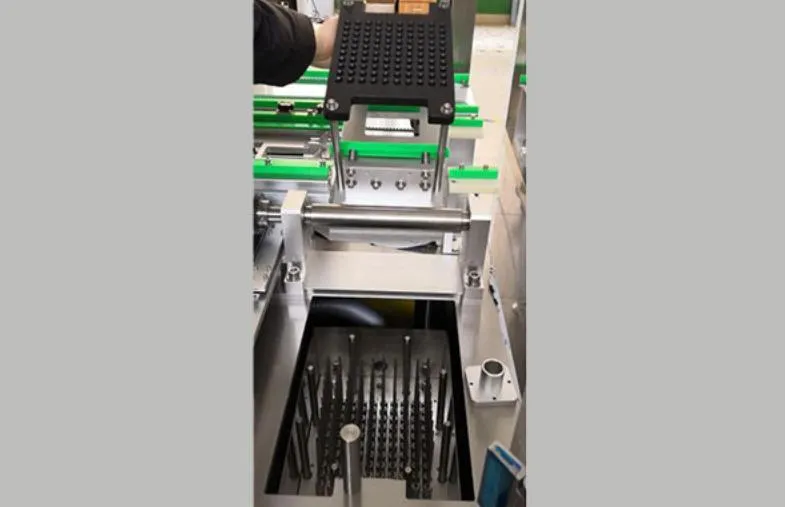

Ionic air cleaning for empty tubes.

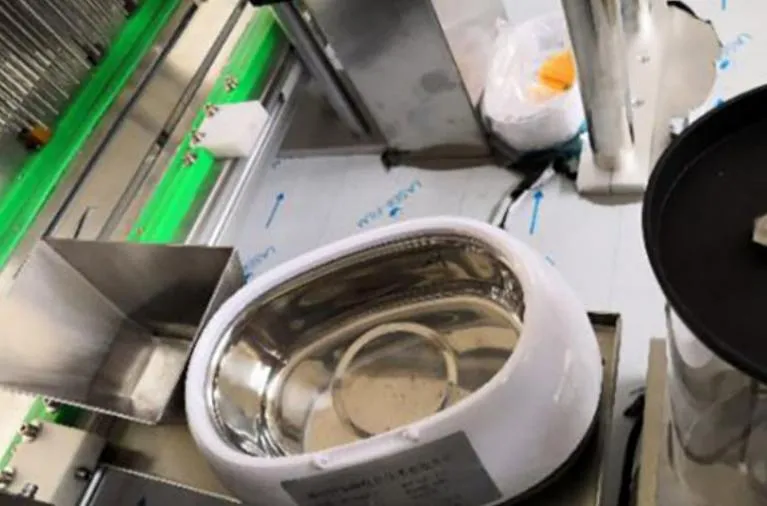

Automatic ultrasonic washing for dosing nozzles.

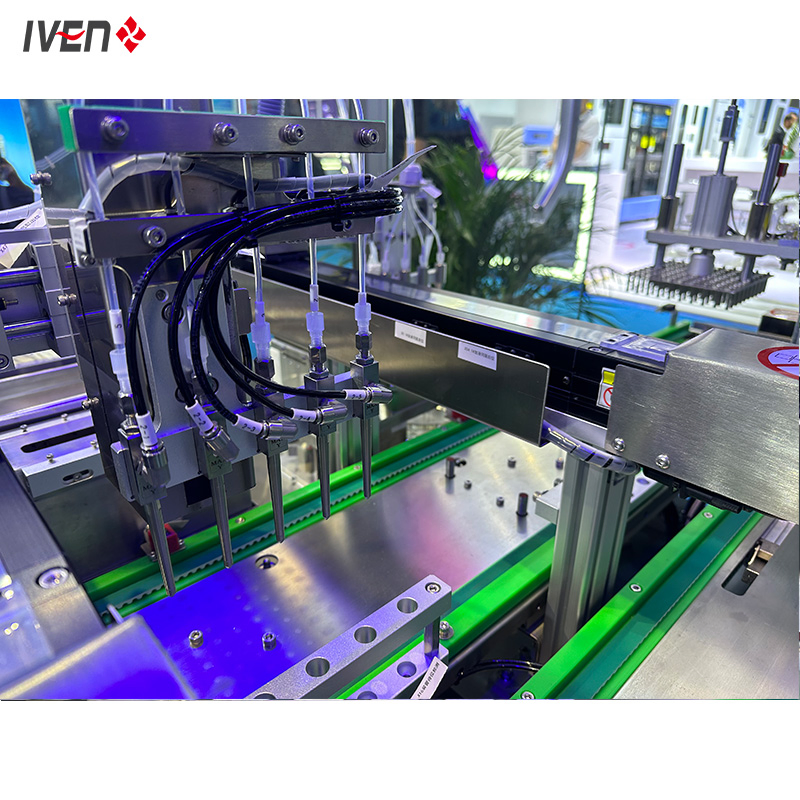

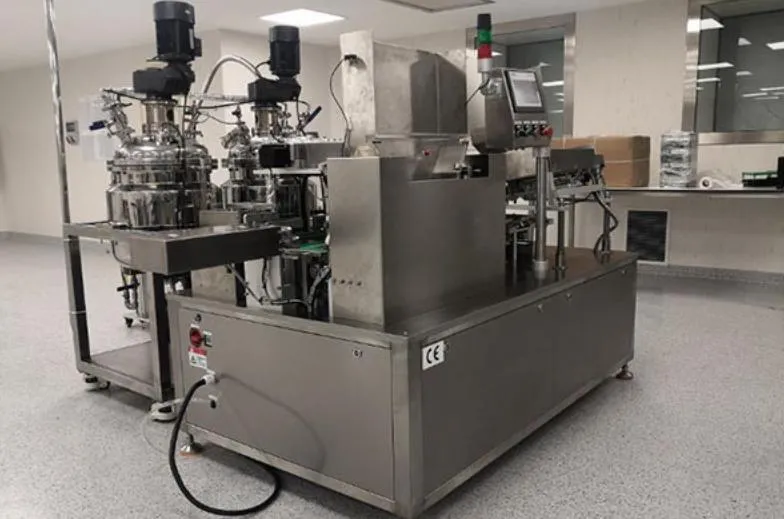

Automatic tube loading, gel filling, and collection.
| No. | Parameter | Specifications |
|---|---|---|
| 1 | Applicable Tubes | Ø13×75/100mm & Ø16×100mm PET or Glass |
| 2 | Production Capacity | 15,000 - 20,000 Pcs/H (Varies by additive) |
| 3 | Dosing Accuracy | ≤5% (Ceramic syringe / Metering pump) |
| 4 | Drying Method | PTC heating with high pressure fan |
| 5 | Cap Spec | Upward Type |
| 6 | Form Tray | Interlace type and Rank type |
