| Model NO. | HTCM500 |
| Control Type | Handheld |
| Warranty | 1 Year |
| Laser Source | JPT |
| Laser Power | 500W |
| Pulse Frequency Range | 1-4000kHz |
| Maximum Pulse Energy | 1.5mj / 15mj |
| Fiber Cable Length | 10 Meters (Customizable) |
| Laser Wavelength | 1064nm |
| Cooling System | Air Cooling |
| Laser Working Mode | Pulse |
| Scanning Width | 0-145mm Optional |

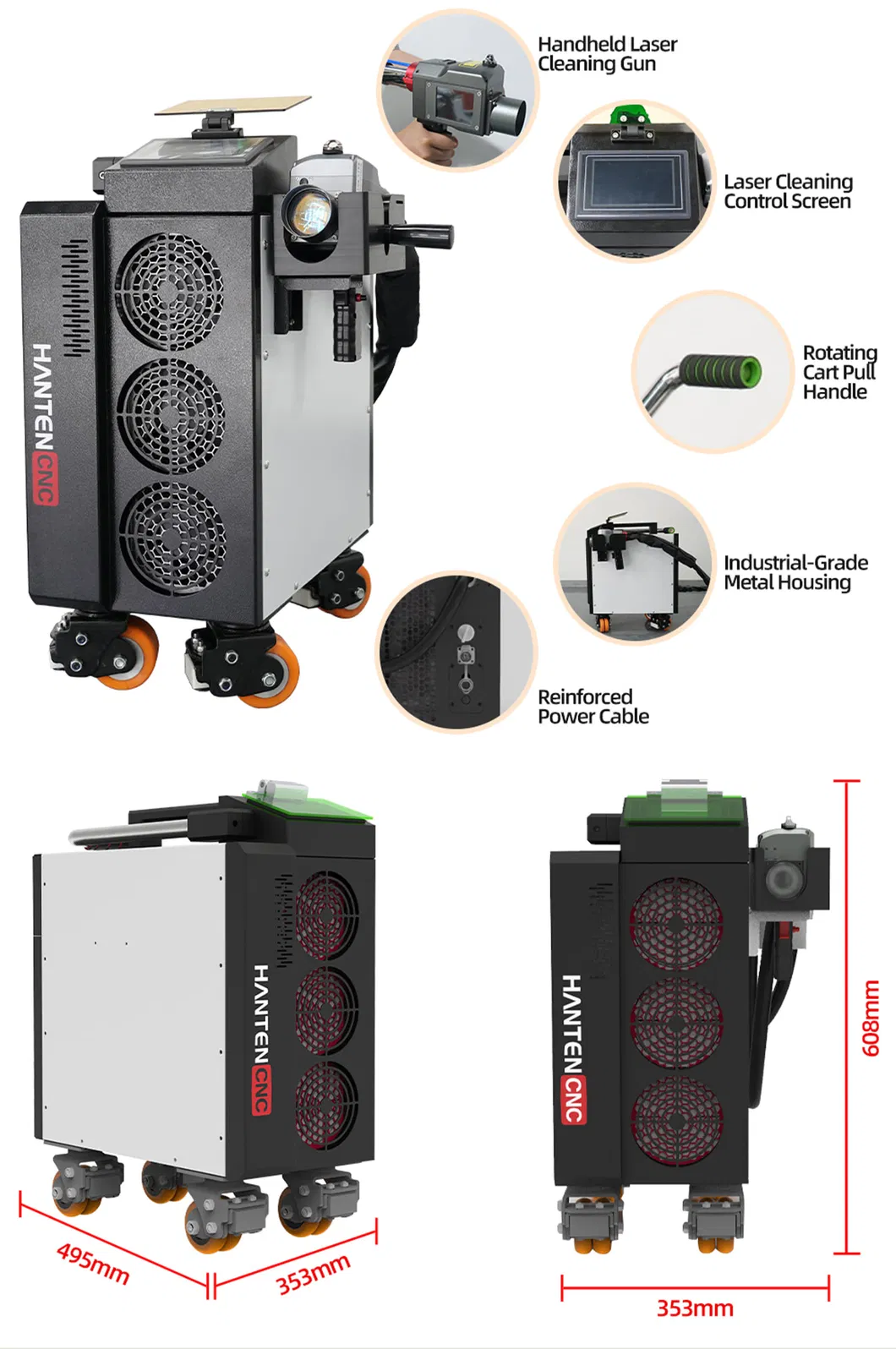

| Machine Dimensions | 495mm*353mm*608mm |
| Machine Weight | 50kg |

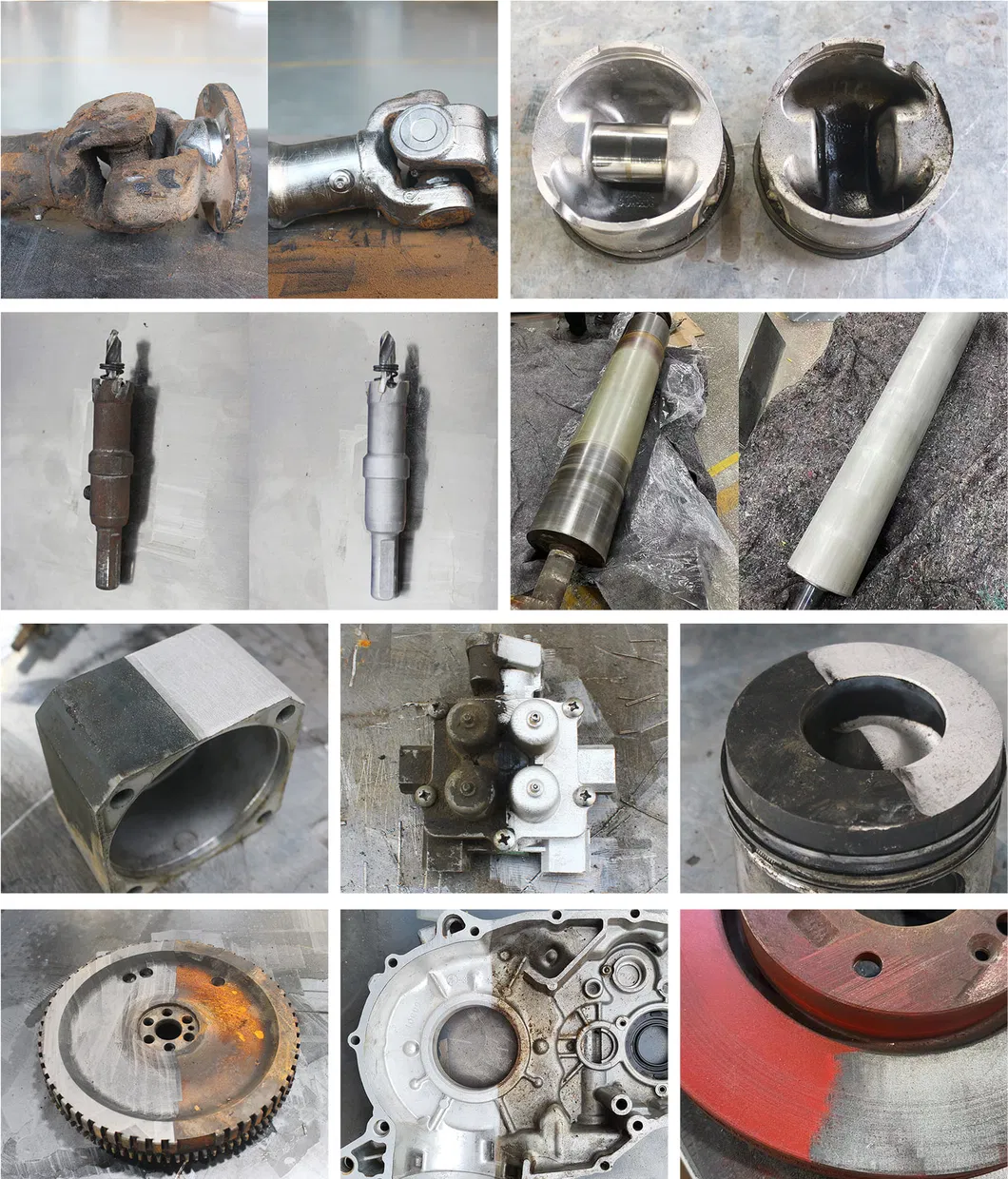

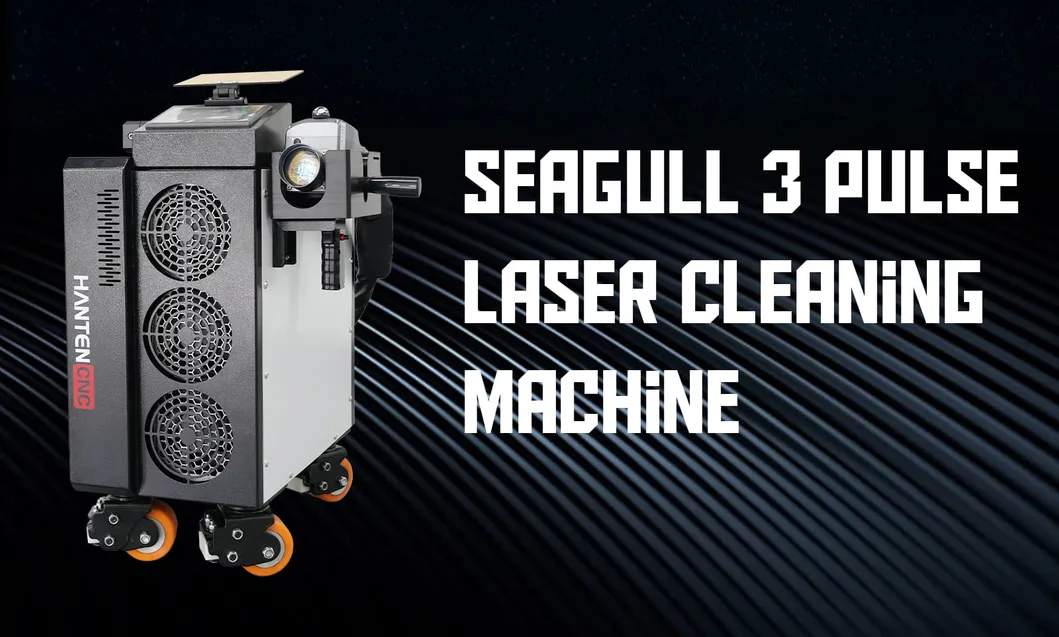

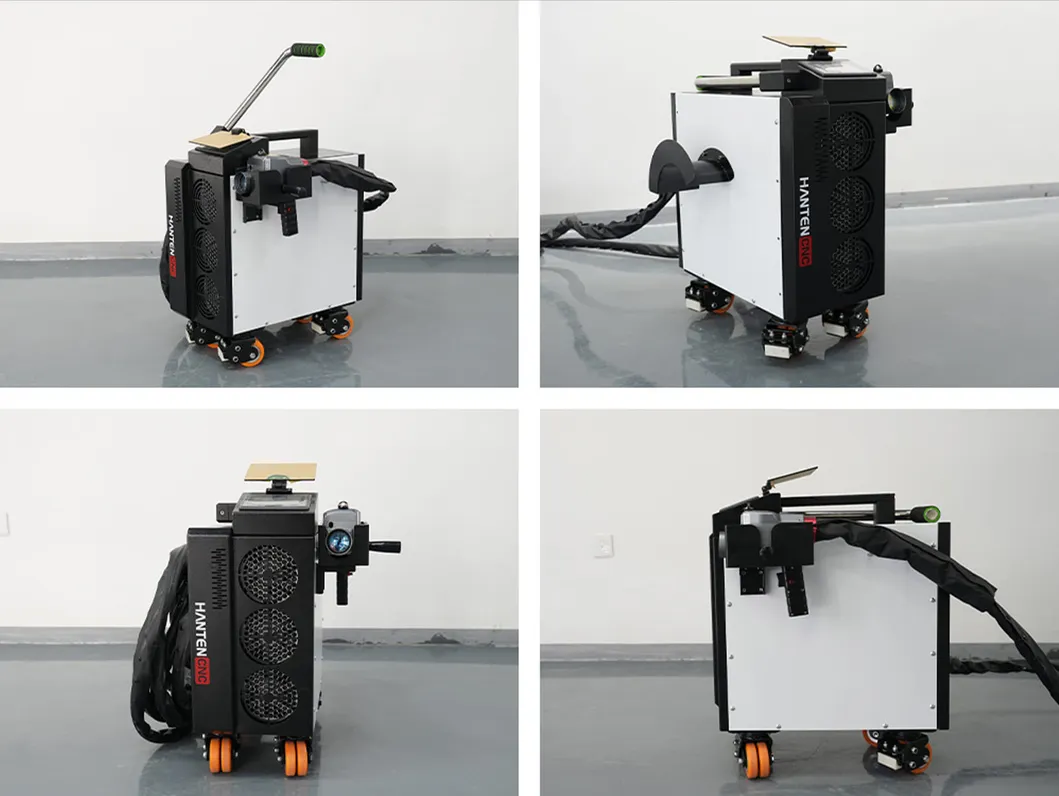

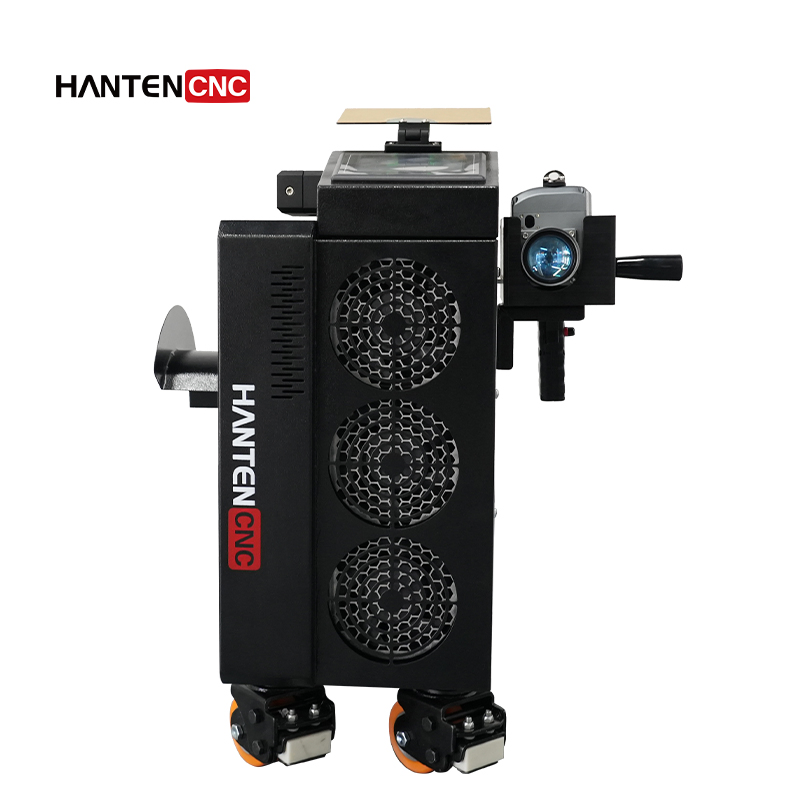

The 500W pulsed air-cooled laser cleaning machine features high-power capabilities to quickly and effectively remove dirt, oxides, and coatings from various surfaces. Laser cleaning is a non-contact method, ensuring the substrate surface remains undamaged while maintaining the original quality and precision of the workpiece. The precisely controlled laser beam is ideal for cleaning complex shapes and small areas, meeting fine processing requirements.

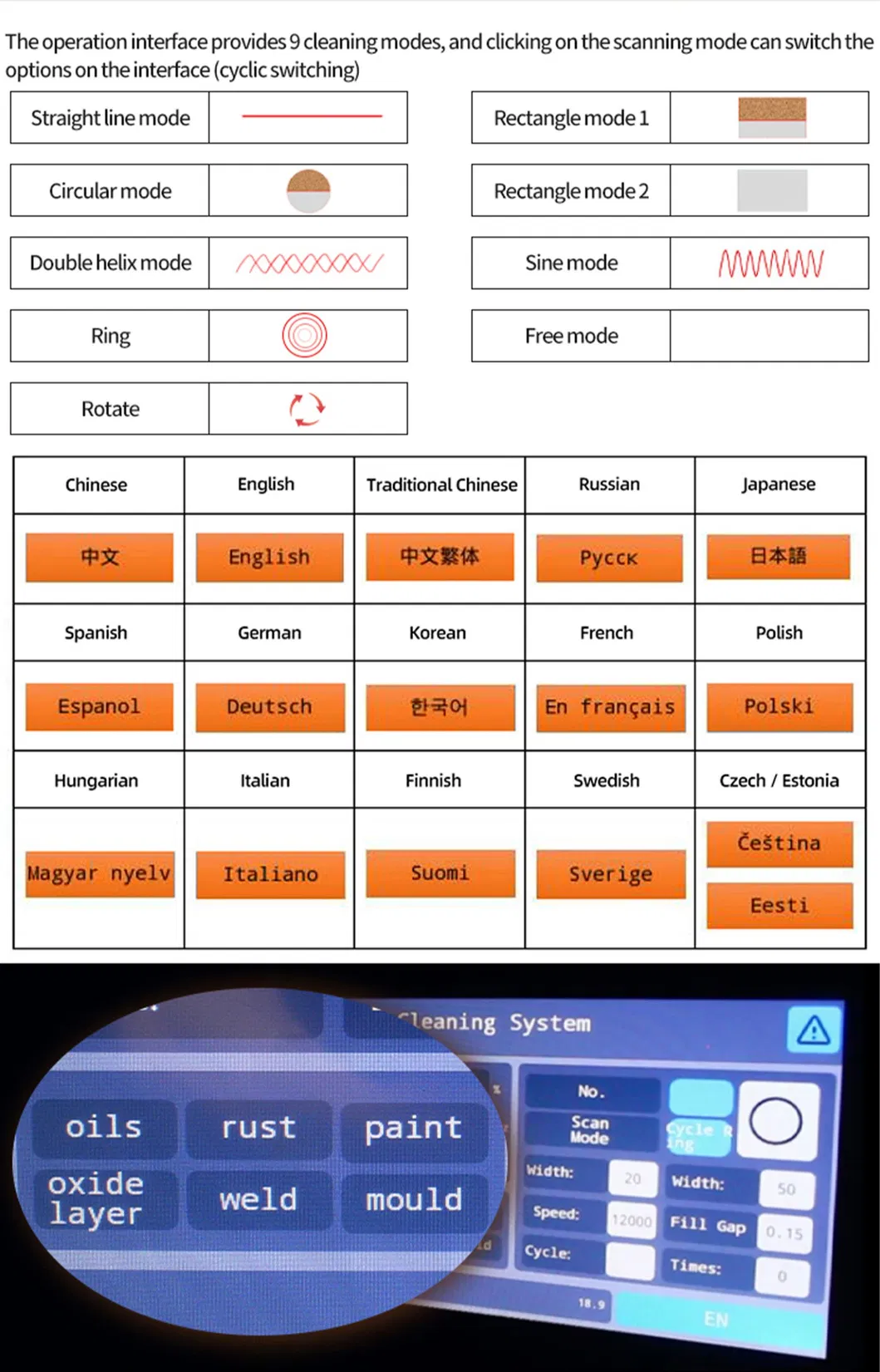

The system offers 9 different scanning modes for cleaning: Straight Line, Rectangular Mode 1, Rectangular Mode 2, Circular, Sinusoidal, Spiral, Free Mode, Ring Mode, and Rotation Mode.
Users can select modes based on specific requirements—gentler modes for high-surface finish materials and powerful modes for stubborn dirt or coatings.
The machine supports 16 languages including English, Russian, Japanese, Spanish, German, Korean, French, Polish, Chinese, and more. Languages can be switched directly on the interface, with customized language services available upon request.
| MODEL | HTCM500 |
|---|---|
| Supply voltage | AC 110V/220V 50/60Hz |
| Laser power | 500W |
| Pulse frequency range | 1-4000khz |
| Maximum pulse energy | 1.5mJ / 15mJ |
| Fiber cable length | 10 Meters |
| Laser wavelength | 1064nm |
| Operating temperature | 5ºC~40ºC |
| Cooling system | Air cooling |
| Scanning width | 0-145mm Optional |
| Cleaning Gun Weight | <1.5Kg |
