Customization: Available
Sensing Method: Electric
Application: Access Control System
Send Inquiry

Product Description

📋 Basic Information
Model NO.
ES160-AG-S
Movement
Double Movement
Type
Wing Gate
Control Mode
Automatic
Communication
RS485, TCP/IP
Shell Material
SUS-304 Stainless Steel
Drive Motor
DC 24V
Infrared Sensor
16+ Pairs
🔍 Product Description

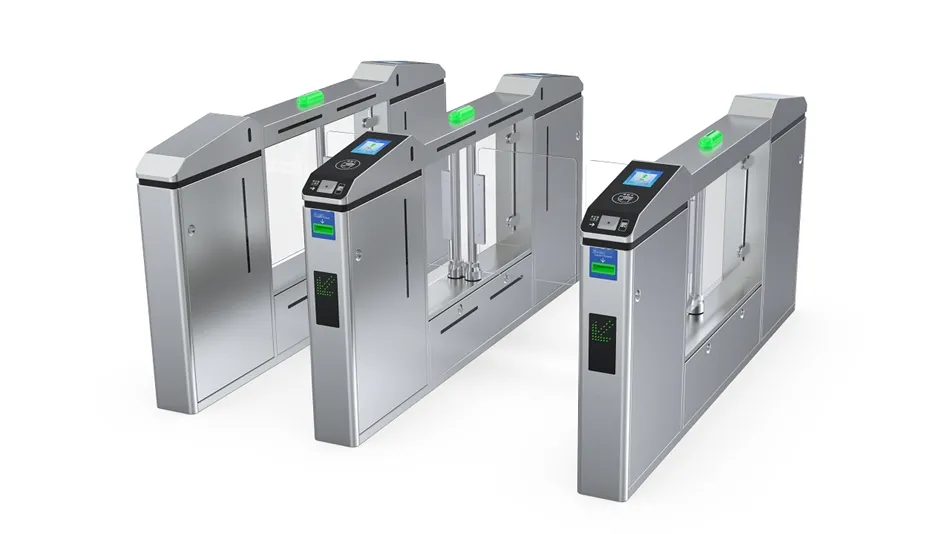

Self-Service Ticket Machines

AFC-AG-S Self-Service Solution

This self-service ticket machine features a classic and stylish design, with the entire unit made of SUS304 stainless steel. The barrier unit uses a swing mechanism, and the corners of the casing are rounded with no protruding structures. It supports RFID or 1D/QR code reading and validation for access. It is ideal for high-traffic environments such as subway or BRT stations.

🚀 Product Applications
📍
Primary Industries:

Bus Rapid Transit (BRT) industry, Rail transit industry, Subway stations, and High-speed rail hubs.

📏 Technical Specifications
Technical Specifications Description
Shell materialSUS-304 stainless steel
Door wing materialAcrylic
Power supplyMeet local power requirements
Drive motorDC 24V
Infrared sensor≥ 16 pairs
Static power consumption≤ 150W
Working power consumption≤ 450W (excluding heating module)
Noise level≤ 50dB
Average fault-free runs≥ 100,000 times
Operating Temperature-10 ℃ to +55 ℃
ScalabilityCompatible with IC/ID cards, QR codes, and facial recognition
✨ Product Features
🛡️
Safety Inspection: Real-time monitoring of sensors to ensure safe passage.
🚦
Traffic Mode: Controlled one-way/two-way passage with normal open/closed modes.
🧠
Intelligent Recognition: Detects tailgating, crawling, and unauthorized entries.
🔥
Emergency Linkage: Automatic opening during fire or security emergencies.
🔔
Alarm Alert: Sound and light alarm prompts for illegal passage.
🔄
Auto-Reset: Automatically cancels access if authorization is not granted.
📐 Product Dimension Diagram

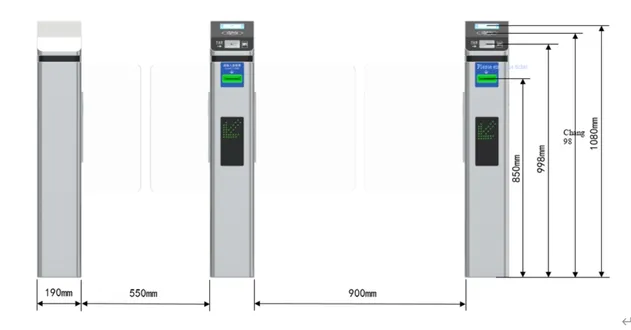

Dimension 1
Dimension 2

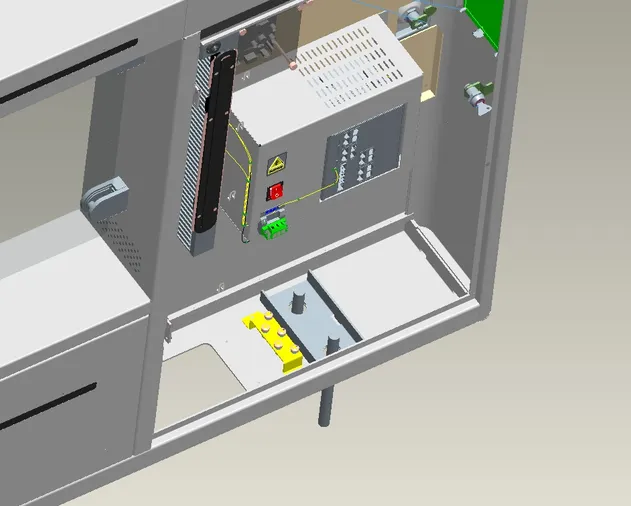

Dimension 3
Frequently Asked Questions
Which industries are swing gates suitable for and why?
Swing gates are ideal for BRT, airports, and rail transit. Their thinner body compared to flap gates makes them perfect for space-constrained environments like BRT stations, and their transparent design is more aesthetically pleasing.
Why are tripod turnstiles not recommended for public transportation?
Tripod turnstiles cannot accommodate luggage, strollers, or wheelchairs and are easily bypassed by crawling. Swing gates provide wider passage (900mm-1100mm) suitable for all users.
What materials are used in the construction of these gates?
The main shell is constructed from high-quality SUS-304 stainless steel, while the door wings are made from durable acrylic material.
How many sensors are used for safety monitoring?
The system is equipped with at least 16 pairs of infrared sensors to ensure real-time monitoring of personnel passage and prevent accidents.
How does the system handle emergency situations like a fire?
The gate features emergency linkage functionality. In case of fire or security triggers, the wings automatically open to form an unobstructed evacuation route.
Can the system be integrated with facial recognition?
Yes, the system is highly scalable and compatible with various biometric devices, including facial recognition, IC/ID cards, and QR code scanners.
